SE-106
REAR SEAT
Revision: October 20052005 QX56
Disassembly and AssemblyEIS004YV
Second Row RH
WIIA0473E
Page 3072 of 3419
REAR SEAT
SE-107
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56

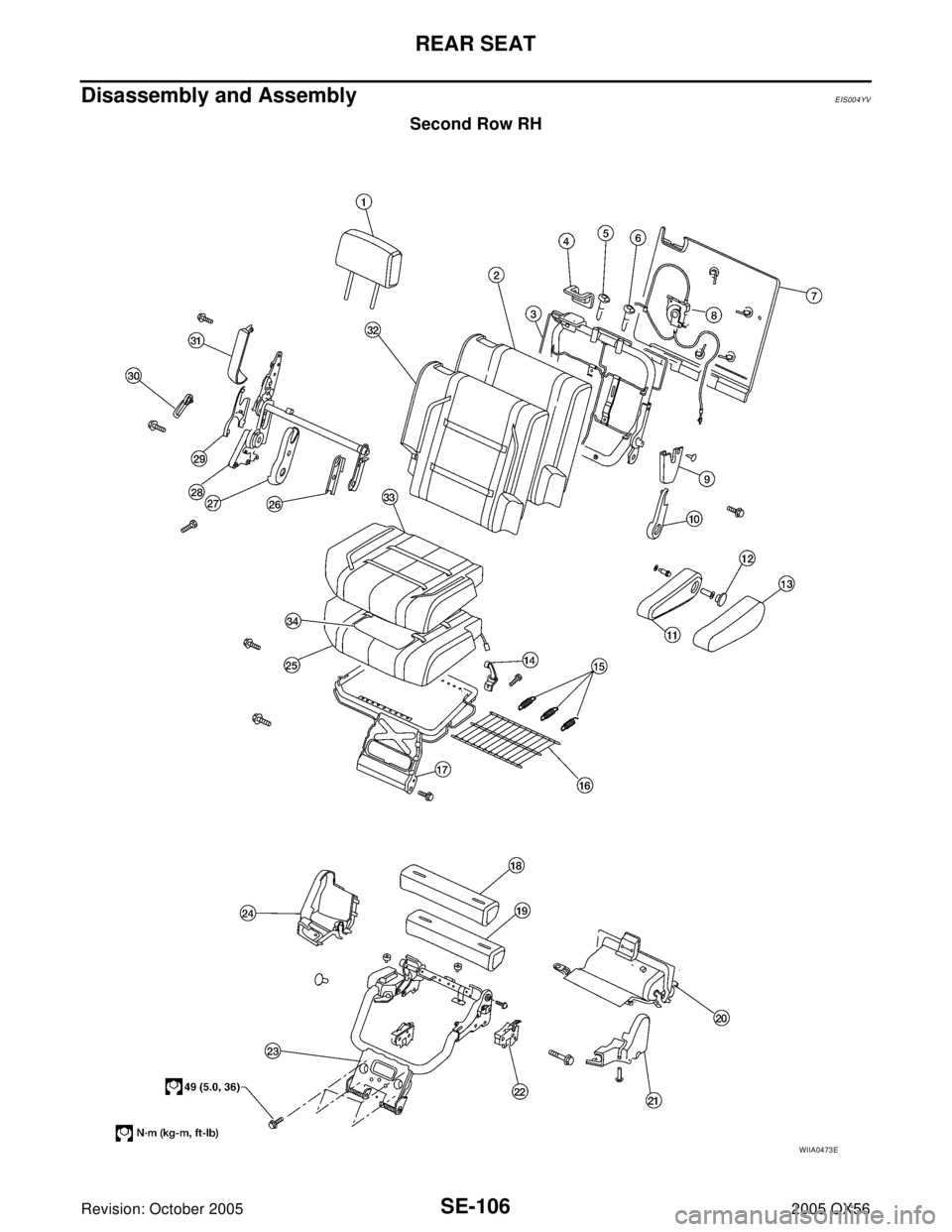

1. Headrest 2. Seatback pad 3. Seatback frame
4. Rear seat bezel 5. RH Headrest guide 6. LH Headrest guide
7. Seat back panel 8. Seat actuator assembly 9. Reclining device inner cover
10. Reclining device inner mid cover 11. Armrest assembly 12. Armrest bolt cover
13. Armrest trim cover 14. Latch assembly 15. Seat cushion mat springs
16. Seat cushion mat 17. Seat cushion frame assembly 18. Seat support trim cover
19. Seat support pad assembly 20. Lower rear seat cover 21. Lower rear seat cover inner
22. Outboard cushion floor latch 23. Seat cushion support frame assem-
bly24. Lower rear seat cover outer
25. Seat cushion pad 26. Inner inboard reclining device cover 27. Outer inboard reclining device cover
28. Seat latch and recliner release 29. Reclining device outer mid cover 30. Reclining device lever
31. Reclining device outer cover 32. Seatback trim cover 33. Seat cushion trim cover
34. Seat cushion heating element
Page 3073 of 3419
SE-108
REAR SEAT
Revision: October 20052005 QX56
Second row center
WIIA0410E
1. Seatback pad 2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide locking
Page 3074 of 3419
REAR SEAT
SE-109
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
7. LH headrest guide free 8. Seatback board 9. Seat bracket cover
10. Armrest pivot bracket cover 11. Seatback frame 12. Seat cushion frame
13. Latch assembly 14. Lower rear pivot bracket support 15. Outer hinge cover
16. Center seat base assembly 17. Link and pivot bracket apron 18. Seat cushion pad
19. Seat cushion trim cover 20. Cushion stop bumper 21. Inner lever cover
22. Seat hinge assembly 23. Seat lever assembly 24 Outer lever cover
25. Seat lock cover 26 Armrest cover 27 Armrest bracket
28 Armrest pad 29 Cup holder 30 Seatback trim cover
Page 3075 of 3419
SE-110
REAR SEAT
Revision: October 20052005 QX56
Second row LH
WIIA0777E

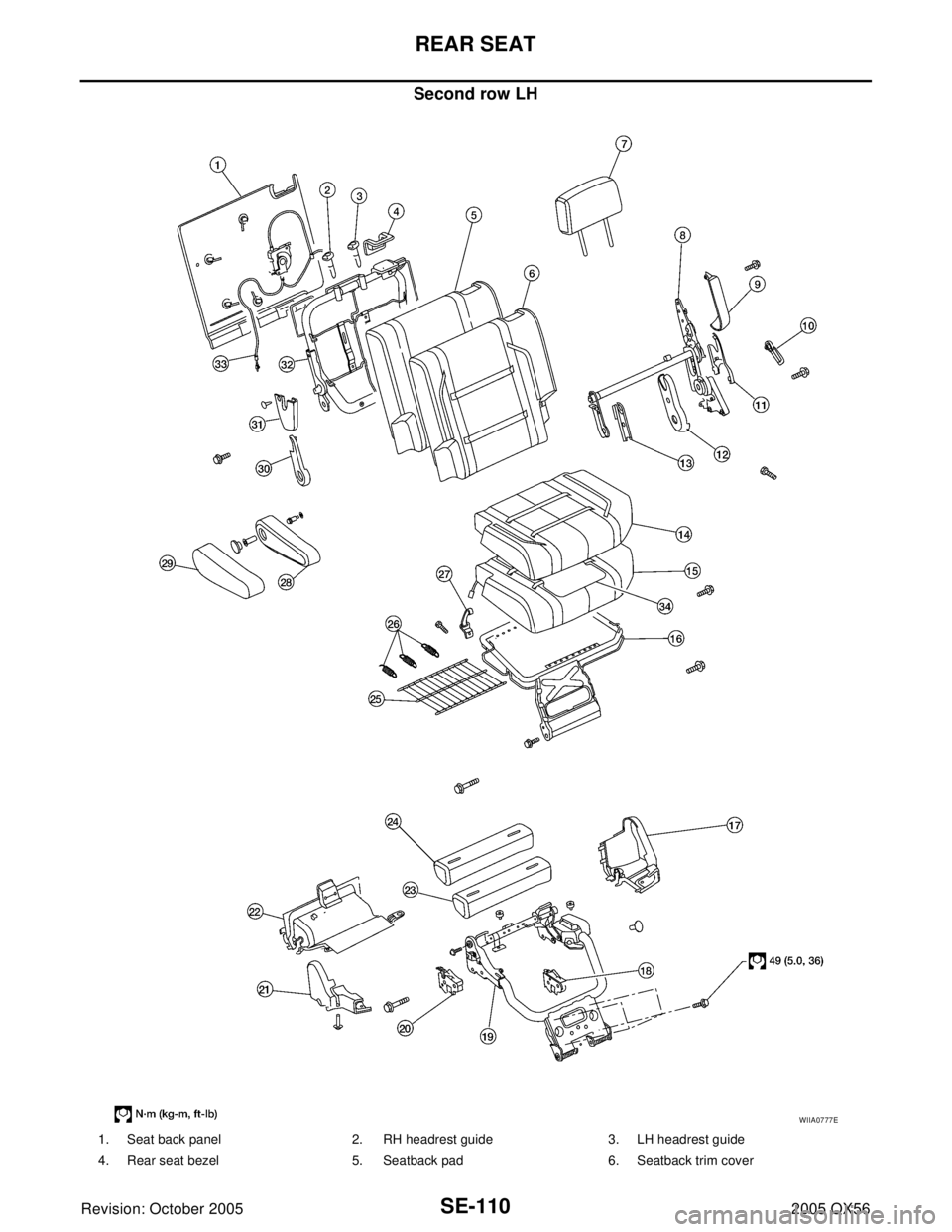

1. Seat back panel 2. RH headrest guide 3. LH headrest guide
