INFINITI QX56 2004 Factory Service Manual ATC-36 TROUBLE DIAGNOSIS Revision: August 20072004 QX56 Self-diagnosis cannot be performed. Go to Trouble Diagnosis Procedure for Self-diagnosis.ATC-120, "Self- diagnosis" Memory function does not ope

Page 442 of 3371

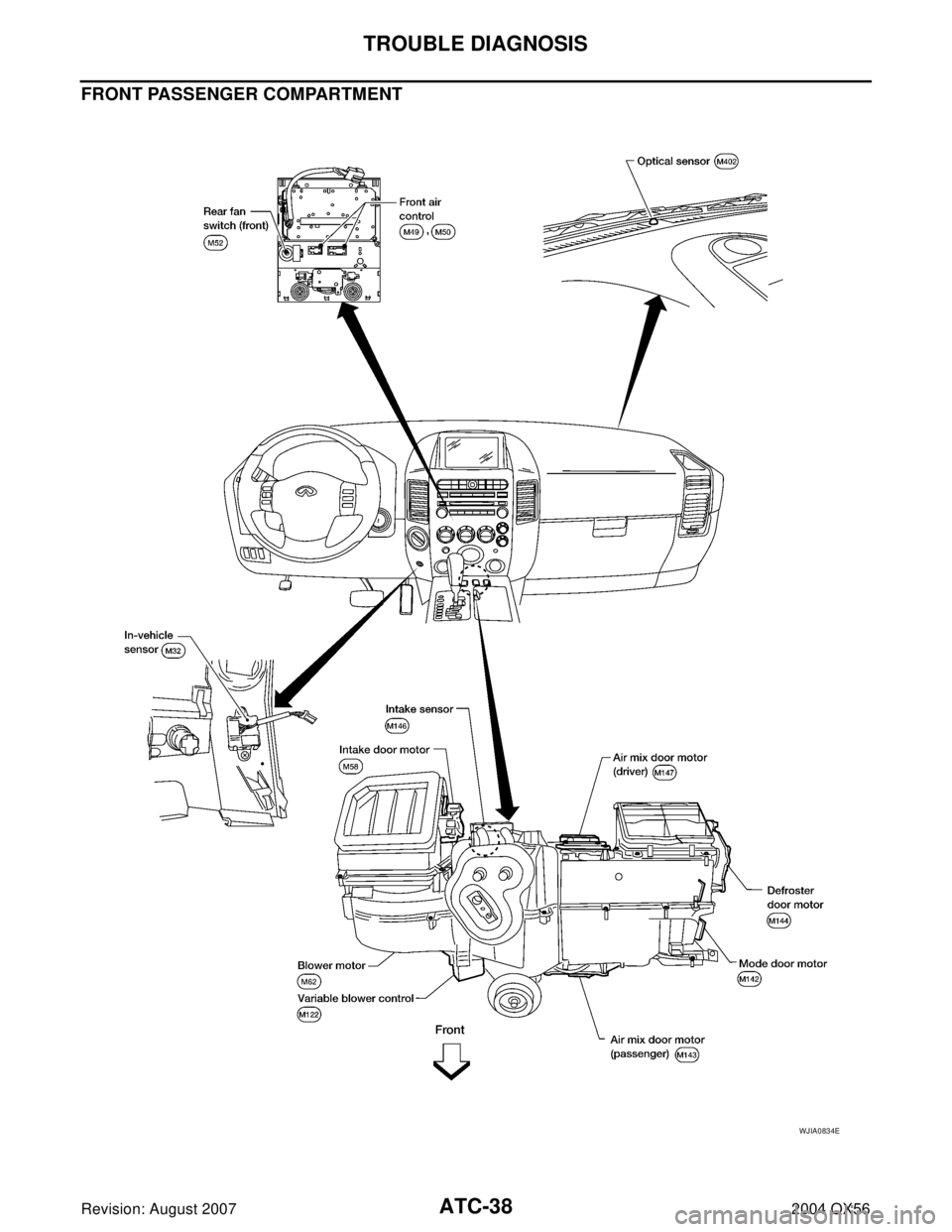

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS ATC-37 C D E F G H I K L MA B AT C Revision: August 20072004 QX56 Component Parts and Harness Connector LocationEJS002C6 ENGINE COMPARTMENT WJIA0833E

Page 443 of 3371

INFINITI QX56 2004 Factory Service Manual ATC-38 TROUBLE DIAGNOSIS Revision: August 20072004 QX56 FRONT PASSENGER COMPARTMENT WJIA0834E

Page 444 of 3371

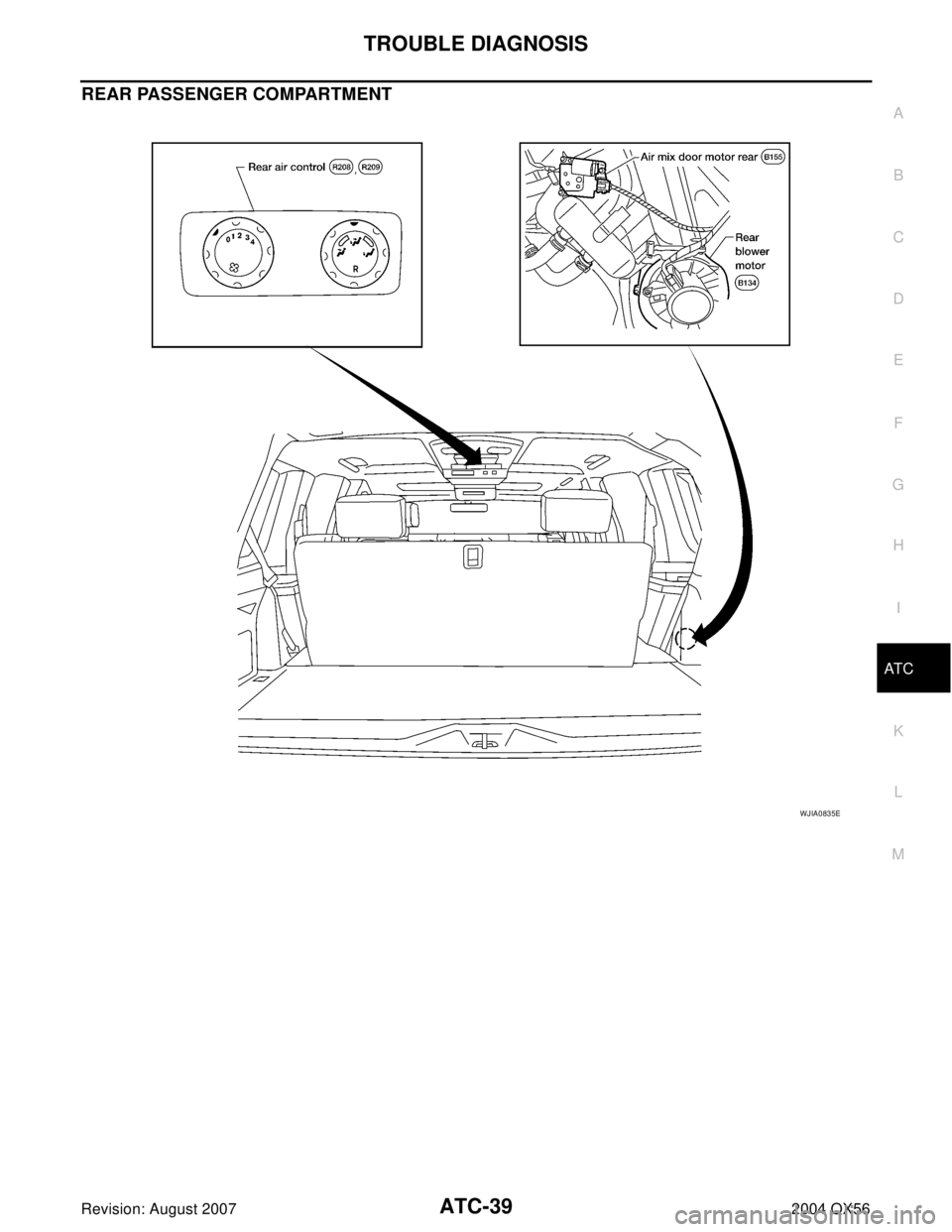

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS ATC-39 C D E F G H I K L MA B AT C Revision: August 20072004 QX56 REAR PASSENGER COMPARTMENT WJIA0835E

Page 445 of 3371

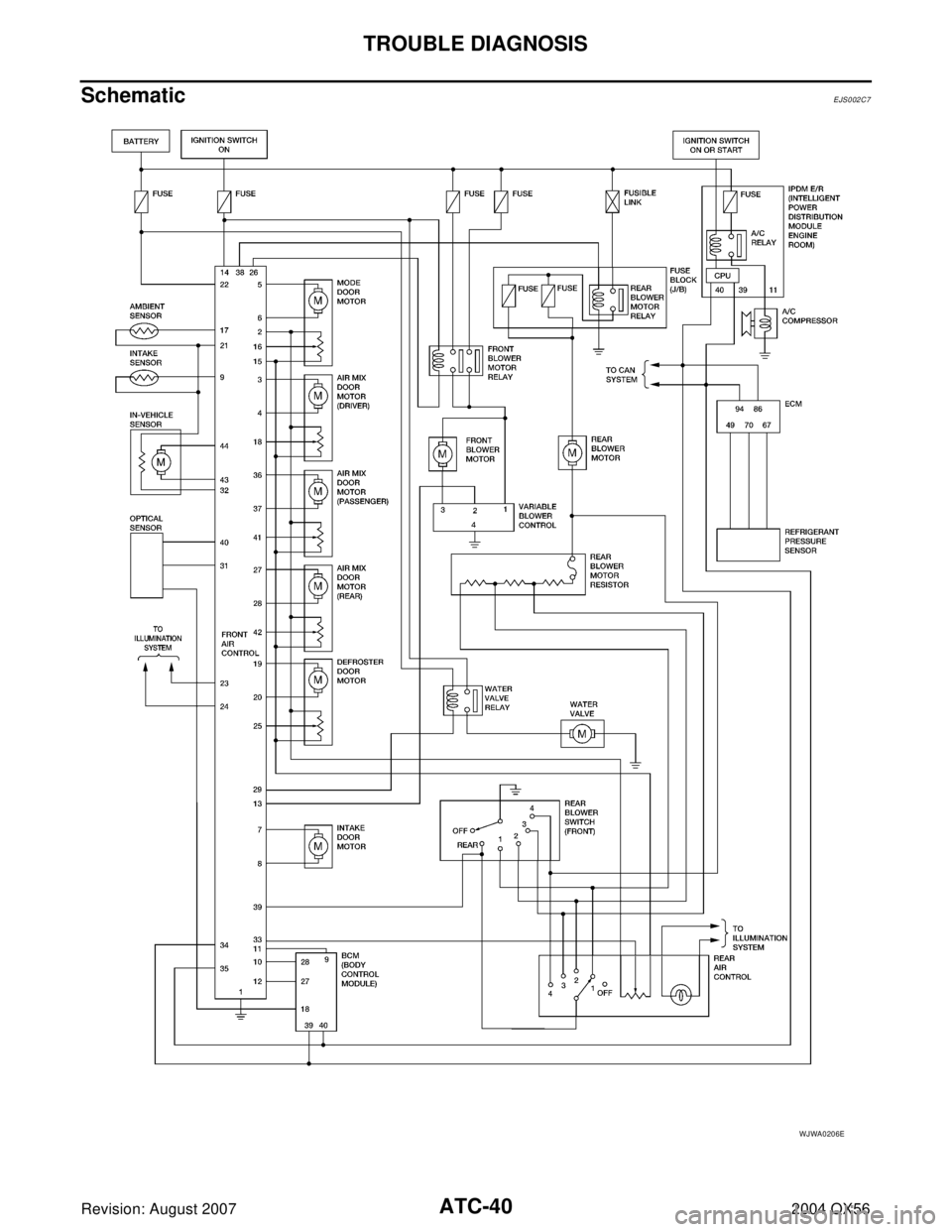

INFINITI QX56 2004 Factory Service Manual ATC-40 TROUBLE DIAGNOSIS Revision: August 20072004 QX56 SchematicEJS002C7 WJWA0206E

Page 446 of 3371

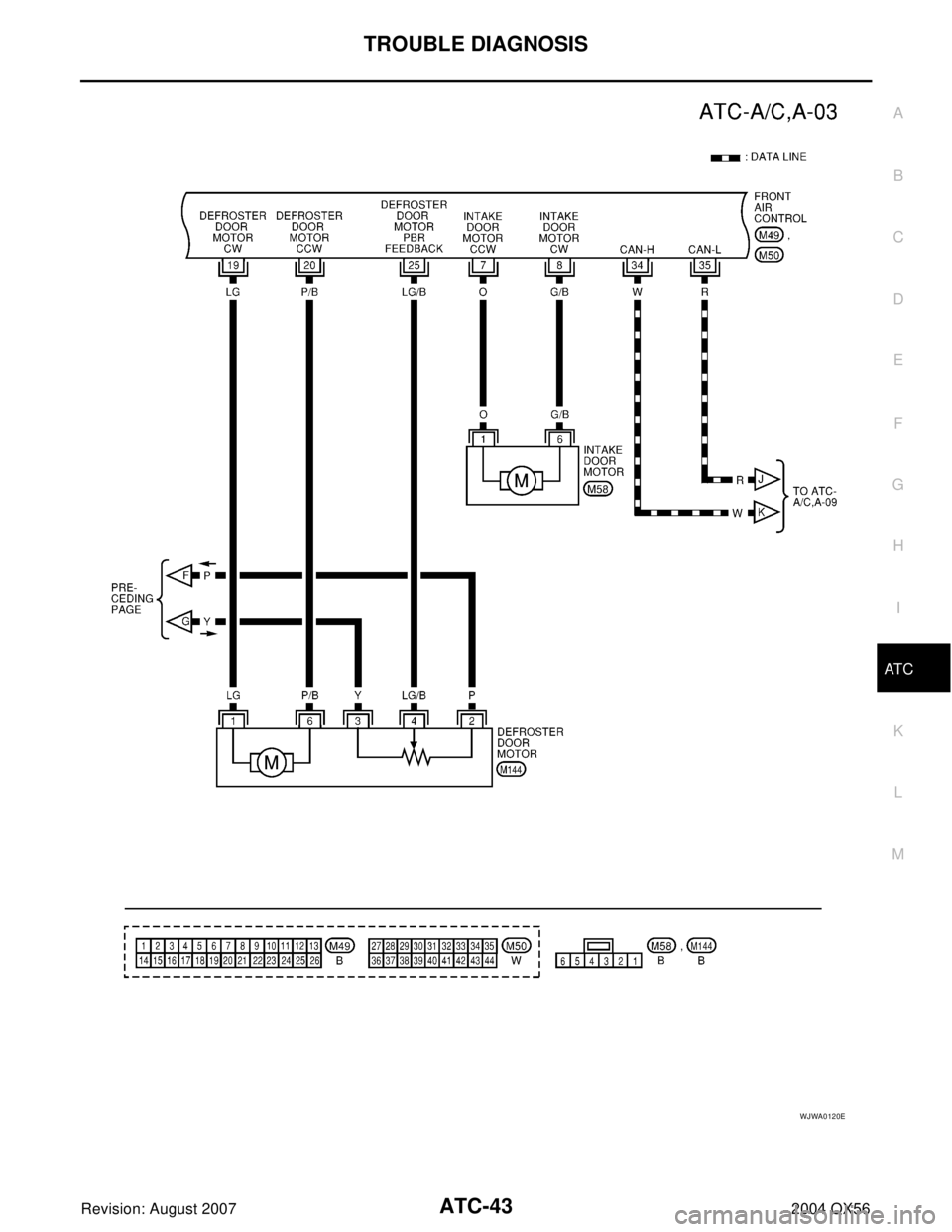

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS ATC-41 C D E F G H I K L MA B AT C Revision: August 20072004 QX56 Wiring Diagram — A/C,A —EJS002C8 WJWA0118E

Page 447 of 3371

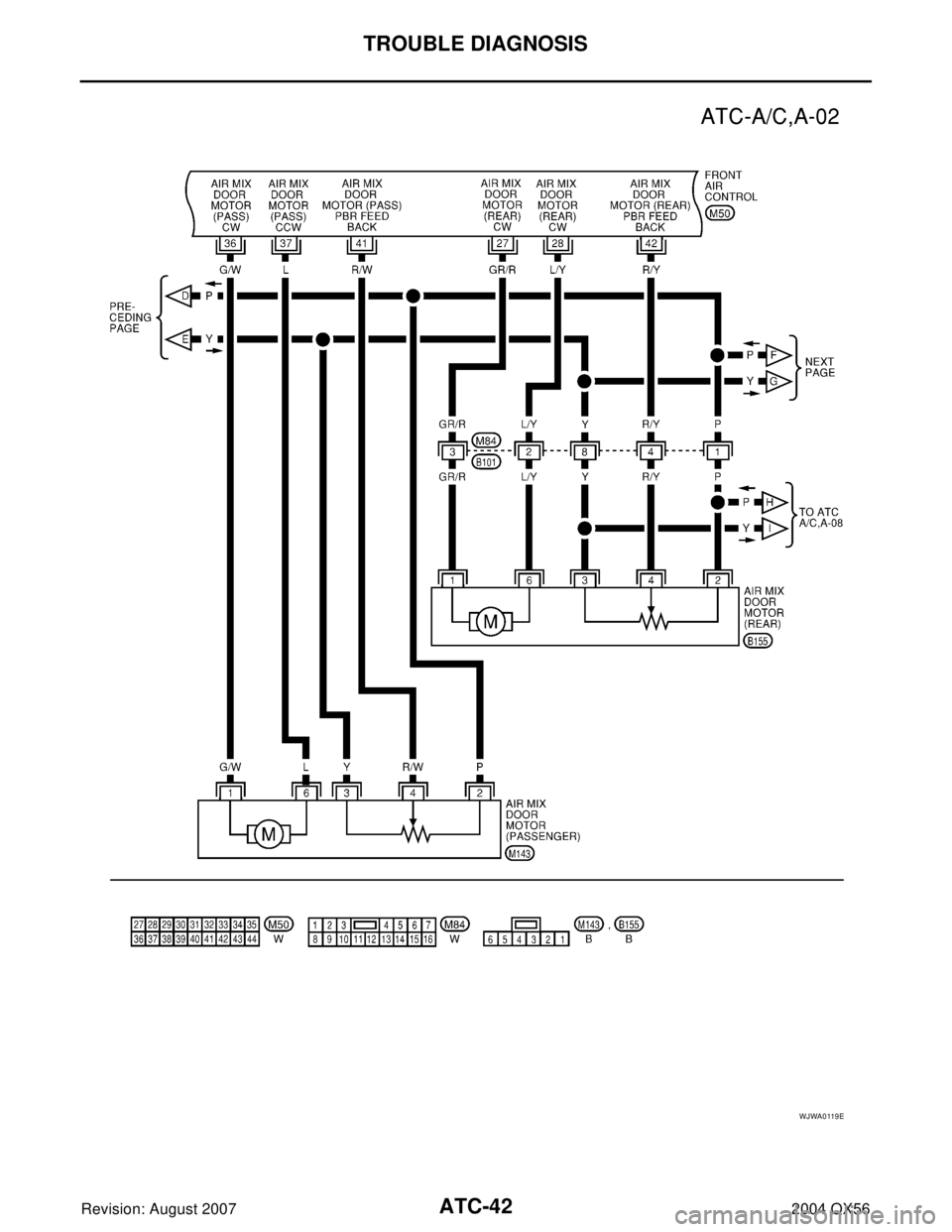

INFINITI QX56 2004 Factory Service Manual ATC-42 TROUBLE DIAGNOSIS Revision: August 20072004 QX56 WJWA0119E

Page 448 of 3371

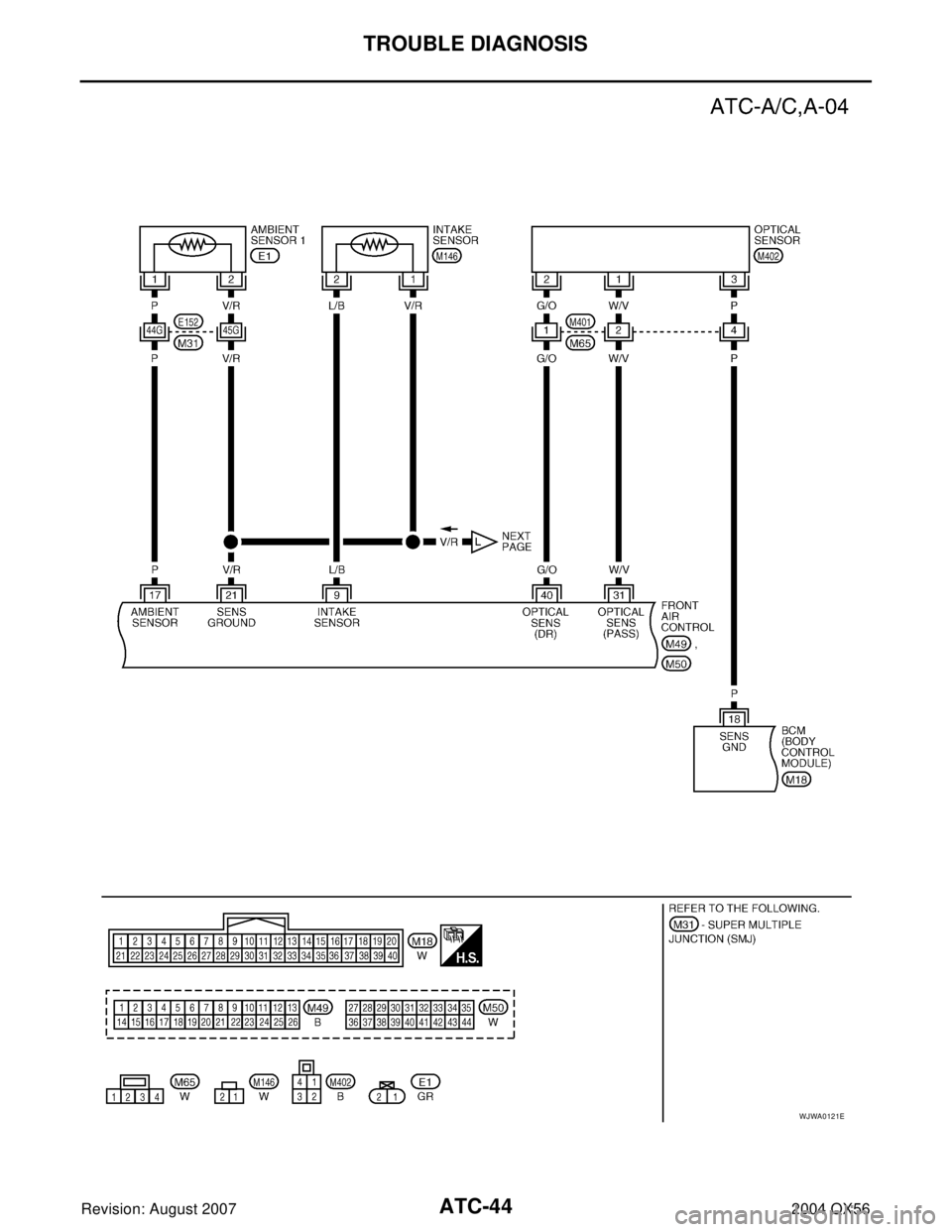

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS ATC-43 C D E F G H I K L MA B AT C Revision: August 20072004 QX56 WJWA0120E

Page 449 of 3371

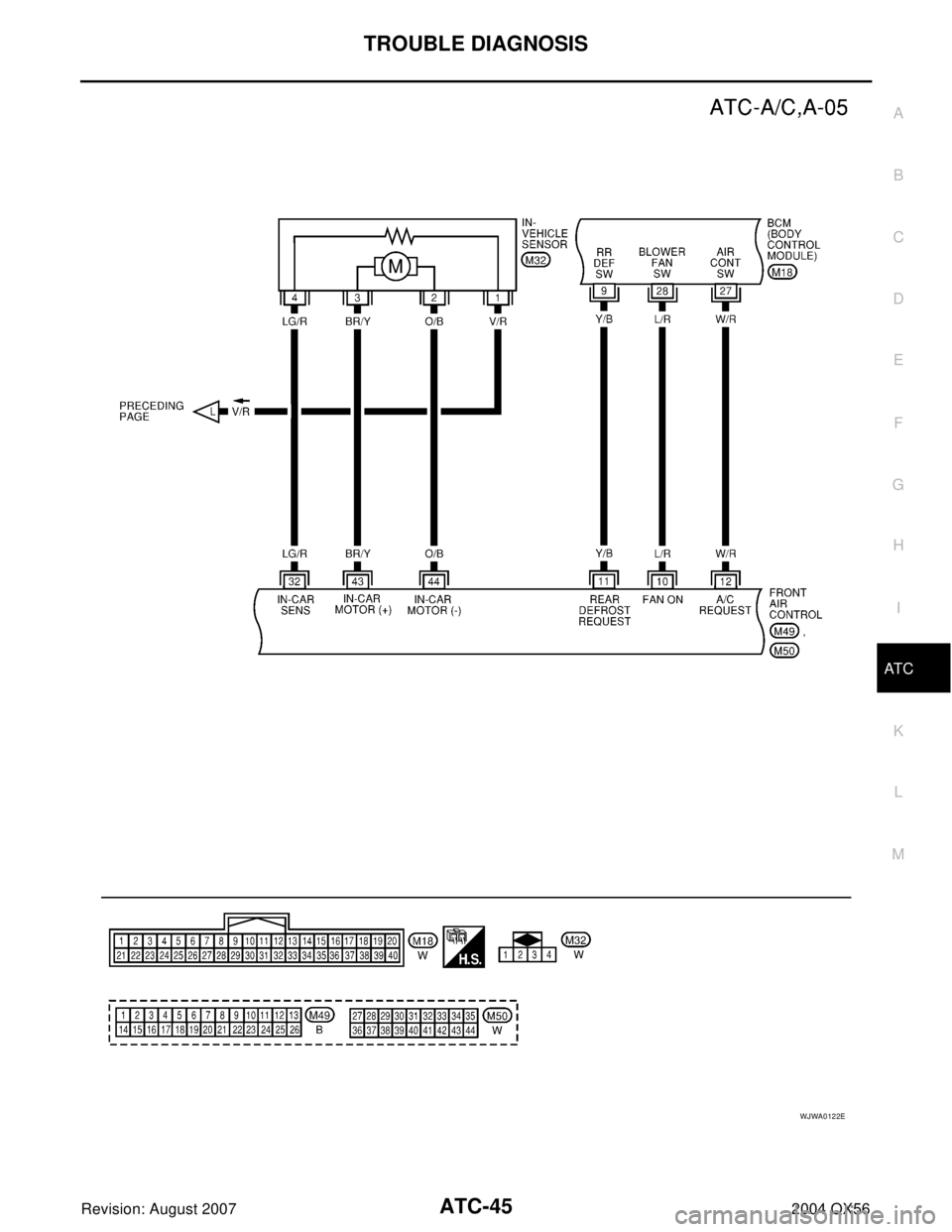

INFINITI QX56 2004 Factory Service Manual ATC-44 TROUBLE DIAGNOSIS Revision: August 20072004 QX56 WJWA0121E

Page 450 of 3371

INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS ATC-45 C D E F G H I K L MA B AT C Revision: August 20072004 QX56 WJWA0122E
