INFINITI QX56 2004 Factory Service Manual

BL-46
REMOTE KEYLESS ENTRY SYSTEM
Revision: August 20072004 QX56

keyless power window down (open)

auto door lock operation
OPERATING PROCEDURE

When the keyfob is operated, the signal from the keyfob is sent and the remote keyless entry receiver
receives the signal and sends it to the BCM. The BCM only locks/unlocks the doors if the ID number
matches (remote control entry functions).

Using the keyfob, the transmitter sends radio waves to the remote keyless entry receiver, which then
sends the received waves to the BCM. Only if the ID number matches does the BCM lock/unlock the
doors (remote control door function).

Unless the key is inserted into the ignition key cylinder or one of the doors is opened within 1 minute after
the UNLOCK switch on the keyfob is pressed, all the doors are automatically locked (auto lock function).

When a door is locked or unlocked, the vehicle turn signal lamps flash and the horn sounds to verify oper-
ation (active check function).

When the key is in the ignition key cylinder (when the key switch is ON) and one of the doors is open, the
door lock function does not work even when the door lock is operated with the keyfob.

Keyfob ID set up is available.

If a keyfob is lost, a new keyfob can be set up. A maximum of 5 IDs can be set up simultaneously.
Remote Control Entry Functions
Operation Description

When a button on the keyfob is operated, the signal is sent from the keyfob and received by the remote
keyless entry receiver.

The received signal is sent to the BCM and compared with the registered ID number.

If the ID number matches, the BCM sends the lock/unlock signal to each door lock actuator.

When the door lock actuators receive this signal, each operates to lock/unlock its door.

BCM locks all doors with input of LOCK signal from keyfob.

When an UNLOCK signal is sent from keyfob once, driver's door will be unlocked.

Then, if an UNLOCK signal is sent from keyfob again within 5 seconds, all other doors will be unlocked.
Remote control entry operation conditions
Auto Lock Function
Operation Description

Unless the key is inserted into the ignition key cylinder, one of the doors is opened, or the keyfob is oper-
ated within 1 minute after a door lock is unlocked by keyfob operation, all the doors are automatically
locked.
The 1 minute timer count is executed by the BCM and after 1 minute, the BCM sends the lock signal to all
doors.
Lock operations are the same as for the remote control entry function.
Remote Control Automatic Back Door Function
Switching from all closed to all open

When a button on the keyfob is operated, the signal is sent from the keyfob and received by the remote
keyless entry receiver.

The received signal is sent to the BCM and compared with the registered ID number.

If the ID number matches, the BCM uses power window serial link communication to send the back door
open signal to the back door control unit.

When the back door control unit receives the back door open signal for 0.5 seconds, if the remote control
automatic back door operation enable conditions are met, the warning chime is sounded and the back
door unlock signal is sent to the back door latch using communication.
Keyfob operation Operation condition
Door lock operation (locking)

With key removed (key switch: OFF)

Closing all doors (door switch: OFF)
Door lock operation (unlocking) With key removed (key switch: OFF)

REMOTE KEYLESS ENTRY SYSTEM
BL-47
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56

When the back door latch receives the back door unlock signal, it operates the release actuator and
releases to back door latch.

The back door control unit operates the back door motor to open the back door. (At this time, speed con-
trol, input reverse, and overload reverse control are executed.)

When the back door is opened to the fully open position, the full-open position is detected with the rotation
sensor, the back door motor is stopped.

The door held by the back door stays at the full open position.
Full open → full closed operation

When a button of the keyfob is operated, the signal is sent from the keyfob and received by the remote
keyless entry receiver.

The received signal is sent to the BCM and compared with the registered ID number.

If the ID number matches, the BCM uses power window serial link communication to send the back door
close request signal to the back door control unit.

When the back door control unit receives the back door close request signal for 0.5 seconds, if the remote
control automatic back door operation enable conditions are met, the warning chime is sounded and the
back door motor begins closing the back door.

The back door control unit operates the magnetic clutch and the back door motor to close the back door.
(At this time, the back door control unit executes speed control, input reverse, and overload reverse con-
trol.)

When the back door comes to the half-latch state, the back door latch detects the half-latch state through
half-latch switch operation. The back door latch latches the back door.
For the automatic back door system operation enable conditions, refer to BL-101, "
AUTOMATIC BACK DOOR
SYSTEM" .
Active Check Function
Operation Description
When a door is locked or unlocked by keyfob operation, the vehicle turn signals flash and the horn sounds to
verify operation.

When a button on the keyfob is operated, the signal is sent from the remote controller and received by the
keyless remote entry receiver.

The received signal is sent to the BCM and compared with the registered ID number.

If the ID number matches, the BCM sends the turn signal flashing and horn signal to the IPDM E/R.

The IPDM E/R flashes the turn signal lamps and sounds the horn for each keyfob operation.
Operating function of hazard and horn reminder
Hazard and Horn Reminder
BCM output to IPDM E/R for horn reminder signal as DATA LINE (CAN-H and CAN-L).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
How to change hazard and horn reminder mode
With CONSULT-II
Hazard and horn reminder can be changed using “WORK SUPPORT” mode in “MULTI ANSWER BACK SET".
Without CONSULT-II
Refer to Owner's Manual for instructions.
Interior Lamp Operation
When the following input signals are both supplied:

all door switches are in the OFF position (when all the doors are closed);

interior lamp switch is in DOOR position.
C mode S mode
Keyfob operation Lock Unlock Lock Unlock
Hazard warning lamp
flashTwic e O nc e Twic e —
Horn sound Once — — —

BL-48
REMOTE KEYLESS ENTRY SYSTEM
Revision: August 20072004 QX56
Remote keyless entry system turns on interior lamp and ignition keyhole illumination (for 30 seconds) with
input of UNLOCK signal from keyfob.
For detailed description, refer to LT- 1 3 1 , "
ROOM LAMP TIMER OPERATION" .
Panic Alarm Operation
When key switch is OFF (ignition key is not inserted in key cylinder), remote keyless entry system turns on and
off horn and headlamp intermittently with input of PANIC ALARM signal from keyfob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.
Keyless Power Window Down (Open) Operation
When keyfob unlock switch is turned ON with ignition switch OFF, and the switch is detected to be on continu-
ously for 3 seconds, the driver's door and passenger's door power windows are simultaneously opened.
Power window is operated to open and the operation continues as long as the keyfob unlock switch is
pressed.
CAN Communication System DescriptionEIS002RQ
Refer to LAN-5, "CAN COMMUNICATION" .

REMOTE KEYLESS ENTRY SYSTEM
BL-49
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56

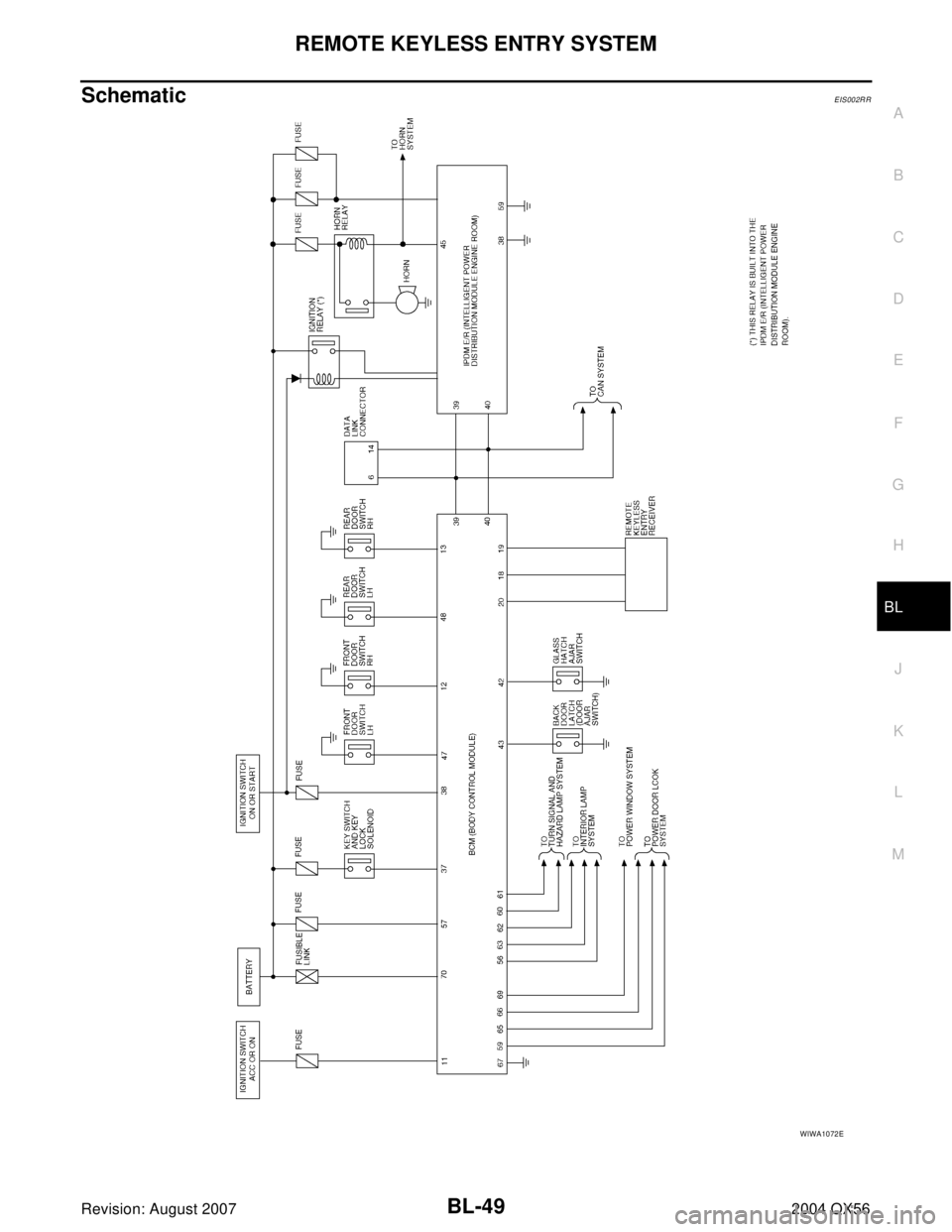

SchematicEIS002RR
WIWA1072E

BL-50
REMOTE KEYLESS ENTRY SYSTEM
Revision: August 20072004 QX56

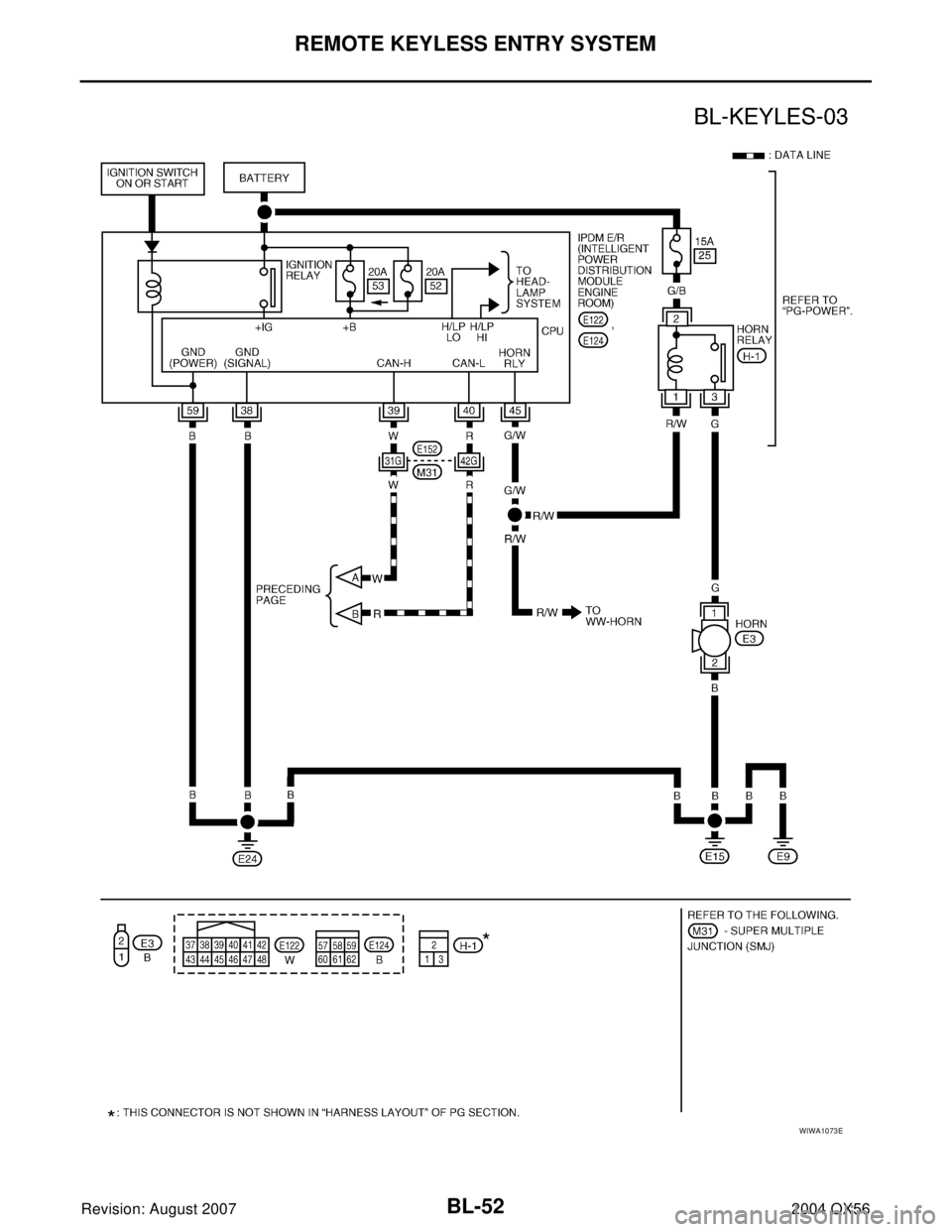

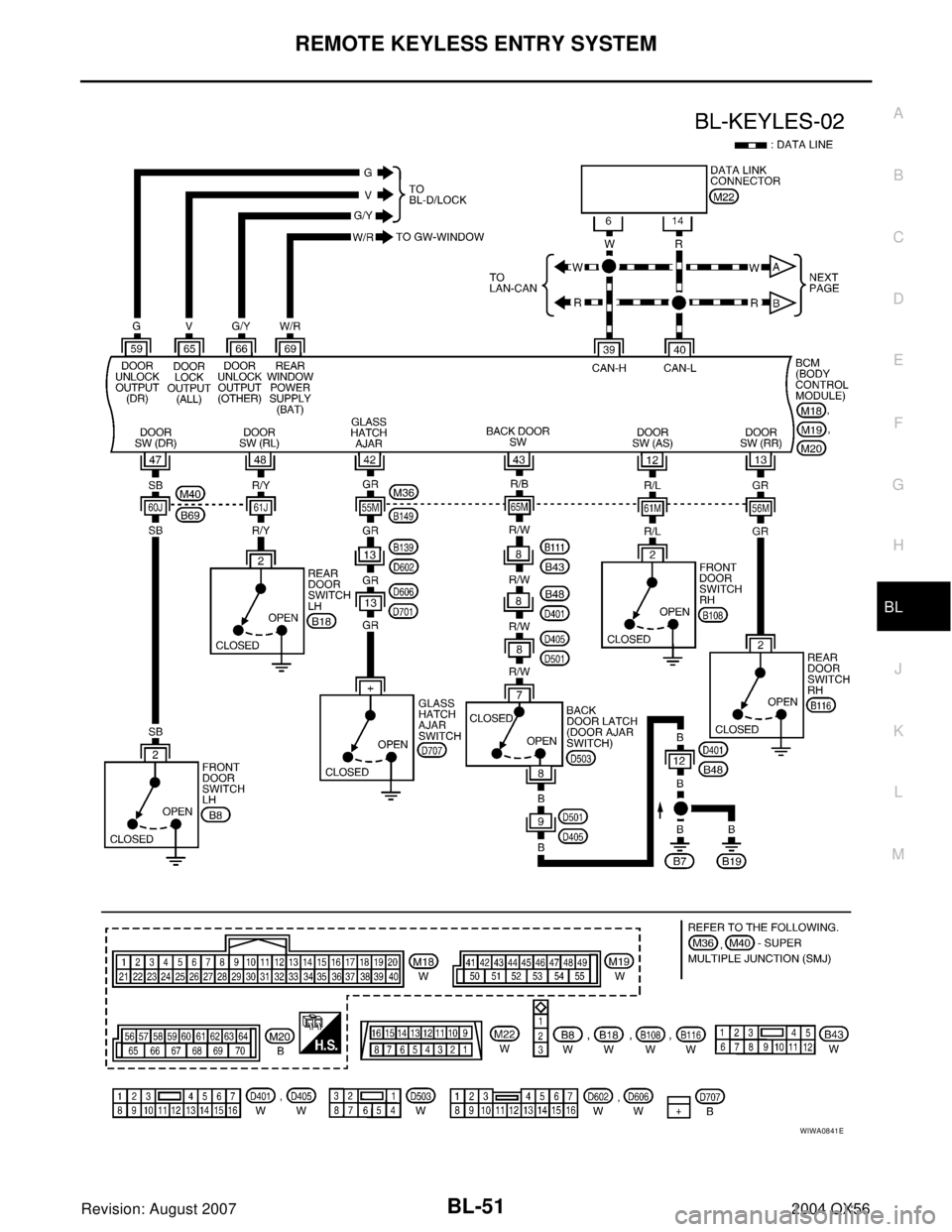

Wiring Diagram — KEYLES —EIS002RS
LIWA0427E

REMOTE KEYLESS ENTRY SYSTEM
BL-51
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
WIWA0841E

BL-52
REMOTE KEYLESS ENTRY SYSTEM
Revision: August 20072004 QX56
WIWA1073E

REMOTE KEYLESS ENTRY SYSTEM
BL-53
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Terminals and Reference Value for BCMEIS002RT
Te r m i n a l Wire
ColorItem ConditionVoltage (V)
(Approx.)
11 O Ignition switch (ACC or ON) Ignition switch (ACC or ON position) Battery voltage
12 R/L Front door switch RH Door open (ON) → Door close (OFF) Battery voltage → 0
13 GR Rear door switch RH Door open (ON) → Door close (OFF) Battery voltage → 0
18 PRemote keyless entry
receiver ground—0
19 V/WRemote keyless entry
receiver (Power supply)Ignition switch OFF
20 G/WRemote keyless entry
receiver signal (Signal)Stand-by (keyfob buttons released)
When remote keyless entry receiver
receives signal from keyfob (keyfob
buttons pressed)
37 B/RKey switch and key lock sole-
noid (insert)Key inserted in IGN key cylinder (ON)
→ Key removed from IGN key cylinder
(OFF)Battery voltage → 0
38 W/LIgnition switch (ON or
START)Ignition switch (ON or START posi-
tion)Battery voltage
39 W CAN-H — —
40 R CAN-L — —
42 GR Glass hatch ajar switchGlass hatch open (ON) → Glass hatch
close (OFF) 0 → Battery voltage
43 R/BBack door latch (door ajar
switch)Door open (ON) → Door close (OFF) 0 → Battery voltage
47 SB Front door switch LH Door open (ON) → Door close (OFF) 0 → Battery voltage
48 R/Y Rear door switch LH Door open (ON) → Door close (OFF) 0 → Battery voltage
56 R/GBattery saver
(Interior lamp)Battery saver does operated → Does
not operated (ON → OFF)Battery voltage → 0
57 Y/R Battery power supply — Battery voltage
59 GFront door lock assembly LH
(actuator) (unlock)Door lock & unlock switch
(Neutral → Unlock)0 → Battery voltage
60 G/B Turn signal LHWhen doors are locked or unlocked
using keyfob (OFF → ON)
*10 → Battery voltage
61 G/Y Turn signal RHWhen doors are locked or unlocked
using keyfob (OFF → ON)
*10 → Battery voltage
LIIA1893E
LIIA1894E
LIIA1895E

BL-54
REMOTE KEYLESS ENTRY SYSTEM
Revision: August 20072004 QX56

*1: when hazard reminder is ON.

*2: when room lamp switch is in "DOOR" position.
Terminals and Reference Value for IPDM E/REIS002RU
*: when horn reminder is ON.62 R/W Step lamp LH and RHStep lamp ON 0
Step lamp OFF Battery voltage
63 L Room lampRoom lamp ON
*2Battery voltage
Room Lamp OFF
*20
65 V All door lock actuators (lock)Door lock & unlock switch
(Neutral → Lock)0 → Battery voltage
66 G/YFront door lock actuator RH,
rear door lock actuators LH/
RH and back door lock actu-
ator (unlock)Door lock & unlock switch
(Neutral → Unlock)0 → Battery voltage
67 B Ground — 0
69 W/RRear power window power
supply— Battery voltage
70 W/B Battery power supply — Battery voltage Terminal Wire
ColorItem ConditionVoltage (V)
(Approx.)
Terminal Wire
ColorItem ConditionVoltage (V)
(Approx.)
38 B Ground — 0
39 W CAN-H — —
40 R CAN-L — —
45 G/W Horn relayWhen doors locks are operated
using keyfob (OFF → ON) *Battery voltage → 0
59 B Ground — 0

REMOTE KEYLESS ENTRY SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
CONSULT-II Function (BCM)EIS002RV
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II Inspection ProcedureEIS002RW
CONSULT-II can display each diagnostic item using the following diagnostic test modes: work support, data
monitor, active test, and CAN diagnostic support monitor through data reception and command transmission
via the BCM communication line.
“MULTI REMOTE ENT”
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)".
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
