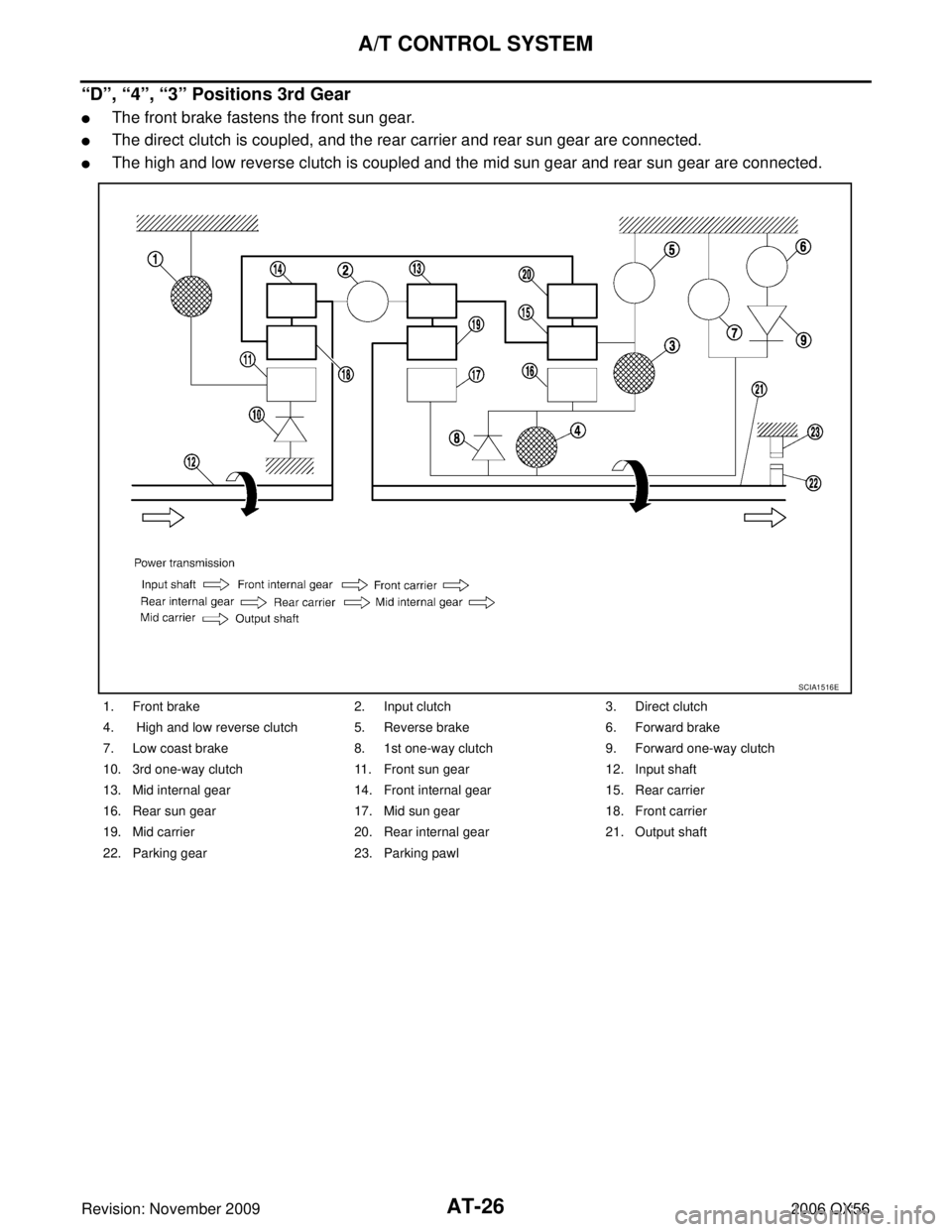

“D”, “4”, “3” Positions 3rd Gear

The front brake fastens the front sun gear.

The direct clutch is coupled, and the rear carrier and rear sun gear are connected.

The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.
1. Front brake2. Input clutch 3. Direct clutch
4. High and low reverse clutch 5. Reverse brake 6. Forward brake
7. Low coast brake 8. 1st one-way clutch 9. Forward one-way clutch
10. 3rd one-way clutch 11. Front sun gear 12. Input shaft
13. Mid internal gear 14. Front internal gear 15. Rear carrier
16. Rear sun gear 17. Mid sun gear 18. Front carrier
19. Mid carrier 20. Rear internal gear 21. Output shaft
22. Parking gear 23. Parking pawl
SCIA1516E

A/T CONTROL SYSTEMAT-27
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

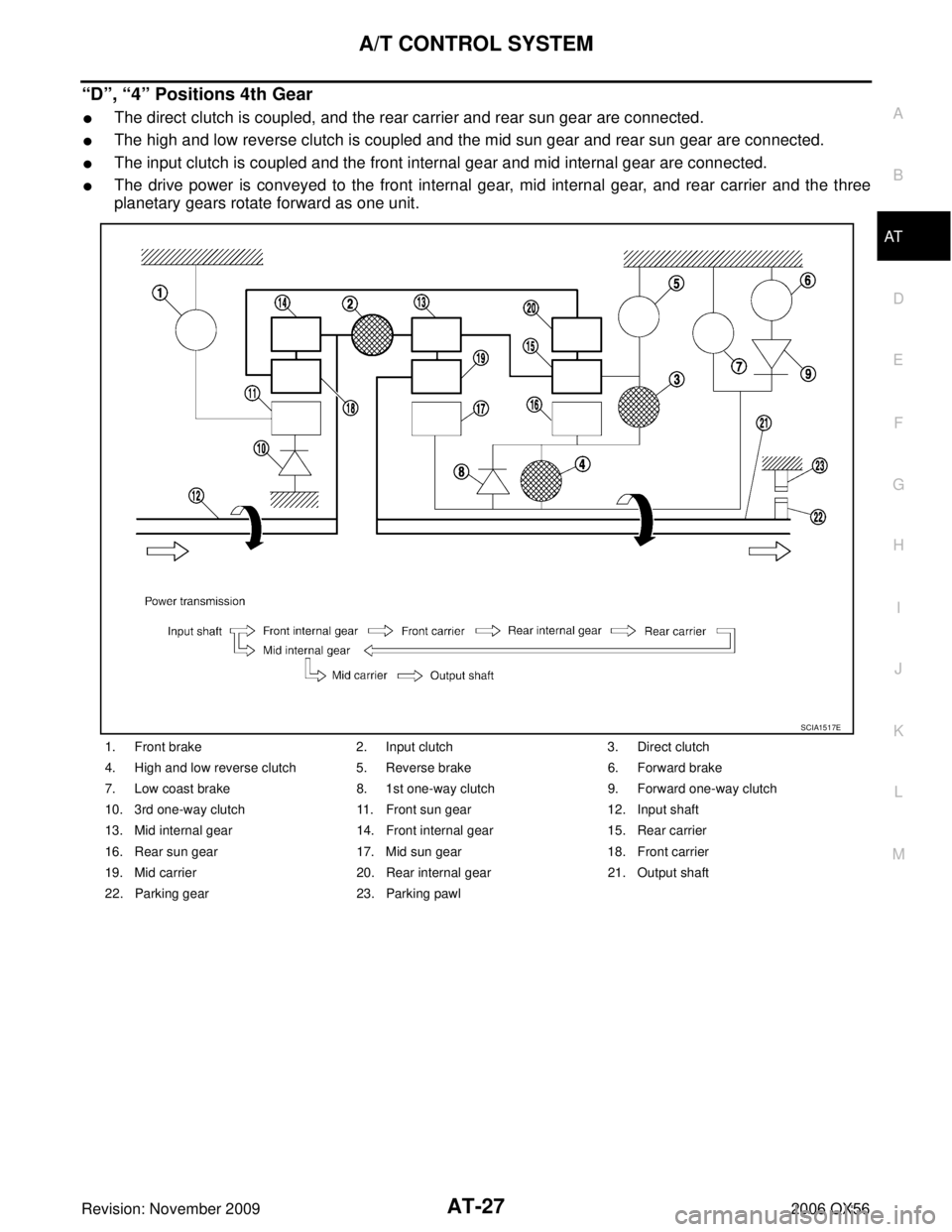

“D”, “4” Positions 4th Gear

The direct clutch is coupled, and the rear carrier and rear sun gear are connected.

The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.

The input clutch is coupled and the front internal gear and mid internal gear are connected.

The drive power is conveyed to the front internal gear, mid internal gear, and rear carrier and the three
planetary gears rotate forward as one unit.
1. Front brake2. Input clutch3. Direct clutch
4. High and low reverse clutch 5. Reverse brake 6. Forward brake
7. Low coast brake 8. 1st one-way clutch9. Forward one-way clutch
10. 3rd one-way clutch 11. Front sun gear12. Input shaft
13. Mid internal gear 14. Front internal gear15. Rear carrier
16. Rear sun gear 17. Mid sun gear18. Front carrier
19. Mid carrier 20. Rear internal gear21. Output shaft
22. Parking gear 23. Parking pawl
SCIA1517E

AT-28
A/T CONTROL SYSTEM
Revision: November 20092006 QX56

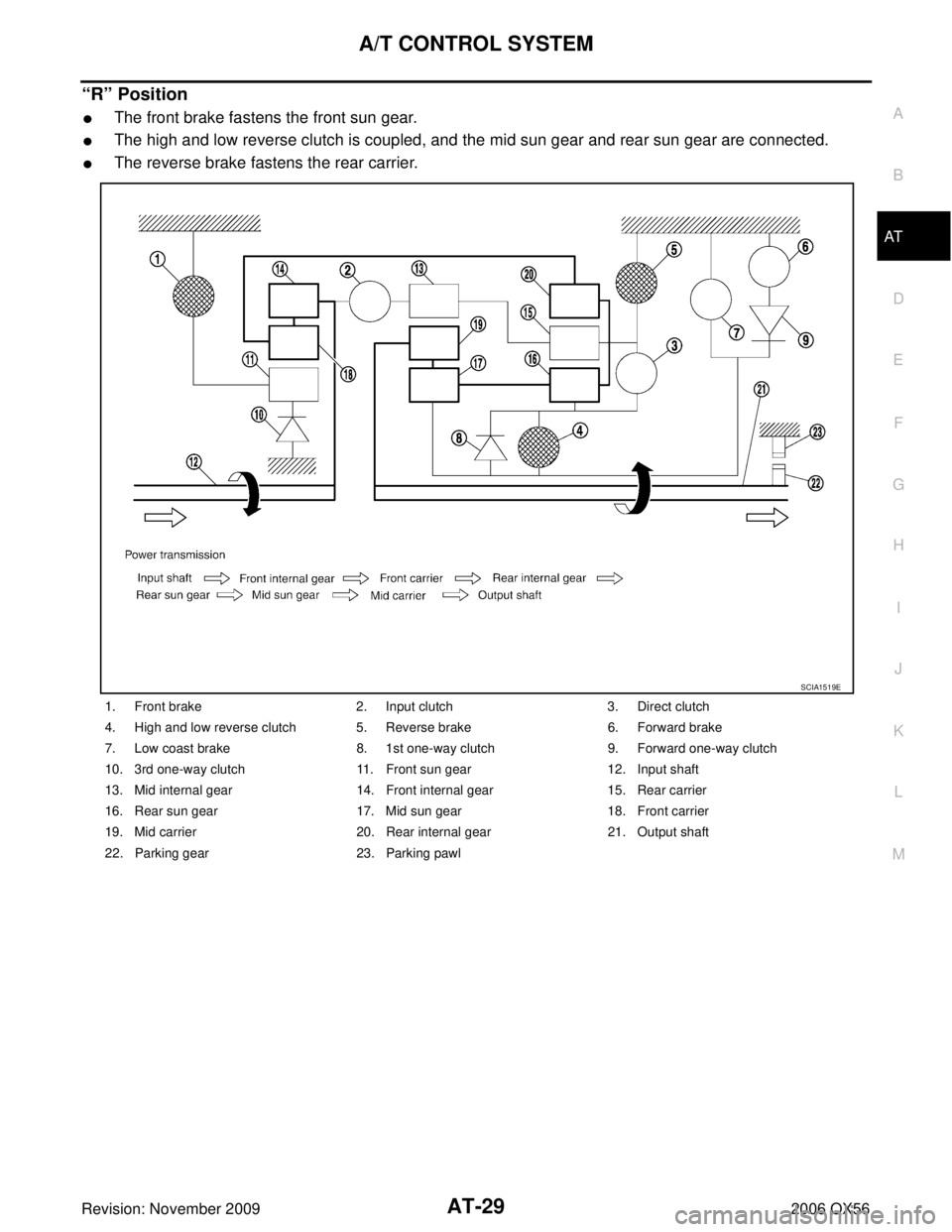

“D” Position 5th Gear

The front brake fastens the front sun gear.

The input clutch is coupled and the front internal gear and mid internal gear are connected.

The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.
1. Front brake2. Input clutch 3. Direct clutch
4. High and low reverse clutch 5. Reverse brake 6. Forward brake
7. Low coast brake 8. 1st one-way clutch 9. Forward one-way clutch
10. 3rd one-way clutch 11. Front sun gear 12. Input shaft
13. Mid internal gear 14. Front internal gear 15. Rear carrier
16. Rear sun gear 17. Mid sun gear 18. Front carrier
19. Mid carrier 20. Rear internal gear 21. Output shaft
22. Parking gear 23. Parking pawl
SCIA4984E

A/T CONTROL SYSTEMAT-29
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

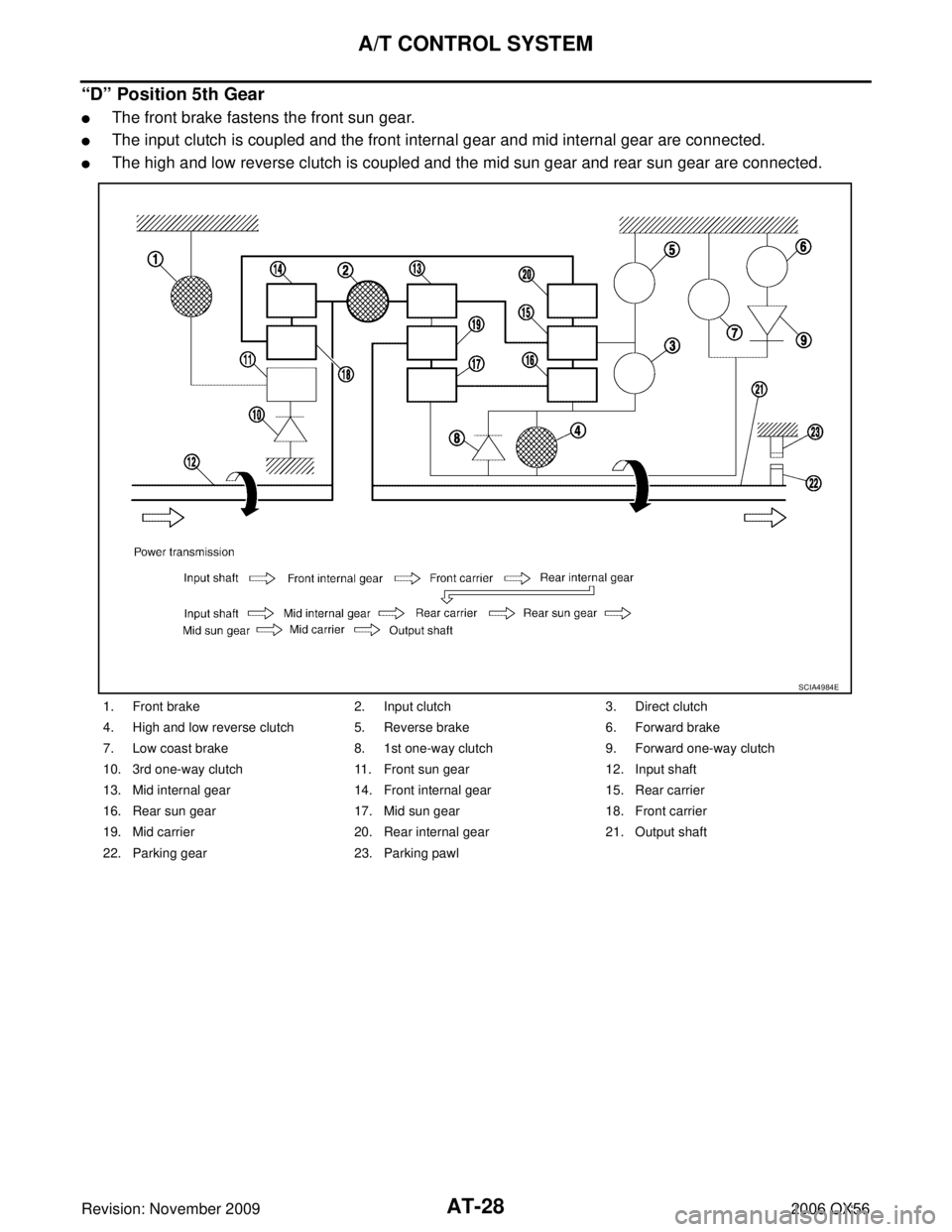

“R” Position

The front brake fastens the front sun gear.

The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.

The reverse brake fastens the rear carrier.
1. Front brake2. Input clutch3. Direct clutch
4. High and low reverse clutch 5. Reverse brake 6. Forward brake
7. Low coast brake 8. 1st one-way clutch9. Forward one-way clutch
10. 3rd one-way clutch 11. Front sun gear12. Input shaft
13. Mid internal gear 14. Front internal gear15. Rear carrier
16. Rear sun gear 17. Mid sun gear18. Front carrier
19. Mid carrier 20. Rear internal gear21. Output shaft
22. Parking gear 23. Parking pawl
SCIA1519E

AT-30
A/T CONTROL SYSTEM
Revision: November 20092006 QX56
TCM FunctionECS00CDW
The function of the TCM is to:

Receive input signals sent from various switches and sensors.

Determine required line pressure, shifting point, lock-up operation, and engine brake operation.

Send required output signals to the respective solenoids.
CONTROL SYSTEM OUTLINE
The automatic transmission senses vehicle operating conditions through various sensors or signals. It always
controls the optimum shift position and reduces shifting and lock-up shocks.
CONTROL SYSTEM DIAGRAM
SENSORS (or SIGNALS)

TCM

ACTUATORS
PNP switch
Accelerator pedal position sensor
Closed throttle position signal
Wide open throttle position signal
Engine speed signal
A/T fluid temperature sensor
Revolution sensor
Vehicle speed signal
Stop lamp switch signal
Turbine revolution sensor
1st position switch signal
4th position switch signal
ATF pressure switch signal
Tow mode switch signal Shift control
Line pressure control
Lock-up control
Engine brake control
Timing control
Fail-safe control
Self-diagnosis
CONSULT-II communication line
Duet-EA control
CAN system
Input clutch solenoid valve
Direct clutch solenoid valve
Front brake solenoid valve
High and low reverse clutch
solenoid valve
Low coast brake solenoid valve
Torque converter clutch solenoid
valve
Line pressure solenoid valve
A/T CHECK indicator lamp
Starter relay
Back-up lamp relay
SCIA5624E

A/T CONTROL SYSTEMAT-31
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
CAN CommunicationECS00CDX
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to LAN-26,
"CAN COMMUNICATION" .
Input/Output Signal of TCMECS00CDY
*1: Spare for vehicle speed sensor·A/T (revolution sensor)
*2: Spare for accelerator pedal position signal
*3: If these input and output signals are different, the TCM triggers the fail-safe function.
*4: CAN communications Control item
Line
pressure
control Vehicle
speed
control Shift
control Lock-up
control Engine
brake
control Fail-safe
function
(*3) Self-diag-
nostics
function
Input Accelerator pedal position signal
(*4)XXXXXXX
Vehicle speed sensor A/T
(revolution sensor) XXXX
XX
Vehicle speed sensor MTR
(*1) (*4)XXXX X
Closed throttle position signal
(*4)(*2) X (*2) X X (*2) XX
Wide open throttle position signal
(*4)(*2) X (*2) X (*2) XX
Turbine revolution sensor 1 XX X XX
Turbine revolution sensor 2
(for 4th speed only) XX
XXX
Engine speed signals
(*4)XX
PNP s witch XXXXXXX
A/T fluid temp eratu re senso rs 1, 2XXXXXXX
ASCD Operation signal
(*4)XXXX
Overdrive cancel
signal
(*4)XX X
TCM power supply voltage signal XXXXX X
Out-
put Direct clutch solenoid (ATF pres-
sure switch 5)
XX
XX
Input clutch solenoid (ATF pressure
switch 3) XX
XX
High and low reverse clutch sole-
noid (ATF pressure switch 6) XX
XX
Front brake solenoid (ATF pressure
switch 1) XX
XX
Low coast brake solenoid (ATF
pressure switch 2) XX
XXX
L in e p re ssu re s olen oid XXXXXXX
TCC solenoid XX X
Sta rter rela y XX
