EC-122Revision: November 2009
TROUBLE DIAGNOSIS
2006 QX56
*1: Models with ASCD
*2: Models with ICC
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MONITOR (SPEC) MODE
Monitored Item
BRAKE SW2
[ON/OFF]Indicates [ON/OFF] condition of stop
lamp switch signal.
DIST SW*
2
[ON/OFF]
Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
VHCL SPD CUT
[NON/CUT]
Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to exces-
sively high compared with the ASCD set
speed, and ASCD operation is cut off.
LO SPEED CUT*
1
[NON/CUT]
Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed decreased to exces-
sively low compared with the ASCD set
speed, and ASCD operation is cut off.
AT OD MONITOR*
1
[ON/OFF]
Indicates [ON/OFF] condition of A/T O/D
according to the input signal from the
TCM.
AT OD CANCEL*
1
[ON/OFF]
Indicates [ON/OFF] condition of A/T O/D
cancel signal sent from the TCM.
CRUISE LAMP
[ON/OFF]
Indicates [ON/OFF] condition of
CRUISE lamp determined by the ECM
according to the input signals.
SET LAMP*
1
[ON/OFF]
Indicates [ON/OFF] condition of SET
lamp determined by the ECM according
to the input signals.
Voltage [V]
Voltage, frequency, duty cycle or pulse
width measured by the probe.
Only # is displayed if item is unable to
be measured.
Figures with #s are temporary ones.
They are the same figures as an actual
piece of data which was just previously
measured.
Frequency [msec],
[Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOW Monitored item
[Unit] ECM
INPUT
SIGNALS MAIN
SIGNALS Description Remarks
Monitored item
[Unit] ECM
INPUT
SIGNALS MAIN
SIGNALS Description
Remarks
ENG SPEED [rpm] ××
Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V] ××
The signal voltage of the mass air flow
sensor specification is displayed.When engine is running specification
range is indicated.
Page 1342 of 3383
TROUBLE DIAGNOSISEC-131
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal.VEHICLE SPEED
Turn drive wheels and compare CONSULT-II value with the speedometer
indication.
Almost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ON Vehicle has traveled after MIL has
turned ON. 0 - 65,535 km
(0 - 40,723 mile)
A/F S1 HTR (B1)
A/F S1 HTR (B2)
Engine: After warming up, idle the engine 0 - 100%
AC PRESS SEN
Engine: Idle
Both A/C switch and blower fan switch: ON (Compressor operates.) 1.0 - 4.0V
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as the
speedometer indication
SET VHCL SPD
Engine: Running ASCD: Operating. The preset vehicle speed is
displayed.
MAIN SW
Ignition switch: ON MAIN switch: Pressed
ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ON CANCEL switch: Pressed
ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ON RESUME/ACCELERATE switch:
Pressed
ON
RESUME/ACCELERATE switch:
Released OFF
SET SW
Ignition switch: ON SET/COAST switch: Pressed
ON
SET/COAST switch: Released OFF
DIST SW
Ignition switch: ON DISTANCE switch: Pressed
ON
DISTANCE switch: Released OFF
BRAKE SW1
Ignition switch: ON Brake pedal: Fully released
ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
CRUISE LAMP
Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
Vehicle speed: Between 40 km/h
(25 MPH) and 144 km/h (89
MPH) ASCD: Operating
ON
ASCD: Not operating OFF
MONITOR ITEM
CONDITION SPECIFICATION
Page 1425 of 3383
EC-214Revision: November 2009
DTC P0130, P0150 A/F SENSOR 1
2006 QX56
If the indication is constantly approx. 1.5V and does not fluctuates, go to EC-219, "Diagnostic Procedure" .
If the indication fluctuates around 1.5V, go to next step.
4. Select “A/F SEN1 (B1) P1276 ” (for DTC P0130) or “A/F SEN1 (B2) P1286 ” (for DTC P0150) of “A/F
SEN1 ” in “DTC WORK SUPPORT ” mode with CONSULT-II.
5. Touch “START”.
6. When the following conditions are met, “TESTING” will be dis-
played on the CONSULT-II screen.
If “TESTING” is not displayed after 20 seconds, retry from
step 2.
7. Release accelerator pedal fully. NOTE:
Never apply brake during releasing the accelerator pedal.
8. Make sure that “TESTING ” changes to “COMPLETED ”.
If “TESTING” changed to “OUT OF CONDITION”, retry from
step 6.
9. Make sure that “OK” is displayed after touching “SELF-DIAG
RESULT ”.
If “NG ” is displayed, go to EC-219, "
Diagnostic Procedure" .
Overall Function CheckUBS00HAB
Use this procedure to check the overall function of the A/F sensor 1 circuit. During this check, a 1st trip DTC
might not be confirmed.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle at a speed of 80 km/h (50 MPH) for a few minutes in the suitable gear position.
3. Set D position, then release the accelerator pedal fully until the vehicle speed decreases to 50 km/h (30
MPH).
NOTE:
Never apply brake during releasing the accelerator pedal.
4. Repeat steps 2 to 3 for five times.
5. Stop the vehicle and turn ignition switch OFF.
6. Wait at least 10 seconds and restart engine.
7. Repeat steps 2 to 3 for five times.
ENG SPEED 850 - 3,200 rpm
Vehicle speed More than 64 km/h (40 MPH)
B/FUEL SCHDL 1.0 - 8.0 msec
Selector lever D position
SEF576Z
SEF577Z
SEF578Z
Page 2015 of 3383
FAX-6
WHEEL HUB
Revision: November 20092006 QX56
4. Put alignment mark on disc rotor and wheel hub and bearing
assembly, then remove disc rotor.
5. On 4WD model, remove cotter pin, then remove lock nut from drive shaft using power tool. Then remove end of drive shaft from wheel hub and bearing assembly. Refer to FA X - 7 , "
Removal and Installation" .
6. Remove wheel sensor. Refer to BRC-64, "
Removal and Installation" .
Inspect the wheel sensor O-ring, replace the wheel sensor assembly if damaged.
Clean the wheel sensor hole and mounting surface with a suitable brake cleaner and clean lint-free
shop rag. Be careful that dirt and debris do not enter the axle bearing area.
Apply a coat of suitable grease to the wheel sensor O-ring and mounting hole.
CAUTION:
Do not pull on the wheel sensor harness.
7. Remove wheel hub and bearing assembly bolts using power tool.
8. Remove splash guard and wheel hub and bearing assembly from steering knuckle.
INSPECTION AFTER REMOVAL
Check for deformity, cracks and damage on each part, replace if necessary.
INSTALLATION
Installation is in the reverse order of removal.
Use new bolts when installing the wheel hub and bearing assembly.
When installing disc rotor on wheel hub and bearing assembly,
position the disc rotor according to alignment mark.
(When not using the alignment mark, refer to BR-25, "
DISC
ROTOR INSPECTION" .)
When installing wheel and tire. Refer to WT-7, "Rotation" .
WDIA0044E
WDIA0044E
Page 2016 of 3383
DRIVE SHAFTFAX-7
CE F
G H
I
J
K L
M A
B
FA X
Revision: November 2009 2006 QX56
DRIVE SHAFTPFP:39100
Removal and InstallationEDS003BP
REMOVAL
1. Remove wheel and tire using power tool.
2. Remove engine under cover using power tool.
3. Remove wheel sensor harness from mount on knuckle.
CAUTION:
Do not pull on wheel sensor harness.
4. Without disassembling the hydraulic lines, remove brake caliper using power tool. Reposition it aside with wire. Refer to BR-22, "
Removal and Installation of Brake Caliper and Disc Rotor" .
NOTE:
Avoid depressing brake pedal while brake caliper is removed.
5. Remove coil spring and shock absorber assembly using power tool. Refer to FSU-10, "
Removal and
Installation" .
6. Separate upper link ball joint stud from steering knuckle using To o l .
Support lower link with jack.
7. Remove cotter pin, then remove drive shaft nut.
8. Remove drive shaft mounting bolts from front final drive.
9. Remove drive shaft from wheel hub and bearing assembly. CAUTION:
When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Also be careful not to exces-
sively extend slide joint.
INSPECTION AFTER REMOVAL
Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-
ness.
Check boot for cracks or other damage, and for grease leakage.
If damaged, disassemble drive shaft to verify damage, and
repair or replace as necessary.
1. Cotter pin 2. Drive shaft nut3. Drive shaft

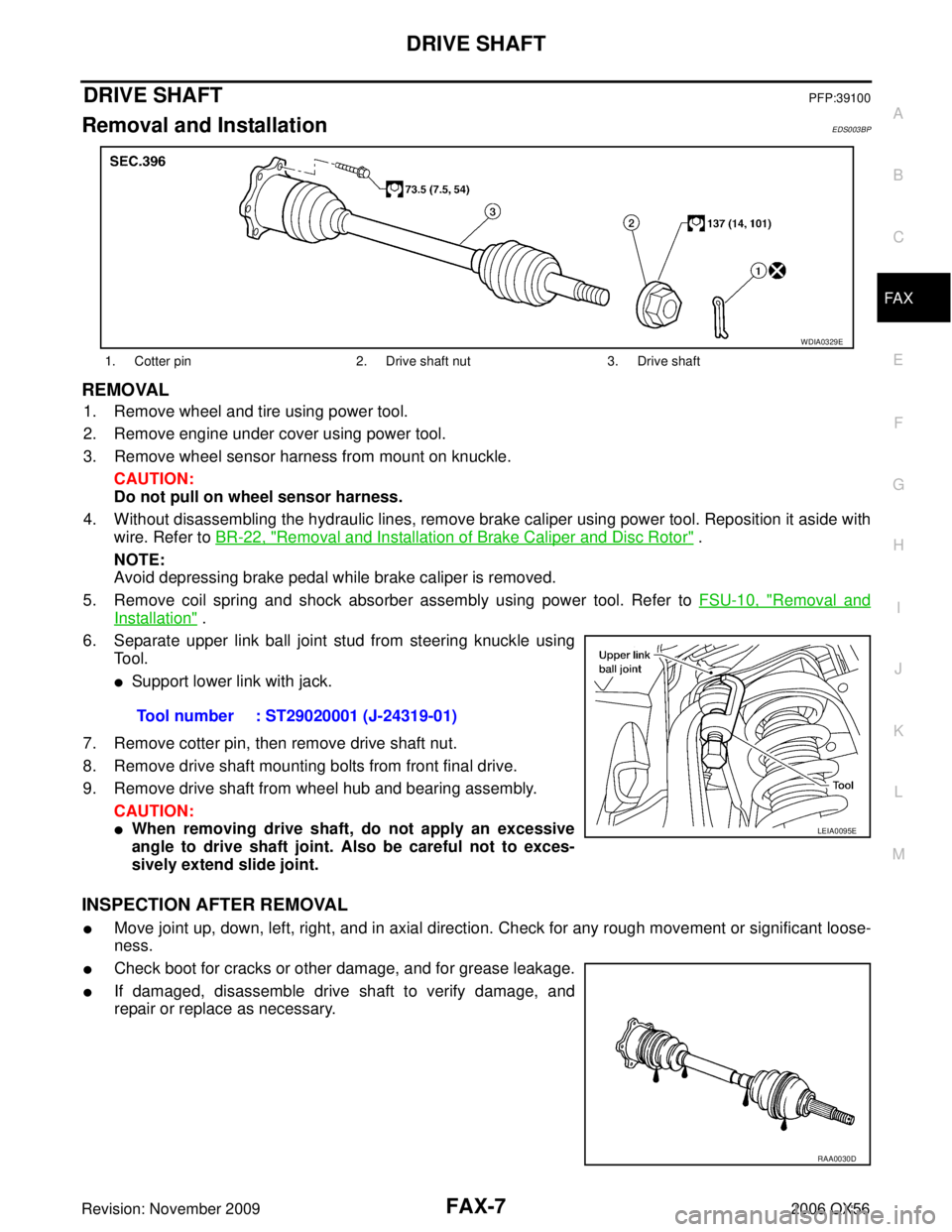

WDIA0329E
Tool number : ST29020001 (J-24319-01)
LEIA0095E
RAA0030D
Page 2101 of 3383
GI-10
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
SYMBOLS
How to Follow Trouble DiagnosesEAS001FJ
NOTICE:
Trouble diagnoses indicates work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
1.Before performing trouble diagnoses, read the “Preliminary Check”, the “Symptom Chart” or the
“Work Flow”.
2. After repairs, re-check that the problem has been completely eliminated.
1. Union bolt 2. Copper washer 3. Brake hose
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Piston seal 8. Piston 9. Piston boot
10. Cylinder body 11. Sliding pin 12. Torque member mounting bolt
13. Washer 14. Sliding pin boot 15. Bushing
16. Torque member 17. Inner shim cover 18. Inner shim
19. Inner pad 20. Pad retainer 21. Pad wear sensor
22. Outer pad 23. Outer shim 24. Outer shim cover
1: PBC (Poly Butyl Cuprysil) grease
or silicone-based grease 2: Rubber grease
: Brake fluid
Refer to GI section for additional symbol definitions.
SFIA2959E
SAIA0749E
Page 2243 of 3383
IDX-2
ALPHABETICAL INDEX
Numerics
2-4WD shift solenoid valve ..... TF-94
, TF-154, TF-167
4WD - Wiring diagram ....................................... TF-24
4WD shift switch ................................................ TF-66
4WD solenoid valve ................ TF-90, TF-154, TF-167
4WD system description .................................... TF-15
4WD system diagram ........................................ TF-19
A
A/C air flow ...................................................... ATC-30
A/C compressor clutch removal and installation .. ATC-
176
A/C compressor mounting ............................. ATC-175
A/C compressor precaution ............................. ATC-11
A/C compressor special service tool ................ ATC-14
A/C control operation (auto A/C) ...................... ATC-27
A/C diagnostic work flow (auto A/C) .............. ATC-130
A/C evaporator ............................................... ATC-184
A/C HFC134a (R134a) system identification ..... ATC-6
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure ATC-
171
A/C HFC134a (R134a) system service tools ... ATC-14
A/C HFC134a system service equipment precaution ...
ATC-11
A/C lubricant (R134a) ...................................... ATC-22
A/C lubrication oil ............................................. ATC-22
A/C operational check ....................... ATC-58, ATC-60
A/C self-diagnoses (auto A/C) ........ ATC-56, ATC-130
A/C service data specification ........................ ATC-191
A/C trouble diagnoses (auto A/C) .................... ATC-34
A/C, A - Wiring diagram ................................... ATC-44
A/T fluid checking ...................... AT-12, AT-51, MA-22
A/T fluid cooler cleaning .................................... AT-14
A/T fluid replacement ............................. AT-12, MA-24
A/T fluid temperature sensor ........................... AT-127
A/T IND - Wiring diagram .................................... DI-41
A/T indicator ........................................................ DI-41
A/T shift lock system ........................................ AT-221
A/T trouble diagnoses ........................................ AT-42
ABS - Wiring diagram ..................................... BRC-16
ABS (anti-lock brake system) ........................... BRC-7
Accelerator control system ............................... ACC-3
Accelerator pedal position (APP) sensor . EC-547, EC-
553, EC-567
Accelerator pedal released position learning ..... EC-78
AF1B1-Wiring diagram EC-216, EC-225, EC-234, EC-
244, EC-577
AF1B2-Wiring diagram EC-218, EC-227, EC-236, EC-
246, EC-579
AF1HB1-Wiring diagram .................................. EC-157
AF1HB2-Wiring diagram .................................. EC-159
Aiming adjustment .................................. LT-29, LT-78
Air bag .............................................................. SRS-3
Air bag precautions .............................................. AV-4
Air cleaner and air duct ..................................... EM-15
Air cleaner filter replacement ................ EM-16, MA-16
Air conditioner cut control ................................. EC-28
Air flow meter - See Mass air flow sensor EC-171, EC-
180
Air fuel ratio sensor 1 .. EC-213, EC-223, EC-232, EC-
241, EC-575
Air fuel ratio sensor 1 heater ........................... EC-156
Air mix. door motor .......................................... ATC-70
Ambient sensor ............................. ATC-134, ATC-145
Angular tightening application ............................. EM-4
Antenna .............................................................. AV-60
APPS1 - Wiring diagram ................................. EC-549
APPS2 - Wiring diagram ................................. EC-555
APPS3 - Wiring diagram ................................. EC-569
ASC/BS - Wiring diagram ............................... EC-513
ASC/SW - Wiring diagram .............................. EC-496
ASCBOF - Wiring diagram .............................. EC-587
ASCD ................................................................ EC-29
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch ........................... EC-511, EC-586
ASCD indicator lamp ....................................... EC-593
ASCD steering switch ..................................... EC-494
ASCIND - Wiring diagram ............................... EC-594
ATP switch ............................ TF-107, TF-110, TF-115
Audio .................................................................... AV-6
AUDIO - Wiring diagram .................................... AV-11
AUT/DP - Wiring diagram .................................. SE-16
Auto air conditioner - Wiring diagram .............. ATC-44
Auto anti-dazzling inside mirror ........... GW-72, GW-73
Autolamp ............................................................ LT-47
Automatic amplifier ......................................... ATC-61
Automatic drive positioner .................................. SE-11
Automatic transmission number .......................... GI-49
B
Back door ........................................................... BL-99
Back door trim ..................................................... EI-32
Back sonar .......................................................... DI-60
BACK/L - Wiring diagram ................................. LT-109
Back-up lamp ................................................... LT-109
Ball joint (front) ................................................ FSU-15
Basic inspection ................................................ EC-71
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-12,
SC-19
BCM (Body control module) ................ BCS-3, AV-109
Block heater ...................................................... EM-78
Blower motor ................................... ATC-93, ATC-149
Body alignment ................................................ BL-172
Body component parts ..................................... BL-161
Body construction ............................................ BL-171
Body exterior paint color .................................. BL-160
Body mounting ................................................. BL-159
Body repair ....................................................... BL-160
Body sealing .................................................... BL-168
Bose speaker amp. .............................................. AV-8
Brake booster .................................................... BR-17
Brake fluid level ................................................. MA-28
Brake hydraulic line ........................................... BR-12
Page 2244 of 3383
IDX-3
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
Brake inspection ................................................
MA-28
Brake lines and cables inspection ..................... MA-28
Brake master cylinder ....................................... BR-15
Brake switch ...................................... EC-511, EC-523
BRK/SW - Wiring diagram ............................... EC-524
Bulb specifications ........................................... LT-175
Bumper, front ...................................................... EI-13
Bumper, rear ....................................................... EI-15
C
Cabin air filter .................................................... MA-21
Camshaft ........................................................... EM-46
Camshaft inspection .......................................... EM-50
Camshaft position sensor (PHASE) ................ EC-347
CAN - Wiring diagram EC-152, AT-96, AT-97, LAN-28,
LAN-39
, LAN-57, LAN-79, LAN-98
CAN communication EC-31, EC-151, EC-154, TF-113,
RSU-6
Canister-See EVAP canister ............................. EC-35
Center case (Transfer) ....................... TF-154, TF-167
CHARGE - Wiring diagram ............................... SC-18
Charging system ............................................... SC-17
Chassis and body maintenance ........................ MA-21
Chassis and body maintenanceSchedule 1 ........ MA-8
Chassis and body maintenanceSchedule 2 ...... MA-10
CHIME - Wiring diagram ..................................... DI-46
Circuit breaker ................................................... PG-17
Clock ................................................................... DI-71
CLOCK - Wiring diagram .................................... DI-71
Closed loop control ............................. EC-25, EC-470
Closed loop control (Bank 1) ........................... EC-470
Closed loop control (Bank 2) ........................... EC-470
Clutch drum (Transfer) ....................... TF-154, TF-167
Clutch pressure switch (Transfer) ...... TF-154, TF-167
Coil spring (front) ............................................. FSU-10
Collision diagnosis .......................................... SRS-60
Combination lamp, front, removal and installation . LT-
31
Combination lamp, rear, removal and installation .. LT-
125
Combination meter ................................................ DI-5
Combination switch .......................................... LT-100
COMBSW - Wiring diagram ............................. LT-100
COMM - Wiring diagram ................................... AV-97
COMPAS - Wiring diagram ................................. DI-27
Compass ............................................................. DI-26
Component Location (auto A/C) ...................... ATC-40
Compressor clutch removal and installation . ATC-176
Compressor mounting ................................... ATC-175
Compressor precaution ................................... ATC-11
Compressor special service tool ..................... ATC-14
Condenser ..................................................... ATC-182
Connecting rod .................................................. EM-96
Connecting rod bearing clearance .................... EM-96
Connecting rod bushing clearance .................... EM-96
Console box - See Instrument panel ................... IP-10
CONSULT for VDC ......................................... BRC-28
CONSULT-II for engine ................................... EC-114
Control units (terminal arrangement) ................. PG-71
Control valve (A/T) ............................................. AT-36
Control valve (Transfer) ...................... TF-154, TF-167
Converter housing installation ............ AT-245, AT-249
COOL/F - Wiring diagram ................................ EC-476
Coolant mixture ratio ......................................... MA-12
Coolant replacement ............................ CO-10, MA-13
Cooling circuit (engine) ........................................ CO-8
Cooling fan ........................................................ CO-17
Cooling fan control ........................................... EC-473
Cooling fan motor ............................................ EC-482
Cooling unit (A/C evaporator) ....... ATC-153, ATC-184
Corrosion protection ......................................... BL-165
Crankcase ventilation system - See Positive crankcase
ventilation .......................................................... EC-45
Crankshaft ......................................................... EM-79
Crankshaft position sensor (POS) ................... EC-340
Crash zone sensor .......................................... SRS-55
Cylinder block .................................................... EM-78
Cylinder block boring ......................................... EM-99
D
D/LOCK - Wiring diagram ................................... BL-19
Data link connector for Consult ......... EC-116, EC-128
Daytime light system .......................................... LT-33
Daytime running light - See Daytime light system .. LT-
33
DEF - Wiring diagram ....................................... GW-77
Diagnosis sensor unit ...................................... SRS-58
Diagnostic trouble code (DTC) for OBD system . EC-8,
EC-52
Diagnostic trouble code (DTC) inspection priority chart
EC-89
Differential carrier assembly ............................ RFD-15
Differential gear oil replacement ........................ MA-26
Dimensions ......................................................... GI-50
Direct clutch solenoid valve ................ AT-147, AT-149
Display and amp.assembly .............................. ATC-61
Display Control Unit ........................................... AV-86
Display Unit ....................................................... AV-86
Dome light - See Interior lamp .......................... LT-134
Door glass .......................................... GW-65, GW-68
Door lock .......................................................... BL-131
Door mirror lamp ............................................... LT-134
Door trim .............................................................. EI-32
Door, front ........................................... BL-128, GW-65
Door, rear ........................................... BL-128, GW-68
Drive belt ........................................................... EM-13
Drive chain (Transfer) ......................... TF-149, TF-176
Drive pinion diff. inspection .............................. RFD-18
Drive shaft (rear) ................................................ RAX-7
Driver air bag ................................................... SRS-46
DTC work support ............................................ EC-124
DTRL - Wiring diagram ....................................... LT-37
Duct and grilles .............................................. ATC-166
DVD - Wiring Diagram ....................................... AV-78
DVD Entertainment System ............................... AV-75
DVD Player ........................................................ AV-76
Page 2245 of 3383
IDX-4
ALPHABETICAL INDEX
E
ECM input/output signal ..................... EC-105
, EC-129
ECM power supply ............................. EC-145, EC-453
ECM relay ........................................................ EC-145
ECM/PW - Wiring diagram ............................... EC-454
ECTS - Wiring diagram .................................... EC-194
Electric sunroof .................................................. RF-10
Electric throttle control actuator ......... EC-534, EC-545
Electrical load signal circuit .............................. EC-596
Electrical units location ...................................... PG-65
Electronic ignition (EI) system ........................... EC-26
Engine control circuit diagram ......................... EC-103
Engine control component parts location ........... EC-96
Engine control module (ECM) .......................... EC-457
Engine control system diagram ......................... EC-23
Engine coolant .................................................. CO-10
Engine coolant temperature sensor (ECTS) ... EC-192,
EC-205
Engine fail-safe system ...................................... EC-91
Engine oil ............................................................. LU-7
Engine oil filter replacement ............................. MA-17
Engine oil precautions .......................................... GI-7
Engine oil replacement ..................................... MA-17
Engine removal ................................................. EM-74
Engine room cover ............................................ EM-12
Engine serial number .......................................... GI-49
ETC1 - Wiring diagram .................................... EC-535
ETC2 - Wiring diagram .................................... EC-530
ETC3 - Wiring diagram .................................... EC-541
EVAP canister .................................................... EC-35
EVAP canister purge volume control solenoid valve ....
EC-373
, EC-381
EVAP canister vent control valve ....... EC-388, EC-395
EVAP control system (small leak) diagnosis .. EC-365,
EC-419
, EC-427
EVAP control system pressure sensor .... EC-402, EC-
405, EC-411
EVAP control system purge flow monitoring diagnosis
EC-360
EVAP vapor lines inspection ............................. MA-20
Evaporative emission (EVAP) system ............... EC-32
Evaporator ..................................................... ATC-184
Exhaust manifold .............................................. EM-21
Exhaust system ................................................... EX-3
Exhaust system inspection .................................. EX-3
Expansion valve ............................................. ATC-186
F
F/FOG - Wiring diagram ..................................... LT-71
F/PUMP - Wiring diagram ................................ EC-605
Final drive pre-inspection ................................. FFD-15
Final drive removal and installation .. FFD-12, RFD-13
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-127
Fluids ................................................................ MA-11
Fluorescent leak detector .............................. ATC-187
Fog lamp, front .................................................... LT-69
Fog lamp, front, removal and installation ........... LT-79
Foot lamp ......................................................... LT-135
Freeze frame data ............................... EC-53, EC-118
Front brake solenoid valve ................. AT-143, AT-145
Front bumper ...................................................... EI-13
Front case (Transfer) .......................... TF-149, TF-176
Front combination lamp removal and installation LT-31
Front door ............................. BL-128, BL-131, GW-65
Front Door Trim ................................................... EI-32
Front drive shaft (Transfer) ................. TF-149, TF-176
Front fog lamp .................................................... LT-69
Front fog lamp removal and installation ............. LT-79
Front passenger air bag .................................. SRS-50
Front seat ........................................................... SE-91
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ............... SRS-3, SRS-57
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTS - Wiring diagram ....................................... AT-128
FTTS - Wiring diagram ...................... EC-311, EC-316
Fuel cut control (at no load high engine speed) EC-27
Fuel filter replacement ......................................... FL-6
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) .......... EC-288, EC-299
Fuel injection system (Bank 2) .......... EC-288, EC-299
Fuel injector .................................................... EC-598
Fuel injector and fuel tube ................................. EM-31
Fuel level sensor ................. EC-436, EC-438, EC-440
Fuel line inspection .............................................. FL-4
Fuel precautions ................................................... GI-5
Fuel pressure check .......................................... EC-80
Fuel pressure release ....................................... EC-80
Fuel pump ....................................................... EC-604
Fuel pump and gauge .......................................... FL-6
Fuel system .......................................................... FL-4
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor ........... EC-309, EC-315
Fuel tank vacuum relief valve ........................... EC-35
FUELB1 - Wiring diagram ................. EC-290, EC-301
FUELB2 - Wiring diagram ................. EC-292, EC-303
Fuse ...................................................... PG-17, PG-77
Fuse and fusible link box .................................. PG-77
Fuse block ......................................................... PG-76
Fusible link ............................................ PG-17, PG-77
G
Garage jack and safety stand ............................. GI-41
Gauges ................................................................. DI-5
Generator .......................................................... SC-17
Generic scan tool (GST) ................................. EC-127
Glass ...................................... GW-11, GW-65, GW-68
Glove box lamp ................................................ LT-158
GPS antenna ..................................................... AV-85
Grease .............................................................. MA-11
Ground distribution ............................................ PG-31
Page 2246 of 3383
IDX-5
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
H
H/AIM - Wiring diagram ...................................... LT-66
H/LAMP - Wiring diagram .................................... LT-9
Handling precautions for plastics ..................... BL-187
Harness connector ............................................ PG-68
Harness layout .................................................. PG-41
Hazard warning lamp ......................................... LT-80
Headlamp ............................................................. LT-5
Headlamp aiming control ................................... LT-66
Headlamp leveler - See Headlamp aiming control . LT-
66
Headlamp removal and installation .................... LT-31
Heated oxygen sensor 2 (bank 1) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 (bank 2) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 heater (bank 1) ........ EC-163
Heated oxygen sensor 2 heater (bank 2) ........ EC-163
Heated seat ....................................................... SE-84
Heater and cooling unit (Heater core) . ATC-153, ATC-
156
Heater unit (heater core) ............... ATC-153, ATC-156
Height (Dimensions) ........................................... GI-50
HFC134a (R134a) system identification ........... ATC-6
HFC134a (R134a) system precaution ............... ATC-5
HFC134a (R134a) system service procedure ATC-171
HFC134a (R134a) system service tools ......... ATC-14
HFC134a system service equipment precaution ATC-
11
High and low reverse clutch solenoid valve .... AT-151,
AT-153
Homelink universal transceiver ........................ BL-156
Horn ................................................................ WW-55
HORN - Wiring diagram .................................. WW-55
How to erase DTC for OBD system .................. EC-61
HSEAT - Wiring diagram ................................... SE-86
I
IATS - Wiring diagram ..................................... EC-189
ICC - Wiring diagram ....................................... ACS-20
ICC/BS - Wiring diagram ................................. EC-504
ICC/SW - Wiring diagram ................................ EC-489
ICCBOF - Wiring diagram ............................... EC-611
Identification plate .............................................. GI-48
Idle air volume learning ..................................... EC-78
Idle speed .............................................. EC-71, EC-76
Idle speed control (ISC) .................... EC-444, EC-446
Ignition coil .......................................... EM-28, EC-618
Ignition control system .................................... EC-618
Ignition key hole illumination ............................ LT-134
Ignition timing ........................................ EC-71, EC-76
IGNSYS - Wiring diagram ............................... EC-619
ILL - Wiring diagram ......................................... LT-163
Illumination ....................................................... LT-157
In vehicle sensor ........................... ATC-137, ATC-146
In-cabin Microfilter ............................................. MA-21
INJECT - Wiring diagram ................................ EC-599
Injector ............................................................. EC-598
Input clutch solenoid valve ................. AT-139, AT-141
Instrument panel .................................................. IP-10
Intake air temperature sensor ............ EC-188, EC-208
Intake door control linkage adjustment . ATC-85, ATC-
88
Intake door motor ........................... ATC-83, ATC-160
Intake manifold .................................................. EM-17
Intake sensor ................................ ATC-142, ATC-148
Integrated homelink transmitter - See Homelink univer-
sal tranceiver .................................................... BL-156
Intelligent cruise control (ICC) system ............... ACS-6
Interior ................................................................. EI-35
Interior lamp ...................................................... LT-134
Interior lamp on-off control ................................ LT-135
Internal gear (Transfer) ....................... TF-149, TF-176
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-18
IVIS (Infiniti vehicle immobilizer system) .......... BL-137
IVIS (Infiniti vehicle immobilizer system) precautions ...
GI-3
J
Jacking points ..................................................... GI-41
Junction box (J/B) .............................................. PG-76
K
Key illumination ................................................ LT-135
KEYLES - Wiring diagram .................................. BL-49
Knock sensor (KS) ........................................... EC-335
KS - Wiring diagram ........................................ EC-336
L
Laser beam aiming adjustment ....................... ACS-12
Length (Dimensions) .......................................... GI-50
License lamp .................................................... LT-111
Lifting points ....................................................... GI-42
Line pressure solenoid valve ........................... AT-122
Line pressure switch (Transfer) .......... TF-154, TF-167
Line pressure test (A/T) ..................................... AT-52
Location of electrical units ................................. PG-65
Low coast brake solenoid valve .......... AT-155, AT-157
Low tire pressure warning system ...................... WT-8
Low tire pressure warning system - trouble diagnoses
WT-11
Low tire pressure warning system - Wiring diagram .....
WT-11
Lubricant (R134a) A/C ..................................... ATC-22
Lubricants .......................................................... MA-11
Lubrication circuit (engine) .................................. LU-5
Lubrication oil A/C ........................................... ATC-22
Lubrication-locks, hinges and hood latches ....... MA-31
M
MAFS - Wiring diagram ..................... EC-174
, EC-182
