steering INFINITI QX56 2006 Factory Service Manual

PS-8
STEERING WHEEL
Revision: November 20092006 QX56
CHECKING FRONT WHEEL TURNING ANGLE
When checking front wheel turning angle, refer to FSU-8, "FRONT WHEEL TURNING ANGLE" .
Removal and InstallationEGS000UD
REMOVAL
1. Set the front wheels in the straight-ahead position.
2. Remove the driver air bag module. Refer to SRS-46, "
Removal and Installation" .
3. Disconnect steering wheel switches.
4. Remove the steering wheel center nut.
5. Remove the steering wheel using Tools.
CAUTION:
Place a piece of tape across the spiral cable so it will not be
rotated out of position.
6. Inspect the steering wheel near the puller holes for damage. If damaged, replace the steering wheel.

Remove steering wheel rear cover and steering wheel
switches, if required.
INSTALLATION
Installation is in the reverse order of removal.

Align spiral cable correctly when installing steering wheel. Make
sure that the spiral cable is in the neutral position. The neutral
position is detected by turning left 2.6 revolutions from the right
end position and ending with the knob at the top.

If equipped with VDC, refer to BRC-62, "Adjustment of Steering
Angle Sensor Neutral Position" for steering angle sensor adjust-
ment.

After the work is completed, perform self-diagnosis to make sure
no malfunction is detected. Refer to SRS-20, "
SRS Operation
Check" .

Tighten steering wheel center nut to specification. Refer to PS-10, "Removal and Installation" .
CAUTION:

The spiral cable may snap due to steering operation if the
cable is not installed in the correct position.

With the steering linkage disconnected, the cable may snap
by turning the steering wheel beyond the limited number of
turns. The spiral cable can be turned counterclockwise
about 2.5 turns from the neutral position. Tool number A: KV481J0010 (J-1859-A)
B: KV481J0020 (J-42578)
WHIA0124E
WGIA0038E
PHIA0275E

TILT SYSTEMPS-9
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
TILT SYSTEMPFP:48810
Removal and InstallationEGS000UE
TILT MOTOR AND TILT SENSOR
Removal
1. Remove the steering column cover and lower driver instrument panel. Refer to IP-10, "INSTRUMENT
PANEL ASSEMBLY" .
2. Remove knee protector.
3. Disconnect the tilt sensor electrical connector.
4. Remove the two tilt sensor screws and the tilt sensor.
5. Disconnect the tilt motor electrical connector.
6. Remove the tilt motor bolt and the tilt motor.
Installation
Installation is in reverse order of removal.
NOTE:
Make sure the tab in the tilt sensor is engaged in the bracket on the tilt motor.
BGIA0009E
1. Tilt sensor 2. Tilt motor
LGIA0026E

PS-10
STEERING COLUMN
Revision: November 20092006 QX56
STEERING COLUMNPFP:48810
Removal and InstallationEGS000UF
CAUTION:

Do not exert any load or impact in the axial direction immediately before or after column removal.

Do not to move steering gear during removal of steering column assembly.
REMOVAL
1. Remove combination switch and spiral cable from steering column assembly. Refer to SRS-48, "Removal
and Installation" .
2. Remove the tilt motor and tilt sensor. Refer to PS-9, "
Removal and Installation" .
3. Remove steering column cover, ADP steering switch and ignition key finisher. Refer to IP-10, "
Removal
and Installation" .

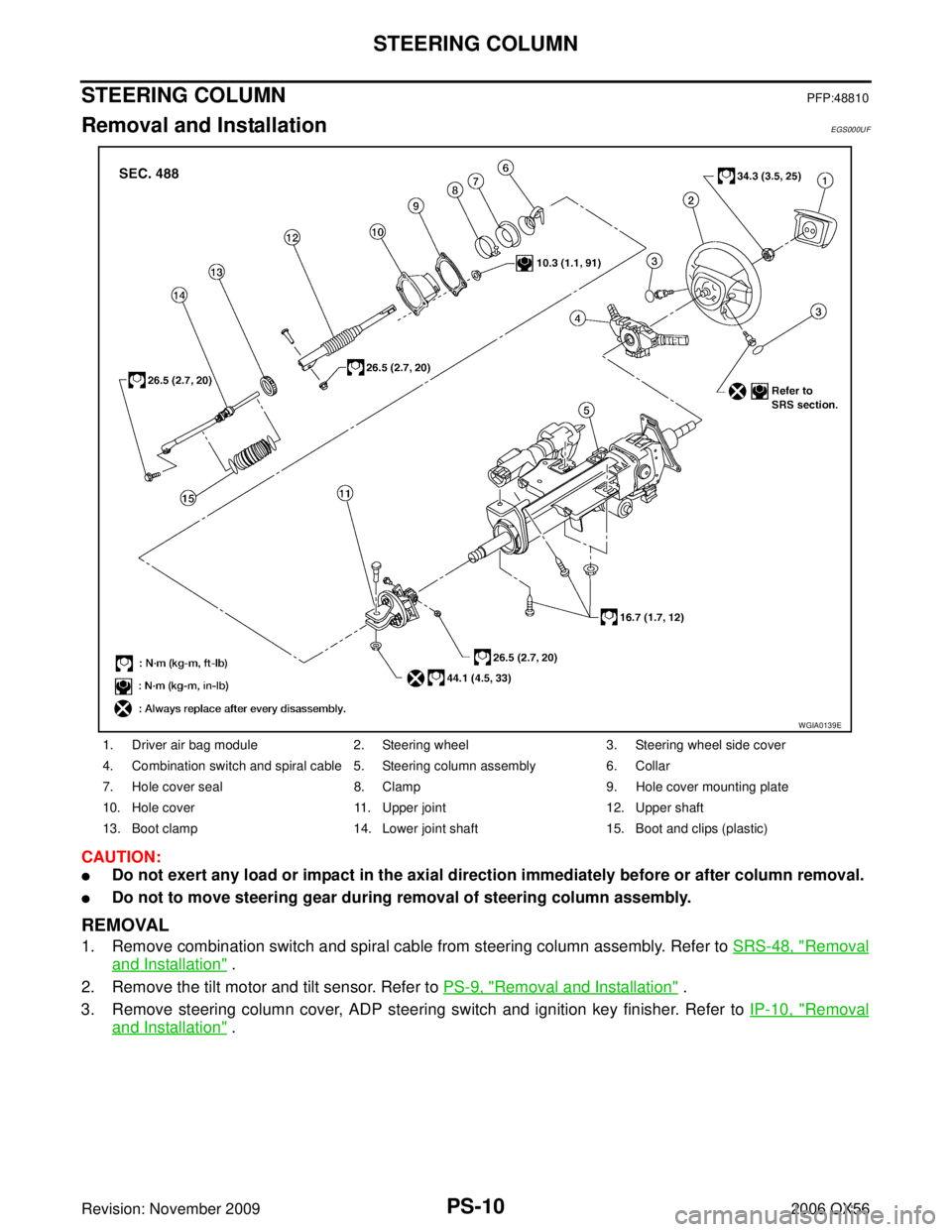

1. Driver air bag module2. Steering wheel 3. Steering wheel side cover
4. Combination switch and spiral cable 5. Steering column assembly 6. Collar
7. Hole cover seal 8. Clamp 9. Hole cover mounting plate
10. Hole cover 11. Upper joint 12. Upper shaft
13. Boot clamp 14. Lower joint shaft 15. Boot and clips (plastic)
WGIA0139E

STEERING COLUMNPS-11
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
4. Remove lock nut and bolt, then separate upper shaft from upper
joint.
5. Remove two nuts and two bolts, then remove steering column assembly from steering member.
6. Remove hole cover seal and clamp.
7. Remove mounting nuts, then remove hole cover from dash panel.
8. Raise vehicle, then remove mounting bolt (lower side) of lower joint shaft and remove lower joint shaft and upper shaft as an
assembly.
INSPECTION AFTER REMOVAL

Check for damage to steering column jacket tube. If damage is found, replace steering column with new
one.

If vehicle has been in a collision, check column length “L1” and
“L2 ” as shown. If out of specification, replace steering column
with new one.

Check for proper lubrication, apply grease as necessary.
INSTALLATION
Installation is in the reverse order of removal.
LGIA0027E
LGIA0028E
LGIA0029E
Steering column length
L1 : 158 mm (6.22 in)
L2 : 262 mm (10.31 in)
SGIA0475E

PS-12
STEERING COLUMN
Revision: November 20092006 QX56
CAUTION:

When installing the steering column, finger-tighten all of the lower bracket and joint retaining
bolts; then tighten them to specification. Do not apply undue stress to the steering column.

The lower nut on the upper joint may not be reused.
NOTE:
Align slit of the coupling joint with projection on dust cover. Insert the
joint until surface "A" contacts surface "B".

After installation, turn steering wheel to make sure it moves
smoothly. Make sure the number of turns are the same from the
straight-forward position to left and right locks. Make sure that
the steering wheel is in a neutral position when driving straight
ahead.

When installing steering column to steering member, install
mounting nut from front side of vehicle.
INSPECTION AFTER INSTALLATION

After installing steering column to vehicle, check tilt device operation range is within specification.

Check if steering wheel operation can turn to the end of the left
and right stops smoothly.
SST491C
Range "A" : 61.3 mm (2.41 in)
WGIA0083E

STEERING COLUMNPS-13
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
Disassembly and AssemblyEGS000UG
DISASSEMBLY
1. Remove mounting bolt from upper joint, then remove upper joint from steering column assembly.
2. Remove ignition switch tamper resistant self-shear screws with a drill or other suitable tool.
1. Steering column assembly2. Upper joint3. Ignition switch
4. Tamper resistant self-shear screw
WGIA0091E

PS-14
STEERING COLUMN
Revision: November 20092006 QX56
ASSEMBLY

Assembly is in the reverse order of disassembly.

Install new tamper resistant self-shear screws.
INSPECTION AFTER ASSEMBLY
When the steering wheel does not turn smoothly, check the steering column as follows:
1. Check the column bearings for damage or unevenness. Lubricate with recommended multi-purpose
grease. Replace the steering column as an assembly, if necessary.
2. Check the column tube for deformation or breakage. Replace the steering column as an assembly, if nec- essary.
3. If the vehicle has been involved in a collision, or if noise and rat- tles are heard during a turn, check the length "L" of the column.
If out of specification, replace the steering column as an assem-
bly.
4. Check for proper lubrication, apply grease as necessary.
5. Check for wear around the seal edges, replace the steering col- umn as an assembly as necessary.
6. Check for corrosion or pitting around the seal sliding area.
WGIA0009E
Steering column length "L" : 610 mm (24.02 in)
WGIA0080E

POWER STEERING GEAR AND LINKAGEPS-15
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
POWER STEERING GEAR AND LINKAGEPFP:49001
Removal and InstallationEGS000UH
CAUTION:
Spiral cable may snap due to steering operation if steering column is separated from steering gear
assembly. Therefore secure steering wheel to avoid turning.
REMOVAL
1. Turn wheels to the straight-ahead position.
2. Remove tires from vehicle using power tool.
3. Remove undercover using power tool.
4. On 4WD model, remove front final drive, then support drive shafts with wire. Refer to FFD-12, "
Removal
and Installation" .
5. Remove cotter pin at steering outer socket and discard, then loosen nut.
6. Remove steering outer socket from steering knuckle using Tool. Be careful not to damage ball joint boot.
CAUTION:
Temporarily tighten mounting nut to prevent damage to
threads and to prevent Tool from coming off.
7. On 2WD model, remove stabilizer bar mounting bolts and reposition stabilizer bar. Refer to FSU-12,
"Removal and Installation" .
1. Cotter pin2. Mounting bracket3. Mounting insulator
4. Steering gear assembly 5. Washer
WGIA0127E
Tool number : HT72520000 (J-25730-A)
SDIA1434E

PS-16
POWER STEERING GEAR AND LINKAGE
Revision: November 20092006 QX56
8. Remove oil piping (high pressure side and low pressure side)
from steering gear assembly, then drain fluid from piping.
9. Remove lower joint mounting bolt of lower joint shaft.
10. Remove nuts of steering gear assembly using power tool, then remove bolts and steering gear assembly.
INSTALLATION
Installation is in the reverse order of removal.

After removing/installing or replacing steering components, check wheel alignment. Refer to FSU-6,
"Front Wheel Alignment" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-62,
"Adjustment of Steering Angle Sensor Neutral Position" .

With steering wheel in straight ahead position, make sure slit of
lower joint fits with the projection on rear cover cap, while check-
ing that mark on steering gear assembly aligns with mark on
rear cover cap

After installation, bleed the air from the steering hydraulic system. Refer to PS-6, "Air Bleeding Hydraulic
System" .
LGIA0032E
LGIA0029E
LGIA0024E
SST491C

POWER STEERING GEAR AND LINKAGEPS-17
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
INSPECTION AFTER INSTALLATION
Check if steering wheel turns smoothly when it is turned several times fully to the left and right lock positions.
Disassembly and AssemblyEGS00124
CAUTION:

Secure steering gear assembly with a vise, using copper plates or something similar to prevent it
from being damaged. Do not grip cylinder with a vise.

Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to
bring any kerosene into contact with the discharge and return port connectors.
DISASSEMBLY
1. Remove cylinder tubes from gear housing assembly.
2. Loosen lock nuts of outer sockets, and remove outer sockets.
3. Remove boot clamps of the small diameter side and the large diameter side, then remove boot.
CAUTION:
When removing boots, be careful not to damage inner socket and gear housing assembly. If they
are damaged, change them to avoid oil leaks.
4. Remove inner sockets.
1. Boot clamp 2. Inner socket3. Boot
4. Boot clamp 5. Outer socket6. Cylinder tubes
7. Gear housing assembly 8. Connector
BGIA0008E
