Page 3085 of 3383
SRS-44
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OffEHS0016V
DIAGNOSTIC PROCEDURE 6
1. CHECK CONDITION OF AIR BAG MODULE
Inspect for any deployed air bag modules or seat belt pre-tensioners.
Are any air bag modules or seat belt pre-tensioners deployed?
Yes >> Refer to SRS-60, "COLLISION DIAGNOSIS" .
No >> GO TO 2.
2. CHECK THE AIR BAG FUSE
Check 10A fuse [No. 13, located in the fuse block (J/B)].
Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK AIR BAG FUSE AGAIN
Replace 10A fuse [No. 13, located in the fuse block (J/B)] and turn ignition switch ON.
Does the fuse blow again?
Yes >> Repair harness.
No >> Inspection End.
4. CHECK AIR BAG DIAGNOSIS SENSOR UNIT
Connect CONSULT-II and touch “START”.
Is
“AIR BAG” displayed on CONSULT-II?
Yes >> GO TO 5.
No >> Visually inspect the air bag diagnosis sensor unit har- ness connections. If the connections are OK, replace
the air bag diagnosis sensor unit. Refer to SRS-58,
"Removal and Installation" .
5. CHECK HARNESS CONNECTION
Check for loose connections between the combination meter and the air bag diagnosis sensor unit.
OK or NG
OK >> Replace air bag diagnosis sensor unit. Refer to SRS-58, "Removal and Installation" .
NG >> Properly connect the combination meter and air bag diagnosis sensor unit harness connectors. If “AIR BAG” warning lamp still does not turn off, replace the wiring harness.
BCIA0030E
Page 3091 of 3383
SRS-50
FRONT PASSENGER AIR BAG MODULE
Revision: November 20092006 QX56
FRONT PASSENGER AIR BAG MODULEPFP:K8515
Removal and InstallationEHS0016Z
The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.
Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger
air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-
ness must be modified to allow connection of the service replacement passenger air bag module. Refer to
SRS-51, "
WIRING HARNESS MODIFICATION" for wiring harness modification procedure.
REMOVAL
CAUTION:
Do not attempt to repair or replace damaged direct-connect front passenger air bag module con-
nectors. If a direct-connect harness connector is damaged, the front passenger air bag must be
replaced and the wiring harness modified.
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
Always work from the side of or under front passenger air bag module.
1. Remove the glove box. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
2. Remove 2 nuts (through glove box opening) retaining front pas- senger air bag module to instrument panel crossmember.
3. Disconnect the air bag module electrical connectors.
For removal/installation of the direct-connect SRS connec-
tors, refer to SRS-7, "
Direct-connect SRS Component Con-
nectors" .
4. Remove the instrument panel assembly from the vehicle. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
5. Remove front passenger air bag module nuts and remove air bag module from the instrument panel assembly.
CAUTION:
When servicing the SRS, do not work from directly in front
of air bag module.
Always place front passenger air bag module with caution
label side facing upward.
Do not insert any foreign objects (screwdriver, etc.) into air
bag module or harness connectors.
Do not disassemble air bag module.
Do not use old nuts after removal; replace with new nuts.
Do not expose the front passenger air bag module to tem-
peratures exceeding 90 °C (194 °F).
Replace the air bag module if it has been dropped or sus-
tained an impact.
Do not allow oil, grease or water to come in contact with the
air bag module.
For removal/installation of the direct-connect SRS connec-
tors, refer to SRS-7, "
Direct-connect SRS Component Con-
nectors" .
INSTALLATION
Original Passenger Air Bag Module
Installation is in the reverse order of removal.
WHIA0110E
W H I A 0 111 E
SBF814E
Page 3092 of 3383
FRONT PASSENGER AIR BAG MODULESRS-51
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
For removal/installation of the direct-connect SRS connectors, refer to SRS-7, "Direct-connect SRS Com-
ponent Connectors" .
CAUTION:
Always work from the side of or under front passenger air bag module.
After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to SRS-20, "
SRS Operation Check" .
Service Replacement Passenger Air Bag Module
1. Install the front passenger air bag module to the instrument
panel pad assembly.
2. Install the instrument panel assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Connect the front passenger air bag module harness connector to yellow 4-pin service replacement air bag connector and fasten connector to mounting bracket.
CAUTION:
Always work from the side of or under front passenger air bag module.
After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to SRS-20, "
SRS Operation Check" .
WIRING HARNESS MODIFICATION
The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.
Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger
air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-
ness must be modified to allow connection of the service replacement passenger air bag module.
NOTE:
The wiring harness modification is to be performed only if the vehicle is equipped with the original passenger
air bag which uses direct-connect harness connectors. If the passenger air bag is to be replaced in a vehicle
that has already had the service replacement passenger air bag installed, the wiring harness modification is
not required.
CAUTION:
Do not attempt to repair or replace damaged direct-connect front passenger air bag module con-
nectors. If a direct-connect harness connector is damaged, the front passenger air bag must be
replaced and the wiring harness modified.
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
Always work from the side of or under front passenger air bag module.
After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to SRS-20, "
SRS Operation Check" .
1. Locate the yellow and orange direct-connect passenger air bag module harness connectors.
2. Use wire cutters to cut back both previously used direct-connect passenger air bag module harness con- nectors from the vehicle wiring harness approximately 50 mm (1.9 in) from the connectors.
3. Remove approximately 150 mm (5.9 in) of the vehicle harness covering from the cut end.
WHIA0110E
Page 3093 of 3383
SRS-52
FRONT PASSENGER AIR BAG MODULE
Revision: November 20092006 QX56
4. Slide a piece of dual-wall heat shrink tubing (provided in the pas-
senger air bag service kit) onto each wire of the previously used
vehicle wiring harness.
5. Fold each wire back and insert into the end of the heat shrink tubing so that the end of the wire is approximately centered in
the heat shrink tubing.
6. Use a heat gun to shrink the heat shrink tubing and seal the wire.
7. Use electrical tape to secure the modified circuits to the outside of the wiring harness.
8. Locate the front passenger air bag service replacement connec- tor that is taped back to the main harness. Unwrap the tape to
access the yellow service replacement connector and remove
the dust cover from the connector.
LHIA0017E
WHIA0062E
WHIA0118E
Page 3106 of 3383
TF-1
TRANSFER
D DRIVELINE/AXLE
CONTENTS
CE F
G H
I
J
K L
M
SECTION
A
B
TF
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
Precautions for Transfer Assembly and Transfer
Control Unit Replacement ................................... ..... 4
METHOD FOR POSITION ADJUSTMENT ...... ..... 4
Precautions ......................................................... ..... 4
Service Notice .......................................................... 5
PREPARATION ...................................................... ..... 6
Special Service Tools .......................................... ..... 6
Commercial Service Tools ................................... ..... 9
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ... 10
NVH Troubleshooting Chart ................................ ... 10
TRANSFER FLUID ................................................ ....11
Replacement ....................................................... .... 11
DRAINING ........................................................ .... 11
FILLING ............................................................ .... 11
Inspection ............................................................ .... 11
FLUID LEAKAGE AND FLUID LEVEL ............. .... 11
ALL-MODE 4WD SYSTEM ................................... ... 12
Cross-section View ............................................. ... 12
Power Transfer .................................................... ... 13
POWER TRANSFER DIAGRAM ..................... ... 13
POWER TRANSFER FLOW ............................ ... 14
System Description ............................................. ... 15
CONTROL SYSTEM ........................................ ... 15
TRANSFER MOTOR ....................................... ... 16
WAIT DETECTION SWITCH ........................... ... 17
NEUTRAL-4LO SWITCH ................................. ... 17
ATP SWITCH ................................................... ... 17
2-4WD SHIFT SOLENOID VALVE ................... ... 17
CLUTCH PRESSURE SOLENOID VALVE ...... ... 18
LINE PRESSURE SWITCH ............................. ... 18
CLUTCH PRESSURE SWITCH ....................... ... 18
TRANSFER FLUID TEMPERATURE SENSOR ... 18
TRANSFER CONTROL UNIT .......................... ... 18
TRANSFER CONTROL DEVICE ..................... ... 18
4WD SHIFT SWITCH AND INDICATOR LAMP ... 184WD WARNING LAMP ....................................
... 19
ATP WARNING LAMP ...................................... ... 19
System Diagram ..................................................... 19 COMPONENTS FUNCTION ............................ ... 20
CAN Communication .............................................. 20 SYSTEM DESCRIPTION ................................. ... 20
TROUBLE DIAGNOSIS ......................................... ... 21
How to Perform Trouble Diagnosis ...................... ... 21
BASIC CONCEPT ............................................ ... 21
Location of Electrical Parts .................................. ... 22
Circuit Diagram ....................................................... 23

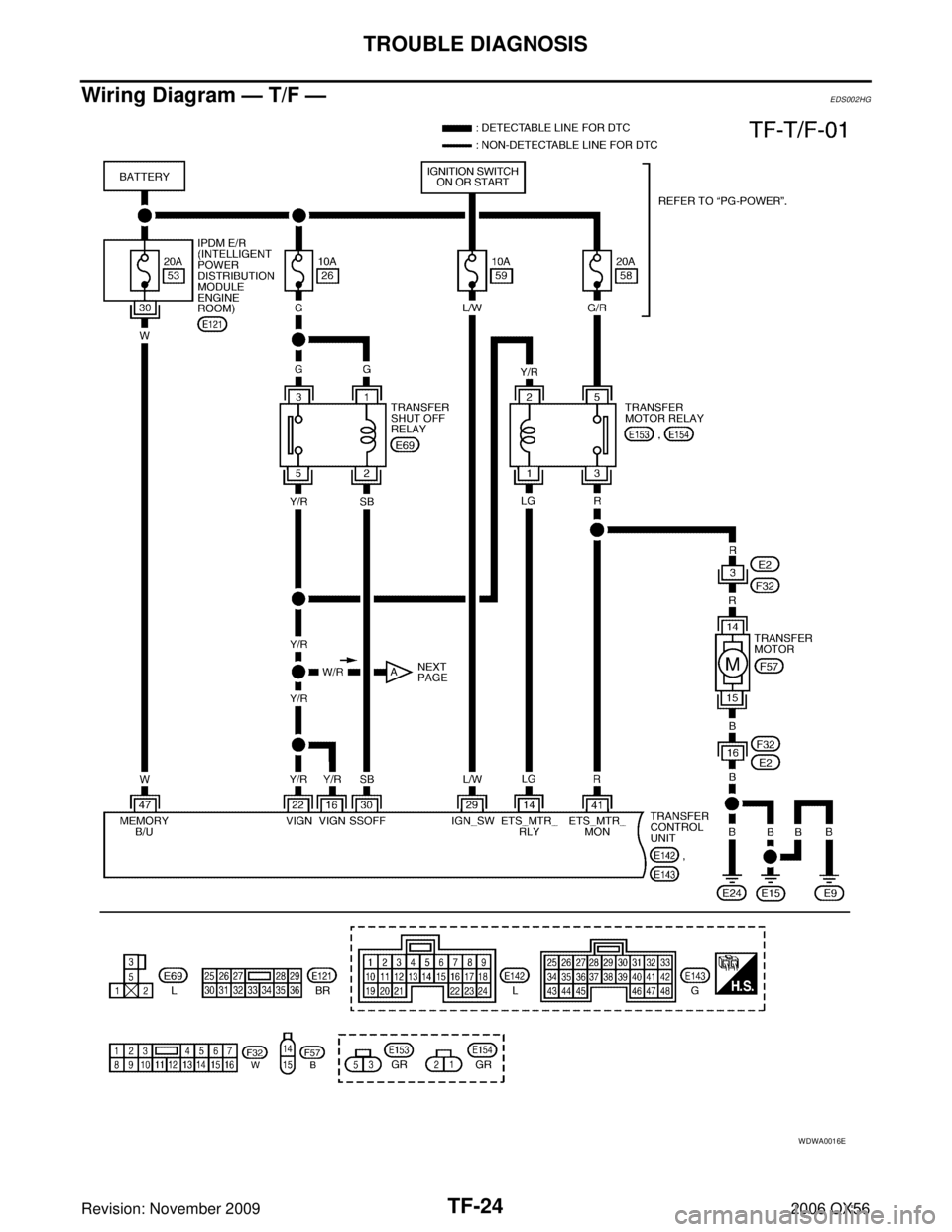

Wiring Diagram — T/F — .................................... ... 24
Inspections Before Trouble Diagnosis ................. ... 32
TRANSFER FLUID CHECK ............................. ... 32
PREPARATION FOR ROAD TEST .................. ... 32
CHECK BEFORE ENGINE IS STARTED ........ ... 32
CHECK AT IDLE ............................................... ... 32
CRUISE TEST ..................................................... 33
Trouble Diagnosis Chart for Symptoms ............... ... 34
Transfer Control Unit Input/Output Signal Refer-
ence Values ......................................................... ... 35
TRANSFER CONTROL UNIT INSPECTION
TABLE .............................................................. ... 35
CONSULT-II Function (ALL MODE AWD/4WD) .. ... 44
FUNCTION ....................................................... ... 44
CONSULT-II SETTING PROCEDURE ............. ... 44
SELF-DIAG RESULT MODE ............................ ... 45
DATA MONITOR MODE ................................... ... 47
WORK SUPPORT ............................................ ... 49
Self-diagnostic Procedure ................................... ... 50
SELF-DIAGNOSTIC PROCEDURE (WITH
CONSULT-II) .................................................... ... 50
SELF-DIAGNOSTIC PROCEDURE (WITHOUT
CONSULT-II) .................................................... ... 50
ERASE SELF-DIAGNOSIS .............................. ... 53
TROUBLE DIAGNOSIS FOR SYSTEM ................. ... 54
Power Supply Circuit For Transfer Control Unit ... ... 54
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 54
TRANSFER CONTROL UNIT TERMINALS AND
Page 3109 of 3383
TF-4
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EDS002H3
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Transfer Assembly and Transfer Control Unit ReplacementEDS002H4
When replacing transfer assembly or transfer control unit, check the 4WD shift indicator lamp as follows.
1. Turn ignition switch “ON ”.
2. Check 4WD shift indicator lamp is turned ON for approx. 1 second.
If OK, the position between transfer assembly and transfer control unit is correct.
If NG, the position is different between transfer assembly and transfer control unit.
Adjust the position between transfer assembly and transfer control unit. Refer to TF-4, "
METHOD FOR
POSITION ADJUSTMENT" .
METHOD FOR POSITION ADJUSTMENT
1. Start engine. Run the engine for at least 10 seconds.
2. Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.
3. Turn 4WD shift switch to “2WD ” position. Stay in "2WD" for at least 2 seconds.
4. Turn ignition switch “ OFF”.
5. Start engine.
6. Erase self-diagnosis. Refer to TF-47, "
How to Erase Self-diagnostic Results" (with CONSULT-II) or TF-
53, "ERASE SELF-DIAGNOSIS" (without CONSULT-II).
7. Check 4WD shift indicator lamp. Refer to TF-32, "
CHECK BEFORE ENGINE IS STARTED" .
If 4WD shift indicator lamp does not indicate "2WD", install new transfer control unit and retry the above
check.
PrecautionsEDS002H5
Before connecting or disconnecting the transfer control
unit harness connector, turn ignition switch “OFF” and dis-
connect battery ground cable. Failure to do so may damage
the transfer control unit. Battery voltage is applied to trans-
fer control unit even if ignition switch is turned “OFF”.
SEF289H
Page 3129 of 3383
TF-24
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Wiring Diagram — T/F —EDS002HG
WDWA0016E
Page 3224 of 3383
TROUBLE DIAGNOSIS FOR SYMPTOMSTF-119
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
4. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and combination meter harness connector.
3. Check continuity between the following terminals.
–Transfer control unit harness connector E142 terminal 2 and
combination meter harness connector M24 terminal 32.
–Transfer control unit harness connector E142 terminal 11 and
combination meter harness connector M24 terminal 31.
–Transfer control unit harness connector E142 terminal 12 and
combination meter harness connector M24 terminal 33.
–Transfer control unit harness connector E142 terminal 21 and
combination meter harness connector M24 terminal 30.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK INDICATOR LAMP CIRCUIT
1. Connect combination meter harness connector.
2. Disconnect transfer control unit harness connector.
3. Turn ignition switch “ON”.
4. Ground the following terminals using suitable wiring.
–Transfer control unit harness connector E142 terminal 2 and
ground.
–Transfer control unit harness connector E142 terminal 11 and
ground.
–Transfer control unit harness connector E142 terminal 12 and
ground.
–Transfer control unit harness connector E142 terminal 21 and
ground.
Do indicator lamps turn on?
OK >> GO TO 6.
NG >> Replace combination meter. Refer to IP-13, "
COMBINATION METER" .
6. SYMPTOM CHECK
Check again.
OK or NG
OK >> Inspection End.
NG >> GO TO 7. Continuity should exist.
WDIA0160E
SDIA2772E
Page 3228 of 3383
TROUBLE DIAGNOSIS FOR SYMPTOMSTF-123
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
4. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and combination meter harness connector.
3. Check continuity between the following terminals.
–Transfer control unit harness connector E142 terminal 5 and
combination meter harness connector M24 terminal 34.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK INDICATOR LAMP CIRCUIT
1. Connect combination meter harness connector.
2. Disconnect transfer control unit harness connector.
3. Turn ignition switch “ON”. (Do not start engine.)
4. Ground the following terminal using suitable wiring.
–Transfer control unit harness connector E142 terminal 5 and
ground.
Does 4WD warning lamp turn on?
OK >> GO TO 6.
NG >> Replace combination meter. Refer to IP-13, "
COMBINA-
TION METER" .
6. SYMPTOM CHECK
Check again.
OK or NG
OK >> Inspection End.
NG >> GO TO 7.
7. CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Values" .
OK or NG
OK >> Inspection End.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
4WD Shift Indicator Lamp or 4LO Indicator Lamp Does Not ChangeEDS002HO
SYMPTOM:
4WD shift indicator lamp or 4LO indicator lamp does not change when switching 4WD shift switch.Continuity should exist.
WDIA0154E
SDIA2774E
Page 3231 of 3383
TF-126
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
4. CHECK SYSTEM FOR ATP SWITCH
Perform trouble diagnosis for ATP switch system. Refer to TF-113, "
ATP Switch" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER
1. Turn ignition switch “ OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and combination meter harness connector.
3. Check continuity between the following terminals.
–Transfer control unit harness connector E142 terminal 15 and
combination meter harness connector M24 terminal 6.
–Transfer control unit harness connector E142 terminal 40 and
combination meter harness connector M24 terminal 7.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK ATP WARNING LAMP CIRCUIT
1. A/T selector lever in "P" position.
2. Connect combination meter harness connector and transfer control unit harness connector.
3. Disconnect ATP switch harness connector.
4. Ground the following terminal using suitable wiring.
–ATP switch harness connector F55 terminal 8 and ground.
5. Turn ignition switch “ ON”. (Do not start engine.)
Does indicator lamp turn on?
OK >> GO TO 7.
NG >> Replace combination meter. Refer to IP-13, "
COMBINA-
TION METER" .
Continuity should exist.
WDIA0149E
40 to 7: Continuity should not exist.
7 to 40: Continuity should exist.
WDIA0150E
SDIA2769E
