wiring INFINITI QX56 2007 Factory Service Manual

ACC-2
< SERVICE INFORMATION >
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003532213
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

ACS-1
ELECTRICAL
C
D
E
F
G
H
I
J
L
M
SECTION ACS
A
B
ACS
N
O
P
CONTENTS
AUTO CRUISE CONTROL SYSTEM
ASCD
SERVICE INFORMATION ............................
3
AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ................................................................
3
Description ................................................................3
ICC
SERVICE INFORMATION ............................
4
PRECAUTIONS ...................................................4
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................
4
Precaution for ICC System Service ...........................4
PREPARATION ...................................................5
Special Service Tool .................................................5
DESCRIPTION ....................................................6
Outline .......................................................................6
Schematic .................................................................6
Component Description .............................................7
CAN Communication .................................................7
Switch Operation .......................................................7
ICC System Display ..................................................8
ACTION TEST .....................................................9
ICC System Running Test .........................................9
LASER BEAM AIMING ADJUSTMENT .............12
Outline of Laser Beam Aiming Adjustment Proce-
dure .........................................................................
12
Preparation ..............................................................12
Setting up the ICC Target Board .............................12
Sensor Adjustment ..................................................14
ELECTRICAL UNITS LOCATION ......................18
Component Parts and Harness Connector Loca-
tion ..........................................................................
18
WIRING DIAGRAM ...........................................19
Schematic ................................................................19
Wiring Diagram - ICC - ............................................20
TERMINALS AND REFERENCE VALUE .........24
Terminal and Reference Value for ICC Unit ............24
Terminal and Reference Value for ICC Sensor .......24
TROUBLE DIAGNOSIS — GENERAL DE-
SCRIPTION .......................................................
25
Work Flow ................................................................25
CONSULT-II Function (ICC) ....................................25
Self-Diagnostic Function ..........................................30
TROUBLE DIAGNOSIS FOR SELF-DIAG-
NOSTIC ITEMS .................................................
34
Diagnostic Trouble Code (DTC) Chart ....................34
DTC 11 CONTROL UNIT ........................................36
DTC 12 VDC CONTROL UNIT ................................36
DTC 20 CAN COMM CIRCUIT ................................37
DTC 31 POWER SUPPLY CIR1, DTC 34 POWER
SUPPLY CIR2 .........................................................
37
DTC 41 VHCL SPEED SE CIRC .............................38
DTC 43 VDC/TCS/ABS CIRC .................................38
DTC 45 BRAKE SW/STOP L SW ............................38
DTC 46 OPERATION SW CIRC .............................40
DTC 74 LASER BEAM OFF CNTR .........................41
DTC 90 STOP LAMP RLY FIX ................................41
DTC 92 ECM CIRCUIT ............................................45
DTC 96 NP RANGE ................................................45
DTC 97 AT CIRCUIT ...............................................46
DTC 98 GEAR POSITION .......................................46
DTC 102 LASER STAIN ..........................................47
DTC 103 LASER SENSOR FAIL .............................47
DTC 104 LASER AIMING INCMP ...........................48
DTC 107 LASER COMM FAIL ................................48
DTC 109 LASER HIGH TEMP ................................48
TROUBLE DIAGNOSIS FOR SYMPTOMS ......49
Symptom Chart ........................................................49

ACS-4
< SERVICE INFORMATION >[ICC]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003533772
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for ICC System ServiceINFOID:0000000003533773
• Do not look straight into the laser beam discharger when adjusting laser beam aiming.
• Turn the ON/OFF switch OFF during chassis dynamometer testing.
• Do not remove, disassemble, or reposition the ICC sensor unless told to do so.
• Erase DTC when replacing parts of ICC system, then check the operation of ICC system after adjusting laser
beam aiming if necessary.

WIRING DIAGRAM
ACS-19
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
WIRING DIAGRAM

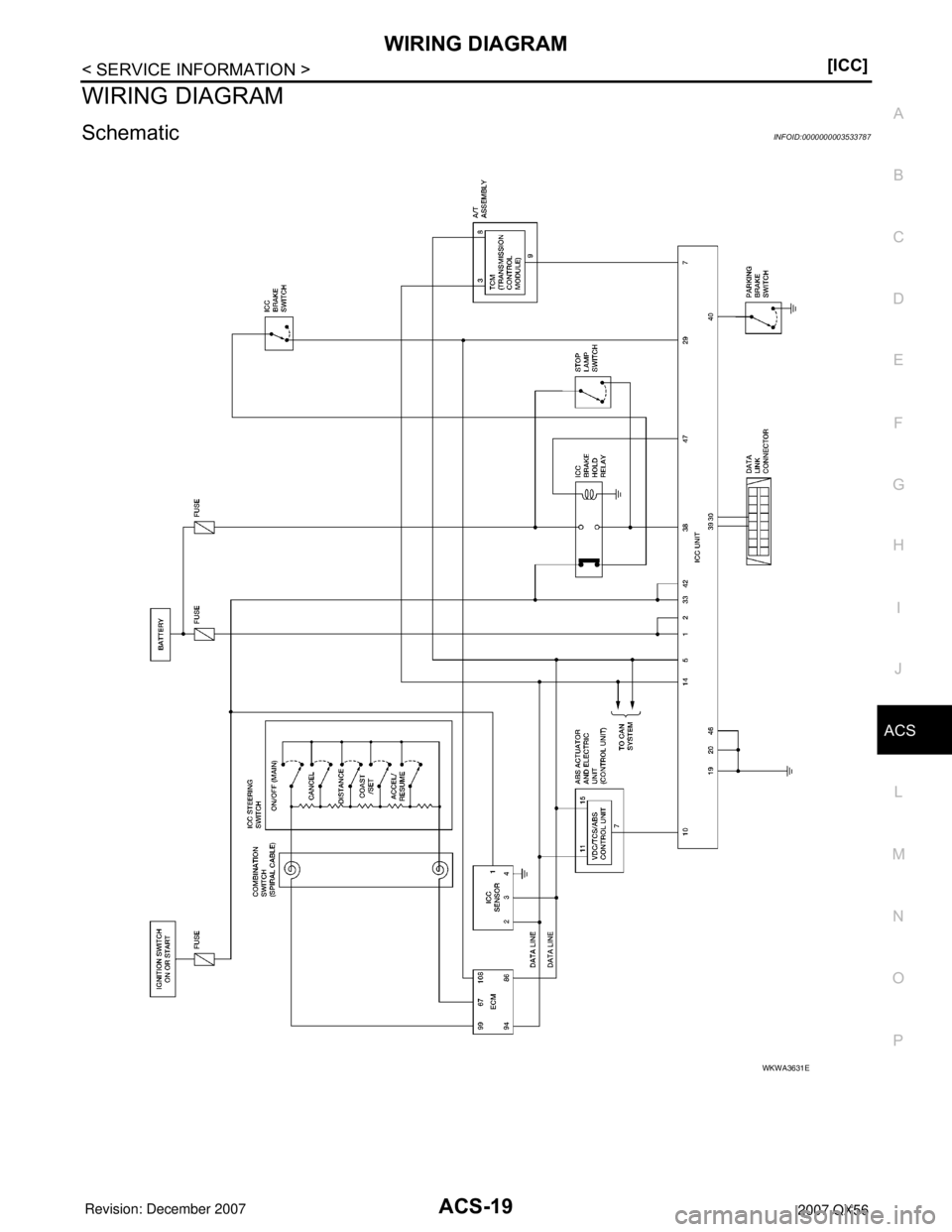

SchematicINFOID:0000000003533787
WKWA3631E

ACS-20
< SERVICE INFORMATION >[ICC]
WIRING DIAGRAM
Wiring Diagram - ICC -
INFOID:0000000003533788
WKWA3632E

WIRING DIAGRAM
ACS-21
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
WKWA3633E

ACS-22
< SERVICE INFORMATION >[ICC]
WIRING DIAGRAM
WKWA3634E

WIRING DIAGRAM
ACS-23
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
WKWA3635E
