INFINITI QX56 2008 Factory Service Manual

EXL-3
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
Bulb Replacement ........
.........................................
113
Removal and Installation .......................................114
Disassembly and Assembly ................................ ..114
AUTO LIGHT SYSTEM ....................................116
Removal and Installation .......................................116
FRONT FOG LAMP ........................................ ..117
Bulb Replacement .................................................117
Removal and Installation .......................................117
LIGHTING & TURN SIGNAL SWITCH .......... ..119
Removal and Installation .......................................119
HAZARD SWITCH .......................................... ..120
Removal and Installation .......................................120
PUDDLE LAMP .............................................. ..121
Removal and Installation .......................................121
LICENSE PLATE LAMP .................................122
Bulb Replacement ............................................... ..122
Removal and Installation .......................................122
STOP LAMP ....................................................123
Bulb Replacement .................................................123
Removal and Installation .......................................123
REAR COMBINATION LAMP .........................124
Bulb Replacement .................................................124
Removal and Installation .......................................124
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .......................................... .
125
BULB SPECIFICATIONS ................................125
Headlamp ............................................................ ..125
Exterior Lamp ........................................................125
Revision: March 2010 2008 QX56

EXL-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001547093

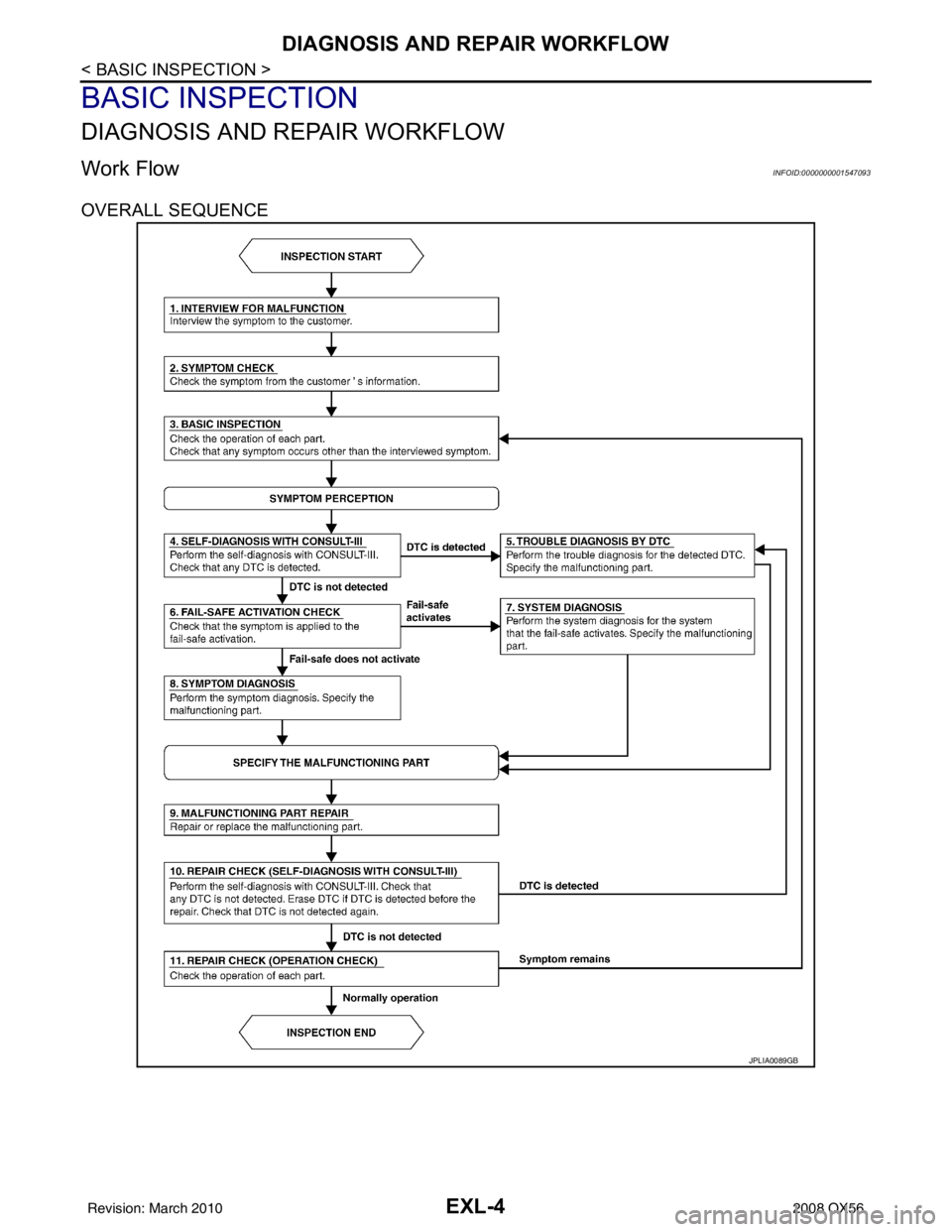

OVERALL SEQUENCE
JPLIA0089GB
Revision: March 20102008 QX56

DIAGNOSIS AND REPAIR WORKFLOWEXL-5
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Find out what the customer's concerns are.
>> GO TO 2
2.SYMPTOM CHECK
Verify the symptom from the customer's information.
>> GO TO 3
3.BASIC INSPECTION
Check the operation of each part. Check that any concerns occur other than those mentioned in the customer
interview.
>> GO TO 4
4.SELF-DIAGNOSIS WITH CONSULT-III
Perform the self diagnosis with CONSULT- III. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5
NO >> GO TO 6
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detect ed DTC. Specify the malfunctioning part.
>> GO TO 9
6.FAIL-SAFE ACTIVATION CHECK
Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7
NO >> GO TO 8
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system in which t he fail-safe activates. Specify the malfunctioning part.
>> GO TO 9
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>> GO TO 9
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 11
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)
Perform the self diagnosis with CONSUL T-III. Verfied that no DTCs are detected. Erase all DTCs detected
prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?
Revision: March 2010 2008 QX56

EXL-6
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
YES >> GO TO 5
NO >> GO TO 11
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> INSPECTION END
NO >> GO TO 3
Revision: March 2010 2008 QX56

HEADLAMPEXL-7
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
FUNCTION DIAGNOSIS
HEADLAMP
System DiagramINFOID:0000000001547094
System DescriptionINFOID:0000000001547095
Control of the headlamp system operation is dependent upon the position of the lighting switch (combination
switch). When the lighting switch is placed in the 2nd position, the BCM (body control module) receives input
requesting the headlamps and park lamps to illuminate. Th is input is communicated to the IPDM E/R (intelli-
gent power distribution module engine room) via the CA N communication lines. The CPU (central processing
unit) of the IPDM E/R controls the headlamp high and headl amp low relay coils. When energized, these relays
direct power to the respective headlamps, which then illuminate.
Component Parts LocationINFOID:0000000001547096
Component DescriptionINFOID:0000000001547097
XENON HEADLAMP
A Xenon type headlamp is adapted to the low beam headlamps. Xenon bulbs do not use a filament.
Instead,they produce light when a high voltage current is passed between two tungsten electrodes through a
AWLIA0009GB
1. BCM M18, M20 (view with instrument
panel removed) 2. IPDM E/R E122, E123, E124 3. Combination switch M28
4. Combination meter M23, M24
ALLIA0379ZZ
Revision: March 2010 2008 QX56

EXL-8
< FUNCTION DIAGNOSIS >
HEADLAMP
mixtureof xenon (an inert gas) and certain other metal halides. In addition to added lighting power, electronic
controlof the power supply gives the headlamps stable quality and tone color.Following are some of the many
advantages of the xenon type headlamp.
• The light produced by the headlamps is a white color comparable to sunlight that is easy on the eyes.
• Light output is nearly double that of halogen headlamps, affording increased area of illumination.
• The light features a high relative spectral distribution at wavelengths to which the human eye is most sensi-tive. This means that even in the rain, more light is reflected back from the road surface toward the vehi-
cle,for added visibility.
• Power consumption is approximately 25 percent less than halogen headlamps, reducing battery load..
HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION
With the lighting switch in the 2ND position and placed in HIGH position, the BCM receives input requesting
the headlamp high beams to illuminate. The flash to pass feature can be used any time and also sends a sig-
nal to the BCM. This input is communicated to t he IPDM E/R via the CAN communication lines. The CPU of
the combination meter controls the ON/OFF status off the HIGH BEAM indicator. The CPU of the IPDM E/R
controls the headlamp high relay coil which supplies power to the high beam headlamps.
The combination meter receives a high beam request signal (ON) via the CAN communication lines and turns
the high beam indicator lamp ON.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-7, "System Description".
AUTO LIGHT OPERATION
Refer to EXL-11, "System Description".
Revision: March 2010 2008 QX56

DAYTIME LIGHT SYSTEMEXL-9
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
DAYTIME LIGHT SYSTEM
System DiagramINFOID:0000000001547098
System DescriptionINFOID:0000000001547099
The headlamp system for Canada vehicles is equipped with a daytime light control unit that activates the high
beam headlamps at approximately half illumination whenever the engine is operating. If the parking brake is
applied before the engine is started the daytime lights will not be illuminated. The daytime lights will illuminate
once the parking brake is released. Thereafter, the daytime lights will continue to operate when the parking
brake is applied.
Component Parts LocationINFOID:0000000001547100
AWLIA0010GB
ALLIA0380ZZ
Revision: March 2010 2008 QX56

EXL-10
< FUNCTION DIAGNOSIS >
DAYTIME LIGHT SYSTEM
Component Description
INFOID:0000000001547101
After starting the engine with the parking brake released and the lighting switch in the OFF or 1ST position, the
headlamp high beam automatically turns on at a reduced intensity. With the lighting switch in the 2nd position
or with autolamps ON, the headlamps function the same as conventional light systems.
OPERATION
The BCM monitors inputs from the parking brake switch and the combination switch to determine when to acti-
vate the daytime light system. The BCM sends a dayti me light request to the IPDM E/R via the CAN commu-
nication lines. The IPDM E/R grounds the daytime light relay which in turn, provides power to the ground side
of the LH high beam lamp. Power flows backward through the LH high beam lamp to the IPDM E/R, through
the high beam fuses, through the RH high beam lamp circuit to the RH high beam lamp and on to ground. The
high beam lamps are wired in series which causes them to illuminate at a reduced intensity.
1. IPDM E/R E119, E122, E123, E124 2. Parking brake switch M11 3. BCM M18, M20 (view with instrument
panel removed)
4. Daytime running light relay E103 5. Combination switch M28 6. Combination meter M24
Revision: March 2010 2008 QX56

AUTO LIGHT SYSTEMEXL-11
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
AUTO LIGHT SYSTEM
System DiagramINFOID:0000000001547102
System DescriptionINFOID:0000000001547103
• BCM (Body Control Module) controls auto light operati on according to signals from optical sensor, lighting
switch and ignition switch.
• IPDM E/R (Intelligent Power Distribution Module Engine Room) operates parking, license plate, tail and
headlamps according to CAN communication signals from BCM.
• Optical sensor detects ambient br ightness and converts light (lux) to voltage, then sends the optical sensor
signal to BCM.
OUTLINE
The auto light control system has an optical sensor that detects outside brightness.
When the lighting switch is in AUTO position, it automat ically turns ON/OFF the parking, license plate, tail and
headlamps in accordance with the ambient light. Sensitivity can be adjusted in four steps. For the details of the
setting, Refer to EXL-23, "
EXTERNAL LAMP : CONSULT-III Function".
AWLIA0011GB
Revision: March 2010 2008 QX56

EXL-12
< FUNCTION DIAGNOSIS >
AUTO LIGHT SYSTEM
Component Parts Location
INFOID:0000000001547104
Component DescriptionINFOID:0000000001547105
AUTO LIGHT OPERATION
The auto light system operates t he low beam and high beam headlamps, parking lamps, tail lamps and license
plate lamps. The BCM monitors the lighting switch (com bination switch) position as a part of the BCM combi-
nation switch reading function. When the lighting switch is in the AUTO position, the BCM automatically turns
the lamps ON/OFF according to ambient light brightness.
NOTE:
Timing for when lamps turn ON/OFF can be changed by the function setting of CONSULT-III. Refer to EXL-23,
"EXTERNAL LAMP : CONSULT-III Function".
COMBINATION SWITCH READING FUNCTION
Refer to BCS-7, "System Description".
1. BCM M18, M19, M20 (view with instru-
ment panel removed) 2. IPDM E/R E122, E123, E124 3. Optical sensor M302
4. Front door switch LH B8
RH B108 5. Rear door switch
LH B18
RH B116 6. Back door switch
D502
7. Combination switch M28
ALLIA0382ZZ
