INFINITI QX56 2009 Factory Service Manual

POWER SEATSE-9
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

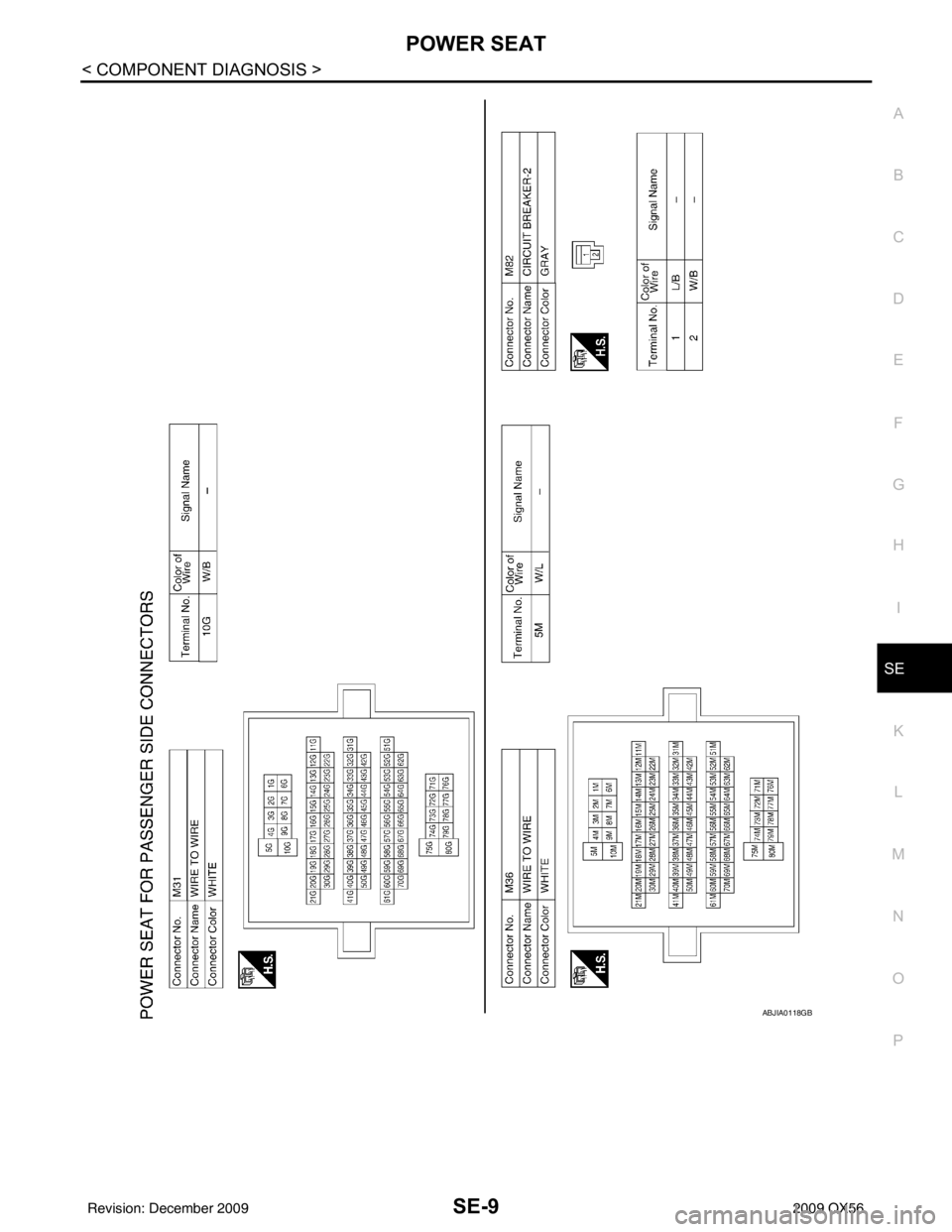

ABJIA0118GB
Revision: December 20092009 QX56

SE-10
< COMPONENT DIAGNOSIS >
POWER SEAT

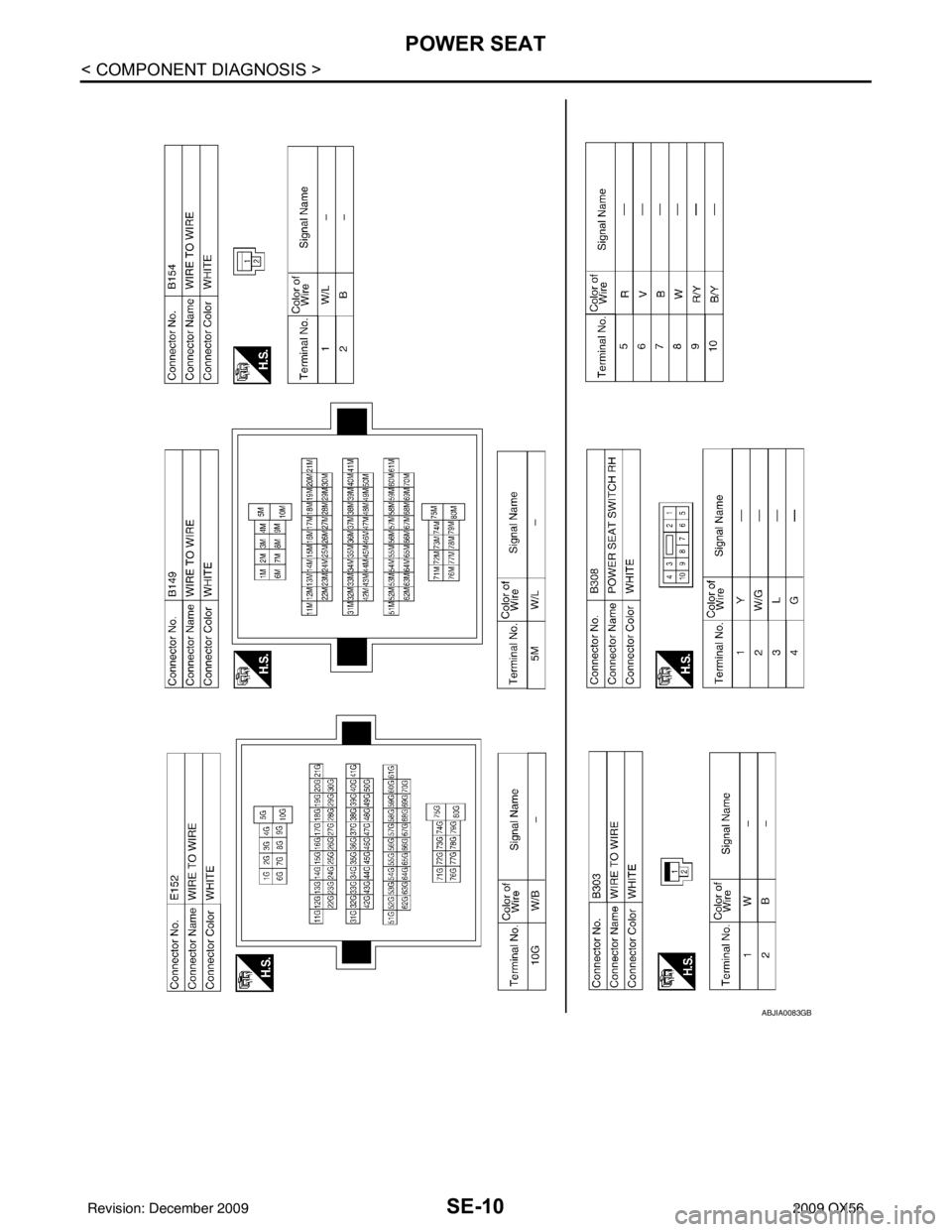

ABJIA0083GB
Revision: December 20092009 QX56

POWER SEATSE-11
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

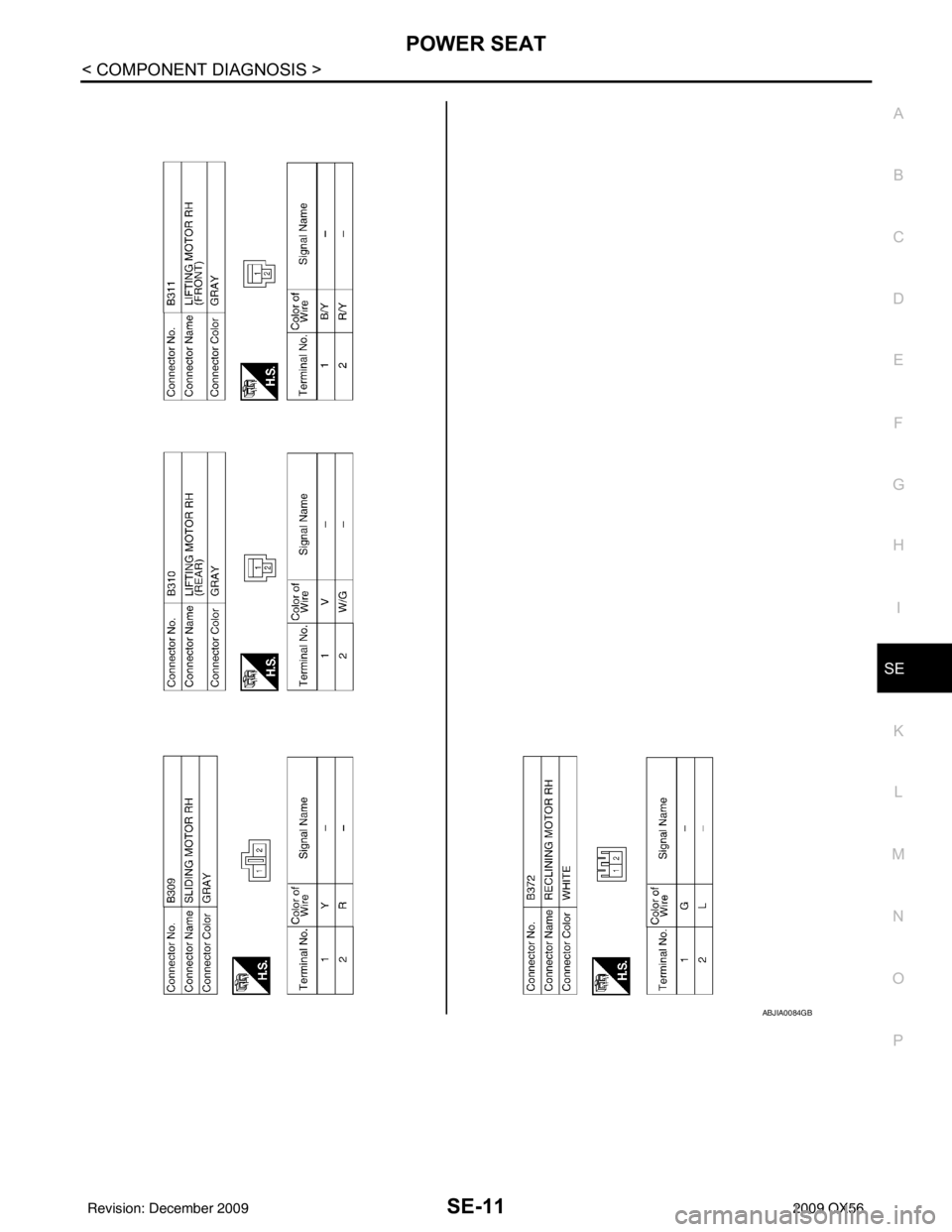

ABJIA0084GB
Revision: December 20092009 QX56

SE-12
< COMPONENT DIAGNOSIS >
HEATED SEAT
HEATED SEAT
DescriptionINFOID:0000000003775445
• When handling seat, be extremely careful not to scratch heating unit.
• Front passenger seat cushion and seatbacks equipped with airbags cannot be disassembled. They are
replaced as assemblies only.
• Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.
WIIA0031E
Revision: December 20092009 QX56

HEATED SEATSE-13
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Wiring DiagramINFOID:0000000003775446
ABJWA0031GB
Revision: December 20092009 QX56

SE-14
< COMPONENT DIAGNOSIS >
HEATED SEAT

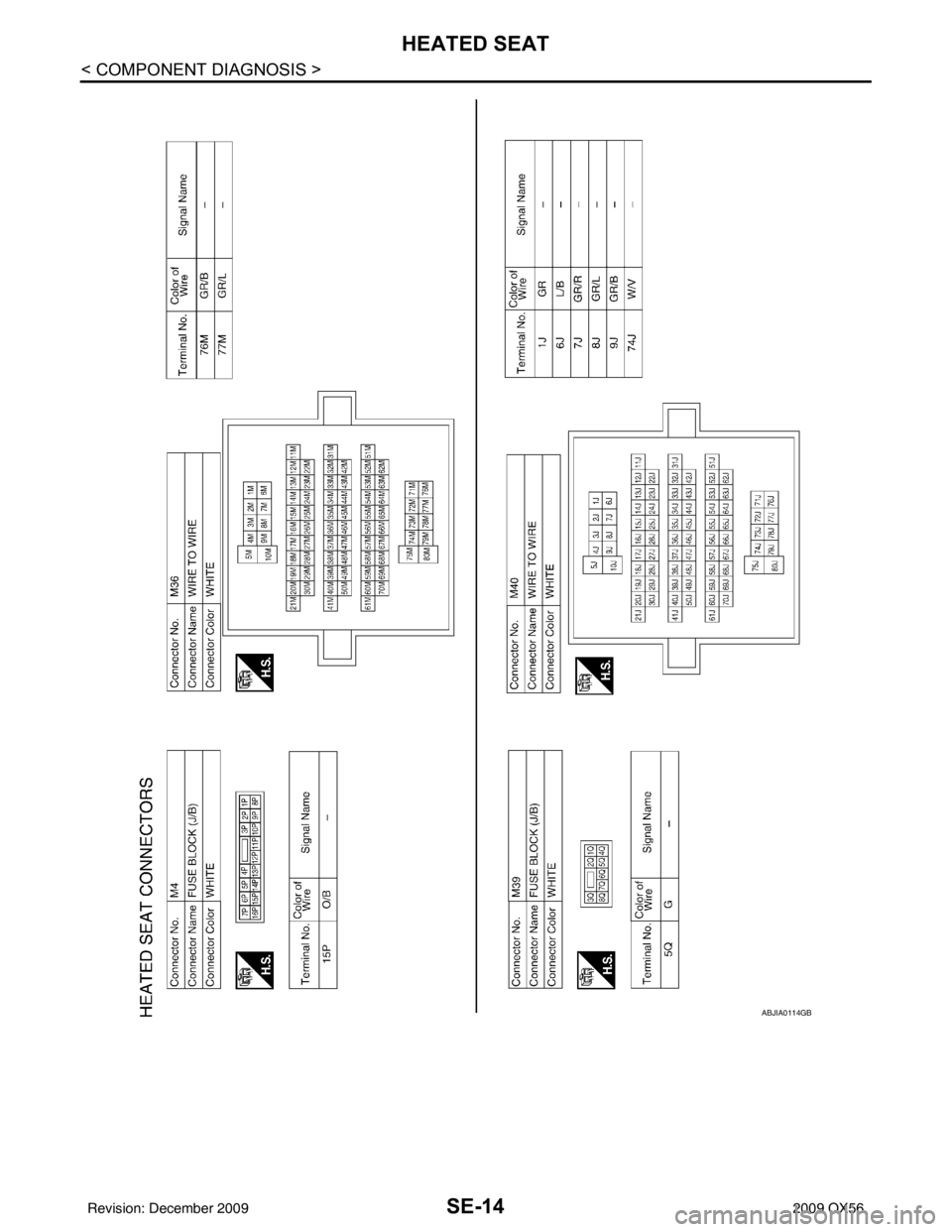

ABJIA0114GB
Revision: December 20092009 QX56

HEATED SEATSE-15
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

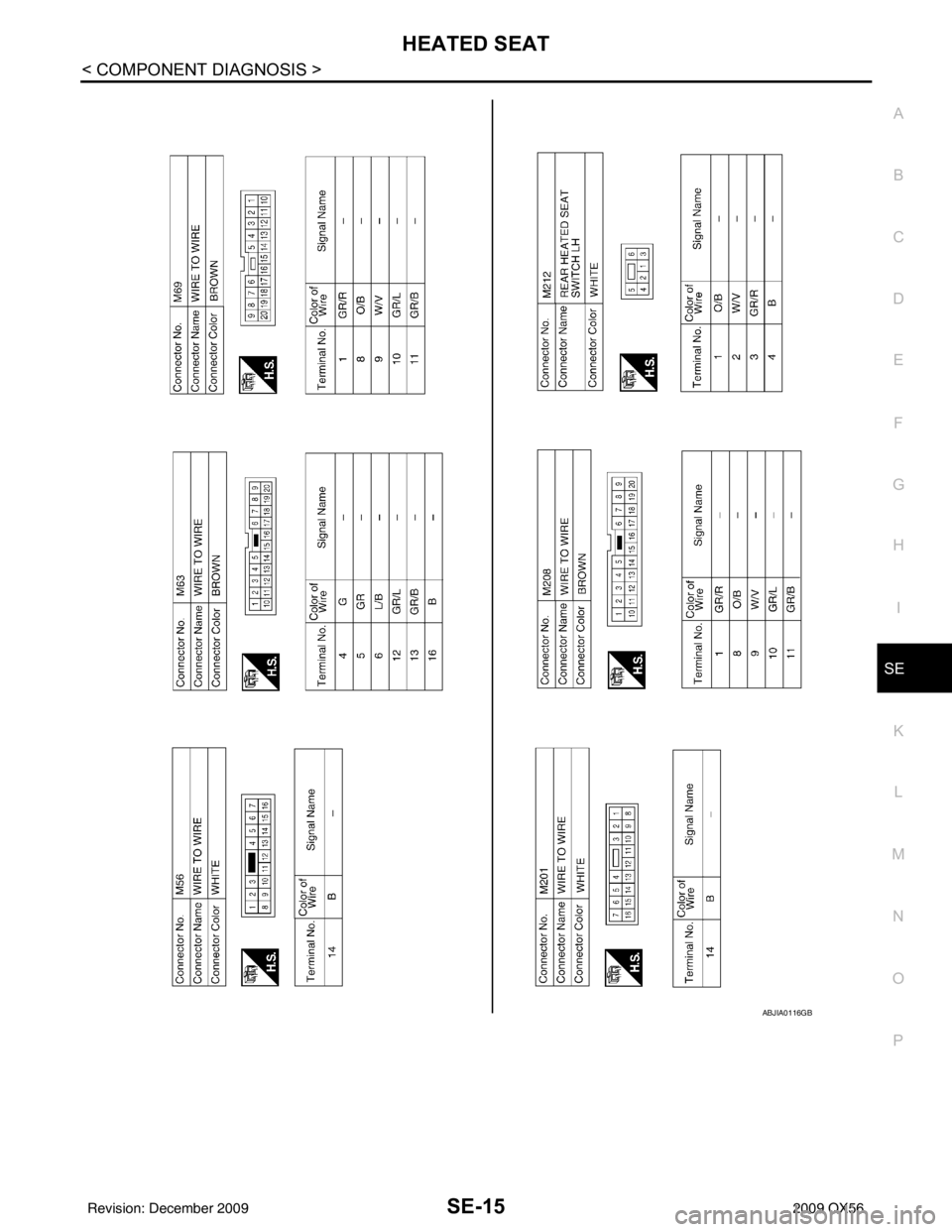

ABJIA0116GB
Revision: December 20092009 QX56

SE-16
< COMPONENT DIAGNOSIS >
HEATED SEAT
ABJIA0085GB
Revision: December 20092009 QX56

HEATED SEATSE-17
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

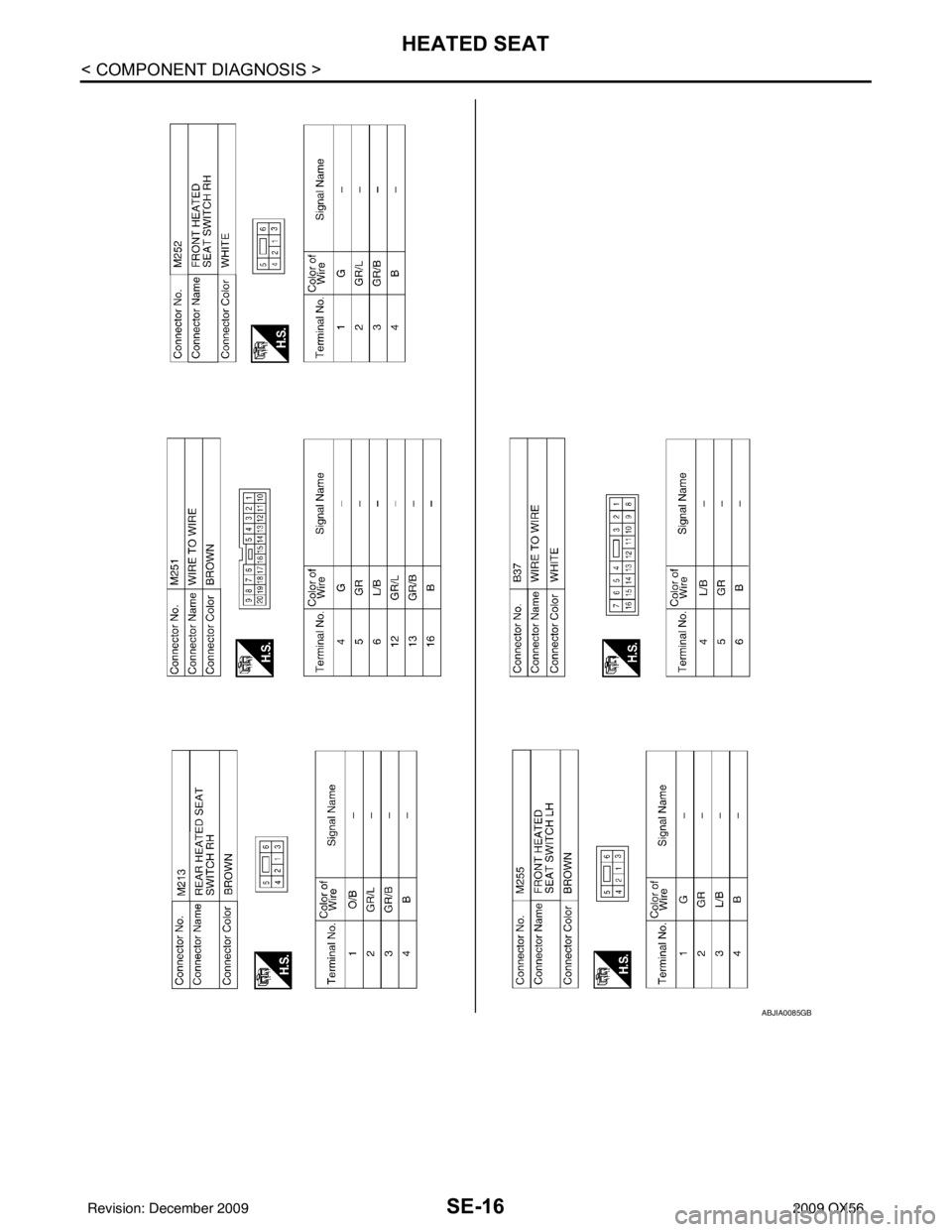

ABJIA0086GB
Revision: December 20092009 QX56

SE-18
< COMPONENT DIAGNOSIS >
HEATED SEAT

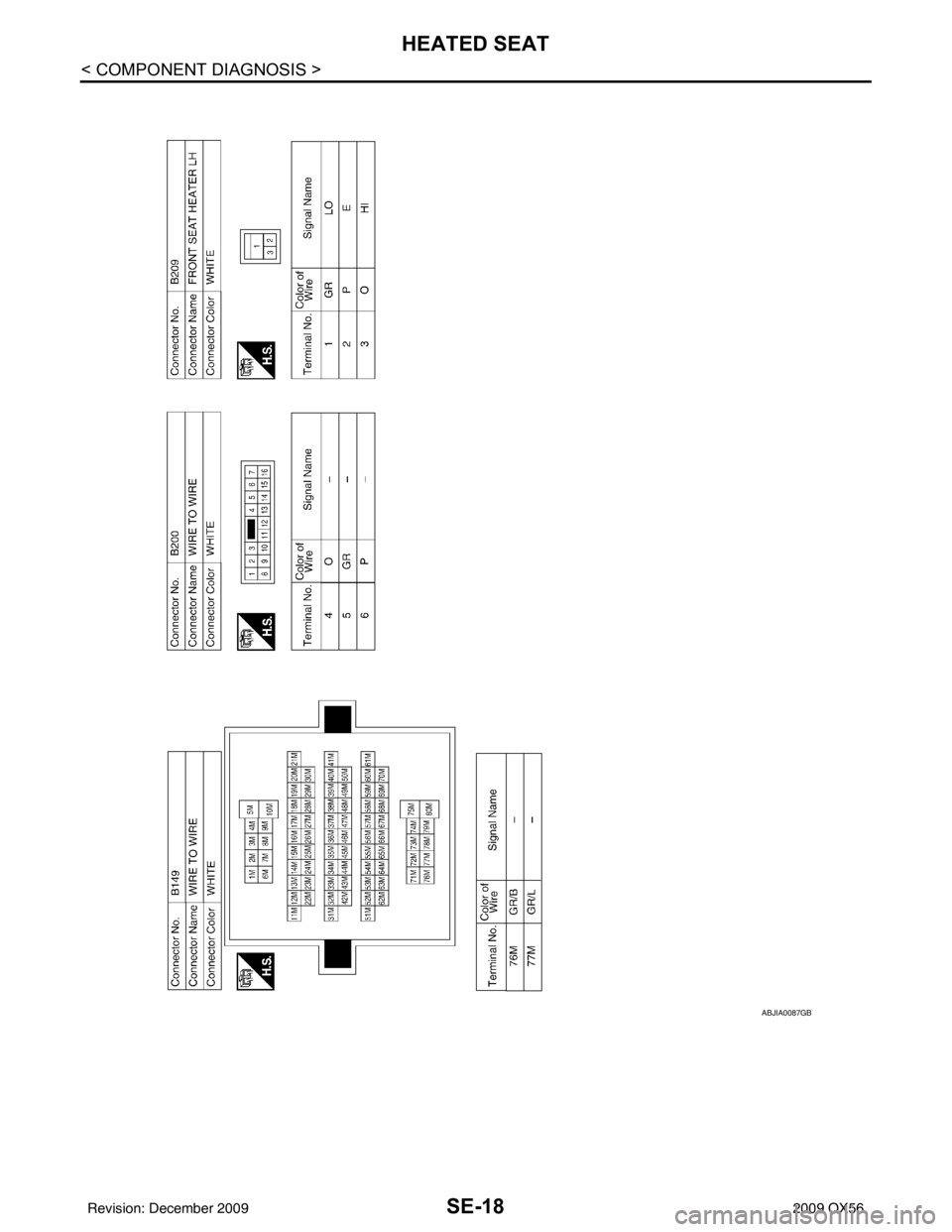

ABJIA0087GB
Revision: December 20092009 QX56
