INFINITI QX56 2009 Factory Service Manual

THIRD SEATSE-19
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
THIRD SEAT
Power Supply and Ground Circu it Check for Third Row Power Folding Seat Control
Unit
INFOID:0000000003775447
1.CHECK FUSES AND FUSIBLE LINK
Check for blown fuses or fusible link.
Are any fuses or fusible links blown?
YES >> Install new fuse. Eliminate cause of malfunction if fuse blows again.
NO >> GO TO 2
2.POWER SUPPLY CIRCUIT CHECK
1. Disconnect third row power folding seat control unit connectors B401 and B402.
2. Check voltage between third row power folding seat control unit harness connectors B401, B402 terminals 1, 8, 13, 14 and
ground.
Are the inspection results normal?
YES >> GO TO 3
NO >> Check harness for open between third row power folding seat control unit and fuse or fusible link.
3.GROUND CIRCUIT CHECK
1. Turn ignition switch OFF.
2. Check continuity between third row power folding seat control unit harness connector B402 terminals 16, 18, 21 and ground.
Do all terminals have ground?
YES >> Inspection End.
NO >> Check harness for ground.
Unit Power source Fuse or Fusible Link Location
Third row power folding seat control unit Battery
F
Fuse and fusible link box
19 Fuse block (J/B)
Ignition switch ON or START 14
TerminalsIgnition switch position
(+) (–) OFF ON START
Connector Terminal
A: B401 1
Ground Battery
voltage
80 VBattery
voltage
B: B402 13
Battery
voltage
14 Battery
voltage
ALJIA0274ZZ
Te r m i n a l s
Continuity
(+)
(–)
Connector Terminal
B402 16
Ground Yes
18
21
ALJIA0275ZZ
Revision: December 20092009 QX56

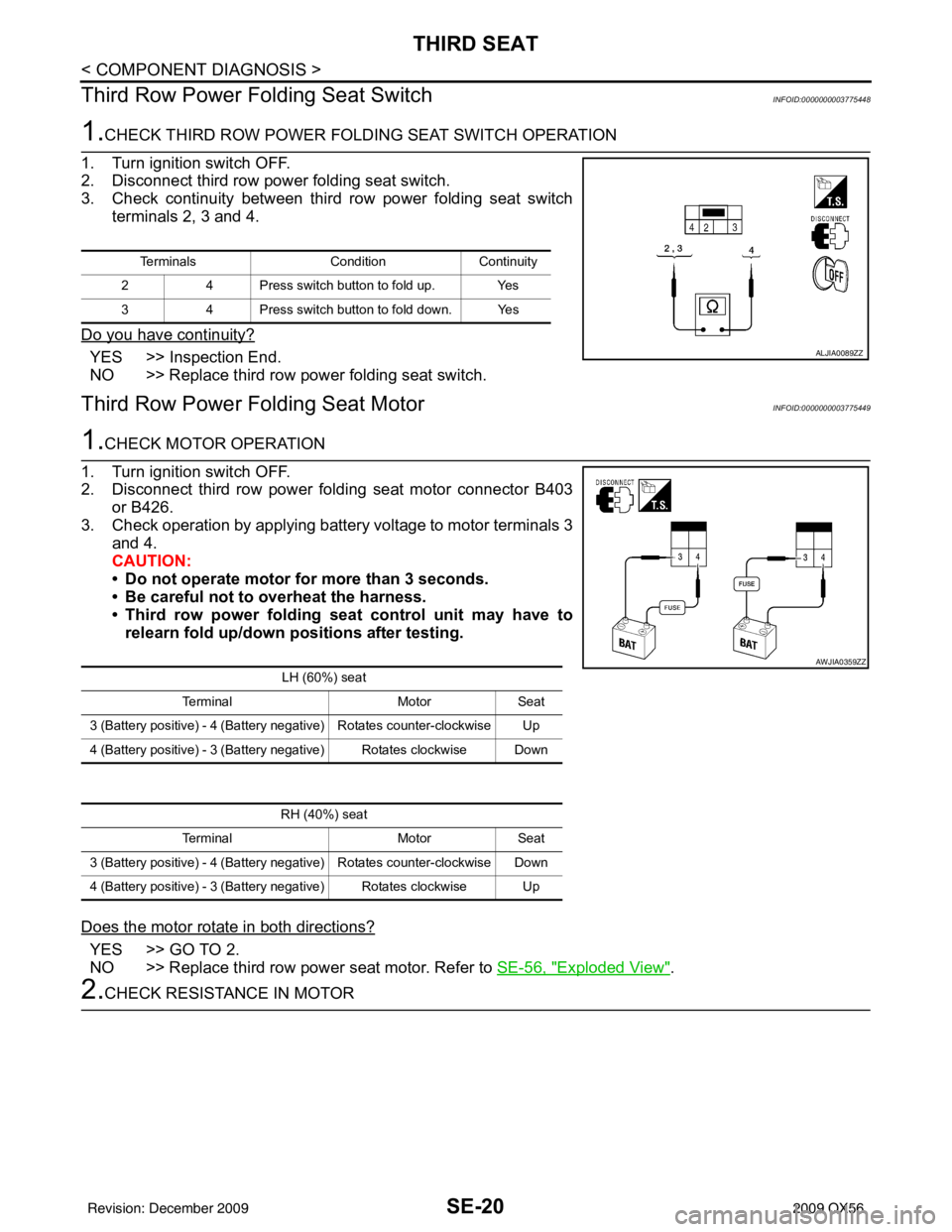

SE-20
< COMPONENT DIAGNOSIS >
THIRD SEAT
Third Row Power Folding Seat Switch
INFOID:0000000003775448
1.CHECK THIRD ROW POWER FOLDING SEAT SWITCH OPERATION
1. Turn ignition switch OFF.
2. Disconnect third row power folding seat switch.
3. Check continuity between third row power folding seat switch terminals 2, 3 and 4.
Do you have continuity?
YES >> Inspection End.
NO >> Replace third row power folding seat switch.
Third Row Power Folding Seat MotorINFOID:0000000003775449
1.CHECK MOTOR OPERATION
1. Turn ignition switch OFF.
2. Disconnect third row power folding seat motor connector B403 or B426.
3. Check operation by applying battery voltage to motor terminals 3 and 4.
CAUTION:
• Do not operate motor for more than 3 seconds.
• Be careful not to overheat the harness.
• Third row power folding seat control unit may have to
relearn fold up/down positions after testing.
Does the motor rotate in both directions?
YES >> GO TO 2.
NO >> Replace third row power seat motor. Refer to SE-56, "
Exploded View".
2.CHECK RESISTANCE IN MOTOR
Terminals Condition Continuity
2 4 Press switch button to fold up. Yes
3 4 Press switch button to fold down. Yes
ALJIA0089ZZ
LH (60%) seat
Terminal MotorSeat
3 (Battery positive) - 4 (Battery negative) Rotates counter-clockwise Up
4 (Battery positive) - 3 (Battery negative) Rotates clockwise Down
AWJIA0359ZZ
RH (40%) seat
Terminal MotorSeat
3 (Battery positive) - 4 (Battery negative) Rotates counter-clockwise Down
4 (Battery positive) - 3 (Battery negative) Rotates clockwise Up
Revision: December 20092009 QX56

THIRD SEATSE-21
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Check resistance between motor terminals 3 and 4.
Is the resistance reading of the motor normal?
YES >> Inspection End.
NO >> Replace third row power seat motor. Refer to SE-56,
"Exploded View".
3 - 4 : Approx. 0.5
Ω
AWJIA0360ZZ
Revision: December 20092009 QX56

SE-22
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
ECU DIAGNOSIS
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
Reference ValueINFOID:0000000003775450
TERMINAL LAYOUT
PHYSICAL VALUES
ALJIA0277ZZ
Te r m i n a l N o .Wire
color Description
ConditionVoltage (V)
(Approx.)
+ - Signal nameInput/
Output
1 Ground Y/R Battery Input— Battery voltage
3Ground LG 40% seat switch signal
(down) OutputPush either third row power fold-
ing seat switch passenger (down) 0
Third row power folding seat switch passenger released Battery voltage
4Ground V 60% seat switch signal
(down) OutputPush either third row power fold-
ing seat switch driver (down) 0
Third row power folding seat switch driver released Battery voltage
7 Ground G/R Park signal InputA/T selector lever in P or N
Battery voltage
A/T selector lever not in P or N 0
8 Ground O/L Ignition signal InputIgnition switch ON or START
Battery voltage
Ignition switch OFF 0
9 Ground G/B 40% seat Hall signal Input —9V
10 Ground O/B 60% seat Hall signal Input —9V
11 Ground SB 40% seat switch signal (up) Output Push either third row power fold-
ing seat switch passenger (up) 0
Third row power folding seat switch passenger released Battery voltage
12 Ground O 60% seat switch signal (up) Output Push either third row power fold-
ing seat switch driver (up) 0
Third row power folding seat switch driver released Battery voltage
13 Ground W Battery Input— Battery voltage
14 Ground W Battery Input— Battery voltage
15 Ground Y/B Hall switch ground —— —
16 Ground B Switch ground —— —
17 Ground W/L 60% Seat motor Output— Battery voltage
18 Ground B Ground —— —
19 Ground R/W 60% Seat motor Output— Battery voltage
Revision: December 20092009 QX56

THIRD ROW POWER FOLDING SEAT CONTROL UNITSE-23
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
20 Ground G/W 40% Seat motor Output— Battery voltage
21 Ground B Ground —— —
22 Ground V 40% Seat motor Output— Battery voltage
Te r m i n a l N o .
Wire
color Description
ConditionVoltage (V)
(Approx.)
+ - Signal nameInput/
Output
Revision: December 20092009 QX56

SE-24
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
Wiring Diagram
INFOID:0000000003775451
ABJWA0032GB
Revision: December 20092009 QX56

THIRD ROW POWER FOLDING SEAT CONTROL UNITSE-25
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
ABJIA0088GB
Revision: December 20092009 QX56

SE-26
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
ABJIA0089GB
Revision: December 20092009 QX56

THIRD ROW POWER FOLDING SEAT CONTROL UNITSE-27
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
ABJIA0090GB
Revision: December 20092009 QX56

SE-28
< ECU DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT CONTROL UNIT
ABJIA0091GB
