the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.
UNDERCOATING
The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or re paired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibr ation-proof, shock-resistant, adhesive, and durable.
Precautions in undercoating
1. Do not apply undercoating to any place unless specif ied (such as the areas above the muffler and three
way catalyst which are subjected to heat).
2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
LIIA0905E
Revision: December 20092009 QX56

BRM-16
< SERVICE INFORMATION >
BODY REPAIR
4. Apply bitumen wax after applying undercoating.
Body SealingINFOID:0000000003776121
DESCRIPTION
LIIA0129E
Revision: December 20092009 QX56

BODY REPAIRBRM-17
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected part s to come into contact with the sealant.
LIIA1439E
Revision: December 20092009 QX56

BRM-18
< SERVICE INFORMATION >
BODY REPAIR
WIIA0278E
Revision: December 20092009 QX56

BODY REPAIRBRM-19
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
LIIA0912E
Revision: December 20092009 QX56

BRM-20
< SERVICE INFORMATION >
BODY REPAIR
Body Construction
INFOID:0000000003776122
BODY CONSTRUCTION
Body AlignmentINFOID:0000000003776123
BODY CENTER MARKS
LIIA1113E
Revision: December 20092009 QX56

BODY REPAIRBRM-21
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
A mark has been placed on each part of the body to indi cate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (me mbers, pillars, etc.), more accurate and effective
repair will be possible by using these marks t ogether with body alignment specifications.

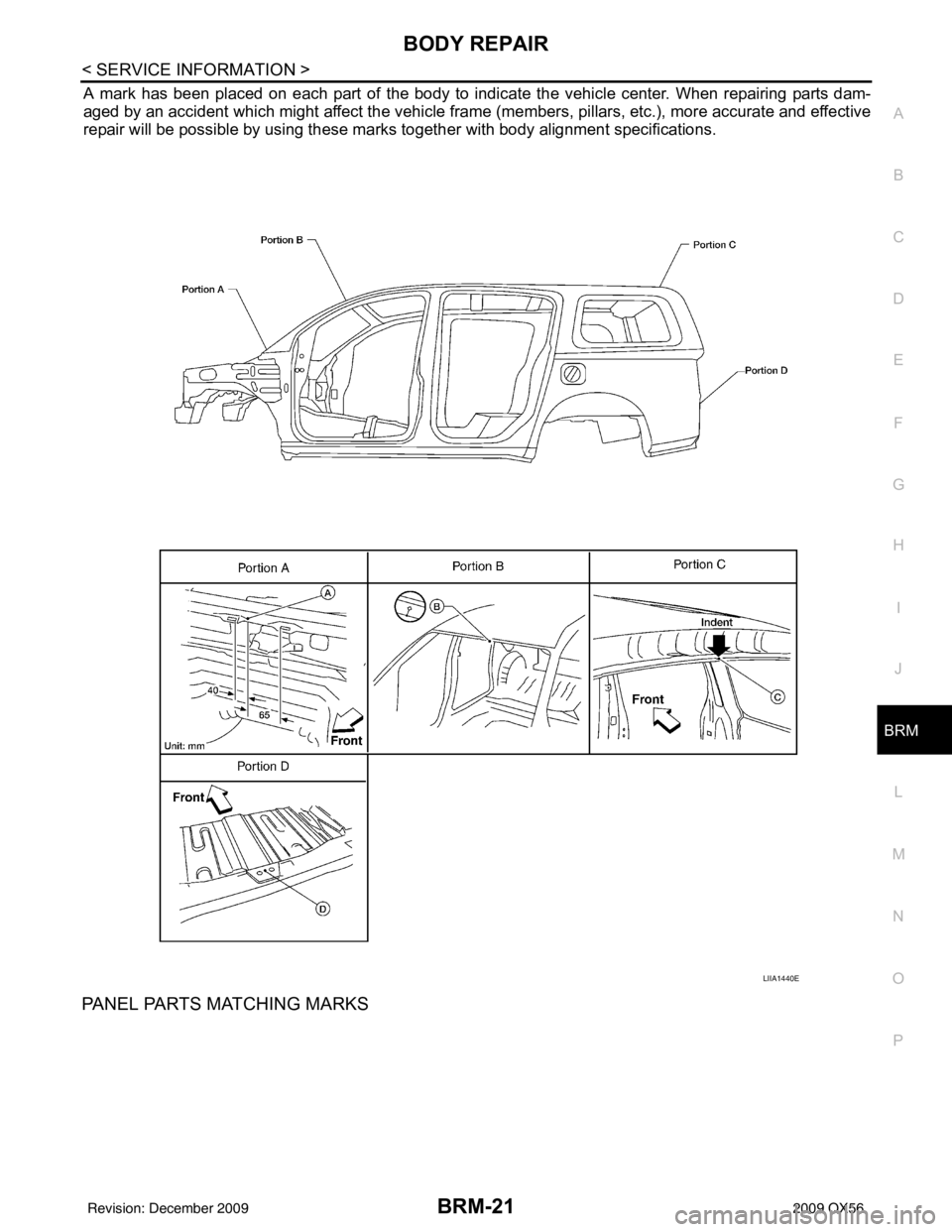

PANEL PARTS MATCHING MARKS
LIIA1440E
Revision: December 20092009 QX56

BRM-22
< SERVICE INFORMATION >
BODY REPAIR
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle st ructure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
DESCRIPTION
• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself
to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side
is symmetrically the same value.
• The coordinates of the measurement points are the di stances measured from the standard line of "X", "Y"
and "Z".
WIIA0284E
Revision: December 20092009 QX56

BODY REPAIRBRM-23
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
Engine Compartment
LIIA1506E
Revision: December 20092009 QX56

BRM-24
< SERVICE INFORMATION >
BODY REPAIR
MEASUREMENT
AWIIA1088GB
