charging INFINITI QX56 2010 Factory User Guide

CHG
S TERMINAL CIRCUITCHG-13
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
S TERMINAL CIRCUIT
DescriptionINFOID:0000000005146563
The output voltage of the generator is controlled by the IC
regulator at terminal “3” (S) detecting the input volt-
age. Terminal “3” circuit detects the battery voltage to adjust the generator output voltage with the IC regulator.
Diagnosis ProcedureINFOID:0000000005146564
Regarding Wiring Diagram information, refer to CHG-14, "Wiring Diagram".
1.CHECK VOLTAGE REGULATOR CIRCUIT CONNECTION
Check to see if connector E205 terminal 3 is clean and tight.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair terminal connection. Confirm repair by performing complete Starting/Charging system test.
Refer to diagnostic station instruction manual.
2.CHECK VOLTAGE REGULATOR CIRCUIT
Check voltage between generator harness connector E205 terminal
3 and ground.
Does battery voltage exist?
YES >> Refer to CHG-5, "Work Flow".
NO >> Check harness for open between generator and fuse. 3 - ground
Battery voltage
ALMIA0201ZZ
Revision: April 20092010 QX56

CHG-14
< COMPONENT DIAGNOSIS >
CHARGING SYSTEM
CHARGING SYSTEM
Wiring DiagramINFOID:0000000005146565
ABMWA0376GB
Revision: April 20092010 QX56

CHG
CHARGING SYSTEMCHG-15
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N

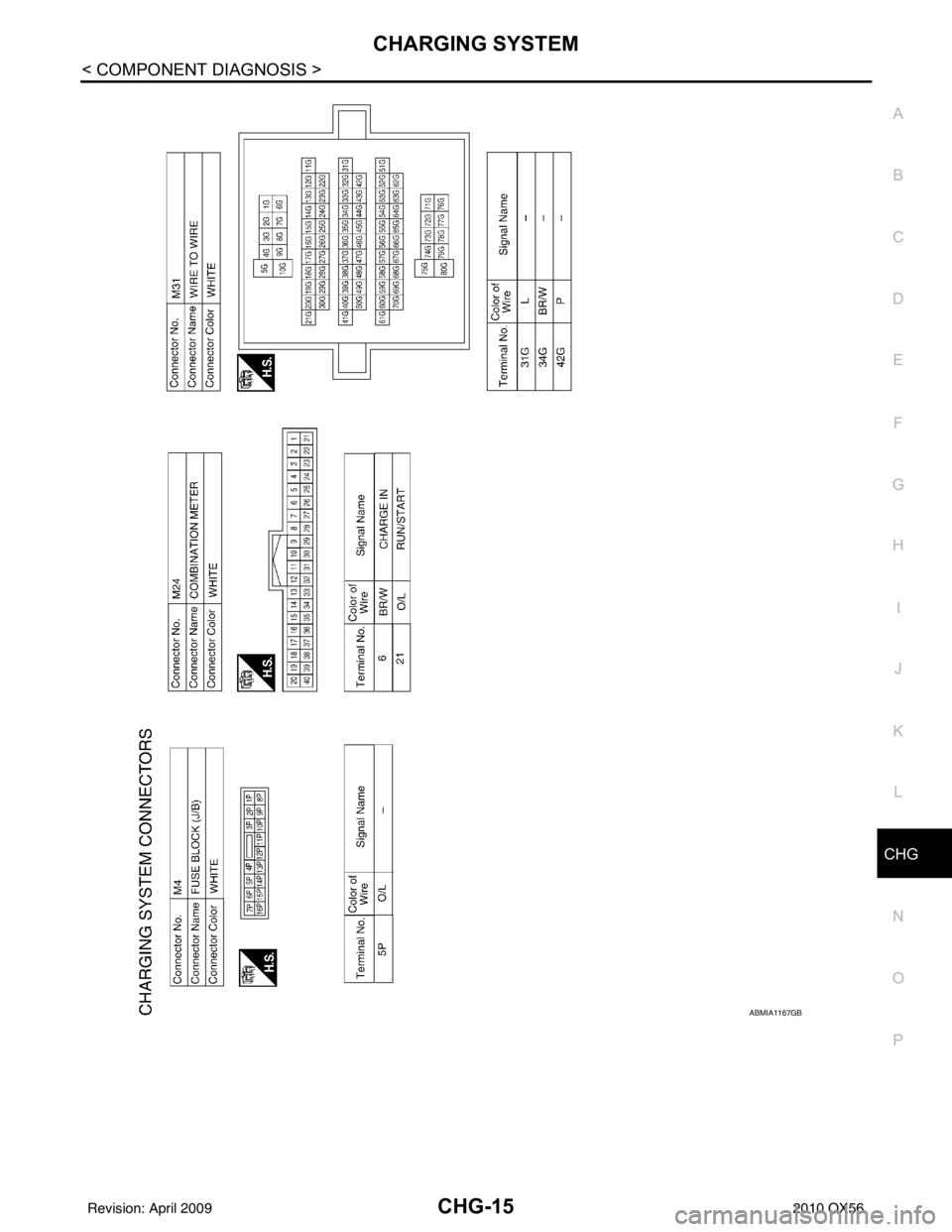

ABMIA1167GB
Revision: April 20092010 QX56

CHG-16
< COMPONENT DIAGNOSIS >
CHARGING SYSTEM

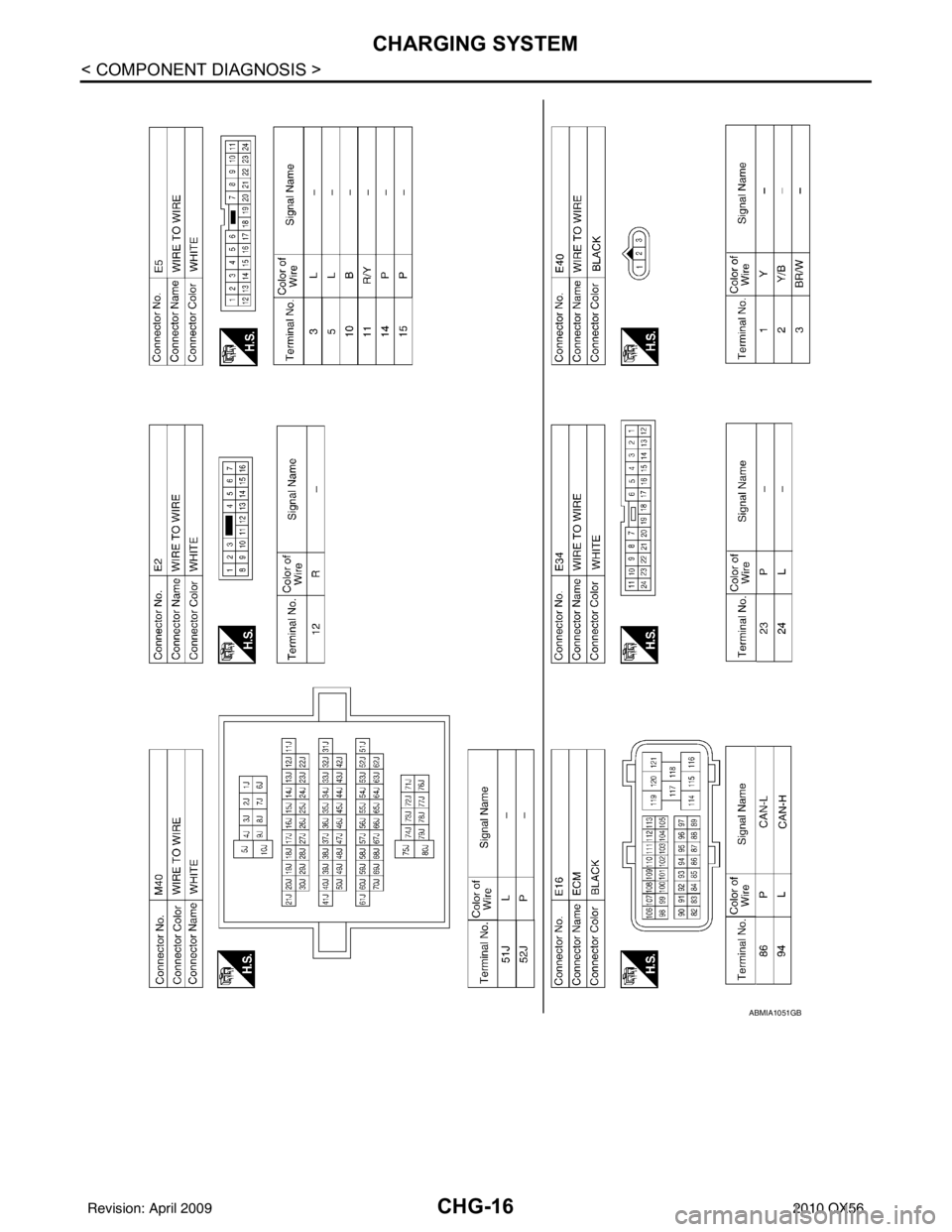

ABMIA1051GB
Revision: April 20092010 QX56

CHG
CHARGING SYSTEMCHG-17
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N

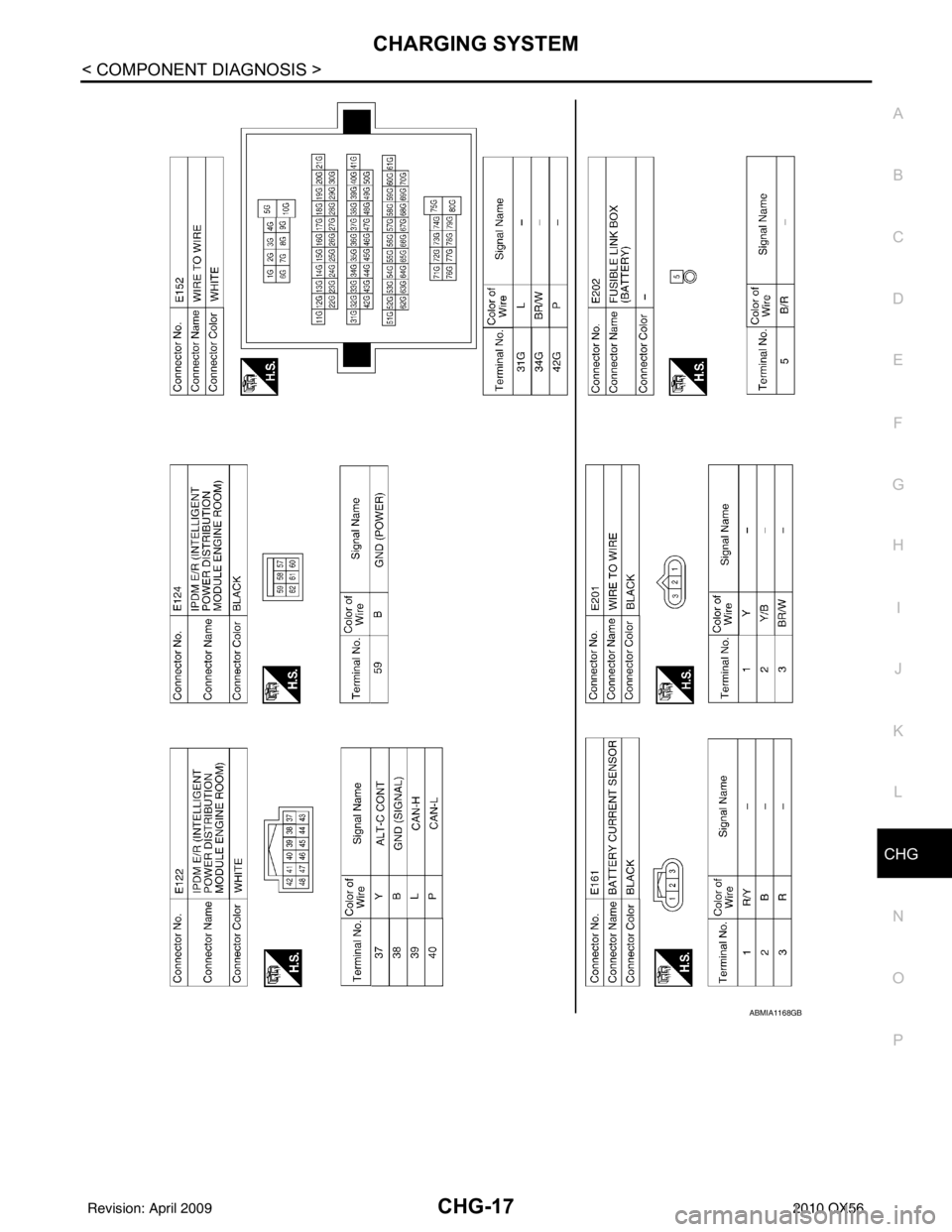

ABMIA1168GB
Revision: April 20092010 QX56

CHG-18
< COMPONENT DIAGNOSIS >
CHARGING SYSTEM
ABMIA1052GB
Revision: April 20092010 QX56

CHG
CHARGING SYSTEMCHG-19
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
ABMIA1169GB
Revision: April 20092010 QX56

CHG-20
< SYMPTOM DIAGNOSIS >
CHARGING SYSTEM
SYMPTOM DIAGNOSIS
CHARGING SYSTEM
Symptom TableINFOID:0000000005146566
SymptomReference
Battery discharged
Refer to CHG-5, "
Work Flow".
The charge warning lamp does not illuminate when the ignition
switch is set to ON.
The charge warning lamp does not turn OFF after the engine
starts.
The charging warning lamp turns ON when increasing the engine
speed.
Revision: April 20092010 QX56

EC-312
< COMPONENT DIAGNOSIS >[VK56DE]
P1550 BATTERY CURRENT SENSOR
P1550 BATTERY CURRENT SENSOR
Component DescriptionINFOID:0000000005149366
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to
CHG-7, "
System
Description".
: Vehicle front
CAUTION:
Do not connect the electrical compon ent or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of th e power generation voltage variable control, and then the battery
discharge may occur.
On Board Diagn osis LogicINFOID:0000000005149367
The MIL will not light up for this self-diagnosis.
NOTE:
If DTC P1550 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-289
.
DTC Confirmation ProcedureINFOID:0000000005149368
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
1. Start engine and wait at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-312, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149369
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
BBIA0744E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1550
1550 Battery current sensor circuit
range/performance The output voltage of the battery current
sensor remains within the specified
range while engine is running. • Harness or connectors
(The sensor circuit is open or shorted.)
• Battery current sensor
Revision: April 20092010 QX56

EC-316
< COMPONENT DIAGNOSIS >[VK56DE]
P1551, P1552 BATTERY CURRENT SENSOR
P1551, P1552 BATTERY CURRENT SENSOR
Component DescriptionINFOID:0000000005149371
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to
CHG-7, "
System
Description".
: Vehicle front
CAUTION:
Do not connect the electrical compon ent or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of th e power generation voltage variable control, and then the battery
discharge may occur.
On Board Diagn osis LogicINFOID:0000000005149372
The MIL will not light up for these self-diagnoses.
NOTE:
If DTC P1551 or P1552 is displayed with DTC P0643, first perform the tro\
ubl e diagnosis for DTC P0643.
Refer to EC-289, "
On Board Diagnosis Logic".
DTC Confirmation ProcedureINFOID:0000000005149373
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following pro cedure, confirm that battery voltage is more than 8 V with ignition
switch ON
1. Turn ignition switch ON.
2. Wait at least 10 seconds.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-316, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149374
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
BBIA0744E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1551
1551 Battery current sensor circuit
low input An excessively low voltage from the sensor
is sent to ECM.
• Harness or connectors
(The sensor circuit is open or shorted.)
• Battery current sensor
P1552
1552 Battery current sensor circuit
high input An excessively high voltage from the sensor
is sent to ECM.
Revision: April 20092010 QX56
