INFINITI QX56 2010 Factory Service Manual

SUSPENSION CONTROL SYSTEM DOES NOT LOWER
SCS-39
< SYMPTOM DIAGNOSIS >
C
D F
G H
I
J
K L
M A
B
SCS
N
O P
SUSPENSION CONTROL SYST EM DOES NOT LOWER
DescriptionINFOID:0000000005148198
The suspension control system does not lower the vehicle in accordance with ride height changes.
Diagnosis ProcedureINFOID:0000000005148199
1.SUSPENSION CONTROL UNIT POWER AND GROUND INSPECTION
Check the suspension control unit power and ground supply. Refer to SCS-17, "
SUSPENSION CONTROL
UNIT : Diagnosis Procedure".
Does the suspension control uni t power and ground pass inspection?
YES >> GO TO 2.
NO >> Repair or replace the malfunctioning part.
2.CHECK HEIGHT SENSOR SIGNAL INPUT
CONSULT-III DATA MONITOR
1. Turn ignition ON.
2. Select "HEIGT SEN" of AI R LEVELIZER data monitor item.
3. Check the monitor status.
Is the height sensor voltage normal?
YES >> GO TO 3.
NO >> Check height sensor signal circuit. Refer to SCS-23, "
Diagnosis Procedure" .
3.EXHAUST VALVE SOLENOID CIRCUIT INSPECTION
Check the exhaust valve solenoid circuit. Refer to SCS-24, "
Component Function Check".
Does the exhaust valve solenoi d circuit pass inspection?
YES >> Inspect for a restriction in the system. repair or replace the malfunctioning part.
NO >> Repair or replace the malfunctioning part.HEIGT SEN : 0.2V - 4.8V
Revision: April 20092010 QX56

SCS-40
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000005383225
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery, and wait at least 3 minu tes before performing any service.
Precaution for Rear SuspensionINFOID:0000000005148201
• When installing the rubber bushings, the final ti ghtening must be done under unladen condition and with the
tires on level ground. Oil will shorten the life of the r ubber bushings, so wipe off any spilled oil immediately.
• Unladen condition means the fuel tank, engine coolant and lubricants are at the full specification. The spare tire, jack, hand tools, and mats are in their designated positions.
• After installing suspension components, check the wheel alignment.
• Caulking nuts are not reusable. Always use new caulking nuts for installation. New caulking nuts are pre-
oiled, do not apply any additional lubrication.
Revision: April 20092010 QX56

SE-1
BODY INTERIOR
C
DE
F
G H
I
K L
M
SECTION SE
A
B
SE
N
O P
CONTENTS
SEAT
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
INSPECTION AND ADJUSTMENT .....................5
Preliminary Check ............................................... ......5
FUNCTION DIAGNOSIS ...............................6
THIRD ROW POWER FOLDING SEAT ......... .....6
System Description ............................................. ......6
Component Parts Location ........................................7
Component Description .............................................7
COMPONENT DIAGNOSIS ..........................8
POWER SEAT .....................................................8
Wiring Diagram — Passenger Side — ................ ......8
HEATED SEAT ...................................................12
Description ..............................................................12
Wiring Diagram .......................................................13
THIRD SEAT ......................................................19
Power Supply and Ground Circuit Check for Third
Row Power Folding Seat Control Unit ................. ....
19
Third Row Power Folding Seat Switch ....................20
Third Row Power Folding Seat Motor .....................20
ECU DIAGNOSIS .........................................22
THIRD ROW POWER FOLDING SEAT CON-
TROL UNIT .........................................................
22
Reference Value ................................................. ....22
Wiring Diagram .......................................................24
DTC Index ...............................................................29
Fail Safe ..................................................................30
SYMPTOM DIAGNOSIS ..............................31
THIRD ROW POWER FOLDING SEAT ......... ....31
Symptom Table ................................................... ....31
NONE OF THE THIRD ROW POWER FOLD-
ING SEATS WILL OPERATE WITH ANY
SWITCH. ............................................................
32
None of the Third Row Power Folding Seats Will
Operate With Any Third Row Power Folding Seat
Switch .................................................................. ....
32
ONLY ONE THIRD ROW POWER FOLDING
SEAT WILL OPERATE. ....................................
33
Only One Third Row Power Folding Seat Will Op-
erate .................................................................... ....
33
THIRD ROW POWER FOLDING SEAT WILL
OPERATE IN ONLY ONE DIRECTION. ...........
35
Third Row Power Folding Seat Will Operate in
Only One Direction .............................................. ....
35
THIRD ROW POWER FOLDING SEAT WILL
STOP SHORT OF IT’S FULLY UP OR DOWN
POSITION. .........................................................
37
Third Row Power Folding Seat Stops Short of it's
Fully Up or Down Position .......................................
37
THIRD ROW POWER FOLDING SEAT
MAKES EXCESSIVE NOISE WHILE MOV-
ING. ...................................................................
38
Third Row Power Folding Seat Makes Excessive
Noise While Moving ............................................. ....
38
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
39
Work Flow ................................................................39
Generic Squeak and Rattle Troubleshooting ...........41
Diagnostic Worksheet ..............................................43
PRECAUTION ..............................................45
PRECAUTIONS .................................................45
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
45
Revision: April 20092010 QX56

SE-2
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................
45
Precaution for Work ................................................46
PREPARATION ...........................................47
PREPARATION .............................................. ...47
Special Service Tool ............................................ ...47
Commercial Service Tool .......................................47
ON-VEHICLE REPAIR ................................48
FRONT SEAT ................................................. ...48
Exploded View ..................................................... ...48
Removal and Installation ........................................51
SECOND SEAT .................................................52
Exploded View ..................................................... ...52
Removal and Installation ........................................56
THIRD SEAT ......................................................57
Exploded View ..................................................... ...57
LH Side Seat ...........................................................59
Power seat cross beam ..........................................60
RH Side Seat ..........................................................64
DISASSEMBLY AND ASSEMBLY ............66
FRONT SEAT ................................................. ...66
Exploded View ..................................................... ...66
Disassembly and Assembly ....................................69
SECOND SEAT .................................................72
Disassembly and Assembly ................................. ...72
THIRD SEAT ......................................................77
Exploded View ..................................................... ...77
Revision: April 20092010 QX56

DIAGNOSIS AND REPAIR WORKFLOWSE-3
< BASIC INSPECTION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

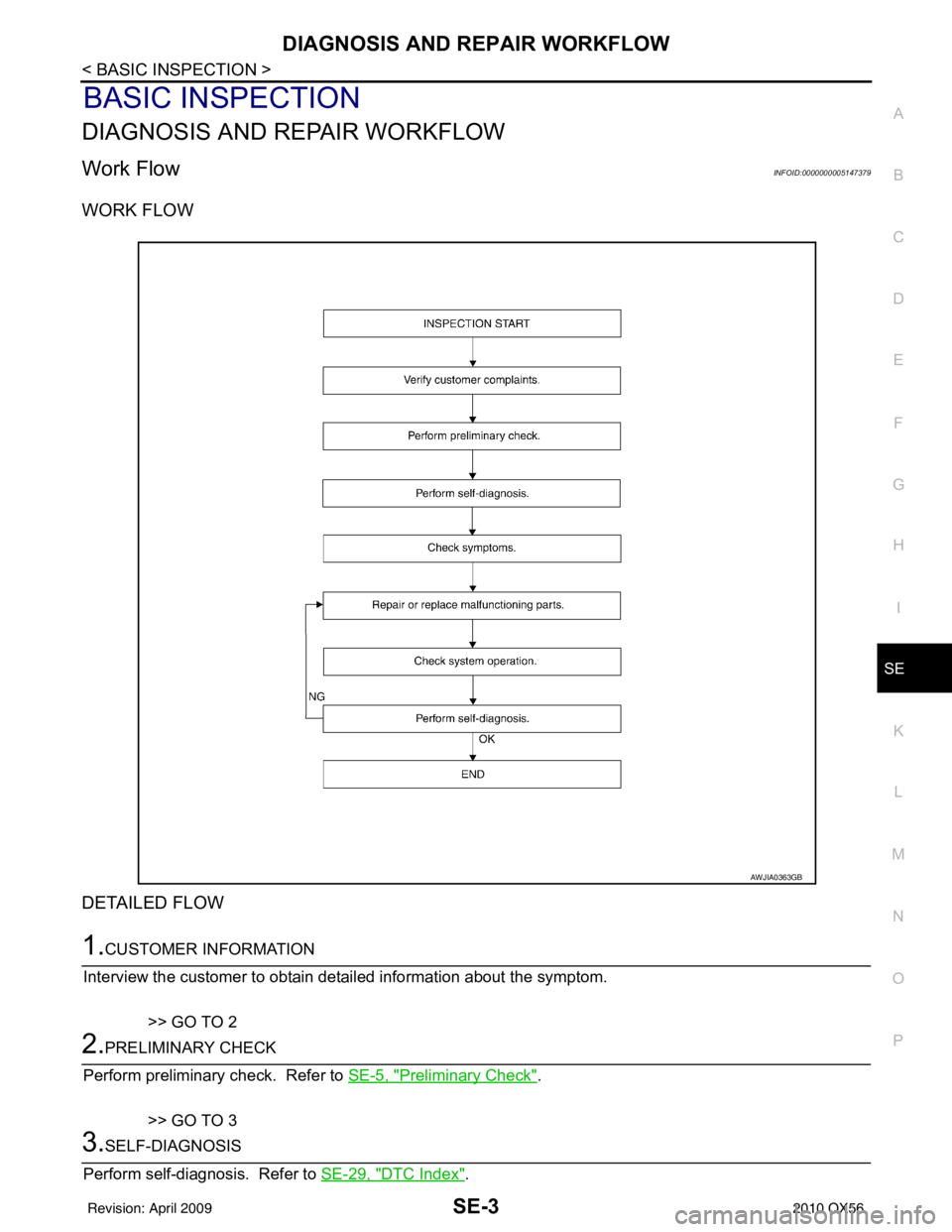

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000005147379
WORK FLOW
DETAILED FLOW
1.CUSTOMER INFORMATION
Interview the customer to obtain detailed information about the symptom.
>> GO TO 2
2.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
>> GO TO 3
3.SELF-DIAGNOSIS
Perform self-diagnosis. Refer to SE-29, "
DTC Index".
AWJIA0363GB
Revision: April 20092010 QX56

SE-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 4
4.SYMPTOM
Check for symptoms. Refer to SE-31, "
Symptom Table".
>> GO TO 5
5.MALFUNCTIONING PARTS
Repair or replace the applicable parts.
>> GO TO 6
6.SYSTEM OPERATION
Check system operation.
>> GO TO 7
7.SELF-DIAGNOSIS
Perform self-diagnosis. Refer to SE-29, "
DTC Index".
Are any DTCs detected?
YES >> GO TO 5
NO >> Inspection End.
Revision: April 20092010 QX56

INSPECTION AND ADJUSTMENTSE-5
< BASIC INSPECTION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
INSPECTION AND ADJUSTMENT
Preliminary CheckINFOID:0000000005147380
1.FOREIGN OBJECTS
Check the following:
• objects on or behind the seats that could cause binding
• objects under the seats that may be in terfering with the seat’s moving parts
Are there any foreign objects that could be causing interference with the seats?
YES >> Remove objects.
NO >> GO TO 2.
2.WIRING CONNECTIONS
1. Disconnect third row power folding seat c ontrol unit and seat motor harness connectors.
2. Check terminals for damage or loose connections.
3. Reconnect harness connectors.
Are any connectors damaged or loose?
YES >> Repair or replace damaged parts.
NO >> GO TO 3.
3.POWER AND GROUND
Check power supply and ground circuits for third row power folding seat control unit. Refer to SE-19, "
Power
Supply and Ground Circuit Check for Third Row Power Folding Seat Control Unit".
Is the inspection result normal?
YES >> Refer to SE-29, "DTC Index".
NO >> Repair or replace as necessary.
Revision: April 20092010 QX56

SE-6
< FUNCTION DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT
FUNCTION DIAGNOSIS
THIRD ROW POWER FOLDING SEAT
System DescriptionINFOID:0000000005147381
The third row power folding seat system is capable of allowing a user to fold up or down either the left or right
third row seat using a set of front or rear mounted switches.
THIRD ROW POWER FOLDIN G SEAT CONTROL UNIT
The third row power folding seat control unit is located in the control
unit/cross beam assembly underneath the LH third row seat. It
receives signals from the third row power folding seat switches, TCM
and the Hall effect switches mounted in the LH and RH seat motors.
The control unit has self-diagnosis capability through chime codes
and may be accessed by turning the ignition switch ON and OFF
three times. The control unit drives the LH and RH seat motors to
fold them up and down.
THIRD ROW POWER FOLDING SEAT SWITCH
The third row power folding seat switches are located in pairs on the
luggage side finisher RH. A switch must be held in order for the seat
to move.
THIRD ROW POWER FOLDING SEAT MOTORS
The third row power folding seat motors are located in the seat
motor/hinge assembly. There are two motors, one for LH and one
for RH seat folding operations. Power and ground are provided to
the motors by the third row power fo lding seat control unit. The con-
trol unit reverses polarity to the motors to raise or lower the seat.
The motors also contain Hall effe ct switches. These switches send
signals back to the control unit which help it determine fully open and
closed positions.
ALJIA0085ZZ
ALJIA0086ZZ
ALJIA0087ZZ
Revision: April 20092010 QX56

THIRD ROW POWER FOLDING SEATSE-7
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Component Parts LocationINFOID:0000000005147382
Component DescriptionINFOID:0000000005147383
ALJIA0088ZZ
1. Third row power folding seat control unit B401, B402 2. A/T assembly F9 3. Third row power folding seat switches
A: Third row power folding seat sw itch passenger side (front) B162
B: Third row power folding seat switch driver side (front) B164
C: Third row power folding seat switch passenger side (rear) B163
D: Third row power folding seat switch driver side (rear) B165
4. Third row power folding seat motors
A: RH (40%) seat B426
B: LH (60%) seat B403
Component Function
Third row power folding seat control unit • Receive inputs from third row power folding seat switches and A/T assembly (trans-
mission range switch)
• Drive third row powe r folding seat motors
• Performs self-diagnostics
A/T assembly Provide transmission range switch signal to third row power folding seat control unit
Third row power folding seat switches Provide fold up/fold down ground signals to third row power folding seat control unit
Third row power folding seat motors • Fold seats up and down
• Provide feedback signals to third row power folding seat control unit
Revision: April 20092010 QX56

SE-8
< COMPONENT DIAGNOSIS >
POWER SEAT
COMPONENT DIAGNOSIS
POWER SEAT
Wiring Diagram — Passenger Side —INFOID:0000000005147384
ABJWA0030GB
Revision: April 20092010 QX56
