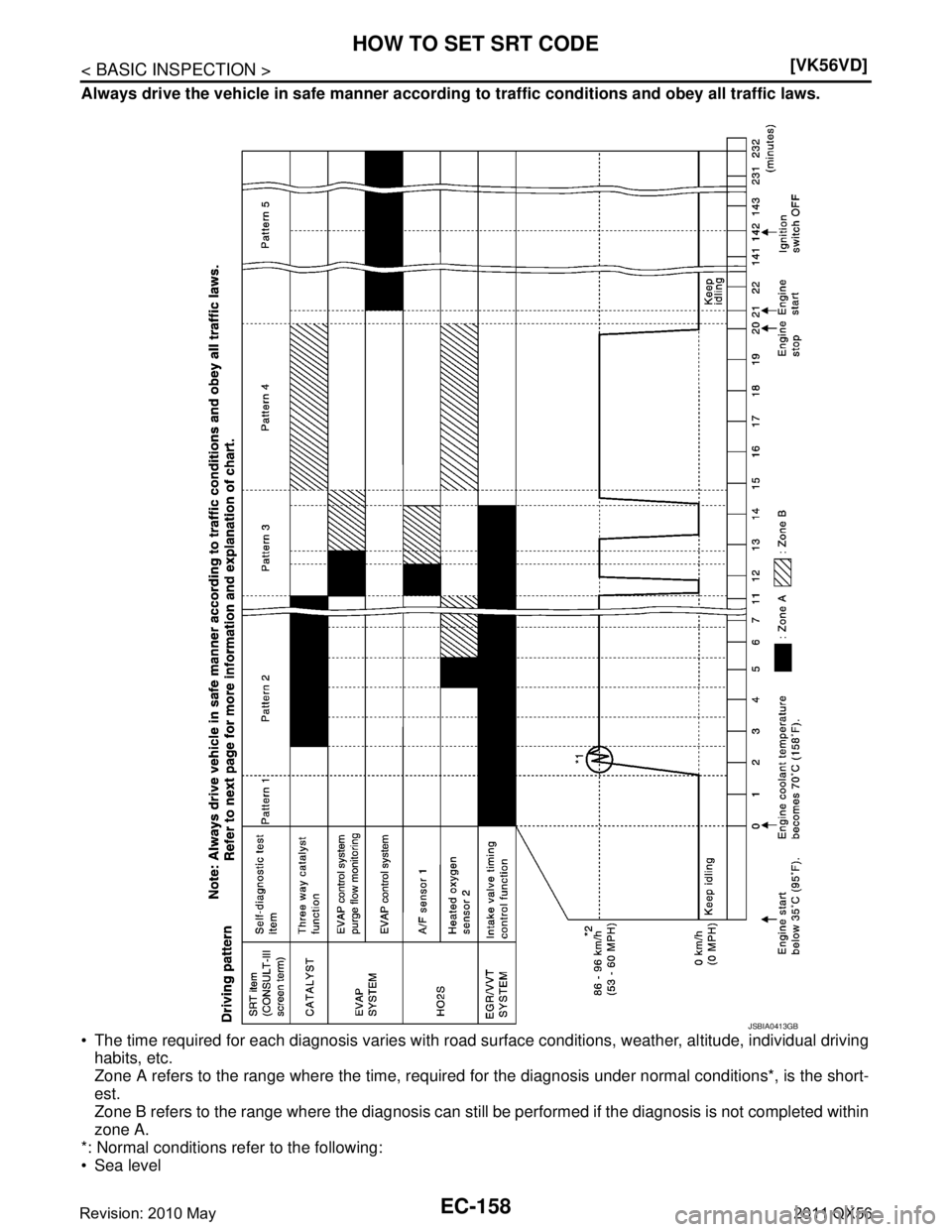

SRT Set Driving PatternINFOID:0000000006265594

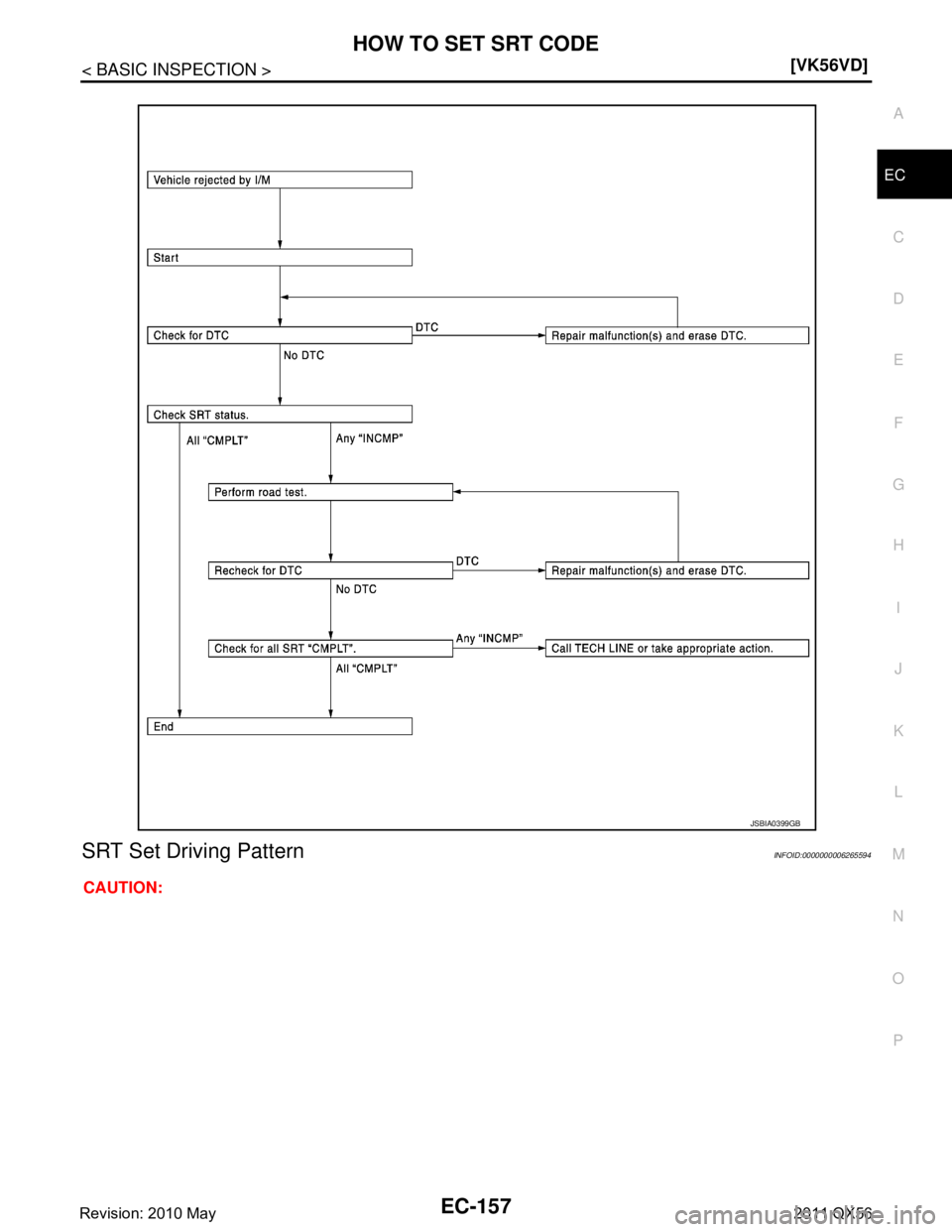

CAUTION:
JSBIA0399GB
Revision: 2010 May2011 QX56

EC-158
< BASIC INSPECTION >[VK56VD]
HOW TO SET SRT CODE
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
 The time required for each diagnosis varies with road su rface conditions, weather, altitude, individual driving
habits, etc.
Zone A refers to the range where the time, required fo r the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.
*: Normal conditions refer to the following:
 Sea level
JSBIA0413GB
Revision: 2010 May2011 QX56

HOW TO SET SRT CODEEC-159
< BASIC INSPECTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
 Flat road
 Ambient air temperature: 20 - 30
°C (68 - 86 °F)
 Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30 °C (68 - 86 °F)], diagno-
sis may also be performed.
Work ProcedureINFOID:0000000006265595
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-98, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
WITH CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
WITHOUT CONSULT-III
Perform “SRT status” mode with EC-60, "
On Board Diagnosis Function".
WITH GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> END
NO-1 >> With CONSULT-III: GO TO 3.
NO-2 >> Without CONSULT-III: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in t he “SRT ITEM” table. Refer to EC-156, "
Description".
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-98, "DTC Index".
NO >> GO TO 10.
4.PERFORM ROAD TEST
 Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-156, "
Description".
 Perform the most efficient SRT set drivi ng pattern to set the SRT properly. Refer to EC-157, "
SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32 °F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158 °F)
NOTE:
ECM terminal voltage is follows;
 Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 - 4.3 V
-70 °(158 °F): Less than 1.4 V
 Fuel tank temperature: Less than 4.1 V
Refer to EC-72, "
Reference Value".
>> GO TO 6.
Revision: 2010 May2011 QX56

EC-160
< BASIC INSPECTION >[VK56VD]
HOW TO SET SRT CODE
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then
release the accelerator pedal and keep it released for more than 10 seconds.
2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again
NOTE:
 Checking the vehicle speed with GST is advised.
 When steady-state driving is performed again even afte r it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
>> GO TO 7.
7.PATTERN 3
 Operate vehicle following the driving pattern shown in the figure.
 Release the accelerator pedal during deceleration of vehicle speed from 90 km/h (56 MPH) to 0 km/h (0 MPH).
>> GO TO 8.
8.PATTERN 4
 The accelerator pedal must be held very steady during steady-state driving.
 If the accelerator pedal is moved, the test must be conducted again.
>> GO TO 9.
9.PATTERN 5
 Cool down the engine so that the engine coolant temperature lowers between 15 - 35 °C (59 - 95 °F).
CAUTION:
Never turn the ignition switch ON while cooling down the engine.
 Engine coolant temperature at engine start is between 15 – 35 °C (59 – 95 °F) and has lowered 45 °C (113 °F)
or more since the latest engine stop.
>> GO TO 10.
10.CHECK SRT STATUS
WITH CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
WITHOUT CONSULT-III
Perform “SRT status” mode with EC-60, "
On Board Diagnosis Function".
WITH GST
Select Service $01 with GST.
Is SRT(s) set?
YES >> END
NO >> Call TECH LINE or take appropriate action.
PBIB2244E
Revision: 2010 May2011 QX56

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-161
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC/CIRCUIT DIAGNOSIS
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000006217760
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” in “DATA MONI-
TOR” mode of CONSULT-III during normal operation of the Engine Control System. When the value in “SPEC”
in “DATA MONITOR” mode is within the SP value, t he Engine Control System is confirmed OK. When the
value in “SPEC” in “DATA MONITOR” mode is NOT wit hin the SP value, the Engine Control System may have
one or more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not illuminate
the MIL.
The SP value will be displayed for the following items:
 B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc- tion)
 A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
 MAS A/F SE-B1/B2 (The signal voltage of the mass air flow sensor)
 IDLE FUEL PRES MAX/MIN (the signal voltage of the fuel rail pressure sensor)
Component Function CheckINFOID:0000000006217761
1.PRECONDITIONING
Check that all of the following conditions are satisfied.
TESTING CONDITION
 Vehicle driven distance: More than 5,000 km (3,107 miles)
 Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
 Atmospheric temperature: 20 - 30 °C (68 - 86 °F)
 Engine coolant temperature: 75 - 95 °C (167 - 203 °F)
 Transmission: Warmed-up
- After the engine is warmed up to normal operating temperat ure, drive vehicle until “ATF TEMP 2” (A/T fluid
temperature sensor signal) indicates more than 60 °C (140 °F).
 Electrical load: Not applied
- Rear window defogger switch, air conditioner switch and li ghting switch are OFF. Steering wheel is straight
ahead.
 Engine speed: Idle
 Gear position: Neutral ( or parking)
>> GO TO 2.
2.PERFORM SPEC IN DATA MONITOR MODE
WITH CONSULT-III
NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.
1. Perform EC-139, "
Work Procedure".
2. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”, “MAS A/F SE-B1” in “SPEC” of “DATA
MONITOR” mode with CONSULT-III.
3. Check that monitor items are within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> Proceed to EC-162, "
Diagnosis Procedure".
Revision: 2010 May2011 QX56

EC-162
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Diagnosis Procedure
INFOID:0000000006217762

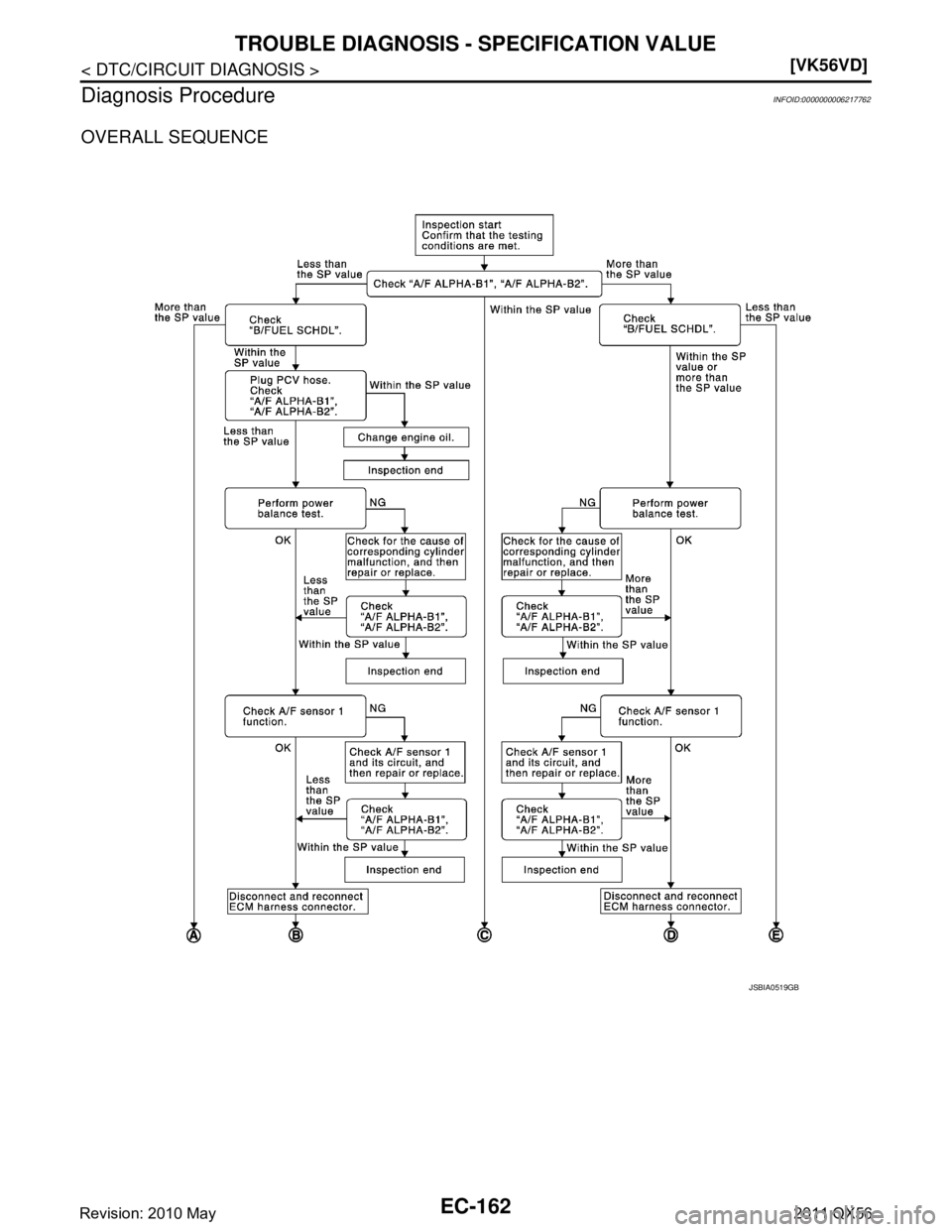

OVERALL SEQUENCE
JSBIA0519GB
Revision: 2010 May2011 QX56

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-163
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DETAILED PROCEDURE
1.CHECK “A/F ALPHA-B1” AND “A/F ALPHA-B2”
WITH CONSULT-III
1. Start engine.
2. Check that the testing conditions are met. Refer to EC-161, "
Component Function Check".
3. Select “A/F ALPHA-B1” and “A/F ALPHA-B2” in “S PEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
JMBIA0056GB
Revision: 2010 May2011 QX56

EC-164
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
NOTE:
Check “A/F ALPHA-B1” and “A/F ALPHA-B2” for approxim
ately 1 minute because they may fluctuate. It is
NG if the indication is out of the SP value even a little.
Is the measurement value within the SP value?
YES >> GO TO 14.
NO-1 >> Less than the SP value: GO TO 2.
NO-2 >> More than the SP value: GO TO 3.
2.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.
Is the measurement value within the SP value?
YES >> GO TO 4.
NO >> More than the SP value: GO TO 16.
3.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.
Is the measurement value within the SP value?
YES >> GO TO 6.
NO-1 >> More than the SP value: GO TO 6.
NO-2 >> Less than the SP value: GO TO 22.
4.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1” and “A/F ALPHA-B2” in “ SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
Is the measurement value within the SP value?
YES >> GO TO 5.
NO >> GO TO 6.
5.CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil. NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detec ted after changing engine oil or changing driving con-
ditions.
>> INSPECTION END
6.PERFORM POWER BALANCE TEST
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode.
2. Check that each cylinder produces a momentary engine speed drop.
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following below.
 Ignition coil and its circuit (Refer to EC-506, "
Component Function Check".)
 Fuel injector and its circuit (Refer to EC-498, "
Component Function Check".)
 Intake air leakage
 Low compression pressure (Refer to EM-16, "
Inspection".)
Is the inspection result normal?
Revision: 2010 May2011 QX56

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-165
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> Replace fuel injector and then GO TO 8.
NO >> Repair or replace malfunctioning part and then GO TO 8.
8.CHECK “A/F ALPHA-B1” AND “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1” and “A/F ALPHA-B2” in “S PEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> GO TO 9.
9.CHECK A/F SENSOR 1 FUNCTION
Perform all DTC CONFIRMATION PROCEDURE related with A/F sensor 1.
 For DTC P0130, P0150, refer to EC-228, "
DTC Logic".
 For DTC P0131, P0151, refer to EC-232, "
DTC Logic".
 For DTC P0132, P0152, refer to EC-235, "
DTC Logic".
 For DTC P0133, P0153, refer to EC-238, "
DTC Logic".
 For DTC P2A00, P2A03, refer to EC-487, "
DTC Logic".
Are any DTCs detected?
YES >> GO TO 10.
NO >> GO TO 12.
10.CHECK A/F SENSOR 1 CIRCUIT
Perform Diagnosis Procedure according to corresponding DTC.
>> GO TO 11.
11 .CHECK “A/F ALPHA-B1” AND “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1” and “A/F ALPHA-B2” in “S PEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> GO TO 12.
12.DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect ECM harness connector. Check pin term inal and connector for damage, and then reconnect it.
>> GO TO 13.
13.CHECK “A/F ALPHA-B1” AND “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1” and “A/F ALPHA-B2” in “S PEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> Detect malfunctioning part according to EC-524, "
Symptom Table".
14.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check t hat the indication is within the SP
value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO-1 >> More than the SP value: GO TO 15.
NO-2 >> Less than the SP value: GO TO 22.
15.DETECT MALFUNCTIONING PART
Revision: 2010 May2011 QX56

EC-166
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
1. Check for the cause of large engine friction. Refer to the following.
- Engine oil level is too high
- Engine oil viscosity
- Belt tension of power steering, alternat
or, A/C compressor, etc. is excessive
- Noise from engine
- Noise from transmission, etc.
2. Check for the cause of insufficient combustion. Refer to the following.
- Valve clearance malfunction
- Intake valve timing control function malfunction
- Camshaft sprocket installation malfunction, etc.
>> Repair or replace malfunctioning part, and then GO TO 27.
16.CHECK INTAKE SYSTEM
Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
 Crushed air ducts
 Malfunctioning seal of air cleaner element
 Uneven dirt of air cleaner element
 Improper specification of intake air system
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or replace malfunctioning part, and then GO TO 17.
17.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2” AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1”, “A/F ALPHA-B2” and “B/FUE L SCHDL” in “SPEC” of “DATA MONITOR” mode, and
check that each indication is within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> “B/FUEL SCHDL” is more, “A/F ALPHA-B1” and “A /F ALPHA-B2” are less than the SP value: GO
TO 18.
18.DISCONNECT AND RECONNECT MASS AIR FLOW SENSOR HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect mass air flow sensor harness connector. Check pin terminal and connector for damage and then reconnect it again.
>> GO TO 19.
19.CHECK “A/F ALPHA-B1” AND “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1” and “A/F ALPHA-B2” in “ SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
Is the measurement value within the SP value?
YES >> Detect malfunctioning part of mass air flow sensor circuit and repair it. Refer to EC-201, "Diagno-
sis Procedure". Then GO TO 26.
NO >> GO TO 20.
20.CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.
Is the measurement value within the SP value?
YES >> GO TO 21.
NO >> More than the SP value: Replace malfuncti oning mass air flow sensor, and then GO TO 26.
21.REPLACE ECM
1. Replace ECM.
2. Perform EC-143, "
Work Procedure".
Revision: 2010 May2011 QX56
