warning INFINITI QX60 2023 Owners Manual

The non-viewable areaO2is highlighted in
yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only the
first time after the ignition switch is placed in
the ON position.
The driver can check the approximate direc-
tion and angle of the tire on the display by the
tire icon
O3when driving the vehicle forward
or backward. Predicted course lines
O4indicate the pre-
dicted course when operating the vehicle.
The predicted course lines will be displayed
on the monitor when the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, the two green
predicted course lines are shown in front of
the vehicle.
When the steering wheel turns about 90 de-
grees or more, one green predicted course
line is shown in front of the vehicle and the
other predicted course line is shown at the
side of the vehicle.
When the monitor displays the rear view, the
predicted course lines are shown at the back
of the vehicle.WARNING
• Objects in the bird's-eye view will appear
further than the actual distance.
• Tall objects, such as a curb or vehicle,
may be misaligned or not displayed at
the seam of the views.
• Objects that are above the camera can-
not be displayed.
• The view of the bird's-eye view may be
misaligned when the camera position
alters.
• A line on the ground may be misaligned
and is not seen as being straight at the
seam of the views. The misalignment will
increase as the line proceeds away from
the vehicle.
• Tire angle display does not indicate the
actual tire angle.
LHA4547
Rear view
4-14Monitor, climate, audio, phone and voice recognition systems

Backing up near a projecting object
The predicted course linesOAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
Backing up behind a projecting
object
The positionOCis shown farther than the
position
OBin the display. However, the po-
sition
OCis actually at the same distance as
the position
OA. The vehicle may hit the object when backing up to the position
OAif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
• If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.
• On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.
• If the battery is disconnected or becomes
discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to
lock while the engine is running.
– Drive the vehicle on a straight road
for more than 5 minutes.
• When the steering wheel is turned with
the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.
LHA4995LHA5199
Monitor, climate, audio, phone and voice recognition systems4-17

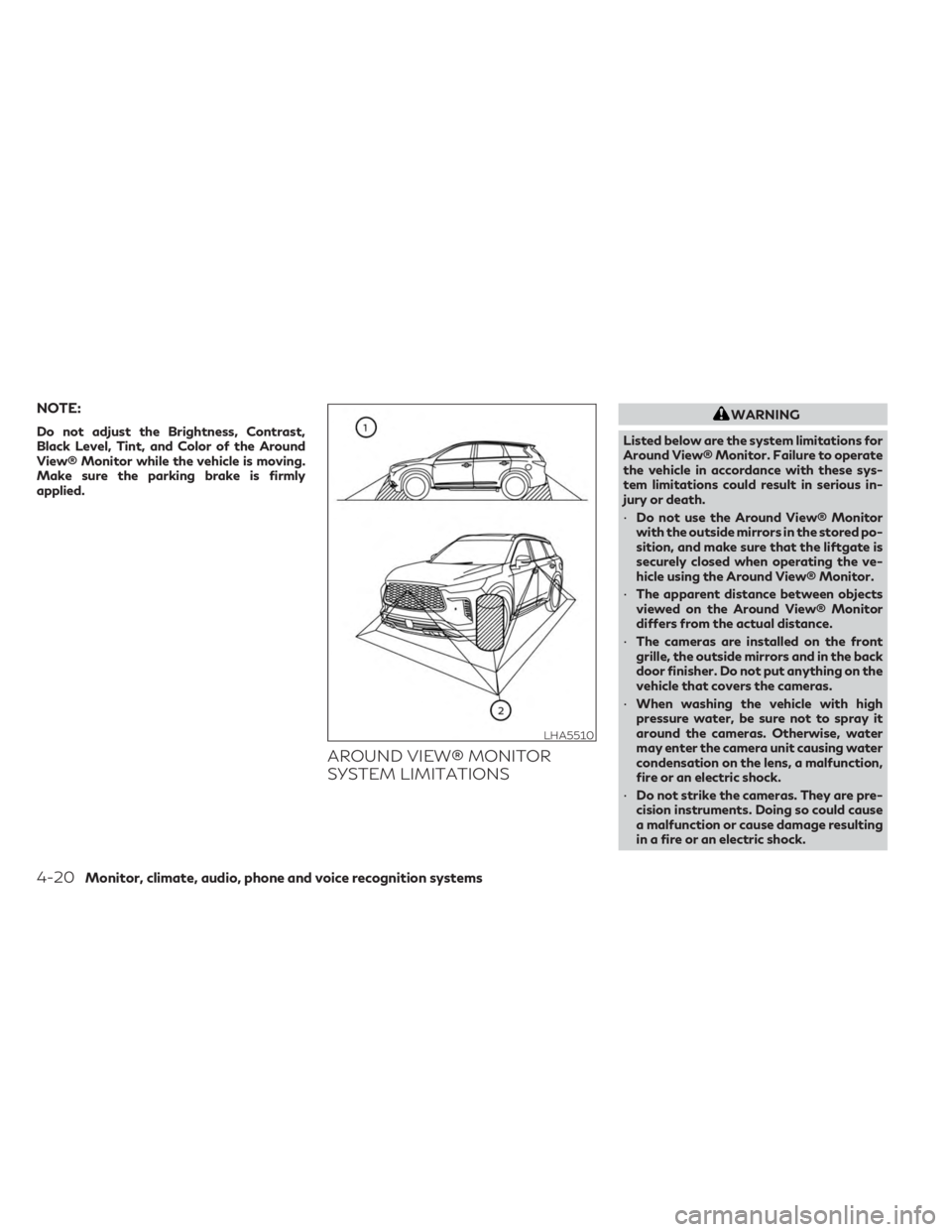

NOTE:
Do not adjust the Brightness, Contrast,
Black Level, Tint, and Color of the Around
View® Monitor while the vehicle is moving.
Make sure the parking brake is firmly
applied.
AROUND VIEW® MONITOR
SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these sys-
tem limitations could result in serious in-
jury or death.
• Do not use the Around View® Monitor
with the outside mirrors in the stored po-
sition, and make sure that the liftgate is
securely closed when operating the ve-
hicle using the Around View® Monitor.
• The apparent distance between objects
viewed on the Around View® Monitor
differs from the actual distance.
• The cameras are installed on the front
grille, the outside mirrors and in the back
door finisher. Do not put anything on the
vehicle that covers the cameras.
• When washing the vehicle with high
pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.
• Do not strike the cameras. They are pre-
cision instruments. Doing so could cause
a malfunction or cause damage resulting
in a fire or an electric shock.
LHA5510
4-20Monitor, climate, audio, phone and voice recognition systems

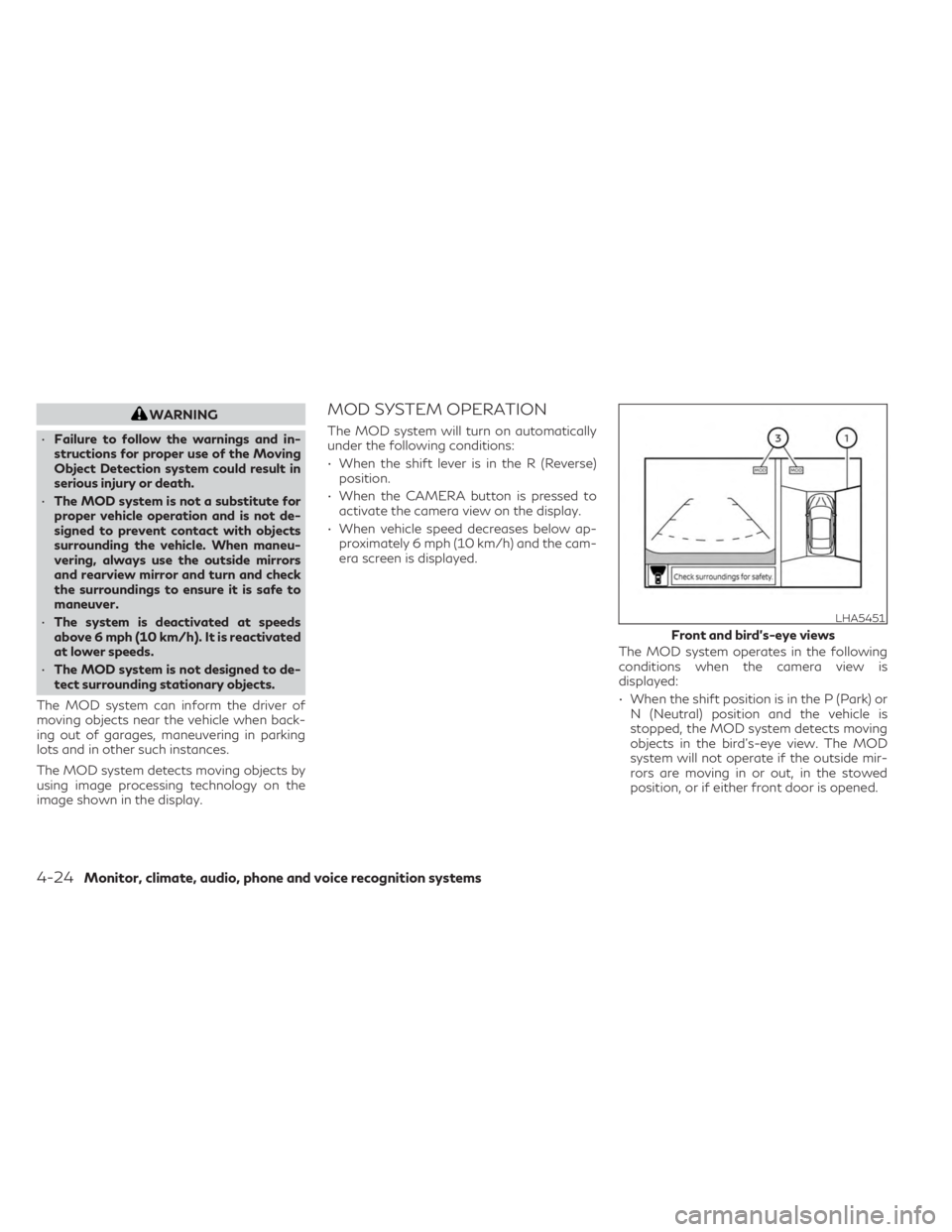

WARNING
• Failure to follow the warnings and in-
structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
• The MOD system is not a substitute for
proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
• The system is deactivated at speeds
above 6 mph (10 km/h). It is reactivated
at lower speeds.
• The MOD system is not designed to de-
tect surrounding stationary objects.
The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions:
• When the shift lever is in the R (Reverse) position.
• When the CAMERA button is pressed to activate the camera view on the display.
• When vehicle speed decreases below ap- proximately 6 mph (10 km/h) and the cam-
era screen is displayed.
The MOD system operates in the following
conditions when the camera view is
displayed:
• When the shift position is in the P (Park) orN (Neutral) position and the vehicle is
stopped, the MOD system detects moving
objects in the bird’s-eye view. The MOD
system will not operate if the outside mir-
rors are moving in or out, in the stowed
position, or if either front door is opened.
LHA5451
Front and bird’s-eye views
4-24Monitor, climate, audio, phone and voice recognition systems

TURNING MOD ON AND OFF
To turn the MOD system on or off:
1. Press the
orbutton on the
steering wheel and select “Settings” in the
vehicle information display.
2. Using the scroll dial, select “Driver Assis- tance” and press the OK button.
3. Select “Parking Aids”.
4. Toggle ON or OFF “Moving Object” using the OK button.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
• Do not use the MOD system when tow-
ing a trailer. The system may not func-
tion properly.
• Excessive noise (for example, audio sys-
tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
• The MOD system performance will be
limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between
background and the moving objects.
– When there is a blinking source of
light.
– When strong light such as another
vehicle’s headlight or sunlight is
present.
– When camera orientation is not in its
usual position, such as when a mirror
is folded.
– When there is dirt, water drops or
snow on the camera lens. –
When the position of the moving ob-
jects in the display is not changed.
• The MOD system might detect flowing
water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.
• The MOD system may not function
properly depending on the speed, direc-
tion, distance or shape of the moving
objects.
• If your vehicle sustains damage to the
parts where the camera is installed, leav-
ing it misaligned or bent, the sensing
zone may be altered and the MOD sys-
tem may not detect objects properly.
• When the temperature is extremely high
or low, the screen may not display ob-
jects clearly. This is not a malfunction.
LHA5454
Rear-wide view
4-26Monitor, climate, audio, phone and voice recognition systems

1.Heated steering wheel switch
(if so equipped)
2. Display screen
3. REAR CONTROL (rear climate display screen) button
4. REAR ON-OFF button
5. REAR LOCK button 6.REAR window and outside mirror
(if so equipped) defroster switch
7.
Heated seat switches (if so equipped)
8.Climate controlled seat switches
(if so equipped)
9. SYNC button/ temperature control dial
(passenger's side) 10.
CLEAN (if so equipped)
11.Air recirculation button
12.Fresh air intake button
13.Fan speed control buttons
14. MODE button
15. A/C (air conditioner) button
16. ON-OFF button
17.
Front defroster button
18. AUTO (automatic) climate control button/
temperature control dial (driver's side)
WARNING
• The air conditioner cooling function op-
erates only when the engine is running.
• Do not leave children or adults who
would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acci-
dentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.
• Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA5522
HEATER AND AIR CONDITIONER
(automatic)
Monitor, climate, audio, phone and voice recognition systems4-29

•Heated 2nd row seat switches (if so
equipped) For additional information, see
“Heated 2nd row seat switches” (P. 2-86).
• Air flow control buttons controls air flow
and selects the air outlet.
• AUTO button Turns rear automatic air
conditioning system on, AUTO mode on.
• Temperature
increase andde-
crease buttons Adjusts the rear tempera-
ture up or down. The air conditioner system in your INFINITI
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant does not harm the earth's
ozone layer.
Special charging equipment and lubricant is
required when servicing your INFINITI air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to your
air conditioner system. For additional infor-
mation, see “Air conditioner system refriger-
ant and oil recommendations” (P. 10-7).
It is recommended that you visit an INFINITI
retailer to service your “environmentally
friendly” air conditioner system.
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment. The vehicle is equipped with a shark fin an-
tenna and an antenna pattern is printed in-
side the rear window.
CAUTION
• Do not place metalized film near the rear
window glass or attach any metal parts
to it. This may cause poor reception or
noise.
• When cleaning the inside of the rear win-
dow, be careful not to scratch or damage
the rear window antenna. Lightly wipe
along the antenna with a dampened soft
cloth.
SERVICING AIR CONDITIONER ANTENNA
4-36Monitor, climate, audio, phone and voice recognition systems

When installing a CB, ham radio or car phone
in your vehicle, be sure to observe the follow-
ing precautions; otherwise, the new equip-
ment may adversely affect the engine control
system and other electronic parts.
WARNING
• A cellular phone should not be used for
any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of
cellular phones while driving.
• If you must make a call while your vehicle
is in motion, the hands free cellular phone
operational mode is highly recom-
mended. Exercise extreme caution at all
times so full attention may be given to
vehicle operation.
• If you are unable to devote full attention
to vehicle operation while talking on the
phone, pull off the road to a safe location
and stop your vehicle.
CAUTION
• Keep the antenna as far away as possible
from the electronic control modules.
• Keep the antenna wire more than 8 in
(20 cm) away from the electronic control
system harnesses. Do not route the an-
tenna wire next to any harness.
• Adjust the antenna standing-wave ratio
as recommended by the manufacturer.
• Connect the ground wire from the CB
radio chassis to the body.
• For additional information, it is recom-
mended that you visit an INFINITI re-
tailer for servicing. “Made for iPod”, “Made for iPhone” and
“Made for iPad” mean that an electronic ac-
cessory has been designed to connect spe-
cifically to iPod, iPhone or iPad, respectively,
and has been certified by the developer to
meet Apple performance standards. Apple is
not responsible for the operation of this de-
vice or its compliance with safety and regu-
latory standards. Please note that the use of
this accessory with iPod, iPhone or iPad may
affect wireless performance.
iPad, iPhone, iPod classic, iPod nano, iPod
shuffle and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other
countries. Lightning is a trademark of Apple
Inc.
CAR PHONE OR CB RADIO
iPod®/iPhone®
Monitor, climate, audio, phone and voice recognition systems4-37

5 Starting and driving
Precautions when starting and driving............5-4
Exhaust gas (carbon monoxide) ................5-4
Three-way catalyst ...........................5-4
Tire Pressure Monitoring System (TPMS) ......5-5
On-pavement and off-road driving
precautions ...................................5-8
Avoiding collision and rollover .................5-8
Off-road recovery ............................5-9
Rapid air pressure loss ........................5-9
Drinking alcohol/drugs and driving ...........5-10
Driving safety precautions ...................5-10
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ............5-12
Push-button ignition switch ....................5-13
Operating range for engine start function ....5-13
Push-button ignition switch operation .......5-13
Push-button ignition switch positions ........5-14
Emergency engine shut off ..................5-14
INFINITI Intelligent Key battery
discharge .................................... 5-15
INFINITI Vehicle Immobilizer System ..........5-15
Before starting the engine ......................5-16
Starting the engine ............................. 5-16
Remote Engine Start (if so equipped) .........5-17
Driving the vehicle ............................. 5-18
Automatic Transmission (A/T) ...............5-18Parking brake
.................................. 5-25
Electronic parking brake (switch type) ........5-25
Automatic brake hold .......................... 5-27
How to activate/deactivate the
automatic brake hold function ...............5-28
How to use the automatic brake hold
function .................................... 5-28
INFINITI Drive Mode Selector ..................5-29
STANDARD (2WD models)/AUTO
(AWD models) .............................. 5-30
SPORT mode ............................... 5-30
SNOW mode ............................... 5-30
PERSONAL mode .......................... 5-30
ECO mode ................................. 5-32
Traffic Sign Recognition (TSR) (if so equipped) . . 5-34 System operation ........................... 5-34
Turning the Traffic Sign Recognition
(TSR) system on and off .....................5-35
System temporarily unavailable ..............5-36
System
malfunction ......................... 5-36
System maintenance ........................ 5-36
Lane Departure Warning (LDW) ................5-36
LDW system operation ......................5-37
How to enable/disable the LDW system .....5-39
LDW system limitations .....................5-40
System temporarily unavailable ..............5-41

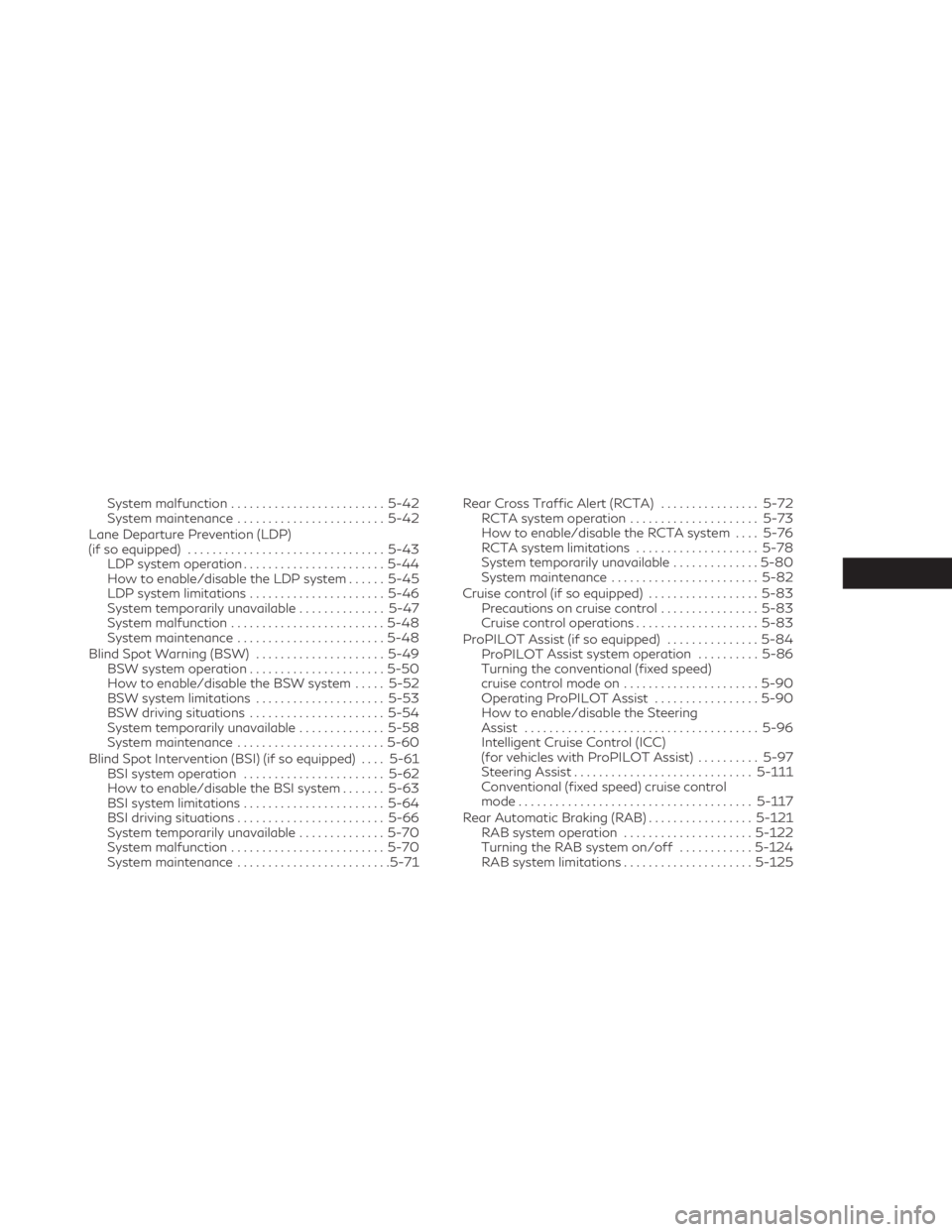

System malfunction......................... 5-42
System maintenance ........................ 5-42
Lane Departure Prevention (LDP)
(if so equipped) ................................ 5-43
LDP system operation ....................... 5-44
How to enable/disable the LDP system ......5-45
LDP system limitations ......................5-46
System temporarily unavailable ..............5-47
System malfunction ......................... 5-48
System maintenance ........................ 5-48
Blind Spot Warning (BSW) .....................5-49
BSW system operation ......................5-50
How to enable/disable the BSW system .....5-52
BSW system limitations .....................5-53
BSW driving situations ......................5-54
System temporarily unavailable ..............5-58
System maintenance ........................ 5-60
Blind Spot Intervention (BSI) (if so equipped) ....5-61
BSI system operation ....................... 5-62
How to enable/disable the BSI system .......5-63
BSI system limitations ....................... 5-64
BSI driving situations ........................ 5-66
System temporarily unavailable ..............5-70
System malfunction ......................... 5-70
System maintenance ......................... 5-71Rear Cross Traffic Alert (RCTA)
................5-72
RCTA system operation .....................5-73
How to enable/disable the RCTA system ....5-76
RCTA system limitations ....................5-78
System temporarily unavailable ..............5-80
System maintenance ........................ 5-82
Cruise control (if so equipped) ..................5-83
Precautions on cruise control ................5-83
Cruise control operations ....................5-83
ProPILOT Assist (if so equipped) ...............5-84
ProPILOT

Assist system operation ..........5-86
Turning the conventional (fixed speed)
cruise control mode on ......................5-90
Operating ProPILOT Assist .................5-90
How to enable/disable the Steering
Assist ...................................... 5-96
Intelligent Cruise Control (ICC)
(for vehicles with ProPILOT Assist) ..........5-97
Steering Assist ............................. 5-111
Conventional (fixed speed) cruise control
mode ...................................... 5-117
Rear Automatic Braking (RAB) .................5-121
RAB system operation .....................5-122
Turning the RAB system on/off ............5-124
RAB system limitations .....................5-125
