AUTOMATIC TRANSMISSION
(A/T)
WARNING
• Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual). Always depress the brake
pedal until shifting is completed. Failure
to do so could cause you to lose control
and have an accident.
• Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.
• Do not downshift abruptly on slippery
roads. This may cause a loss of control.
• Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.
CAUTION
• To avoid possible damage to your ve-
hicle; when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.
• Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
The A/T in your vehicle is electronically con-
trolled to produce maximum power and
smooth operation.
The recommended operating procedures for
this transmission are shown on the following
pages. Follow these procedures for maxi-
mum vehicle performance and driving
enjoyment.
Engine power may be automatically reduced
to protect the A/T if the engine speed in-
creases quickly when driving on slippery roads
or while being tested on some dynamometers.
Starting the vehicle
1. After starting the engine, fully depress the foot brake pedal before moving the shift
position out of the P (Park) position.
This Automatic Transmission is designed
so that the foot brake pedal must be de-
pressed before shifting from P (Park) to
any driving position while the ignition
switch is in the ON position.
The shift position cannot be moved out of
the P (Park) position and into any of the
other positions if the ignition switch is
placed in the LOCK, OFF or AUTO ACC
position while the ready light illuminates.
2. Keep the foot brake pedal depressed and move the shift lever to a driving position.
3. Release the parking brake and foot brake pedal and then gradually start the vehicle
in motion.
WARNING
• Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive) or M
(Manual). Always depress the brake
pedal until shifting is completed. Failure
to do so could cause you to lose control
and have an accident.
DRIVING THE VEHICLE
5-18Starting and driving

Confirm that the vehicle is in the desired shift
position by checking the shift indicator lo-
cated on the shift lever or in the vehicle infor-
mation display.
WARNING
Apply the electronic parking brake if the
shift lever is in any position while the en-
gine is not running. Failure to do so could
cause the vehicle to move unexpectedly or
roll away and result in serious personal in-
jury or property damage.
CAUTION
• Use the P (Park), R (Reverse) or D (Drive)
position only when the vehicle is com-
pletely stopped.
• When switching to the desired shift po-
sition by operating the shift lever, check
that the shift lever returns to the home
position by releasing your hand from the
lever. Holding the shift lever in a mid-
way position may also damage the shift
control system. •
Do not operate the shift lever while the
accelerator pedal is depressed. This may
cause a sudden start which could result in
an accident.
• The following operations are not allowed
because excessive force would be ap-
plied to the transmission and this may
result in damage to the vehicle:
– Moving the shift lever to the R (Re- verse) position when driving forward
– Moving the shift lever to the D (Drive) position when reversing
If the vehicle is moving over 8 km/h (5mph)
when shifting to D (Drive) from R (Re-
verse), the N (Neutral) position will auto-
matically be selected. A buzzer will sound,
noting that D (Drive) was not selected.
When selecting D (Drive) while reversing
below 8 km/h (5 mph) the range will
change normally.
If these operations are attempted, a chime
sounds and the vehicle shifts to the N (Neu-
tral) position.
P (Park)
CAUTION
• To prevent transmission damage, use the
P (Park) position only when the vehicle is
completely stopped.
• Do not slide the shift lever while pressing
the park button. This may damage the
shift control system.
Use the P (Park) position when the vehicle is
parked or when starting the engine. Make
sure the vehicle is completely stopped before
pressing the park button to engage the P
(Park) position. For maximum safety, the
brake pedal must be depressed before en-
gaging the P (Park) position. Use this position
together with the electronic parking brake.
When parking on a hill, first depress the brake
pedal, apply the electronic parking brake and
then engage the P (Park) position. The park-
ing lock should not be used as a brake when
parking. In order to secure the vehicle, always
apply the electronic parking brake in addition
to the parking lock.
5-20Starting and driving

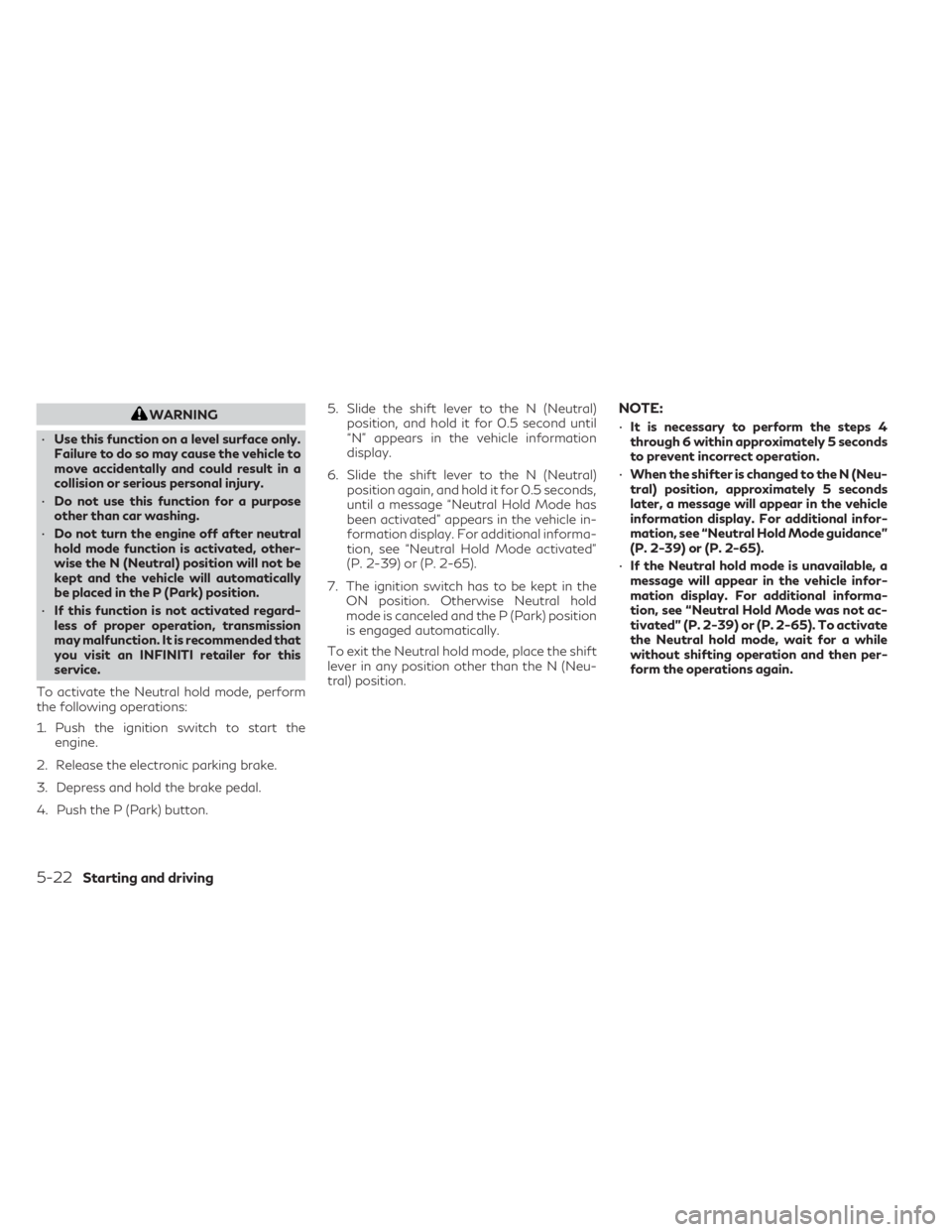

WARNING
• Use this function on a level surface only.
Failure to do so may cause the vehicle to
move accidentally and could result in a
collision or serious personal injury.
• Do not use this function for a purpose
other than car washing.
• Do not turn the engine off after neutral
hold mode function is activated, other-
wise the N (Neutral) position will not be
kept and the vehicle will automatically
be placed in the P (Park) position.
• If this function is not activated regard-
less of proper operation, transmission
may malfunction. It is recommended that
you visit an INFINITI retailer for this
service.
To activate the Neutral hold mode, perform
the following operations:
1. Push the ignition switch to start the engine.
2. Release the electronic parking brake.
3. Depress and hold the brake pedal.
4. Push the P (Park) button. 5. Slide the shift lever to the N (Neutral)
position, and hold it for 0.5 second until
“N” appears in the vehicle information
display.
6. Slide the shift lever to the N (Neutral) position again, and hold it for 0.5 seconds,
until a message “Neutral Hold Mode has
been activated” appears in the vehicle in-
formation display. For additional informa-
tion, see “Neutral Hold Mode activated”
(P. 2-39) or (P. 2-65).
7. The ignition switch has to be kept in the ON position. Otherwise Neutral hold
mode is canceled and the P (Park) position
is engaged automatically.
To exit the Neutral hold mode, place the shift
lever in any position other than the N (Neu-
tral) position.NOTE:
• It is necessary to perform the steps 4
through 6 within approximately 5 seconds
to prevent incorrect operation.
• When the shifter is changed to the N (Neu-
tral) position, approximately 5 seconds
later, a message will appear in the vehicle
information display. For additional infor-
mation, see “Neutral Hold Mode guidance”
(P. 2-39) or (P. 2-65).
• If the Neutral hold mode is unavailable, a
message will appear in the vehicle infor-
mation display. For additional informa-
tion, see “Neutral Hold Mode was not ac-
tivated” (P. 2-39) or (P. 2-65). To activate
the Neutral hold mode, wait for a while
without shifting operation and then per-
form the operations again.
5-22Starting and driving

Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.
Fail-safe
When the fail-safe operation occurs, please
note that the transmission will be locked in
any of the forward gears according to the
condition.If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, see “Malfunction Indica-
tor Light (MIL)” (P. 2-19). This will occur
even if all electrical circuits are functioning
properly. In this case, place the ignition
switch in the OFF position and wait for 10
seconds. Then push the switch back to the
ON position. The vehicle should return to its
normal operating condition. If it does not re-
turn to its normal operating condition, have
the transmission checked and repaired, if
necessary. It is recommended that you visit
an INFINITI retailer for this service.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs, ve-
hicle speed may be gradually reduced. The
reduced speed may be lower than other
traffic, which could increase the chance of
a collision. Be especially careful when driv-
ing. If necessary, pull to the side of the road
at a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
5-24Starting and driving

WARNING
• Be sure the parking brake is fully re-
leased before driving. Failure to do so
can cause brake failure and lead to an
accident.
• Do not release the parking brake from
outside the vehicle.
• Do not use the shift lever in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
ELECTRONIC PARKING BRAKE
(switch type)
The electronic parking brake can be applied
or released by operating the parking brake
switch.
WARNING
• Before leaving the vehicle, move the shift
position to the P (Park) position and
check that the electronic parking brake
warning light is illuminated to confirm
that the electronic parking brake is ap-
plied. The electronic parking brake
warning light will remain on for a period
of time after the driver’s door is locked.
CAUTION
When parking in an area where the outside
temperature is below 32°F (0°C), the park-
ing brake, if applied, may freeze in place
and may be difficult to release.
For safe parking, it is recommended that
you place the shift position in the P (Park)
position and securely block the wheels.
NOTE:
• To keep the electronic parking brake re- leased after the engine is turned off, place
the ignition switch in the OFF position, de-
press the brake pedal and push down the
parking brake switch before opening the
driver’s door.
LSD4139
PARKING BRAKE
Starting and driving5-25

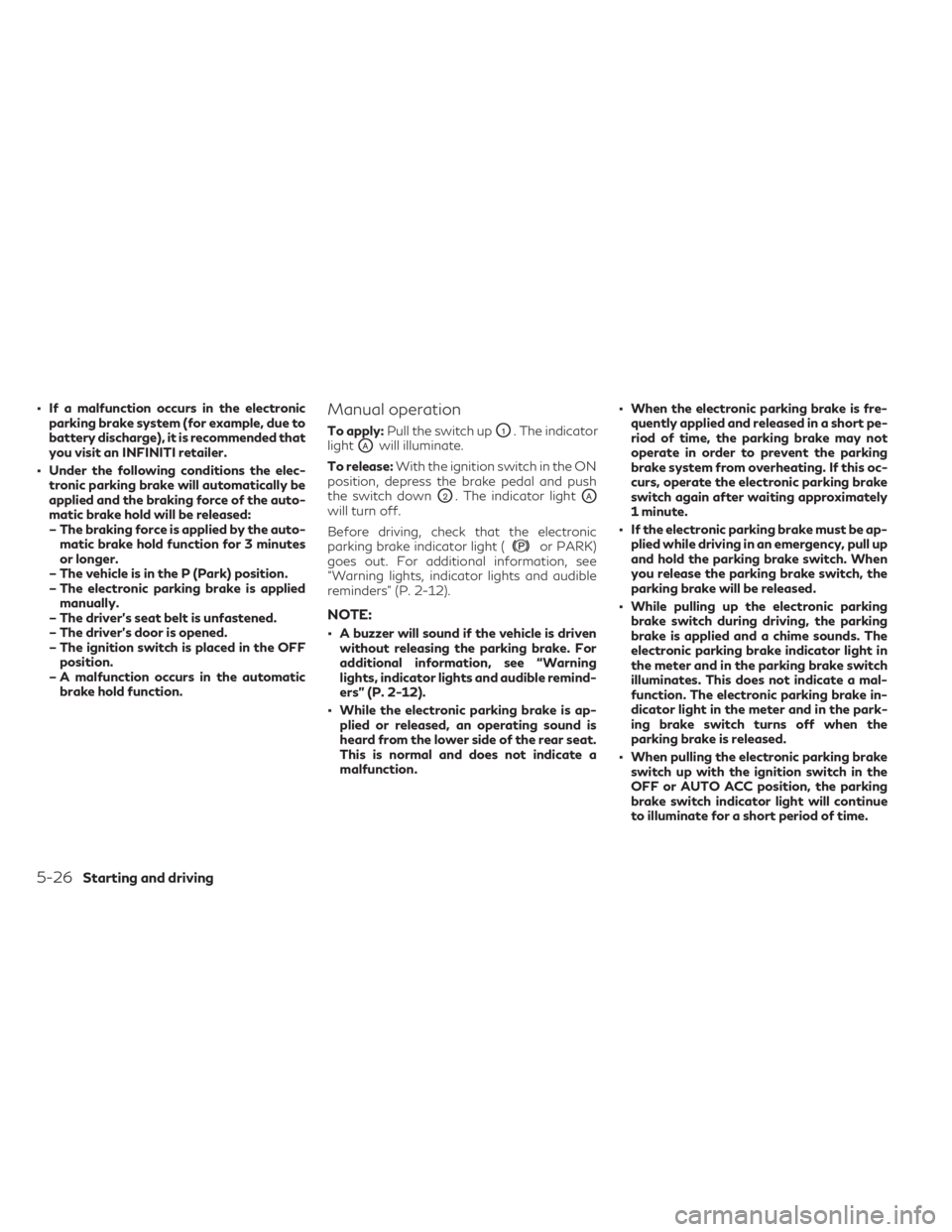

• If a malfunction occurs in the electronicparking brake system (for example, due to
battery discharge), it is recommended that
you visit an INFINITI retailer.
• Under the following conditions the elec- tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released:
– The braking force is applied by the auto- matic brake hold function for 3 minutes
or longer.
– The vehicle is in the P (Park) position.
– The electronic parking brake is applied manually.
– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF position.
– A malfunction occurs in the automatic brake hold function.Manual operation
To apply: Pull the switch upO1. The indicator
light
OAwill illuminate.
To release: With the ignition switch in the ON
position, depress the brake pedal and push
the switch down
O2. The indicator lightOAwill turn off.
Before driving, check that the electronic
parking brake indicator light (
or PARK)
goes out. For additional information, see
“Warning lights, indicator lights and audible
reminders” (P. 2-12).
NOTE:
• A buzzer will sound if the vehicle is driven without releasing the parking brake. For
additional information, see “Warning
lights, indicator lights and audible remind-
ers” (P. 2-12).
• While the electronic parking brake is ap- plied or released, an operating sound is
heard from the lower side of the rear seat.
This is normal and does not indicate a
malfunction. • When the electronic parking brake is fre-
quently applied and released in a short pe-
riod of time, the parking brake may not
operate in order to prevent the parking
brake system from overheating. If this oc-
curs, operate the electronic parking brake
switch again after waiting approximately
1 minute.
• If the electronic parking brake must be ap- plied while driving in an emergency, pull up
and hold the parking brake switch. When
you release the parking brake switch, the
parking brake will be released.
• While pulling up the electronic parking brake switch during driving, the parking
brake is applied and a chime sounds. The
electronic parking brake indicator light in
the meter and in the parking brake switch
illuminates. This does not indicate a mal-
function. The electronic parking brake in-
dicator light in the meter and in the park-
ing brake switch turns off when the
parking brake is released.
• When pulling the electronic parking brake switch up with the ignition switch in the
OFF or AUTO ACC position, the parking
brake switch indicator light will continue
to illuminate for a short period of time.
5-26Starting and driving

The automatic brake hold function maintains
the braking force without the driver having to
depress the brake pedal when the vehicle is
stopped at a traffic light or intersection. As
soon as the driver depresses the accelerator
pedal again, the automatic brake hold func-
tion is deactivated and the braking force is
released. The operating status of the auto-
matic brake hold can be displayed.
To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.
For additional information, see “Warning
lights, indicator lights and audible reminders”
(P. 2-12).
WARNING
• The automatic brake hold function is not
designed to hold the vehicle on a steep
hill or slippery road. Never use the auto-
matic brake hold function when the ve-
hicle is stopped on a steep hill or slippery
road. Failure to do so may cause the ve-
hicle to move. •
Warnings may appear to request that
the driver retake control by depressing
the brake pedal.
•
When the automatic brake hold function is
activated but fails to maintain the vehicle
at a standstill, depress the brake pedal to
stop the vehicle. If the vehicle unexpect-
edly moves due to outside conditions, the
chime may sound and automatic brake
hold warning may illuminate.
• Be sure to deactivate the automatic
brake hold function when using a car
wash or towing your vehicle.
• Make sure to place the shift position in
the P (Park) position and apply the park-
ing brake when parking your vehicle, en-
tering or exiting the vehicle, or loading
luggage. Failure to do so could cause the
vehicle to move or roll away unexpect-
edly and result in serious personal injury
or property damage.
• If any of the following conditions occur,
the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.
– A warning message appears. –
The indicator light on the automatic
brake hold switch does not illuminate
when the switch is pushed.
Failure to operate the vehicle in accordance
with these conditions could cause the ve-
hicle to move or roll away unexpectedly and
result in serious personal injury or property
damage.
• The automatic brake hold function will
not be activated if the Slip indicator
light, electronic parking brake warning
light or master warning light illuminate
and the chassis control system fault
message appears in the vehicle informa-
tion display.
• Automatic brake hold function is oper-
ated by applying sufficient braking force
to hold the vehicle in its place, so there
are cases when this hold function is
maintained even if the accelerator pedal
is depressed. In this situation, it is ad-
vised to depress the brake pedal first,
then to turn off automatic brake hold
switch. This will cancel the hold function.
• To maintain the braking force to keep
the vehicle to a standstill, a noise may be
heard. This is not a malfunction.
AUTOMATIC BRAKE HOLD
Starting and driving5-27

HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION
How to activate the automatic
brake hold function
1. With the ignition switch in the ON posi-tion, push the automatic brake hold switch
O1. The indicator light on the automatic
brake hold switch
O2illuminates.
2. When the automatic brake hold function goes into standby, the automatic brake
hold indicator light (white) illuminates. To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.
NOTE:
The automatic brake hold function retains
the last state until the driver changes the
option even if the ignition switch is turned
off.
How to deactivate the automatic
brake hold function
While the automatic brake hold function is
activated, push the automatic brake hold
switch to turn off the automatic brake hold
indicator light and deactivate the automatic
brake hold function. To deactivate the auto-
matic brake hold function while the brake
force has been maintained by the automatic
brake hold function, depress the brake pedal
and push the automatic brake hold switch.
WARNING
Make sure to firmly depress and hold the
brake pedal when turning off the auto-
matic brake hold function while the brake
force is applied. When the automatic brake
hold function is deactivated, the brake
force will be released. This could cause the
vehicle to move or roll away unexpectedly.
Failure to prevent the vehicle from rolling
may result in serious personal injury or
property damage.
HOW TO USE THE AUTOMATIC
BRAKE HOLD FUNCTION
For additional information on using the auto-
matic brake hold function, refer to the in-
structions outlined in this section.
To maintain braking force
automatically
With the automatic brake hold function acti-
vated and the automatic brake hold indicator
light (white) illuminated, depress the braking
pedal to stop the vehicle. The indicator light
(green) illuminates. The brake force is auto-
matically applied without your foot de-
pressed on the brake pedal. While the brake
force is maintained, the automatic brake hold
indicator light (green) illuminates.
LSD4397
5-28Starting and driving

NOTE:
• When the INFINITI Drive Mode Selectorselects a mode, the mode may not switch
immediately. This is not a malfunction.
• The current mode is displayed in the ve- hicle information display. The mode list
will appear in the vehicle information dis-
play and you can select the mode.
• The mode list will be turned off in approxi- mately 5 seconds after the mode is se-
lected. You can also clear the message by
pressing the OK button on the steering
wheel switch.
• If the driving mode cannot be switched us- ing the INFINITI Drive Mode Selector
when the ignition switch is in the ON posi-
tion, have the system checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
• The STANDARD (2WD models)/AUTO (4WD models) mode will be selected first
each time the ignition switch is placed in
the ON position.
WARNING
Do not stare at the Drive Mode Selector or
the display while driving so that full atten-
tion may be given to vehicle operation.
STANDARD (2WD models)/AUTO
(AWD models)
This is the standard mode that is most suit-
able for normal driving.
SPORT MODE
Adjusts the engine points for a higher
response.
The setting of the steering system is adjusted
to moderately increase steering wheel effort
for a sporty feel.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
SNOW MODE
This mode makes it easier to start and drive
on snowy roads and frozen roads.
CAUTION
Never drive on dry, hard surface roads in
the SNOW mode, as this will overload
the powertrain and may cause a serious
malfunction. Additionally, this will cause
premature tire wear and reduced fuel
economy. When the SNOW mode is se-
lected, small vibration in cornering may oc-
cur. This is not a malfunction.
PERSONAL MODE
This mode is used for adjusting the steering
mode and drive modes. Turn the PERSONAL
mode off for normal driving.
5-30Starting and driving

The TSR system provides the driver with in-
formation about the most recently detected
speed limit. The system captures the road
sign information with the multi-sensing front
camera unit
OAlocated on the windshield in
front of the inside rearview mirror and dis-
plays the detected signs in the vehicle infor-
mation display. For vehicles equipped with a
navigation system, the speed limit displayed
is based on a combination of navigation sys-
tem data and live camera recognition. TSR
information is always displayed at the top of
the vehicle information display, and option-
ally in the main central area of the display
screen.
WARNING
The TSR system is only intended to be a
support device to help provide the driver
with information. It is not a replacement
for the driver’s attention to traffic condi-
tions or responsibility to drive safely. It
cannot prevent accidents due to careless-
ness. It is the driver’s responsibility to stay
alert and drive safely at all times.
SYSTEM OPERATION
The Traffic Sign Recognition (TSR) system
displays the following types of road signs:
CAUTION
• The TSR system is intended as an aid to
careful driving. It is the driver’s responsi-
bility to stay alert, drive safely, and ob-
serve all road regulations that currently
apply, including looking out for road
signs.
LSD4400LSD4255
TRAFFIC SIGN RECOGNITION (TSR)
(if so equipped)
5-34Starting and driving
