warning INFINITI QX60 2023 Owners Manual

SymptomPossible CauseRemedy
When shifting the shift position to the P
(Park) position The “Push Ignition to OFF” warning ap-
pears in the display. The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver's door to get
out of the vehicle The “Door Open” warning appears on the
display. The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicle The “No Key Detected” warning appears
on the display, the outside chime sounds
three times and the inside warning chime
sounds for approximately 3 seconds. The ignition switch is in the ACC or ON
position.
Place the ignition switch in the OFF
position.
The “Rear Door Alert” (if so equipped)
warning message appears on the display,
the horn sounds three times twice, or a
“Check Back Seat For All Articles” (if so
equipped) warning appears on the dis-
play. The Rear Door Alert is activated. Check the back seat for all articles, press
the ENTER button to clear the “Rear
Door Alert” warning message.
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for approxi-
mately 3 seconds and all the doors un-
lock. The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When touching the door handle lock
sensor or the
button on the Intel-
ligent Key to lock the door The outside chime sounds for approxi-
mately 2 seconds.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch to
start the engine The key low battery indicator appears on
the display. The battery charge is low.
Replace the battery with a new one. For
additional information, see “Battery re-
placement” (P. 8-24).
When pushing the ignition switch The “I-Key System Error: See Owner’s Manual” warning message in the vehicle
information display appears. It warns of a malfunction with the Intelli-
gent Key system.
It is recommended that you visit an
INFINITI retailer.
Pre-driving checks and adjustments3-17

Thebutton will be on the INFINITI
Intelligent Key if the vehicle has Remote En-
gine Start. This feature allows the engine to
start from outside the vehicle.
The following features may be affected
when the Remote Engine Start feature is
used:
• Vehicles with an automatic climate control system may default to either a heating or
cooling mode depending on outside and
cabin temperatures. For additional infor-
mation, see “Remote Engine Start with In-
telligent Climate Control” in the (P. 4-30). Laws in some local communities may restrict
or prohibit the use of Remote Engine Start, or
the amount of time a parked vehicle engine
may idle. For example, some laws require a
person using Remote Engine Start to have
the vehicle in view or may restrict idling time
except in freezing temperatures. Check local
regulations for any requirements.
Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, see “Conditions the Re-
mote Engine Start will not work” (P. 3-20).
Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, see “INFINITI Intelligent
Key” (P. 3-2).
REMOTE ENGINE START
OPERATING RANGE
WARNING
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
• Do not use Remote Engine Start in closed
spaces such as a garage. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause un-
consciousness or death.
LPD2995
REMOTE ENGINE START (if so
equipped)
3-18Pre-driving checks and adjustments

CAUTION
When the Intelligent Key battery is dis-
charged or other strong radio wave
sources are present near the operating lo-
cation, the Intelligent Key operating range
becomes narrower, and the Intelligent Key
may not function properly.
The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.
The Remote Engine Start operating range is
approximately 197 ft (60 m) from the vehicle.
REMOTE STARTING THE
VEHICLE
To use the Remote Engine Start feature per-
form the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
button to lock all doors.
3. Within 5 seconds press and hold the
button until the turn signal lights flash and
the tail lamps turn on. If the vehicle is not
within view press and hold the
but-
ton for at least 2 seconds. The following events will occur when the en-
gine starts:
• The parking lights will turn on and remain
on as long as the engine is running.
• The doors will be locked and the climate control system may come on.
• The engine will continue to run for 10 min- utes. Repeat the steps to extend the time
for an additional 10 minutes. For additional
information, see “Extending engine run
time” (P. 3-19).
Press and hold the brake pedal while switch-
ing the ignition to the ON position before
driving. For additional information, see “Driv-
ing the vehicle” (P. 5-18).
EXTENDING ENGINE RUN TIME
The Remote Engine Start feature can be ex-
tended one time by performing the steps
listed in “Remote starting the vehicle”
(P. 3-19). Run time will be calculated as
follows:
• The first 10 minute run time will start when the Remote Engine Start function is
performed. • The second 10 minutes will start immedi-
ately when the Remote Engine Start func-
tion is performed again. For example, if the
engine has been running for 5 minutes, and
10 minutes are added, the engine will run
for a total of 15 minutes.
• Extending engine run time will bring you to the two Remote Engine Start limit.
A maximum of two Remote Engine Starts, or
a single start with an extension, are allowed
between ignition cycles.
The vehicle must be driven at speeds of 4
mph (7 km/h) before the remote engine start
procedure can be used again.
CANCELING A REMOTE ENGINE
START
To cancel a Remote Engine Start, perform
one of the following:
• Aim the Intelligent Key at the vehicle and press
until the parking lights turn off.
• Turn on the hazard warning flashers.
• Cycle the ignition switch on and then off.
• The extended engine run time has expired.
• The first 10 minute timer has expired.
• Opening the engine hood.
• Shifting the vehicle out of P (Park).
Pre-driving checks and adjustments3-19

• The alarm sounds due to illegal entry intothe vehicle.
• Pushing the ignition switch without the In- telligent Key in the vehicle.
• Not pressing the brake pedal while pressing the ignition switch with the Intelligent Key
in the vehicle.
CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:
• The ignition switch is placed in the ONposition.
• The hood is not securely closed.
• The hazard indicator lights are on.
• The engine is still running. The engine must be completely stopped. Wait at least 6 sec-
onds if the engine goes from running to off.
This is not applicable when extending en-
gine run time.
• The
button is not pressed and held for
at least 2 seconds.
• The
button is not pressed and held
within 5 seconds of pressing the lock
button.
• The brake is pressed.
• The doors are not closed and locked. • The liftgate is open.
• The I–Key System Error warning message
appears in the vehicle information display.
• The alarm sounds due to illegal entry into the vehicle.
• Two Remote Engine Starts, or a single Re- mote Engine Start with an extension, have
already been used.
• The vehicle is not in P (Park).
• There is a detected registered key already inside of the vehicle.
The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, see
“Vehicle information display 7 inch (18 cm)
Type A” (P. 2-22) or “Vehicle information dis-
play 12.3 inch (21 cm) Type B” (P. 2-44).
3-20Pre-driving checks and adjustments

1. Pull the hood lock release handleO1lo-
cated below the driver side instrument
panel. The hood will spring up slightly.
2. Push the lever
O2at the front of the hood
upward as illustrated with your fingertips
and raise the hood.
When closing the hood, lower it slowly and
make sure it locks into place.
WARNING
• Make sure the hood is completely closed
and latched before driving. Failure to do
so could cause the hood to fly open and
result in an accident.
• If you see steam or smoke coming from
the engine compartment, to avoid injury
do not open the hood.
WARNING
• Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
• Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
• Always be sure that hands and feet are
clear of the door frame to avoid injury
while closing the liftgate.
LPD3258
HOOD LIFTGATE
Pre-driving checks and adjustments3-21

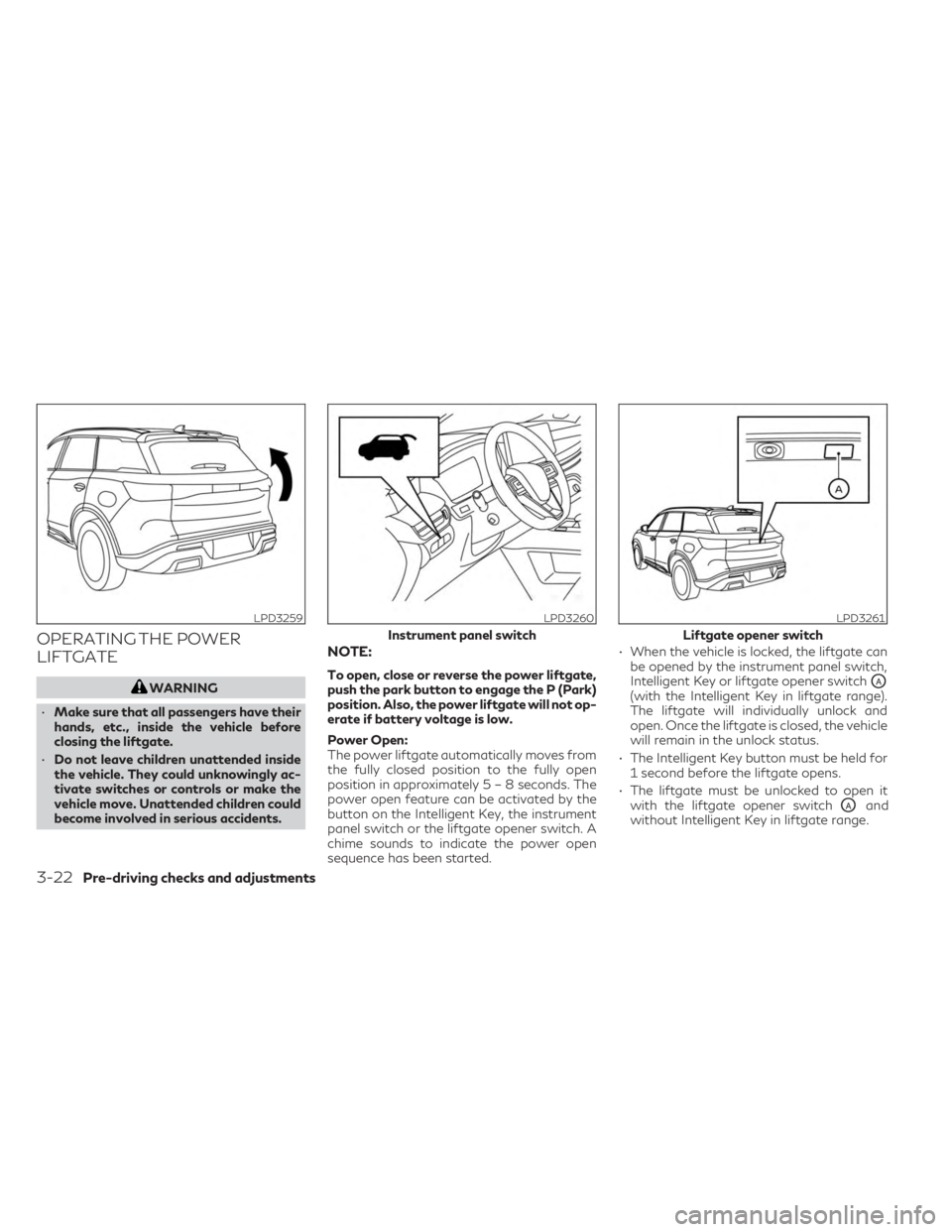

OPERATING THE POWER
LIFTGATE
WARNING
• Make sure that all passengers have their
hands, etc., inside the vehicle before
closing the liftgate.
• Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents.
NOTE:
To open, close or reverse the power liftgate,
push the park button to engage the P (Park)
position. Also, the power liftgate will not op-
erate if battery voltage is low.
Power Open:
The power liftgate automatically moves from
the fully closed position to the fully open
position in approximately5–8seconds. The
power open feature can be activated by the
button on the Intelligent Key, the instrument
panel switch or the liftgate opener switch. A
chime sounds to indicate the power open
sequence has been started. • When the vehicle is locked, the liftgate can
be opened by the instrument panel switch,
Intelligent Key or liftgate opener switchOA(with the Intelligent Key in liftgate range).
The liftgate will individually unlock and
open. Once the liftgate is closed, the vehicle
will remain in the unlock status.
• The Intelligent Key button must be held for 1 second before the liftgate opens.
• The liftgate must be unlocked to open it with the liftgate opener switch
OAand
without Intelligent Key in liftgate range.
LPD3259LPD3260
Instrument panel switch
LPD3261
Liftgate opener switch
3-22Pre-driving checks and adjustments

A warning chime will sound if the shift posi-
tion is moved out of P (Park) and the vehicle is
beginning to move, during a power open
operation.Power Close:
The power liftgate automatically moves from
the fully open position to the secondary po-
sition. When the liftgate reaches the second-
ary position, the cinching motor engages and
pulls the liftgate to its primary latch position.
Power close takes approximately7–10sec-
onds. The power close feature can be acti-
vated by the button on the Intelligent Key, the
instrument panel switch, the liftgate close
switch
OBor the liftgate lock switchOC.A
chime sounds to indicate the power close
sequence has been started. • If the liftgate opener switch
OAis activated
while the cinching motor is engaged, the
cinching motor will disengage and release
the latch.
• The Intelligent Key button must be held for 1 second before the liftgate closes.
• When the Intelligent Key is in range and the liftgate lock switch
OCis activated the lift-
gate will begin to close and all doors will
lock.
Stop - Reverse:
During the open/close movement, the lift-
gate can be stopped if the Intelligent Key,
instrument panel or liftgate opener switch
OA, liftgate close switchOBor liftgate lock
switch
OCis pushed. The liftgate can be re-
versed if the Intelligent Key, instrument panel,
liftgate opener switch
OAor liftgate lock
switch
OCis pushed again.
Auto Reverse:
If an obstacle is detected during power open
or power close, a warning chime will sound
and the liftgate will reverse direction and re-
turn to the full open or full close position. If a
second obstacle is detected, the liftgate mo-
tion will stop and the liftgate will enter
manual mode.
LPD3262
Liftgate close switch
Pre-driving checks and adjustments3-23

A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will
reverse direction and return to the full open
position.
NOTE:
If the pinch strip is damaged or removed, the
power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the liftgate.
If the liftgate power operation fails to close
correctly, it can still be manually closed and
secured. If the liftgate fails to open correctly
when the request switch is pressed, please
visit your local INFINITI retailer for
assistance.
If the liftgate is not functioning, the gate may
be closed manually. If power operation does
not recover, please make an appointment
with your INFINITI retailer.
MOTION-ACTIVATED LIFTGATE
(if so equipped)
The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.
To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.
NOTE:
Tow hitches are available as an accessory for
this vehicle. Please visit an INFINITI retailer
for additional equipment required for this
accessory.
Proper operation technique
• While at the rear of the vehicle, begin mak- ing a quick forward kicking motion.
• Raise your foot straight under the center of the rear bumper then immediately return
your foot to the ground in a continuous
motion.
• The kicking motion should be straight, smooth and consistent.
• After your kick motion is complete, step back and allow the liftgate to open/close.
LPD3263
Activation zone
3-24Pre-driving checks and adjustments

• Three beeps will sound and the liftgate willbegin moving within two seconds after the
kick.
CAUTION
Before performing the kicking motion,
steady your stance to prevent any loss of
balance. Also, while making the kicking
motion, take caution around hot exhaust
system parts. Otherwise, there may be
danger of injury.
WARNING
Prevent unintentional liftgate opening/
closing. There may be conditions when
opening/closing the liftgate is not desired.
Keep the Intelligent Key out of range of the
liftgate, (31.5 in or 80 cm), when washing
or working around the back of the vehicle.
CAUTION
• Interference or malfunction can be
caused by parking in close proximity to
radio or satellite towers.
• Intelligent Key interference could be
caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional infor-
mation, see “INFINITI Intelligent Key”
(P. 3-2).
LIFTGATE RELEASE
WARNING
• Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
• Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).
• To avoid personal injury, do not attempt
to activate the power liftgate if one or
both of the liftgate struts are removed.LPD3264
DO: Quick forward kick and return while the key fob is within range
LPD3265
DO NOT: Swing foot side to side or pause during kick
Pre-driving checks and adjustments3-25

CAUTION
• If the power liftgate does not stay open
or if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
• Do not activate the power liftgate if one
or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.
Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:
1. Move the lever
OAas illustrated with a
suitable tool to open the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height (garage mode) by performing the fol-
lowing:
1. Open the liftgate using the liftgate opener switch or the Intelligent Key.
2. Pull the liftgate down and move to the desired height position (the liftgate will
have some resistance when being manu-
ally adjusted).
LPD3266LPD3267
3-26Pre-driving checks and adjustments
