INFINITI QX60 2023 Owners Manual

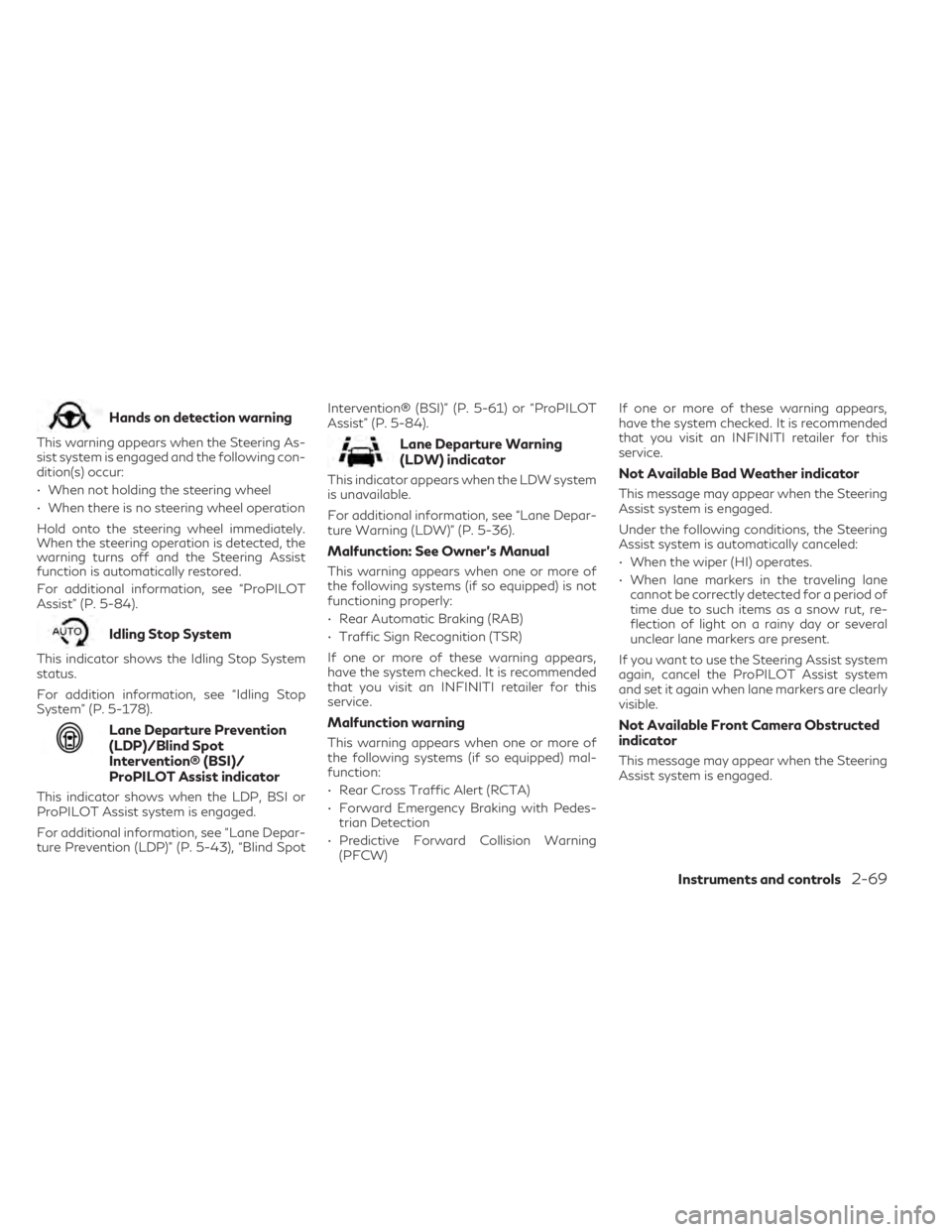

Hands on detection warning
This warning appears when the Steering As-
sist system is engaged and the following con-
dition(s) occur:
• When not holding the steering wheel
• When there is no steering wheel operation
Hold onto the steering wheel immediately.
When the steering operation is detected, the
warning turns off and the Steering Assist
function is automatically restored.
For additional information, see “ProPILOT
Assist” (P. 5-84).
Idling Stop System
This indicator shows the Idling Stop System
status.
For addition information, see “Idling Stop
System” (P. 5-178).
Lane Departure Prevention
(LDP)/Blind Spot
Intervention® (BSI)/
ProPILOT Assist indicator
This indicator shows when the LDP, BSI or
ProPILOT Assist system is engaged.
For additional information, see “Lane Depar-
ture Prevention (LDP)” (P. 5-43), “Blind SpotIntervention® (BSI)” (P. 5-61) or “ProPILOT
Assist” (P. 5-84).
Lane Departure Warning
(LDW) indicator
This indicator appears when the LDW system
is unavailable.
For additional information, see “Lane Depar-
ture Warning (LDW)” (P. 5-36).
Malfunction: See Owner’s Manual
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:
• Rear Automatic Braking (RAB)
• Traffic Sign Recognition (TSR)
If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Malfunction warning
This warning appears when one or more of
the following systems (if so equipped) mal-
function:
• Rear Cross Traffic Alert (RCTA)
• Forward Emergency Braking with Pedes-
trian Detection
• Predictive Forward Collision Warning (PFCW) If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Not Available Bad Weather indicator
This message may appear when the Steering
Assist system is engaged.
Under the following conditions, the Steering
Assist system is automatically canceled:
• When the wiper (HI) operates.
• When lane markers in the traveling lane
cannot be correctly detected for a period of
time due to such items as a snow rut, re-
flection of light on a rainy day or several
unclear lane markers are present.
If you want to use the Steering Assist system
again, cancel the ProPILOT Assist system
and set it again when lane markers are clearly
visible.
Not Available Front Camera Obstructed
indicator
This message may appear when the Steering
Assist system is engaged.
Instruments and controls2-69

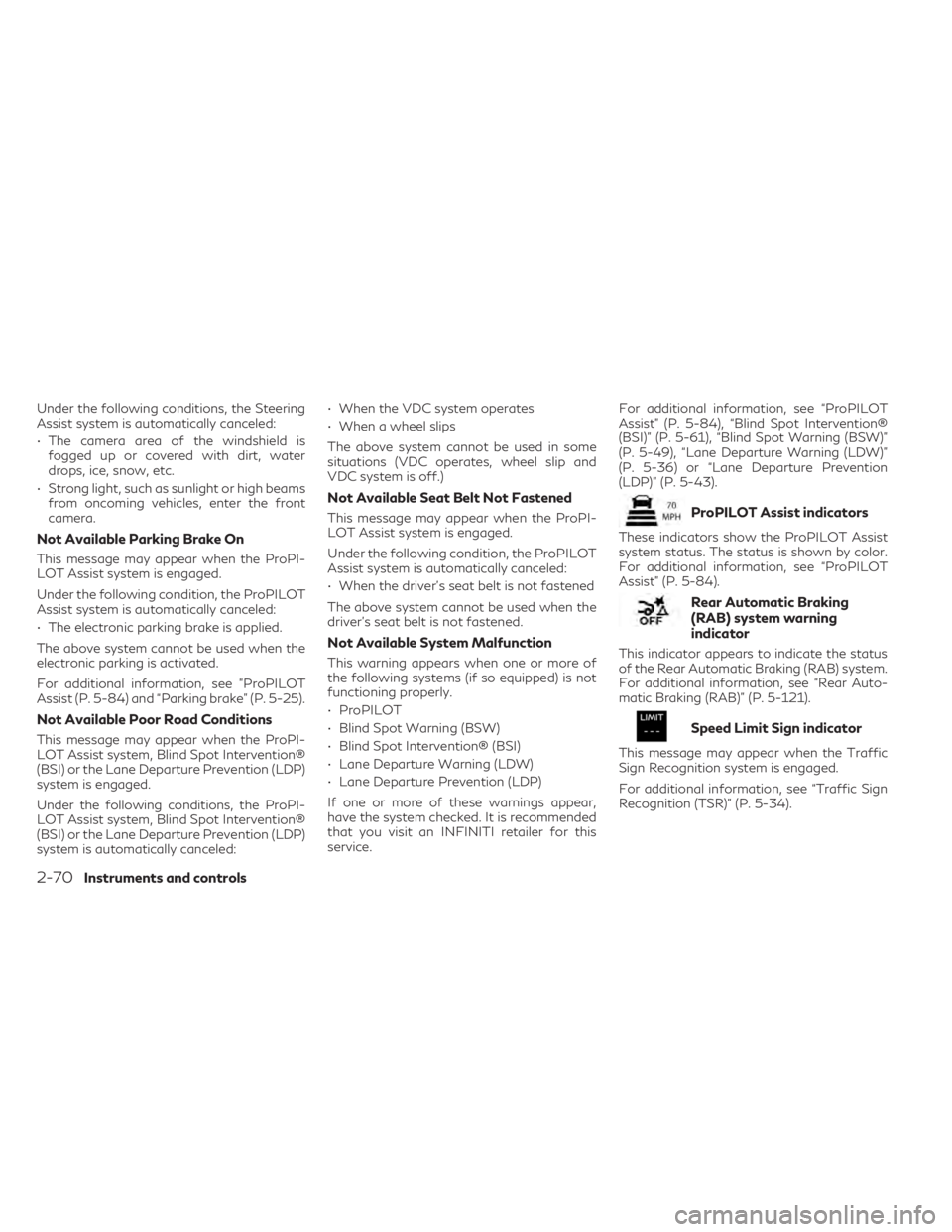

Under the following conditions, the Steering
Assist system is automatically canceled:
• The camera area of the windshield isfogged up or covered with dirt, water
drops, ice, snow, etc.
• Strong light, such as sunlight or high beams from oncoming vehicles, enter the front
camera.
Not Available Parking Brake On
This message may appear when the ProPI-
LOT Assist system is engaged.
Under the following condition, the ProPILOT
Assist system is automatically canceled:
• The electronic parking brake is applied.
The above system cannot be used when the
electronic parking is activated.
For additional information, see "ProPILOT
Assist (P. 5-84) and “Parking brake” (P. 5-25).
Not Available Poor Road Conditions
This message may appear when the ProPI-
LOT Assist system, Blind Spot Intervention®
(BSI) or the Lane Departure Prevention (LDP)
system is engaged.
Under the following conditions, the ProPI-
LOT Assist system, Blind Spot Intervention®
(BSI) or the Lane Departure Prevention (LDP)
system is automatically canceled: • When the VDC system operates
• When a wheel slips
The above system cannot be used in some
situations (VDC operates, wheel slip and
VDC system is off.)
Not Available Seat Belt Not Fastened
This message may appear when the ProPI-
LOT Assist system is engaged.
Under the following condition, the ProPILOT
Assist system is automatically canceled:
• When the driver’s seat belt is not fastened
The above system cannot be used when the
driver’s seat belt is not fastened.
Not Available System Malfunction
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly.
• ProPILOT
• Blind Spot Warning (BSW)
• Blind Spot Intervention® (BSI)
• Lane Departure Warning (LDW)
• Lane Departure Prevention (LDP)
If one or more of these warnings appear,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
For additional information, see “ProPILOT
Assist” (P. 5-84), “Blind Spot Intervention®
(BSI)” (P. 5-61), “Blind Spot Warning (BSW)”
(P. 5-49), “Lane Departure Warning (LDW)”
(P. 5-36) or “Lane Departure Prevention
(LDP)” (P. 5-43).
ProPILOT Assist indicators
These indicators show the ProPILOT Assist
system status. The status is shown by color.
For additional information, see “ProPILOT
Assist” (P. 5-84).
Rear Automatic Braking
(RAB) system warning
indicator
This indicator appears to indicate the status
of the Rear Automatic Braking (RAB) system.
For additional information, see “Rear Auto-
matic Braking (RAB)” (P. 5-121).
Speed Limit Sign indicator
This message may appear when the Traffic
Sign Recognition system is engaged.
For additional information, see “Traffic Sign
Recognition (TSR)” (P. 5-34).
2-70Instruments and controls

Steering Assist Not Available Cannot
Detect Lane indicator
This indicator may appear when the Steering
Assist system is engaged. The Steering Assist
system is automatically canceled when the
lane markers in the traveling lane cannot be
correctly detected for a period of time due to
such items as a snow rut, reflection of light on
a rainy day or several unclear lane markers
are present.
If you want to use the Steering Assist system
again, cancel the ProPILOT Assist system
and set it again when lane markers are clearly
visible.
Steering Assist status
This indicator appears when the Steering As-
sist system is engaged.
For additional information, see “ProPILOT
Assist” (P. 5-84).
Unavailable: High Cabin Temperature
This message appears when the camera de-
tects an interior temperature of more than
104°F (40°C). For additional information,
see (if so equipped) “ProPILOT Assist”
(P. 5-84), “Lane Departure Prevention (LDP)”(P. 5-43), “Lane Departure Warning (LDW)”
(P. 5-36) or “Blind Spot Intervention® (BSI)”
(P. 5-61).
Unavailable Side Radar Obstruction
This message appears when the Blind Spot
Warning (BSW) or Rear Cross Traffic Alert
(RCTA) systems become unavailable because
a radar blockage is detected. For additional
information, see (if so equipped) “Blind Spot
Warning (BSW)” (P. 5-49), “Blind Spot Inter-
vention (BSI)” (P. 5-61) or “Rear Cross Traffic
Alert (RCTA)” (P. 5-72).
Vehicle ahead detection
indicator
This indicator shows when the following sys-
tems are engaged and have detected a ve-
hicle:
• Forward Emergency Braking (FEB) with
Pedestrian Detection
• Predictive Forward Collision Warning (PFCW)
For additional information, see “Forward
Emergency Braking (FEB) with Pedestrian
Detection” (P. 5-128) or “Predictive Forward
Collision Warning (PFCW)” (P. 5-140). Your vehicle has two types of security
systems:
• Vehicle security system
• INFINITI Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual
and audible alarm signals if someone opens
the doors, liftgate or hood when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
LIC0661
SECURITY SYSTEMS
Instruments and controls2-71

The system helps deter vehicle theft but can-
not prevent it nor can it prevent the theft of
interior or exterior vehicle components in all
situations. Always secure your vehicle even if
parking for a brief period. Never leave your
Intelligent Key in the vehicle, and always lock
the vehicle when unattended. Be aware of
your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification
markers, and tracking systems, are available
at auto supply stores and specialty shops. An
INFINITI retailer may also offer such equip-
ment. Check with your insurance company to
see if you may be eligible for discounts for
various theft protection features.
How to arm the vehicle security
system
1. Close all windows and the moonroof.(The
system can be armed even if the windows
and moonroof are open.)
2. Remove the Intelligent Key from the vehicle.
3. Close all doors, hood and liftgate. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request
switch, or power door lock switch. 4. Wait 30 seconds for the system to com-
plete the pre-armed phase. If during the
pre-armed phase one of the following oc-
curs, the system will not arm:
• Any door is unlocked with the Intelligent Key or door request switch.
• Ignition switch is placed in ON position.
• Even when the driver and/or passengers
are in the vehicle, the system will activate
with all the doors, hood and liftgate locked
with the ignition switch placed in the
LOCK position. When placing the ignition
switch in the ON position, the system will
be released.
Vehicle security system activation
The vehicle security system will give the fol-
lowing alarm:
• The turn signals blink and the horn sounds intermittently.
• The alarm automatically turns off after a period of time. However, the alarm reacti-
vates if the vehicle is tampered with again.
The alarm can be shut off by pressing the
button on the Intelligent Key. The alarm is activated by:
• Opening the door or liftgate without using
the Intelligent Key (even if the door is un-
locked by releasing the door inside lock
switch).
How to stop an activated alarm
The alarm stops only by unlocking the driver’s
door or the liftgate by pressing the
button on the Intelligent Key or pushing the
request switch on the driver's or passenger's
door with the Intelligent Key in range of the
door handle.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of a registered INFINITI Vehicle Immobilizer
System key.
If the engine fails to start using a registered
INFINITI Vehicle Immobilizer System key (for
example, when interference is caused by an-
other INFINITI Vehicle Immobilizer System
key, an automated toll road device or auto-
matic payment device on the key ring), restart
the engine using the following procedures:
1. Leave the ignition switch in the ON posi- tion for approximately 5 seconds.
2-72Instruments and controls

2. Place the ignition switch in the OFF orLOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the de- vice (which may have caused the interfer-
ence) separate from the registered
INFINITI Vehicle Immobilizer System key.
If the no start condition reoccurs, INFINITI
recommends placing the registered INFINITI
Vehicle Immobilizer System key on a separate
key ring to avoid interference from other
devices.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.
For Canada:
This device contains licence-exempt
transmitter(s)/receivers(s) that comply
with Innovation, Science and Economic De-
velopment Canada’s licence-exempt RSS(s).
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.
SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the windshield and ob-
scure your vision which may lead to an ac-
cident. Warm the windshield with the
defroster before you wash the windshield.
LIC4680
WIPER AND WASHER SWITCH
Instruments and controls2-73

CAUTION
• Do not operate the washer continuously
for more than 30 seconds.
• Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pouring
the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to mix
the windshield-washer fluid concentrate
and water.NOTE:
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. After about 1 min-
ute, turn the switch on again to operate the
wiper.
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at
the following speed:
1Intermittent — intermittent operation can
be adjusted by turning the knob toward
OA(Slower) orOB(Faster). Also, the in-
termittent operation speed varies in ac-
cordance with the vehicle speed. (For ex-
ample, when the vehicle speed is high, the
intermittent operation speed will be
faster.) Further, the rain-sensing feature
will adjust the speed of the intermittent
operation. For additional information,
see “Rain-sensing auto wiper system”
(P. 2-75).
2Low — continuous low speed operation
3High — continuous high speed operation Push the lever up
O4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
O5to operate the
washer. The wiper will also operate several
times.
NOTE:
The Wiper with Speed feature may be dis-
abled. For additional information, see “Ve-
hicle information display-7 inch (18 cm)
Type A” (P. 2-22) or “Vehicle information
display-12.3 inch (31 cm) Type B” (P. 2-75).
2-74Instruments and controls

RAIN-SENSING AUTO WIPER
SYSTEM
CAUTION
• Do not touch the rain sensor and around
it when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate
unexpectedly and cause an injury or may
damage a wiper. •
The rain-sensing auto wipers are in-
tended for use during rain. If the switch is
left in the AUTO position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are stuck
on or around the sensor. The wipers may
also operate when exhaust gas or mois-
ture affect the rain sensor.
• When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is
small.
• Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
• The rain-sensing auto wipers may not
operate if rain does not hit the rain sen-
sor even if it is raining.
• Using Genuine INFINITI wiper blades is
recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, see “Windshield
wiper blades” (P. 8-18).
The rain-sensing auto wiper system can au-
tomatically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield. To set the rain-sensing auto wiper system,
place the lever in the AUTO position
O1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
O3(high) or toward the rearO2(low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the low or high position.
The rain-sensing feature may be disabled.
For additional information, see “Vehicle in-
formation display-7 inch (18 cm) Type A”
(P. 2-22) or “Vehicle information display-12.3
inch (31 cm) Type B” (P. 2-44).
LIC4681
Instruments and controls2-75

REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
CAUTION
• Do not operate the washer continuously
for more than 30 seconds.
• Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pouring
the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to mix
the windshield-washer fluid concentrate
and water.
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper. The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
1Intermittent (INT) — intermittent opera-
tion (not adjustable)
2Low (ON) — continuous low speed
operation
Push the switch forward
O3to operate the
washer. The wiper will also operate several
times.
LIC4682
2-76Instruments and controls

To defrost the rear window glass and outside
mirrors, start the engine and push the rear
window defroster switch on. The rear win-
dow defroster indicator light on the switch
comes on. Push the switch again to turn the
defroster off.
The rear window defroster automatically
turns off after approximately 15 minutes.
The rear window defroster switch also acti-
vates the heated washer nozzles (if so
equipped).
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
NOTE:
The top and bottom few rows of wires on the
rear window are not part of the rear window
defroster system. These wires make up the
antenna for the audio system.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
LIC4818LIC4877
Type A (if so equipped)
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped) DEFROSTER
SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-77

CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.Autolight system
The autolight system allows the headlights to
turn on and off automatically. The autolight
system can:
• Turn on the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
• Turn off all the lights (except Daytime Run- ning Lights) when it is light.
• Keep all the lights on for a period of time after you place the ignition switch in the
OFF position and all doors are closed.
NOTE:
Autolight activation sensitivity (if so
equipped) and the time delay for autolight
shutoff can be adjusted. For additional
information, see “Vehicle information
display-7 inch (18 cm) Type A” (P. 2-22)
or “Vehicle information display-12.3 inch
(31 cm) Type B” (P. 2-44).
To turn on the autolight system:
1. Turn the headlight switch to the AUTO position
O1.
2. Place the ignition switch in the ON position.
LIC5004
Type B (if so equipped)
LIC4878
Type A (if so equipped)
LIC5005
Type B (if so equipped)
2-78Instruments and controls
