3. The autolight system automatically turnsthe headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, turn the
switch to the OFF (if so equipped),
,orposition.
Be sure you do not put anything on top of the
autolight sensor located in the top side
O1of
the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle's battery could become discharged.Headlight beam select
1To select the high beam function, push
the lever forward. The high beam lights
come on and the
light illuminates.
2Pull the lever back to select the low beam.
3Pulling and releasing the lever flashes the
headlight high beams on and off.
LIC4913LIC4879
Instruments and controls2-79

High Beam Assist
The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the head-
light high beam is on, the headlight will be
switched to the low beam automatically.
WARNING
• The High Beam Assist system is a conve-
nience but it is not a substitute for safe
driving operation. The driver should re-
main alert at all times, ensure safe driv-
ing practices and switch the high beams
and low beam manually when necessary.
• The high beam or low beam may not
switch automatically under the follow-
ing conditions. Switch the high beam and
low beam manually.
– During bad weather (rain, fog, snow,
wind, etc.).
– When a light source similar to a head-
light or tail light is in the vicinity of the
vehicle. –
When the headlights of the oncoming
vehicle or the leading vehicle are
turned off, when the color of the light
is affected due to foreign materials on
the lights, or when the light beam is
out of position.
– When there is a sudden, continuous
change in brightness.
– When driving on a road that passes
over rolling hills, or a road that has
level differences.
– When driving on a road with many
curves.
– When a sign or mirror-like surface is
reflecting intense light towards the
front of the vehicle.
– When the container, etc. being towed
by a leading vehicle is reflecting in-
tense light.
– When a headlight on your vehicle is
damaged or dirty.
– When the vehicle is leaning at an
angle due to a punctured tire, being
towed, etc. •
The timing of switching the low beam
and high beam may change under the fol-
lowing situations.
– The brightness of the headlights of
the oncoming vehicle or leading
vehicle.
– The movement and direction of the
oncoming vehicle and the leading
vehicle.
– When only one light on the oncoming
vehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the
leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the
road surface, etc.).
– The number of passengers and the
amount of luggage.
2-80Instruments and controls

High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion and push the switch as illustrated with
the engine running. The
High Beam
Assist indicator light in the meter will illumi-
nate while the headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is rec-
ommended that you visit an INFINITI retailer
for this service. When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system,
push the switch again..
Ambient image sensor maintenance
The ambient image sensorOAfor the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the high beam assist system and pre-
vent a system malfunction, be sure to ob-
serve the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar- ent material) or install an accessory near
the ambient image sensor.
• Do not strike or damage the areas around the ambient image sensor. Do not touch the
sensor lens that is located on the ambient
image sensor.
LIC4885LIC4690
Instruments and controls2-81

If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
If the ignition switch is placed in the OFF
position while the headlight switch is in the
orposition, the headlights will turn
off after a period of time.
NOTE:
The Battery Saver system may be disabled.
For additional information, see “Vehicle in-
formation display-7 inch (18 cm) Type A”
(P. 2-22) or “Vehicle information display-
12.3 inch (31 cm) Type B” (P. 2-44).
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is on and the driver operates the steer-
ing wheel in a turn, the AFS system will be
activated.
The AFS will operate:
• when the headlight switch is on.
• when the vehicle is driven at above 16 mph (25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 mph (25 km/h) before AFS
activates the left-side headlight.
If the AFS OFF indicator blinks or the vehicle
information display shows an AFS system
error message after the ignition switch has
been pushed to the ON position, this may
indicate that the AFS is not functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. When the engine is started, the head-
lights will vibrate to check the system condi-
tion. This is not a malfunction.
Automatic headlight aiming control
(if so equipped)
Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically.
Automatic headlight aiming control will also
adjust the headlight to a proper axis auto-
matically, depending on the number of occu-
pants in the vehicle, the load the vehicle is
carrying and the road conditions.
INFINITI recommends that you consult the
local regulations on the use of lights.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
2-82Instruments and controls

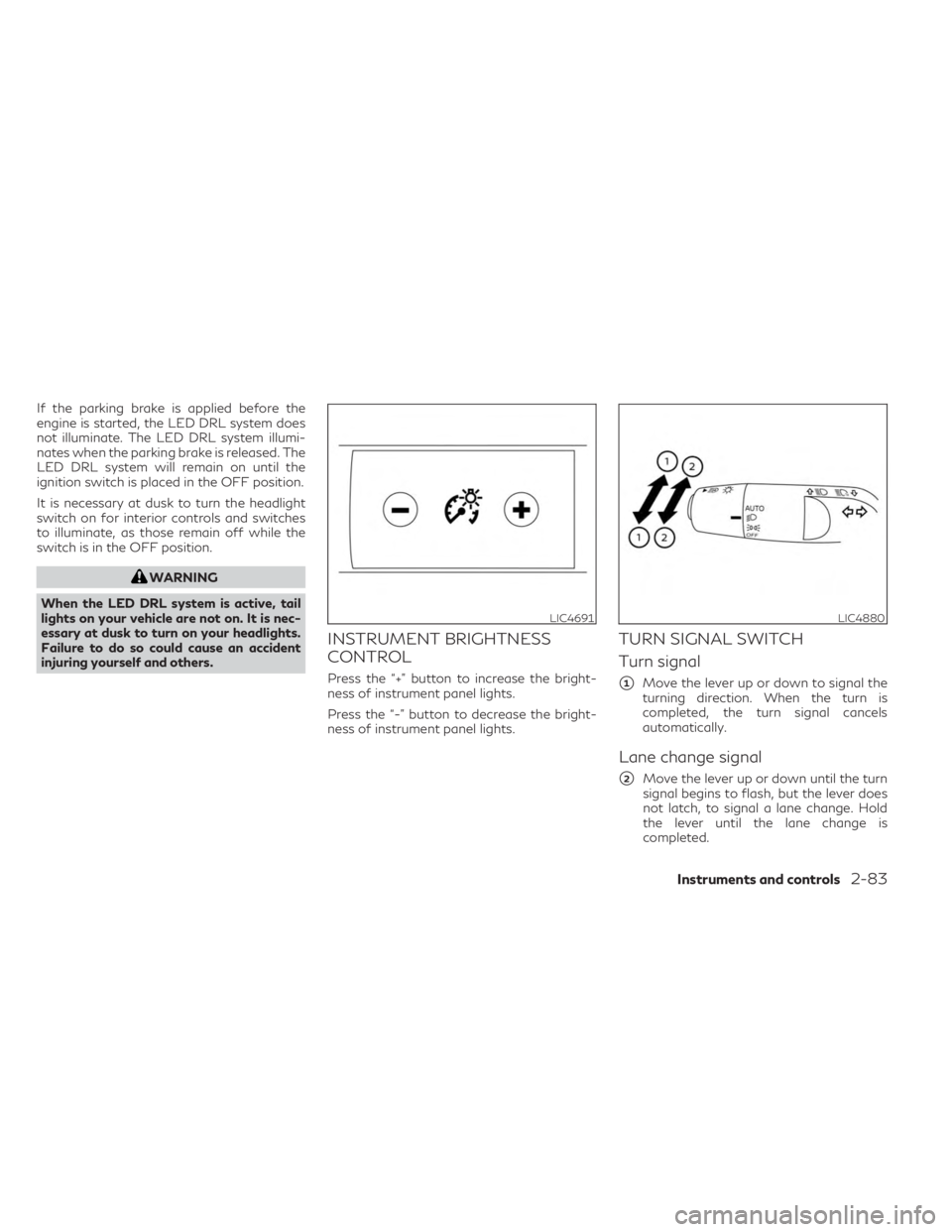

If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is nec-
essary at dusk to turn on your headlights.
Failure to do so could cause an accident
injuring yourself and others.
INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” button to increase the bright-
ness of instrument panel lights.
Press the “-” button to decrease the bright-
ness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels
automatically.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, to signal a lane change. Hold
the lever until the lane change is
completed.
LIC4691LIC4880
Instruments and controls2-83

Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a
lane change based on road and traffic
conditions.To sound the horn, push near the horn icon on
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
WARNING
Do not use or allow occupants to use the
climate controlled seats if you or the occu-
pants cannot monitor seat temperatures
or have an inability to feel pain in those
body parts in contact with the seat. Use of
the climate controlled seats by such people
could result in serious injury.
LIC4820LIC4812
HORN CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)
2-84Instruments and controls

CAUTION
• The battery could run down if the climate
control seat is operated while the engine
is not running.
• Do not use the climate control seat for
extended periods or when no one is using
the seat.
• Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
• Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
• Any liquid spilled on the seat should be
removed immediately with a dry cloth
• When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.
• If any malfunctions are found or the cli-
mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you
visit an INFINITI retailer for this service. The climate controlled seats cool down the
front seats by ventilating air into the seats.
The climate control switch is located by the
air conditioning controls.
The climate controlled seat can be operated
as follows:
1. Start the engine.
2. Press the switch to adjust the desired in-
tensity. The indicator light on the switch
will illuminate.
3. When the vehicle's interior is cooled, or before you leave the vehicle, be sure to
press the switch to turn off the climate
controlled seats. The indicator light on the
switch will turn off.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.
LIC4815
HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-85

CAUTION
• The battery could run down if the seat
heater is operated while the engine is not
running.
• Do not use the seat heater for extended
periods or when no one is using the seat.
• Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
• Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
• Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.
• When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.
• If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service. The front seats are warmed by built-in
heaters.
1. Start the engine.
2. Push the switch, as desired. The indicator
light in the switch will illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to push the
switch to turn it off. The driver’s side
heated seat will retain the current settings
even if the engine is restarted.WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.
CAUTION
• The battery could run down if the seat
heater is operated while the engine is not
running.
• Do not use the seat heater for extended
periods or when no one is using the seat.
• Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
• Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
• Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.
HEATED 2ND ROW SEAT SWITCHES
(if so equipped)
2-86Instruments and controls

•When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.
• If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.
The 2nd row captain’s seats are warmed by
built-in heaters. The switches are located on
the rear of the front center console and can
be operated independently of each other.
1. Start the engine.
2. Push the switch, as desired. The indicatorlight in the switch will illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the
switch off. Push the heated steering wheel switch to
warm the steering wheel after the ignition
switch is placed in the ON position. The
switch color will change from white to or-
ange as the feature turns from OFF to ON.
If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and on
to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on (approximately 30
minutes).
LIC4697LIC4816
HEATED STEERING WHEEL SWITCH
(if so equipped)
Instruments and controls2-87

Push the switch again to turn the heated
steering wheel system off manually. The
switch color will change from orange to
white as the feature turns from ON to OFF.
NOTE:
•Once activated, your heated steering wheel
will automatically turn on and off to main-
tain a temperature above 68°F (20°C).
• When the temperature of the steeringwheel is above 122°F (50°C) and the
heated steering wheel switch is turned on,
the system will not heat the steering
wheel. This is not a malfunction.
The Steering Assist switch is used to enable
and disable the Steering Assist system that is
activated using the settings menu of the ve-
hicle information display.
The Steering Assist system controls the
steering system, when ProPILOT Assist is
engaged, to help keep your vehicle near the
center of the lane when driving. For addi-
tional information, see ”ProPILOT Assist”
(P. 5-84) and “Lane Departure Prevention
(LDP)” (P. 5-43). Push the seat massage switch to activate the
feature. A pop-up will display in the upper
area of the radio / navigation display to show
the ON or OFF status. Also in the pop-up,
there is an “Adjust” soft key that can be se-
lected to change massage seat settings, in-
cluding pattern, intensity and speed.
LIC4495LIC4914
STEERING ASSIST SWITCH (for
vehicles with ProPILOT Assist) (if so
equipped)
SEAT MASSAGE SWITCH (if so
equipped)
2-88Instruments and controls
