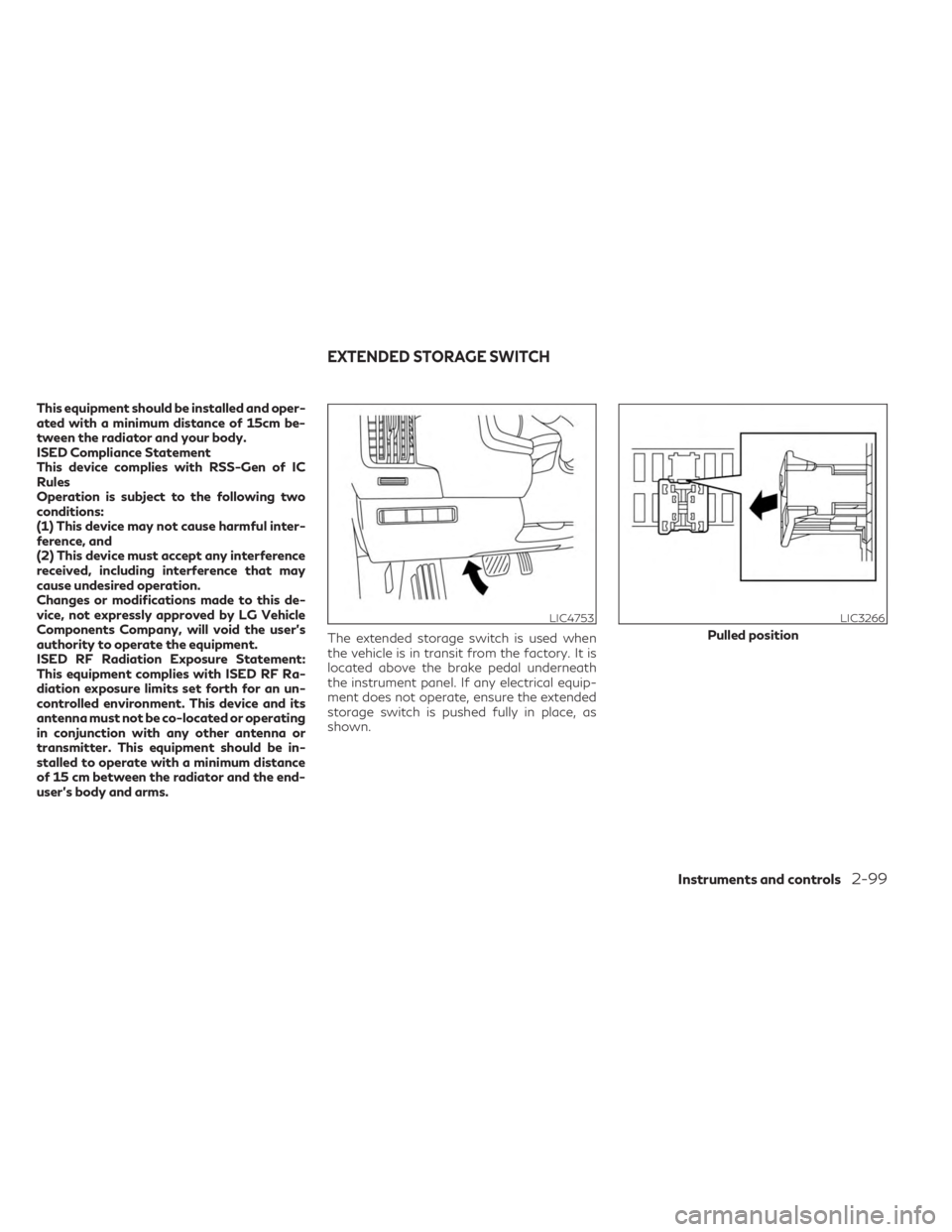

This equipment should be installed and oper-
ated with a minimum distance of 15cm be-
tween the radiator and your body.
ISED Compliance Statement
This device complies with RSS-Gen of IC
Rules
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications made to this de-
vice, not expressly approved by LG Vehicle
Components Company, will void the user’s
authority to operate the equipment.
ISED RF Radiation Exposure Statement:
This equipment complies with ISED RF Ra-
diation exposure limits set forth for an un-
controlled environment. This device and its
antenna must not be co-located or operating
in conjunction with any other antenna or
transmitter. This equipment should be in-
stalled to operate with a minimum distance
of 15 cm between the radiator and the end-
user’s body and arms.The extended storage switch is used when
the vehicle is in transit from the factory. It is
located above the brake pedal underneath
the instrument panel. If any electrical equip-
ment does not operate, ensure the extended
storage switch is pushed fully in place, as
shown.
LIC4753LIC3266
Pulled position
EXTENDED STORAGE SWITCH
Instruments and controls2-99

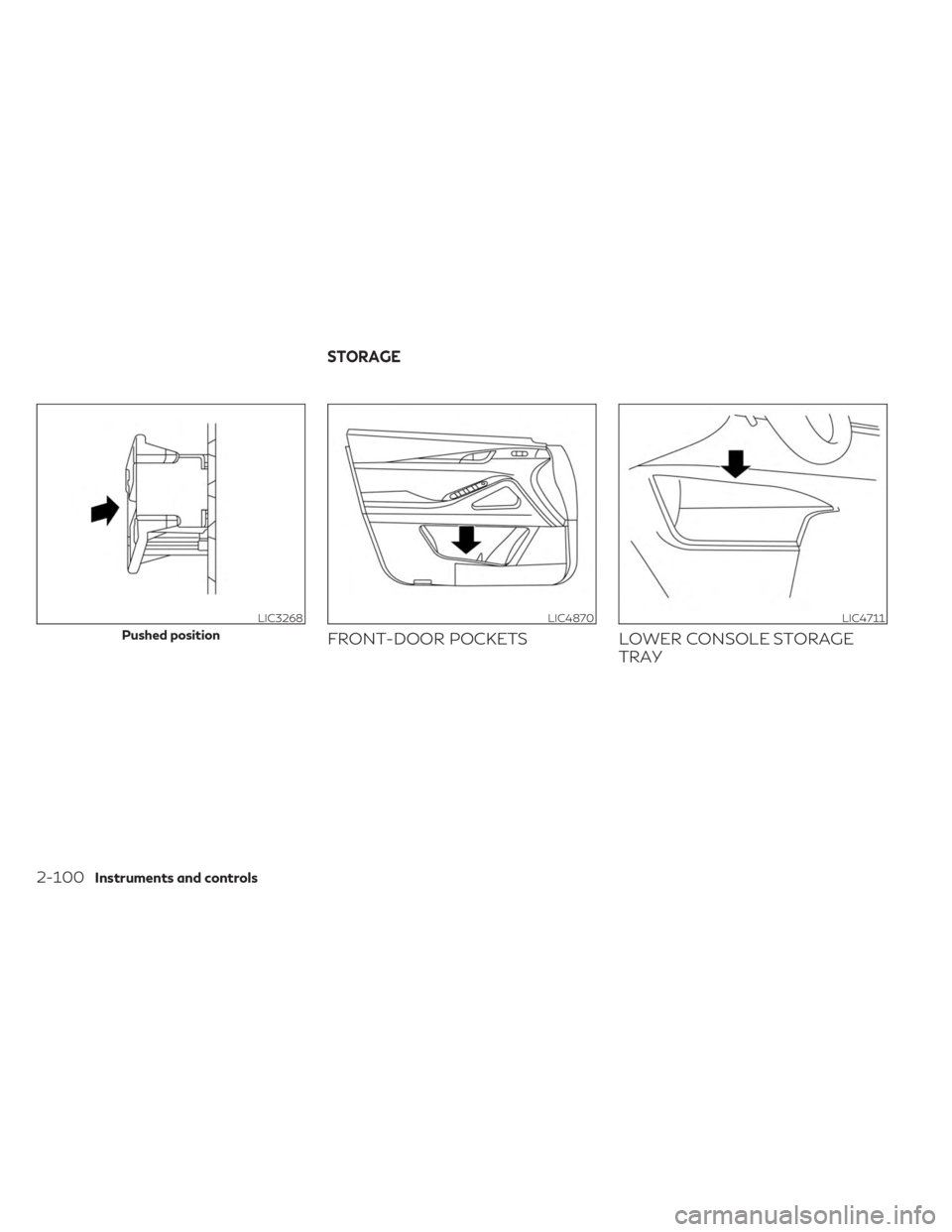

FRONT-DOOR POCKETSLOWER CONSOLE STORAGE
TRAY
LIC3268
Pushed position
LIC4870LIC4711
STORAGE
2-100Instruments and controls

SEATBACK POCKETS
There is a seatback pocket located on the
back of the driver and passenger seats. The
pockets can be used to store maps.
WARNING
To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items:
• Do not allow a passenger in the 2nd row
to push or pull on the seatback pocket or
head restraint. •
Do not place heavy loads heavier than
9.1 lbs (4 kg) on the seatback, head re-
straint or in the seatback pocket.
GLOVE BOX
Open the glove box by pulling the handle. Use
the master key when locking or unlocking the
glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.
LIC1328LIC4886
Instruments and controls2-101

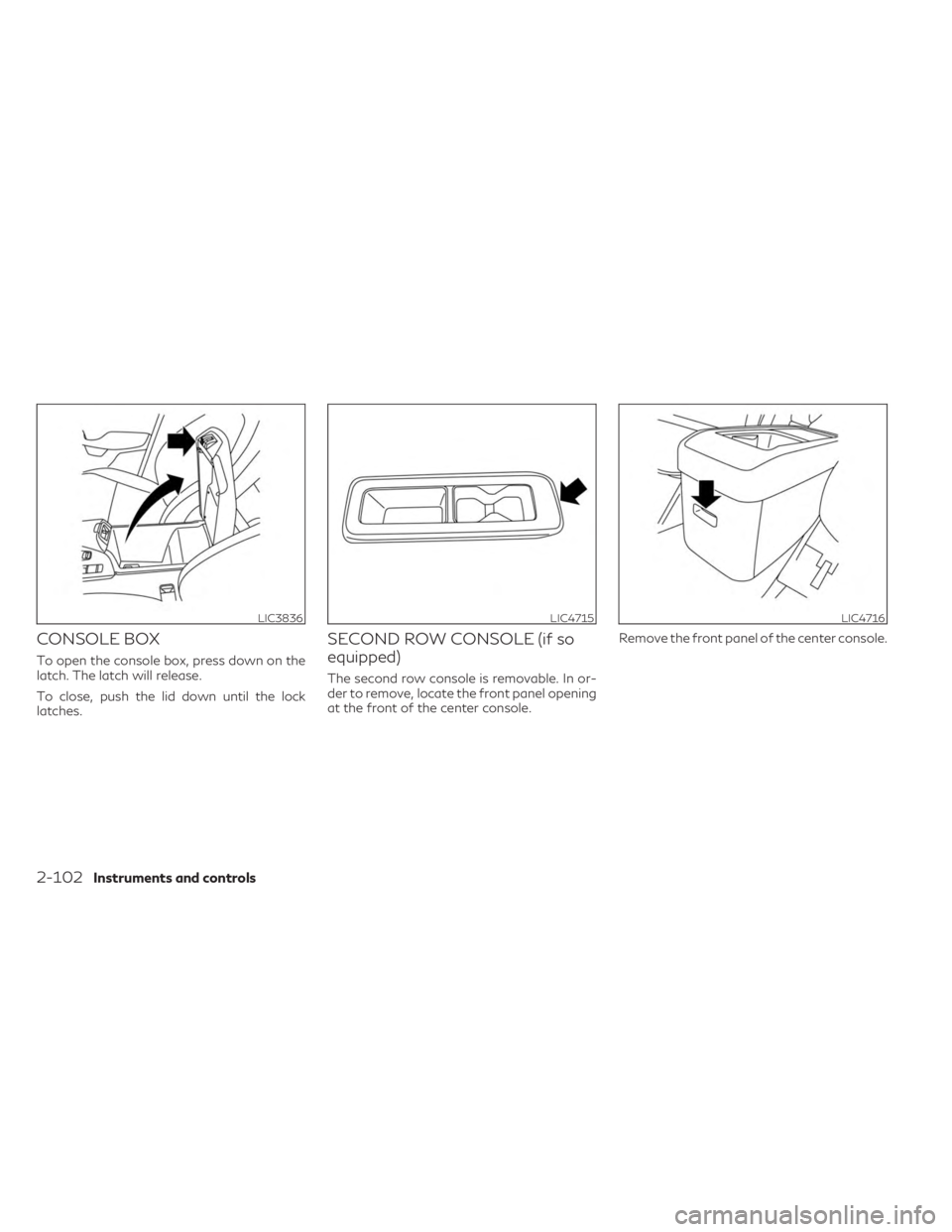

CONSOLE BOX
To open the console box, press down on the
latch. The latch will release.
To close, push the lid down until the lock
latches.
SECOND ROW CONSOLE (if so
equipped)
The second row console is removable. In or-
der to remove, locate the front panel opening
at the front of the center console.Remove the front panel of the center console.
LIC3836LIC4715LIC4716
2-102Instruments and controls

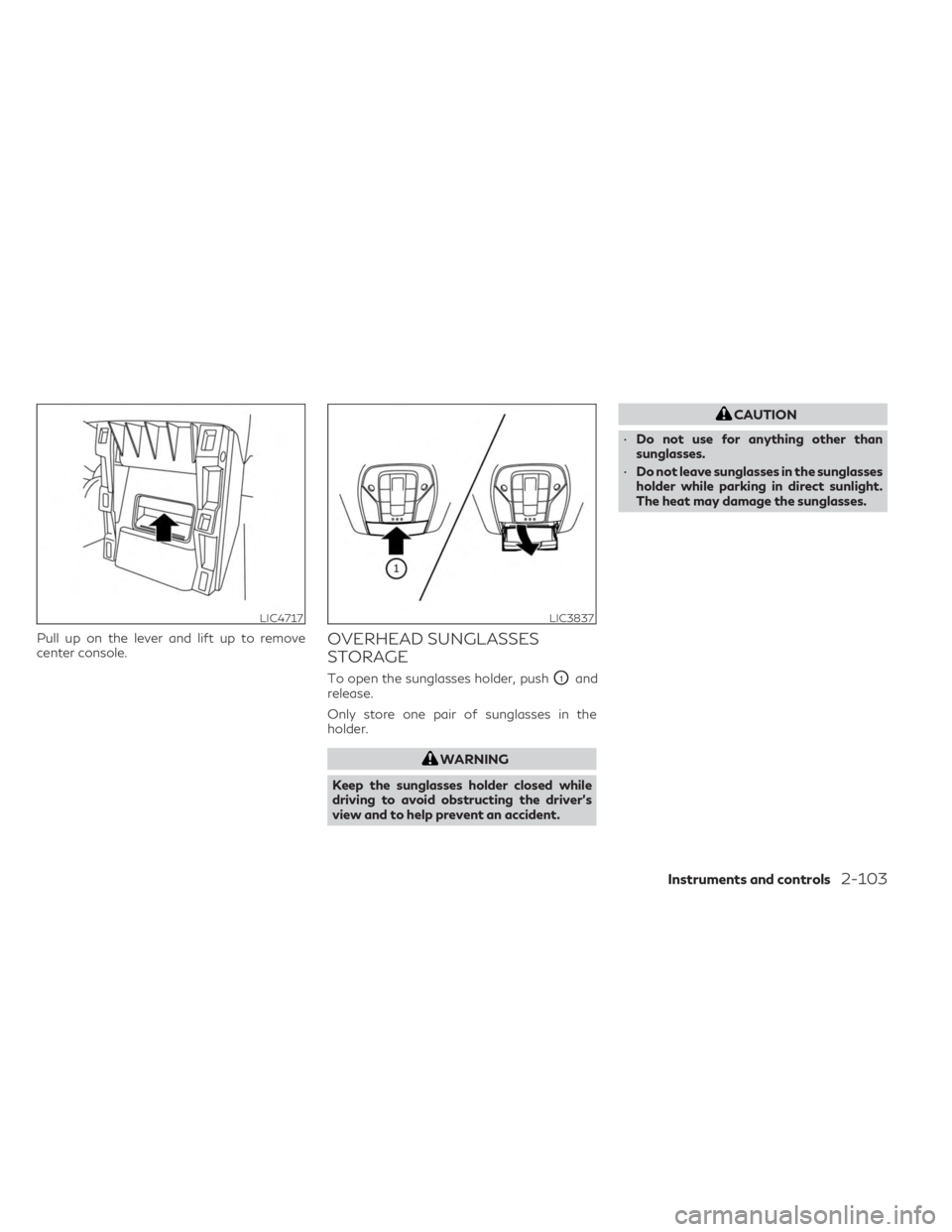

Pull up on the lever and lift up to remove
center console.OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, pushO1and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
• Do not use for anything other than
sunglasses.
• Do not leave sunglasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the sunglasses.
LIC4717LIC3837
Instruments and controls2-103

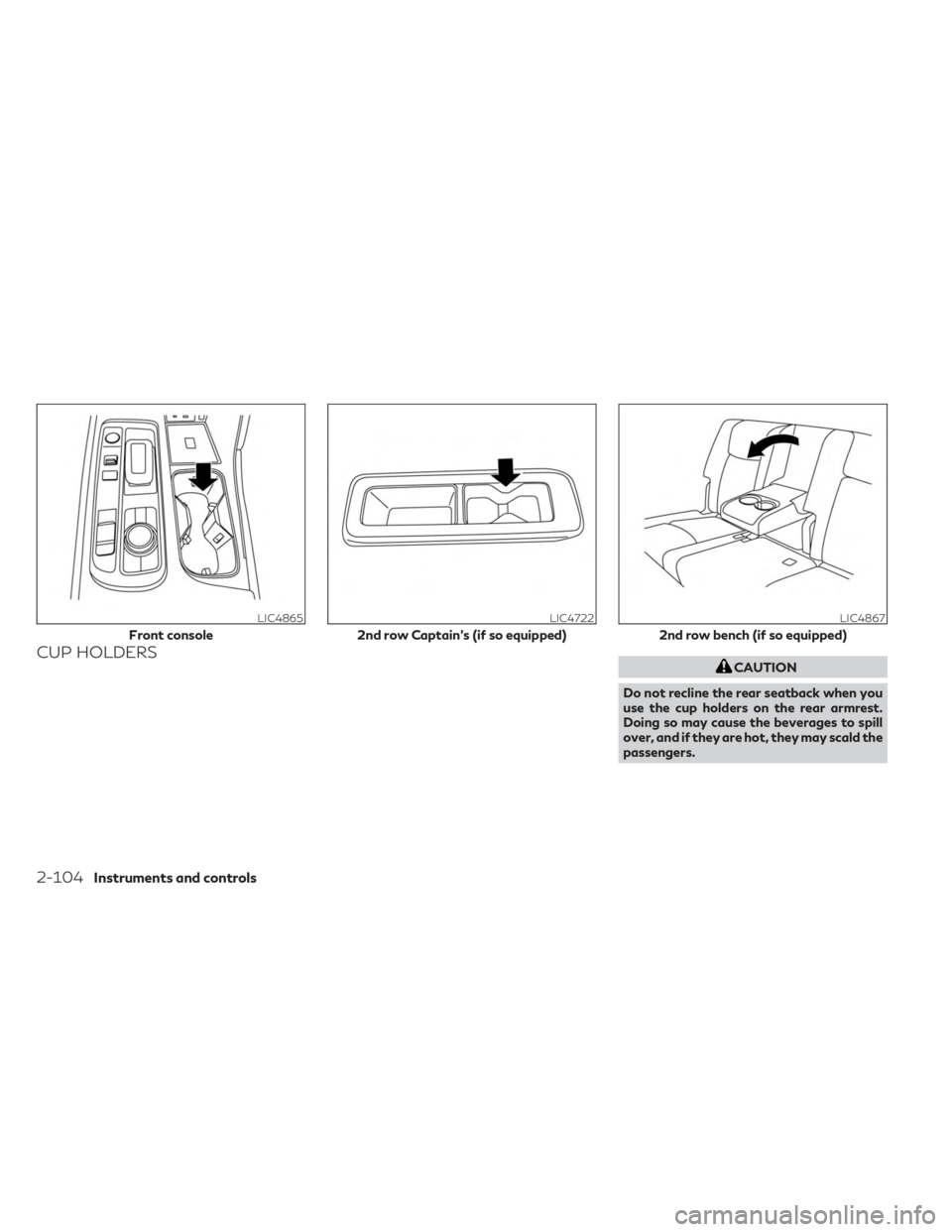

CUP HOLDERSCAUTION
Do not recline the rear seatback when you
use the cup holders on the rear armrest.
Doing so may cause the beverages to spill
over, and if they are hot, they may scald the
passengers.
LIC4865
Front console
LIC4722
2nd row Captain’s (if so equipped)
LIC4867
2nd row bench (if so equipped)
2-104Instruments and controls

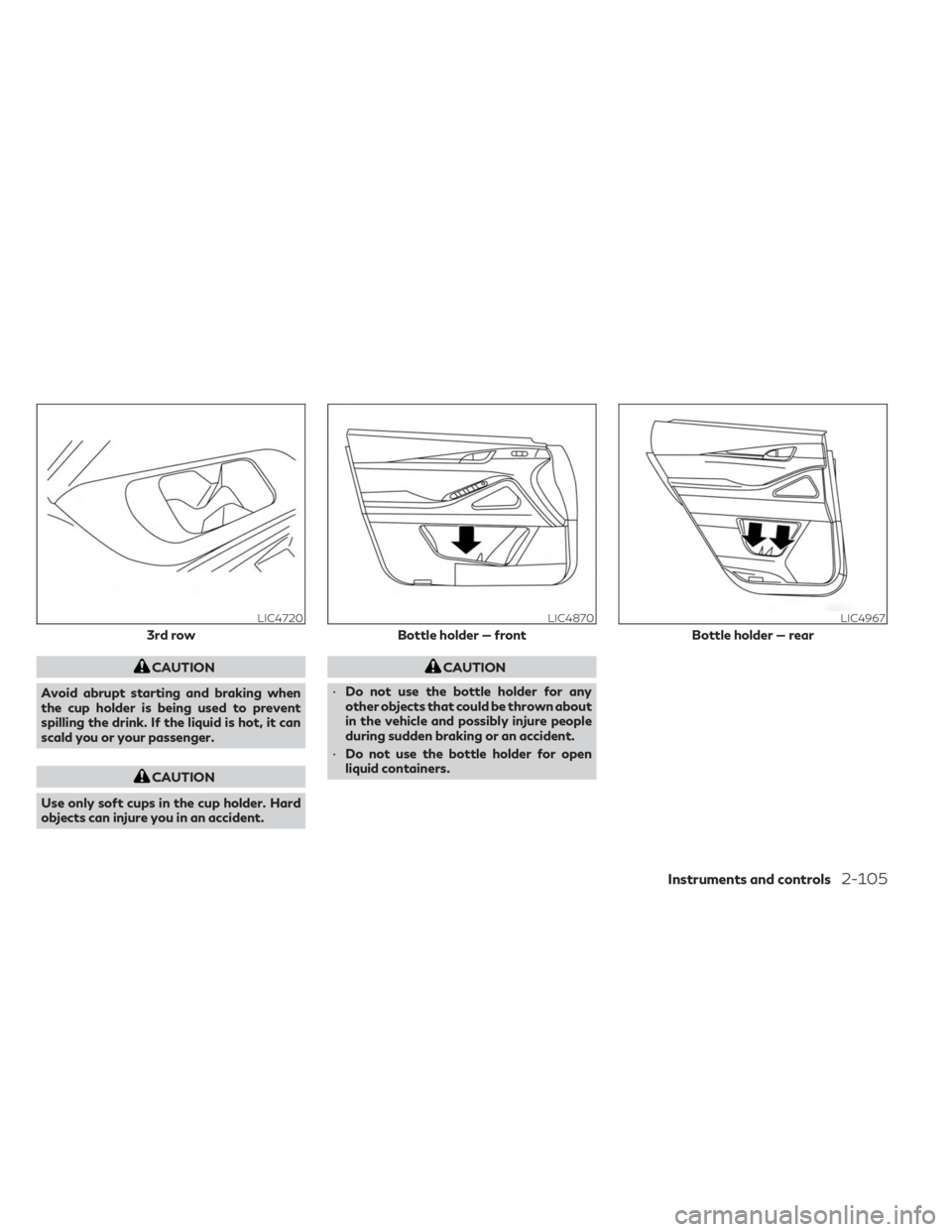

CAUTION
Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.
CAUTION
Use only soft cups in the cup holder. Hard
objects can injure you in an accident.
CAUTION
• Do not use the bottle holder for any
other objects that could be thrown about
in the vehicle and possibly injure people
during sudden braking or an accident.
• Do not use the bottle holder for open
liquid containers.
LIC4720
3rd row
LIC4870
Bottle holder — front
LIC4967
Bottle holder — rear
Instruments and controls2-105

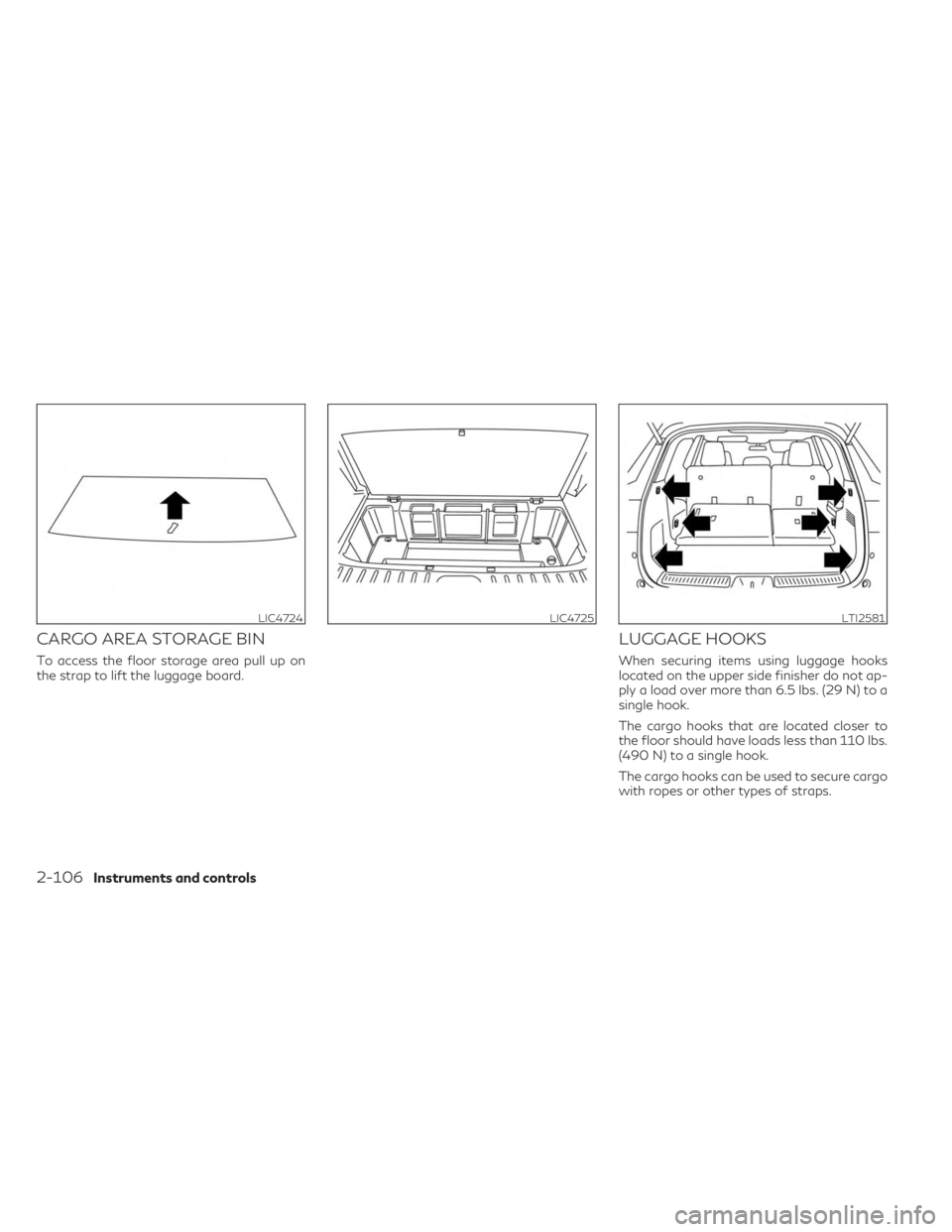

CARGO AREA STORAGE BIN
To access the floor storage area pull up on
the strap to lift the luggage board.
LUGGAGE HOOKS
When securing items using luggage hooks
located on the upper side finisher do not ap-
ply a load over more than 6.5 lbs. (29 N) to a
single hook.
The cargo hooks that are located closer to
the floor should have loads less than 110 lbs.
(490 N) to a single hook.
The cargo hooks can be used to secure cargo
with ropes or other types of straps.
LIC4724LIC4725LTI2581
2-106Instruments and controls

WARNING
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
• Use suitable ropes and hooks to secure
cargo.
• Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
• The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
ROOF RACK (if so equipped)
WARNING
• Always install the crossbars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.
• Roof rack cross bars should be evenly
distributed.
• Do not exceed maximum roof rack cross-
bars load capacity and always distribute
the load uniformly. •
Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
• Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the
crossbars.CAUTION
• Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
OA. CrossbarsOBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle.
INFINITI accessory crossbars may be avail-
able through an INFINITI retailer. It is recom-
mended that you visit an INFINITI retailer for
additional information.
LIC4202
Instruments and controls2-107

The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).
For additional information regarding GVWR
and GAWR, refer to:
• F.M.V.S.S. or C.M.V.S.S. certification label(located on the driver’s door pillar).POWER WINDOWS
WARNING
• Make sure that all passengers have their
hands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver's or
passenger's door is opened during this period
of time, the power to the windows is
canceled.
Driver's side power window switch
The driver's side control panel is equipped
with switches to open or close all of the
windows.
LIC4727
1. Window lock button
2. Left rear passenger side switch
3. Driver’s side switch
4. Power door lock/unlock switch
5. Front passenger side switch
6. Right rear passenger side switch
WINDOWS
