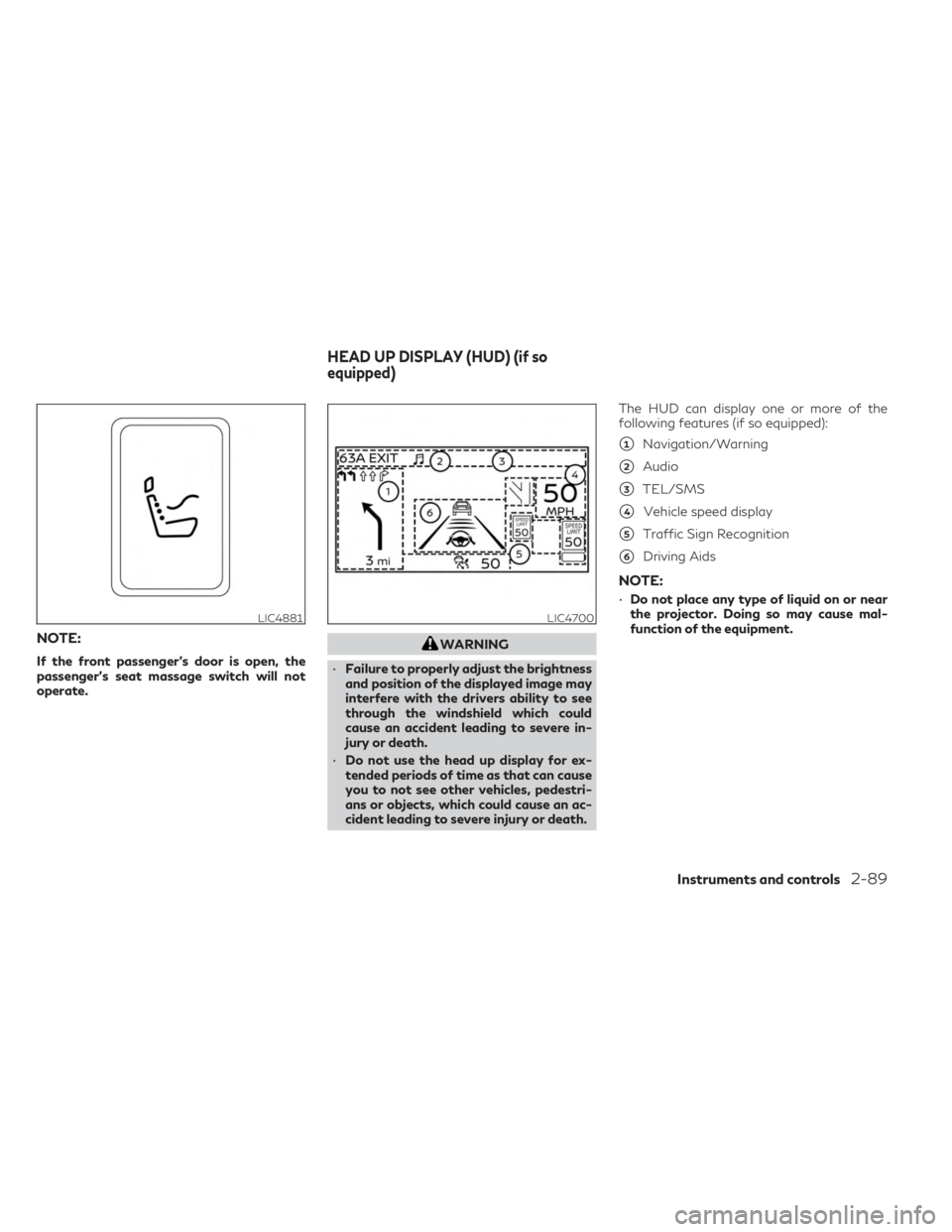

NOTE:
If the front passenger’s door is open, the
passenger’s seat massage switch will not
operate.
WARNING
• Failure to properly adjust the brightness
and position of the displayed image may
interfere with the drivers ability to see
through the windshield which could
cause an accident leading to severe in-
jury or death.
• Do not use the head up display for ex-
tended periods of time as that can cause
you to not see other vehicles, pedestri-
ans or objects, which could cause an ac-
cident leading to severe injury or death. The HUD can display one or more of the
following features (if so equipped):
1Navigation/Warning
2Audio
3TEL/SMS
4Vehicle speed display
5Traffic Sign Recognition
6Driving Aids
NOTE:
•
Do not place any type of liquid on or near
the projector. Doing so may cause mal-
function of the equipment.
LIC4881LIC4700
HEAD UP DISPLAY (HUD) (if so
equipped)
Instruments and controls2-89

NOTE:
• Do not touch any internal parts of the pro-jector. Doing so may cause malfunction of
the equipment.
• To prevent scratches to the projector glass, do not place any sharp objects on or
near the projector opening.
• Do not place any objects on the instrument panel which may obstruct the display of
the HUD.
• If you wear polarized sunglasses the dis- play may be difficult to see. Increase the
brightness of the HUD in the vehicle infor-
mation display or remove your sunglasses. • Depending on weather conditions (rain,
snow, sunlight, etc.), the display may be
difficult to see.
• For cleaning, use a soft clean dry cloth. If it can not be removed, use a soft clean cloth,
dampened with water. After that please
use a soft clean cloth. Never use a rough
cloth, alcohol, benzine, thinner or any kind
of solvent or paper towel with a chemical
cleaning agent. They will scratch or cause
discoloration to the projector lens. Do not
spray any liquid such as water on the pro-
jector lens. Spraying liquid may cause the
system to malfunction.
• If the displayed image appears distorted, it is recommended that you have the system
checked by an INFINITI retailer or qualified
workshop.
• The HUD has a special windshield to allow the image to be displayed clearly. If your
windshield needs replacing, this should be
completed by an INFINITI retailer.
HOW TO USE THE HUD
To turn the HUD on, push the HUD switch.
To turn the HUD off, push the switch again.
If the HUD is turned off, it will remain off
even if the vehicle is restarted.
The following settings can be changed in the
vehicle information display:
• Brightness
• Height
• Rotation
• Contents selection–– Navigation
–– Driving Assist
LIC4862LIC3829
2-90Instruments and controls

–– Speed Limit Sign
–– Audio
–– TEL/SMS
• Reset
NOTE:
Emergency information may display even if
the HUD is turned off.
This product includes the following software.
(1) Panasonic Corporation or software devel-
oped for Panasonic Corporation
(2) Third-party software licensed to Pana-
sonic Corporation
(3) Open source software
Regarding (3) Open source software, it in-
cludes open source software (OSS), including
various software to which license informa-
tion applies.
Refer to the license web site at:
http://car.panasonic.jp/oss/i02lln39.
DRIVER ASSISTANCE/
NAVIGATION LINKING
The HUD will display driver assistance and
navigation information. The driver assistance display will show
warning situations for the following systems:
• Forward Emergency Braking (FEB) with
Pedestrian Detection
• Lane Departure Warning (LDW)
• Predictive Forward Collision Warning (PFCW)
• Hands-free warning (for vehicles with Pro- PILOT Assist) (if so equipped)
• Traffic Sign Recognition (TSR) (if so equipped)
The Navigation System linking display will
show the following items:
• Intersection names
• Arrows indicating turning direction
• Distance to the next intersection
The Audio System linking display will show
the following items:
• Songs
• Radio stations
The TEL/SMS linking display will show the
following items:
• Caller’s name or phone number
Display brightness
The brightness of the display may be con-
trolled by the Navigation System. The bright-
ness will also be adjusted automatically ac-
cording to the exterior ambient lighting
brightness.
NOTE:
• A sensorO1is built into the Head Up Dis-
play to control the brightness of the im-
age. Make sure the sensor is clear of ob-
struction or the display may become dark
and difficult to recognize.
LIC4264
Instruments and controls2-91

• Do not apply strong light to the sensor ofHead Up Display. Doing so may cause a
malfunction.
The Emergency call (SOS) button is used in
combination with an INFINITI InTouch™ Ser-
vices subscription to call for assistance in
case of an emergency.
Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will
provide assistance based on the situation
described by the vehicle’s occupant. For ad-
ditional information, or to enroll your vehicle,
refer to www.InfinitiUSA.com/intouch, or
call 855–444–7244. The Rear Door Alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system using
the vehicle information display. For additional
information, see “Vehicle information
display- 7 inch (18 cm) Type A” (P. 2-22) or
“Vehicle information display- 12.3 inch
(31cm) Type B” (P. 2-44).
When the system is enabled:
• The system is activated when a rear door is
opened and closed within 10 minutes of
the vehicle being driven. When the vehicle is
started and the system is activated, a visual
message appears in the vehicle information
display. For additional information, see
“Rear Door Alert is activated” (P. 2-38) or
“Rear Door Alert is activated” (P. 2-61).
• If a rear door is opened and closed but the vehicle is not driven within approximately
10 minutes, the system will not be acti-
vated. A rear door must be opened and
closed and the car driven within 10 minutes
for the system to activate.
LIC4883
EMERGENCY CALL (SOS) BUTTON REAR DOOR ALERT
2-92Instruments and controls

When the Rear Door Alert system is acti-
vated:
• When the driver puts the vehicle in the P(Park) position, a notification message ap-
pears in the vehicle information display
with the options to “Dismiss Message” or
“Disable Alert” if desired.• Select “Disable Alert” to temporarily dis- able for that stop.
• No selection or ‘Dismiss Message” will keep the alert enabled for that stop.
• If the alert is enabled when a driver exits the vehicle, a message will appear in the vehicle
information display that states “Check Rear
Seat for All Articles.”
If “Horn & Alert” setting is selected:
• An audible horn sound will occur after a short time unless a rear door is opened
and closed within a short time to deacti-
vate the alert.
• If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
• If the liftgate is opened before a rear door is opened, the horn will be delayed
until after the liftgate is closed.NOTE:
If “Alert Only” setting is selected, the mes-
sage alert will still be shown in the vehicle
information display but the horn will not
sound.
WARNING
• If the driver selects “Disable Alert”, no
audible alert will be provided regardless
of rear door open/close status.
• There may be times when there is an ob-
ject or passenger in the rear seat(s) but
the audible alert does not sound. For ex-
ample, this may occur if rear seat passen-
gers enter or exit the vehicle during a
trip.
• The system does not directly detect ob-
jects or passengers in the rear seat(s).
Instead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s). For additional information, see “Rear Door
Alert is activated” (P. 2-38) or “Rear Door
Alert is activated” (P. 2-61).
Instruments and controls2-93

12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The console power outlets are powered only
when the ignition switch is in the ACC or ON
position.
The power outlet in the cargo area is pow-
ered directly by the vehicle’s battery.
CAUTION
• The outlet and plug may be hot during or
immediately after use.
• Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit an INFINITI retailer for ad-
ditional information.
• Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.
• Do not use double adapters or more than
one electrical accessory. •
Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
• Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
• Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
• Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
LIC4823
Center Console
LIC4811
2nd Row (if so equipped)
LIC4705
Cargo Area
POWER OUTLETS
2-94Instruments and controls

•When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.
120V OUTLET (if so equipped)
CAUTION
• The outlet and plug may be hot during or
immediately after use.
• Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
• Do not use accessories that exceed a
120V, 150W power draw. Do not use
double adaptors or more than one elec-
trical accessory. •
Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
• Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
• Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
• When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.
LIC4822
2nd Row
Instruments and controls2-95

1. Type-C USB
2. Type-A USB
There are USB/iPod® charging ports located
in 1st row, two in the front media pocket
below the climate controls and one in the
console box, in the 2nd row on the back of the
center console and in the 3rd row by the cup
holders. These ports will charge compatible
devices.NOTE:
• Not all of the USB/iPod® charging portswill operate with the display screen. Only
the USB connection ports located under
the climate controls will allow operation of
USB/iPod® devices through the audio
system.
• For best results, it is recommended to use the manufacturer cables, which are sold
separately. A USB Type-A to USB Type-C
adapter can also be purchased separately;
however, results may vary.CAUTION
• Do not force a USB device into the con-
nector. Inserting the USB device tilted or
up-side down into the connector may
damage the connector. Make sure that
the USB device is connected correctly
into the connector.
• Do not use a reversible USB cable. Using
the reversible USB cable may damage
the connector.
LIC5029
1st row (below climate controls)
LIC5030
1st row (inside the console box)
LIC5031
2nd row
USB/iPod® CHARGING PORTS
2-96Instruments and controls

The wireless charger is located on the front
of the center console. Lay the smartphone on
the pad of the wireless charger. Charging will
start automatically. The smartphone will be
charged continuously while the ignition
switch is in the ON position.
WARNING
• Never put metallic materials between
the wireless charger and a smartphone. •
Those who use a pacemaker or other medi-
cal equipment should contact the electric
medical equipment manufacturer for the
possible influences before use.
• Never put cloth over the smartphone
during charging process.
• Never charge a smartphone when it is
wet.
• Never put metallic materials or small
goods such as a cigarette lighter, Intelli-
gent Key or memory drive.
CAUTION
• Do not put an RFID/NFC/credit card
between the wireless charger and a
smartphone. This could cause data cor-
ruption in the card.
• Do not use the wireless charger with dust
accumulated or dirt on the pad.
• Do not hit the surface of the wireless
charger.
• Do not spill liquid (water, drinks, etc.) on
the charging pad.
• Do not use grease, oil or alcohol for
cleaning charging pad.LIC5032
3rd row
LIC4868
1. Indicator
2. Charging pad
WIRELESS CHARGER
Instruments and controls2-97

WIRELESS CHARGER
INDICATOR
The indicator(1)will illuminate in orange
when the charging process is started.
When the charging has completed, the indi-
cator illuminates in green.
If a malfunction occurs or the charging pro-
cess has stopped, the indicator will blink in
orange for 8 seconds then turn off.
WIRELESS CHARGER
OPERATION
To use the wireless charger, it is necessary to
seat the smartphone well within the charging
pad. To maximize charging performance, en-
sure the smartphone is fully seated on the
center of the charging pad over the "Qi" logo
OA. Because the location of the power re-
ceiver may vary depending on the smart-
phone, you will need to try and find the area
that suits your smartphone.
Because some smartphone cases or accesso-
ries may adversely affect charging, remove
them before wireless charging. Turn off the
vibration function of the smartphone before
wireless charging.
NOTE:
• Only a Qi compatible smartphone can be
used.
• The smartphone may be warmed during
charging process and the charging may
stop by the protection function of the
wireless charger. This is not a malfunction.
If this occurs, restart charging after the
smartphone cooled down. The indicator
will blink in orange then turn off.
• The wireless charging process may be
stopped by the status of the smartphone
(battery temperature, etc.).
• If a radio noise interference occurs during
charging process, put the smartphone
onto the center (“Qi” logo) position of the
wireless charger.
• The wireless charging process will stop
during process of searching the Intelligent
Key.
• The wireless charging process will not be
started when a USB (Universal Serial Bus)
cable is connected to the smartphone. The
indicator may illuminate in orange or blink
if the smartphone is put on the wireless
charger with a USB cable connected. How-
ever, charging is not performed. •
Depending on the type of the smartphone,
the indicator may remain illuminated in or-
ange even when the charging process has
been completed.
FCC ID: BEJWC500MNM
IC: 2703H-WC500MNM
This device complies with part 15 of the FCC
Rules and RSS-Gen of IC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
RF Radiation Exposure Statement: This
equipment complies with FCC RF Radiation
exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-
located or operating in conjunction with any
other antenna or transmitter.
2-98Instruments and controls
