INFINITI QX60 2023 Owners Manual

• Three beeps will sound and the liftgate willbegin moving within two seconds after the
kick.
CAUTION
Before performing the kicking motion,
steady your stance to prevent any loss of
balance. Also, while making the kicking
motion, take caution around hot exhaust
system parts. Otherwise, there may be
danger of injury.
WARNING
Prevent unintentional liftgate opening/
closing. There may be conditions when
opening/closing the liftgate is not desired.
Keep the Intelligent Key out of range of the
liftgate, (31.5 in or 80 cm), when washing
or working around the back of the vehicle.
CAUTION
• Interference or malfunction can be
caused by parking in close proximity to
radio or satellite towers.
• Intelligent Key interference could be
caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional infor-
mation, see “INFINITI Intelligent Key”
(P. 3-2).
LIFTGATE RELEASE
WARNING
• Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
• Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).
• To avoid personal injury, do not attempt
to activate the power liftgate if one or
both of the liftgate struts are removed.LPD3264
DO: Quick forward kick and return while the key fob is within range
LPD3265
DO NOT: Swing foot side to side or pause during kick
Pre-driving checks and adjustments3-25

CAUTION
• If the power liftgate does not stay open
or if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
• Do not activate the power liftgate if one
or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.
Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:
1. Move the lever
OAas illustrated with a
suitable tool to open the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height (garage mode) by performing the fol-
lowing:
1. Open the liftgate using the liftgate opener switch or the Intelligent Key.
2. Pull the liftgate down and move to the desired height position (the liftgate will
have some resistance when being manu-
ally adjusted).
LPD3266LPD3267
3-26Pre-driving checks and adjustments

3. Press and hold the power liftgate closeswitch
OBlocated on the liftgate for more
than 3 seconds or until two beeps are
heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3 for setting the position of
the liftgate.
OPENING THE FUEL-FILLER
DOOR
To open the fuel-filler door, push the right
side of the fuel-filler door to release.
WARNING
• Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled. Al-
ways stop the engine and do not smoke
or allow open flames or sparks near the
vehicle when refueling. •
Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
• Never pour fuel into the throttle body to
attempt to start your vehicle.
• Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the
ground when filling.
– Do not use electronic devices when
filling.
– Keep the pump nozzle in contact with
the container while you are filling it.
– Use only approved portable fuel con-
tainers for flammable liquid.
LPD2725
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-27

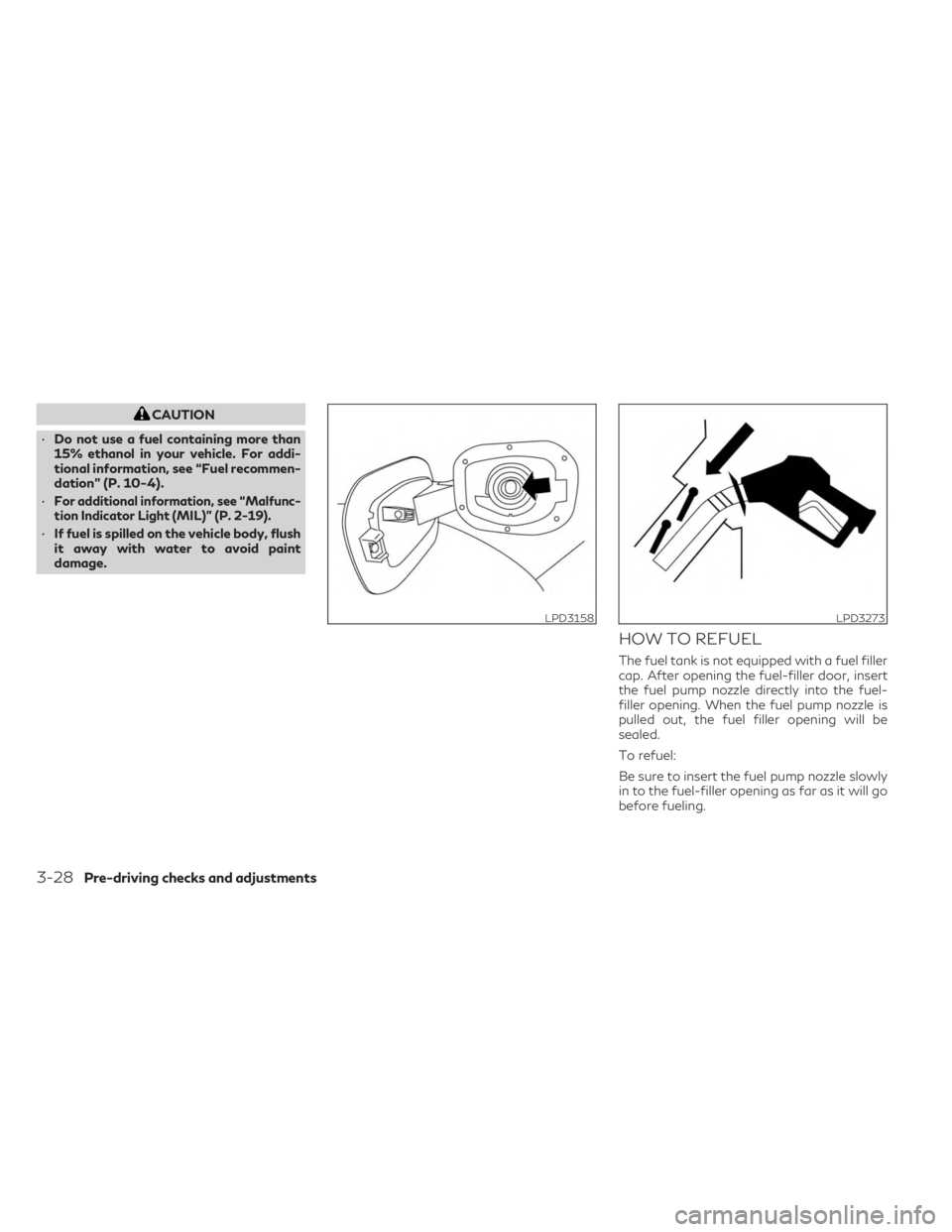

CAUTION
• Do not use a fuel containing more than
15% ethanol in your vehicle. For addi-
tional information, see “Fuel recommen-
dation” (P. 10-4).
•
For additional information, see “Malfunc-
tion Indicator Light (MIL)” (P. 2-19).
• If fuel is spilled on the vehicle body, flush
it away with water to avoid paint
damage.
HOW TO REFUEL
The fuel tank is not equipped with a fuel filler
cap. After opening the fuel-filler door, insert
the fuel pump nozzle directly into the fuel-
filler opening. When the fuel pump nozzle is
pulled out, the fuel filler opening will be
sealed.
To refuel:
Be sure to insert the fuel pump nozzle slowly
in to the fuel-filler opening as far as it will go
before fueling.
LPD3158LPD3273
3-28Pre-driving checks and adjustments

Never move the nozzle during the refueling.
Pull out the nozzle approximately 5 seconds
after the fuel pump nozzle shuts off auto-
matically (initial shut-off).
Close the fuel-filler door after refueling.
If you need to refuel from a portable fuel
container, use the funnel supplied with your
vehicle. (see “When refueling from a portable
fuel container” (P. 3-30).
CAUTION
• Do not attempt to open the flaps on the
fuel-filler opening using any tool other
than the fuel pump nozzle.
• This fuel-filler opening is only conform-
able to normal fuel pump nozzles at gas
stations. Using a nozzle with a small di-
ameter may damage the opening and the
fuel system.
• If fuel is spilled on the vehicle body, flush
it away with water to avoid paint
damage.
WARNING
• Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled. Al-
ways stop the engine and do not smoke
or allow open flames or sparks near the
vehicle when refueling.
• Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
• Never pour fuel into the throttle body to
attempt to start your vehicle.
• Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the
ground when filling.
– Do not use electronic devices when
filling. –
Keep the pump nozzle in contact with
the container while you are filling it.
– Use only approved portable fuel con-
tainers for flammable liquid.
Pre-driving checks and adjustments3-29

WHEN REFUELING FROM A
PORTABLE FUEL CONTAINER
If you need to refuel from a portable fuel
container, use the funnel
OAstored in the tool
bag (located under the luggage board). Be sure to insert the funnel into the fuel-filler
opening slowly and fully. Insert the nozzle of
the portable fuel container into the opening
along the funnel and fill the fuel tank.
After refueling, remove the funnel from the
fuel-filler opening. Wipe the funnel clean and
return it to the tool bag.
CAUTION
• Do not insert the nozzle of the portable
fuel container directly into the fuel-filler
opening. Doing so may damage the
opening and the fuel system.
• Use only the funnel provided with your
vehicle. Otherwise the fuel-filler opening
and the fuel system may be damaged.
WARNING
• Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
• Do not adjust the steering wheel any
closer to you than is necessary for proper
steering operation and comfort. The
driver's air bag inflates with great force.
If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the air bag if
you are up against it when it inflates.
Always sit back against the seatback and
as far away as practical from the steer-
ing wheel. Always use the seat belts.
LPD3275
STEERING WHEEL
3-30Pre-driving checks and adjustments

MANUAL OPERATION (if so
equipped)
Tilt and telescopic operation
Push the lock leverO1down:
• Adjust the steering wheel up or down in direction
O2to the desired position.
• Adjust the steering wheel forward or back- ward in direction
O3to the desired position.
Pull the lock lever
O1up firmly to lock the
steering wheel in place.
AUTOMATIC OPERATION (if so
equipped)
Tilt and telescopic operation
To adjust the steering wheel move the switch
O1in the following directions:
• Adjust the steering wheel up or down in direction
O2to the desired tilt position.
• Adjust the steering wheel forward or back- ward in direction
O3to the desired tele-
scopic position.
CAUTION
For vehicles with memory seat: Failure to
reset the tilt and telescoping functions of
the steering wheel, after the vehicle’s bat-
tery has been discharged, may prevent the
steering wheel position from being
adjusted.
For vehicles with memory seat: Both the tilt
and telescopic steering operation must be
reset after the vehicle’s battery has been dis-
charged in order to prevent the tilt and tele-
scopic operation from locking in one position.
When the battery has been recharged or re-
placed, perform the following:
• For tilt operation: Adjust the switch
O1so
the steering wheel moves to the highest
position
O2that can be reached.
• For telescopic operation: Adjust the switch
O1so the steering wheel moves to the most
forward and backward position
O3that
can be reached.
Performing these operations resets the range
of the steering wheel’s tilt and telescopic
function.
LPD3169LPD3170
Pre-driving checks and adjustments3-31

Entry/Exit function (if so equipped)
The memory seat will make the steering
wheel move up automatically when the driv-
er's door is opened and the ignition switch is
in the LOCK position. This lets the driver get
into and out of the seat more easily. The
steering wheel moves back into position
when the driver's door is closed and the igni-
tion switch is pushed.
For additional information, see “Memory
seat” (P. 3-43).1. To block glare from the front, swing downthe sun visor
O1.
2. To block glare from the side, remove the sun visor from the center mount and
swing the visor to the side
O2.
3. Slide the sun visor extension
O3in or out
as needed.
CAUTION
• Do not store the sun visor before return-
ing the extension to its original position.
• Do not pull the extension sun visor
forcedly downward.
LPD2154
SUN VISORS
3-32Pre-driving checks and adjustments

VANITY MIRRORS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The
vanity mirror will illuminate when the mirror
cover is open.CARD HOLDER
To use the card holder, slide card into the clip.
Do not view information while operating the
vehicle.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so
equipped)
The inside mirror is designed so that it auto-
matically dims during nighttime conditions
and according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature is activated when
the ignition switch is in the ON position.
NOTE:
Do not hang any objects over the sensorsO1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.LPD3174LPD3156
Driver’s and passenger’s side
MIRRORS
Pre-driving checks and adjustments3-33

Type A (if so equipped)
For additional information on HomeLink® Uni-
versal Transceiver operation, see “HomeLink®
Universal Transceiver” (P. 2-116).
NOTE:
Do not hand any objects over the sensorsO1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting improper operation.
Type B (if so equipped)
NOTE:
Do not hand any objects over the sensorsO1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting improper operation.
SMART REAR VIEW MIRROR
(if so equipped)
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the Smart Rear View
Mirror could result in serious injury or
death.
• The Smart Rear View Mirror is a conve-
nience feature but it is not a substitute
for proper vehicle operation. The system
has areas where objects cannot be
viewed. Check the blind spot of the
Smart Rear View Mirror before vehicle
operation. The driver is always respon-
sible for safe driving.
• Do not disassemble or modify the Smart
Rear View Mirror, the camera unit or
wirings. If you do, it may result in acci-
dents or fire. In case you notice smoke or
smell coming from the Smart Rear View
Mirror, stop using the system immedi-
ately. It is recommended that you see an
INFINITI retailer for servicing.
• Do not operate the Smart Rear View
Mirror while driving. Doing so can be a
distraction and it could lose control of
your vehicle and cause an accident or se-
rious injury.
LPD3328LPD3329
3-34Pre-driving checks and adjustments
