2ND ROW SEAT ADJUSTMENT
Forward and backward
Pull the center of the barO1up and hold it
while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.
Reclining
To recline the seatback, pull up on the lever
O2and lean back. To bring the seatback for-
ward, pull the lever
O2up and lean your body
forward. Release the lever to lock the seat-
back in position. The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, see “Pre-
cautions on seat belt usage” (P. 1-17). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
• After adjustment, gently rock in the seat
to make sure it is securely locked.
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.
• For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat and adjust the seat belt
properly. For additional information,
see “Precautions on seat belt usage”
(P. 1-17).
LRS3380
2nd row captain’s seats (if so equipped)
LRS3381
2nd row bench seats (if so equipped)
Safety-Seats, seat belts and supplemental restraint system1-5
Page 32 of 636

One touch walk-in function
The 3rd row can be accessed from outside
the vehicle by using the seat release button
located at the base of the 2nd row seat
OA.
The 3rd row occupant can exit their seat from
inside the vehicle by using the secondary seat
release button located on the back of the 2nd
row seat
OB. If a child safety seat is installed
in the 2nd row seat, the 3rd row can be
accessed without removing the child safety
seat. If the seat back is folded down, the one touch
function will be disabled. To pitch the seat,
you must return the seat back to the upright
position.
Multi-mode
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
• Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
• Do not drive with the 2nd row seat
tipped up.
• Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path and
seatback is clear of all objects before
moving the seat.
To enter the 3rd row from outside the ve-
hicle, push the seat release button located at
the base of the 2nd row seat. To exit the 3rd
row from inside the vehicle, push the seat
release button located on the back of the 2nd row seat. Activating this seat release switch
will pitch the 2nd row seat forward so you
will be able to slide the seat forward and
backward.
Slide the entire seat forward for access to the
3rd row.
To return the seat to a locked position, push
the upper seatback rearward until the seat is
locked.
Child seat access mode
The 2nd row seat can be slid forward for easy
entry or exit from the 3rd row bench seat
without a child safety seat being removed.
To enter the 3rd row from outside the ve-
hicle, push the seat release button located at
the base of the 2nd row seat. To exit the 3rd
row from inside the vehicle, push the seat
release button located on the back of the 2nd
row seat. Activating this seat release button
allows you to pitch and slide the seat forward
and backward.
Slide the entire seat forward for access to the
3rd row seats.
To return the seat to a locked position, push
the upper seatback rearward until the seat is
locked.
LRS3382
1-6Safety-Seats, seat belts and supplemental restraint system

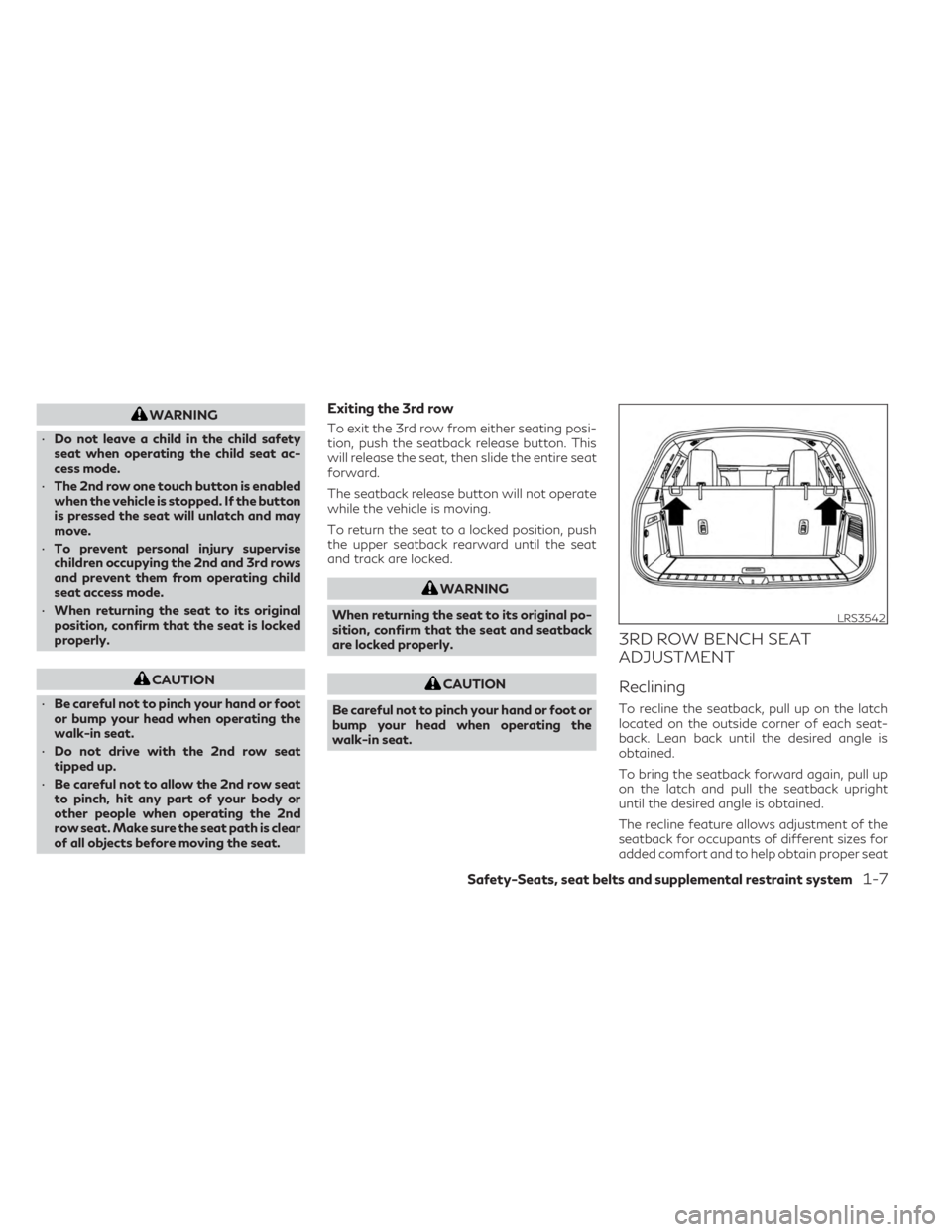

Page 33 of 636

WARNING
• Do not leave a child in the child safety
seat when operating the child seat ac-
cess mode.
• The 2nd row one touch button is enabled
when the vehicle is stopped. If the button
is pressed the seat will unlatch and may
move.
• To prevent personal injury supervise
children occupying the 2nd and 3rd rows
and prevent them from operating child
seat access mode.
• When returning the seat to its original
position, confirm that the seat is locked
properly.
CAUTION
• Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
• Do not drive with the 2nd row seat
tipped up.
• Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is clear
of all objects before moving the seat.
Exiting the 3rd row
To exit the 3rd row from either seating posi-
tion, push the seatback release button. This
will release the seat, then slide the entire seat
forward.
The seatback release button will not operate
while the vehicle is moving.
To return the seat to a locked position, push
the upper seatback rearward until the seat
and track are locked.
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
Be careful not to pinch your hand or foot or
bump your head when operating the
walk-in seat.
3RD ROW BENCH SEAT
ADJUSTMENT
Reclining
To recline the seatback, pull up on the latch
located on the outside corner of each seat-
back. Lean back until the desired angle is
obtained.
To bring the seatback forward again, pull up
on the latch and pull the seatback upright
until the desired angle is obtained.
The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
LRS3542
Safety-Seats, seat belts and supplemental restraint system1-7
Page 34 of 636

belt fit. For additional information, see “Pre-
cautions on seat belt usage” (P. 1-17). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
• After adjustment, gently rock in the seat
to make sure it is securely locked.
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.
• For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat and adjust the seat belt
properly. For additional information,
see “Precautions on seat belt usage”
(P. 1-17).
ARMRESTS
The 2nd row bench seat or the 2nd row
captain’s seats come equipped with arm-
rest(s). Pull the armrest down as shown.
FLEXIBLE SEATING
WARNING
• Never allow anyone to ride in the cargo
area or on the rear seats when they are in
the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
LRS3383
2nd row captain’s seats (if so equipped)
LRS3578
2nd row bench seats (if so equipped)
1-8Safety-Seats, seat belts and supplemental restraint system
Page 35 of 636

•When folding the bench seat seatback
down for maximum storage, make sure
the seat base is in the latched position by
rocking the seat base. If the seat base is
not properly secured, cargo stored on
top of a folded seatback may become a
projectile causing personal injury or ve-
hicle damage.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
• Do not allow more than one person to use
the same seat belt.
• Do not fold down the rear seats when
occupants are in the rear seat area or any
luggage is on the rear seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet
to get caught or pinched in the seat.
• Head restraints/headrests should be ad-
justed properly as they may provide sig-
nificant protection against injury in an
accident. Always replace and adjust
them properly if they have been removed
for any reason. •
If the head restraints/headrests are re-
moved for any reason, they should be se-
curely stored to prevent them from caus-
ing injury to passengers or damage to the
vehicle in case of sudden braking or an
accident.
• When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
• Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured cargo
could cause personal injury.CAUTION
• When folding the 2nd row seat for maxi-
mum cargo holding, be sure that the
cargo does not contact the center con-
sole of the captain’s seat (if so equipped)
to avoid possible damage to the console.
• When folding or returning the seat(s) to
the upright position, to avoid injury to
yourself and others:
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet
to get caught or pinched in the seat.
Safety-Seats, seat belts and supplemental restraint system1-9
Page 36 of 636

Folding the 2nd row seats
To fold the 2nd row seats flat for maximum
cargo hauling:
1. Make sure that the head restraints/headrests are lowered or removed. To re-
move the head restraint/headrest, push
and hold the lock knob while moving the
head restraint/headrest in an upward di-
rection. Store the head restraint/headrest
properly so it is not loose in the vehicle.
2.
Stow the 2nd row seat belts in the seat belt
hooks found on the sides of the vehicle.
3. Lift up on the recline lever on the side of the outboard seats to fold the seatbacks
flat. The seatback will lock into place
when in cargo mode to optimize the load
floor.
4. To return the 2nd row seats to a seating position, lift up on the recline lever on the
side of the outboard seats and push up on
the seatback until it latches in place.3rd row manual folding seats
To fold the 3rd row seats flat for maximum
cargo capacity:
1. Pull the strap
OAto release the head
restraint/headrest forward.
2. Pull up on the latch
OBlocated in the
upper corner of each seatback and lower
the seatback forward over the seat base.
LRS3520
2nd row captain’s seats (if so equipped)
LRS3452
2nd row bench seats (if so equipped)
LRS3543
1-10Safety-Seats, seat belts and supplemental restraint system
Page 37 of 636

Manual operation to return the 3rd row seats
to a seating position (if so equipped):
1. Use the pull straps
OCto raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly raise
each seatback to an upright and secured
position.
2. Do not use the pull strap to return the head restraint/headrest to the upright
position. Pull back on the head restraint/
headrest until it latches in the upright
position.
Power operation to return the 3rd row seats
to a seating position (if so equipped):
1. Push and hold the corresponding switch
ODlocated on the left side in the cargo
area.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is
fully returned to the seating position. If the control unit detects any obstacle or
malfunctions while in the power operation, a
beep sounds for 4 seconds and the seatback
will return to the folded position automati-
cally. Check if there are any obstacles caught
that prevent seats from returning to the
folded position. It is recommended that you
visit an INFINITI retailer if the beep still
sounds.
CAUTION
When operating the 3rd row power seat-
back return, make sure that the vehicle is
stopped and the transmission is in the P
(Park) position.
WARNING
• When the seat is returned to the normal
seating position, the head restraints/
headrests must be returned to the up-
right position to properly protect vehicle
occupants.
• Never allow anyone to ride in the cargo
area or on the 3rd row seats when they
are in the fold-down position. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
LRS3420
Safety-Seats, seat belts and supplemental restraint system1-11
Page 38 of 636

•Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
• Do not fold down the 3rd row seats when
occupants are in the 3rd row seat area or
any luggage is on the 3rd row seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
• Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured cargo
could cause personal injury.WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalk, ex-
cept for genuine INFINITI accessories spe-
cifically tested for use with the vehicle’s
head restraint/headrest stalk. Do not re-
move the head restraint/headrest. Do not
use the seat if the head restraint/headrest
has been removed. If the head restraint/
headrest was removed, reinstall and prop-
erly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision. The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with a headrest.
• Adjustable head restraints/headrests have multiple notches along the stalk(s) to lock
them in a desired adjustment position.
• The non-adjustable head restraints/ headrests have a single locking notch to
secure them to the seat frame.
LRS3414
Captain’s seats (if so equipped)
HEAD RESTRAINTS/HEADRESTS
1-12Safety-Seats, seat belts and supplemental restraint system
Page 39 of 636

• Proper Adjustment:– For the adjustable type, align the headrestraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
–
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
• If the head restraint/headrest has been re- moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
LRS3415
Bench seats (if so equipped)
LRS2300LRS2299
Type A (if so equipped)
Safety-Seats, seat belts and supplemental restraint system1-13
Page 40 of 636

REMOVE
Use the following procedure to remove the
head restraint/headrest:
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle. 5. Reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position.
LRS3391
Type B (if so equipped)
LRS2302
1-14Safety-Seats, seat belts and supplemental restraint system
