Circuit ISUZU KB P190 2007 Workshop Repair Manual

ELECTRICAL-BODY AND CHASSIS 8A-525

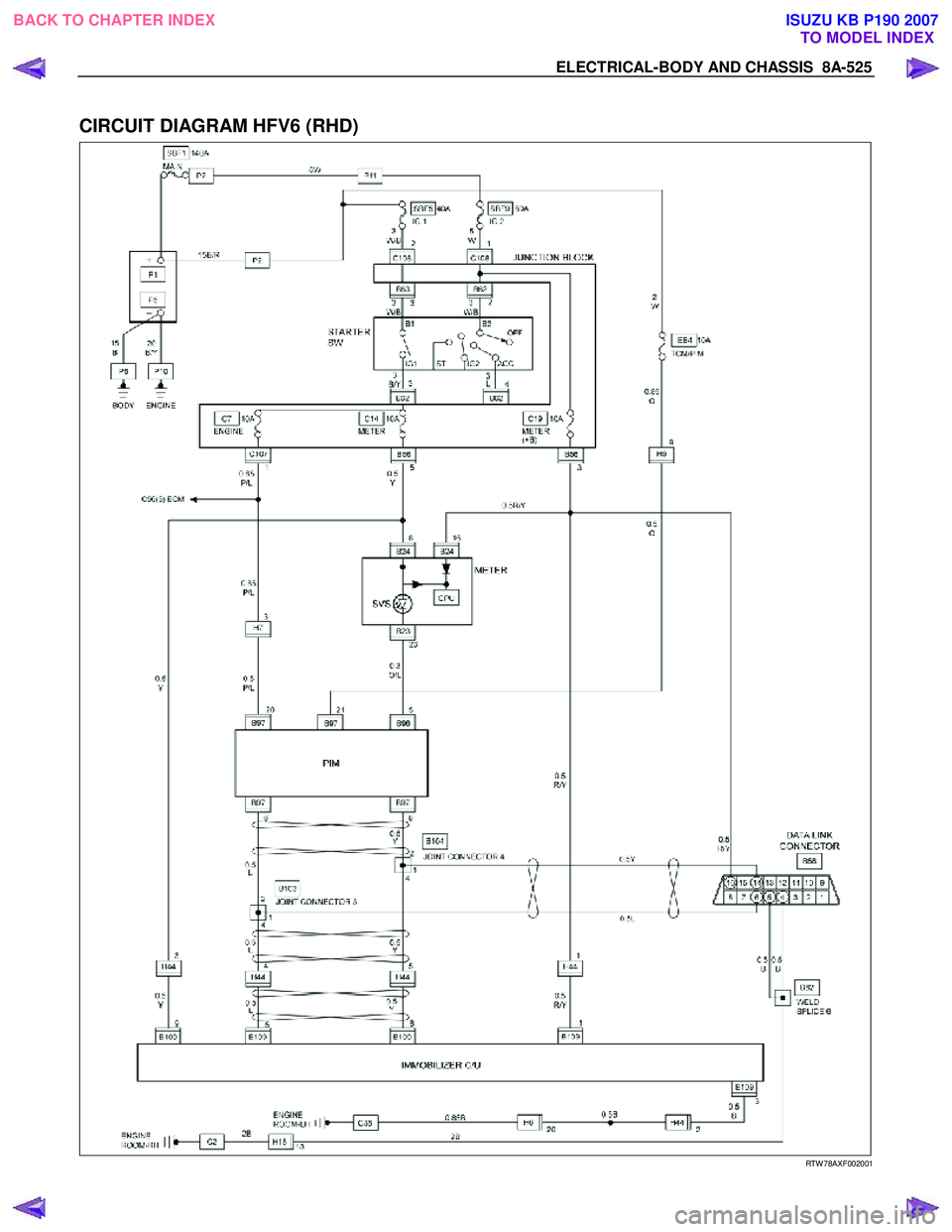

CIRCUIT DIAGRAM HFV6 (RHD)

RTW 78AXF002001

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

8A-526 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA, (LHD) G.EXP, EXCEPT
RHD EUROPE

RTW 78AXF018801

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-527

CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA


RTW 78AXF033801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-528 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T(L) (RHD)


RTW 78AXF008001


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-531

CIRCUIT DIAGRAM C24SE Sheet 1/2


RTW 680XF015001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-532 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE Sheet 2/2




RTW 680XF015101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-533

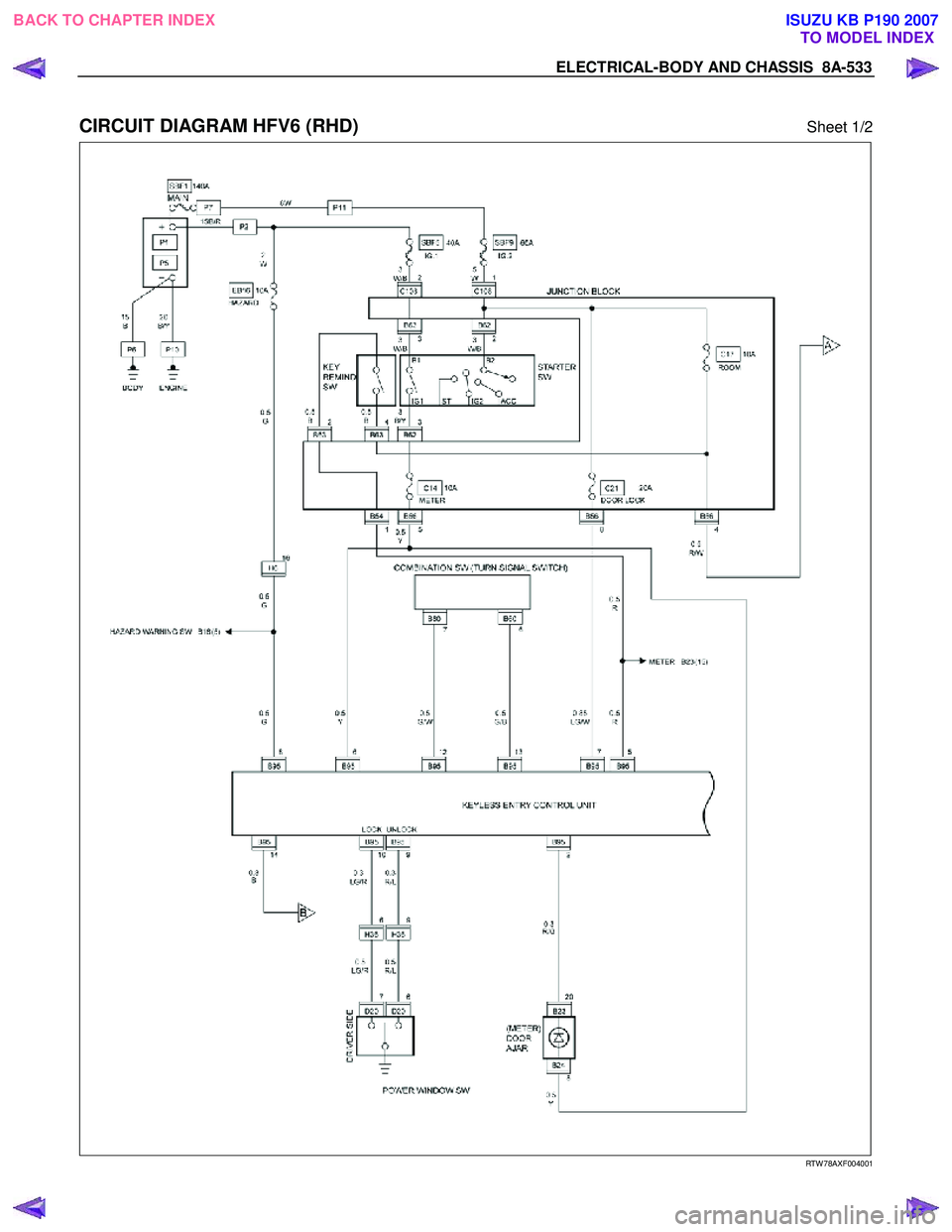

CIRCUIT DIAGRAM HFV6 (RHD) Sheet 1/2





RTW 78AXF004001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-534 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6 (RHD) Sheet 2/2







RTW 78AXF004101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-535

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC, 4JH1-TC Sheet 1/2


RTW 78AXF019001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-536 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC, 4JH1-TC Sheet 2/2




RTW 78AXF019101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
