ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-507 CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC Sheet 1/2 RTW 78AXF025801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5446 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-508 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC Sheet 2/2 RTW 78AXF022501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P19

Page 5447 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-509 CIRCUIT DIAGRAM 4JA1T(L) Sheet 1/2 RTW 78AXF008901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5448 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-510 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JA1T(L) Sheet 2/2 RTW 78AXF009001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5449 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-511 CIRCUIT DIAGRAM HFV6 (LHD) RTW 78AXF012701 BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

Page 5450 of 6020

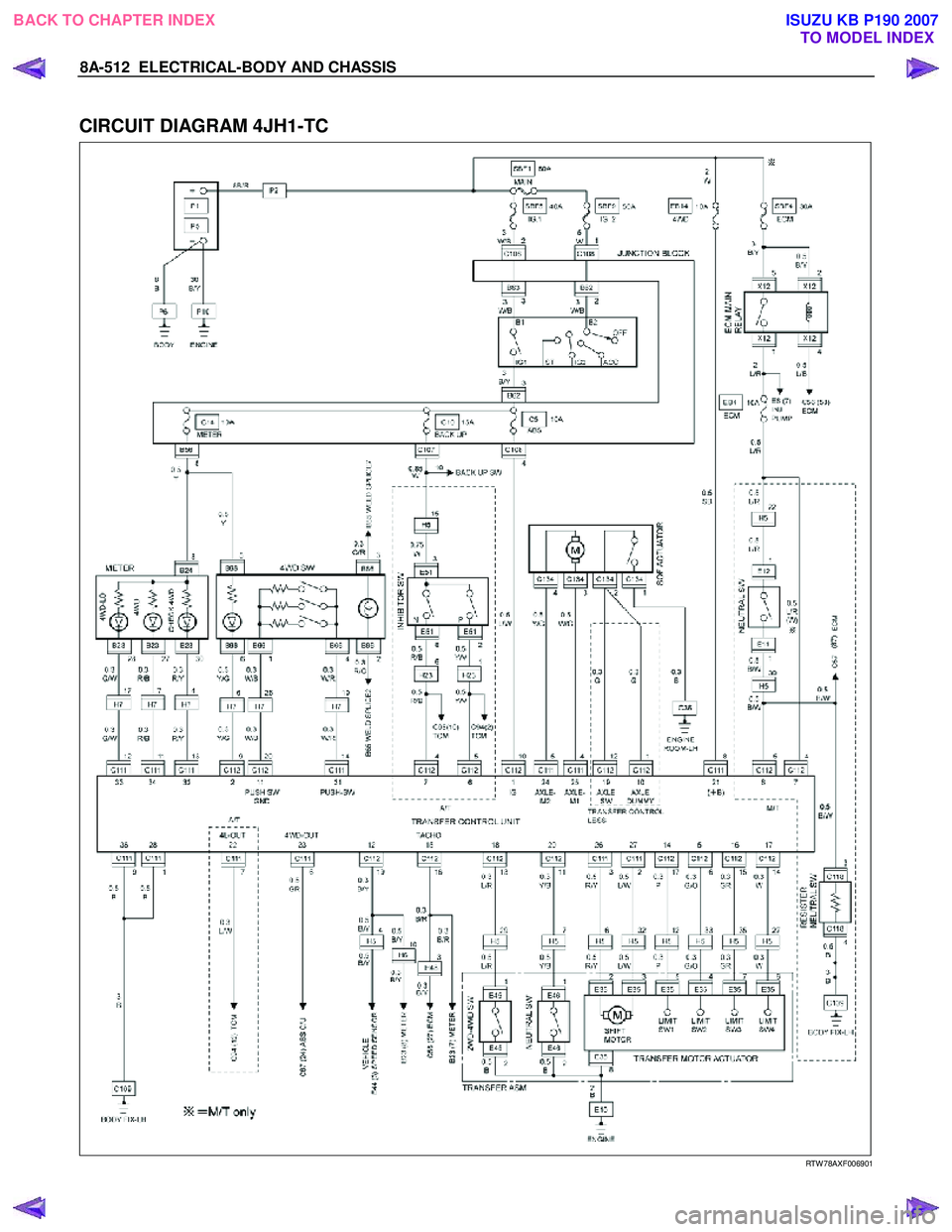

ISUZU KB P190 2007 Workshop Repair Manual 8A-512 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JH1-TC RTW 78AXF006901 BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

Page 5454 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-516 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM HFV6 RTW 78AXF012801 BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

Page 5455 of 6020

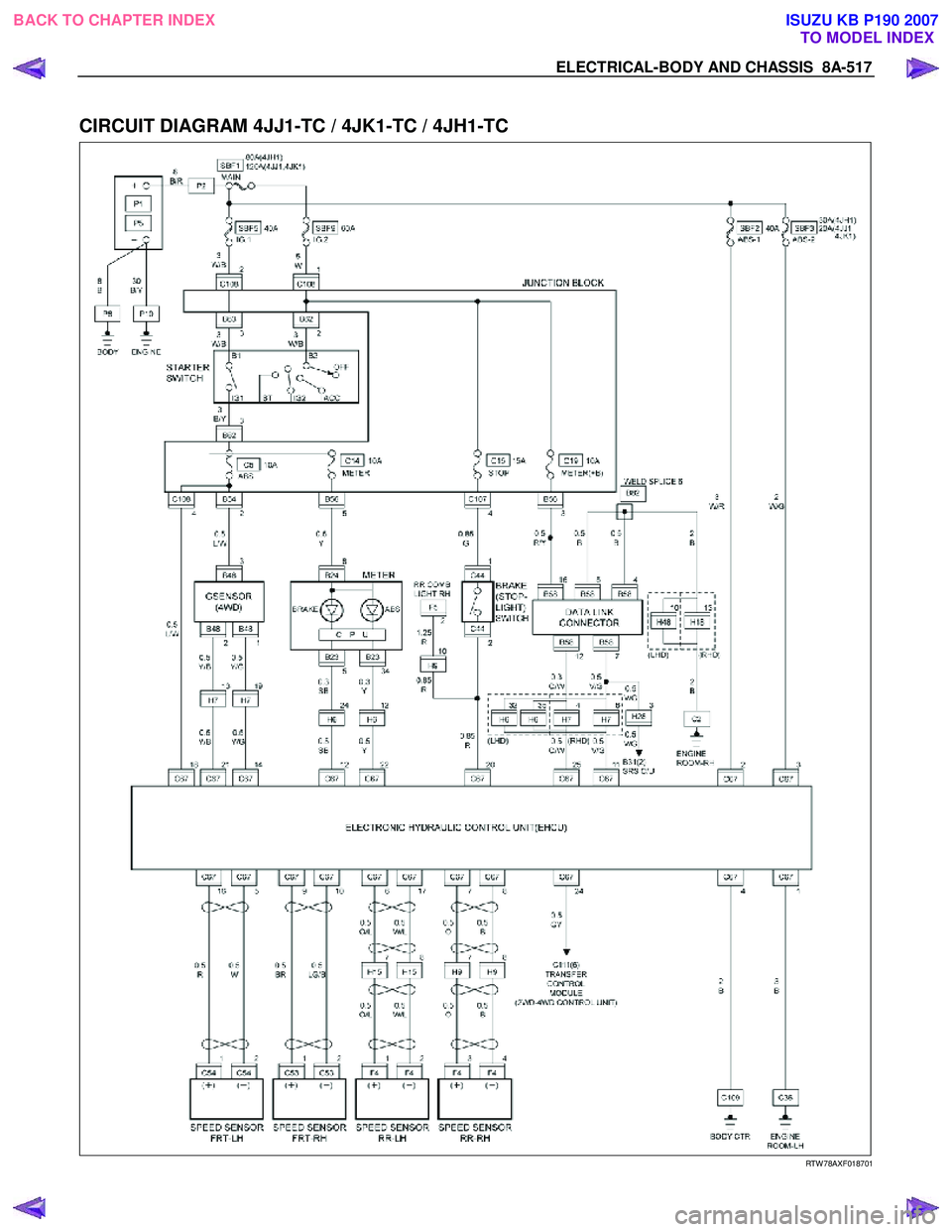

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-517 CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC / 4JH1-TC RTW 78AXF018701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5456 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-518 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JA1T(L) RTW 78AXF007201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5462 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-524 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM C24SE RTW 680XF014601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
