Page 2181 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–11 ECM Circuit Diagram (1/2) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2182 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–12 ENGINE DRIVEABILITY AND EMISSIONS ECM Circuit Diagram (2/2) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2183 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–13 GROUND POINT CHART - LHD GENERAL EXPORT (1/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2184 of 6020

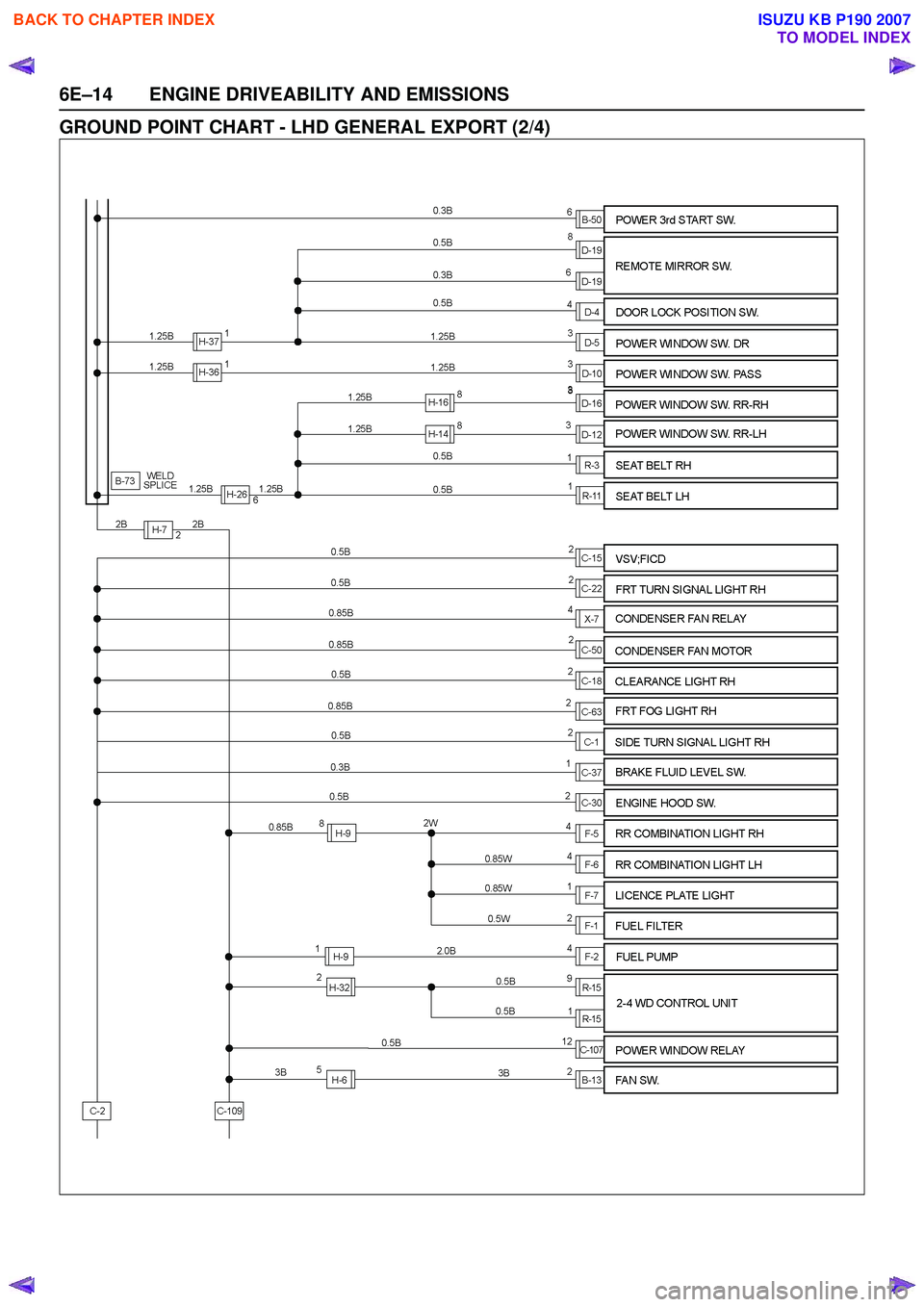

ISUZU KB P190 2007 Workshop Repair Manual 6E–14 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - LHD GENERAL EXPORT (2/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2185 of 6020

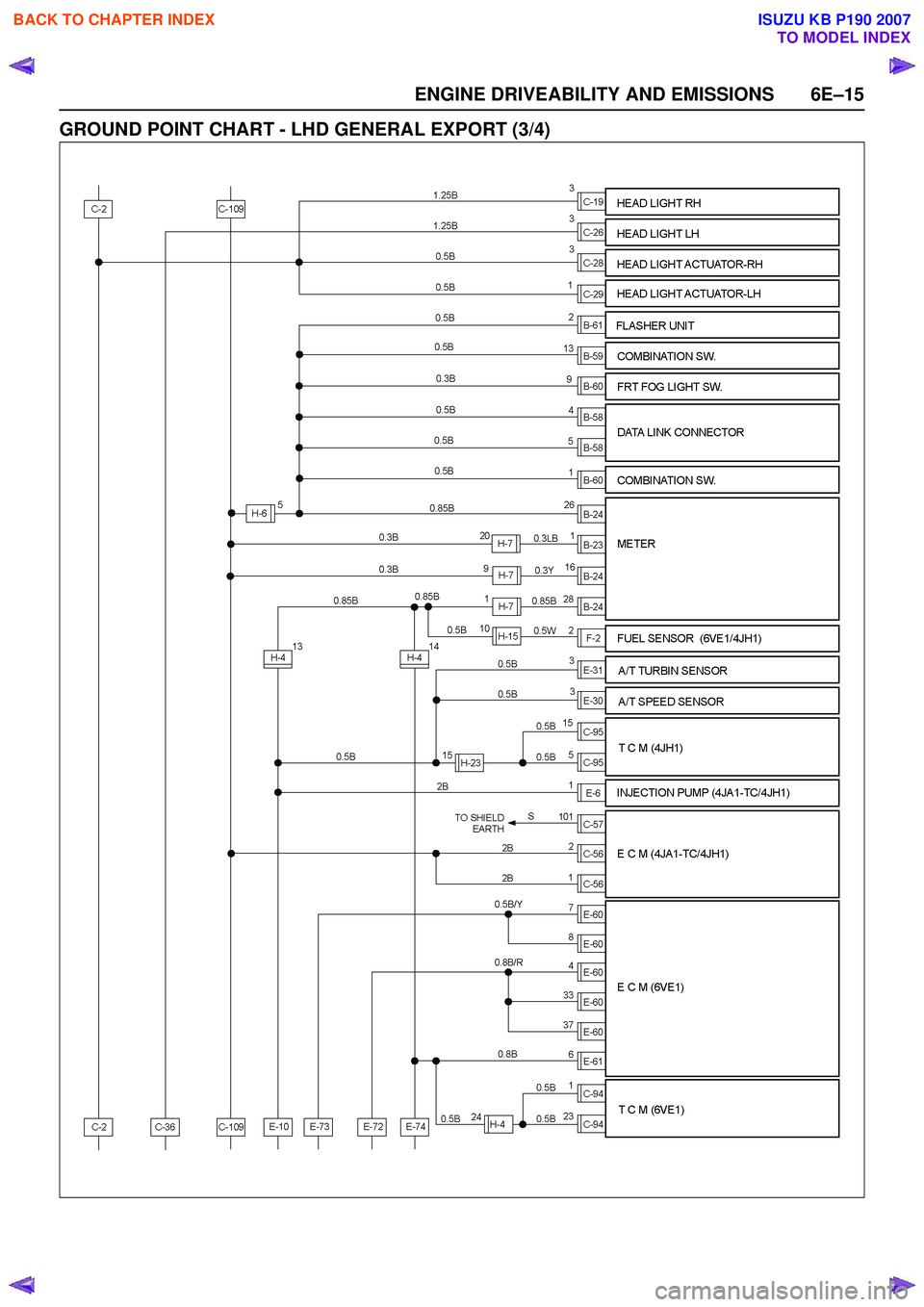

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–15 GROUND POINT CHART - LHD GENERAL EXPORT (3/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2186 of 6020

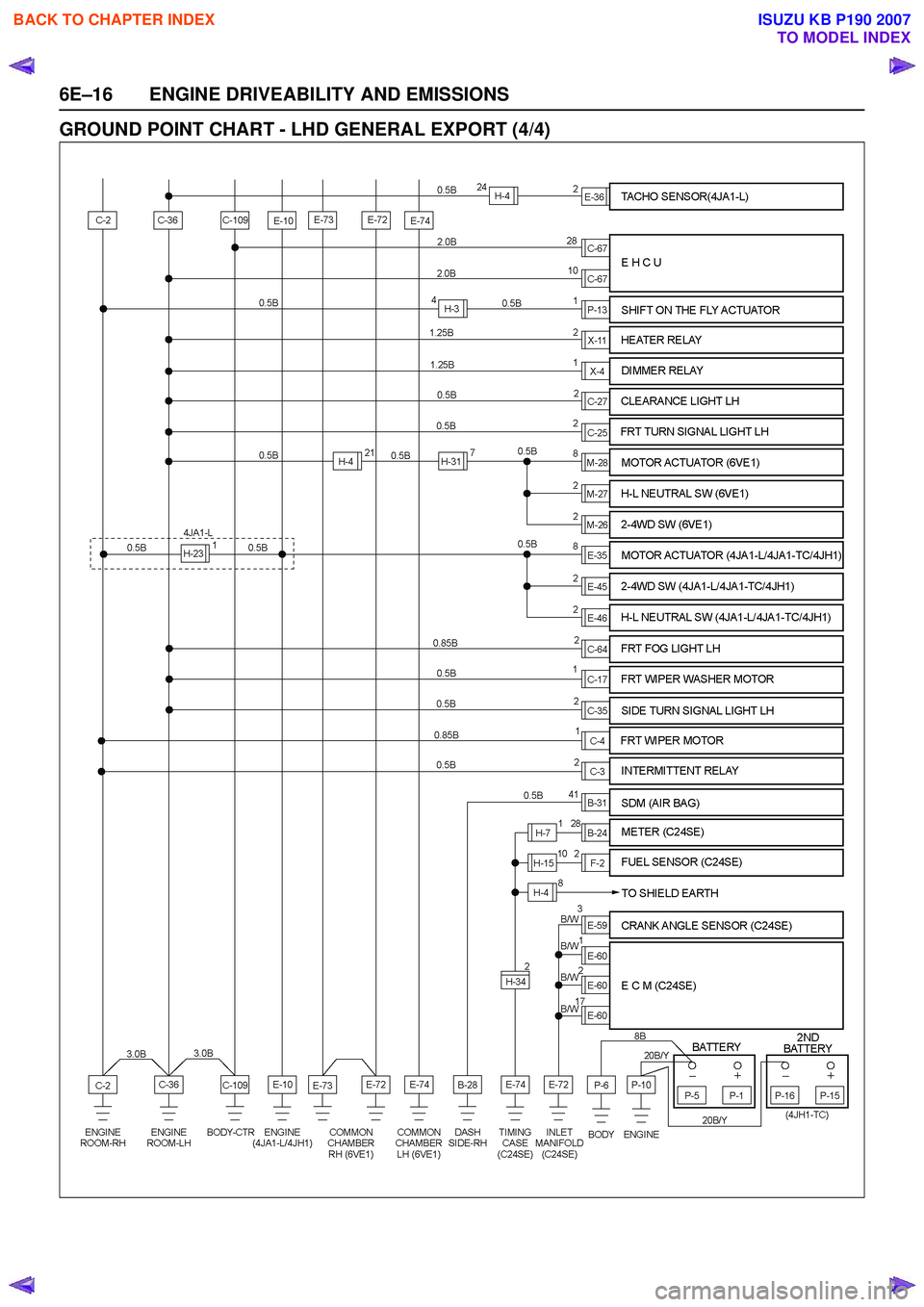

ISUZU KB P190 2007 Workshop Repair Manual 6E–16 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - LHD GENERAL EXPORT (4/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2187 of 6020

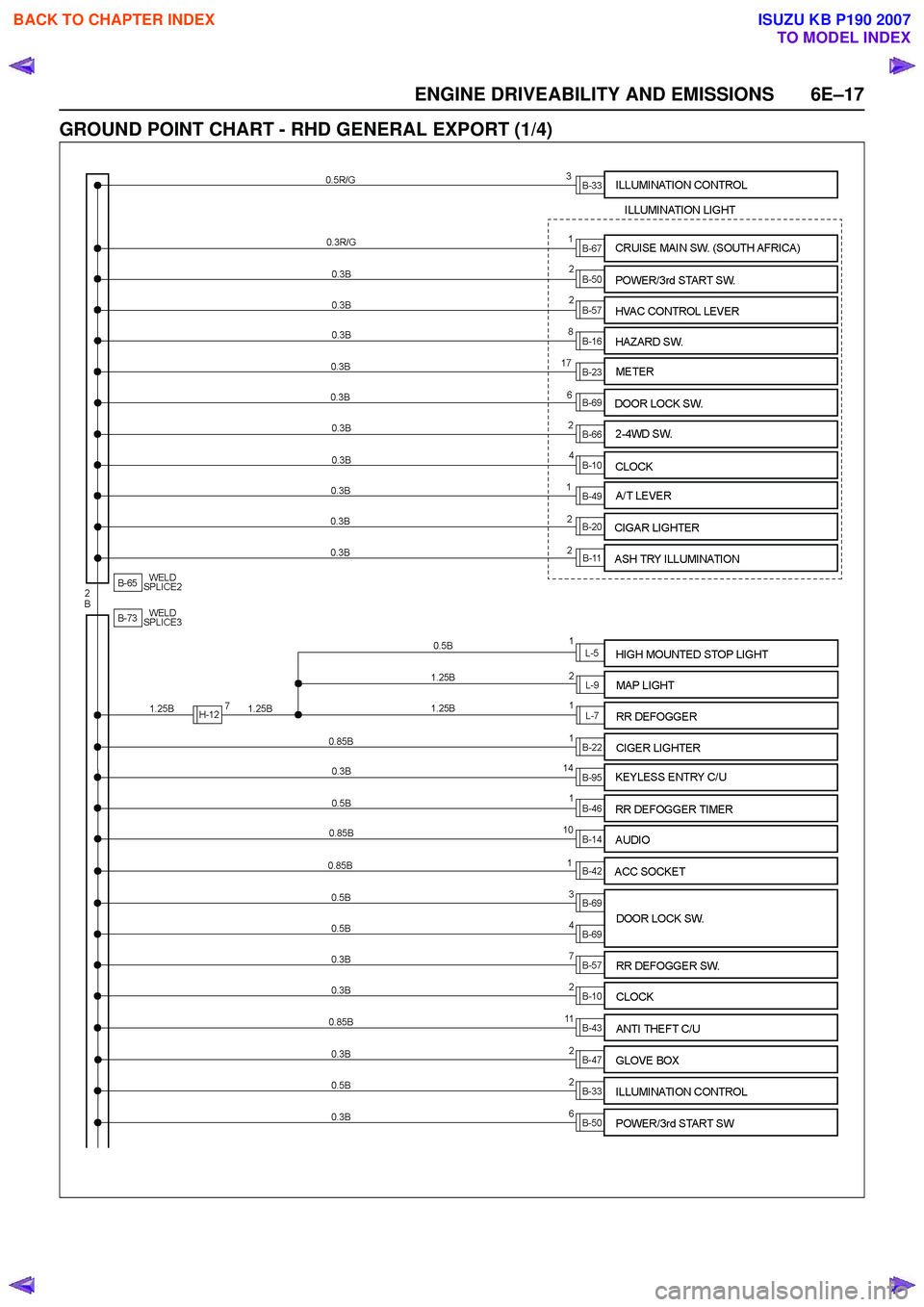

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–17 GROUND POINT CHART - RHD GENERAL EXPORT (1/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2188 of 6020

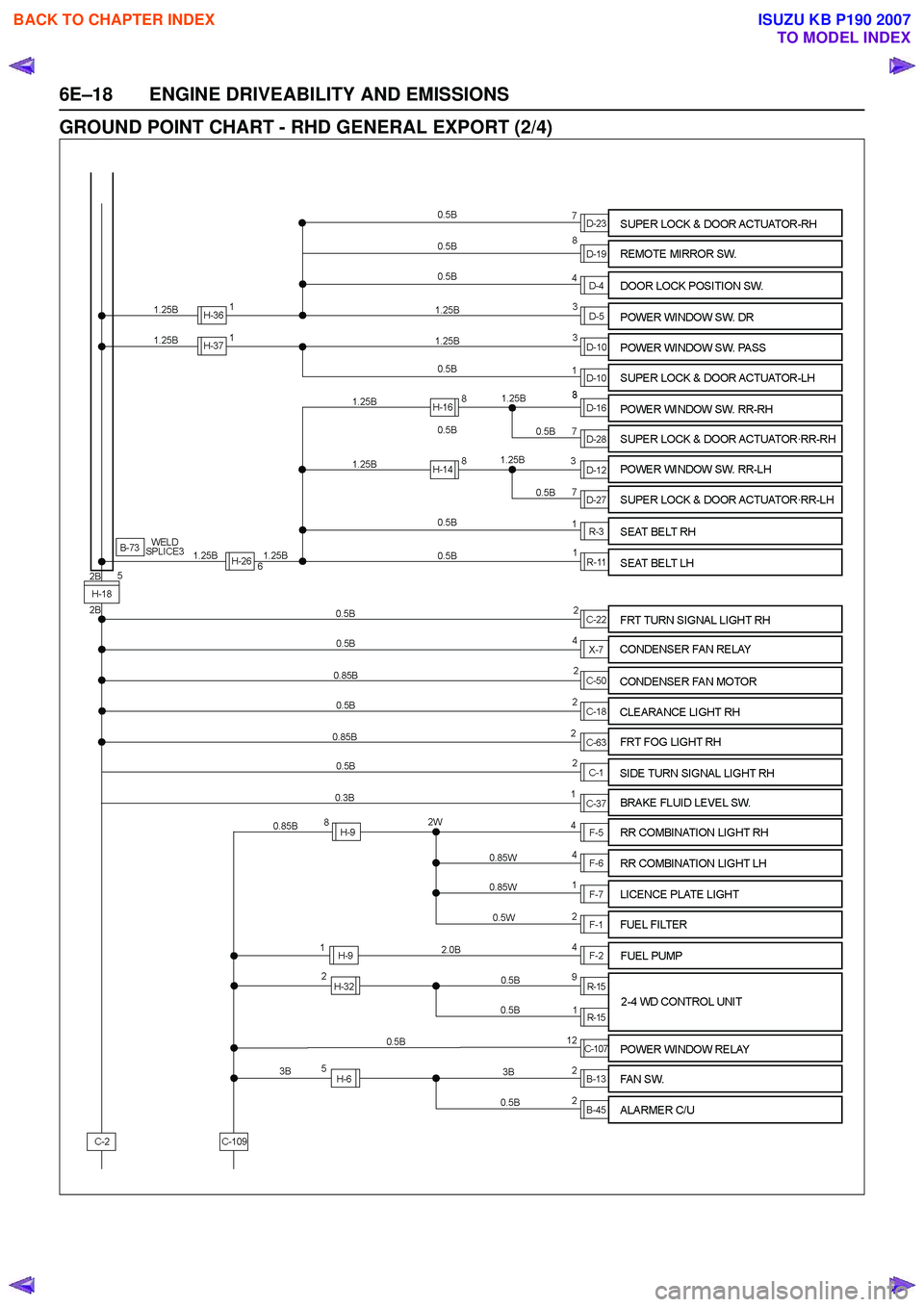

ISUZU KB P190 2007 Workshop Repair Manual 6E–18 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - RHD GENERAL EXPORT (2/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2189 of 6020

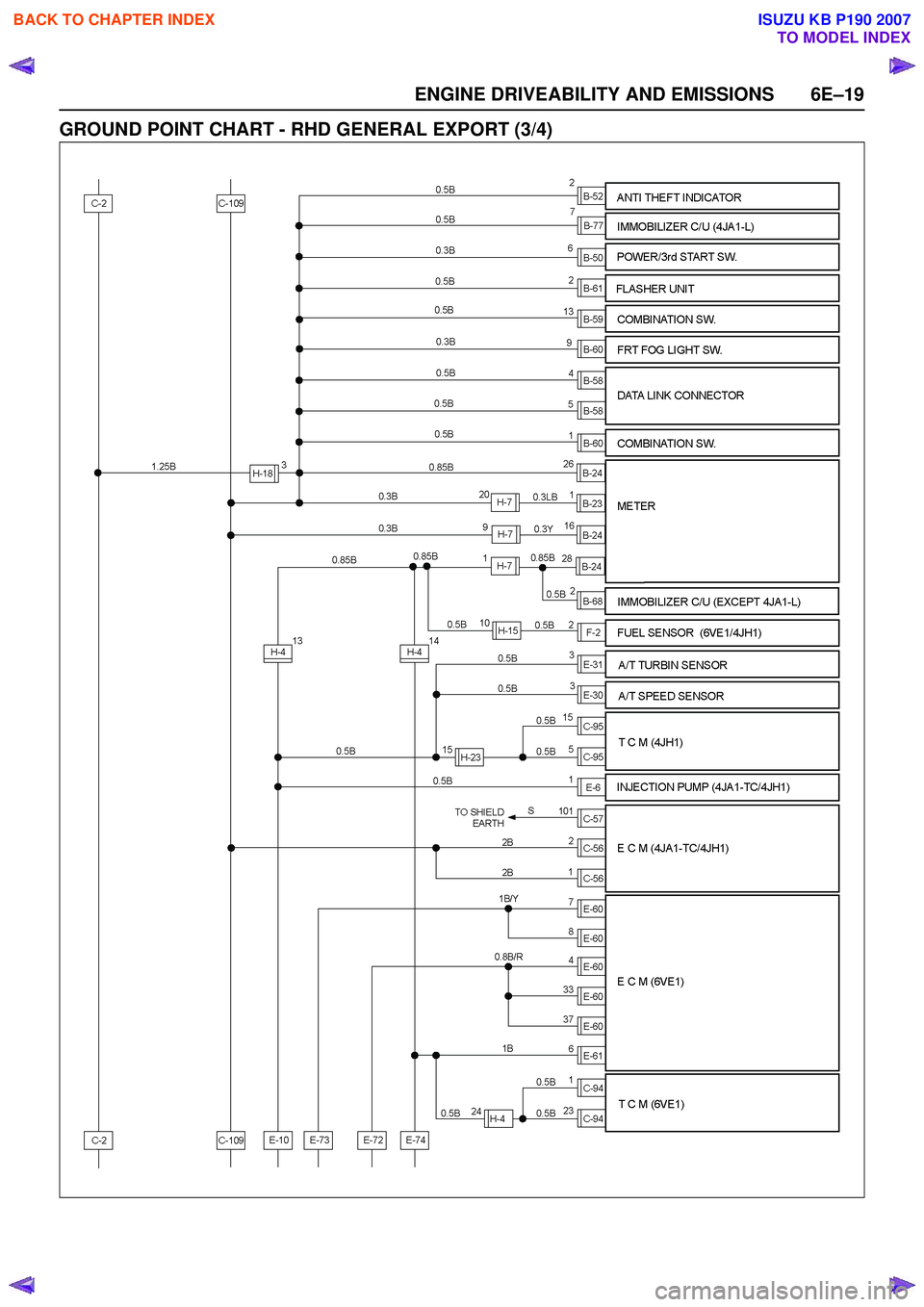

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–19 GROUND POINT CHART - RHD GENERAL EXPORT (3/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2190 of 6020

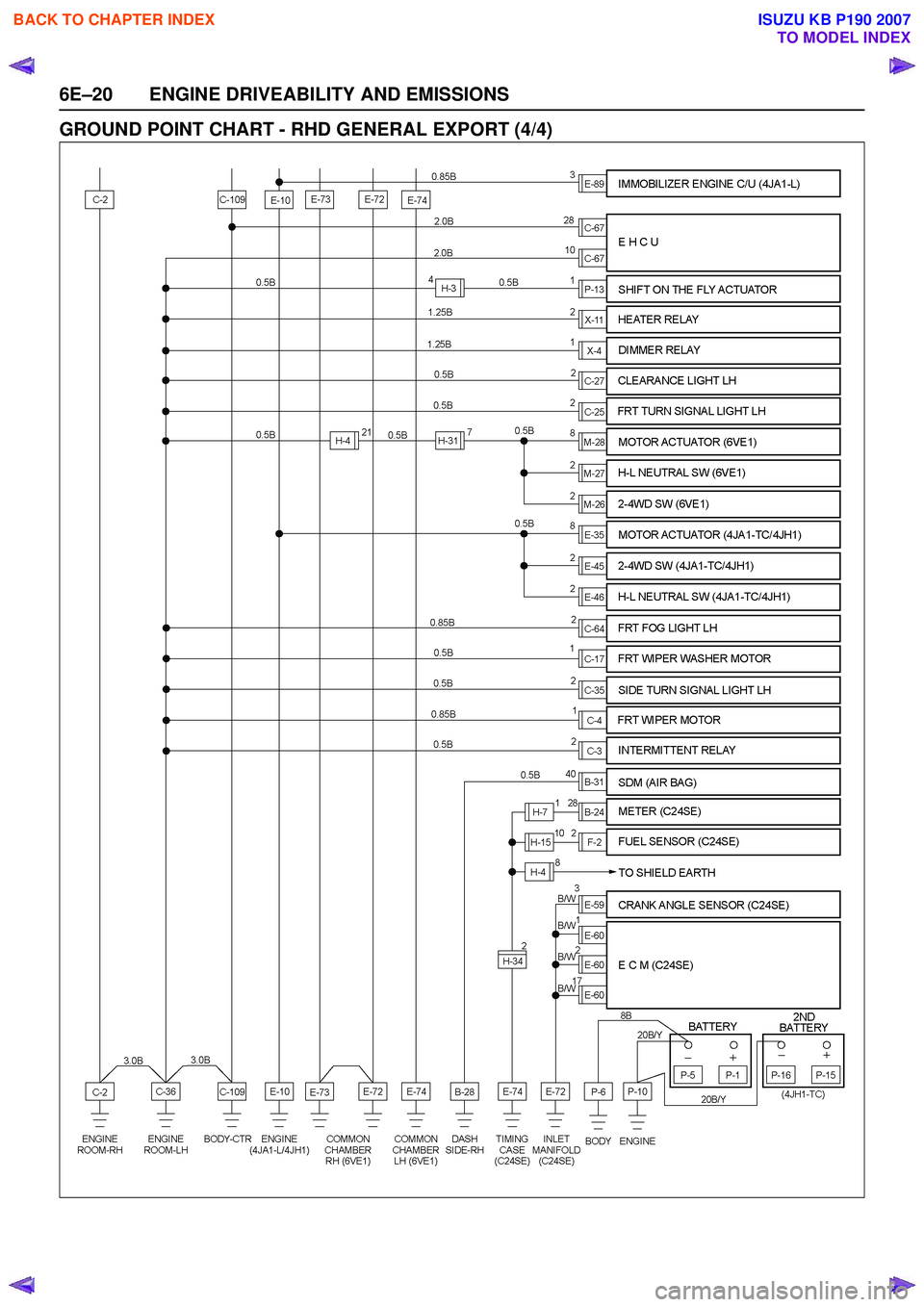

ISUZU KB P190 2007 Workshop Repair Manual 6E–20 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - RHD GENERAL EXPORT (4/4) BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
