ISUZU KB P190 2007  Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–61

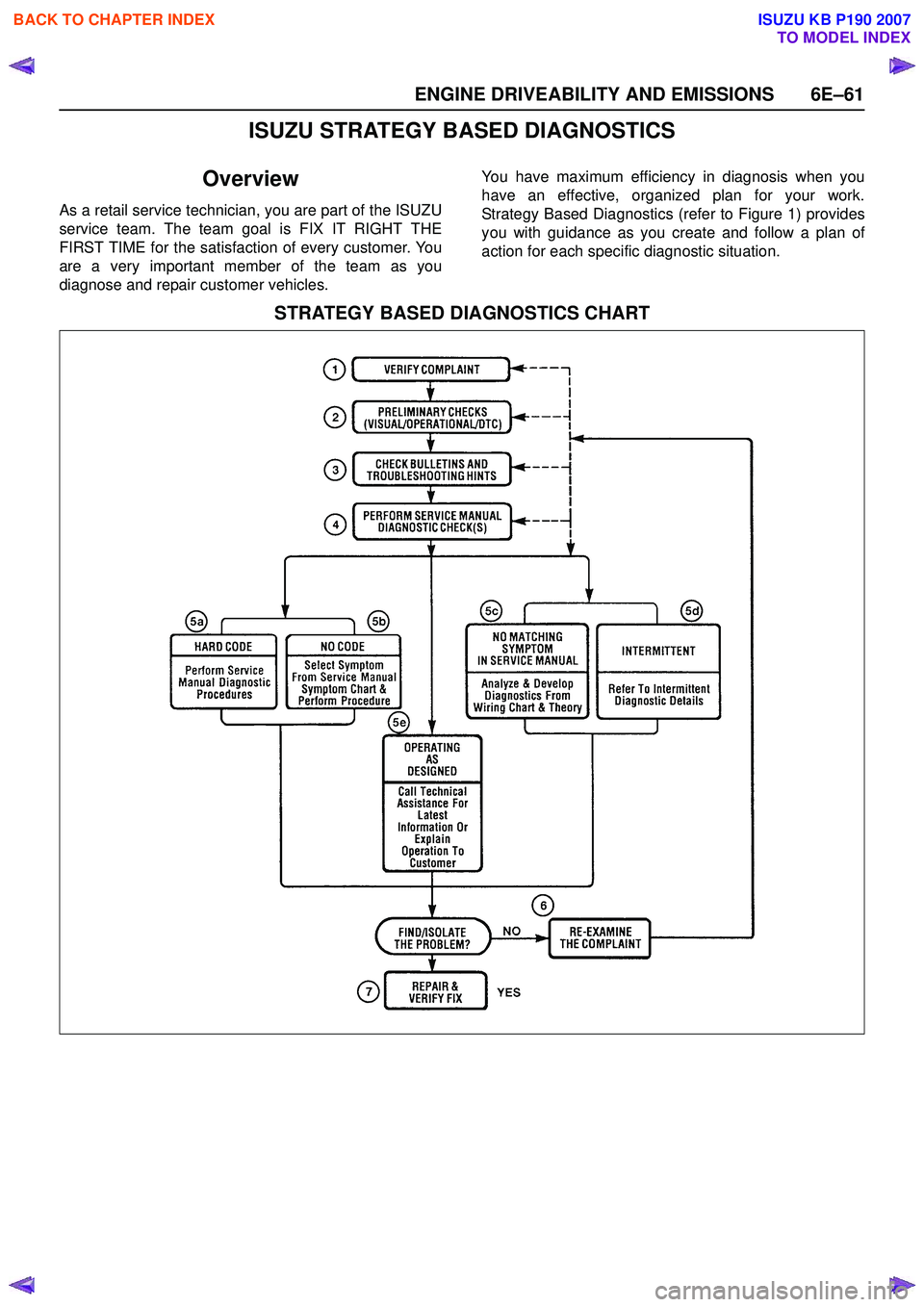

ISUZU STRATEGY BASED DIAGNOSTICS
Overview
As a retail service technician, you are part of the ISUZU
service team. The team goal is FIX IT RIGHT THE
FIRST TIM

Page 2232 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 6E–62 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Thought Process
As you follow a diagnostic plan, every box on the
Strategy Based Diagnostics chart requires you to use
the diagnostic thought proc

Page 2233 of 6020

ISUZU KB P190 2007  Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–63
3. Check Bulletins and Troubleshooting Hints
NOTE:  As estimated 30 percent of successful vehicle
repairs are diagnosed with this step!
What you should do
Yo

Page 2234 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 6E–64 ENGINE DRIVEABILITY AND EMISSIONS
– Are there areas subjected to vibration ormovement (engine, transmission or
suspension)?
– Are there areas exposed to moisture, road salt or other corro

Page 2235 of 6020

ISUZU KB P190 2007  Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–65
Step 3: Simulate the symptom and isolate the
problem
Simulate the symptom and isolate the system by
reproducing all possible conditions suggested in Step

Page 2236 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 6E–66 ENGINE DRIVEABILITY AND EMISSIONS
• Vehicle service information (service manual, etc.)
• ISUZU field support
• Experience
• Identical vehicle or system for comparison
6. Re-examine t

Page 2237 of 6020

ISUZU KB P190 2007  Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–67
GENERAL SERVICE INFORMATION
Aftermarket Electrical and Vacuum
Equipment
Aftermarket (add-on) electrical and vacuum equipment
is defined as any equipment wh

Page 2238 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 6E–68 ENGINE DRIVEABILITY AND EMISSIONS
On-Board Diagnostic (OBD)
On-Board Diagnostic Tests
A diagnostic test is a series of steps, the result of which
is a pass or fail reported to the diagnostic

Page 2239 of 6020

ISUZU KB P190 2007  Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–69
Reading Diagnostic Trouble Codes Using a
Te c h  2
The procedure for reading diagnostic trouble code(s) is
to used a diagnostic Tech 2.  When reading DTC(s

Page 2240 of 6020

ISUZU KB P190 2007  Workshop Repair Manual 6E–70 ENGINE DRIVEABILITY AND EMISSIONS
Tech 2 Operating Flow Cart (Start Up)
Select “2.XL L4 HV240” in Vehicle Identification menu and the following table is shown in the Tech 2 screen.
System
