0B-2 MAINTENANCE AND LUBRICATION
MAINTENANCE SCHEDULE (For GENERAL EXPORT)
Items followed by an asterisk (*) require more frequent maintenance if the vehicle is driven under severe conditions.
Replace the fuel filter (**Mark) when the fuel filter indicator light is lit.
Refer to "SEVERE CONDITIONS MAINTENANCE SCHEDULE."

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate


SERVICE INTERVAL: × 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading × 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60or months whichever
comes first)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
ENGINE
Idling speed and acceleration
(GASOLINE) I I - I - I - I - I - I - I - I - I - I (DIESEL) I I I I I I I I I I I I I I I I I I I I * Air cleaner element
(GASOLINE) - I - I - I - R - I - I - I - R - I - I (DIESEL) I I I I I I I R I I I I I I I R I I I I * Engine oil (HFV6) - - R - - R - - R - - R - - R - - R - - (C24SE) Replace every 12,000km (4JH1-TC, 4JJ1 (Standard Output),
4JJ1 (High Output)) - R - R - R - R - R - R - R - R - R - R

(4JA1-T) R R R R R R R R R R R R R R R R R R R R * Engine oil filter (HFV6) - - R - - R - - R - - R - - R - - R - - (C24SE) Replace every 12,000km (4JH1-TC, 4JA1-T) - R - R - R - R - R - R - R - R - R - R (4JJ1 (Standard Output),
4JJ1 (High Output)) - - - R - - - R - - - R - - - R - - - R
Oil leakage and contamination (GASOLINE) - I - I - I - I - I - I - I - I - I - I (DIESEL) I I I I I I I I I I I I I I I I I I I I Fuel leakage
I I - I - I - I - I - I - I - I - I - I Fuel tank - - - I - - - I - - - I - - - I - - - I O2 Sensor (C24SE) Replace every 160,000km (HFV6)
MIL diagnostic Indicates O2 Sensor Valve clearances (6VE1) Check and adjust if noisy (4JH1-TC, 4JA1-T) A - - A - - - A - - - A - - - A - - - A (4JJ1 (Standard Output),
4JJ1 (High Output)) - - - - - - - A - - - - - - - A - - - -
Spark plugs (C24SE) (for leaded fuel
use) - R - R - R - R - R - R - R - R - R - R
Spark plugs (C24SE) (for unleaded
fuel use) - - - - - R - - - - - R - - - - - R - -
Spark plugs
(HFV6) Replace every 120,000km Spark plug wire - - - - - - - - - - - - - - - - - - - I Fuel filter (GASOLINE) - - - R - - - R - - - R - - - R - - - R (4JH1-TC, 4JA1-T) - - R - - R - - R - - R - - R - - R - - ** (4JJ1 (Standard Output),
4JJ1 (High Output)) Replace the fuel filter when the fuel filter indicator light is lit.
Fuel pump in fuel tank
(4JJ1 (Standard Output),
4JJ1 (High Output)) - - - - - - - I - - - - - - - I - - - -
Engine / Accessory drive belt
(C24SE) - - - - - - - - - I - - - - - - - - - I

(HFV6) Replace every 100,000km Fan belt tension and damage
(DIESEL) I I I I I I I I I I I I I I I I I I I I
* Exhaust system
I I - I - I - I - I - I - I - I - I - I Engine coolant concentration (HFV6) - I - I - I - I - I - I - I - I - I - R (C24SE) - I - I - I - I - R - I - I - I - I - R (DESEL) - I - I - I - I - I - I - I - I - I - I Engine coolant
(4JJ1 (Standard Output),
4JJ1 (High Output)) Change every 2 years
Cooling system for water leakage - I - I - I - I - I - I - I - I - I - I All hoses and pipes in engine
compartment for clogs or damage - I - I - I - I - I - I - I - I - I - I
Timing belt
(C24SE) - - - - - - - - - - - - - - - I - - - - Replace every 120,000km Timing belt (6VE1) Replace every 160,000km

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6 – 4 TROUBLESHOOTING
1-3 Engine turn over but does not start engine
Incase of the fuel not being delivered to the injection pump
Step Action Value(s) Yes No
1 Check clogged, damaged the fuel piping or the
connector loosen.
Was any problem found? —

Repair replace problem parts. Go to Step 2
2 Was the over flow valve on the fuel filter closed? — Repair replace
the over flow valve Go to Step 3
3 Was the fuel filter element clogged? — Replace the
fuel filter element Go to Step 4
4 Was the fuel line air bled? — Go to Step 5 Bleed the air
5 Are any DTC stored? — Go to indicated
DTC Solved

Incase of the fuel is being delivered to the injection pump
Step Action Value(s) Yes No
1 Was the water contain in the fuel? — Replace the
fuel Go to Step 2
2 Was the fuel line air bled? — Go to Step 5 Bleed the air
3 Was the injection spray condition complete? —
Go to Step 4 Replace the
injection nozzle
4 Was the injection nozzle injection starting pressure OK? (See below)
Go to Step 5 Replace the
injection nozzle
5 Was the injection nozzle sticking? — Replace the
injection nozzle Go to Step 6
6 Are any DTC stored? — Go to indicated
DTC Solved

Injection nozzle opening pressure
1st = 19.5 MPa (199 kg/cm2, 2828 psi)

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TROUBLESHOOTING 6 – 9
6. Overheating
Step Action Value(s) Yes No
1 Was the engine coolant level OK? —
Go to Step 2 Replenish the
coolant
2 Was the water leakage or the radiator restriction found? (Include radiator cap) —
Repair or
replace the
leakage part. Go to Step 3
3 Was the fan belt slippage found? — Tension or
replace the fan belt. Go to Step 4
4 Was the fan clutch working completely? —
Go to Step 5 Replace the fan
clutch
assembly.
5 Was the oil leakage found from fan clutch? — Replace the fan
clutch
assembly Go to Step 6
6 Was the thermostat working normally? —
Go to Step 7 Replace the
thermostat.
7 Was the water pump working OK? —
Go to Step 8 Replace the
water pump assembly.
8 Was the restriction by the foreign materials in the cooling system found? For example, clog the water
hose between the cylinder body and radiator etc.. —
Clean or
replace the clog part. Go to Step 9
9 Was the water leakage found from the sealing cap
on the cylinder body? —
Replace the
sealing cap or replace the
cylinder body. Go to Step 10
10 Are any DTC stored? — Go to indicated
DTC. Solved

7. White Exhaust Smoke
Step Action Value(s) Yes No
1 Was the compression pressure OK? 3.0 MPa
(31.0 kg/cm2,
441 psi) at 200 rpm
Go to Step 2 Readjust the
valve clearance or replace the cylinder head gasket or
cylinder liner or
piston or piston ring or valve and relation parts.
2 Was the PCV (Positive Crankcase Ventilation) valve working completely? —

Go to Step 3 Repair or
replace the
PCV valve.
3 Was the turbocharger working completely? —
Go to Step 4 Replace the
turbocharger.
4 Are any DTC stored? — Go to indicated
DTC Solved


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TROUBLESHOOTING 6 – 13
10–3 Continuous noise
Step Action Value(s) Yes No
1 Was the fan belt tension OK? 9 – 13 mm
(0.35 – 0.51
in)
Go to Step 2 Adjust the fan
belt tension.
2 Was the cooling fan loose? — Tighten the
cooling fan Go to Step 3
3 Was noise coming from the generator? — Repair or
replace the generator
and/or the
vacuum pump Go to Step 4
4 Was noise coming from the water pump? — Replace the
water pump Go to Step 5
5 Was noise coming from the cylinder head cover? — Readjust the
valve
clearance. Go to Step 6
6 Are any DTC stored? — Go to indicated
DTC Solved

10-4 Slapping noise
Step Action Value(s) Yes No
1 Was noise coming from the cylinder head cover? — Go to Step 2 Go to Step 4
2 Were valve clearances correct? 0.4 mm
(0.016 in)
both intake
and exhaust Adjust the
valve
clearances Go to Step 3
3 Were the rocker arms damaged? — Replace the
rocker arms Go to Step 4
4 Was the flywheel fixing bolt loose? — Tighten the
fixing bolt. Go to Step 5
5 Was noise coming from the cylinder body? — Go to Step 6 Go to Step 10
6 Inspect the crankshaft bearing and/or crankshaft.
Was the crankshaft bearing and/or crankshaft worn? —
Replace the
worn parts Go to Step 7
7 Inspect the connecting rod bearing and/or crankpin.
Was the connecting rod bearing and/or crankpin
worn? —

Replace the worn parts Go to Step 8
8 Inspect the connecting rod small end bushing and/or
piston pin.
Was the connecting rod small end bushing and/or
piston pin worn? —

Replace the worn parts Go to Step 9
9 Inspect the piston and/or cylinder liner.
Was the piston and/or cylinder liner worn or
damaged? —
Replace the
worn or
damaged parts Go to Step 10
10 Are any DTC stored? — Go to indicated
DTC Solved


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 4 ENGINE MECHANICAL
MAIN DATA AND SPECIFICATIONS
Engine model
Item 4JA1T (L)
4JA1TC
Engine type
Combustion chamber type
Cylinder liner type
Timing gear train system Four-cycle, overhead valve, water cooled
Direct injection
Dry type, chrome plated Gear drive
No. of cylinders-bore × stroke mm (in) 4 – 93 × 92 (3.66 × 3.62)
No. of piston rings Compression ring: 2 / Oil ring: 1
Total piston displacement cm3 (in3)
Compression ratio (to 1) 2,499 (152.4)
18.5
Compression pressure MPa (kg/cm2/psi) 3.0 (31.0/441) – 200 rpm
Engine weight (dry) kg (lb)Approximately 239 (527)
Fuel injection order 1 – 3 – 4 - 2
Fuel injection timing BTDC deg8 -
Specified fuel type
Idling speed rpm

Valve clearances (At cold): Intake mm (in)
Exhaust mm (in)
Intake valves Open at (BTDC) deg
Close at (ABDC) deg
Exhaust valves Open at (BBDC) deg
Close at (ATDC) deg
Fuel system JIS No. 2, DIN/EN590, GB252-1944 Diesel fuel
730 ± 25 (A/C Off)
780 ± 25 (A/C ON)
0.4 (0.016)
0.4 (0.016) 24.5
55.5
54.0
26.0

Injection pump type BOSCH distributor VE type BOSCH distributor VP44 type
Governor type Mechanical (Half all speed
type) Electronically controled
Injection nozzle type
Injection nozzle opening pressure Hole with 5 orifices

MPa (kg/cm2/psi) 1st 19.1 (195 / 2,773) 1st 19.0 (194 / 2,755)
2nd (Reference)
25.5 ∼27.0
(260 ∼275 / 3,702 ∼3,920) 2nd (Reference)
34.0 ∼35.5
(347 ∼362 / 4,936 ∼5,154)
Main fuel filter type
Lubricating system
Lubricating method Cartridge paper element and water separator

Pressure circulation
Specified engine oil (API grade) ISUZU genuine 10W – 30 (API CD of ACEA B2/B3)

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 6 ENGINE MECHANICAL
MAIN DATA AND SPECIFICATIONS
Engine model
Item 4JH1TC
Engine type
Four-cycle, overhead valve, water cooled
Combustion chamber type Direct injection
Cylinder liner type
Timing gear train system Dry type, chrome plated
Gear drive
No. of cylinders-bore × stroke mm (in) 4 – 95.4 × 104.9 (3.76 × 4.13)
No. of piston rings Compression ring: 2 / Oil ring: 1
Total piston displacement liter
Compression ratio (to 1) 2,999
18.3
Compression pressure MPa (kg/cm2/psi) 3.0 (31.0/441) – 200 rpm
Engine weight (dry) kg (lb)MT: Approximately 249 (549)
AT: Approximately 236 (520)
Fuel injection order 1 – 3 – 4 - 2
Specified fuel type JIS No.2, DIN/EN590, GB252-1944 Diesel fuel
Idling speed rpm
700 ± 25 (A/C OFF)
800 ± 25 (A/C ON)
Valve clearances (At cold): Intake mm (in)
Exhaust mm (in)
Intake valves Open at (BTDC) deg
Close at (ABDC) deg
Exhaust valves Open at (BBDC) deg
Close at (ATDC) deg
Fuel system
Injection pump type 0.4 (0.016)
0.4 (0.016) 24.5
55.5
54.0
26.0
BOSCH distributor VP44 type
Injection nozzle type
Injection nozzle opening pressure
MPa (kg/cm
2/psi) Hole with 5 orifices

1st 19.5 (199/2,828)
2nd (Reference) 34.3 ∼35.8 (350 ∼365/4,980 ∼5,197)
Main fuel filter type
Lubricating system
Lubricating method Cartridge paper element and water separator

Pressure circulation
Specified engine oil (API grade) ISUZU genuine 10W – 30 (API CD of ACEA B2/B3)
Oil pump type
Oil filter type Gear
Cartridge paper element
Oil capacity lit (US/UK gal)
6.2 (1.64/1.36) (For 4
× 2)
7.0 (1.85/1.54) (For 4 × 4)
Oil cooler type W ater cooled

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 26 ENGINE MECHANICAL



041RY00011
Draining Procedure
The indicator light will come on when the water level in the
water separator exceeds the specified level.
Drain the water and foreign material from the water
separator (inside chassis frame) with the following
procedure.





1. Place the drain pan under the drain plug.
2. Loosen the drain plug and drain water.
3. After draining the water, tighten the drain plug.
4. Operate the priming pump on the fuel filter several times and check for fuel leakage.
5. Check the water separator indicator light. It should be off.



Except EURO III model
RTW 46ASH002901




For EURO III model
RTW 46ASH000501


Air Bleeding
1. Operate the priming pump until strong resistance is felt.
2. W ait 1 minute, and operate the priming pump until strong resistance is felt.
3. Once more wait, and operate the priming pump until strong resistance is felt.
4. Turn the ignition switch to the "ON" position. W ait until the glow indicator lamp turns off.
5. Turn the ignition switch to the "START" position and crank the engine until it starts.
6. If the engine does not start, repeat Step 3 - 5.
7. Allow the engine to idle for 3 minutes to bleed air completely form the fuel system and check for fuel
leakage.
Note:
Insufficient air bleeding may cause the Diagnostic
Trouble Code (DTC) store or improper engine
performance.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 29


Thermostat Operating Test
1. Completely submerge the thermostat in water.
2. Heat the water. Stir the water constantly to avoid direct heat being
applied to the thermostat.
3. Check the thermostat initial opening temperature.
Thermostat Initial Opening Temperature °C ( °F)
82 (180)
Oil Cooler Thermo Valve °C ( °F)
76.5 (170)
EGR Cooler Thermo Valve °C ( °F)
40 (104)

4. Check the thermostat full opening temperature.
Thermostat Full Opening Temperature °C ( °F)
95 (203)
Oil Cooler Thermo Valve °C ( °F)
90 (194)
EGR Cooler Thermo Valve °C ( °F)
55 (131)
Valve Lift at Fully Open position mm (in)
9.5 (0.37)
Oil Cooler Thermo Valve mm (in)
4.5 (0.18)
EGR Cooler Thermo Valve mm in)
3.5 (0.14)



Drive Belt Adjustment
Check drive belts for wear or damage, and replace with
new ones as necessary. Check belts for tension, and
adjust as necessary.
1 Crankshaft damper pulley
2 Generator pulley
3 Cooling fan pulley
4 Oil pump pulley or idler pulley
5 Compressor pulley or idler pulley


030LX014
033RY00002

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 42 ENGINE MECHANICAL

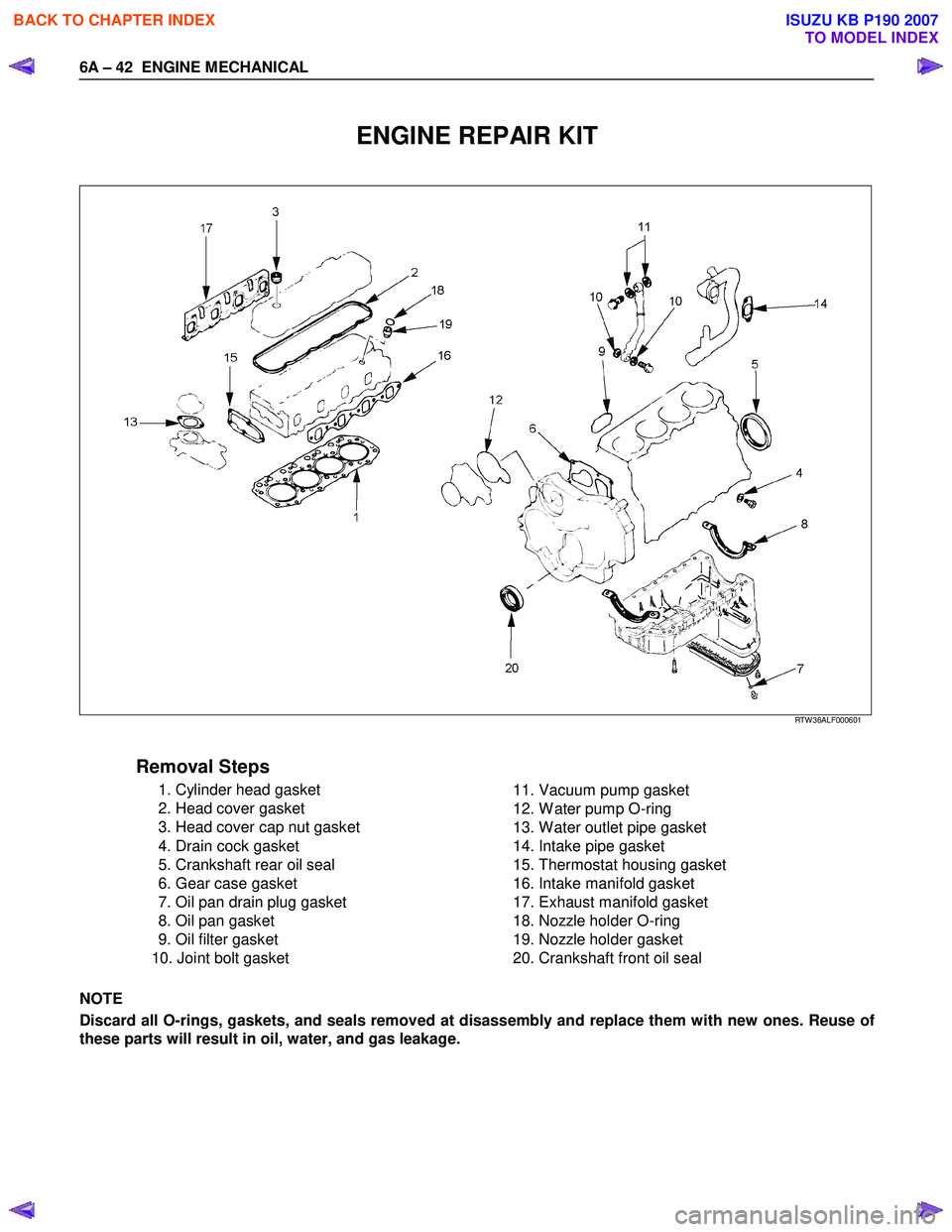

ENGINE REPAIR KIT




RTW 36ALF000601

Removal Steps
1. Cylinder head gasket
2. Head cover gasket
3. Head cover cap nut gasket
4. Drain cock gasket
5. Crankshaft rear oil seal
6. Gear case gasket
7. Oil pan drain plug gasket
8. Oil pan gasket
9. Oil filter gasket
10. Joint bolt gasket
11. Vacuum pump gasket
12. W ater pump O-ring
13. W ater outlet pipe gasket
14. Intake pipe gasket
15. Thermostat housing gasket
16. Intake manifold gasket
17. Exhaust manifold gasket
18. Nozzle holder O-ring
19. Nozzle holder gasket
20. Crankshaft front oil seal

NOTE
Discard all O-rings, gaskets, and seals removed at disassembly and replace them with new ones. Reuse of
these parts will result in oil, water, and gas leakage.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 46 ENGINE MECHANICAL
13. Injection Pump
Refer to section 6C-19 (Injection Pump)

14. Starter Motor
15. Oil Pressure Warning Switch
16. Fuel Leak Off Pipe
17. Oil Cooler Water Pipe
18. Cooling Fan Pulley
19. Heat Protector


20. Catalytic Converter




21. Turbocharger 1) Disconnect the water hose between thermostat housing cover and turbocharger.
2) Disconnect the water hose between water inlet pipe and turbocharger.
3) Remove the oil feed pipe.
4) Remove the oil return pipe.
5) Remove the turbocharger and the gasket.
NOTE:
Plug the turbocharger body oil ports and water ports after
removing the turbocharger assembly to prevent the entry
of foreign material.


22. Compressor Bracket
23. Vacuum Pump Oil Return Hose
24. Generator and Adjusting Plate
25. Water Inlet Pipe
26. Generator Bracket
27. Oil Cooler with Oil Filter
28. Exhaust Manifold


027R100007
037RY00001

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
