Diagram ISUZU KB P190 2007 Workshop Repair Manual

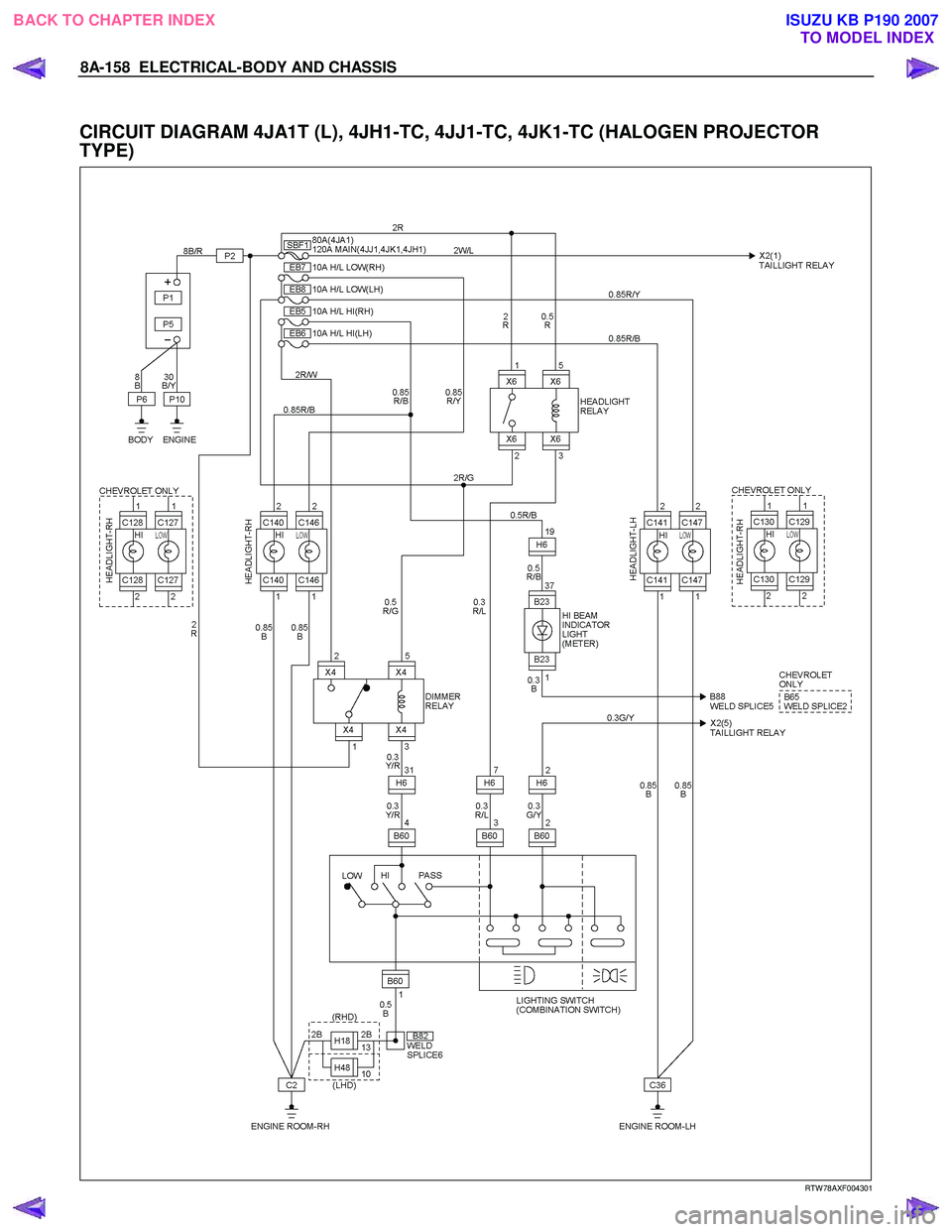

8A-158 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T (L), 4JH1-TC, 4JJ1-TC, 4JK1-TC (HALOGEN PROJECTOR
TYPE)






RTW 78AXF004301

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

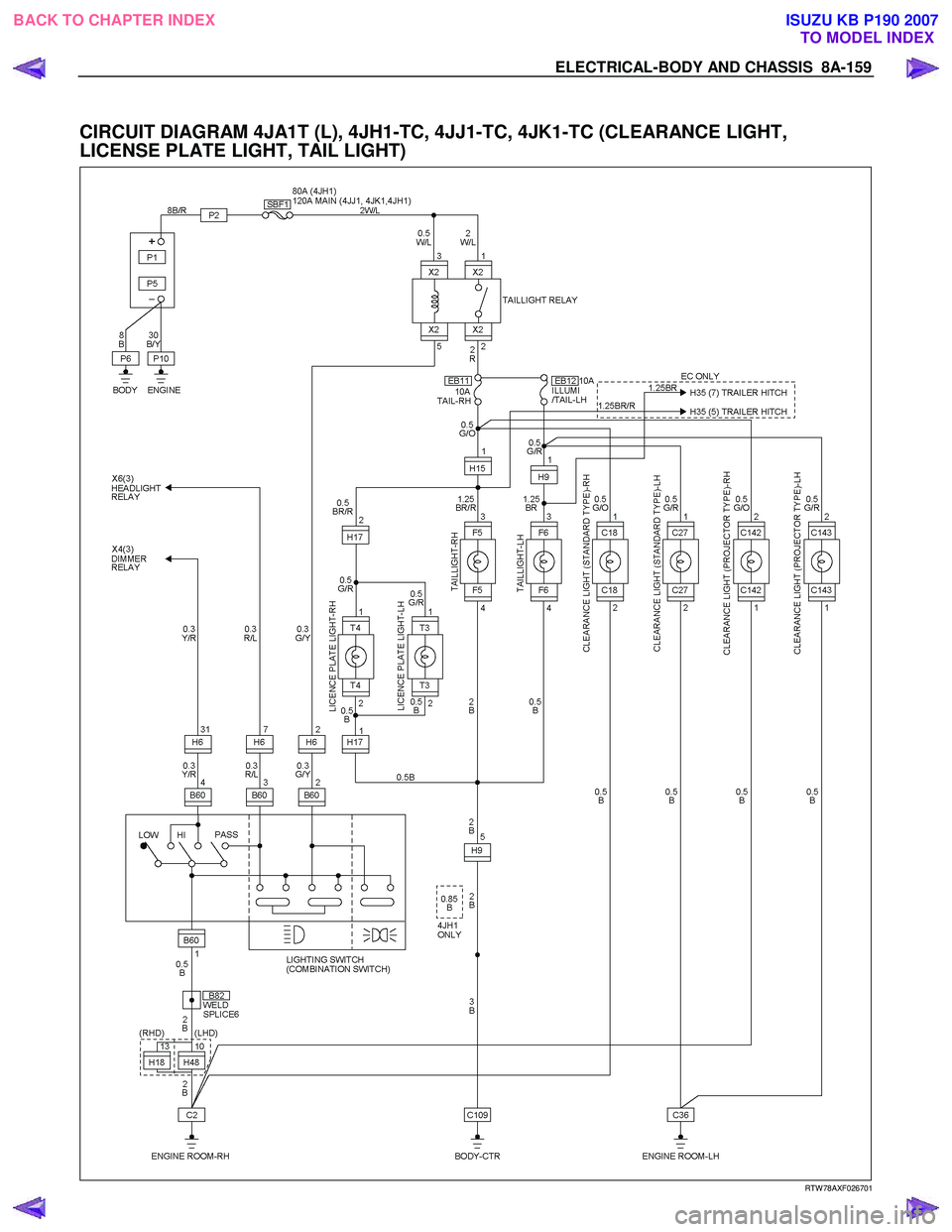

ELECTRICAL-BODY AND CHASSIS 8A-159

CIRCUIT DIAGRAM 4JA1T (L), 4JH1-TC, 4JJ1-TC, 4JK1-TC (CLEARANCE LIGHT,
LICENSE PLATE LIGHT, TAIL LIGHT)


RTW 78AXF026701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-182 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (RHD) WITHOUT REAR FOG LIGHT


RTW 780XF012301

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-183

CIRCUIT DIAGRAM C24SE (RHD) WITH REAR FOG LIGHT


RTW 780XF012401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-184 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6


RTW 78AXF015101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-185

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA, 4JA1T (L)

RTW 78AXF020101

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-186 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP


RTW 78AXF022901


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-192 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP


RTW 78AXF023101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-196 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (RHD)


RTW 680XF007601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-197

CIRCUIT DIAGRAM C24SE (LHD)


RTW 680XF007501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
