Engine Mechanical – V6 Page 6A1–136
Page 6A1–136
21 Install the left-hand secondary timing chain shoe
bolt (1) and tighten to the co rrect torque specification.


NOTE
Ensure secondary timing chain shoe is clear of
the left-hand secondary timing chain tensioner
mounting pad, before ti ghtening the attaching
bolt.
Secondary timing chain shoe attaching
bolt torque specificat ion .......................... 20.0 – 26.0 Nm


Figure 6A1 – 161
22 Ensure the left-hand secondary timing chain tensioner is selected and orientated correctly.


Figure 6A1 – 162
23 Reset the left-hand secondary timing chain tensioner.

NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 163

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

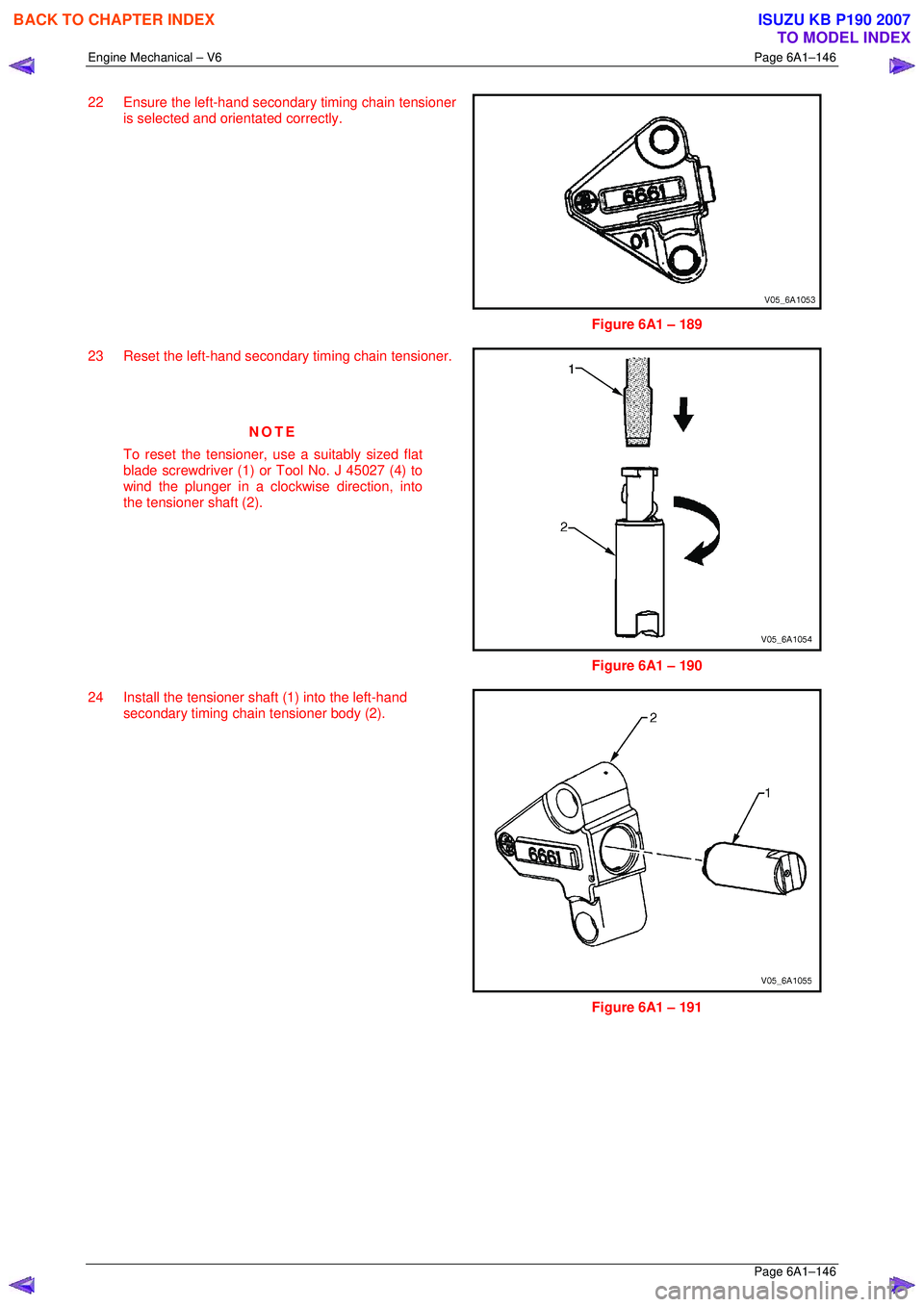

Engine Mechanical – V6 Page 6A1–146
Page 6A1–146
22 Ensure the left-hand secondary timing chain tensioner
is selected and orientated correctly.


Figure 6A1 – 189
23 Reset the left-hand secondary timing chain tensioner.

NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 190
24 Install the tensioner shaft (1) into the left-hand secondary timing chain tensioner body (2).

Figure 6A1 – 191

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–153
Page 6A1–153
15 Ensure that the primary timing chain tensioner is
being installed.

Figure 6A1 – 210
16 Reset the primary timing chain tensioner.




NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 211
17 Install the tensioner shoe assembly (1) into the primary timing chain tensioner body (2).


Figure 6A1 – 212

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

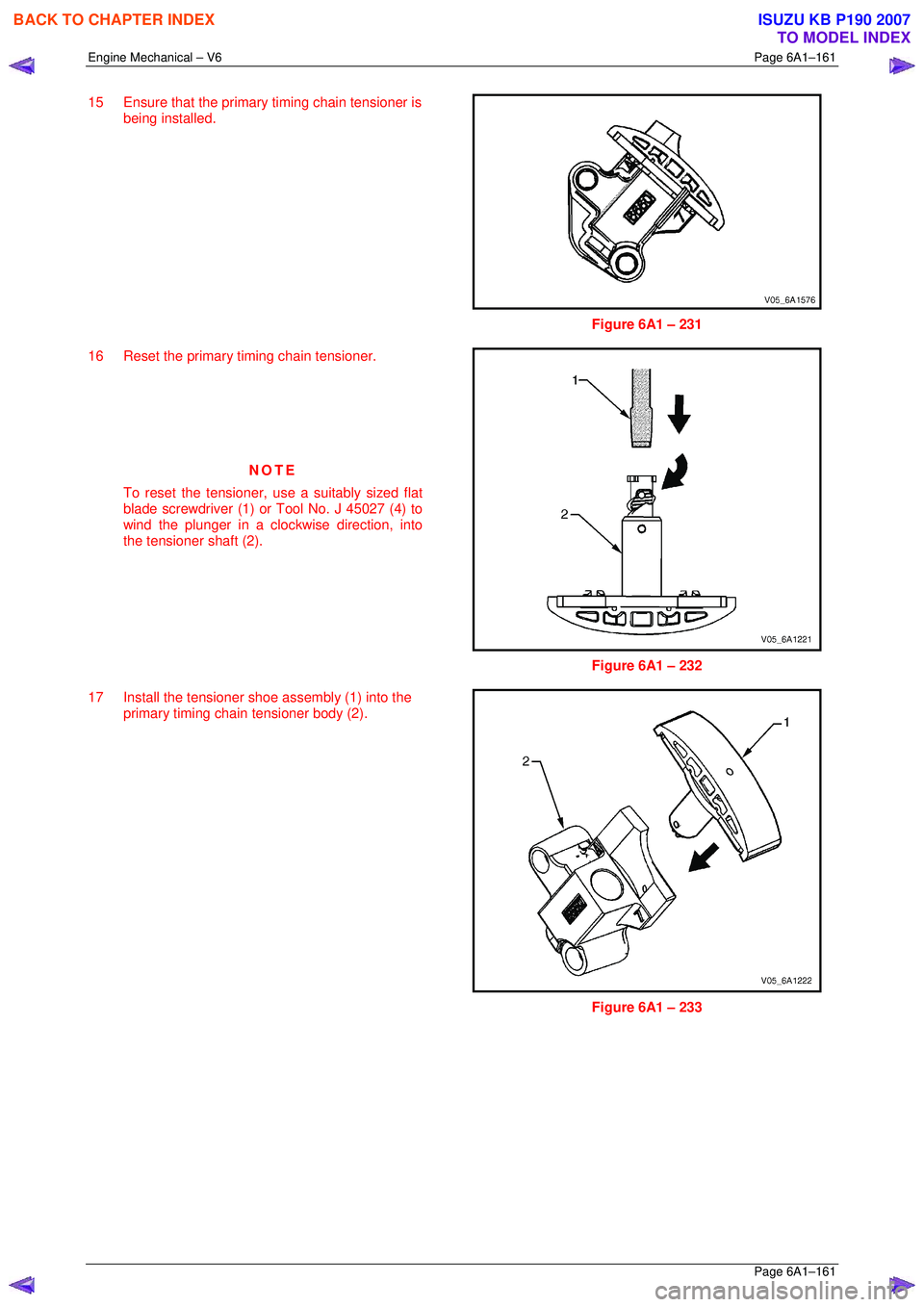

Engine Mechanical – V6 Page 6A1–161
Page 6A1–161
15 Ensure that the primary timing chain tensioner is
being installed.

Figure 6A1 – 231
16 Reset the primary timing chain tensioner.




NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 232
17 Install the tensioner shoe assembly (1) into the primary timing chain tensioner body (2).


Figure 6A1 – 233

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–169
Page 6A1–169
16 Ensure the right-hand secondary timing chain
tensioner is selected and orientated correctly.


Figure 6A1 – 254
17 Reset the right-hand secondary timing chain tensioner.


NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 255
18 Install the tensioner s haft (1) into the right-hand
secondary timing chain tensioner body (2).


Figure 6A1 – 256

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

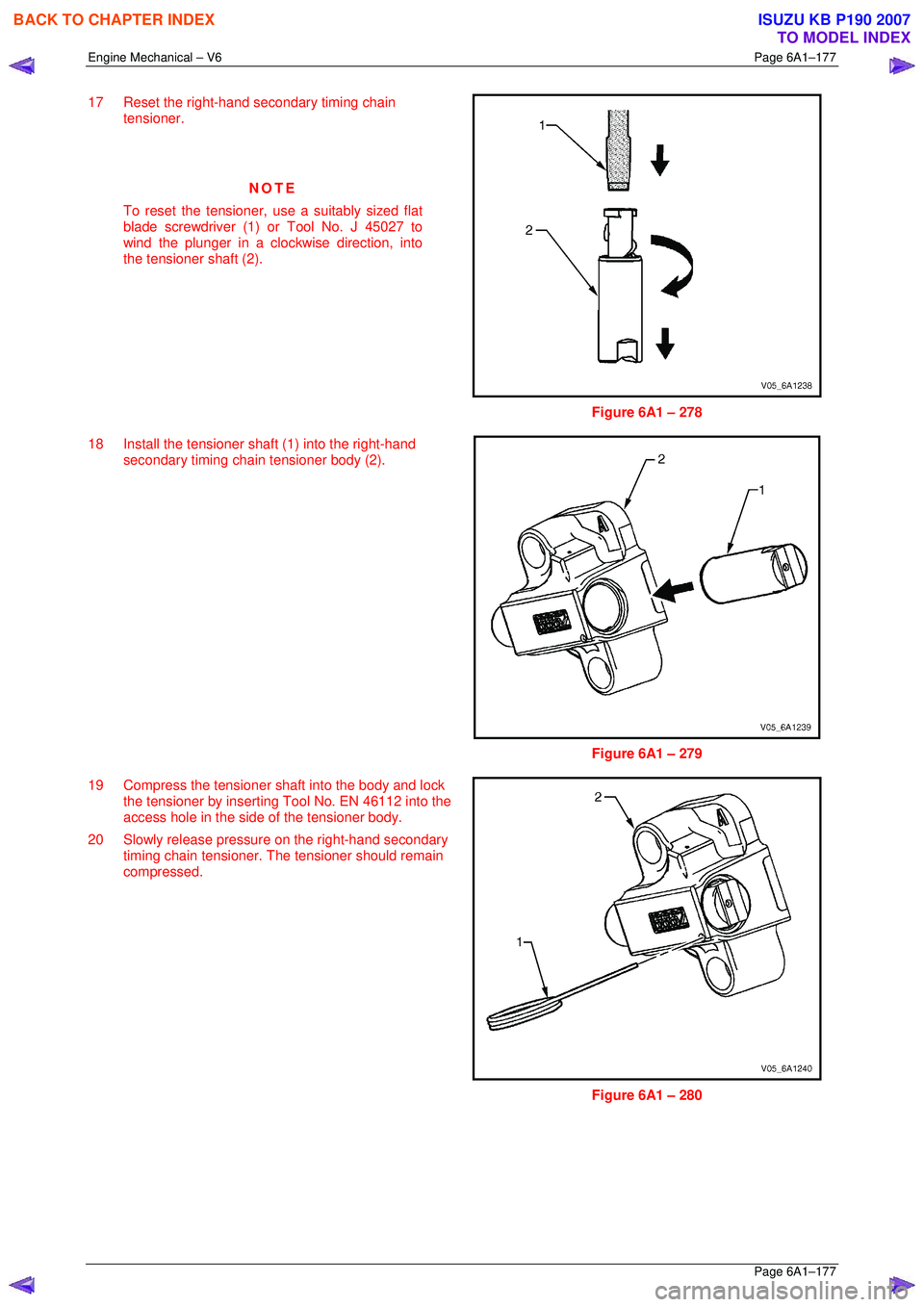

Engine Mechanical – V6 Page 6A1–177
Page 6A1–177
17 Reset the right-hand secondary timing chain
tensioner.


NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 278
18 Install the tensioner s haft (1) into the right-hand
secondary timing chain tensioner body (2).


Figure 6A1 – 279
19 Compress the tensioner shaft into the body and lock the tensioner by inserting Tool No. EN 46112 into the
access hole in the side of the tensioner body.
20 Slowly release pressure on the right-hand secondary timing chain tensioner. The tensioner should remain
compressed.

Figure 6A1 – 280

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Charging System – V6 Page 6D1-1-19


6 Specifications
Ground Polarity...........................................................................................................Negative
Nominal Voltage ............................................................................................................... 1 2 V
Nominal Output............................................................................................................... 12 0 A
Stator Phases .................................................................................................................. ....... 3
Stator W inding Connections ............................................................................................ Delta
Voltage Regulator Setting................................................................................... 14.2 – 14.8 V
Rotor W inding Resistance @ 20 °C ................................................................................. 2.1 V
Slip-ring Outer Diameter ............................................................................................. 22.7 mm
Slip-ring Service Limit ................................................................................................. 22.1 mm
Stator W inding Resistance @ 20 °C ............................................................................ 0.098 Ω
Brush Length New ...................................................................................................... 18.5 mm
Minimum Brush Length................................................................................................. 5.0 mm
Direction of Rotation (viewed from pulley) ................................................................Clockwise


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A1-36 CONSTRUCTION AND FUNCTION
GEAR TRAIN (TRANSMISSION MECHANISM) OPERATION AND
HYDRAULIC CIRCUIT
CONSTRUCTION AND OPERATION
The JR405E consists of two sets of planetary gears, three multiple plate clutches, two multiple plate brakes
and one one-way clutch.





COMPONENT NAME AND FUNCTION
Component Name Symbol Function
Low Clutch L/C Connects the front planetary carrier to the rear
internal gear.
Engaged at 1st, 2nd and 3rd gear.
High Clutch H/C Connects the input shaft to the front planetary
carrier.
Engaged at 3rd and 4th (O/D) gear.
Reverse Clutch R/C Connects the input shaft to the front sun gear.
Engaged at Reverse gear.
Low & Reverse Brake L&R/B Locks the front planetary carrier.
Engaged at L position and Reverse gear.
2-4 Brake 2-4/B Locks the front sun gear.
Engaged at 2nd and 4th (O/D) gear.
Low One-way Clutch L/O.C Allows the front planetary carrier to turn forward
(clockwise) but locks to opposite direction
(counterclockwise).
Operative when accelerating.
Low Clutch Solenoid L/C.S Regulates low clutch pressure.
High Clutch Solenoid H/C.S Regulates high clutch pressure.
Low & Reverse Brake Solenoid L&R/B.S Regulates low & reverse brake pressure.
2-4 Brake Solenoid 2-4/B.S Regulates 2-4 brake pressure.
Lock-up Solenoid L/U.S Regulates lock-up clutch pressure.
High Clutch Oil Pressure SW H/C.P/SW Detects high clutch supply oil pressure.
Low & Reverse Brake Oil Pressure SW L&R/B.P/SWDetects low & reverse brake supply oil pressure.
2-4 Brake Oil Pressure SW 2-4/B.P/SWDetects 2-4 brake supply oil pressure.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-147
Low One-way Clutch
Legend1. Sprag
2. Rotating direction
The low one-way clutch employs the sprag, which locks
the counterclockwise rotation of the front planetary
carrier and the rear internal gear. The one-way clutch
outer race is fitted with the low clutch drum, and the
inner race is fitted with the transmission case. The
outer race rotates freely clockwise, but, when it
attempts to rotate counterclockwise, the sprag locks
the outer race. When the vehicle is traveling in 1st gear
in the D, 3 or 2 position, the low one-way clutch locks
the rear internal gear via the low clutch. It is left free in
the 2nd, 3rd or 4th gear. Parking Function
Legend
1. Parking pawl
2. Parking pawl shaft
3. Pawl return spring
4. Parking actuator support
5. Manual plate
6. Parking cam
7. Parking gear
8. Parking rod
By setting the selector lever to the P range, the parking
pawl is engaged with the parking gear and fixes the
output shaft. By moving the selector lever, the manual
shaft on the right side of the transmission is moved.
The manual plate and parking rod in the transmission is
interlocked with the manual shaft. When the manual
shaft moves, the parking rod end pushes up the parking
pawl. The parking pawl is engaged with the parking
gear when pushed up, and fixes the output shaft. When
the parking is disengaged, it returns to the original
position via the force of the return spring.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

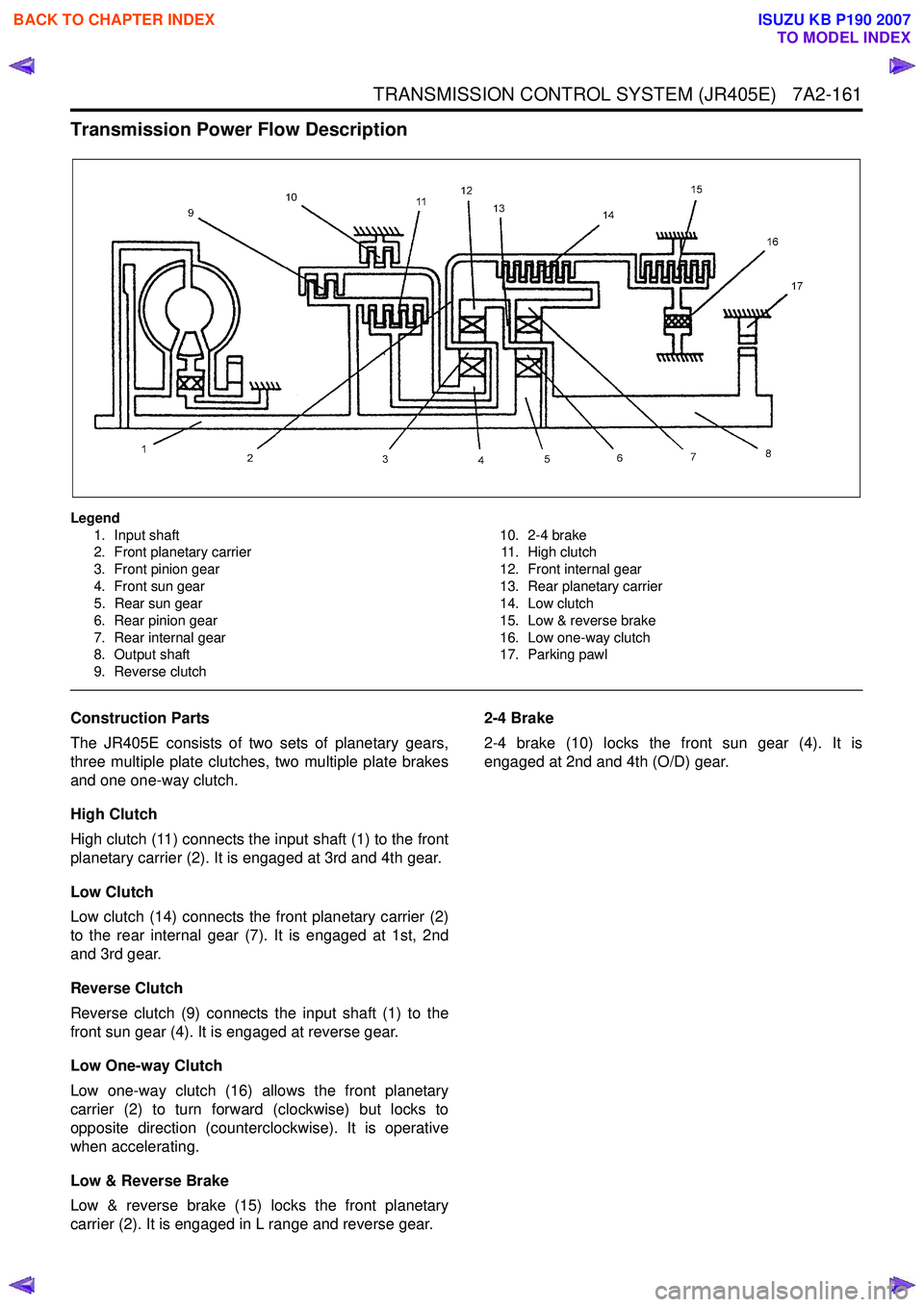

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-161
Transmission Power Flow Description
Legend1. Input shaft
2. Front planetary carrier
3. Front pinion gear
4. Front sun gear
5. Rear sun gear
6. Rear pinion gear
7. Rear internal gear
8. Output shaft
9. Reverse clutch 10. 2-4 brake
11. High clutch
12. Front internal gear
13. Rear planetary carrier
14. Low clutch
15. Low & reverse brake
16. Low one-way clutch
17. Parking pawl
Construction Parts
The JR405E consists of two sets of planetary gears,
three multiple plate clutches, two multiple plate brakes
and one one-way clutch.
High Clutch
High clutch (11) connects the input shaft (1) to the front
planetary carrier (2). It is engaged at 3rd and 4th gear.
Low Clutch
Low clutch (14) connects the front planetary carrier (2)
to the rear internal gear (7). It is engaged at 1st, 2nd
and 3rd gear.
Reverse Clutch
Reverse clutch (9) connects the input shaft (1) to the
front sun gear (4). It is engaged at reverse gear.
Low One-way Clutch
Low one-way clutch (16) allows the front planetary
carrier (2) to turn forward (clockwise) but locks to
opposite direction (counterclockwise). It is operative
when accelerating.
Low & Reverse Brake
Low & reverse brake (15) locks the front planetary
carrier (2). It is engaged in L range and reverse gear. 2-4 Brake
2-4 brake (10) locks the front sun gear (4). It is
engaged at 2nd and 4th (O/D) gear.
