ISUZU KB P190 2007 Workshop Repair Manual

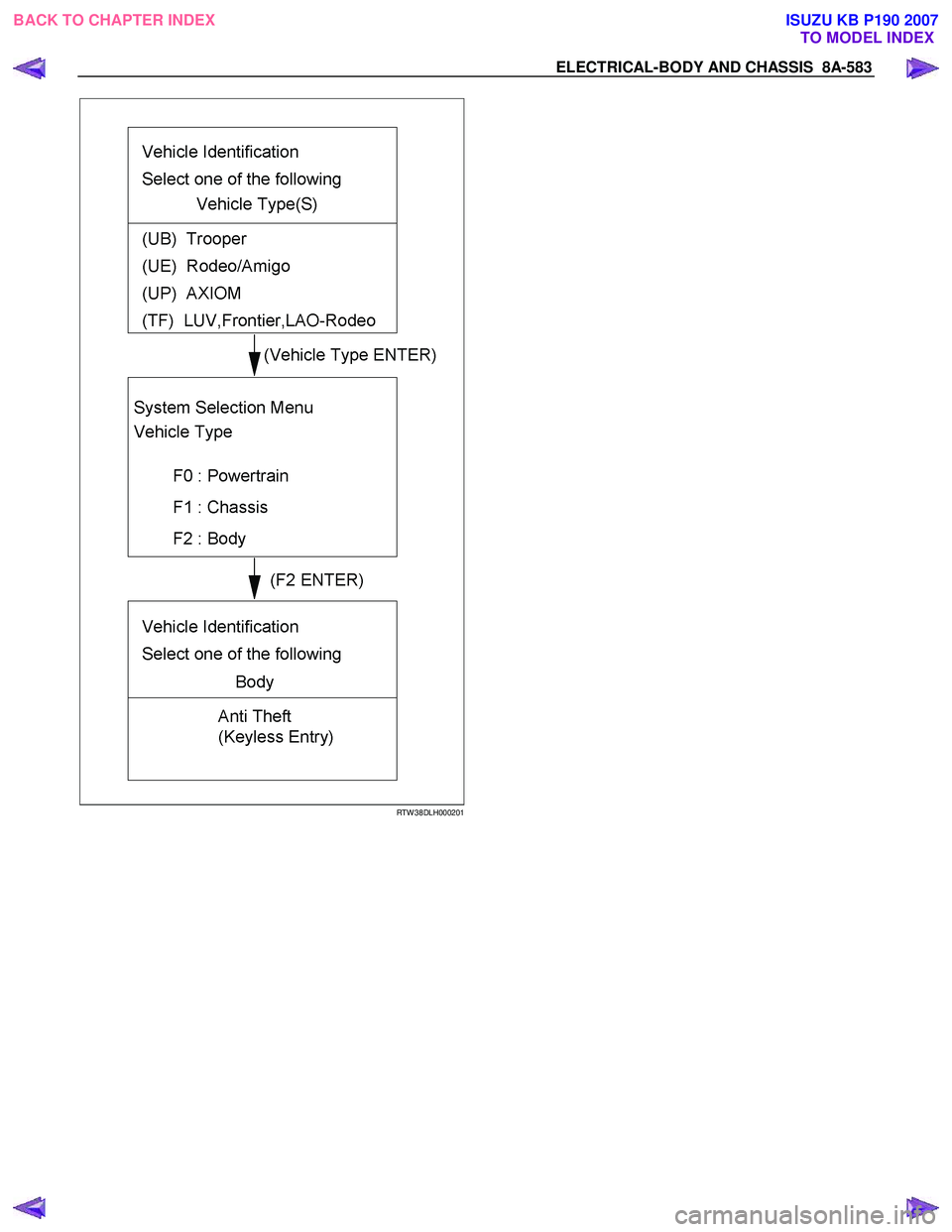

ELECTRICAL-BODY AND CHASSIS 8A-583
RTW 38DLH000201



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-584 ELECTRICAL-BODY AND CHASSIS
RTW 38DLH000101
Menu
The left table shows witch functions are used for the
available equipment versions.
NOTE: Marked items are not applied for keyless entry
system.

DTC
On OBD has three options available in the Tech-2
DTC mode to display the enhanced information
available.
• Read DTC Info Ordered By Priority.
• Read DTC Info As Stored By ECU.
• Clear DTC and Alarm Code Info.

Clear DTC Information
To clear Diagnostic Trouble Codes (DTCs), Use the
diagnostic scan tool “Clear DTC Information” function.

Tech-2 Data Display
The Tech-2 data values represent values that would
be seen on a normally-keyless entry system.



RTW 38DSH001601
Actuator Test
Unlock/Lock Test
Check whether opening and closing of a door lock
can be performed by operation of Tech-2.
1. Turn the key “OFF”.
2. Turn the key “ON”.
3. Check the display and test menu.
4. Operate the Tech-2.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-585

RTW 38DSH001701
Turn Signal Test
Check the turn signal lamp lights up by operation of
Tech-2.
1. Turn the key “OFF”.
2. Turn the key “ON”.
3. Check the display and test menu.
4. Operate the Tech-2.


060R200289
Programming
Erase Remove Key
To erase remove control key code in the control unit.
1. Check the display of Tech-2 and press “Confirm”
key.
RTW 38DSH001001
2. Enter security code.
3. Press “Not Okay” or “Okay” key.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-586 ELECTRICAL-BODY AND CHASSIS
RTW 38DSH001101
4. Check the display of Tech-2 and press “Confirm”
key.
RTW 38DSH001201
5. Check the display of Tech-2 and press “Confirm”
key.
060R200289
Program Remote Key
To program remote control key code in the control
unit.
1. Check the display of Tech-2 and press “Confirm”
key.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-587
RTW 38DSH001301
2. Check the following table in the display of Tech-2.
3. Operate the remote key.
RTW 38DSH001401
4. Check the display of Tech-2 and press “Confirm”
key.
RTW 38DSH001501
5. Check the display of Tech-2 and press “No” or
“Yes” key.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

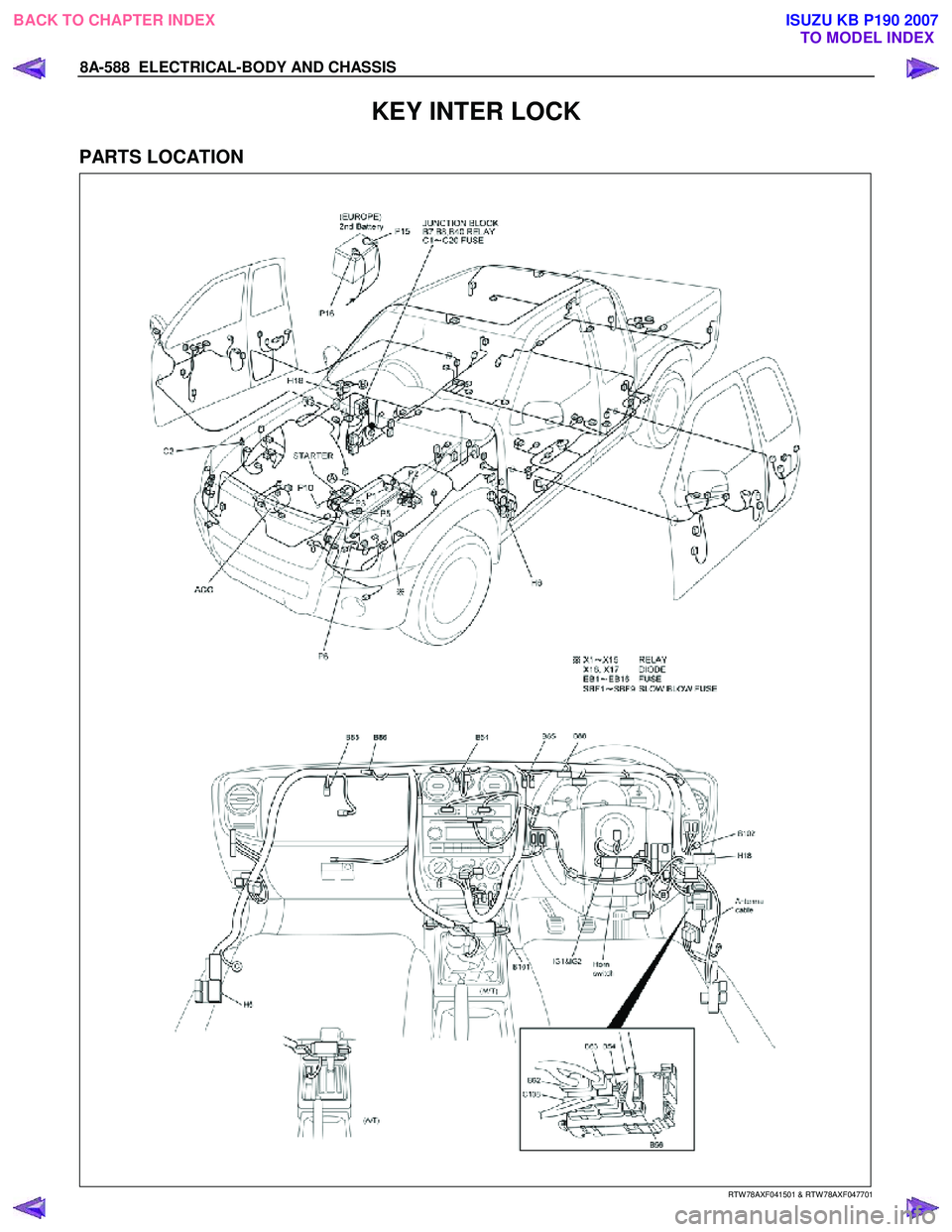

8A-588 ELECTRICAL-BODY AND CHASSIS
KEY INTER LOCK
PARTS LOCATION







RTW 78AXF041501 & RTW 78AXF047701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

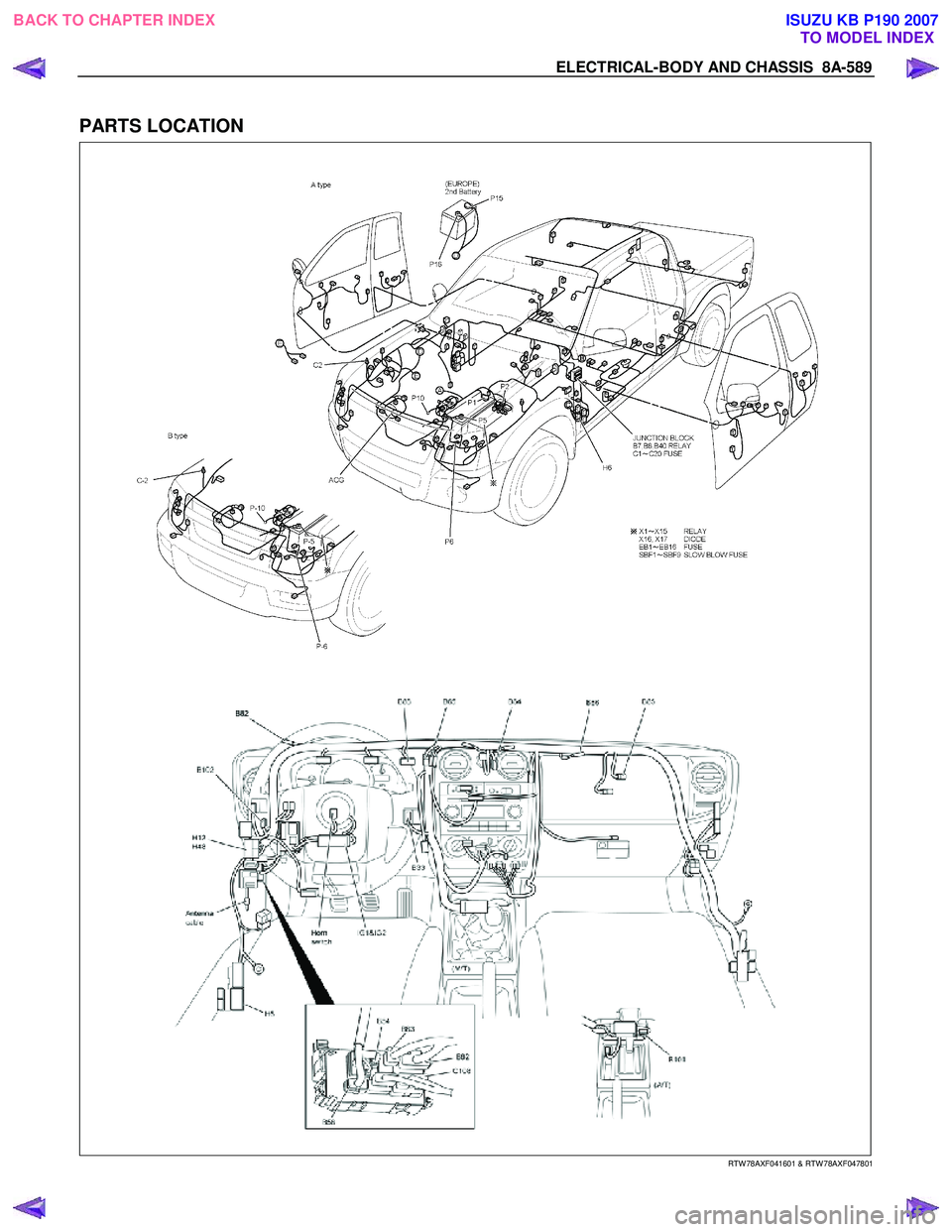

ELECTRICAL-BODY AND CHASSIS 8A-589

PARTS LOCATION







RTW 78AXF041601 & RTW 78AXF047801

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-590 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6



RTW 78AXF003201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-591

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC, 4JH1-TC






RTW 78AXF019501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

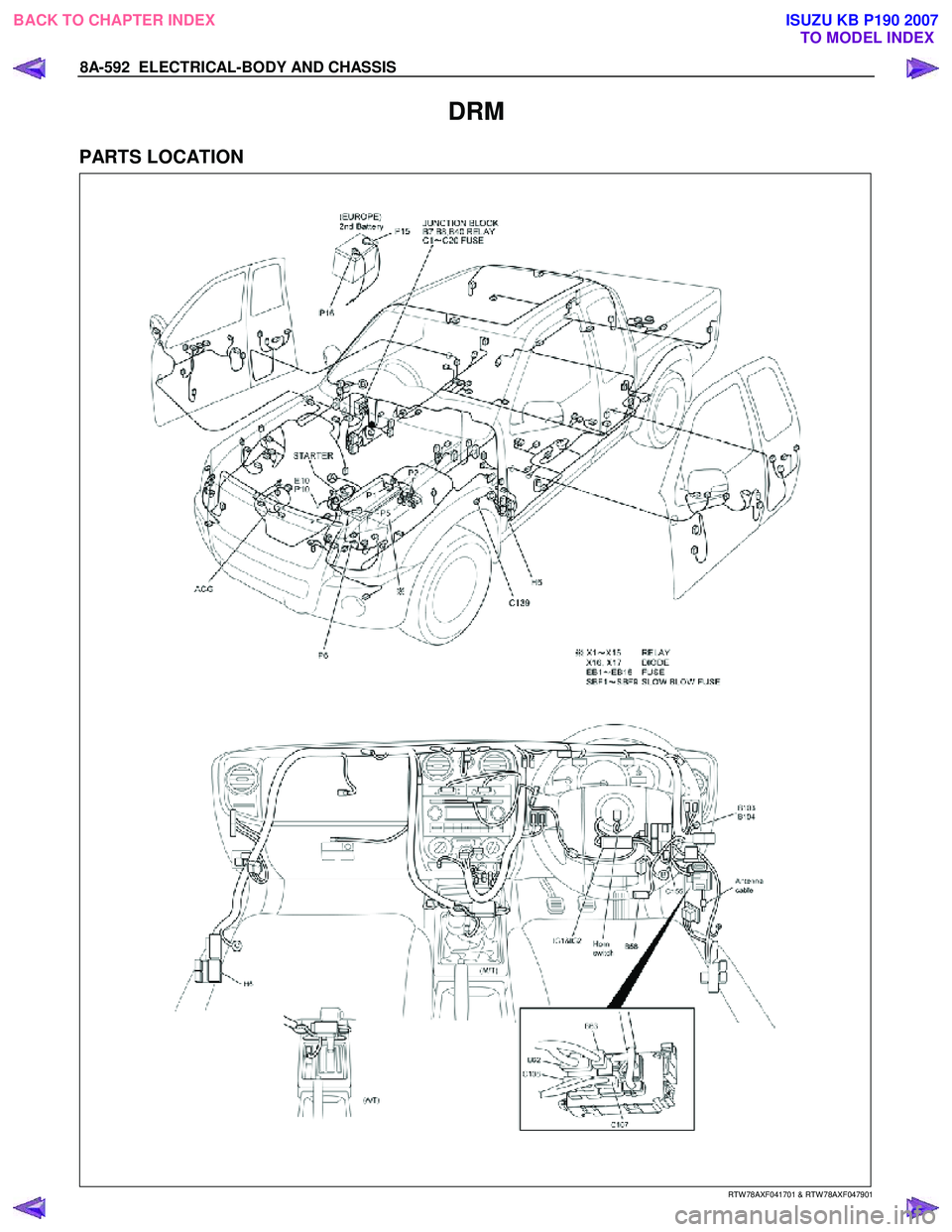

8A-592 ELECTRICAL-BODY AND CHASSIS
DRM
PARTS LOCATION







RTW 78AXF041701 & RTW 78AXF047901
