Page 701 of 4264

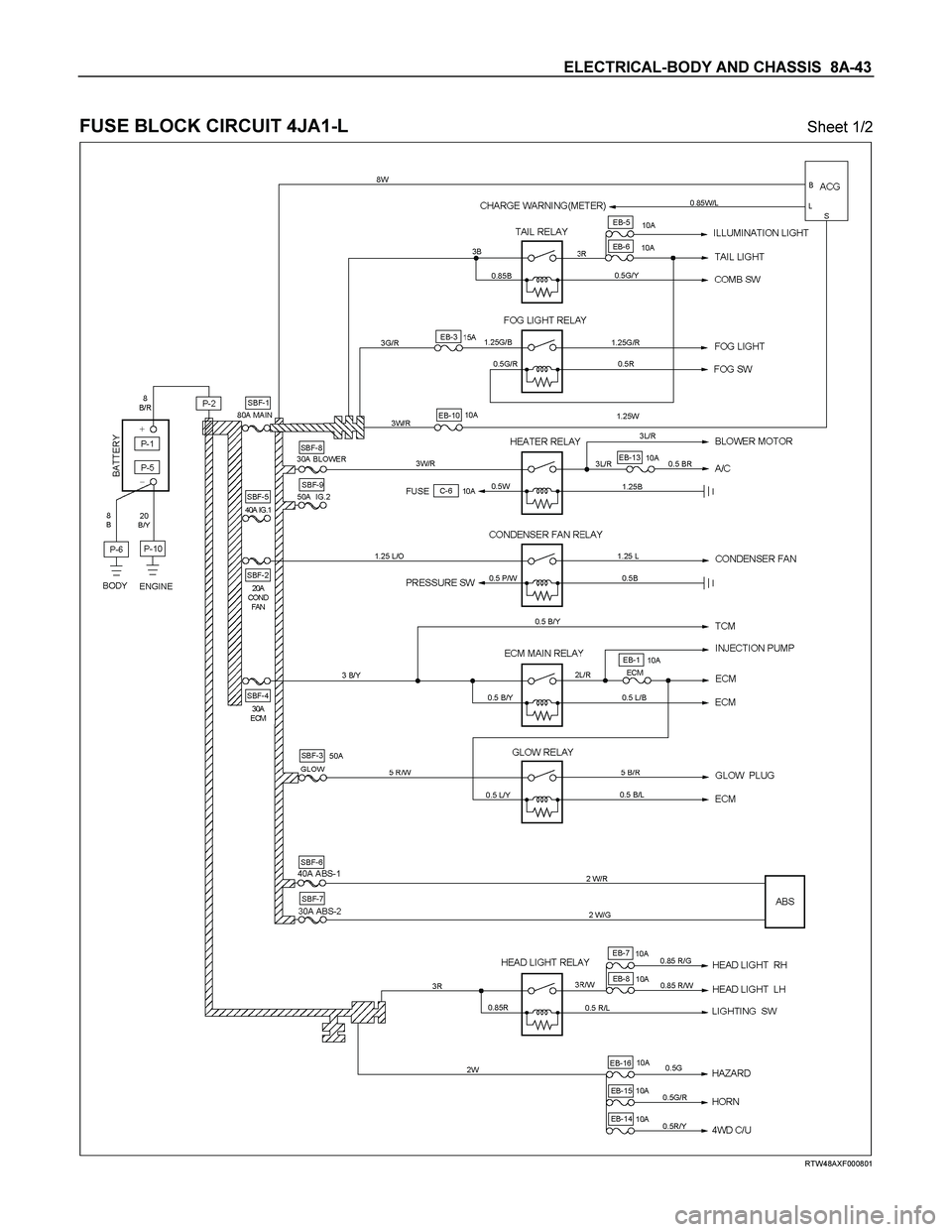

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-43 FUSE BLOCK CIRCUIT 4JA1-L Sheet 1/2 RTW48AXF000801

Page 702 of 4264

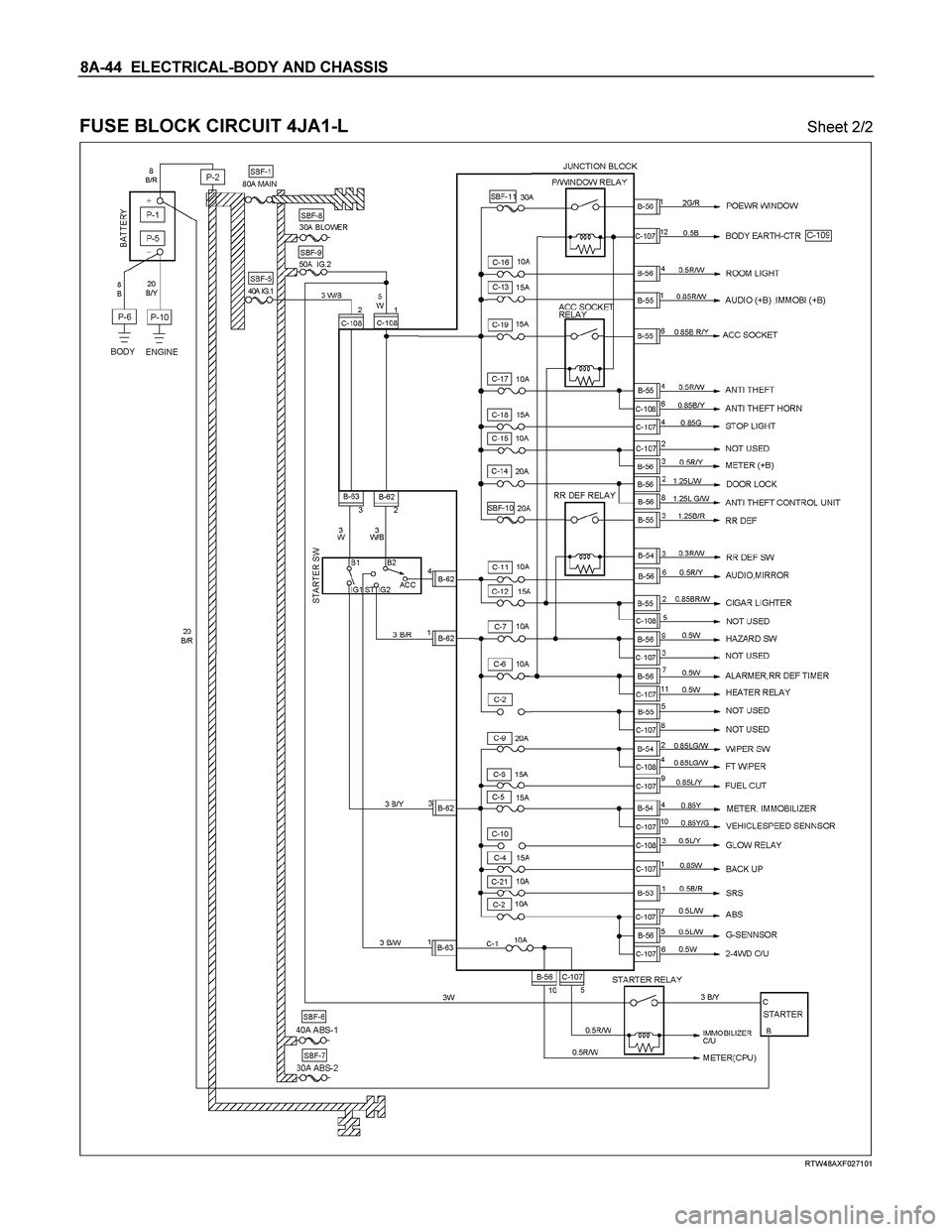

ISUZU TF SERIES 2004 Workshop Manual 8A-44 ELECTRICAL-BODY AND CHASSIS FUSE BLOCK CIRCUIT 4JA1-L Sheet 2/2 RTW48AXF027101

Page 703 of 4264

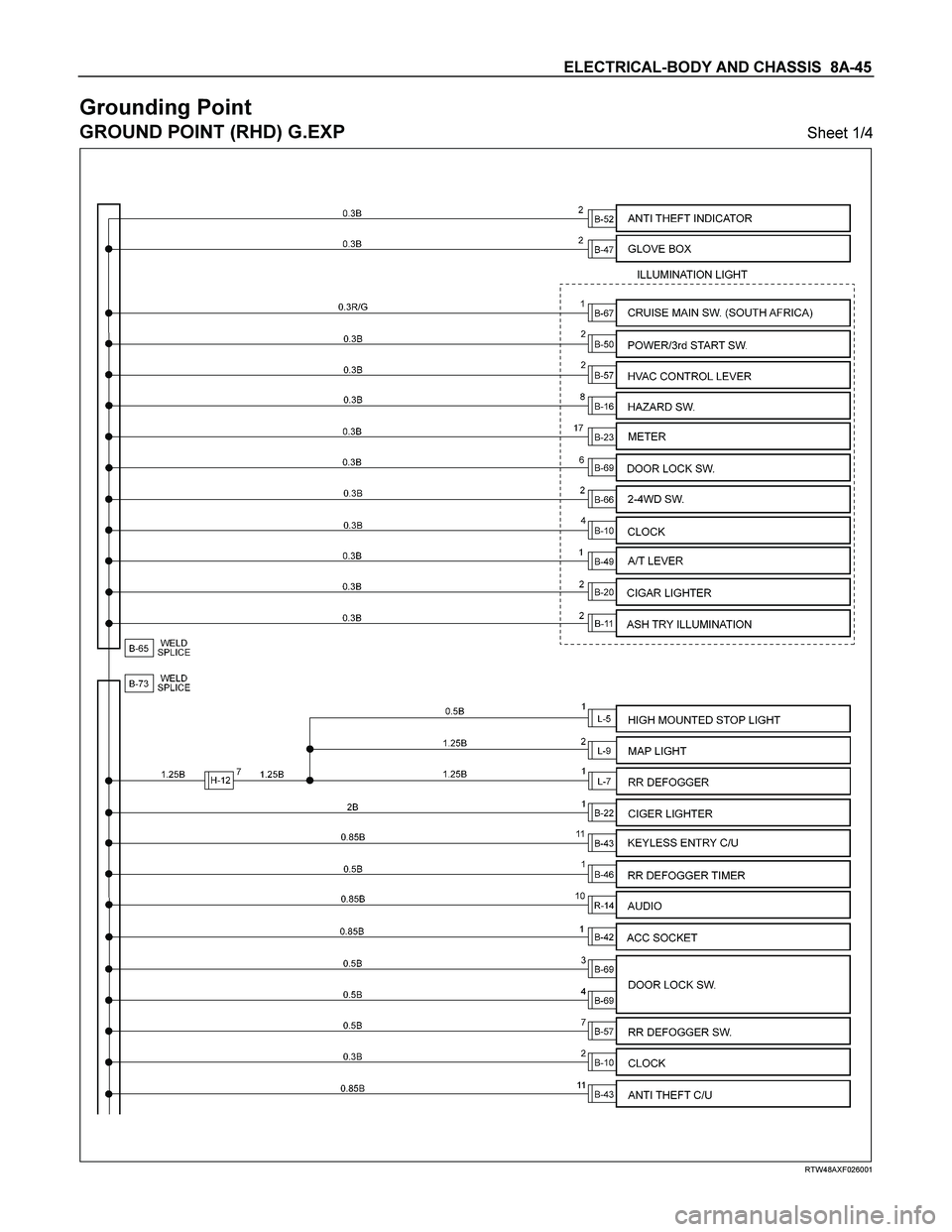

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-45 Grounding Point GROUND POINT (RHD) G.EXP Sheet 1/4 RTW48AXF026001

Page 704 of 4264

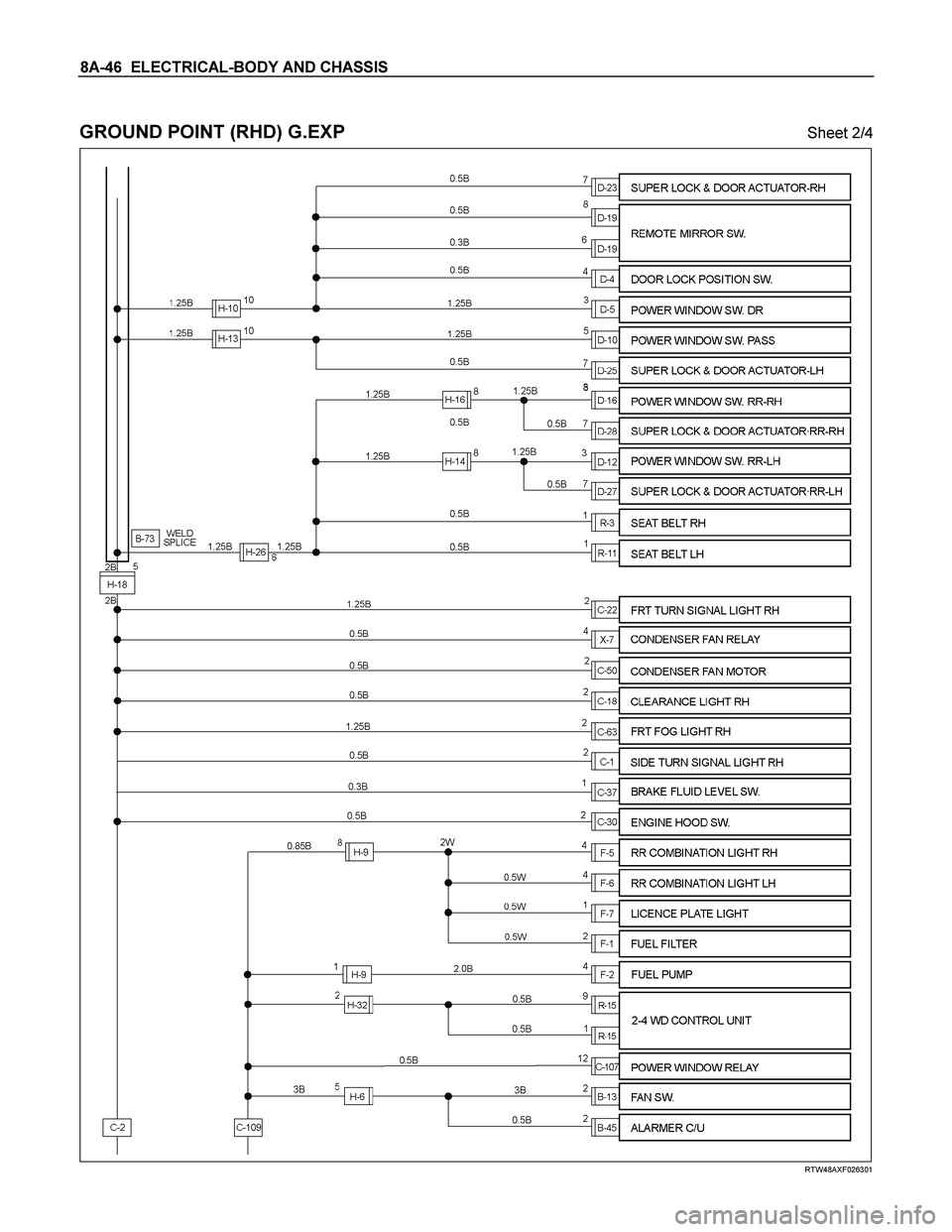

ISUZU TF SERIES 2004 Workshop Manual 8A-46 ELECTRICAL-BODY AND CHASSIS GROUND POINT (RHD) G.EXP Sheet 2/4 RTW48AXF026301

Page 705 of 4264

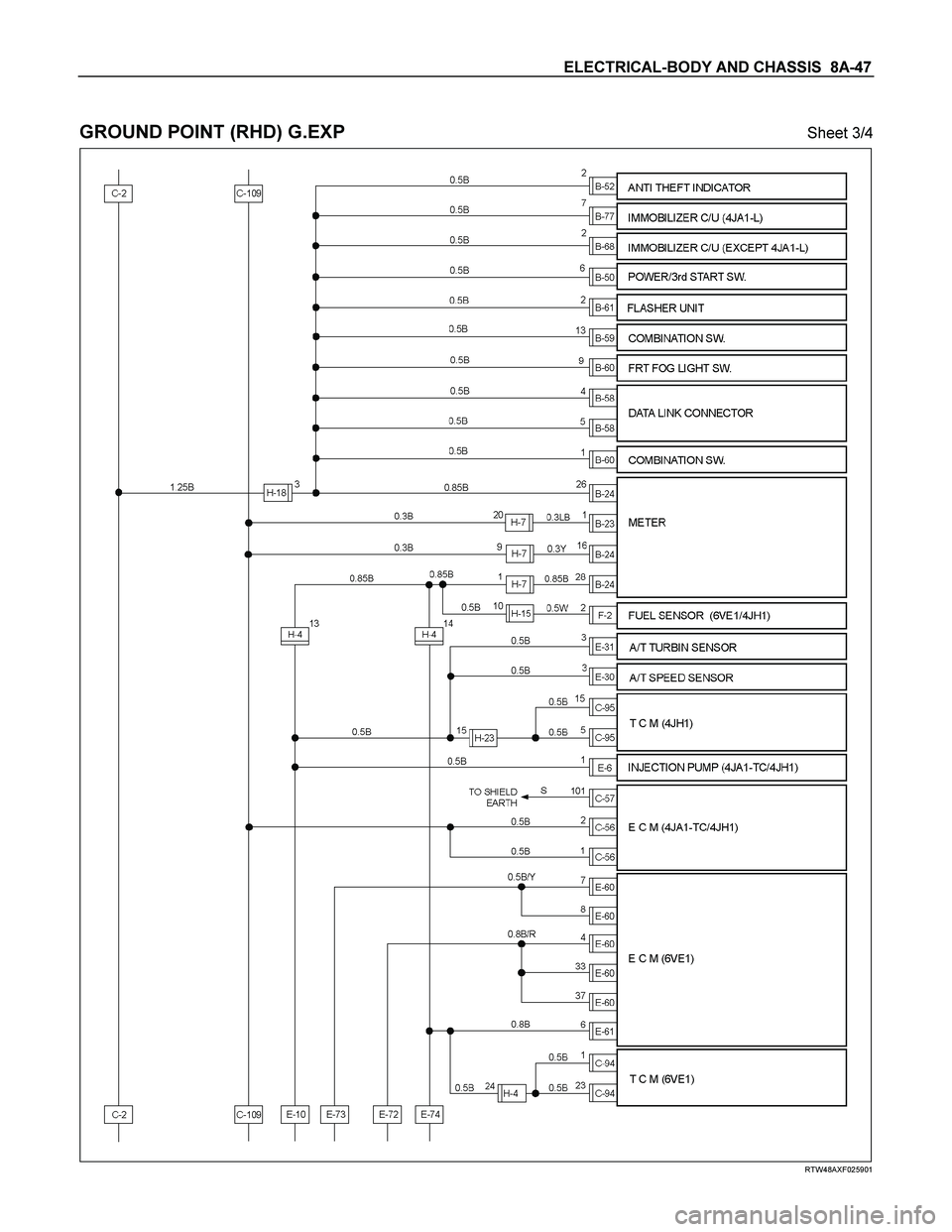

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-47 GROUND POINT (RHD) G.EXP Sheet 3/4 RTW48AXF025901

Page 706 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-48 ELECTRICAL-BODY AND CHASSIS GROUND POINT (RHD) G.EXP Sheet 4/4 RTW48AXF028401

Page 707 of 4264

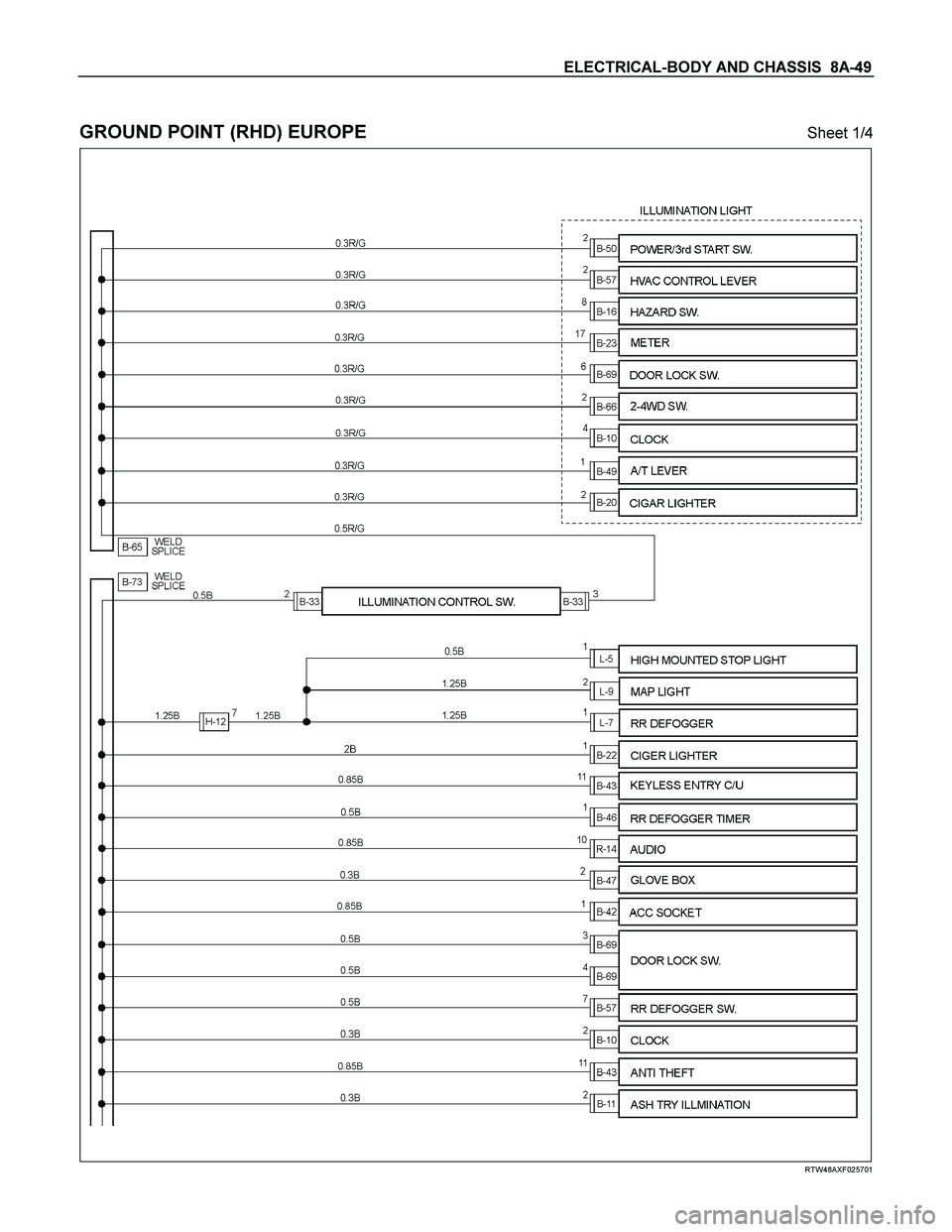

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-49 GROUND POINT (RHD) EUROPE Sheet 1/4 RTW48AXF025701

Page 708 of 4264

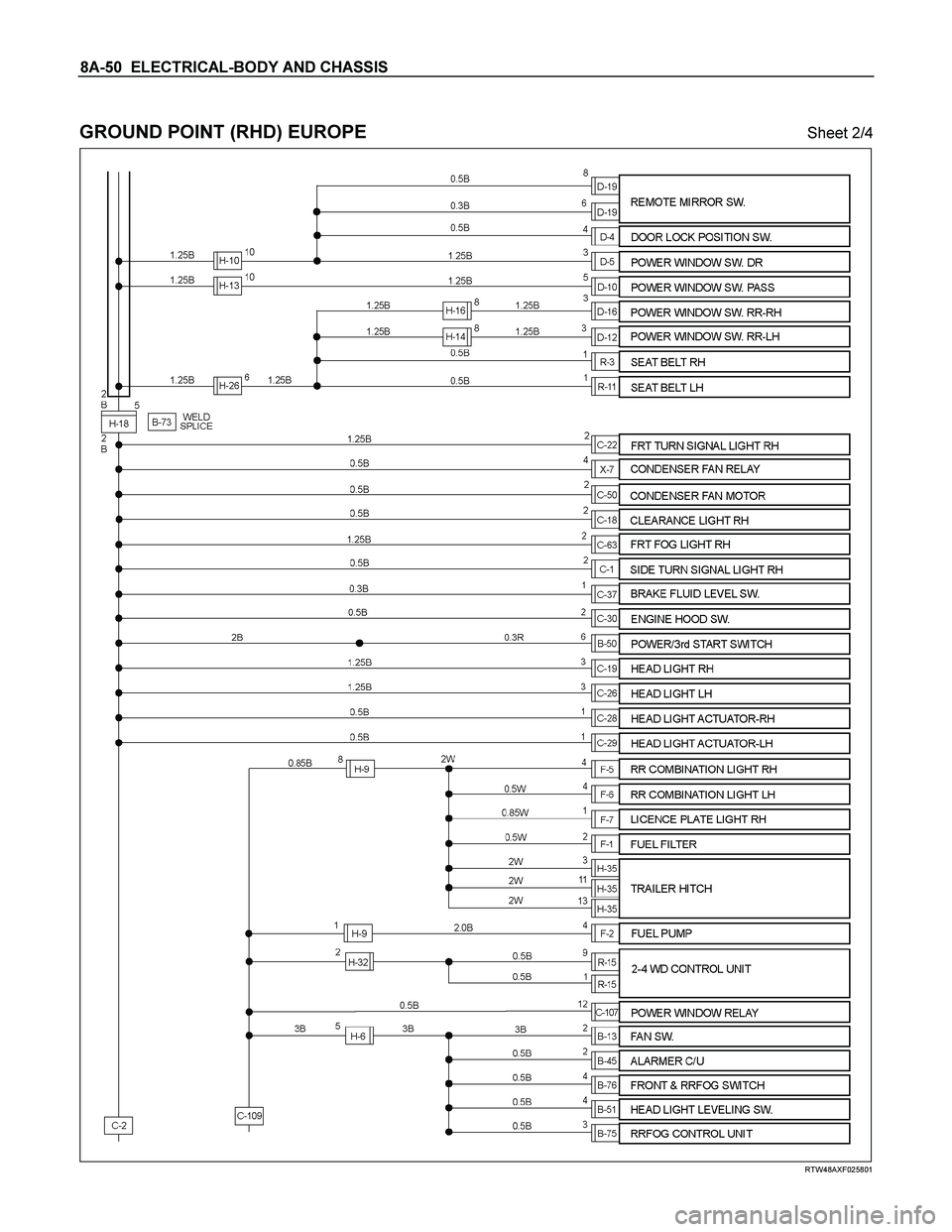

ISUZU TF SERIES 2004 Workshop Manual 8A-50 ELECTRICAL-BODY AND CHASSIS GROUND POINT (RHD) EUROPE Sheet 2/4 RTW48AXF025801

Page 709 of 4264

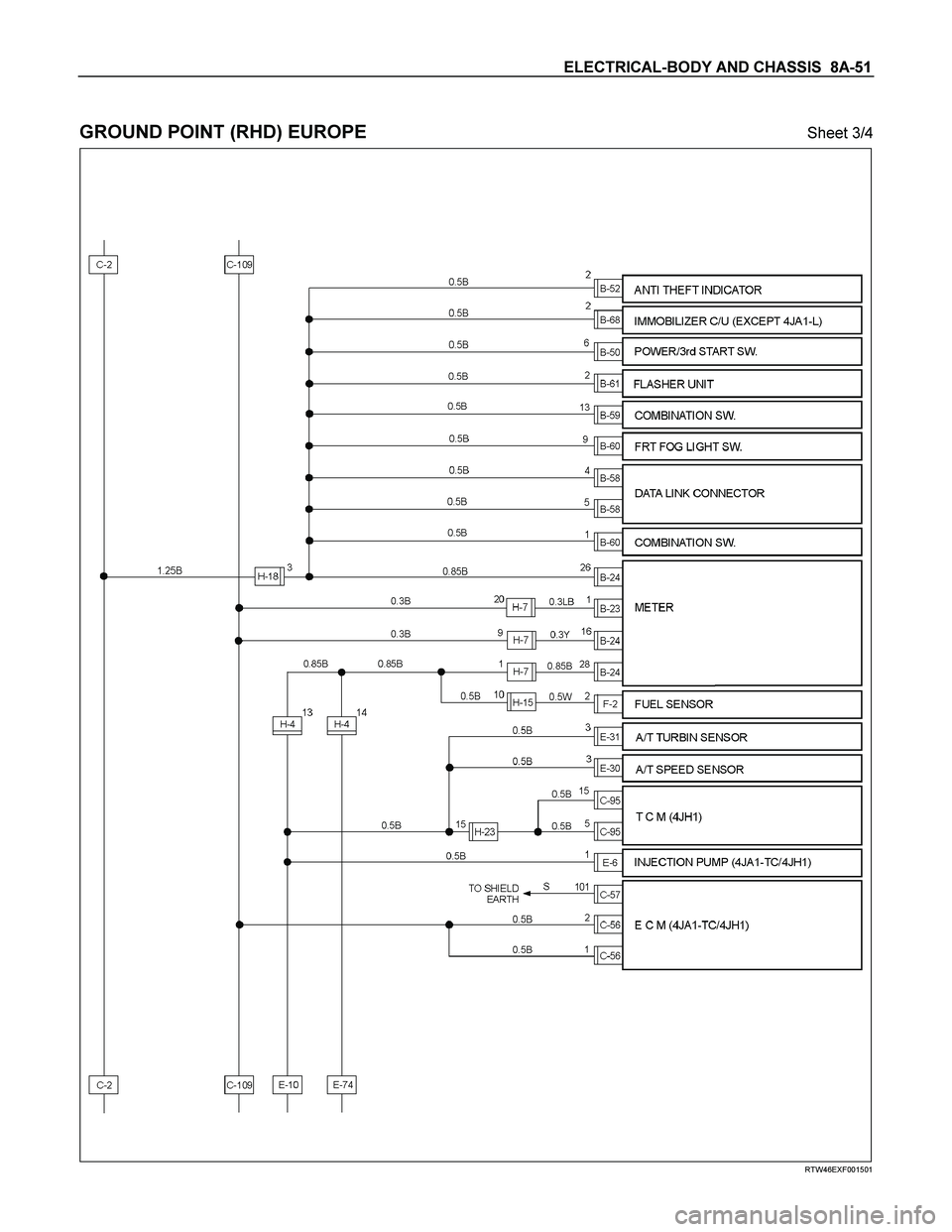

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-51 GROUND POINT (RHD) EUROPE Sheet 3/4 RTW46EXF001501

Page 710 of 4264

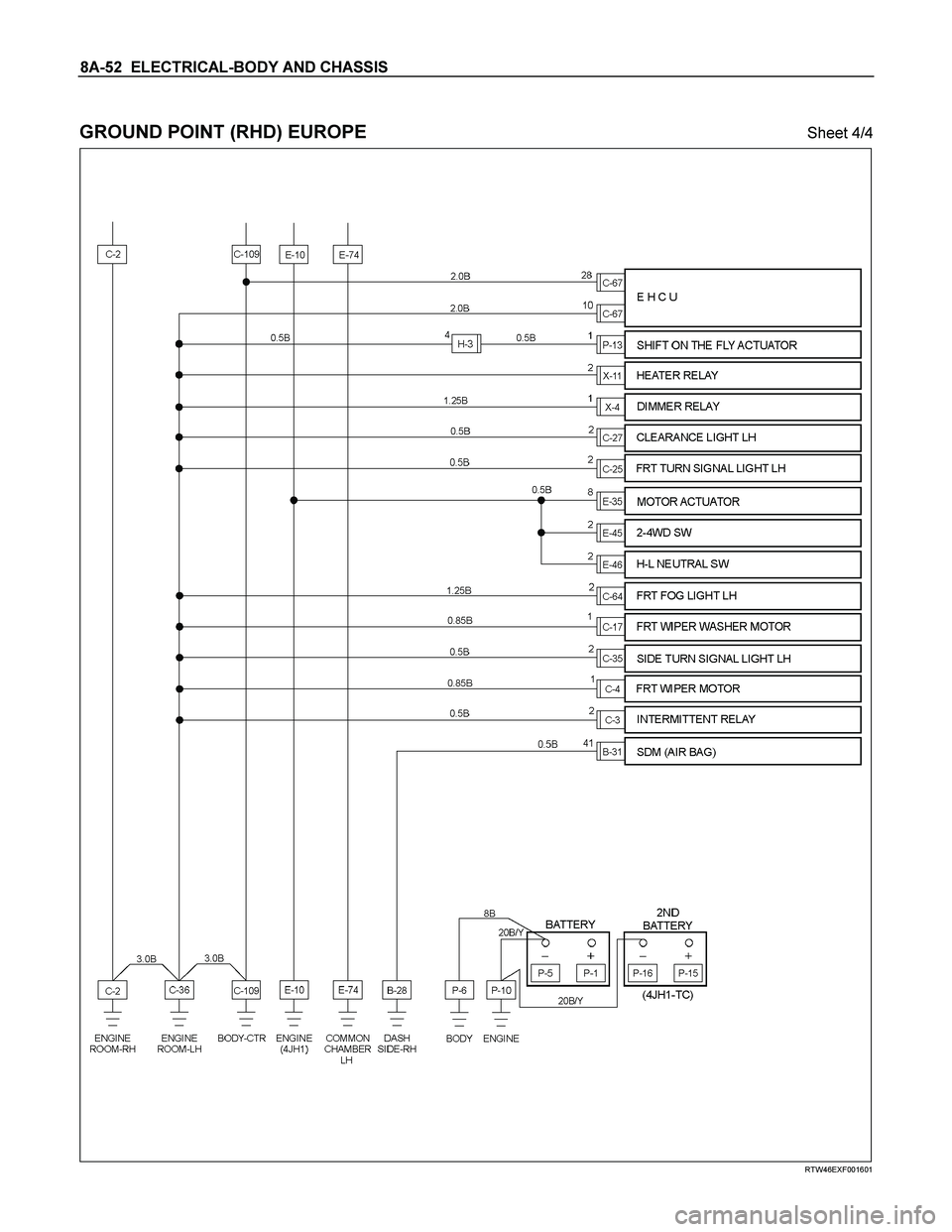

ISUZU TF SERIES 2004 Workshop Manual 8A-52 ELECTRICAL-BODY AND CHASSIS GROUND POINT (RHD) EUROPE Sheet 4/4 RTW46EXF001601
