10-48 BODY
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following points.
1. Be sure to install the door lock cylinder at a
right angle to the outside handle. (Fig. 10-70)
Outside handle
Door lock cylinder
Fig. 10-70
REAR OUTSIDE HANDLE
2 I
2. For the anti-theft system, be sure to install the
push rod
of key switch while pressing it to the
lock cylinder so that there is no continuity
between the key switch side connector
terminal No. 06-2 and 06-4 (No. 016-2 and
016-4: passenger side). (Fig.
10-71)
3.
Fig. 10-71
Tighten the outside handle and key switch
fixing bolts to the specified torque.
~~~ Torque N·m (lb·in) j 9 (78)
4. Check for smooth outside handle and lock
cylinder operation.
!
Removal steps 1. Door trim panel 2. Waterproof sheet 3. Outside handle
Installation steps To install, follow the removal
steps in the reverse order.
Fig. 10-72
•

1••1 REMOVAL
Preparation: Disconnect the battery ground cable
'--' 1. Door trim panel
2.
Waterproof sheet
• Refer to "WINDOW REGULATOR" removal
procedure in this section.
3.
Outside handle (Fig. 10-73)
•
Disconnect the locking link (Arrow mark
position) and remove
the 3 fixing bolts.
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following points.
1. Tighten the outside handle fixing bolts to the
specified torque.
1~1 Torque N·m Ob·in) I 9 (78)
BODY 10-49
2. Check that the outside handle operates smoothly.
Fig. 10-73

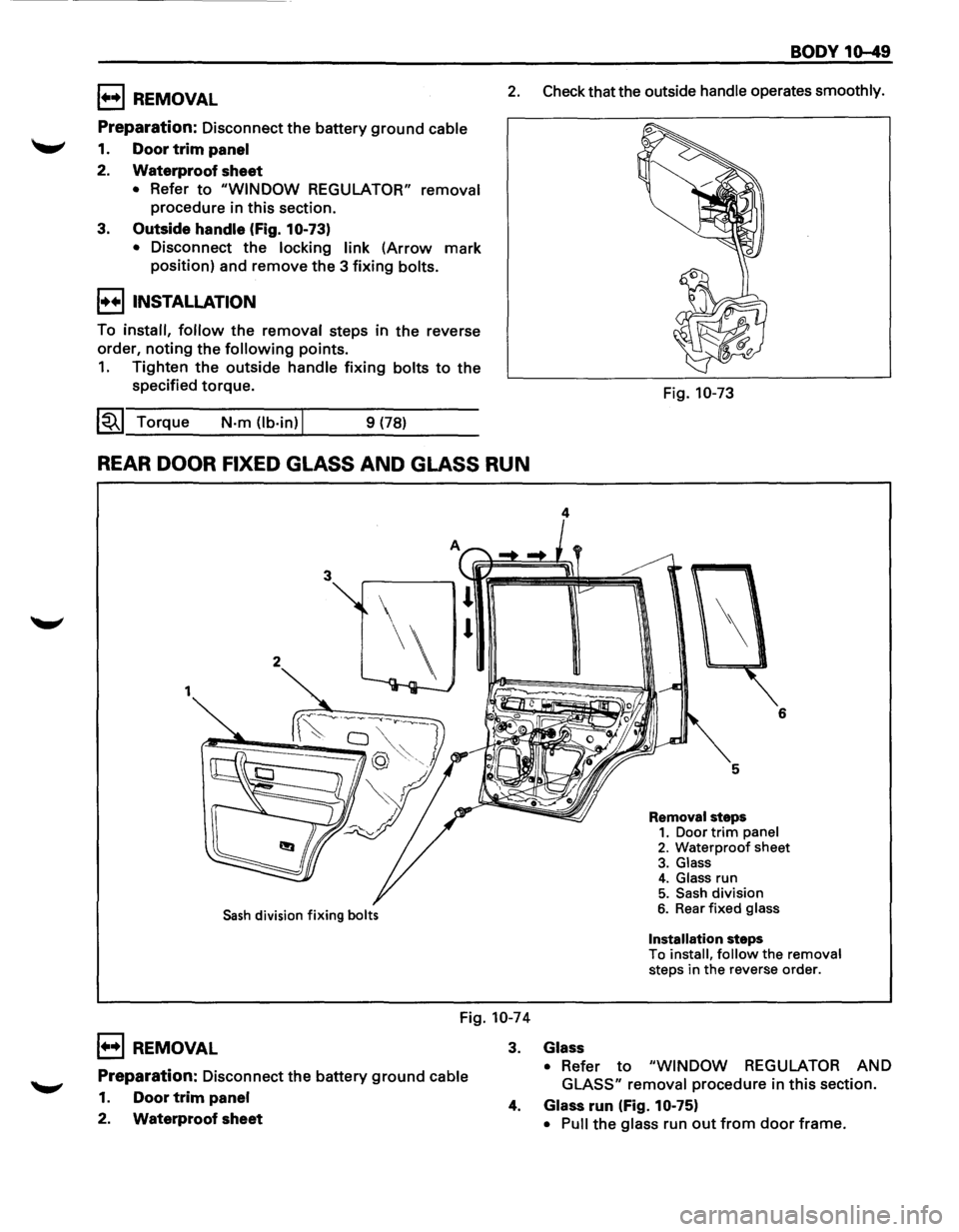

REAR DOOR FIXED GLASS AND GLASS RUN
4
3
1
Sash division fixing bolts
6
5
Removal steps 1. Door trim panel 2. Waterproof sheet
3. Glass 4. Glass run 5. Sash division 6. Rear fixed glass
Installation steps To install, follow the removal
steps in the reverse order.
Fig. 10-74
1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Door trim panel
2. Waterproof sheet
3. Glass
• Refer to "WINDOW REGULATOR AND
GLASS" removal procedure in this section.
4. Glass run (Fig. 10-75)
• Pull
the glass run out from door frame.

REAR DOOR INSIDE LOCK KNOB LINK
3. Inside lock knob link
1••1 REMOVAL
Fig. 10-79

2. Water proof sheet
Preparation: Disconnect the battery ground cable
1. Door trim panel
2. Waterproof sheet
3. Rear door inside lock knob link
• Remove the fixing screw and disconnect the
locking link at the door lock assembly. (Fig.
10-80)
Fig. 10-80
I••IINSTALLATION
To install, follow the removal steps in the reverse
order.
BODY 10-51
FRONT DOOR SASH MOULDING
'\

r----:1
1. Front door sash moulding
Fig. 10-81
l••l REMOVAL
1. Front door sash moulding (Fig. 10-82)
• To avoid the weatherstrip and pry the door
sash moulding out from door panel.
Sash moulding
Fig. 10-82
I••IINSTALLATION
1. Front door sash moulding
• Assemble the edge portion (@ portion) of
the moulding so that the clearance between
the
moulding and the waist seal becomes 1
mm (0.04 in).

10-56 BODY
BODY SIDE
INTERIOR TRIM PANELS
LUGGAGE
SIDE AND QUARTER UPPER TRIM COVER
Long Wheel Base
6
1
Removal steps 1. Rear end floor trim cover 2. Luggage side cap 3. Luggage side lower cover 4. Luggage side trim cover 5. Luggage room light
1+•1 REMOVAL
6. Rear roof trim cover
7. Speaker grille 8. Rear speaker 9. Rear seat belt anchor bolt cover and anchor bolt
Fig. 10-100
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side cap
3. Luggage side lower cover
4. Luggage side trim cover
• Remove rear side fixing screws and pry trim
cover retainers free from the body panel and
upper trim cover. (Fig. 10-101)
5. Luggage room light
• Remove luggage room light lens and fixing
screws.
• Disconnect luggage room light connector.
6. Rear roof trim cover (Fig. 10-102)
• Pry trim cover retainers free from the body
panel.
Roof side trim cover
, _ _.,,..~
~
9
10. Quarter upper trim cover
Installation steps
To install, follow the removal
steps in
the reverse order.
~~F:r Luggage side trim cover
Fig. 10-101
•

10-58 BODY
Short Wheel Base
Removal steps 1. Rear end floor trim cover 2. Luggage side cap 3. Luggage side lower cover 4. Luggage room light 5. Rear roof trim cover 6. Speaker grille
7. Rear speaker 8. Rear assist grip 9. Rear seat belt anchor bolt cover
and anchor bolt 10. Front seat belt anchor bolt cover
and anchor bolt 11. Quarter upper trim cover 12. Seat belt anchor plate
Installation steps To install, follow the removal steps
in the reverse order.
Fig. 10-106
•

1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side cap
3. Luggage side lower cover
• Remove rear side fixing screws and pry trim
cover retainers free from the body panel and
upper trim cover. (Fig. 10-107)
I
w\\1
Fig. 10-107
4. Luggage room light
• Remove luggage room light lens and fixing
~ screws.
Disconnect
luggage room light connector.
5. Rear roof trim cover (Fig. 10-108)
•
Pry trim cover retainers free from the body
panel.
Fig. 10-108
6. Speaker grille (Fig. 10-109)
Fig. 10-109
7. Rear speaker
BODY 10-59
I
I I
~
• Remove the rear speaker fixing screws and
disconnect
the connector.
8. Rear assist grip
• Open the both side covers of the assist grip
and fixing screws. (Fig. 10-110)
Assist grip
Cover
Fig. 10-110
9. Rear seat belt anchor bolt cover and anchor
bolt (Fig. 10-110)

BODY 10-61

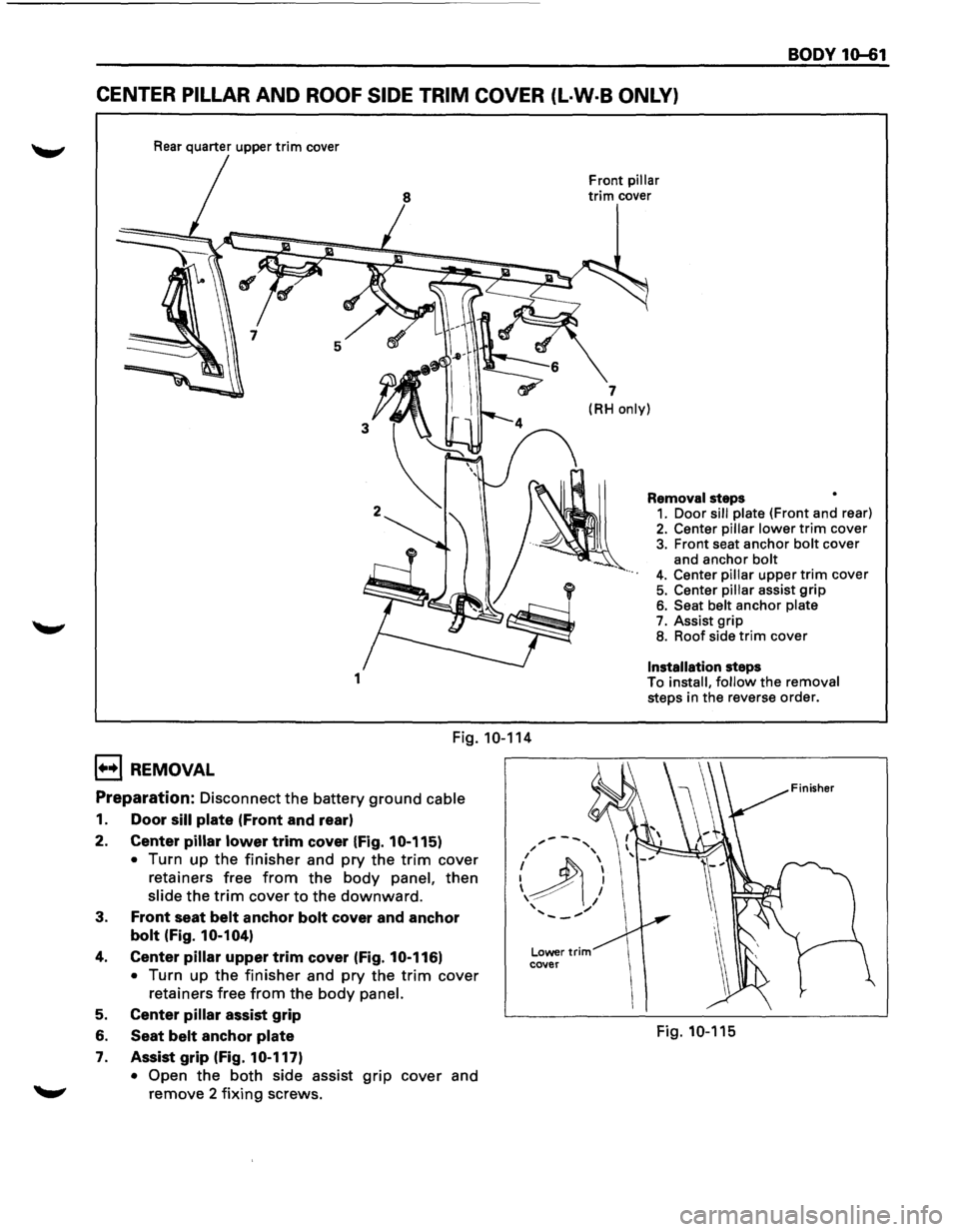

CENTER PILLAR AND ROOF SIDE TRIM COVER (L·W·B ONLY)
Rear quarter upper trim cover
5
1
Fig. 10-114
1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Door sill plate (Front and rear)
2. Center
pillar lower trim cover (Fig. 10-115)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel, then
slide the trim cover to the downward.
3. Front seat belt anchor bolt cover and anchor
bolt (Fig. 10-104)
4. Center pillar upper trim cover (Fig. 10-116)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel.
5. Center pillar assist grip
6. Seat belt anchor plate
7. Assist grip (Fig. 10-117)
• Open
the both side assist grip cover and
remove 2
fixing screws.
Front pillar
trim cover
7
(RH only)
Removal steps 1. Door sill plate (Front and rear) 2. Center pillar lower trim cover
3. Front seat anchor bolt cover
and anchor bolt 4. Center pillar upper trim cover 5. Center pillar assist grip
6. Seat belt anchor plate 7. Assist grip 8. Roof side trim cover
Installation steps To install, follow the removal
steps in the reverse order.
Fig. 10-115

1~2BODY

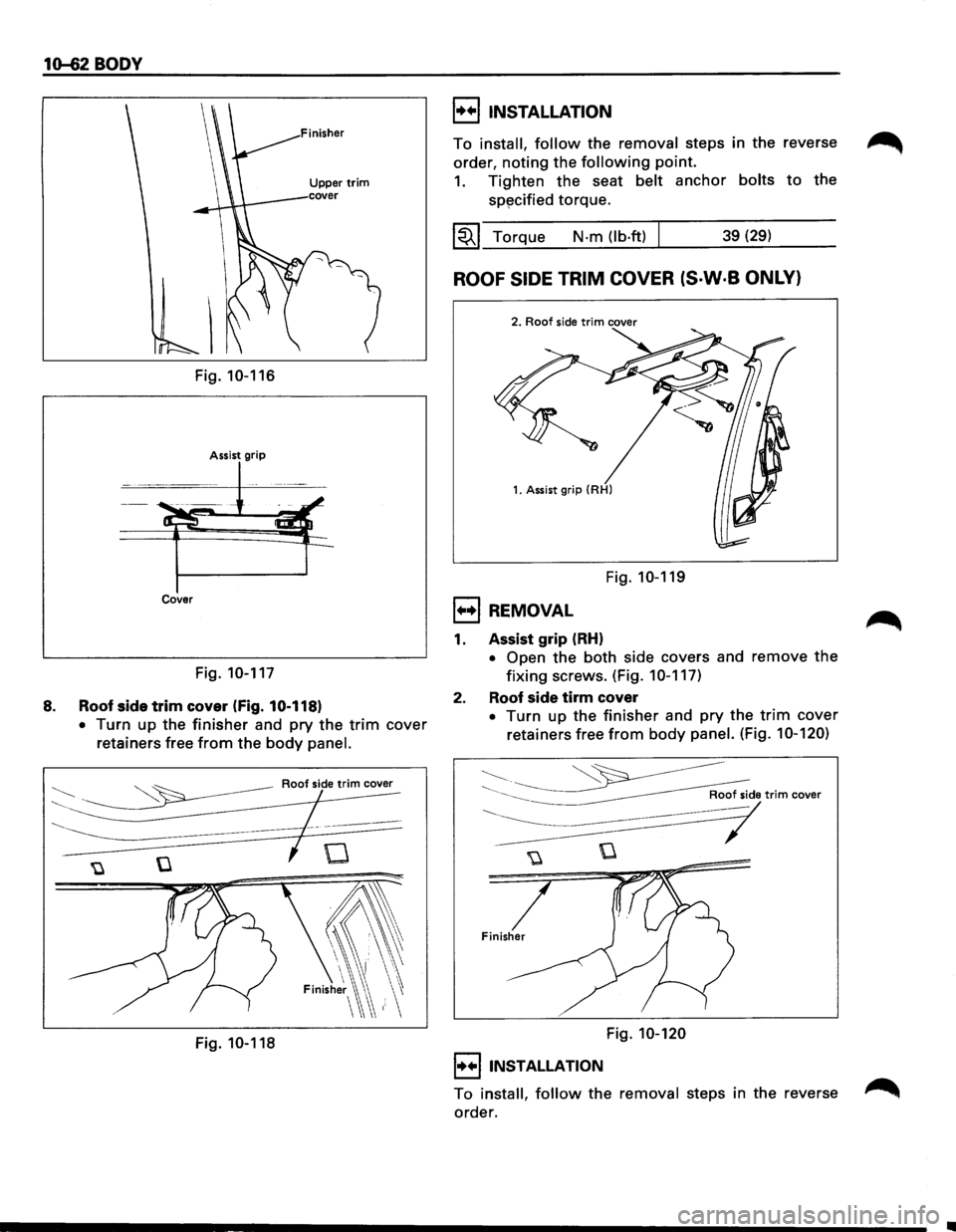

Fig. 10-116
Assist grip
Cover
Fig. 10-117
8. Roof side trim cover (Fig. 10-118)
•
Turn up the finisher and pry the trim cover
retainers free
from the body panel.
~ -~ Roofsidetrim cover
~=1TF "U G 0
Fig. 10-118
l++liNSTALLATION
To install, follow the removal steps in the reverse ~
order, noting the following point.
1. Tighten the seat belt anchor bolts to the
sp~cified torque.
~~~ Torque N·m (lb·ft) I 39 (29)
ROOF SIDE TRIM COVER (S·W·B ONLY)
2. Roof side trim cover
Fig. 10-119
B REMOVAL
1. Assist grip (RH)
• Open the both side covers and remove the
fixing screws. (Fig. 10-117)
2. Roof side tirm cover
• Turn up the finisher and pry the trim cover
retainers free
from body panel. (Fig. 10-120)
Fig. 10-120
l++liNSTALLATION
To install, follow the removal steps in the reverse ~
order.

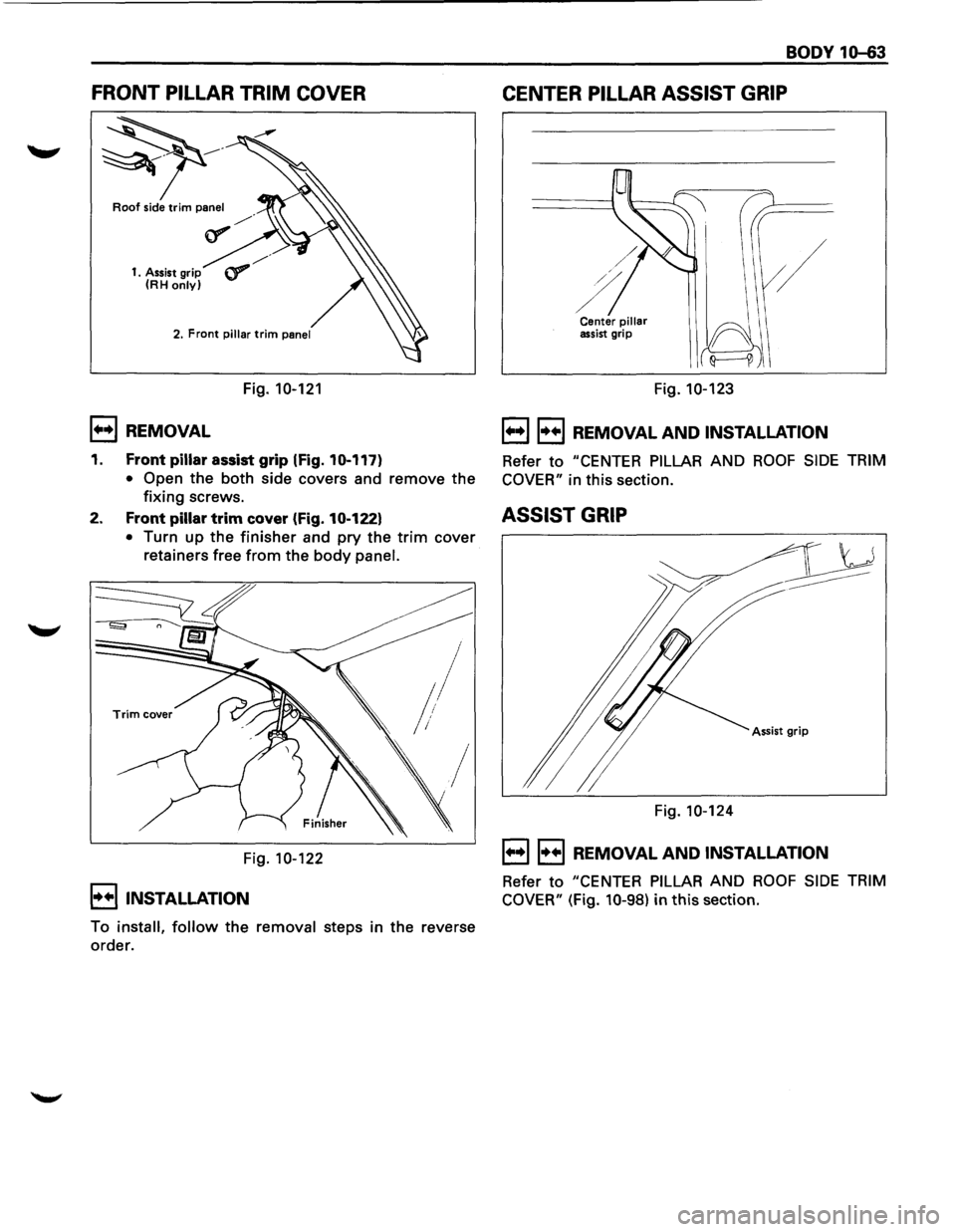

FRONT PILLAR TRIM COVER
~·
Roof side trim panel
1. Assist grip
(RH only)
1+•1 REMOVAL
Fig. 10-121
BODY 10-63
CENTER PILLAR ASSIST GRIP
Center pillar assist grip
Fig. 10-123
1+•11••1 REMOVAL AND INSTALLATION
1. Front pillar assist grip (fig. 10-117) Refer to "CENTER PILLAR AND ROOF SIDE TRIM
• Open
the both side covers and remove the COVER" in this section.
fixing screws.
2.
Front pillar trim cover (fig. 10-122) ASSIST GRIP
• Turn up the finisher and pry the trim cover .--------------------------,
retainers free from the body panel.
Fig. 10-122
I++IINSTALLATION
To install, follow the removal steps in the reverse
order. Fig.
10-124
l••ll••l REMOVAL AND INSTALLATION
Refer to "CENTER PILLAR AND ROOF SIDE TRIM
COVER"
(Fig. 10-98) in this section.

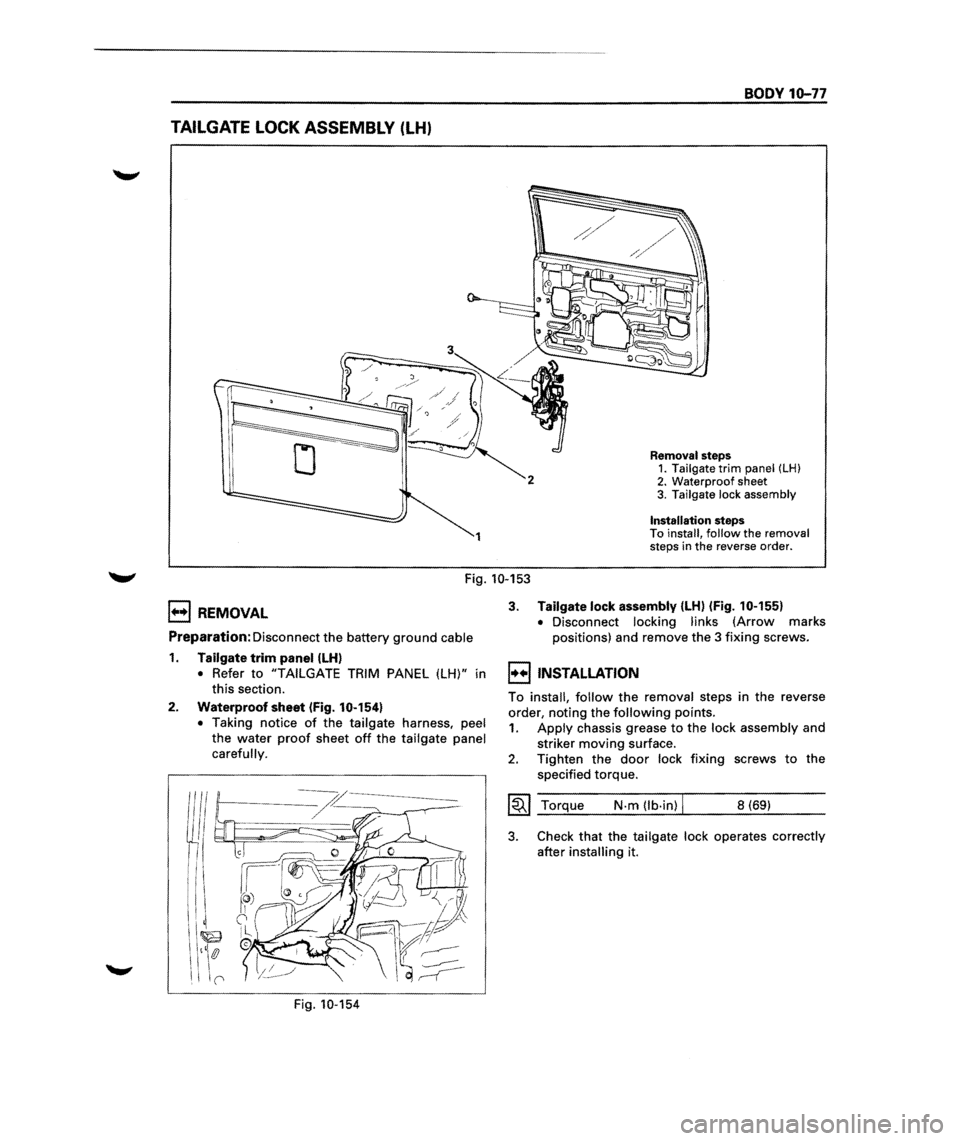

TAILGATE LOCK ASSEMBLY (LH)
1
BODY 10-77
Removal steps 1. Tailgate trim panel (LH) 2. Waterproof sheet
3. Tailgate lock assembly
Installation steps To install, follow the removal
steps in the reverse order.
Fig. 10-153
E) REMOVAL
Preparation: Disconnect the battery ground cable
1. Tailgate trim panel (LH)
• Refer to "TAILGATE TRIM PANEL (LH)" in
this section.
2. Waterproof sheet (Fig. 10-154)
•
Taking notice of the tailgate harness, peel
the water
proof sheet off the tailgate panel
carefully.
Fig. 10-154
3. Tailgate lock assembly {LH) (Fig. 10-155)
•
Disconnect locking links (Arrow marks
positions) and remove the
3 fixing screws.
l••liNSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following points.
1. Apply chassis grease to the lock assembly and
striker
moving surface.
2. Tighten the door lock fixing screws to the
specified torque.
~~~ Torque N·m (lb·in) I 8 (69)
3. Check that the tailgate lock operates correctly
after
installing it.
j
j
j
