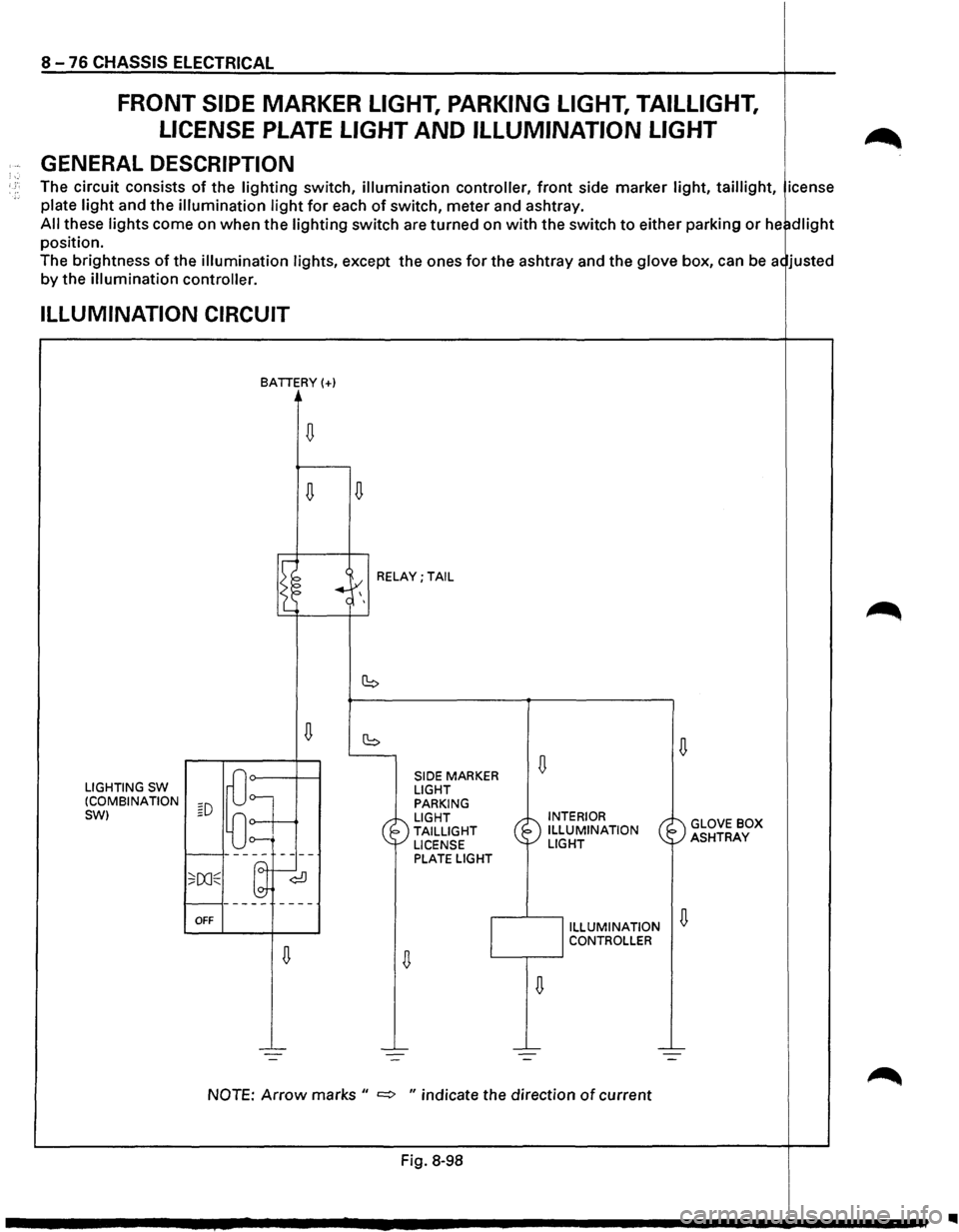

8 -76 CHASSIS ELECTRICAL
FRONT SIDE MARKER LIGHT, PARKING LIGHT, TAILLIGHT,
LICENSE
PLATE LIGHT AND ILLUMINATION LIGHT
· GENERAL DESCRIPTION ;·. · ;. The circuit consists of the lighting switch, illumination controller, front side marker light, taillight, icense
plate light and the illumination light for each of switch, meter and ashtray.
All these lights come on when the lighting switch are turned on with the switch to either parking or he~dlight
position.
The brightness
of the illumination lights, except the ones for the ashtray and the glove box, can be a< justed
by the
illumination controller.
ILLUMINATION CIRCUIT
LIGHTING SW (COMBINATION
SW)
BATTERY(+)
n n
I~
w ~=o-t--+
f------
;;ooE ~-<0
f-------
OFF
RELAY; TAIL
SIDE
MARKER LIGHT
PARKING
LIGHT
TAILLIGHT
LICENSE
PLATE LIGHT INTERIOR
ILLUMINATION
LIGHT
) )
ILLUMINATION n CONTROLLER c__-,-----'
NOTE: Arrow marks " =:> " indicate the direction of current
Fig. 8-98
GLOVE BOX
ASHTRAY
1111
