Installation

8. Disconnect the squab heater element harness multiplug.
9. Release the lower part of squab cover and pad from seat
frame.

10. Release seat headrest guides from seat frame and remove
squab cover and pad.

11. Position squab cover sides for access and remove the
eighteen squab cover to pad hog rings.
12. Remove squab pad and heater element from squab cover.
13. Remove heater element from squab pad.
1. Install heater element on squab pad.
2. Position squab pad and heater element in squab cover,
ensuring that headrest gu ides pass through pad.
3. Using the eighteen hog rings, secure squab cover to pad.
4. Pull squab cover sides over squab pad.
5. Fit but do not secure ratc het straps to squab pad.
6. Position squab cover and pad on seat frame and fully seat
headrest guides in frame.
7. Position lower part of squab co ver on seat frame and secure
ratchet straps to squab suspension.
8. Position lower edge of squab co ver to seat frame and secure
with nine retaining clips.
9. Position and fit squab cover to seat frame retaining strips.

Seating - Front Seat Backrest Cover
Removal and Installation
Removal
1. WARNING: FOLLOWING DISCONNECTION OF THE
BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE
ALLOWED TO ELAPSE BEFORE WORKING ON A FRONT SEAT WITH
A SIDE AIRBAG FITTED.
Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove front seat for ac cess. Refer to 76.70.01.
3. Remove Seat back finisher. Refer to 76.70.09.
4. Remove front seat headrest.

5. Release the squab cover to seat frame securing strips (6 on
Vanden Plas models)

6. Release the squab cover to seat frame lower securing clips.

7. Remove the four squab pad to squab suspension hog rings.
8. On Vanden Plas models only, sever the two ratchet straps
securing squab pad to squab suspension.

Installation

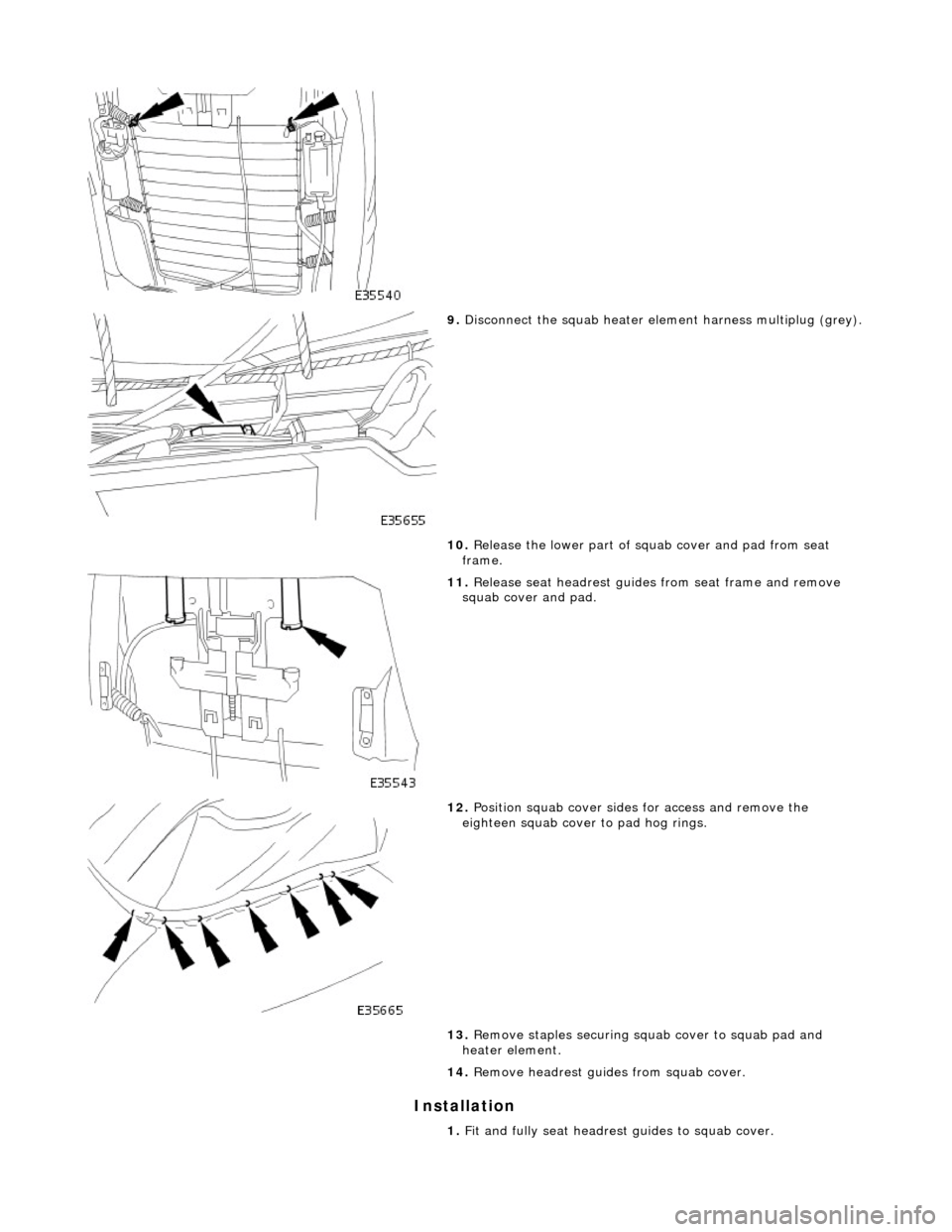

9. Disconnect the squab heater element harness multiplug (grey).
10. Release the lower part of squab cover and pad from seat
frame.

11. Release seat headrest guides from seat frame and remove
squab cover and pad.

12. Position squab cover sides for access and remove the
eighteen squab cover to pad hog rings.
13. Remove staples securing squab cover to squab pad and
heater element.
14. Remove headrest guid es from squab cover.
1. Fit and fully seat headrest guides to squab cover.

2.

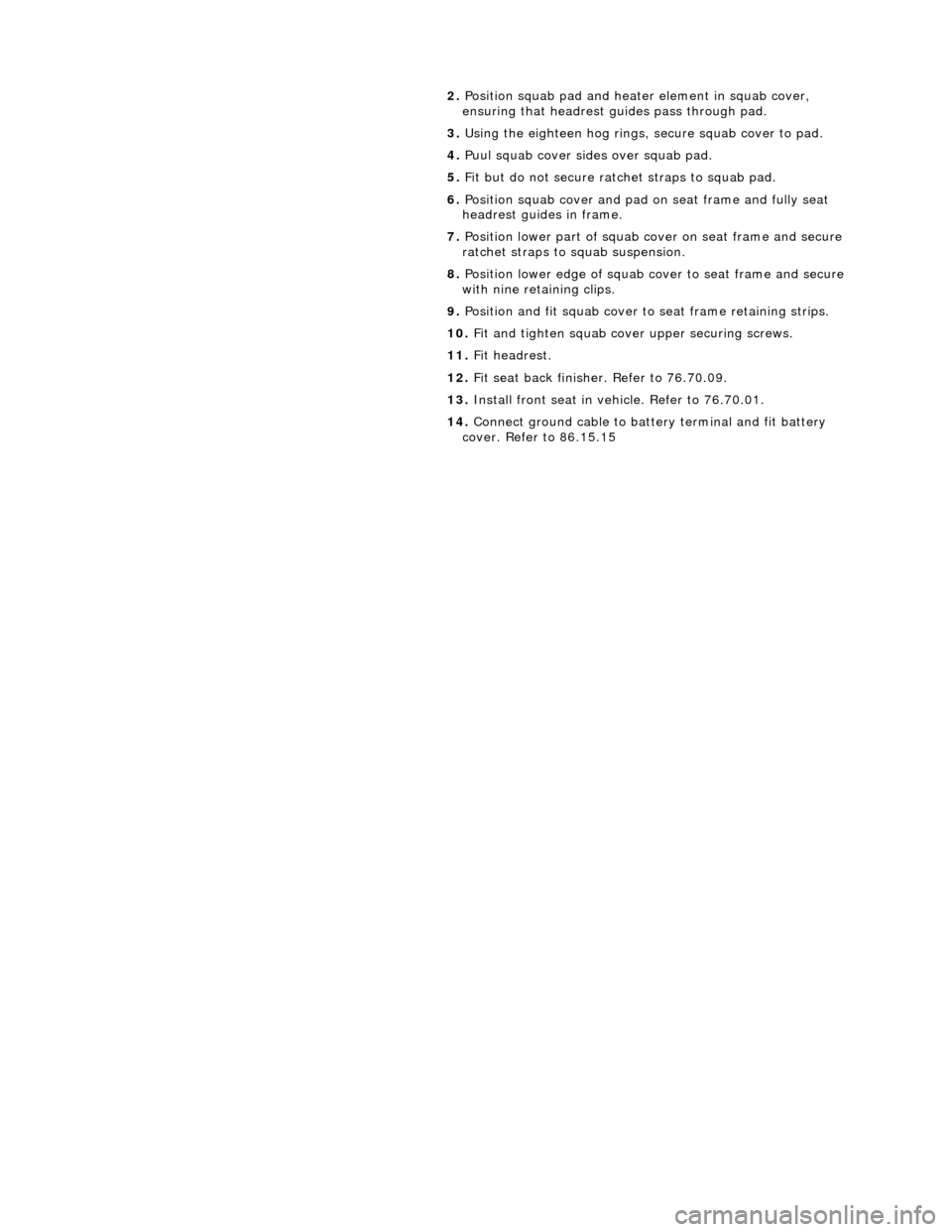

Position squab pad and heater element in squab cover,
ensuring that headrest gu ides pass through pad.
3. Using the eighteen hog rings, secure squab cover to pad.
4. Puul squab cover sides over squab pad.
5. Fit but do not secure ratc het straps to squab pad.
6. Position squab cover and pad on seat frame and fully seat
headrest guides in frame.
7. Position lower part of squab co ver on seat frame and secure
ratchet straps to squab suspension.
8. Position lower edge of squab co ver to seat frame and secure
with nine retaining clips.
9. Position and fit squab cover to seat frame retaining strips.
10. Fit and tighten squab cover upper securing screws.
11. Fit headrest.
12. Fit seat back finisher. Refer to 76.70.09.
13. Install front seat in vehi cle. Refer to 76.70.01.
14. Connect ground cable to batt ery terminal and fit battery
cover. Refer to 86.15.15

Seating - Front Seat Backrest Trim Panel
Removal and Installation
Removal
Installation



1. Slacken and remove the two ba ck finisher lower securing
screws.

2. Release back finisher from the side securing clips.

3. Release back finisher upper fir tree fasteners and remove back
finisher from seat.
1. Fit and align back finisher to seat.
2. Fully seat back finisher upper securing studs.
3. Position and fully seat fini sher side securing clips.
4. Fit and tighten the two back finisher lower securing screws.

Seating - Front Seat Cushion
Removal and Installation
Removal
Installation
1. WARNING: FOLLOWING DISCONNECTION OF THE
BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE
ALLOWED TO ELAPSE BEFORE WORKING ON A FRONT SEAT WITH
A SIDE AIRBAG FITTED.
Remove battery cover and disc onnect ground cable from
battery. Refer to 86.15.19.
2. Remove seat back fini sher. Refer to 76.70.09.
3. Remove seat cushion cover/pad assembly. Refer to 76.70.33.

4. Fold cushion sides inwards for access and remove cushion
cover to cushion pad hog rings.
5. Separate cushion cover from cushion pad/heater element.
6. Separate cushion pad from heat er element, routing harness
multiplug through cushion pad.
1. Position heater element in cushion pad and route harness
multiplug through the pad.
2. Position cushion cover on cushion pad/heater element and
secure with hog rings.
3. Position cushion cover sides over cushion pad and staple
cushion cover to lower edge of seat switch mounting bracket.
4. Position cushion pad and cover assembly on seat frame,
aligning switch mounting bracket with frame.
5. Fit and tighten the three switch mounting bracket to seat
frame securing screws.
6. Fit and fully seat switch in mounting bracket.
7. Lift cushion pad for access, connect switch harness multiplug
and reposition cushion pad.
8. Secure cushion cover front retaining straps to seat frame.
9. Pull cover over cushion pad and fit and fully seat cover edge
retaining strip on seat frame.
10. Return seat to upright position .
11. Connect cushion heater harnes s multiplug and fit multiplug
onto retaining bracket.
12. Fit cushion cover to seat fra me rear retaining strip.
13. Align rear edge of cushion cover with frame and fit and fully
seat six retaining clips.
14. Fit seat back finisher. Refer to76. 70.09.
15. Fit seat to vehicle. refer to 76. 70.01.

8. Detach cushion cover front elas tic retaining straps from seat
frame.

9. Remove seat cushion pad to cushion suspension hog rings.

10. Reposition cushion cover sides, lift and hold cushion pad for
access to rear of seat switch and disconnect harness multiplug.
11. Remove seat switch.
Release seat switchpack upper retaining tangs.
Release switchpack lower retaining tangs adjacent to seat
runners and remove switch.

2.
Position cushion cover sides over cushion pad and staple
cushion cover to lower edge of seat switch mounting bracket.
3. Position cushion pad and cover assembly on seat frame,
aligning switchpack mounting bracket with frame
4. Fit and tighten the three switchpack mounting bracket to seat
frame securing screws.
5. Fit and fully seat swtchpac k in mounting bracket.
6. Lift cushion pad for access, connect switchpack harness
multiplug and reposi tion cushion pad
7. Secure cushion cover front retaining straps to seat frame.
8. Pull cover over cushion pad and fit and fully seat cover edge
retaining strip on seat frame.
9. Return seat to upright position
10. Connect cushion heater harnes s multiplug and fit multiplug
onto retaining bracket.
11. Fit cushion cover to seat fra me rear retaining strip.
12. Align rear edge of cushion cover with frame and fit and fully
seat six retaining clips.
13. Fit seat back finisher. Refer to 76.70.09.
14. Fit seat to vehicle. Refer to 76.70.01.
15. Connect ground cable to batt ery terminal and fit battery
cover. Refer to 86.15.15

Seating - Front Seat Cushion Heater Mat
Removal and Installation
Removal
Installation
1. WARNING: FOLLOWING DISCONNECTION OF THE
BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE
ALLOWED TO ELAPSE BEFORE WORKING ON A FRONT SEAT WITH
A SIDE AIRBAG FITTED.
Remove battery cover and disc onnect ground cable from
battery. Refer to 86.15.19.
2. Remove front seat from vehicle. Refer to 76.70.01
3. Remove seat back fini sher. Refer to 76.70.09.
4. Remove seat cushion cover as sembly. Refer to 76.70.33.

5. Fold cushion sides inwards for access and remove cushion
cover to cushion pad hog rings.
6. Remove cushion cover from cushion pad/heater element.
7. Separate heater element from cushion pad, routing harness
multiplug through pad.
1. Position heater element in cushion pad and route harness
multiplug through the pad.
2. Position cushion cover on pad/heater element and secure with
hog rings.
3. Position cushion cover sides over cushion pad and staple
cushion cover to lower edge of seat switch mounting bracket.
4. Position cushion pad and cover assembly on seat frame,
aligning switch mounting bracket with frame.
5. Fit and tighten the three switch mounting bracket to seat
frame securing screws.
6. Fit and fully seat switch in mounting bracket.
7. Lift cushion pad for access, connect switch harness multiplug
and reposition cushion pad.
8. Secure cushion cover front retaining straps to seat frame.
9. Pull cover over cushion pad and fit and fully seat cover edge
retaining strip on seat frame.
10. Return seat to upright position.
11. Connect cushion heater harnes s multiplug and fit multiplug
onto retaining bracket.
12. Fit cushion cover to seat fra me rear retaining strip.
13. Align rear edge of cushion cover with frame and fit and fully
seat six retaining clips.
14. Fit seat back finisher. Refer to76. 70.09.

Seating - Front Seat Recliner Motor
Removal and Installation
Removal
1. WARNING: FOLLOWING DISCONNECTION OF THE
BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE
ALLOWED TO ELAPSE BEFORE WORKING ON A FRONT SEAT WITH
A SIDE AIRBAG FITTED.
Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86,.15.19.
2. Remove front seat and position for access. Refer to 76.70.01.
3. Remove front seat back finisher. Refer to 76.70.09.

4. Release seat squab cover securing clips from frame.

5. Release seat squab cover lower edge retaining strip from
frame.

6. Disconnect recline motor/potentiometer harness multiplug
(white).
7. Remove and discard gearbox RH drive shaft end securing clip.
