JAGUAR XFR 2010 1.G Workshop Manual

Engine - V8 S/C 5.0L Petrol - Valve Cover RH
Removal and Installation Published: 11-May-2011


Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

3. Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).

4. Refer to: Air Cleaner Outlet Pipe RH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

5. Refer to: Fuel Rail RH (303-04E Fuel Charging and Controls - V8 S/C 5.0L Petrol, Removal and Installation).


6. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct. 303-1446
Valve Cover Alignment Tool Special Tool(s) www.JagDocs.com

Installation 7. NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

1. CAUTIONS:


Use only a plastic scraper when removing the sealing
material.


Use lint free cloth.


Make sure that the mating faces are clean and free of
corrosion and foreign material.


Installation of the valve cover and tightening must be
carried out within 7 minutes of applying the sealant.

NOTE: Apply two beads of silcone gasket sealant
(Loctite 5901) as shown on the illustration. The application
of the sealant must be 1.5mm diameter 12mm long. Install
the valve cover immediately after applying the sealant. The
cover should be fitted directly to the head without smearing
the sealant or the seals.

To install, reverse the removal procedure.


2. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct.
Special Tool(s): 303-1446

3. NOTE: Tighten the bolts in the indicated sequence.

Torque: 13 Nm

Engine - V8 S/C 5.0L Petrol - Cylinder Block Oil Gallery Plug
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct. Published: 23-Jul-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Exhaust Manifold RH (303-01C Engine - V8 5.0L Petrol, Removal and Installation).

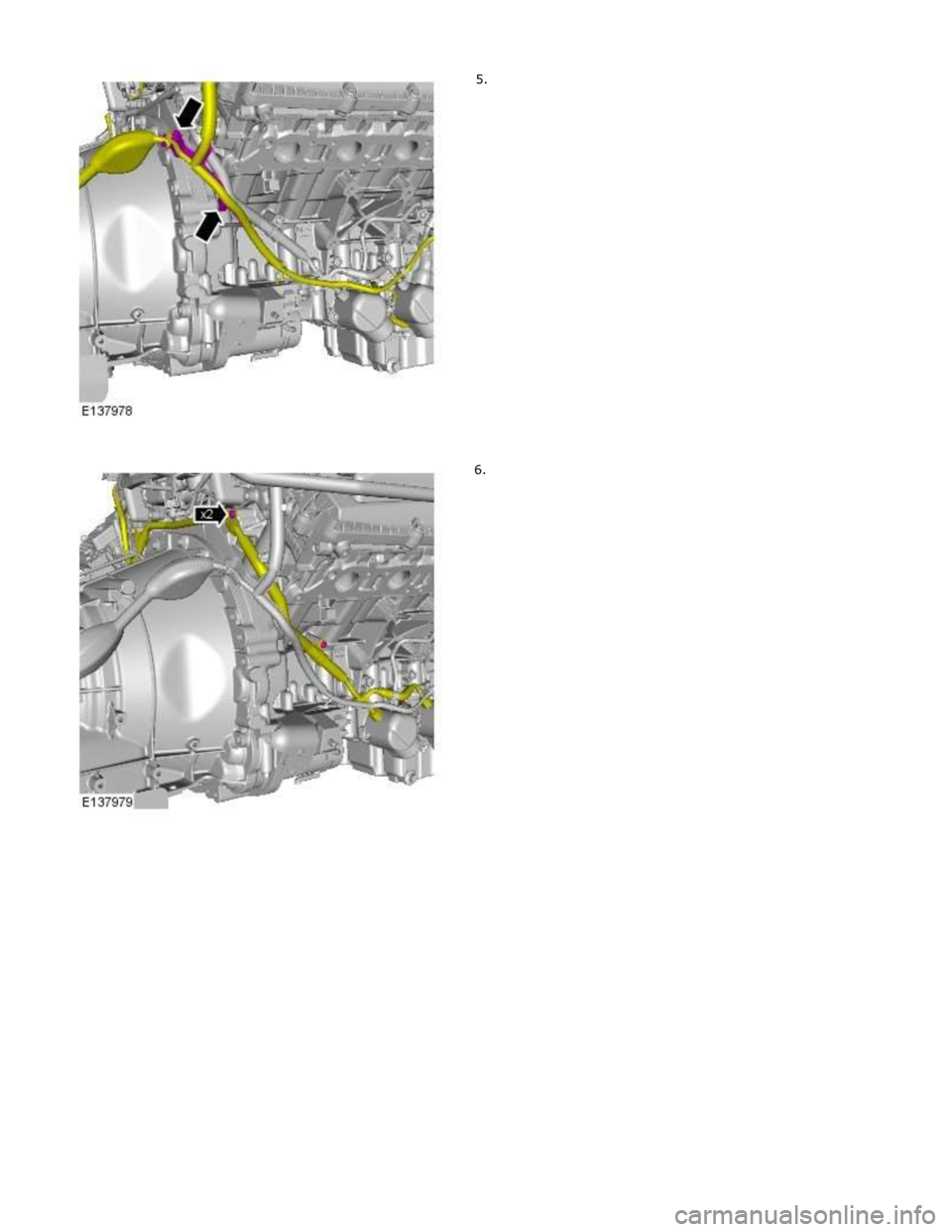

4.

Stage 2:180°
1. To install, reverse the removal procedure. www.JagDocs.com

Published: 10-Oct-2011
Engine - V8 S/C 5.0L Petrol - Fuel Pump Camshaft Assembly Part Number:
INA Timing Drive
Removal and Installation

Removal


NOTE: Some illustrations may show the engine removed for clarity.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Oil Pan Extension (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

4.

1. CAUTION: Make sure that the mating faces are clean and
free of foreign material.


















2. CAUTION: Take extra care not to damage the mating
faces.
Torque: 12 Nm Installation

4. Torque: 12 Nm
