Engine - V8 S/C 5.0L Petrol - Fuel Pump Camshaft Timing Adjustment
General Procedures

Special Tool(s)


303-1447
Timing Tool

JLR-303-1613
Alignment Tool, Fuel Pump Camshaft Timing
Adjustment

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Fuel Pump Camshaft Timing Check (303-01D Engine - V8 S/C 5.0L Petrol, General Procedures).

4. Refer to: Lower Timing Cover (303-01C Engine - V8 5.0L Petrol, Removal and Installation).
Refer to: Lower Timing Cover (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

5. CAUTIONS:


Make sure that the area around the component is
clean and free of foreign material.


Inspect the 3 timing chain oil nozzles for signs of
damage, install as necessary.

















6. NOTE: Using a suitable tie strap, position the
tensioner to one side.

Special Tool(s): JLR-303-1613 Torque: 12 Nm

























7. Refer to: Lower Timing Cover (303-01C Engine - V8 5.0L Petrol, Removal and Installation).
Refer to: Lower Timing Cover (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

8.
9.

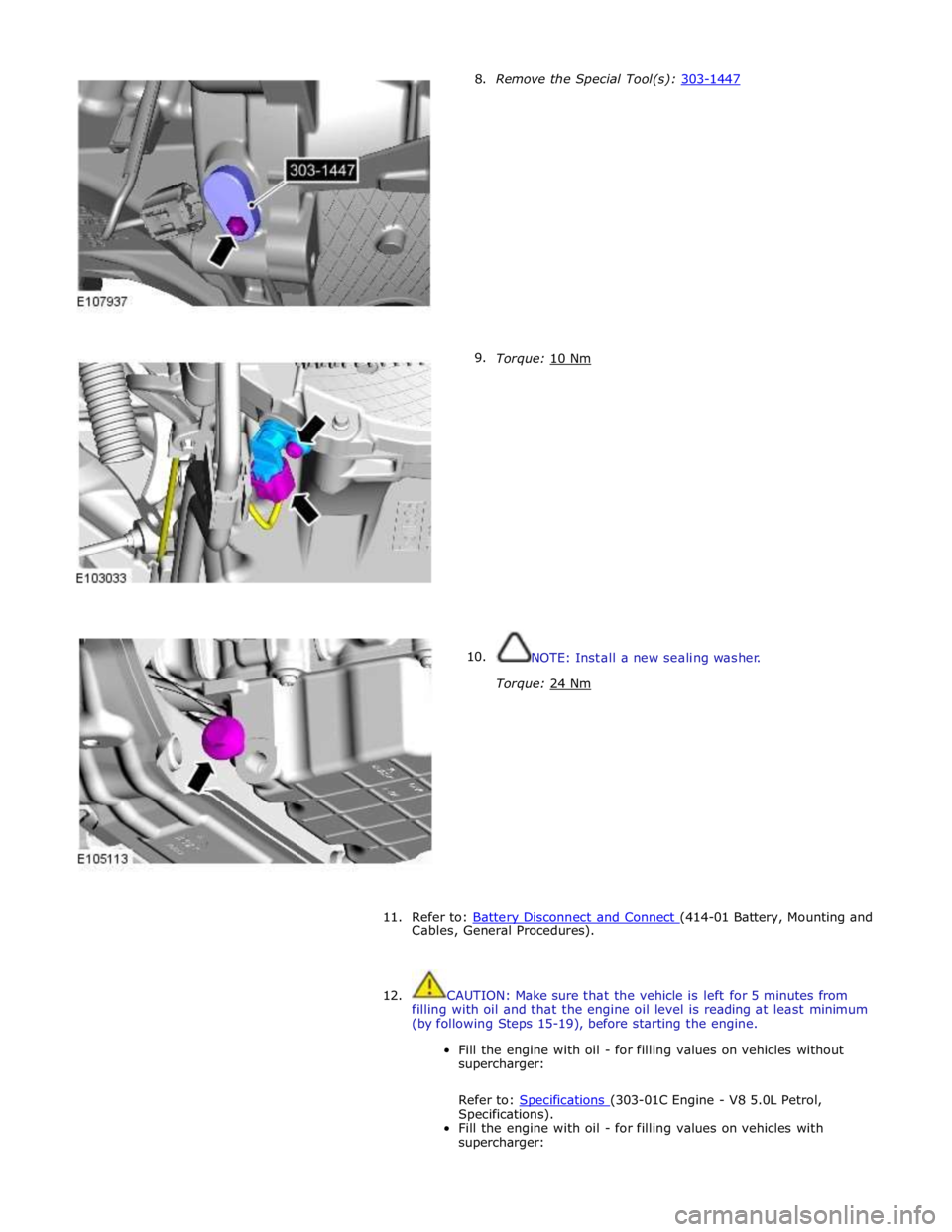

10. Remove the Special Tool(s): 303-1447
















Torque: 10 Nm


















NOTE: Install a new sealing washer.
Torque: 24 Nm










11. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


12. CAUTION: Make sure that the vehicle is left for 5 minutes from
filling with oil and that the engine oil level is reading at least minimum
(by following Steps 15-19), before starting the engine.

Fill the engine with oil - for filling values on vehicles without
supercharger:

Refer to: Specifications (303-01C Engine - V8 5.0L Petrol, Specifications).
Fill the engine with oil - for filling values on vehicles with
supercharger:

Refer to: Specifications (303-01D Engine - V8 S/C 5.0L Petrol, Specifications).
Clean any residual engine oil from the oil filler cap area.


13. CAUTION: Make sure that the vehicle has been left for 5 minutes
from filling with oil.
Follow the Steps 15-19 before starting the engine.

14.
Start the engine and allow to run for 10 minutes, stop the
engine.
Check for leaks.

15. CAUTIONS:


Make sure that the selector lever and the gearshift mechanism are
in the park (P) position.


Make sure that the hood is open.
Turn the ignition on.

16.
Scroll through the trip menu to access the engine oil
level display. www.JagDocs.com

17.
18.
Press the cruise control cancel button twice within 2
seconds.
























The message center display will revert to the normal
display in the trip computer.
Scroll through the trip menu to access the engine oil
level display.
Check that the oil level display shows an oil level
reading.
Only after having started and run the engine for 10
minutes (as indicated in Step 14), switch off the
engine, then stabilizing for 10 minutes, take a
reading from the oil level display and, if necessary
top up with engine oil.





















19. NOTE: If instructed to follow Steps 15-19 in a previous step, return
to Step 14 and continue the procedure.
Turn the ignition off.

20. Allow 10 minutes for the engine oil level to stabilize if there has been
additional oil top up.

21.
NOTE: The following steps are to update the average
oil level value.
Turn the ignition on.
Press and hold the cruise control cancel button for
more than 2 seconds.














22.
The message center display will revert to the normal display in
the trip computer.

23. Turn the ignition off.

24. Turn the ignition on.

25.
Scroll through the trip menu to access the engine oil
level display.
Make sure that the average oil level value has now
been updated.





















26. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

Engine - V8 S/C 5.0L Petrol - Valve Clearance Check
General Procedures
Check Published: 10-Jul-2013

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Valve Cover LH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

4. Refer to: Valve Cover RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

5. CAUTIONS:


Rotate the engine clockwise until the camshafts are positioned as
shown.


Do not rotate the crankshaft counterclockwise. The timing chains
may bind causing engine damage.


Camshaft lobes must be 180 degrees away from each valve tappet
or valve clearance will be incorrect.


NOTE: Using feeler gauge check the gap between the tappet and
the camshaft lobe and check against specifications table.

Using feeler gauge check the gap between the tappet and the
camshaft lobe and check against specifications table.
Repeat for the remaining valve tappets.

Engine - V8 S/C 5.0L Petrol - Valve Clearance Adjustment
General Procedures
Check Published: 10-Jul-2013

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Valve Clearance Check (303-01D Engine - V8 S/C 5.0L Petrol, General Procedures).

Adjustment

1. Refer to: Camshaft LH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

2. Refer to: Camshaft RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

3. www.JagDocs.com

Engine - V8 S/C 5.0L Petrol - Camshaft LH
Removal and Installation

Removal Published: 11-May-2011

CAUTION: Make sure that the orientation and code on the top of the camshaft bearing caps is noted (along with the bank
- A or B), so that on installation the components are installed to their original position. Failure to follow this instruction may
cause damage to the vehicle.


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3.

4. CAUTIONS:


Rotate the camshafts until all the valves are at their
minimum open point.


Evenly and progressively, release the camshaft
bearing caps.


NOTE: Remove the camshaft bearing caps. Note: their
position, orientation and markings. Each is marked with its
position (number) and an orientation (arrow).

Engine - V8 S/C 5.0L Petrol - Camshaft RH
Removal and Installation

Removal Published: 11-May-2011

CAUTION: Make sure that the orientation and code on the top of the camshaft bearing caps is noted (along with the bank
- A or B), so that on installation the components are installed to their original position. Failure to follow this instruction may
cause damage to the vehicle.


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3.

4. CAUTIONS:


Rotate the camshafts until all the valves are at their
minimum open point.


Evenly and progressively, release the camshaft
bearing caps.


NOTE: Remove the camshaft bearing caps. Note: their
position, orientation and markings. Each is marked with its
position (number) and an orientation (arrow).
