JAGUAR XFR 2010 1.G Workshop Manual

Rear View Mirrors - Exterior Mirror Cover
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct. Published: 11-May-2011

1. Refer to: Exterior Mirror Glass (501-09 Rear View Mirrors, Removal and Installation).




Installation
2. NOTE: Note the fitted position of the locating pegs.

1. To install, reverse the removal procedure.

Rear View Mirrors - Exterior Mirror Glass
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct.


1.
2.
Installation Published: 11-May-2011


1. NOTE: Note the fitted position of the locating pegs.
To install, reverse the removal procedure.

Rear View Mirrors - Exterior Mirror Motor
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct. Published: 11-May-2011

1. Refer to: Exterior Mirror Glass (501-09 Rear View Mirrors, Removal and Installation).

2.

www.JagDocs.com

Rear View Mirrors - Interior Rear View Mirror
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. CAUTIONS:


Take extra care not to damage the clips.
Protect the surrounding trim to avoid damage.



























2.

Front seat backrest retaining bolts 35 26 - Front seat safety belt anchor retaining bolts 40 30 - Front seat retaining bolts 47 35 - Front safety belt buckle retaining bolt 40 30 - Rear seat backrest retaining bolts 17 13 - Side air bag module retaining nuts 7 - 62

Seating - Seats - Component Location
Description and Operation

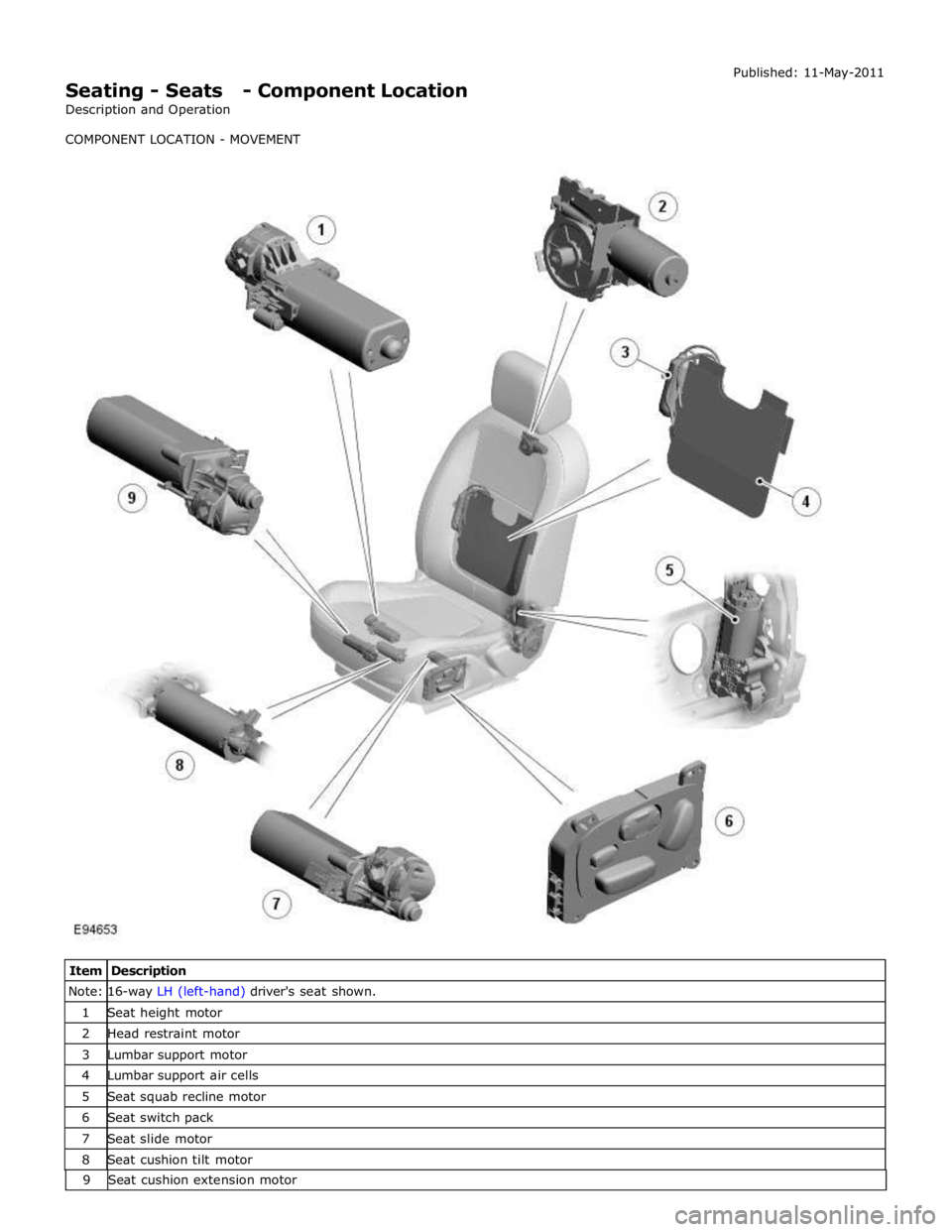

COMPONENT LOCATION - MOVEMENT Published: 11-May-2011










































Item Description Note: 16-way LH (left-hand) driver's seat shown. 1 Seat height motor 2 Head restraint motor 3 Lumbar support motor 4 Lumbar support air cells 5 Seat squab recline motor 6 Seat switch pack 7 Seat slide motor 8 Seat cushion tilt motor 9Seatcushionextension motor

Note: Heated front seat shown 1 Squab heater element 2 Cushion heater element www.JagDocs.com

Note: Heated and cooled front seat shown 1 Squab liner 2 Squab climate module 3 Squab inlet duct 4 Squab blower 5 Cushion climate module 6 Cushion inlet duct 7 Cushion blower 8 Cushion liner 9 Front seat climate control module COMPONENT LOCATION - TEMPERATURE - CLIMATE SEATS - SHEET 2 OF 2
