6. CAUTION: Make sure no damage is caused to the vehicle trim
when removing the rear seat.
With assistance, remove the rear seat backrest.
Both rear seat backrests need to be in an upright
position but not latched for access to retaining bolts.








7. Release the backrest cover.
Release all 4 sides.










8. Remove the rear seat backrest hinge(s).














9. Remove the rear armrest retaining screw covers.

10.
11. Remove the rear armrest retaining screws.
Remove the 2 Torx screws.
















CAUTION: Make sure no damage is caused to the seat
trim when removing the seat armrest.
Remove the rear seat armrest.










12.
Release the rear seat backrest cover from the armrest aperture.
Release the 3 plastic retaining strips from the securing clips.

13. Remove the cappings from the rear head restraint retaining posts.
Release the rear backrest cover over the head restraint posts.

14. Remove the rear seat backrest cushion and cover from the rear seat
backrest.

15. Remove and discard the hog rings.
Remove the 36 hog rings securing the rear 60% seat
backrest cover to the backrest seat cushion.
Remove the 26 hog rings securing the rear 40% seat
backrest cover to the backrest seat cushion.










16. Remove the rear seat backrest cover.

Installation

1. NOTES:

Make sure that new hog rings are installed.


Use hog ring pliers to close the hog rings. Do not use any other
tool. The hog rings must be closed to overlap as illustrated.
To install, reverse the removal procedure.

www.JagDocs.com

Seating - Front Seat Height Adjustment Motor
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Make the air bag supplemental restraint system (SRS) safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Remove the front seat.

Refer to: Front Seat (501-10 Seating, Removal and Installation).

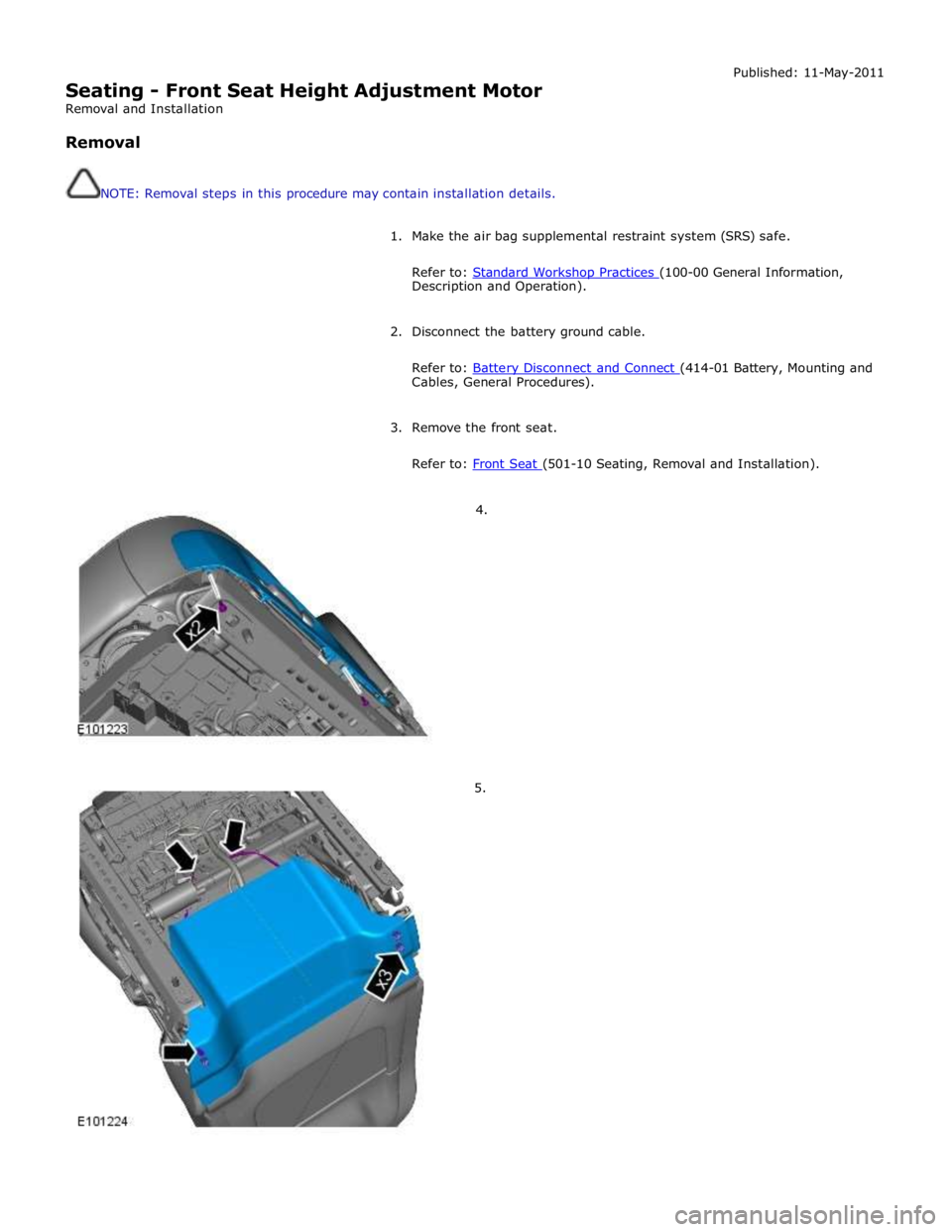

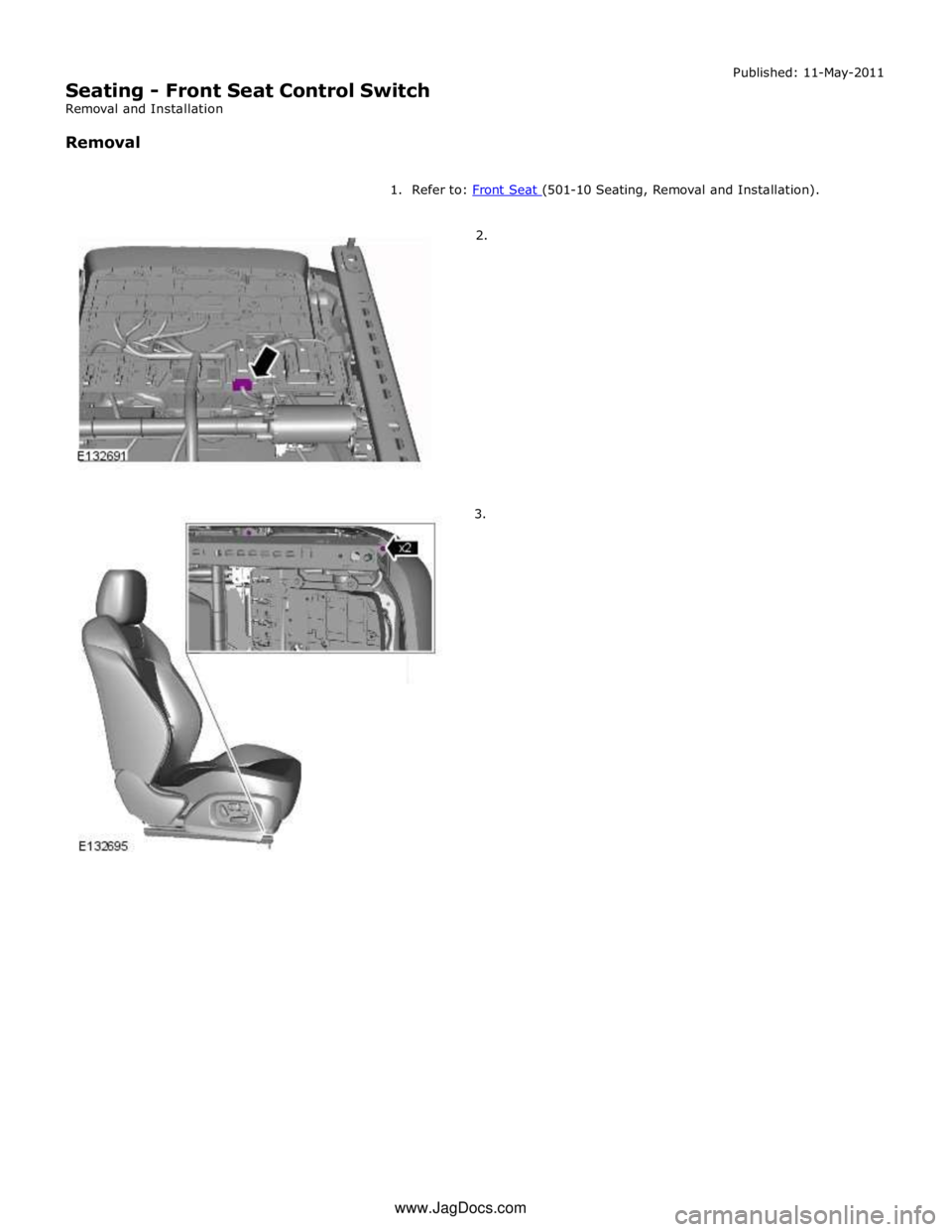

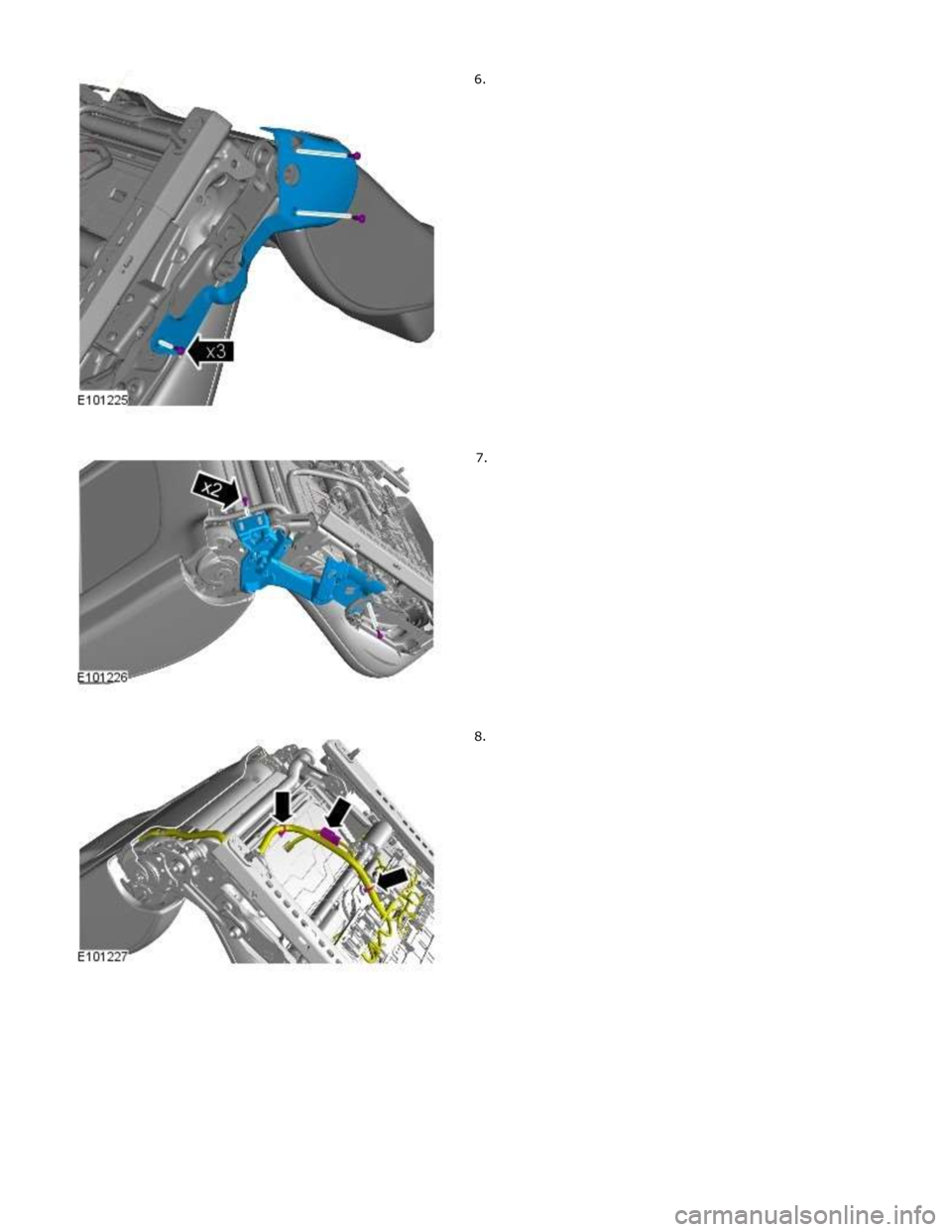

4.
5.

9.



































10. WARNING: This step requires the aid of another
technician.


CAUTION: Take extra care when handling the
component.
Torque: 35 Nm




























NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
Torque: 35 Nm

Installation

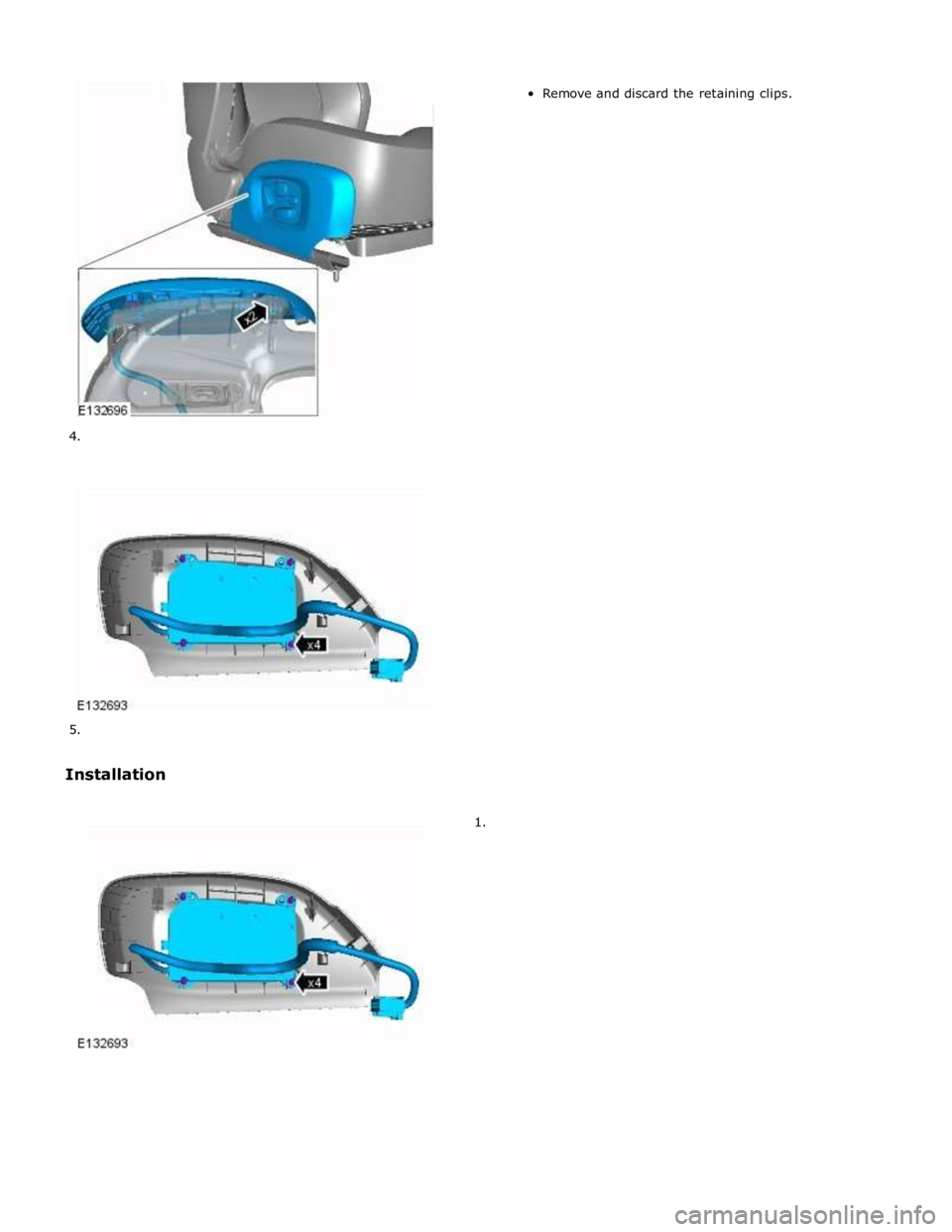

11.

















12.

















13.

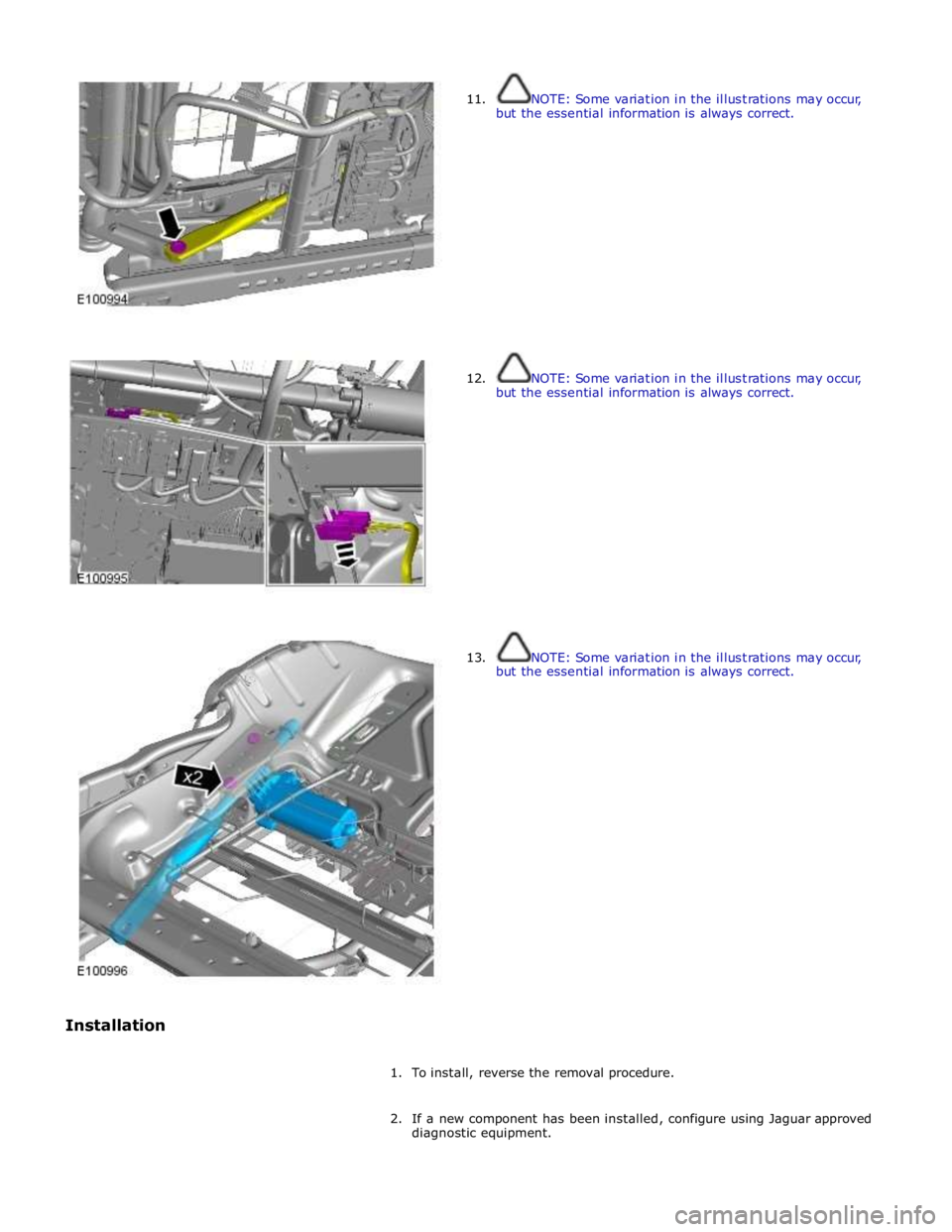

NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
















NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
















NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

1. To install, reverse the removal procedure.

2. If a new component has been installed, configure using Jaguar approved
diagnostic equipment.

2.
