JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual

Automatic Transmission (V12) Powertrain
Shift Malfunction (Max- Adapt) - PO780
Function:
Transmission internal operation monitoring.
Possible causes:
. Mechanical wear 1 failure.
Effects:
. Harsher shifts.
Remedy:
. Refer to VSM, Section 8.2.
Transmission Component Slipping - PI 739
Function:
Transmission internal operation monitoring.
Possible causes:
Faulty harness wiring /connection.
. Fuse blown.
. Faulty torque converter clutch.
Mechanical wear.
Effects:
. MIL lamp illuminated.
. Harsh shifts.
Remedy:
. Repair or renew harness 1 connector.
Renew fuse F14 in LH heelboard fuse-box on determining reason for rupture.
Refer to VSM, Section 8.2.
0
0
Issue 1 August 1994 20 X300 EDM

Automatic Transmission (V12) Powertrain

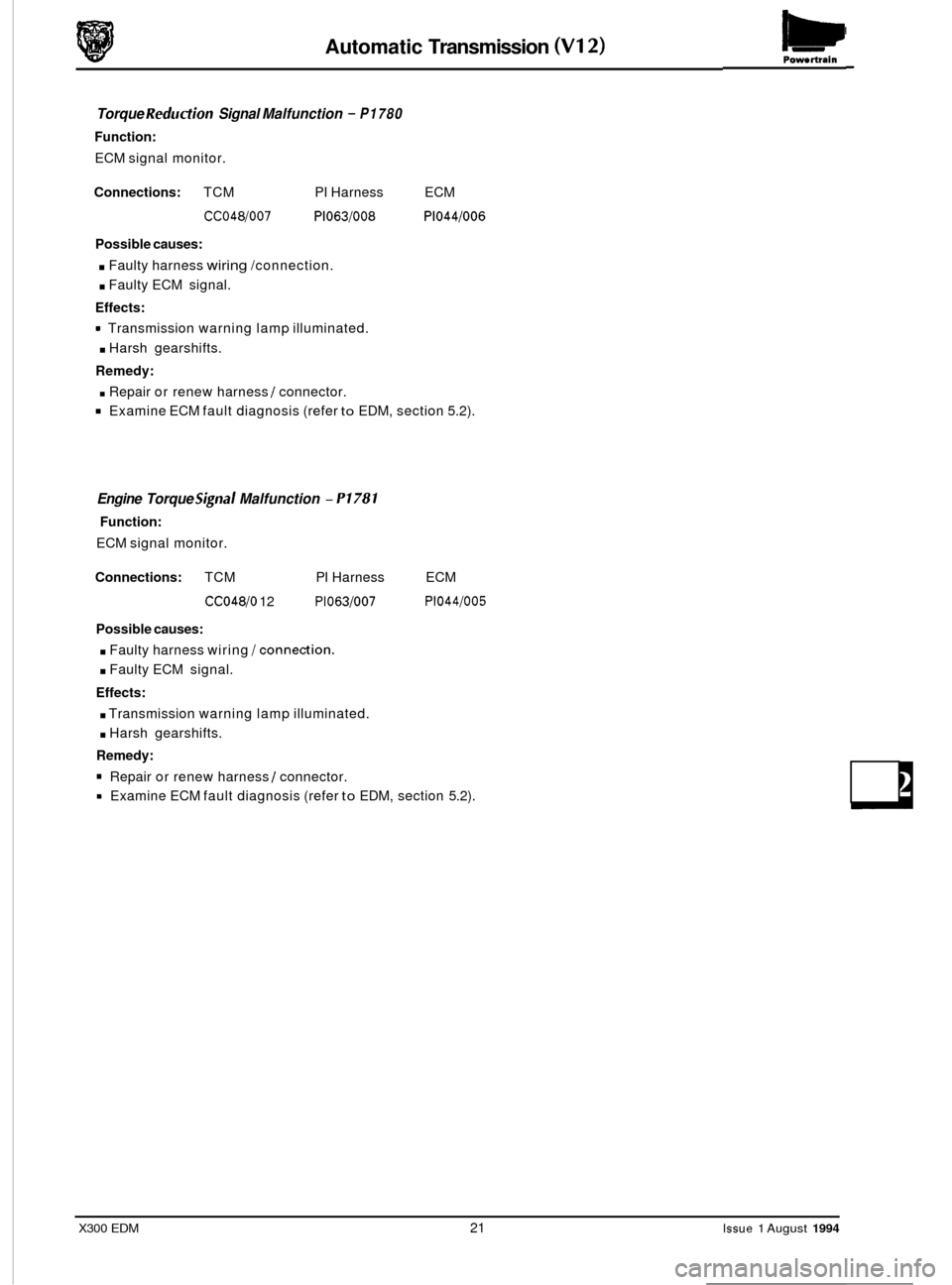

Torque Reduction Signal Malfunction - P1780
Function:
ECM signal monitor.
Connections: TCM PI Harness ECM
CC048/007 P1063/008 P1044/006
Possible causes:
. Faulty harness wiring /connection.
. Faulty ECM signal.
Effects:
. Harsh gearshifts.
Remedy:
. Repair or renew harness / connector.
Examine ECM fault diagnosis (refer to EDM, section 5.2).
Transmission
warning lamp illuminated.
Engine Torque Signal Malfunction - P1781
Function:
ECM signal monitor.
Connections: TCM PI Harness
CC048/0 12 P1063/007
ECM
P1044/005
Possible causes:
. Faulty harness wiring /connection.
. Faulty ECM signal.
Effects:
. Transmission warning lamp illuminated.
. Harsh gearshifts.
Remedy:
Repair or renew harness / connector.
Examine ECM fault diagnosis (refer
to EDM, section 5.2).
X300 EDM 21 Issue 1 August 1994

Automatic Transmission (V12) W Powertrain
1

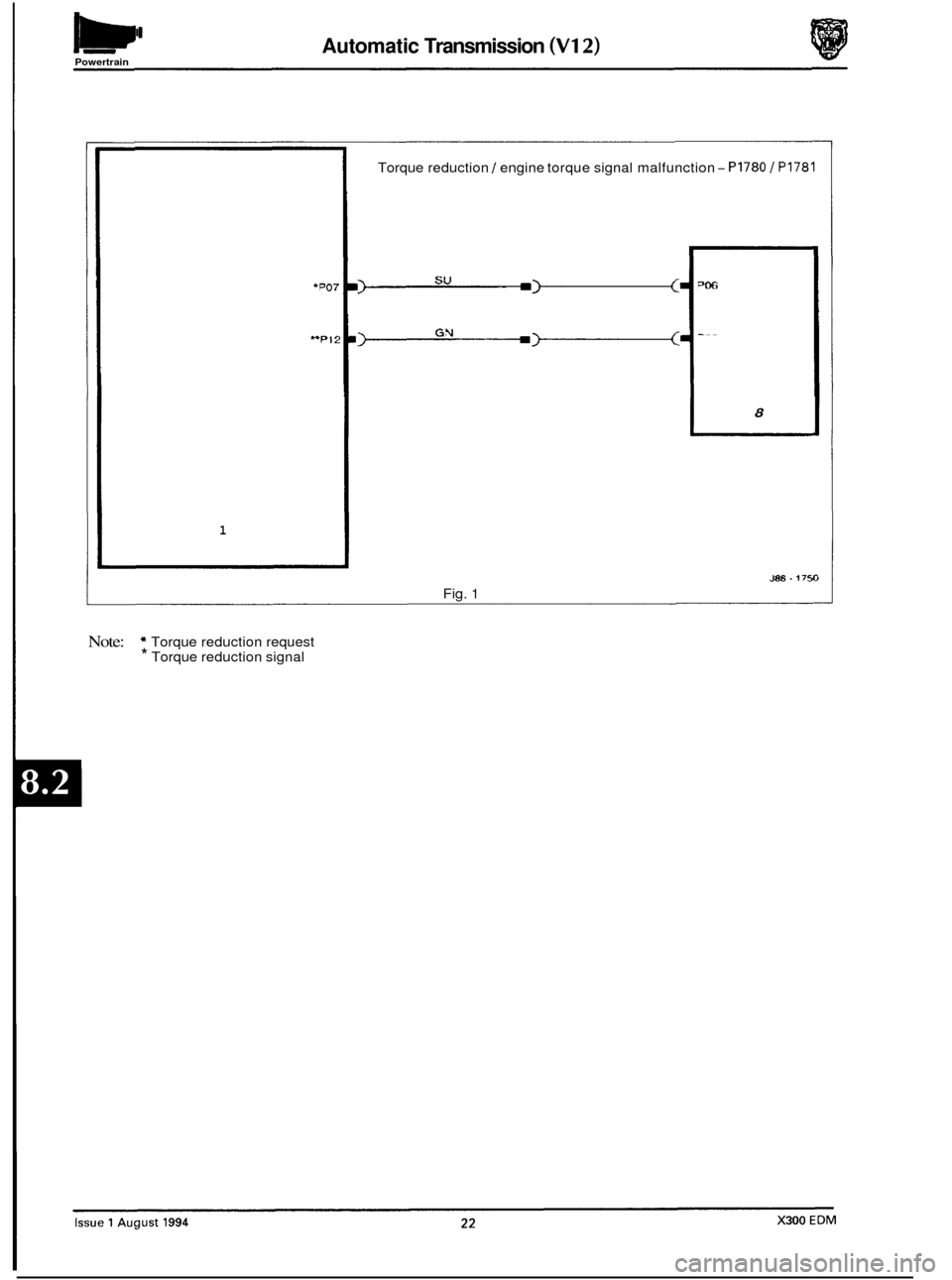

Torque reduction / engine torque signal malfunction - PI780 / PI781
-
8
J86.175~3
Fig. 1
Note: * Torque reduction request * Torque reduction signal
0
0
0

Powertrain Automatic Transmission (V12)

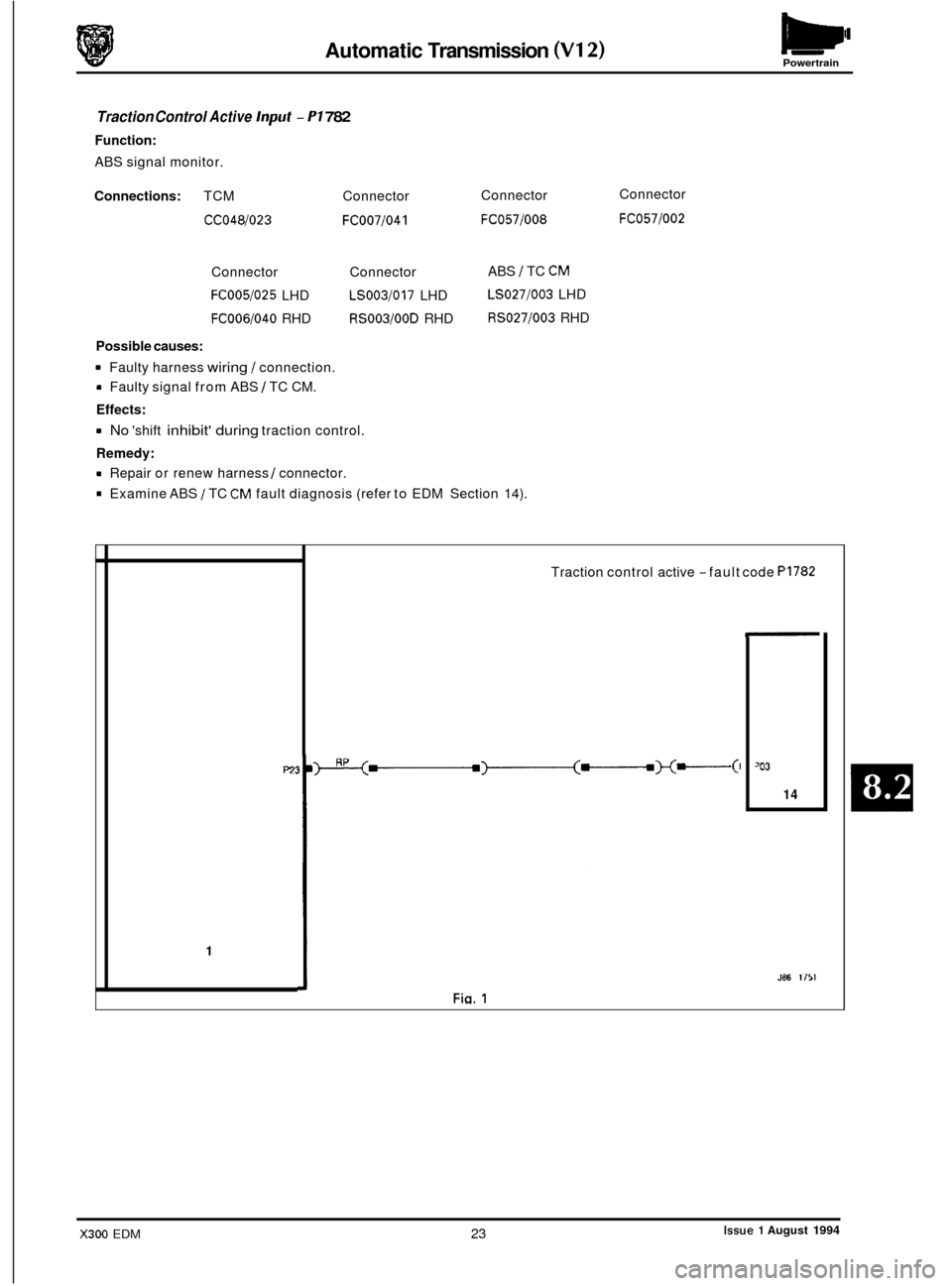

Traction Control Active Input - PI 782
Function:
ABS signal monitor.
Connections: TCM Connector
CCO48/023 FCOO7/041
Connector Connector
FCOO5/025 LHD LSOO3/017 LHD
FCOO6/040 RHD RS003/00D RHD Connector
FCO57/008
ABS / TC CM
LSO27/003 LHD
RS027/003 RHD
Possible
causes:
8 Faulty harness wiring / connection.
8 Faulty signal from ABS / TC CM.
Effects:
8 No 'shift inhibit' during traction control.
Remedy:
8 Repair or renew harness / connector. - Examine ABS / TC CM fault diagnosis (refer to EDM Section 14). Connector
FCO57/002
P2:
1
Traction
control active -fault code PI782
-
'03
14
JE6 1751
Issue 1 August 1994 X300 EDM 23

I' Automatic Transmission (V12) Powertrain
PI Harness
Pl063/00 1

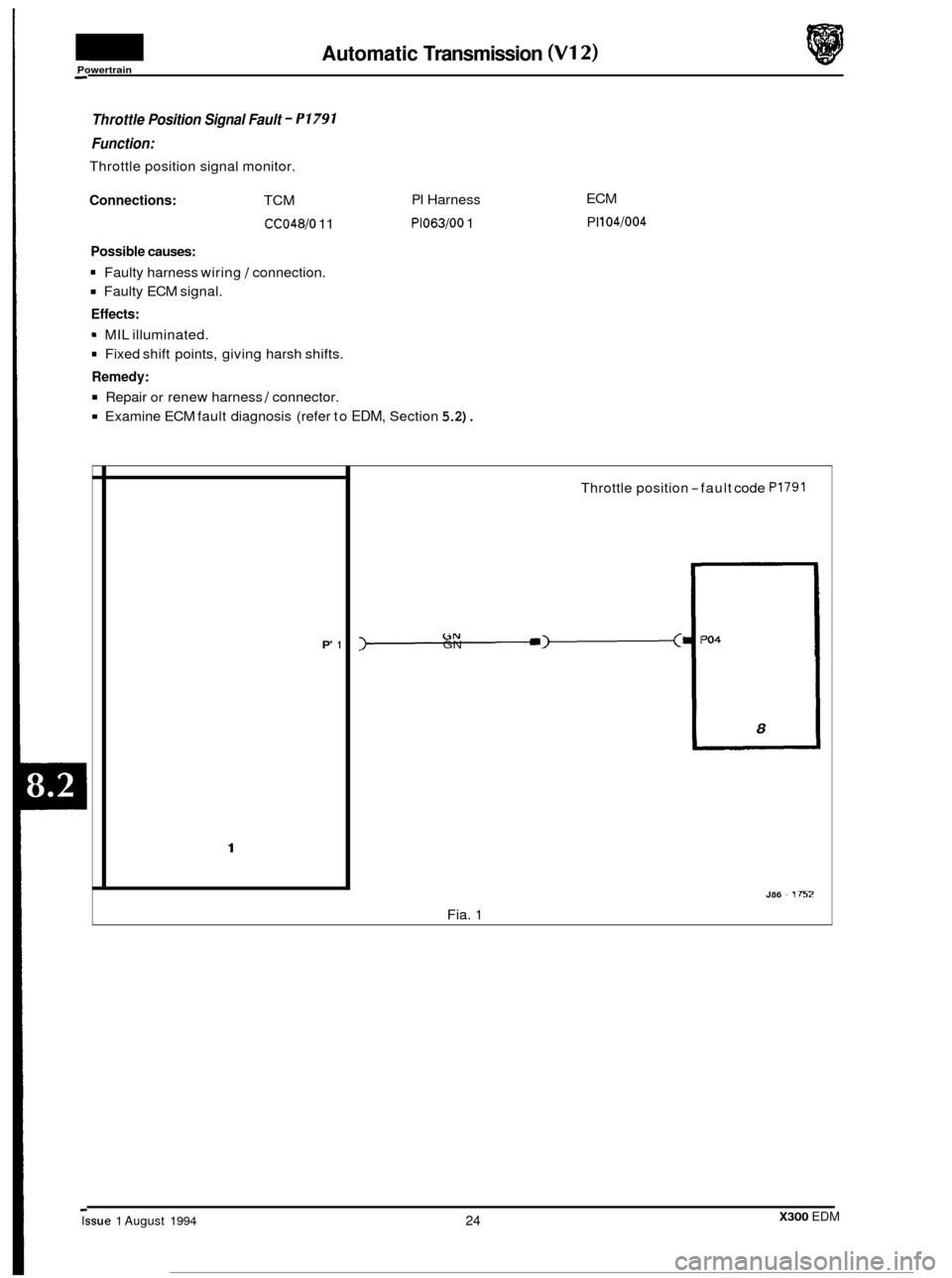

Throttle Position Signal Fault - P1791
Function:
Throttle position signal monitor.
Connections: TCM
CC04810 1 1
Possible causes:
Faulty harness wiring 1 connection.
Faulty ECM signal.
Effects:
9 MIL illuminated.
Fixed shift points, giving harsh shifts.
Remedy:
Repair or renew harness 1 connector.
Examine ECM fault diagnosis (refer to EDM, Section 5.2).
ECM
PI 104/004
P' 1
1
Throttle position -fault code P1791
7-1 GN
Fia. 1
W4
8
J86 ~ 1752
X300 EDM Issue 1 August 1994 24

Automatic Transmission (V12) - Powertrain
System Voltage Malfunction - P1794
Function:
Battery voltage monitor.
Possible causes:
. Faulty harness wiring /connection.
. Blown fuses.
Effects:
. MIL illuminated.
. Second gear selected permanently ie ‘Limp Home’ mode.
Remedy:
Repair or renew harness I connector.
. Examine fuse F14 and F5 in LH and RH heelboard fuse-boxes respectively.
. Renew (if necessary) after determining cause of rupture.
P5 5
P53
1
I -3---+-2 YR
System supply voltage -fault code PI794
J86 - 1 753 Fig. 1
- Note: * +12V present only when ignition switched ON
X300 EDM ~.
25 Issue 1 August 1994

I:.
Powertrain Automatic Transmission (V12) w

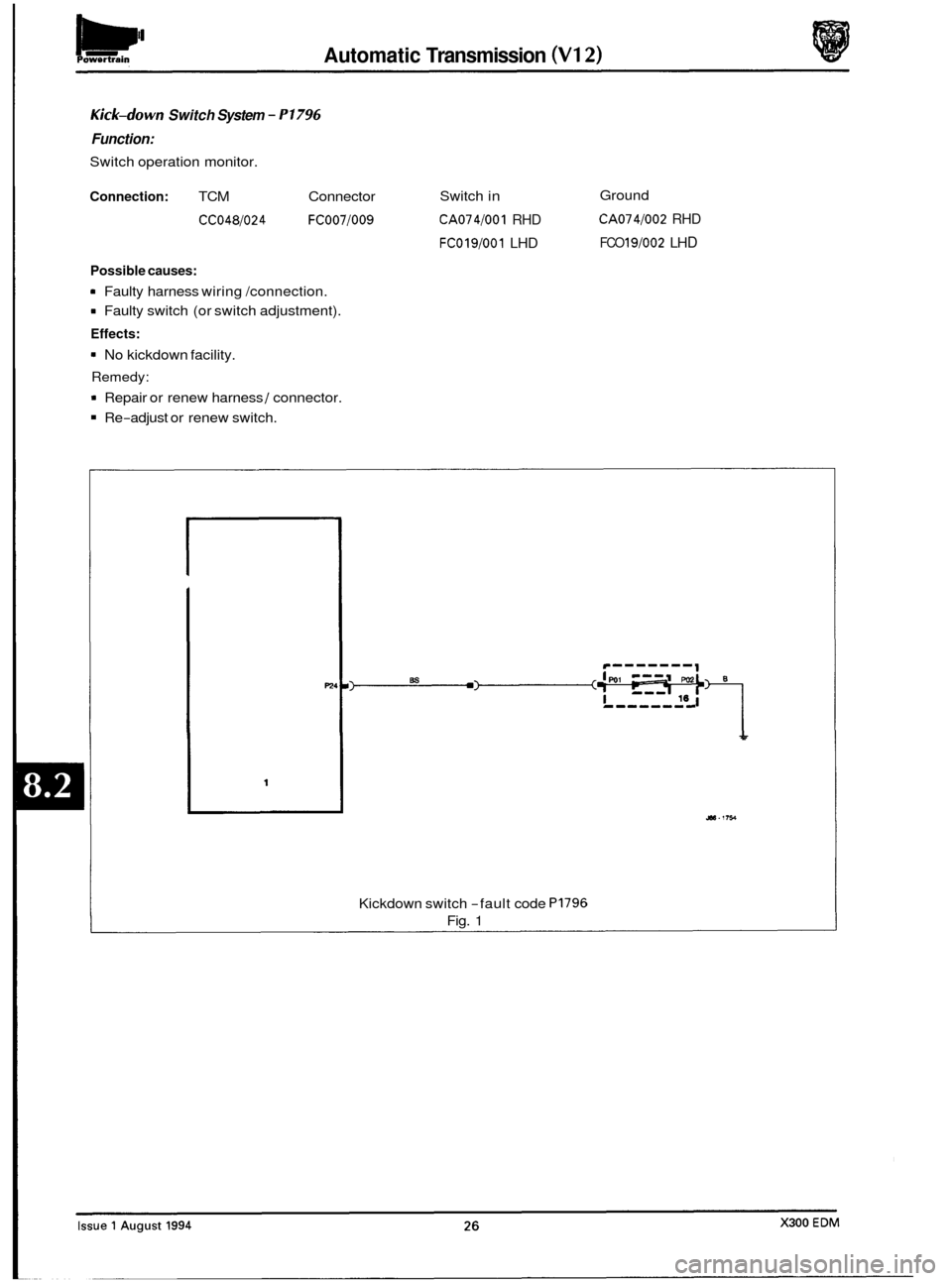

Kickdown Switch System - P1796
Function:
Switch operation monitor.
Connection: TCM Connector
CCO48/024 FCOO7/009
Possible causes:
8 Faulty harness wiring /connection.
8 Faulty switch (or switch adjustment).
Effects:
No kickdown facility.
Remedy:
8 Repair or renew harness / connector.
Re-adjust or renew switch. Switch
in
CA074/001 RHD
FCO19/001 LHD
Ground
CA074/002 RHD
FCO 191002 LH D
Kickdown switch -fault code PI796
Fig. 1

J86 1757
X300 EDM 27 Issue 1 August 1994

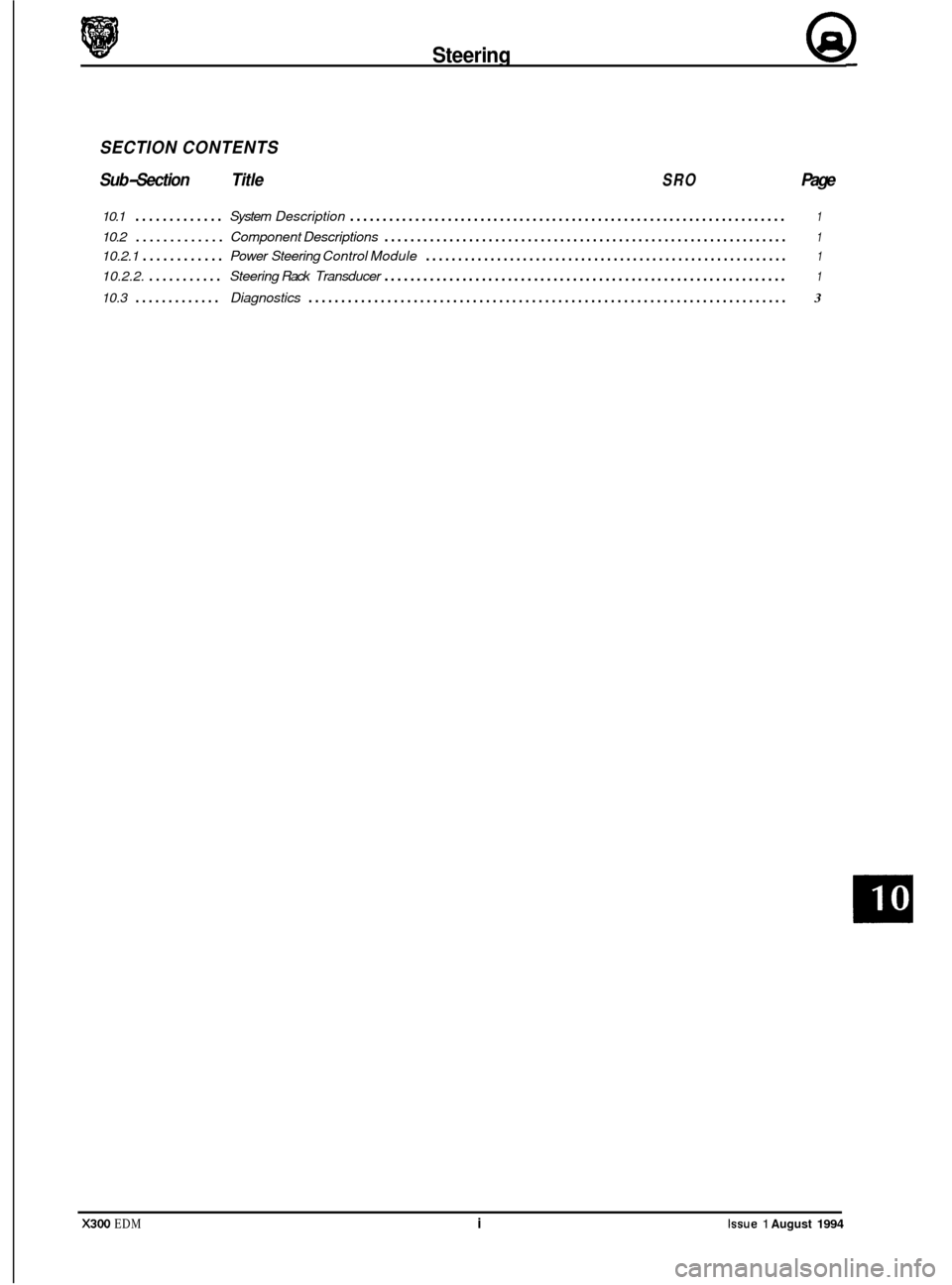

Steering 69
SECTION CONTENTS
Sub
-Section Title SRO Page
10.1 ............. System Description ................................................................... 1
10.2.1 ............ Power Steering Control Module ........................................................ 1
10.2.2. ........... Steering Rack Transducer .............................................................. 1
10.2 ............. Component Descriptions .............................................................. 1
10.3 ............. Diagnostics ........................................................................\
. 3
X300 EDM i Issue 1 August 1994
