JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual

Q Steering
I86 177L
1. Instrument pack
2. Steering rack transducer 3. Power steering control module
Fig.

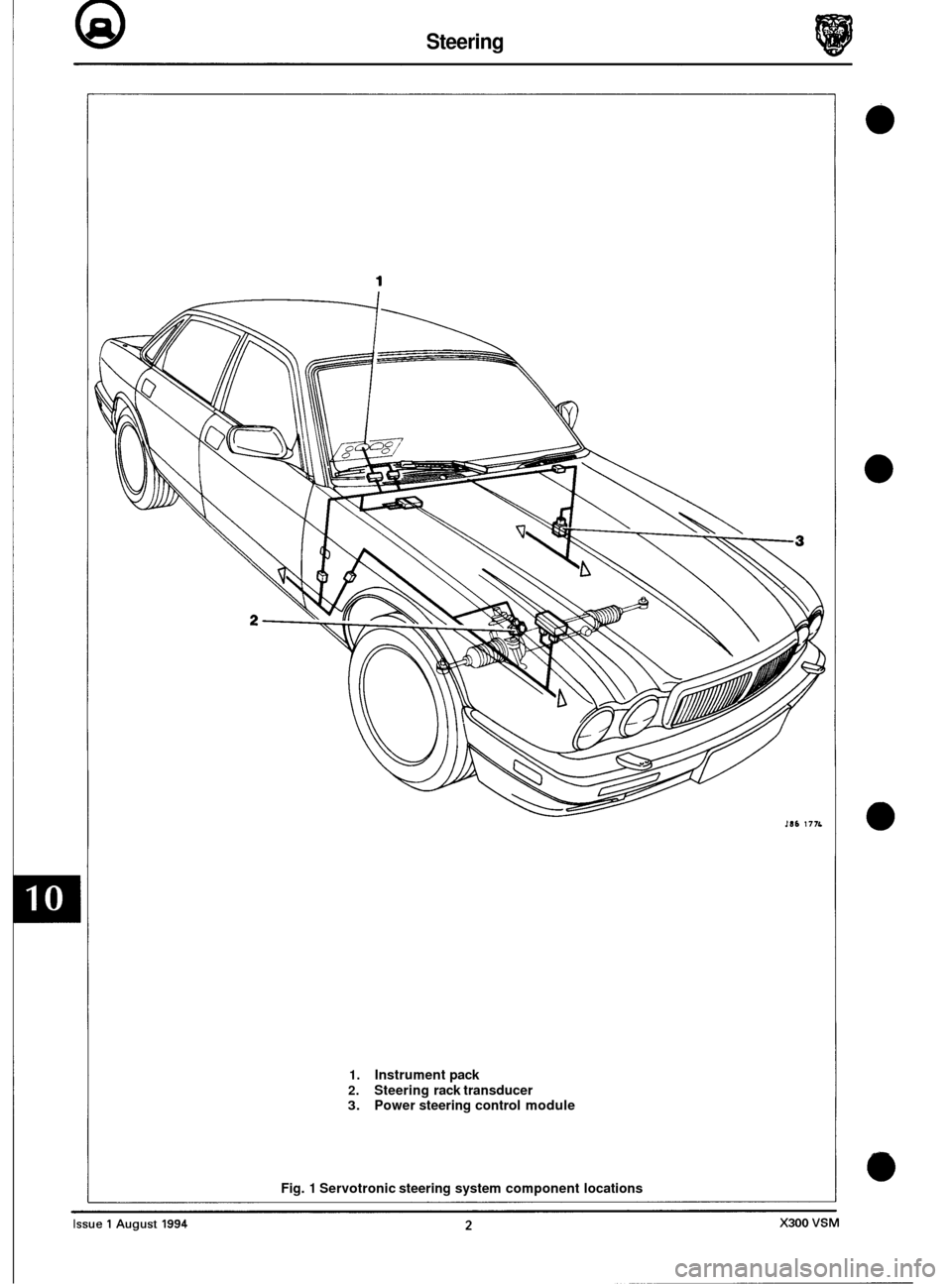

1 Servotronic steering system component locations

Steering @
10.3 DIAGNOSTICS
a Fault: Steering light at all times
Cause: 1. No speed signal
2. Wiring fault
Remedy: 1.
2a.
2b. Check
wiring harness continuity between PSCM pin
V and instrument pack
pin
2.
Check voltage between transducer pin 1 (+ve) and ground, with ignition
ON. If 12V is recorded repair or renew harness.
Check wiring between transducer pin
2 (-ve) and OV. If OV is recorded
repair or renew harness.
Fault: Steering heavy at all times
Cause: 1. Fuse blown
2. Wiring fault
Remedy: 1.
2a.
2b.
2c.
2d Examine
fuse F12 in
RH heelboard fuse-box, if blown determine reason for
failure and renew.
Check wiring harness continuity between fuse F12 in
RH heelboard
fuse
-box and PSCM pin V.
Check wiring harness continuity between PSCM pin W1 and transducer
pin 1.
Check wiring harness continuity between PSCM pin W2 and transducer
pin
2.
Check voltage between transducer pin 2 and ground, with ignition ON. If
12V is recorded repair or renew harness and renew PSCM.
Fault:
Cause:
1. Short circuit
Remedy:
Steering becomes heavy during driving until ignition cycled
la.
1 b.
Check resistance between transducer pins 1 and 2. If a value below 7.5f is
recorded renew transducer.
Check resistance of wiring harness between transducer connections. If
short circuit is recorded renew harness.
Note: Operation ofthe PSCM can bechecked using Jaguar Diagnostic Equipment. Generation of input speed signals
and measurement of the resulting current outputs indicate
if PSCM is faulty.
X300 EDM 3 Issue 1 August 1994

@ Steering
R
. WIP
+ Y
1- -------q I I +I" I
*Ti m) wp I
+12V PRESENT ONLY WHEN IGNITION ON
1. STEERING RACK TRANSDUCER 2. POWER STEERING CONTROL MODULE (PSCM) 3. INSTRUMENT PACK
i"
J86-1782

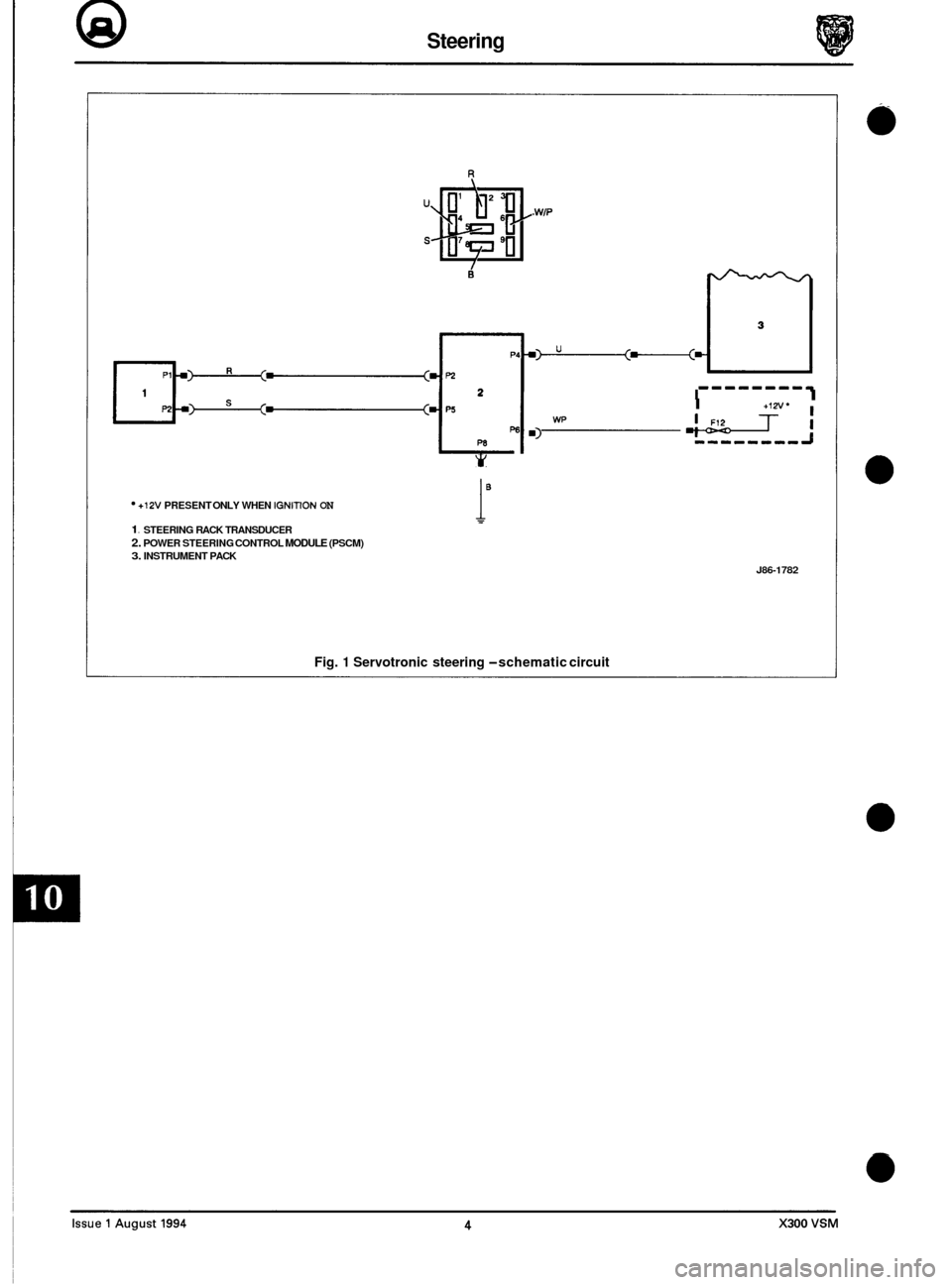

Fig. 1 Servotronic steering -schematic circuit

Brakes (a)

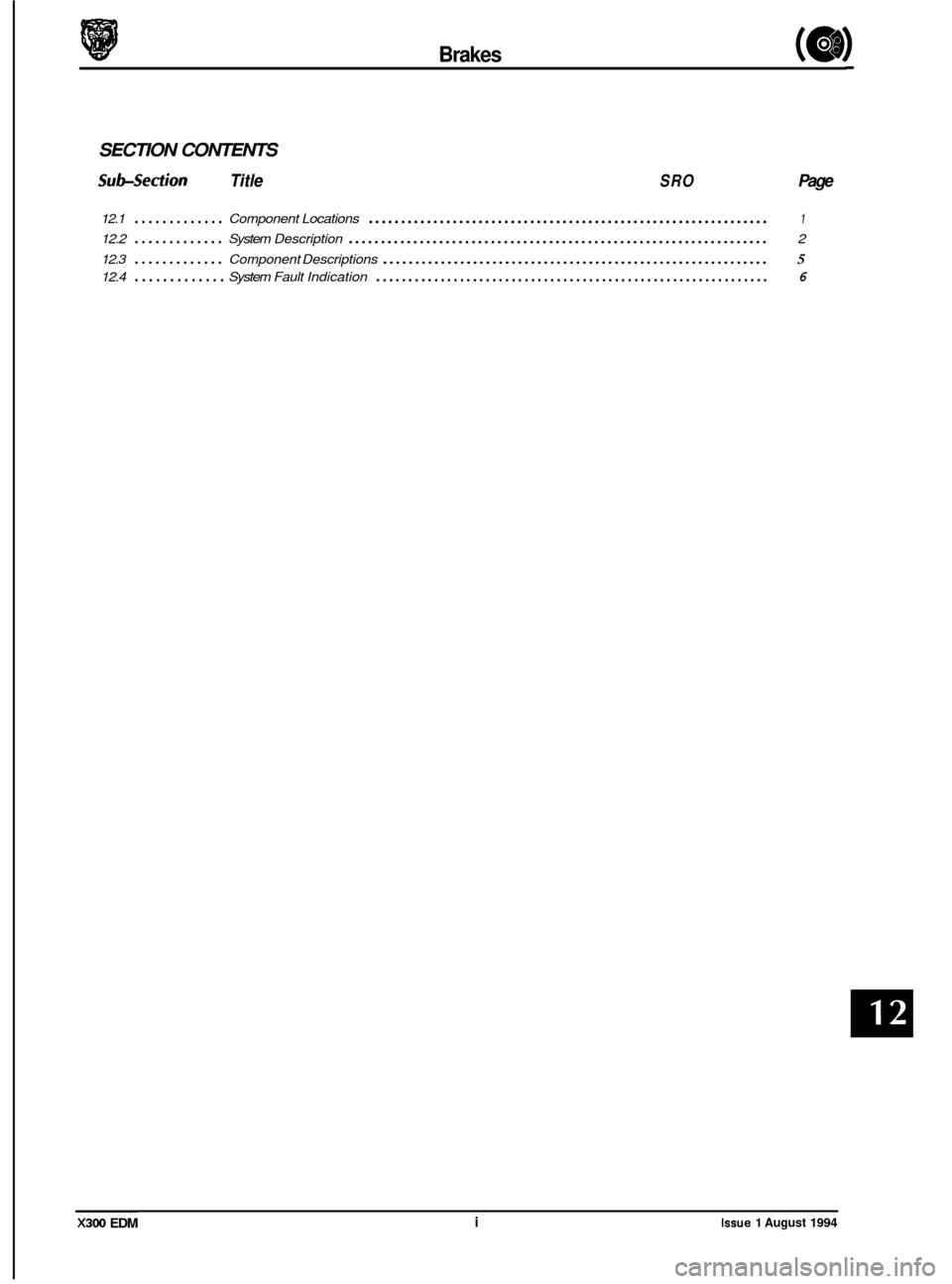

SECTION CONTENTS
Sub-section Title SRO Page
12.1 ............. Component Locations .............................................................. 1
12.2 ............. System Description ................................................................. 2
12.3
............. Component Descriptions ............................................................ 5
12.4 ............. System Fault Indication ............................................................. 6
X300 EDM i Issue 1 August 1994

0
0
0
Brakes (
12.1 COMPONENT LOCATlONS
Fig. 1 AJ16 (normally aspirated)
Fig.
2 AJ16 (supercharged)
Fig.
3 VI2
Key to Figs. 1,2 and 3:
1. Throttle position sensor 4. ABS motor
2. Traction control actuator 5. Valve block 3. Pump 6. Control module (ABS / TC CM)
X300 EDM 1 Issue 1 August 1994

Brakes
12.2 SYSTEM DESCRIPTION
The anti-lock braking system (ABS) and traction control system CTC) comprise the following components:
0 Hydraulic module: incorporating a pump, motor, low pressure accumulator, valve block, and either an ABS Con-
trol Module (ABS CM) or an ABS / TC Control Module (ABS / TC CM).
U!&: Within the hydraulic module are contained the electro-hydraulic inlet and outlet valves which regulate brake
system pressure.
o Four wheel speed sensors; hub end mounted.
0 Three warning indicators plus a Brake Warning Lamp and a Traction OFF / ON switch; fascia mounted.
0 Throttle valve flap positioning mechanism; mounted adjacent to the hydraulic module.
0 Various auxiliary inputs; providing information to ABS / TC CM.
0 Diagnostic IS0 communication BUS input / output link.
The solenoid operated hydraulic valves
are activated by signals, from the ABS /TC CM, which are generated using in-
formation received from the wheel speed sensors.
For vehicles without traction control thevalves operate on threecircuits, two front and one rear, as necessaryto prevent
wheel locking during braking. Brake pressure is modulated individually
at the front wheels and collectively at the rear.
Rear wheel control operates
a 'select low' principle such that locking in either wheel is sensed, and controlled brake
pressure is applied to both wheels.
Vehicles with traction control fitted have
all four wheels individually controlled allowing selective regulation of tractive
and braking force to each wheel as necessary when traction control is in operation.
The ABS
/ TC system as a whole is monitored constantly by the ABS / TC CM and is disabled (switched off until fault
is rectified) automatically when certain failures are identified. In the event of
a failure being detected the ABS and TC
MIL lamps, located on the instrument panel will illuminate. Full boosted brake operation and normal acceleration con- trol is available when ABS /TC is disabled. The system will be disabled when the following conditions occur:
0 Valve failure.
0 Sensor failure.
0 Main driver failure (internal ABS / TC CM fault).
0 Redundancy error (internal ABS / TC CM fault).
0 Over-voltage.
0 Pump motor failure.
0 Throttle valve actuator motor failure.
In the event
of under-voltage both ABS and TC will be disabled and the ABS andTC MIL lamps on the instrument panel
will illuminate.
U!&: The TC MIL lamp will only illuminate providing a voltage is still present at pin 15 'IGN FEED'
Throttle potentiometer failure will disable the TC function only and illuminate the TC MIL lamp.
The
moduleABS/TC CM is activated when ignition is ON, after an initiation period of approximately 1.7 seconds. After
this time delay the control module is ready to process signals provided from the various input sources and, using the
software defined algorithm, control the electrical and hydraulic circuits.
The inductive sensors attached to each of the four wheels provide speed signals to the ABS
/ TC CM. These signals are processed by ABS/TC CM giving comparison between individual wheel speeds, controlling braking or traction as
necessary and generating a pulse to drive the speedometer. Each sensor is monitored for open and short circuit failure,
causing disabling of ABS / TC on detection of a fault condition.
Issue 1 August 1994 2 X300 EDM

Brakes (a)
The input frequency of each sensor signal is translated, by the ABS /TC CM, into a comparable wheel speed. Should
any sensed speed be in excess of 330 km / h the relevant sensor is designated 'faulty' and ABS /TC control disabled.
Similarly ABS/TCcontrol is inhibited (switched off until fault condition is cleared) at speeds up to 40 km/ h whenfre- quency fluctuations are detected that are inconsistent with wheel rotation. At speeds above 40 km / h both systems
are disabled when inconsistencies are detected.
Traction control (where fitted) is achieved by using
a small motor and pulley arrangement to adjust the position of the
throttle flap. Under normal operating conditions the system is enabled by default. Operation of the Traction OFF / ON switch, located on the RH side of the fascia switch pack, disables the system and illuminates the TRACTION OFF lamp
located in the instrument pack.
Control is effected to prevent wheel spin by regulating (reducing) the throttle flap position, irrespective of the acceler
-
ator pedal position, using sensor signal comparisons and applying braking force to the wheel affected. Precise posi- tioning of the flap is achieved by monitoring the position of a throttle position sensor. When traction control is
requested
a gearshift inhibit signal is transmitted to the traction control module and cruise control (if selected) is dis- abled.
1
2
3
4
Battery positive feed (via fuse F7,located in the left-hand 'A' post lower fuse-box).
Battery positive feed (via fuse
F7,located in the right-hand 'A' post lower fusebox).
Gearshift inhibit
- during traction control.
Cruise control inhibit
- during traction control.
5/6 Wheel sensor
- LHF
7/8 Wheel sensor
- RHF
9/10 Wheel sensor
- LHR
Control Module Connections
Control module connections numbering 1 - 28, inclusive, provide the necessary input / output signals to enable the
module to control and monitor ABS / TC operation.
Connections are as follows:
13 Ground
14 Ground
15
16
17
18
19 Not used
20 Brake pedal switch.
21
22
23
24
25
26 Throttle position sensor wiper.
27 Throttle position sensor ground.
28 Diagnostic
IS0 communication bus.
Ignition
feed
- monitoring battery voltage to ignition switch.
Throttle valve actuator motor
- battery voltage reference.
Throttle valve actuator motor switching
-during traction control.
Traction inhibit
- via traction OFF / ON switch.
ABS MIL
- malfunction indicator lamp.
ABS ground
- illuminates ABS MIL lamp if ABS /TC CM connector loose or not fitted.
TC MIL
- malfunction indicator lamp.
RL out
- LHR wheel sensor signal drive pulse to speedometer.
Throttle position sensor
5V supply.
I 1 11/12 1 Wheel sensor - RHR 1
X300 EDM 3 Issue 1 August 1994

I I I I I I I I
I
I
I 11 I I
I
I
I I P24 1
I
I
I
I
I I I I I I I I
I
I
I
P19: 5
P3-6
7
8
I I I I P28 I-+ 9 10
I P15t T
I
I I I
I
,t I
I
I I I I I I I I
I
I I I
1. Throttle flap actuator 2. Throttle position sensor 3. Cruise control inhibit (when traction control in operation) 4. Traction OFF / ON switch 5. Not Used 6. Gearshift inhibit (when traction control in operation) 7. Wheel speed sensors 8. Battery voltage input
9 IS0 communication BUS IO. Ignition voltage input
1 1. Speedometer signal 12 ABS MIL lamp 13. TCS MIL lamp 14. Traction control OFF lamp 15. Brake warning lamp 16. Brake fluid level switch 17. Stop lamp switch
Fig.
1 Anti-lock braking system and traction
control
-schematic diagram
0
0
Issue 1 August 1994 4 X300 EDM

Brakes (a)
12.3 COMPONENT DESCRlPTlONS
ABS / TC CM (3 Fig. 1)
The ABS / TC CM, located just below the hydraulic valve
block on the bulkhead, is the system controller and pro-
cesses all thevarious information supplied from the external
sensors and probes. The unit monitors ABS / TC operation
giving fault indication and disabling the systems when de- fects are detected. The unit is self testing and cannot be fault
diagnosed beyond 'black box' level i.e. faulty module. Sys-
tem fault codes are stored in a non-volatile memory for in- terrogation by external diagnostic equipment.
Solenoid Valves (2 Fig. 1)
The solenoid operated hydraulic valves, located within the
hydraulic module valve block, regulate the supply of pres- sure to the braking circuits allowing individual control of all wheels with a full ABS /TC system.
Nnfe: For ABS only, the driving (rear) wheels are con-
trolled by a common braking circuit.
The traction control system isolating valve has the
same characteristics as
a normally open valve. a
Hydraulic Pump /Motor Unit (1 Fig. 1)
This unit, located above the hydraulic valve block, ensures
that brake fluid is transmitted around the system at the cor- rect operating pressure. The 250W ds. motor draws 32A
current at peak operation and has an internal resistance of 0.m.
Wheel Speed Sensors (Fig. 2)
The four wheel speed sensors are identical in function and
construction. Wheel rotation creates the signal within the
sensor. This signal is supplied to the ABS /TC
CM where it provides wheel speed information. The sensor coil has a re- sistance value of 1.1 k Q and will have a voltage of 2.5V pres- ent on each connecting pin when the vehicle is stationary.
Throttle Flap Actuator Motor / Position Sensor (Fig. 3)
The throttle flap actuator motor, mounted adjacent tothe hy- draulic control unit, adjusts throttle position, irrespective of
accelerator pedal position, by regulating throttle opening
when traction control is demanded. The actuator motor
nominal 12V terminal voltage is supplied by ABS
/ TC CMduring normal operation. The motor has an internal re- sistance of approximately 1.6Q. The throttle position sensor
supplies information relative to the position of its centre tap
to the ABS
/ TC CM which regulates actuator movement.
The sensor has a resistance of 6.4 K!2. Aterminal voltage of 5V is supplied by ABS/TC CM to connection 3 during normal
operation,voltage between connections 1 and 2 will vary be- tween 0 and 5V dependant on wiper position.
Fig. 1
Fig. 2
Jrn 270
Fia. 3
X300 EDM 5 Issue 1 August 1994

Brakes
12.4 SYSTEM FAULT INDICATION
Fault Indication:
ABS MIL lamp is still illuminated after ignition switch on and instrument pack self test.
h:
Possible causes
Fuses blown.
Faulty wheel speed sensor or harness.
Faulty wiring.
Faulty ABS
/ TC CM.
It is likely that theTC MIL lamp and Traction OFF lamp will also illuminate on vehicles with traction control fitted.
Fault Diagnosis
On the first ignition cycle after afault has been sucessfully diagnosed and corrected the vehicle must bedriven to a speed above 20kph (12.5 mile/ h) before warning lamps will extinguish. If lamps remain on after this exer- cise repeat fault diagnosis.
. Check fuses (F7) in battery feed lines and (F16) in ignition line. Battery fuses are located in the left and right hand
. Unbolt 28 way multi-plug connector from ABS / TC CM.
. Measure resistance across each wheel speed sensor.
No - Unplug sensor flying lead and re-measure sensor resistance.
N&:
heelboard fuse boxes. The ignition supply fuse is located in the left hand heelboard fuse box.
Is value measured 1 10052, f 50%?
Rear sensor connectors are located beneath the rear seat. Seat must be removed to gain access to connector.
Forward sensor connectors are located adjacent to the hood catch bracket.
Is value now within range?
Yes
- Examine harness between ABS I TC CM and sensor.
No - Renew sensor.
= Check continuity to ground from ABS 1 TC CM harness connections 13 and 14. If value is much greater than 0.152
renew harness.
. With the ignition switch ON, measure voltage between ABS /TC CM harness connection 14 and connections 1 and 2 respectively. If value is not approximately equivalent to battery voltage renew harness.
. With the ignition switch ON, measure voltage between ABSITC CM harness connections14 and 15. If value is not
approximately equivalent to battery voltage renew harness.
Renew ABS /TC CM if fault is not located during the above procedures.
fault Indication:
ABS MIL lamp illuminates at 20 kph.
m:
Possible Causes
Fuses blown.
Faulty hydraulic module pump
/ motor unit or circuitry.
Faulty ABS
/ TC CM.
Fault Diagnosis
Check fuses.
. Disconnect pump / motor unit and measure resistance across two pin connector. Measured value should be in the
. Unbolt 28-way connector from ABS /TC CM and measure voltage between harness connections1 and 14. If value
. Renew ABS 1 TC CM if fault is not located during the above procedures.
It is IikelythattheTCMILlampandTraction OFFlampwill also illuminateonvehicleswithtractioncontrolfitted.
region of 0.852. Renew unit if excessive resistance or short circuit is recorded.
is not approximately equal to battery volts renew harness.
Issue 1 August 1994 X300 EDM
