Page 71 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Brakes
Fault Indication:
0 ABS MIL lamp illuminates  on pull-away  or during driving
U:
Possible  Causes
Faulty  sensor  or wiring.
Faulty  rotor or wheel bearing  installation giving inconsis

Page 72 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual (a) Brakes

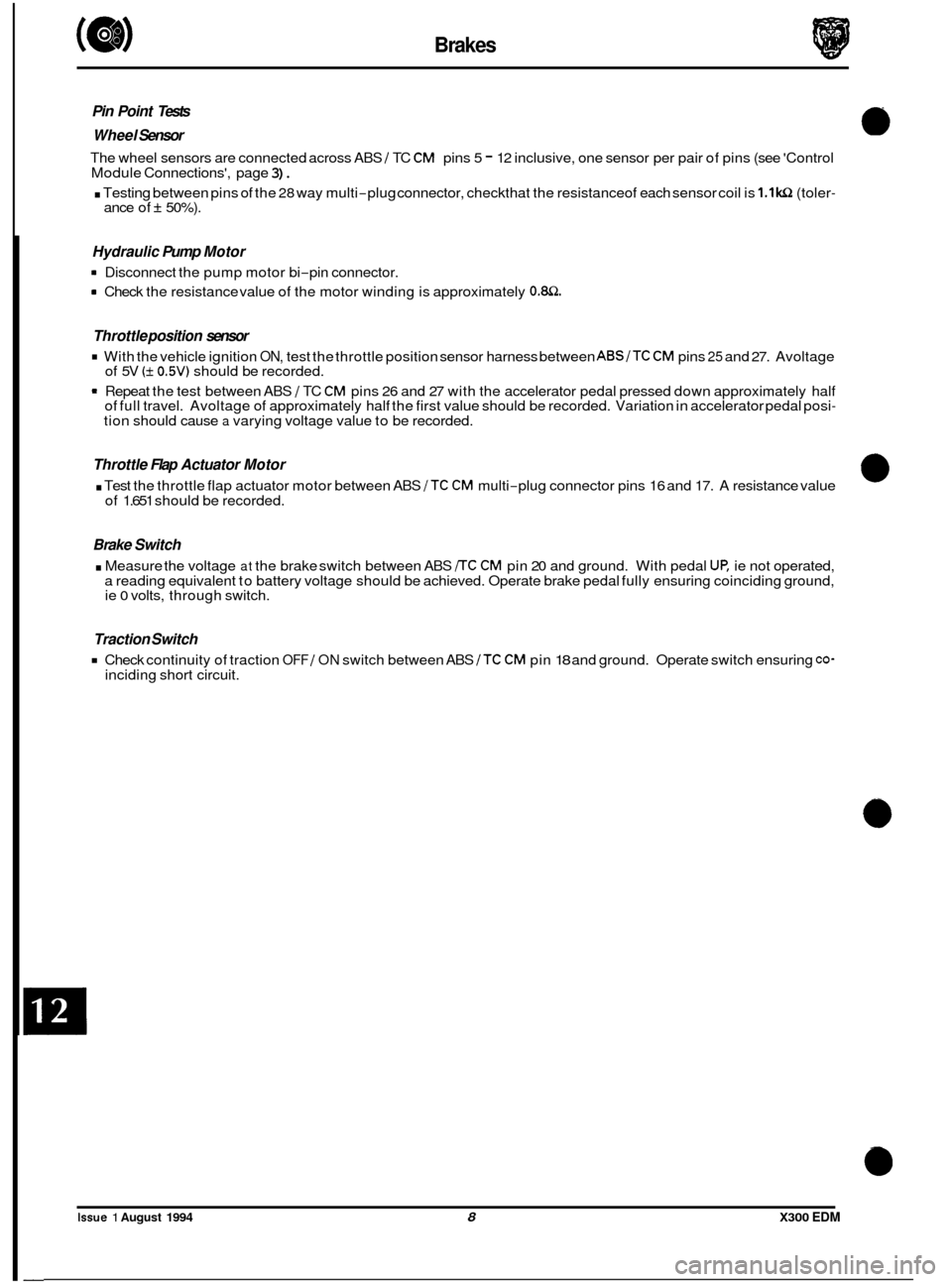

Pin Point  Tests
Wheel  Sensor
The wheel  sensors are  connected across ABS / TC CM pins 5 - 12 inclusive, one  sensor per pair of pins  (see Control
Module  Connections,  page 3).
.

Page 73 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Brakes

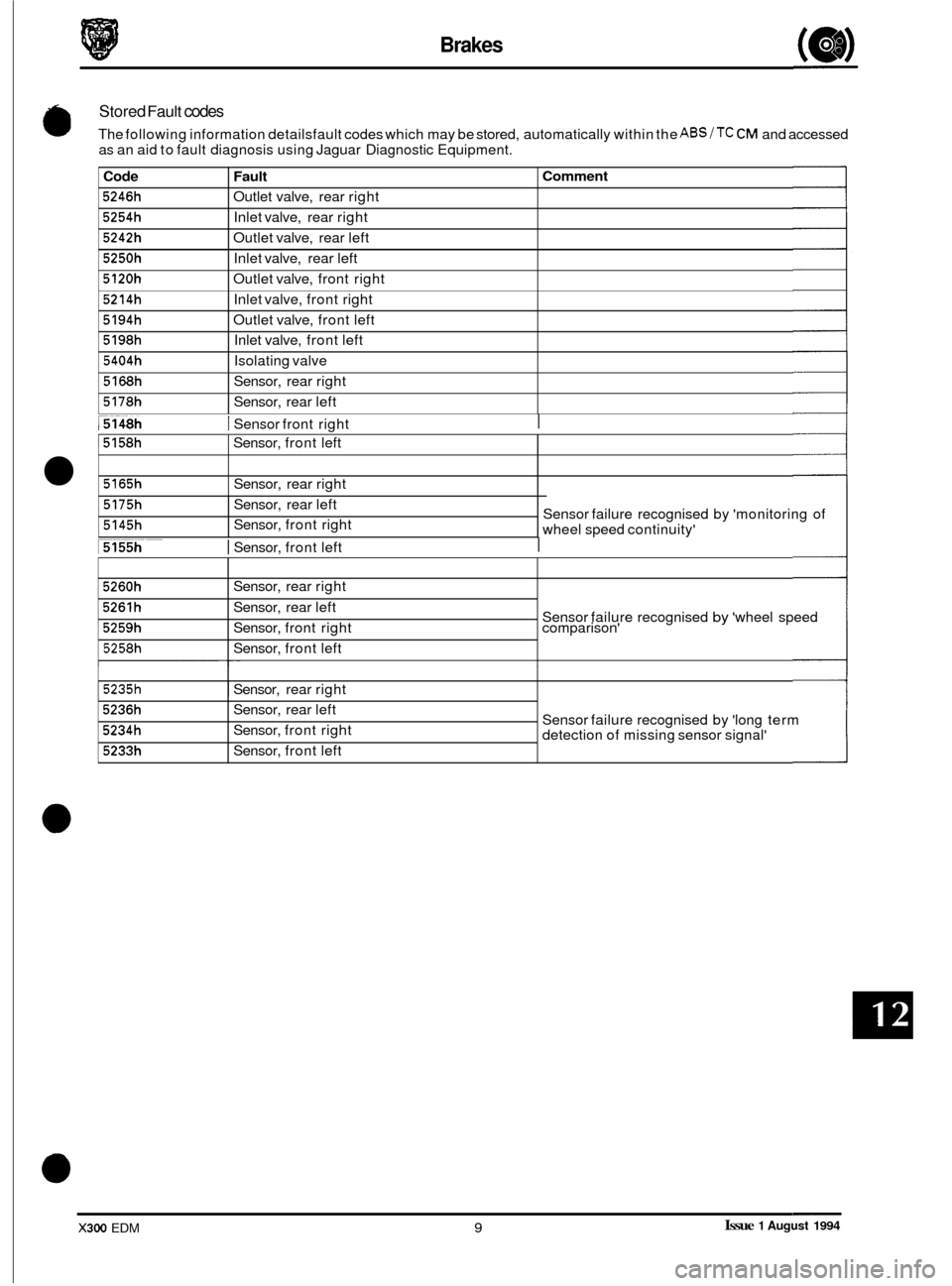

Code Fault
5246h Outlet valve, rear right
5254h Inlet  valve,  rear right
5242h Outlet  valve, rear left
5250h Inlet  valve,  rear left
5120h Outlet  valve, front right
5214h Inlet valve

Page 74 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems
SECTION  CON TENTS
Subsection Title SRO Page
14.1 ............. System  Description ................................................................... 1
14.2 .............

Page 75 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems

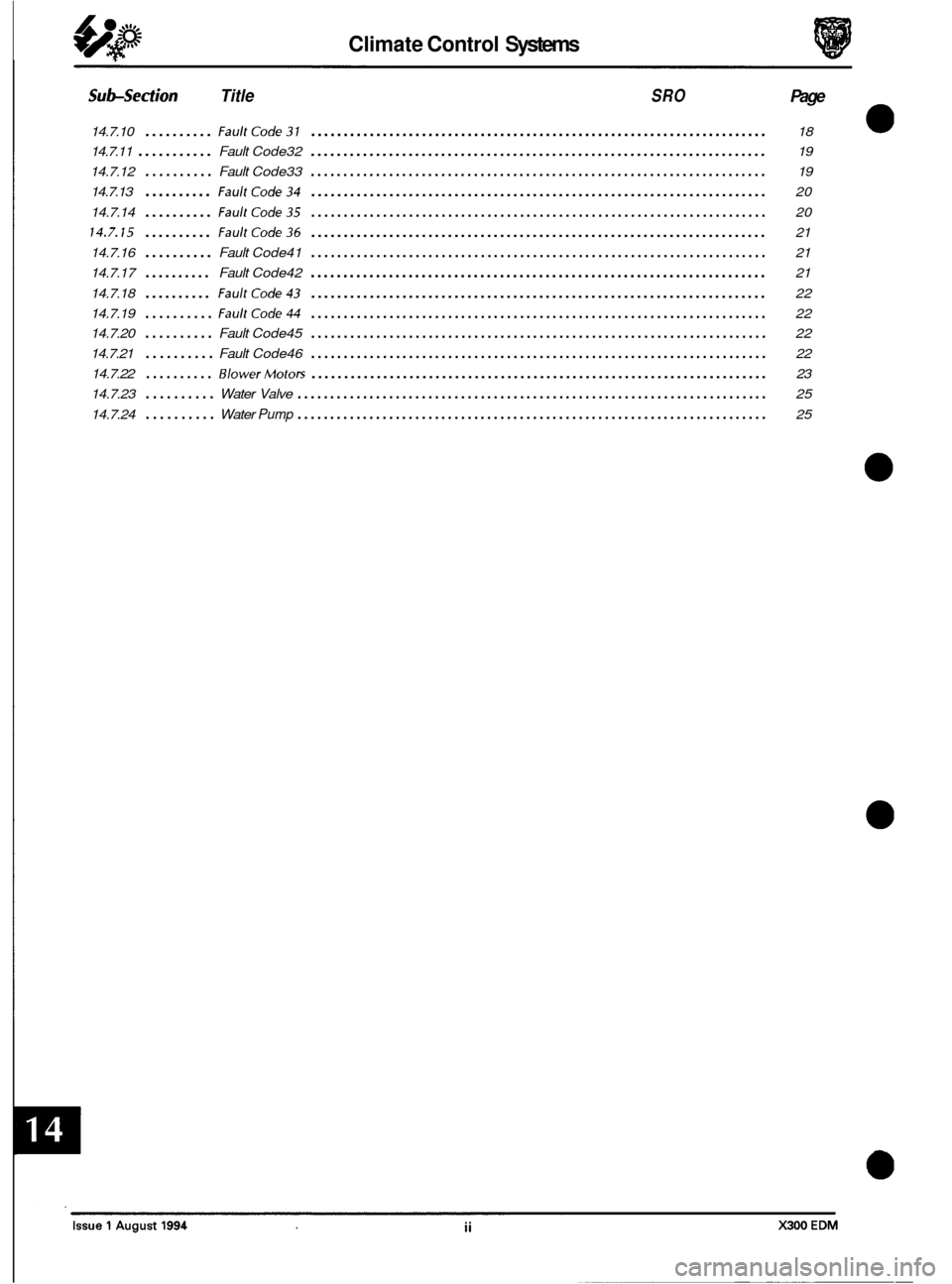

Subsection Title SRO Page
14.7.10 .......... FaultCode31 ...................................................................... 18
14.7.11
........... Fault  Code32 .......

Page 76 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems
.-)

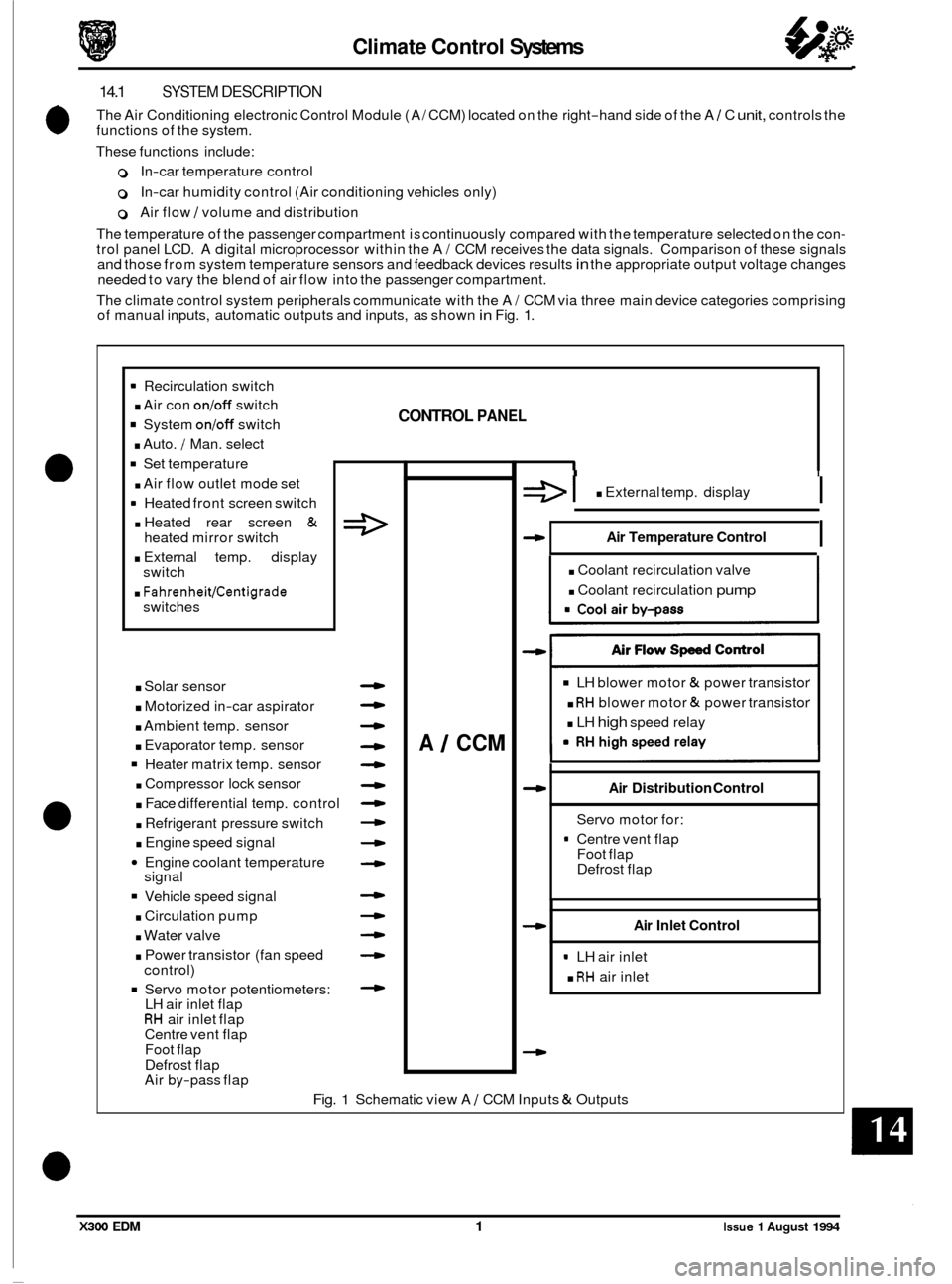

14.1 SYSTEM DESCRIPTION
The Air Conditioning electronic Control  Module (A/ CCM)  located  on the  right-hand  side of the  A / C unit, controls  the 0 functions  of the

Page 77 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems
28-
I llSA I
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11. 12.
13.
14.
15.
21J 20
Instrument  pack
Fascia  switch  pack
Defrost servo.
Air distribution box  Solar  se

Page 78 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems

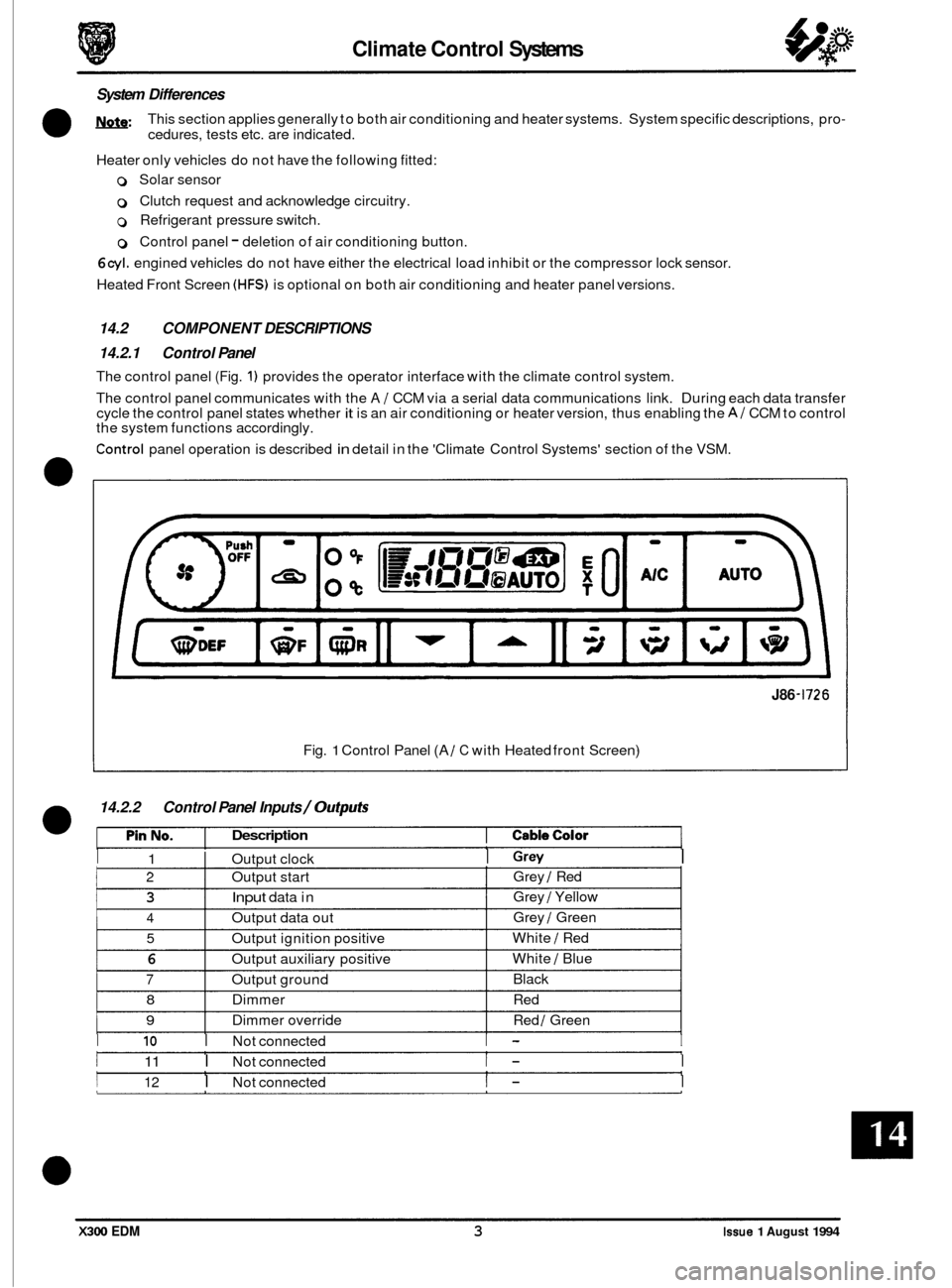

System Differences
m:
Heater only vehicles  do not  have  the following fitted:
This section applies generally  to both  air conditioning  and heater systems.  System speci

Page 79 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems

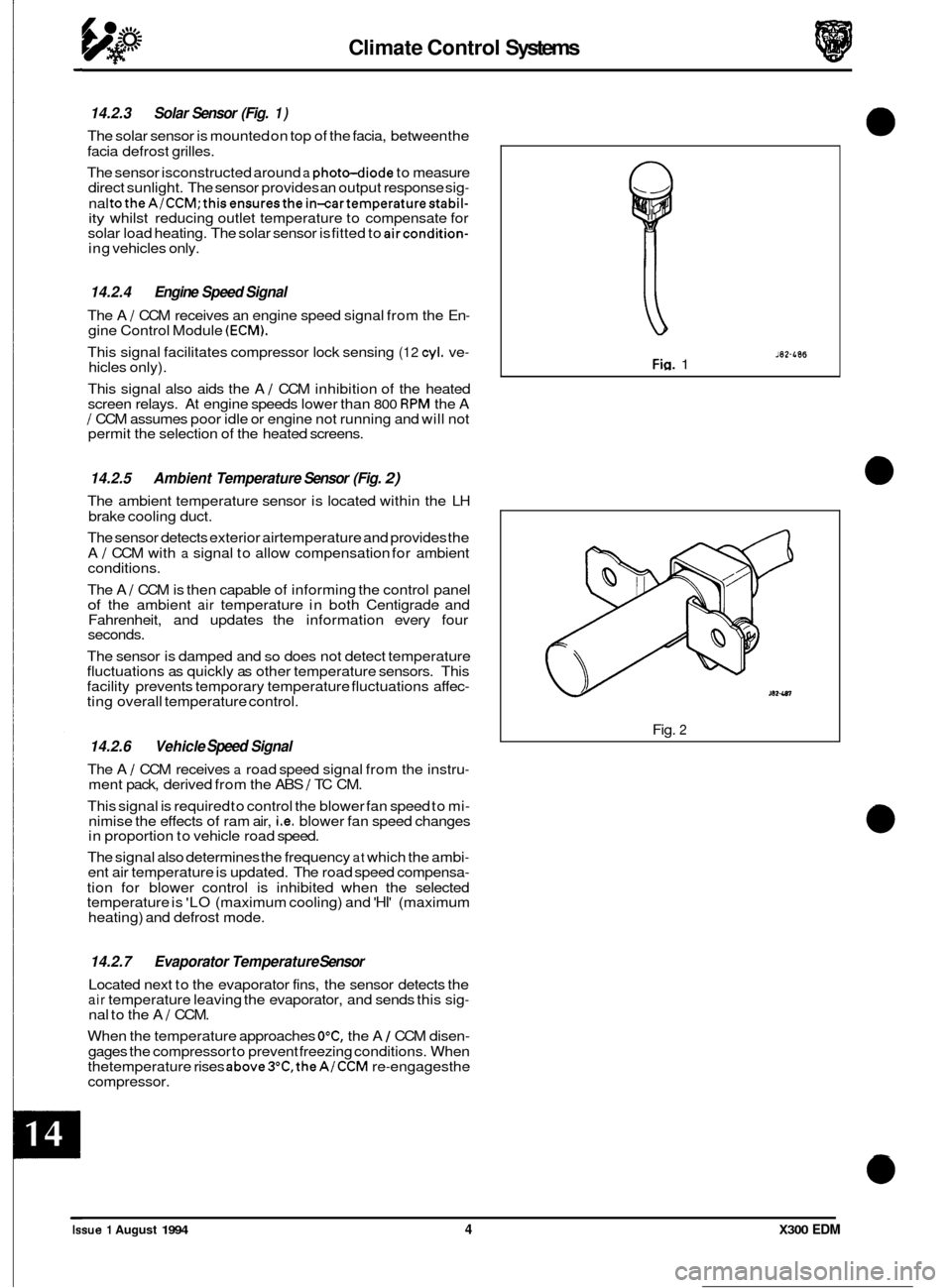

14.2.3 Solar Sensor  (Fig. 1)
The solar  sensor  is mounted  on top of the  facia, between  the
facia  defrost  grilles.
The  sensor  isconstructed around
a photo-diode to

Page 80 of 327

JAGUAR XJ6 1994 2.G Electrical Diagnostic Manual Climate Control Systems
14.2.8  Heater  Matrix Temperature  Sensor
This sensor  is positioned inside the  air conditioning  unit just
downstream of the  heater matrix.  The sensor  monitors the
po
