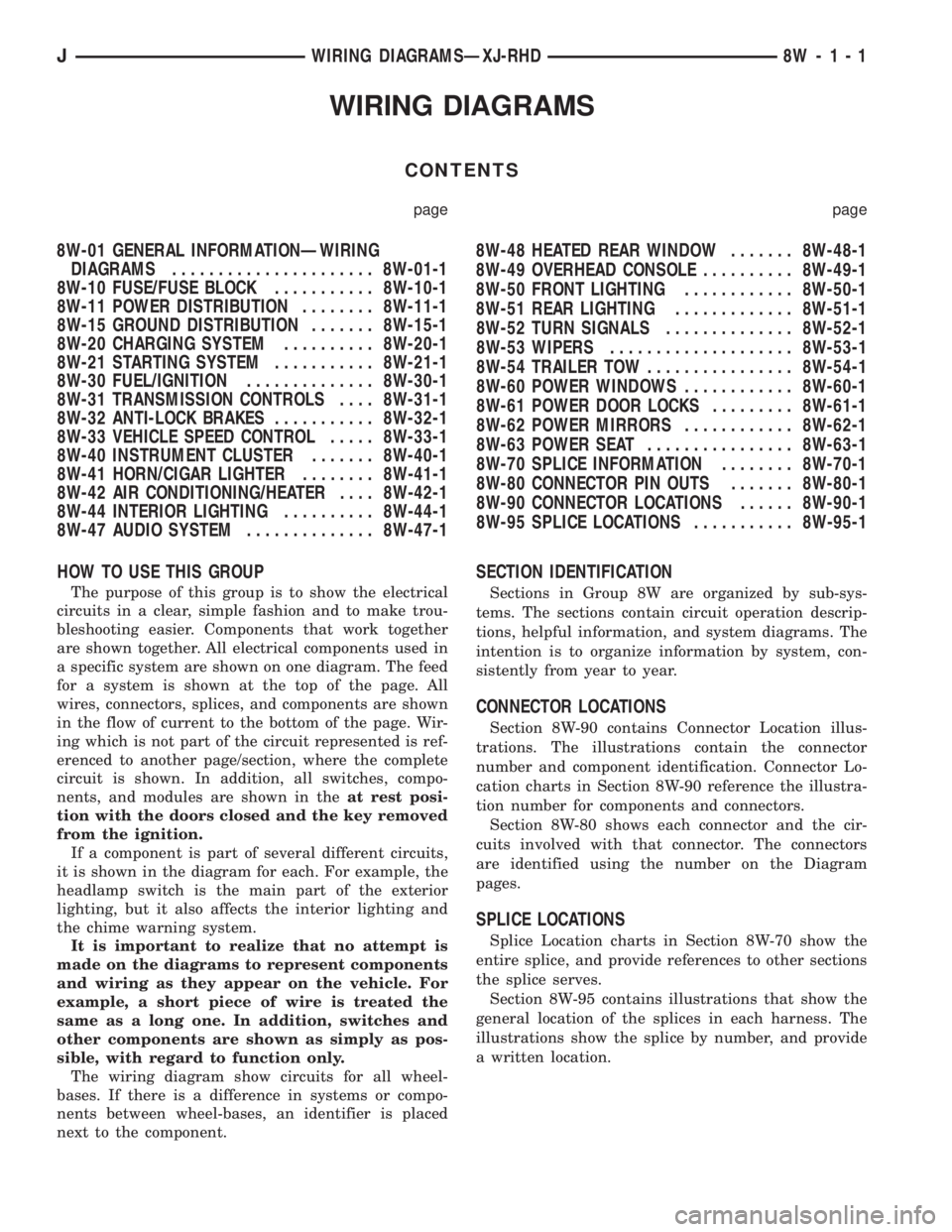

WIRING DIAGRAMS
CONTENTS
page page
8W-01 GENERAL INFORMATIONÐWIRING
DIAGRAMS...................... 8W-01-1
8W-10 FUSE/FUSE BLOCK........... 8W-10-1
8W-11 POWER DISTRIBUTION........ 8W-11-1
8W-15 GROUND DISTRIBUTION....... 8W-15-1
8W-20 CHARGING SYSTEM.......... 8W-20-1
8W-21 STARTING SYSTEM........... 8W-21-1
8W-30 FUEL/IGNITION.............. 8W-30-1
8W-31 TRANSMISSION CONTROLS.... 8W-31-1
8W-32 ANTI-LOCK BRAKES........... 8W-32-1
8W-33 VEHICLE SPEED CONTROL..... 8W-33-1
8W-40 INSTRUMENT CLUSTER....... 8W-40-1
8W-41 HORN/CIGAR LIGHTER........ 8W-41-1
8W-42 AIR CONDITIONING/HEATER.... 8W-42-1
8W-44 INTERIOR LIGHTING.......... 8W-44-1
8W-47 AUDIO SYSTEM.............. 8W-47-18W-48 HEATED REAR WINDOW....... 8W-48-1
8W-49 OVERHEAD CONSOLE.......... 8W-49-1
8W-50 FRONT LIGHTING............ 8W-50-1
8W-51 REAR LIGHTING............. 8W-51-1
8W-52 TURN SIGNALS.............. 8W-52-1
8W-53 WIPERS.................... 8W-53-1
8W-54 TRAILER TOW................ 8W-54-1
8W-60 POWER WINDOWS............ 8W-60-1
8W-61 POWER DOOR LOCKS......... 8W-61-1
8W-62 POWER MIRRORS............ 8W-62-1
8W-63 POWER SEAT................ 8W-63-1
8W-70 SPLICE INFORMATION........ 8W-70-1
8W-80 CONNECTOR PIN OUTS....... 8W-80-1
8W-90 CONNECTOR LOCATIONS...... 8W-90-1
8W-95 SPLICE LOCATIONS........... 8W-95-1
HOW TO USE THIS GROUP
The purpose of this group is to show the electrical
circuits in a clear, simple fashion and to make trou-
bleshooting easier. Components that work together
are shown together. All electrical components used in
a specific system are shown on one diagram. The feed
for a system is shown at the top of the page. All
wires, connectors, splices, and components are shown
in the flow of current to the bottom of the page. Wir-
ing which is not part of the circuit represented is ref-
erenced to another page/section, where the complete
circuit is shown. In addition, all switches, compo-
nents, and modules are shown in theat rest posi-
tion with the doors closed and the key removed
from the ignition.
If a component is part of several different circuits,
it is shown in the diagram for each. For example, the
headlamp switch is the main part of the exterior
lighting, but it also affects the interior lighting and
the chime warning system.
It is important to realize that no attempt is
made on the diagrams to represent components
and wiring as they appear on the vehicle. For
example, a short piece of wire is treated the
same as a long one. In addition, switches and
other components are shown as simply as pos-
sible, with regard to function only.
The wiring diagram show circuits for all wheel-
bases. If there is a difference in systems or compo-
nents between wheel-bases, an identifier is placed
next to the component.
SECTION IDENTIFICATION
Sections in Group 8W are organized by sub-sys-
tems. The sections contain circuit operation descrip-
tions, helpful information, and system diagrams. The
intention is to organize information by system, con-
sistently from year to year.
CONNECTOR LOCATIONS
Section 8W-90 contains Connector Location illus-
trations. The illustrations contain the connector
number and component identification. Connector Lo-
cation charts in Section 8W-90 reference the illustra-
tion number for components and connectors.
Section 8W-80 shows each connector and the cir-
cuits involved with that connector. The connectors
are identified using the number on the Diagram
pages.
SPLICE LOCATIONS
Splice Location charts in Section 8W-70 show the
entire splice, and provide references to other sections
the splice serves.

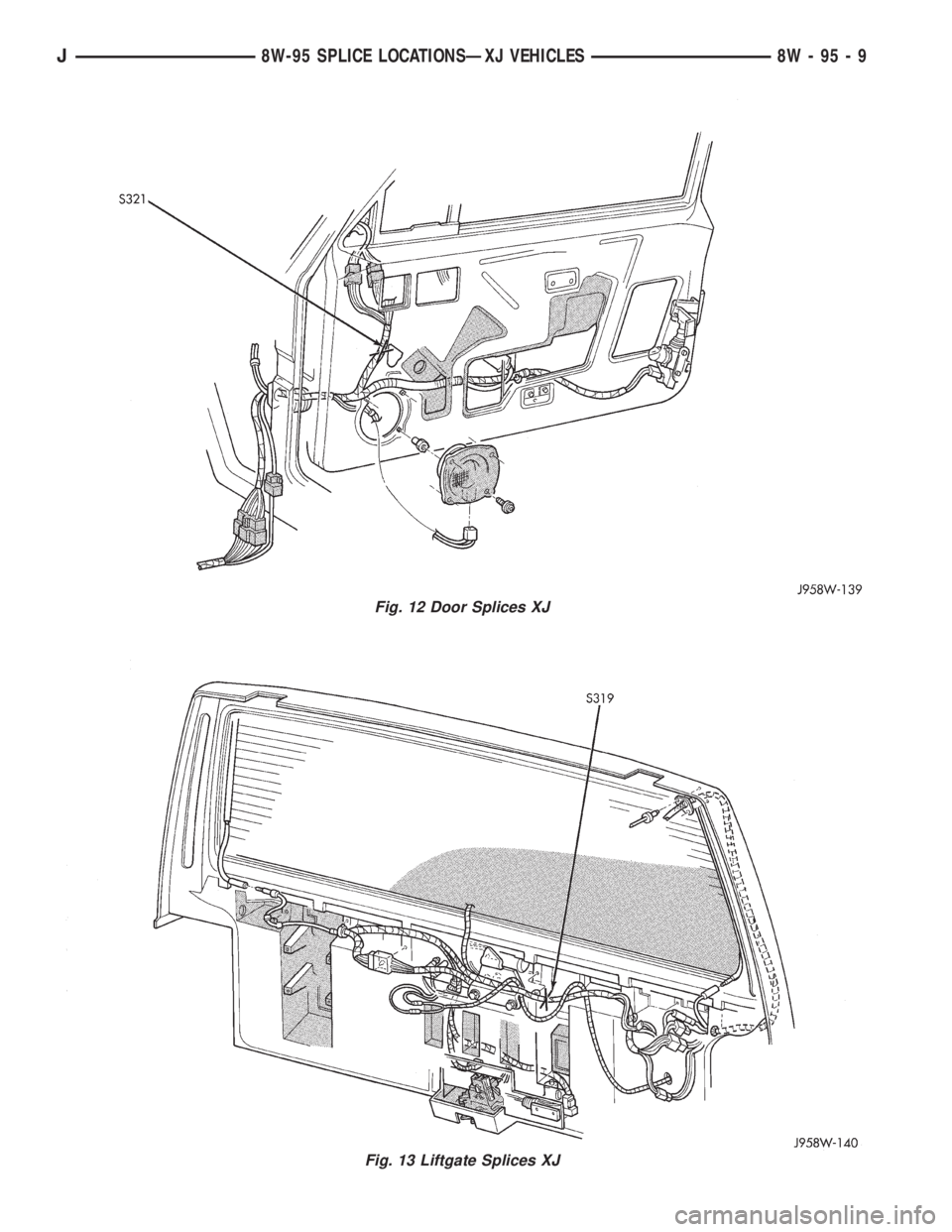

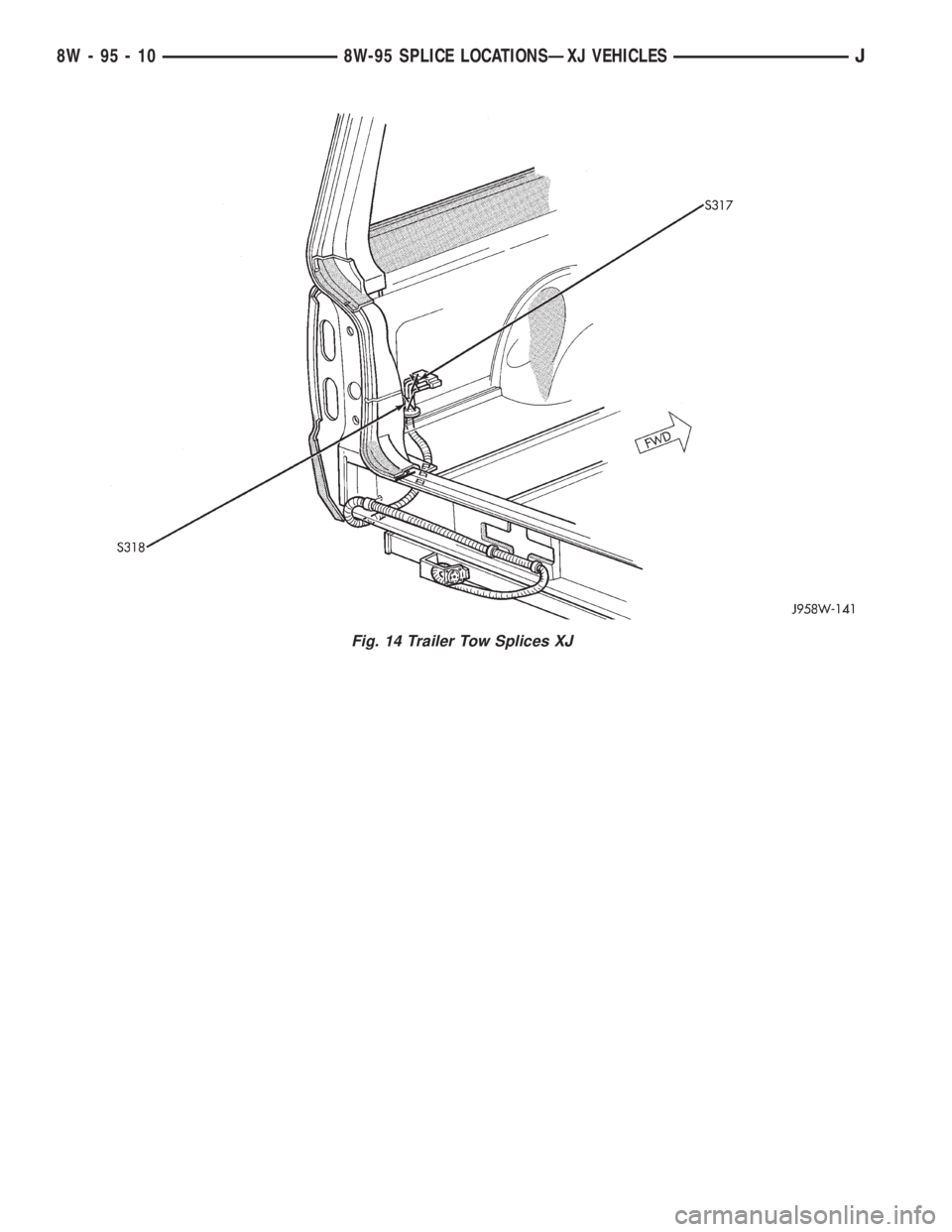

Section 8W-95 contains illustrations that show the
general location of the splices in each harness. The
illustrations show the splice by number, and provide
a written location.
JWIRING DIAGRAMSÐXJ-RHD 8W - 1 - 1

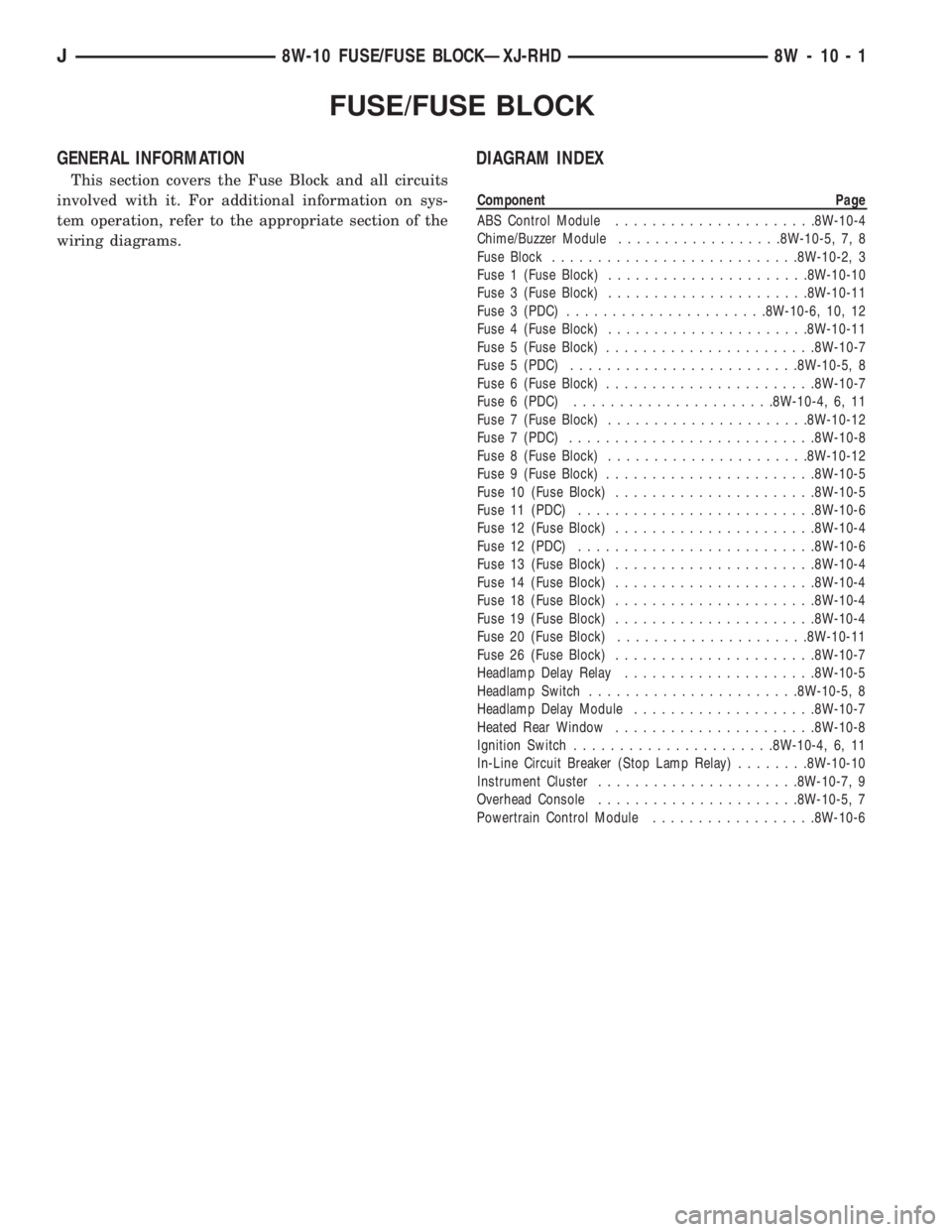

FUSE/FUSE BLOCK
GENERAL INFORMATION
This section covers the Fuse Block and all circuits
involved with it. For additional information on sys-
tem operation, refer to the appropriate section of the
wiring diagrams.
DIAGRAM INDEX
Component Page

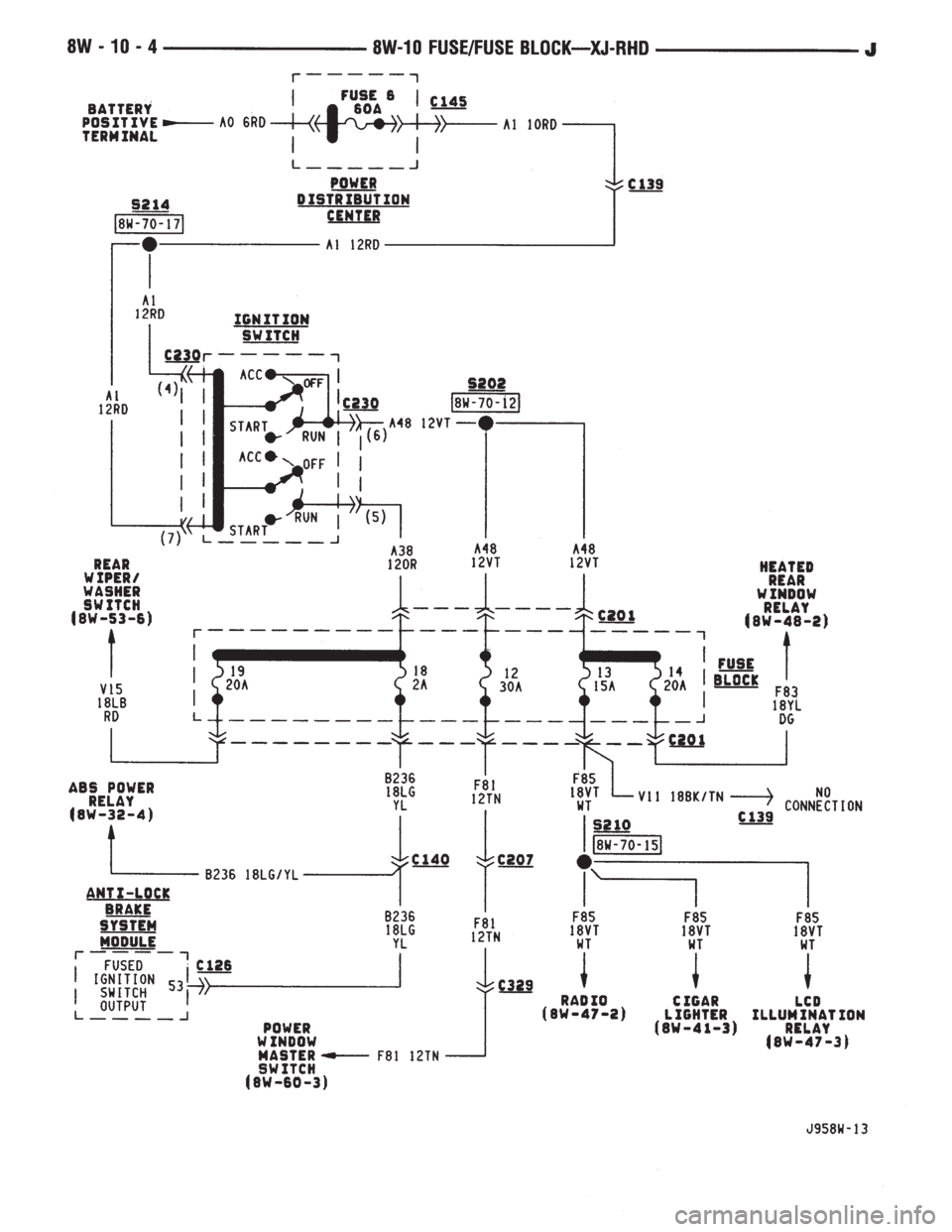

ABS Control Module......................8W-10-4

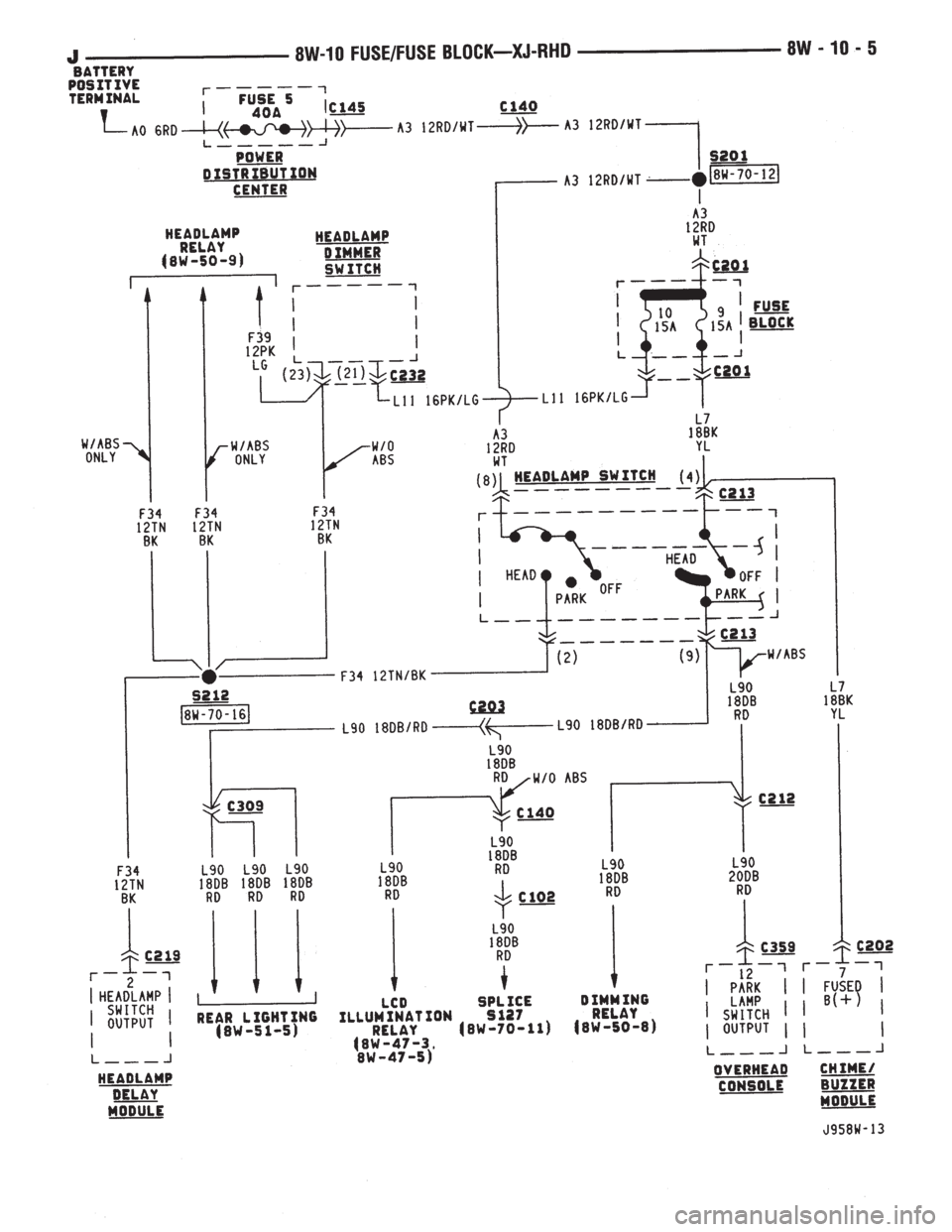

Chime/Buzzer Module..................8W-10-5, 7, 8

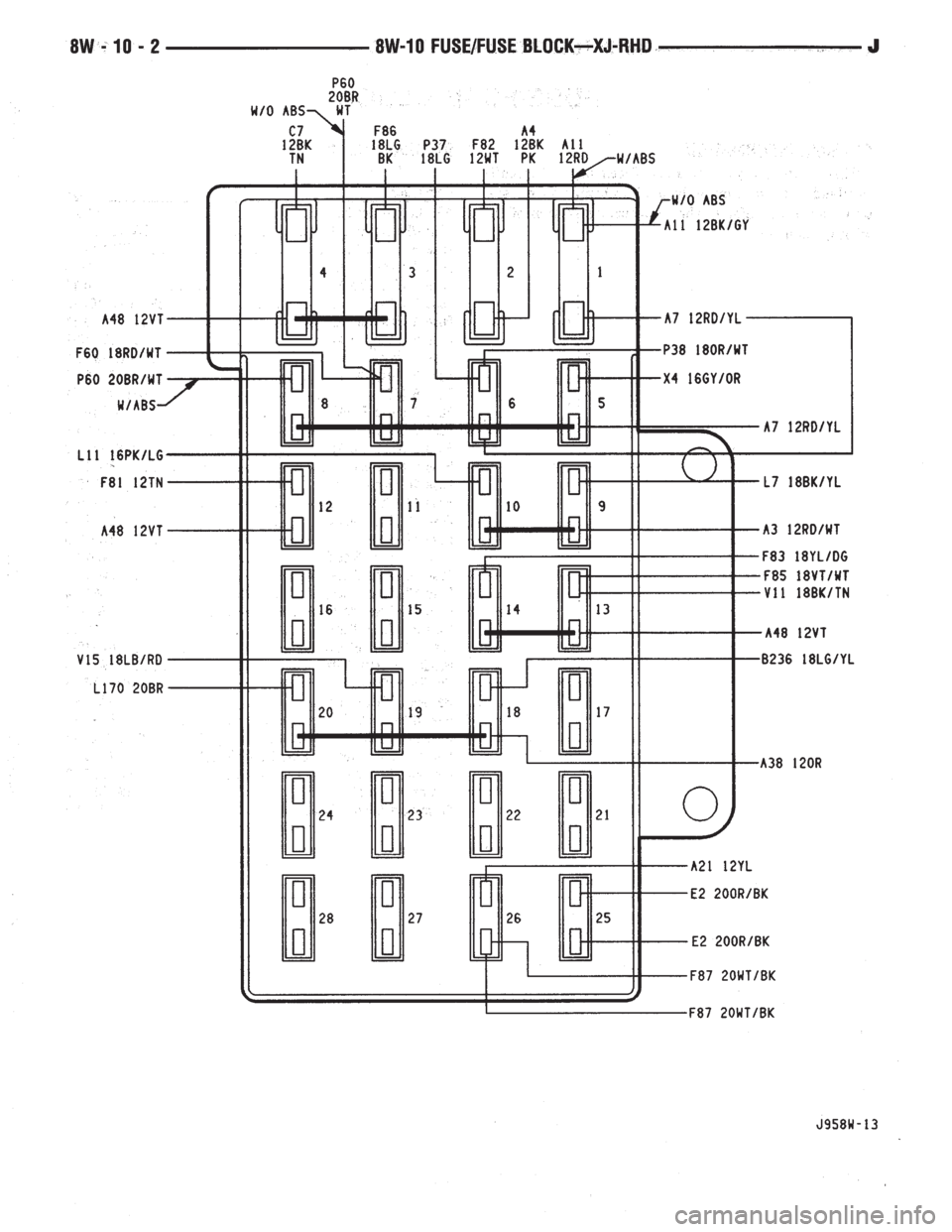

Fuse Block...........................8W-10-2, 3
Fuse 1 (Fuse Block)......................8W-10-10
Fuse 3 (Fuse Block)......................8W-10-11
Fuse 3 (PDC)......................8W-10-6, 10, 12
Fuse 4 (Fuse Block)......................8W-10-11
Fuse 5 (Fuse Block).......................8W-10-7
Fuse 5 (PDC).........................8W-10-5, 8
Fuse 6 (Fuse Block).......................8W-10-7
Fuse 6 (PDC)......................8W-10-4, 6, 11
Fuse 7 (Fuse Block)......................8W-10-12
Fuse 7 (PDC)...........................8W-10-8
Fuse 8 (Fuse Block)......................8W-10-12
Fuse 9 (Fuse Block).......................8W-10-5
Fuse 10 (Fuse Block)......................8W-10-5
Fuse 11 (PDC)..........................8W-10-6
Fuse 12 (Fuse Block)......................8W-10-4
Fuse 12 (PDC)..........................8W-10-6
Fuse 13 (Fuse Block)......................8W-10-4
Fuse 14 (Fuse Block)......................8W-10-4
Fuse 18 (Fuse Block)......................8W-10-4
Fuse 19 (Fuse Block)......................8W-10-4
Fuse 20 (Fuse Block).....................8W-10-11
Fuse 26 (Fuse Block)......................8W-10-7
Headlamp Delay Relay.....................8W-10-5
Headlamp Switch.......................8W-10-5, 8
Headlamp Delay Module....................8W-10-7
Heated Rear Window......................8W-10-8
Ignition Switch......................8W-10-4, 6, 11
In-Line Circuit Breaker (Stop Lamp Relay)........8W-10-10
Instrument Cluster......................8W-10-7, 9
Overhead Console......................8W-10-5, 7
Powertrain Control Module..................8W-10-6
J8W-10 FUSE/FUSE BLOCKÐXJ-RHD 8W - 10 - 1
