GROUND DISTRIBUTION
GENERAL INFORMATION
This section identifies the vehicle grounds, splices
connected to each ground, and the components con-
nected to each ground. Refer to the appropriate sec-
tion of the wiring diagrams for circuit descriptions of
specific systems. Refer to sub-section 8W-90 for illus-
trations of the physical location of each ground on
the vehicle.
DIAGRAM INDEX
Component Page

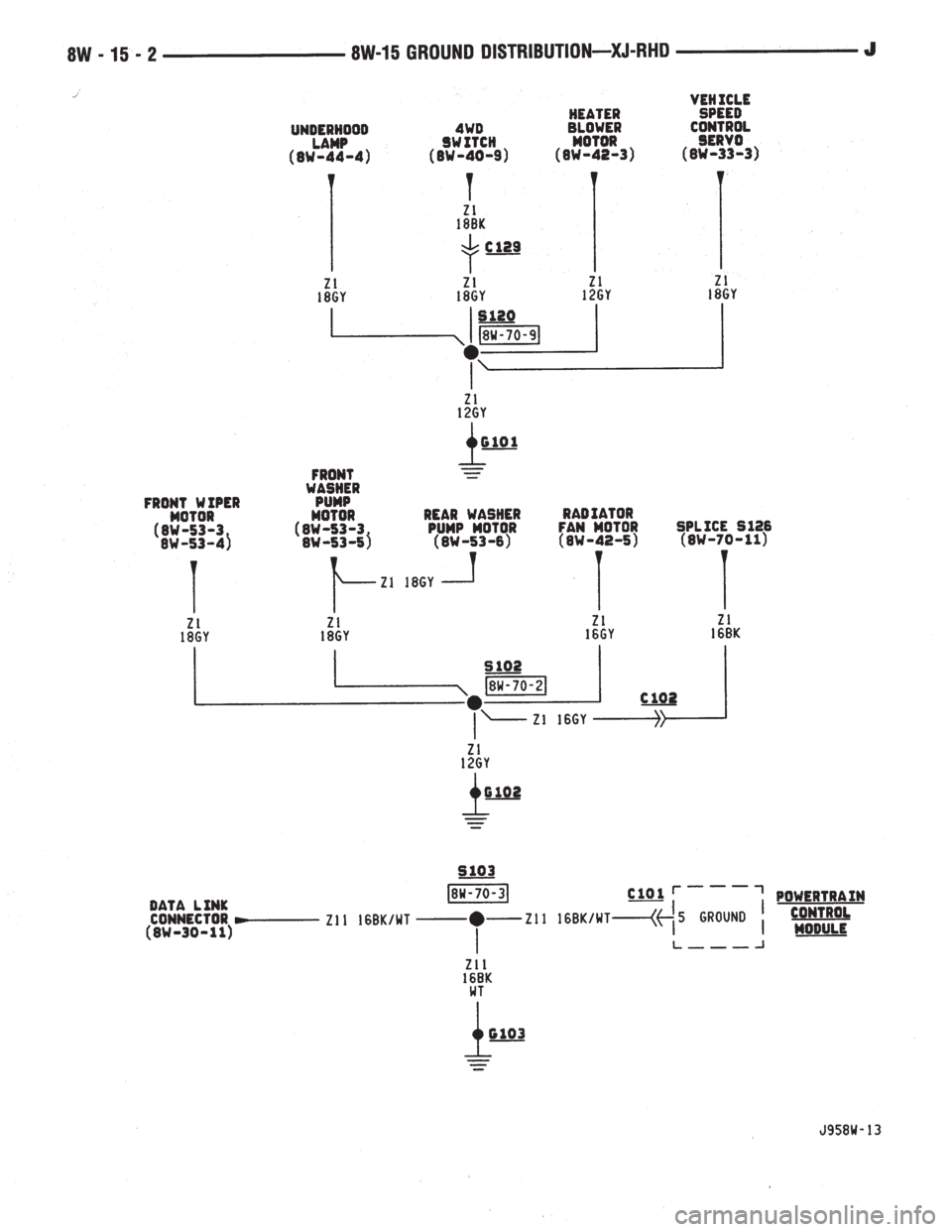

G101................................8W-15-2
G102................................8W-15-2
G103................................8W-15-2

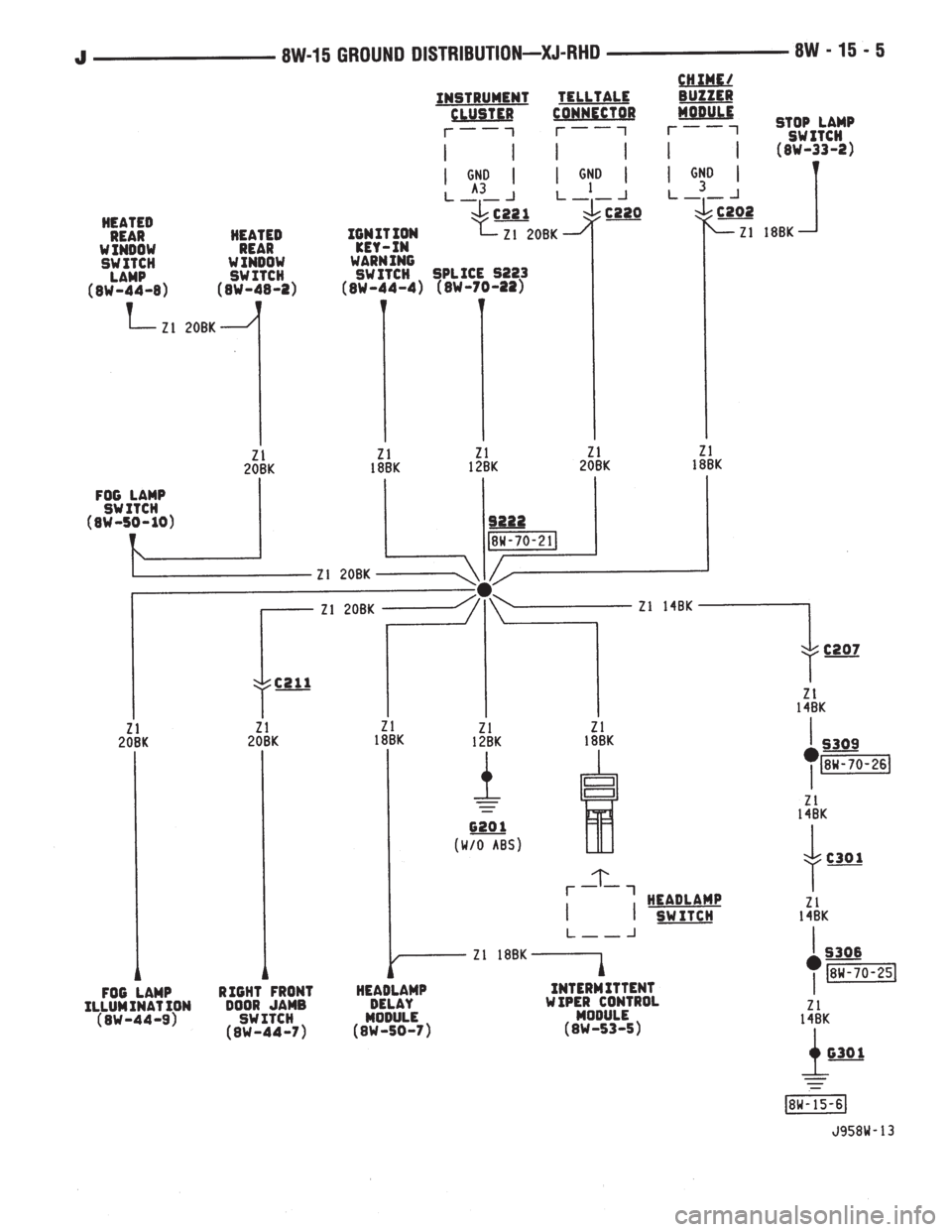

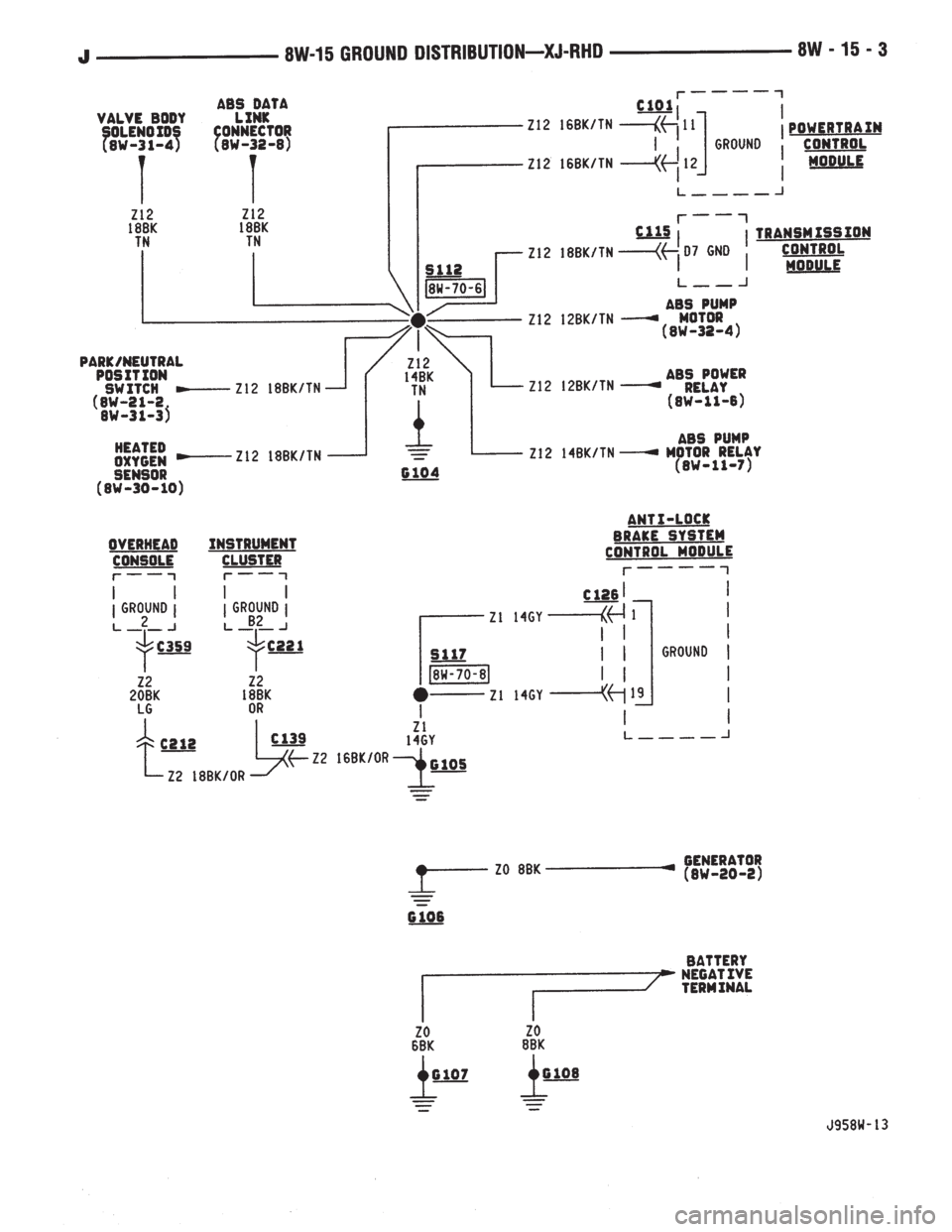

G104................................8W-15-3
G105................................8W-15-3
G106................................8W-15-3
G107................................8W-15-3
G108................................8W-15-3

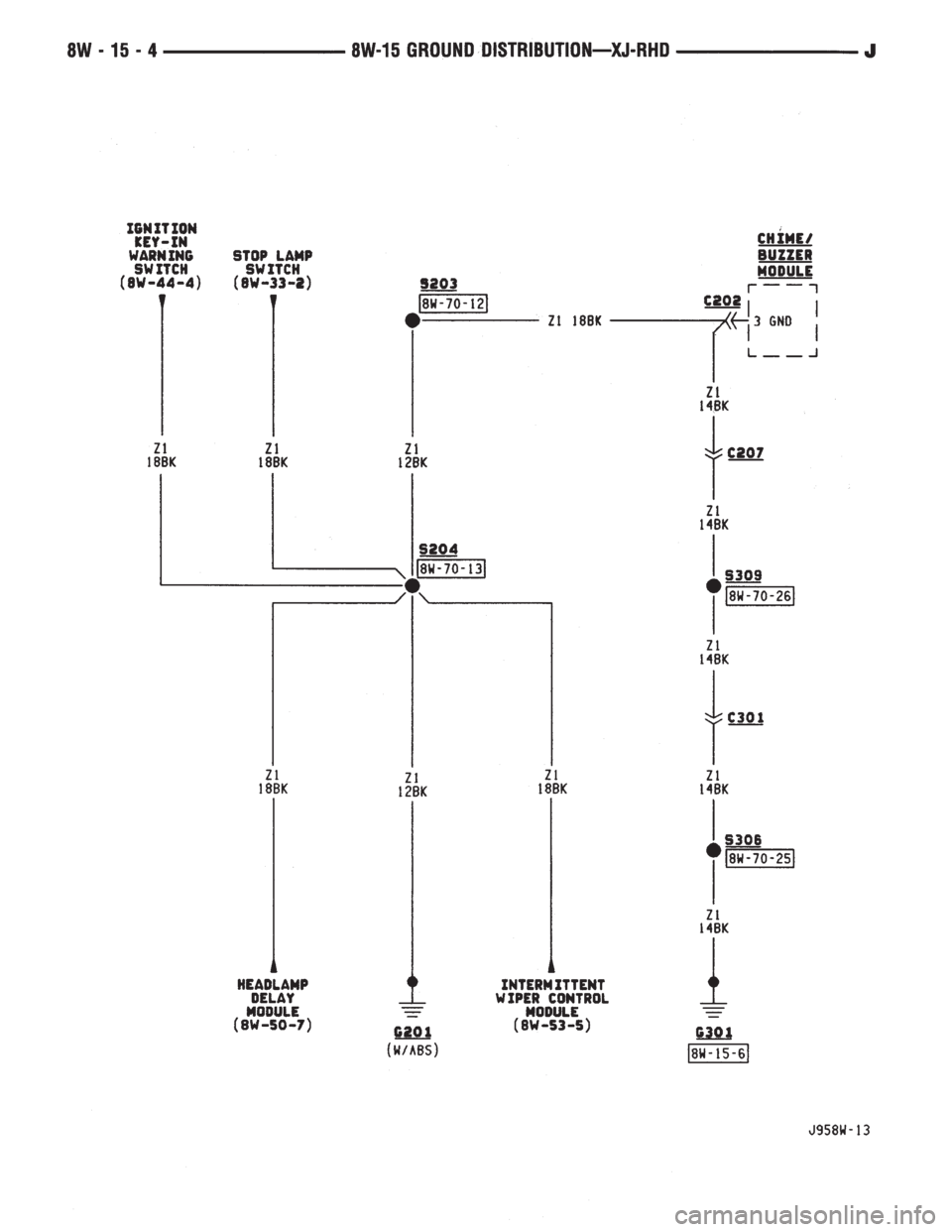

G201 (With ABS).......................8W-15-4, 6
G201 (Without ABS).....................8W-15-5, 6
G301.............................8W-15-4, 5, 6
S102................................8W-15-2
S103................................8W-15-2
S112................................8W-15-3
S117................................8W-15-3
S120................................8W-15-2
S203...............................8W-15-4, 6
S204...............................8W-15-4, 6
S222...............................8W-15-5, 6
S306.............................8W-15-4, 5, 6
S309.............................8W-15-4, 5, 6
J8W-15 GROUND DISTRIBUTIONÐXJ-RHD 8W - 15 - 1
