start stop button JEEP GRAND CHEROKEE 2012 Owner handbook (in English)

Installing and Removing the ENGINE
START/STOP Button
Installing the Button
1. Remove the key fob from the ignition switch.
2. Insert the ENGINE START/STOP button into
the ignition switch with the lettering facing up
and readable.
3. Press firmly on the center of the button to
secure it into position.
Removing the Button
1. The ENGINE START/STOP button can be
removed from the ignition switch for key fob
use.
2. Insert the metal part of the emergency key
under the chrome bezel at the 6 o’clock posi-
tion and gently pry the button loose.
NOTE:
The ENGINE START/STOP button should
only be removed or inserted with the ignition
in the LOCK position (OFF position for Key-
less Enter-N-Go).Normal Starting
Using the ENGINE START/STOP Button
NOTE:
Normal starting of either a cold or a warm
engine is obtained without pumping or
pressing the accelerator pedal.
To start the engine, the transmission must be in
PARK or NEUTRAL. Press and hold the brake
pedal while pressing the ENGINE START/STOP
button once. The system takes over and at-
tempts to start the vehicle. If the vehicle fails to
start, the starter will disengage automatically
after 10 seconds. If you wish to stop the crank-
ing of the engine prior to the engine starting,
press the button again.
To Turn Off the Engine Using ENGINE
START/STOP Button
1. Place the shift lever in PARK, then press and
release the ENGINE START/STOP button.
2. The ignition switch will return to the OFF
position.
3. If the shift lever is not in PARK, the ENGINE
START/STOP button must be held for two sec-onds and vehicle speed must be above 5 mph
(8 km/h) before the engine will shut off. The
ignition switch position will remain in the ACC
position until the shift lever is in PARK and the
button is pressed twice to the OFF position. If
the shift lever is not in PARK and the ENGINE
START/STOP button is pressed once, the EVIC
(if equipped) will display a “Vehicle Not In Park”
message and the engine will remain running.
Never leave a vehicle out of the PARK position,
or it could roll.
NOTE:
If the ignition switch is left in the ACC or
RUN (engine not running) position and the
transmission is in PARK, the system will
automatically time out after 30 minutes of
inactivity and the ignition will switch to the
OFF position.
Keyless Enter-N-Go Functions – With
Driver’s Foot OFF the Brake Pedal (In
PARK or NEUTRAL Position)
The Keyless Enter-N-Go feature operates simi-
lar to an ignition switch. It has four positions,
OFF, ACC, RUN and START. To change the
217

ignition switch positions without starting the
vehicle and use the accessories follow these
steps.
•Starting with the ignition switch in the OFF
position:
• Press the ENGINE START/STOP button once
to change the ignition switch to the ACC
position (EVIC displays “IGNITION MODE
ACCESSORY”),
• Press the ENGINE START/STOP button a
second time to change the ignition switch to
the RUN position (EVIC displays “IGNITION
MODE RUN”),
• Press the ENGINE START/STOP button a
third time to return the ignition switch to the
OFF position (EVIC displays “IGNITION
MODE OFF”).
Extreme Cold Weather
(Below 20°F or 29°C)
To ensure reliable starting at these tempera-
tures, use of an externally powered electric
engine block heater (available from your autho-
rized dealer) is recommended.
If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquids
into the throttle body air inlet opening in an
attempt to start the vehicle. This could
result in a flash fire causing serious per-
sonal injury.
• Do not attempt to push or tow your vehicle
to get it started. Vehicles equipped with an
automatic transmission cannot be started
this way. Unburned fuel could enter the
catalytic converter and once the engine has
started, ignite and damage the converter
and vehicle. If the vehicle has a discharged
battery, booster cables may be used to
obtain a start from a booster battery or the
battery in another vehicle. This type of start
can be dangerous if done improperly. Refer
to “Jump Starting” in “What To Do In Emer-
gencies” for further information. Clearing a Flooded Engine
(Using ENGINE START/STOP Button)
If the engine fails to start after you have fol-
lowed the “Normal Starting” or “Extreme Cold
Weather
procedures, it may be flooded. To
clear any excess fuel, press and hold the brake
pedal, push the accelerator pedal all the way to
the floor and hold it, then press and release the
ENGINE START/STOP button once. The starter
motor will engage automatically, run for 10 sec-
onds, and then disengage. Once this occurs,
release the accelerator pedal and the brake
pedal, wait 10 to 15 seconds, then repeat the
“Normal Starting” procedure.
Clearing A Flooded Engine
(Using Fob With Integrated Key)
If the engine fails to start after you have fol-
lowed the “Normal Starting” or “Extreme Cold
Weather” procedures, it may be flooded. To
clear any excess fuel, push the accelerator
pedal all the way to the floor and hold it. Then,
turn the ignition switch to the START position
and release it as soon as the starter engages.
The starter motor will disengage automatically
in 10 seconds. Once this occurs, release the
accelerator pedal, turn the ignition switch to the
218

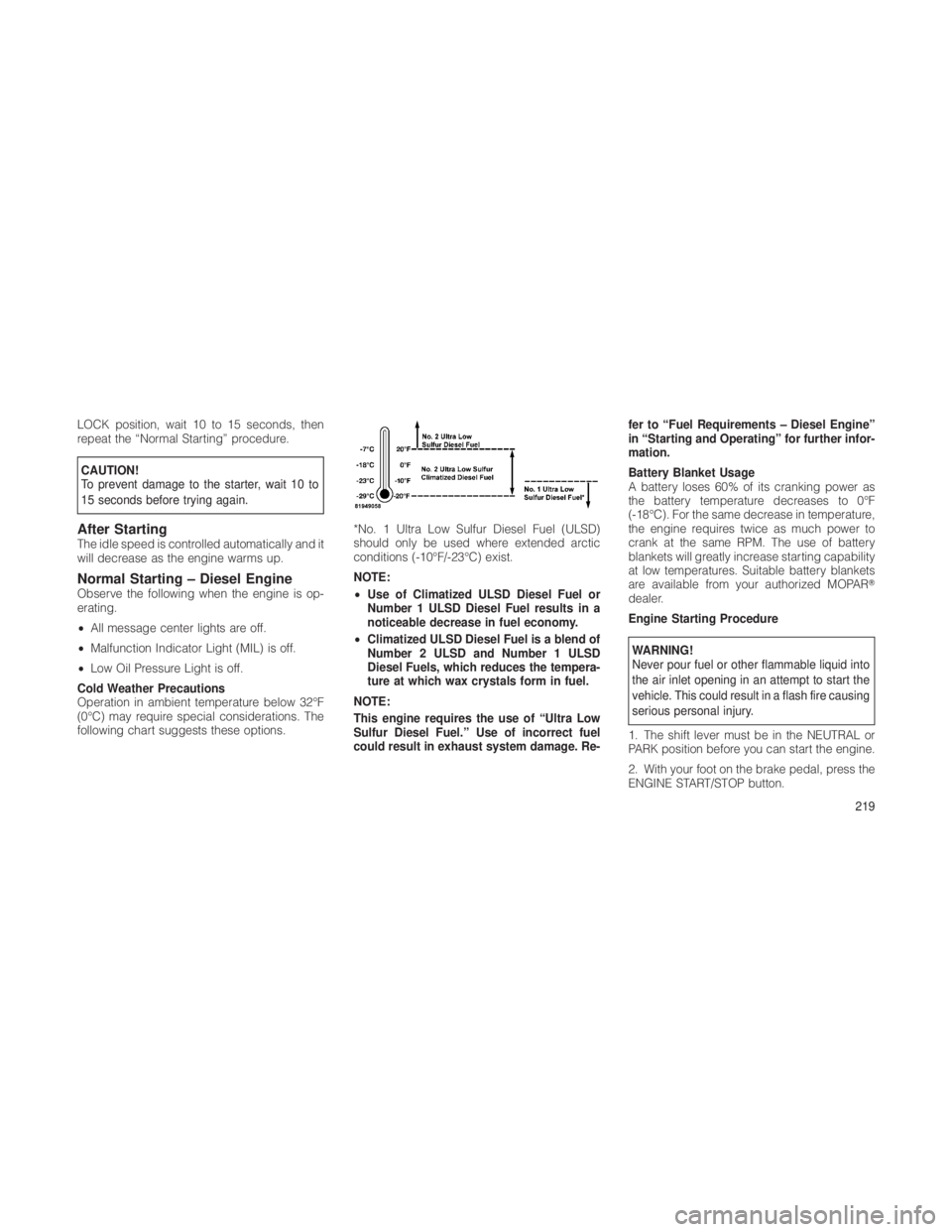

LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
CAUTION!
To prevent damage to the starter, wait 10 to
15 seconds before trying again.
After StartingThe idle speed is controlled automatically and it
will decrease as the engine warms up.
Normal Starting – Diesel EngineObserve the following when the engine is op-
erating.
•All message center lights are off.
• Malfunction Indicator Light (MIL) is off.
• Low Oil Pressure Light is off.
Cold Weather Precautions
Operation in ambient temperature below 32°F
(0°C) may require special considerations. The
following chart suggests these options. *No. 1 Ultra Low Sulfur Diesel Fuel (ULSD)
should only be used where extended arctic
conditions (-10°F/-23°C) exist.
NOTE:
•
Use of Climatized ULSD Diesel Fuel or
Number 1 ULSD Diesel Fuel results in a
noticeable decrease in fuel economy.
• Climatized ULSD Diesel Fuel is a blend of
Number 2 ULSD and Number 1 ULSD
Diesel Fuels, which reduces the tempera-
ture at which wax crystals form in fuel.
NOTE:
This engine requires the use of “Ultra Low
Sulfur Diesel Fuel.” Use of incorrect fuel
could result in exhaust system damage. Re- fer to “Fuel Requirements – Diesel Engine”
in “Starting and Operating” for further infor-
mation.
Battery Blanket Usage
A battery loses 60% of its cranking power as
the battery temperature decreases to 0°F
(-18°C). For the same decrease in temperature,
the engine requires twice as much power to
crank at the same RPM. The use of battery
blankets will greatly increase starting capability
at low temperatures. Suitable battery blankets
are available from your authorized MOPAR
dealer.
Engine Starting Procedure
WARNING!
Never pour fuel or other flammable liquid into
the air inlet opening in an attempt to start the
vehicle. This could result in a flash fire causing
serious personal injury.
1. The shift lever must be in the NEUTRAL or
PARK position before you can start the engine.
2. With your foot on the brake pedal, press the
ENGINE START/STOP button.
219

1. Bring the vehicle to a complete stop and
shift the transmission to PARK.
2. Turn the engine OFF.
3. For vehicles with Keyless Enter-N-Go, re-
move the Keyless Enter-N-Go button and use
the key fob to complete this procedure. Refer to
“Starting Procedures/Keyless Enter-N-Go” in
“Starting and Operating” for further information.
4. Turn the ignition switch to the ON/RUN po-
sition, but do not start the engine.
5. Press and hold the brake pedal.
6. Shift the transmission into NEUTRAL.
7. Using the point of a ballpoint pen or similar
object, press and hold the recessed transfer
case NEUTRAL (N) button (located by the
selector switch) for four seconds, until the light
behind the N symbol starts to blink, indicating
shift in progress. The light will stop blinking
(stay on solid) when the shift to NEUTRAL (N) is
complete.8. After the shift is completed and the NEU-
TRAL (N) light stays on, release the NEUTRAL
(N) button.
9. Start the engine.
10. Shift the transmission into REVERSE.
11. Release the brake pedal for five seconds
and ensure that there is no vehicle movement.
12. Turn the engine OFF, then turn the ignition
switch back to the ON/RUN position without
starting the engine.
13. Firmly apply the parking brake.14. Shift the transmission into PARK.
CAUTION!
Damage to the transmission may occur if the
transmission is shifted into PARK with the
transfer case in NEUTRAL (N) and the engine
running. With the transfer case in NEUTRAL
(N) ensure that the engine is off prior to
shifting the transmission into PARK.
15. Attach the vehicle to the tow vehicle using
a suitable tow bar.
16. Release the parking brake.
17. Disconnect the negative battery cable, and
secure it away from the negative battery post.
NOTE:
• Steps 1 through 6 are requirements that
must be met prior to pressing the NEU-
TRAL (N) button, and must continue to be
met until the four seconds elapse and the
shift has been completed. If any of these
requirements are not met prior to press-
ing the NEUTRAL (N) button or are no
longer met during the four second timer,
NEUTRAL (N) Switch
278

then the NEUTRAL (N) indicator light will
flash continuously until all requirements
are met or until the NEUTRAL (N) button is
released.
• The ignition switch must be in the ON/
RUN position for a shift to take place and
for the position indicator lights to be op-
erable. If the ignition switch is not in the
ON/RUN position, the shift will not take
place and no position indicator lights will
be on or flashing.
• A flashing NEUTRAL (N) position indica-
tor light indicates that shift requirements
have not been met.
Shifting Out Of NEUTRAL (N)
Use the following procedure to prepare your
vehicle for normal usage.
1. Bring the vehicle to a complete stop, leaving
it connected to the tow vehicle.
2. Firmly apply the parking brake.
3. Reconnect the negative battery cable. 4. Turn the ignition switch to the LOCK/OFF
position.
5. Turn the ignition switch to the ON/RUN po-
sition, but do not start the engine.
6. Press and hold the brake pedal.
7. Shift the transmission into NEUTRAL.
8. Using the point of a ballpoint pen or similar
object, press and hold the recessed transfer
case NEUTRAL (N) button (located by the
selector switch) for one second.
NOTE:
When shifting out of transfer case NEUTRAL
(N), turning the engine OFF may be required
to avoid gear clash.
9. After the NEUTRAL (N) indicator light turns
off, release the NEUTRAL (N) button.
10. After the NEUTRAL (N) button has been
released, the transfer case will shift to the
position indicated by the selector switch.
11. Shift the transmission into PARK.
12. Release the brake pedal.
13. Disconnect vehicle from the tow vehicle.
14. Start the engine.
NEUTRAL (N) Switch
279
