ESP JEEP GRAND CHEROKEE 2012 Owner handbook (in English)

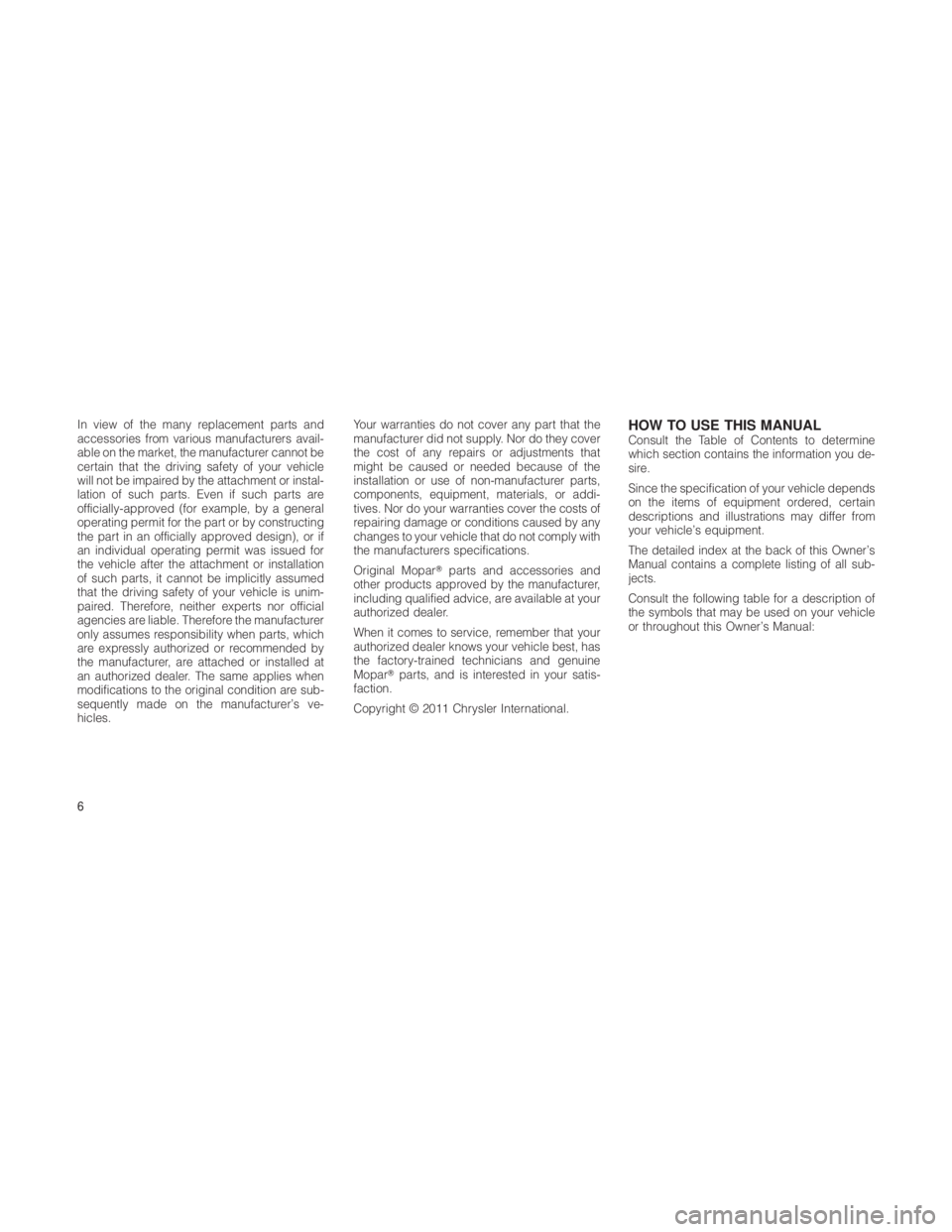

In view of the many replacement parts and
accessories from various manufacturers avail-
able on the market, the manufacturer cannot be
certain that the driving safety of your vehicle
will not be impaired by the attachment or instal-
lation of such parts. Even if such parts are
officially-approved (for example, by a general
operating permit for the part or by constructing
the part in an officially approved design), or if
an individual operating permit was issued for
the vehicle after the attachment or installation
of such parts, it cannot be implicitly assumed
that the driving safety of your vehicle is unim-
paired. Therefore, neither experts nor official
agencies are liable. Therefore the manufacturer
only assumes responsibility when parts, which
are expressly authorized or recommended by
the manufacturer, are attached or installed at
an authorized dealer. The same applies when
modifications to the original condition are sub-
sequently made on the manufacturer’s ve-
hicles.Your warranties do not cover any part that the
manufacturer did not supply. Nor do they cover
the cost of any repairs or adjustments that
might be caused or needed because of the
installation or use of non-manufacturer parts,
components, equipment, materials, or addi-
tives. Nor do your warranties cover the costs of
repairing damage or conditions caused by any
changes to your vehicle that do not comply with
the manufacturers specifications.
Original Mopar
parts and accessories and
other products approved by the manufacturer,
including qualified advice, are available at your
authorized dealer.
When it comes to service, remember that your
authorized dealer knows your vehicle best, has
the factory-trained technicians and genuine
Mopar parts, and is interested in your satis-
faction.
Copyright © 2011 Chrysler International.HOW TO USE THIS MANUALConsult the Table of Contents to determine
which section contains the information you de-
sire.
Since the specification of your vehicle depends
on the items of equipment ordered, certain
descriptions and illustrations may differ from
your vehicle’s equipment.
The detailed index at the back of this Owner’s
Manual contains a complete listing of all sub-
jects.
Consult the following table for a description of
the symbols that may be used on your vehicle
or throughout this Owner’s Manual:
6

NOTE:
Inserting the Key Fob with RKE transmitter
into the ignition switch disables the system
from responding to any button presses from
that RKE transmitter. Driving at speeds
5 mph (8 km/h) and above disables the
system from responding to all RKE transmit-
ter buttons for all RKE transmitters.
To Unlock The DoorsPress and release the UNLOCK button on the
RKE transmitter once to unlock the driver’s
door or twice to unlock all doors. The turnsignal lights will flash to acknowledge the un-
lock signal. The illuminated entry system will
also turn on.
Refer to “Keyless Enter-N-Go — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.
Remote Unlock Sequence
This feature lets you program the system to
unlock either the driver’s door or all doors, on
the first press of the UNLOCK button on the
RKE transmitter. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further informa-
tion.
Flash Lamps With Lock
This feature will cause the turn signal lights to
flash when the doors are locked or unlocked
with the RKE transmitter. This feature can be
turned on or off. To change the current setting,
proceed as follows: •
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Pro-
grammable Features)” in “Understanding
Your Instrument Panel” for further informa-
tion.
Illuminated Approach
This feature activates the headlights for up to
90 seconds when the doors are unlocked with
the RKE transmitter. The time for this feature is
programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC).
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Program-
mable Features)” in “Understanding Your In-
strument Panel” for further information.
To Lock The DoorsPress and release the LOCK button on the RKE
transmitter to lock all doors. The turn signal
lights will flash to acknowledge the signal.
Refer to “Keyless Enter-N-Go — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.Key Fob With RKE Transmitter
18

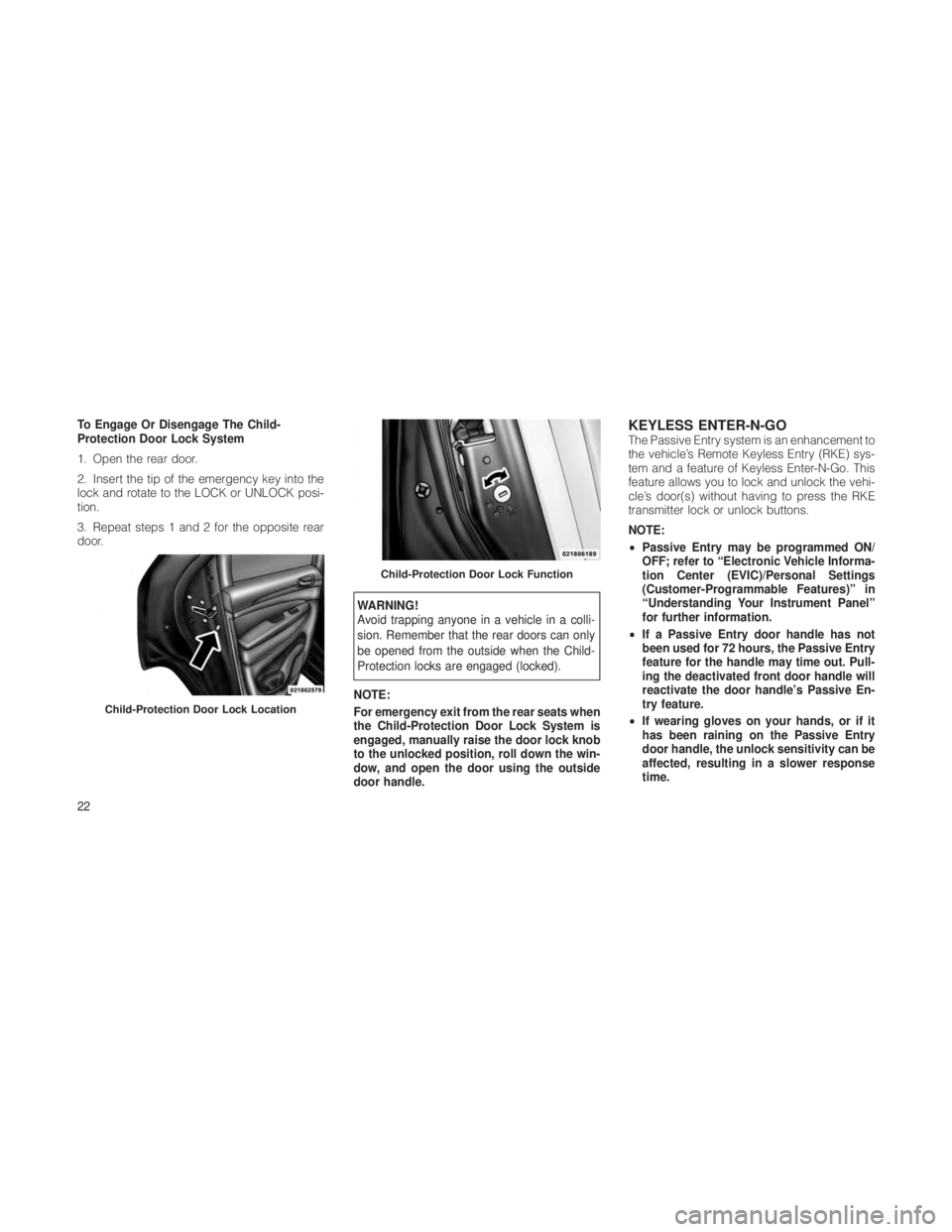

To Engage Or Disengage The Child-
Protection Door Lock System
1. Open the rear door.
2. Insert the tip of the emergency key into the
lock and rotate to the LOCK or UNLOCK posi-
tion.
3. Repeat steps 1 and 2 for the opposite rear
door.
WARNING!
Avoid trapping anyone in a vehicle in a colli-
sion. Remember that the rear doors can only
be opened from the outside when the Child-
Protection locks are engaged (locked).
NOTE:
For emergency exit from the rear seats when
the Child-Protection Door Lock System is
engaged, manually raise the door lock knob
to the unlocked position, roll down the win-
dow, and open the door using the outside
door handle.
KEYLESS ENTER-N-GOThe Passive Entry system is an enhancement to
the vehicle’s Remote Keyless Entry (RKE) sys-
tem and a feature of Keyless Enter-N-Go. This
feature allows you to lock and unlock the vehi-
cle’s door(s) without having to press the RKE
transmitter lock or unlock buttons.
NOTE:
• Passive Entry may be programmed ON/
OFF; refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in
“Understanding Your Instrument Panel”
for further information.
• If a Passive Entry door handle has not
been used for 72 hours, the Passive Entry
feature for the handle may time out. Pull-
ing the deactivated front door handle will
reactivate the door handle’s Passive En-
try feature.
• If wearing gloves on your hands, or if it
has been raining on the Passive Entry
door handle, the unlock sensitivity can be
affected, resulting in a slower response
time.
Child-Protection Door Lock Location
Child-Protection Door Lock Function
22

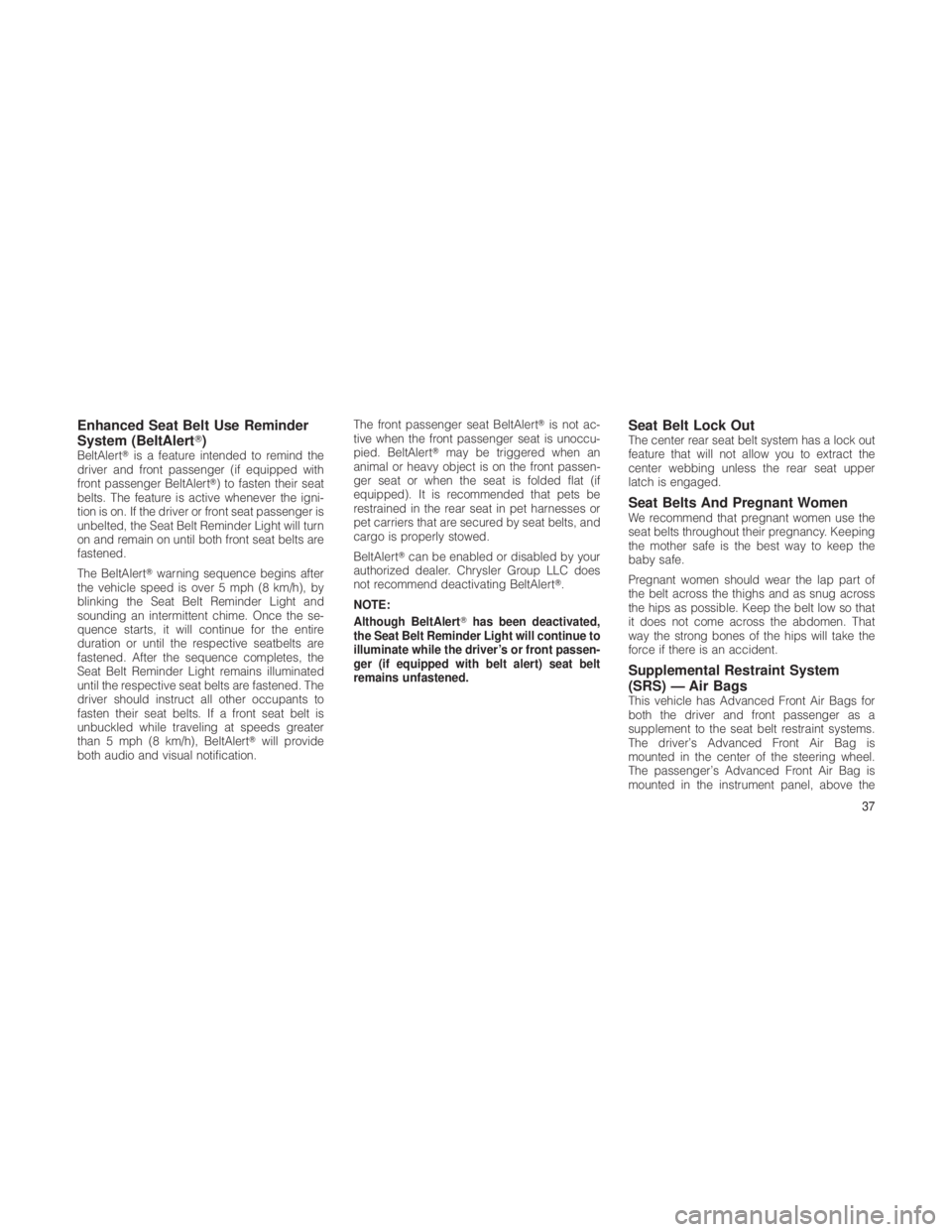

Enhanced Seat Belt Use Reminder
System (BeltAlert)
BeltAlertis a feature intended to remind the
driver and front passenger (if equipped with
front passenger BeltAlert) to fasten their seat
belts. The feature is active whenever the igni-
tion is on. If the driver or front seat passenger is
unbelted, the Seat Belt Reminder Light will turn
on and remain on until both front seat belts are
fastened.
The BeltAlert warning sequence begins after
the vehicle speed is over 5 mph (8 km/h), by
blinking the Seat Belt Reminder Light and
sounding an intermittent chime. Once the se-
quence starts, it will continue for the entire
duration or until the respective seatbelts are
fastened. After the sequence completes, the
Seat Belt Reminder Light remains illuminated
until the respective seat belts are fastened. The
driver should instruct all other occupants to
fasten their seat belts. If a front seat belt is
unbuckled while traveling at speeds greater
than 5 mph (8 km/h), BeltAlert will provide
both audio and visual notification. The front passenger seat BeltAlert
is not ac-
tive when the front passenger seat is unoccu-
pied. BeltAlert may be triggered when an
animal or heavy object is on the front passen-
ger seat or when the seat is folded flat (if
equipped). It is recommended that pets be
restrained in the rear seat in pet harnesses or
pet carriers that are secured by seat belts, and
cargo is properly stowed.
BeltAlert can be enabled or disabled by your
authorized dealer. Chrysler Group LLC does
not recommend deactivating BeltAlert .
NOTE:
Although BeltAlert has been deactivated,
the Seat Belt Reminder Light will continue to
illuminate while the driver’s or front passen-
ger (if equipped with belt alert) seat belt
remains unfastened.
Seat Belt Lock OutThe center rear seat belt system has a lock out
feature that will not allow you to extract the
center webbing unless the rear seat upper
latch is engaged.
Seat Belts And Pregnant WomenWe recommend that pregnant women use the
seat belts throughout their pregnancy. Keeping
the mother safe is the best way to keep the
baby safe.
Pregnant women should wear the lap part of
the belt across the thighs and as snug across
the hips as possible. Keep the belt low so that
it does not come across the abdomen. That
way the strong bones of the hips will take the
force if there is an accident.
Supplemental Restraint System
(SRS) — Air Bags
This vehicle has Advanced Front Air Bags for
both the driver and front passenger as a
supplement to the seat belt restraint systems.
The driver’s Advanced Front Air Bag is
mounted in the center of the steering wheel.
The passenger’s Advanced Front Air Bag is
mounted in the instrument panel, above the
37

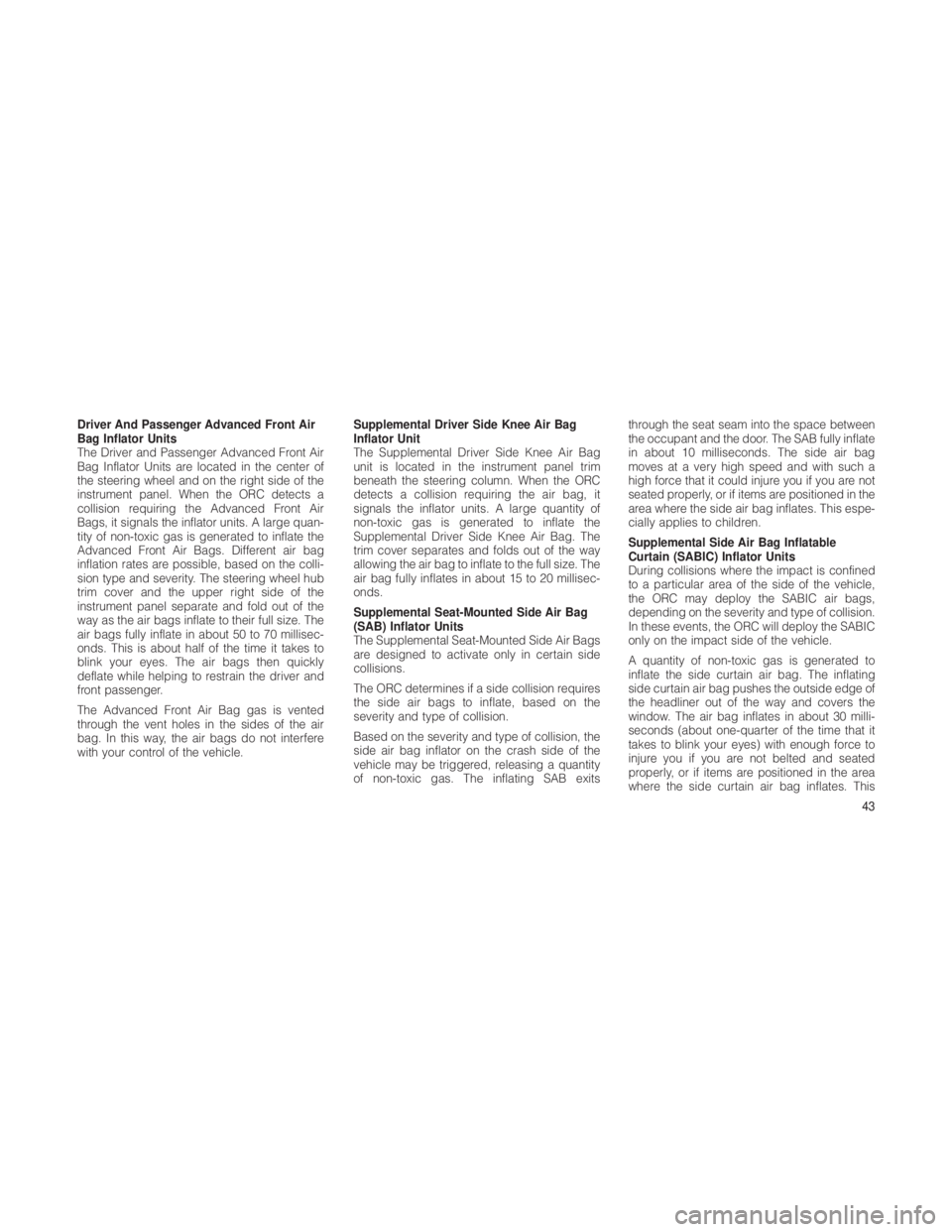

Driver And Passenger Advanced Front Air
Bag Inflator Units
The Driver and Passenger Advanced Front Air
Bag Inflator Units are located in the center of
the steering wheel and on the right side of the
instrument panel. When the ORC detects a
collision requiring the Advanced Front Air
Bags, it signals the inflator units. A large quan-
tity of non-toxic gas is generated to inflate the
Advanced Front Air Bags. Different air bag
inflation rates are possible, based on the colli-
sion type and severity. The steering wheel hub
trim cover and the upper right side of the
instrument panel separate and fold out of the
way as the air bags inflate to their full size. The
air bags fully inflate in about 50 to 70 millisec-
onds. This is about half of the time it takes to
blink your eyes. The air bags then quickly
deflate while helping to restrain the driver and
front passenger.
The Advanced Front Air Bag gas is vented
through the vent holes in the sides of the air
bag. In this way, the air bags do not interfere
with your control of the vehicle.Supplemental Driver Side Knee Air Bag
Inflator Unit
The Supplemental Driver Side Knee Air Bag
unit is located in the instrument panel trim
beneath the steering column. When the ORC
detects a collision requiring the air bag, it
signals the inflator units. A large quantity of
non-toxic gas is generated to inflate the
Supplemental Driver Side Knee Air Bag. The
trim cover separates and folds out of the way
allowing the air bag to inflate to the full size. The
air bag fully inflates in about 15 to 20 millisec-
onds.
Supplemental Seat-Mounted Side Air Bag
(SAB) Inflator Units
The Supplemental Seat-Mounted Side Air Bags
are designed to activate only in certain side
collisions.
The ORC determines if a side collision requires
the side air bags to inflate, based on the
severity and type of collision.
Based on the severity and type of collision, the
side air bag inflator on the crash side of the
vehicle may be triggered, releasing a quantity
of non-toxic gas. The inflating SAB exitsthrough the seat seam into the space between
the occupant and the door. The SAB fully inflate
in about 10 milliseconds. The side air bag
moves at a very high speed and with such a
high force that it could injure you if you are not
seated properly, or if items are positioned in the
area where the side air bag inflates. This espe-
cially applies to children.
Supplemental Side Air Bag Inflatable
Curtain (SABIC) Inflator Units
During collisions where the impact is confined
to a particular area of the side of the vehicle,
the ORC may deploy the SABIC air bags,
depending on the severity and type of collision.
In these events, the ORC will deploy the SABIC
only on the impact side of the vehicle.
A quantity of non-toxic gas is generated to
inflate the side curtain air bag. The inflating
side curtain air bag pushes the outside edge of
the headliner out of the way and covers the
window. The air bag inflates in about 30 milli-
seconds (about one-quarter of the time that it
takes to blink your eyes) with enough force to
injure you if you are not belted and seated
properly, or if items are positioned in the area
where the side curtain air bag inflates. This
43

especially applies to children. The side curtain
air bag is only about 3-1/2 in (9 cm) thick when
it is inflated.
Because air bag sensors estimate deceleration
over time, vehicle speed and damage are not
good indicators of whether or not an air bag
should have deployed.
NOTE:
In a rollover the pretensioners, and/or SAB
and SABIC air bags may deploy on both
sides of the vehicle.
Front And Side Impact Sensors
In front and side impacts, impact sensors can
aid the ORC in determining appropriate re-
sponse to impact events.
Enhanced Accident Response System
In the event of an impact causing air bag
deployment, if the communication network re-
mains intact, and the power remains intact,
depending on the nature of the event the ORC
will determine whether to have the Enhanced
Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine. •
Flash hazard lights as long as the battery
has power or until the ignition key is turned
off.
• Turn on the interior lights, which remain on as
long as the battery has power or until the
ignition key is removed.
• Unlock the doors automatically.
If A Deployment Occurs
The Advanced Front Air Bags are designed to
deflate immediately after deployment.
NOTE:
Front and/or side air bags will not deploy in
all collisions. This does not mean some-
thing is wrong with the air bag system.
If you do have a collision which deploys the air
bags, any or all of the following may occur:
• The nylon air bag material may sometimes
cause abrasions and/or skin reddening to
the driver and front passenger as the air
bags deploy and unfold. The abrasions are
similar to friction rope burns or those you
might get sliding along a carpet or gymna-
sium floor. They are not caused by contact
with chemicals. They are not permanent and normally heal quickly. However, if you
haven’t healed significantly within a few
days, or if you have any blistering, see your
doctor immediately.
• As the air bags deflate, you may see some
smoke-like particles. The particles are a nor-
mal by-product of the process that gener-
ates the non-toxic gas used for air bag
inflation. These airborne particles may irri-
tate the skin, eyes, nose, or throat. If you
have skin or eye irritation, rinse the area with
cool water. For nose or throat irritation, move
to fresh air. If the irritation continues, see your
doctor. If these particles settle on your cloth-
ing, follow the garment manufacturer’s in-
structions for cleaning.
Do not drive your vehicle after the air bags have
deployed. If you are involved in another colli-
sion, the air bags will not be in place to protect
you.
44

When RCP is on and the vehicle is in REVERSE,
the driver is alerted using both the visual and
audible alarms, including reducing the radio
volume.
WARNING!
RCP is not a Back Up Aid system. It is
intended to be used to help a driver detect an
oncoming vehicle in a parking lot situation.
Drivers must be careful when backing up,
even when using RCP. Always check carefully
behind your vehicle, look behind you, and be
sure to check for pedestrians, animals, other
vehicles, obstructions, and blind spots before
backing up. Failure to do so can result in
serious injury or death.
Modes Of OperationThree selectable modes of operation are avail-
able in the Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
Blind Spot Alert
When operating in Blind Spot Alert mode, the
BSM system will provide a visual alert in the
appropriate side view mirror based on a de-
tected object. However, when the system is
operating in RCP, the system will respond with
both visual and audible alerts when a detected
object is present. Whenever an audible alert is
requested, the radio volume is reduced.
Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/
Chime, the BSM system will provide a visual
alert in the appropriate side view mirror based
on a detected object. If the turn signal is then
activated, and it corresponds to an alert pres-
ent on that side of the vehicle, an audible chime
will also be sounded. Whenever a turn signal
and detected object are present on the same
side at the same time, both the visual and audio
alerts will be issued. In addition to the audible
alert the radio (if on) volume will be reduced.
NOTE:
•Whenever an audible alert is requested by
the BSM system, the radio volume is re-
duced. •
If the hazard flashers are on, the system
will request the appropriate visual alert
only.
When the system is in RCP, the system shall
respond with both visual and audible alerts
when a detected object is present. When-
ever an audible alert is requested, the radio
volume is reduced. Turn/hazard signal status
is ignored; the RCP state always requests
the chime.
Blind Spot Alert Off
When the BSM system is turned off there will be
no visual or audible alerts from either the BSM
or RCP systems.
NOTE:
The BSM system will store the current oper-
ating mode when the vehicle is shut off.
Each time the vehicle is started the previ-
ously stored mode will be recalled and used.
Astronomy Zone — System Temporarily
Unavailable
When the vehicle enters this zone the blind
spot system will become temporarily unavail-
able and the EVIC will display the message “
Blind spot system unavailable-Astronomy 73

•The Uconnect™ Phone will confirm the name
and then dial the corresponding phone num-
ber, which may appear in the display of
certain radios.
Add Names To Your Uconnect™
Phonebook
NOTE:
Adding names to the Uconnect™ Phone-
book is recommended when the vehicle is
not in motion.
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Phonebook New Entry”.
• When prompted, say the name of the new
entry. Use of long names helps the Voice
Command and it is recommended. For ex-
ample, say “Robert Smith” or “Robert” in-
stead of “Bob”.
• When prompted, enter the number designa-
tion (e.g., “Home”, “Work”, “Mobile”, or
“Other”). This will allow you to store multiple
numbers for each phonebook entry, if de-
sired. •
When prompted, recite the phone number
for the phonebook entry that you are adding.
After you are finished adding an entry into the
phonebook, you will be given the opportunity to
add more phone numbers to the current entry
or to return to the main menu.
The Uconnect™ Phone will allow you to enter
up to 32 names in the phonebook with each
name having up to four associated phone
numbers and designations. Each language has
a separate 32-name phonebook accessible
only in that language. In addition, if equipped
and supported by your phone, Uconnect™
Phone automatically downloads your mobile
phone’s phonebook.
Phonebook Download — Automatic
Phonebook Transfer From Mobile Phone
If equipped and specifically supported by your
phone, Uconnect™ Phone automatically down-
loads names (text names) and number entries
from your mobile phone’s phonebook. Specific
Bluetooth Phones with Phone Book Access
Profile may support this feature. See
Uconnect™ website for supported phones. •
To call a name from downloaded (or
Uconnect™) Phonebook, follow the proce-
dure in “Call by Saying a Name” section.
• Automatic download and update, if sup-
ported, begins as soon as the phone
Bluetooth wireless connection is made to
the Uconnect™ Phone. For example, after
you start the vehicle.
• Maximum of 1000 entries per phone will be
downloaded and updated every time a
phone is connected to the Uconnect™
Phone.
• Depending on the maximum number of en-
tries downloaded, there may be a short
delay before the latest downloaded names
can be used. Until then, if available, the
previously downloaded phonebook is avail-
able for use.
• Only the phonebook of the currently con-
nected mobile phone is accessible.
• Only the mobile phone’s phonebook is
downloaded. SIM card phonebook is not
part of the mobile phonebook.
77

You can use your Uconnect™ Phone to access
a voice mail system or an automated service,
such as a paging service or automated cus-
tomer service. Some services require immedi-
ate response selection. In some instances, that
may be too quick for use of the Uconnect™
Phone.
When calling a number with your Uconnect™
Phone that normally requires you to enter in a
touch-tone sequence on your mobile phone
keypad, you can press the
button and
say the sequence you wish to enter followed by
the word “Send”. For example, if required to
enter your PIN followed with a hash, (3746#),
you can press the
button and say, “3 7 4
6 # Send”. Saying a number, or sequence of
numbers, followed by “Send”, is also to be
used for navigating through an automated cus-
tomer service center menu structure, and to
leave a number on a pager.
You can also send stored Uconnect™ Phone-
book entries as tones for fast and easy access
to voice mail and pager entries. To use this
feature, dial the number you wish to call and
then press the
button and say “Send.”
The system will prompt you to enter the name or number and say the name of the phonebook
entry you wish to send. The Uconnect™ Phone
will then send the corresponding phone num-
ber associated with the phonebook entry, as
tones over the phone.
NOTE:
•
You may not hear all of the tones due to
mobile phone network configurations;
this is normal.
• Some paging and voice mail systems
have system time out settings that are too
short and may not allow the use of this
feature.
Barge In — Overriding Prompts
The “Voice Command” button can be used
when you wish to skip part of a prompt and
issue your voice command immediately. For
example, if a prompt is asking “Would you like
to pair a phone, clear a,” you could press the
button and say, “Pair a Phone” to select
that option without having to listen to the rest of
the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the
system from confirming your choices (e.g., the Uconnect™ Phone will not repeat a phone
number before you dial it).
•
Press the
button to begin.
• After the “Ready” prompt and the following
beep, say:
“Setup Confirmations Prompts On”
“Setup Confirmations Prompts Off”
Phone And Network Status Indicators
If available on the radio and/or on a premium
display such as the instrument panel cluster,
and supported by your mobile phone, the
Uconnect™ Phone will provide notification to
inform you of your phone and network status
when you are attempting to make a phone call
using Uconnect™ Phone. The status is given
for network signal strength, phone battery
strength, etc.
Dialing Using The Mobile Phone Keypad
You can dial a phone number with your mobile
phone keypad and still use the Uconnect™
Phone (while dialing via the mobile phone
keypad, the user must exercise caution and
take precautionary safety measures). By dial-
ing a number with your paired Bluetooth mo-
82

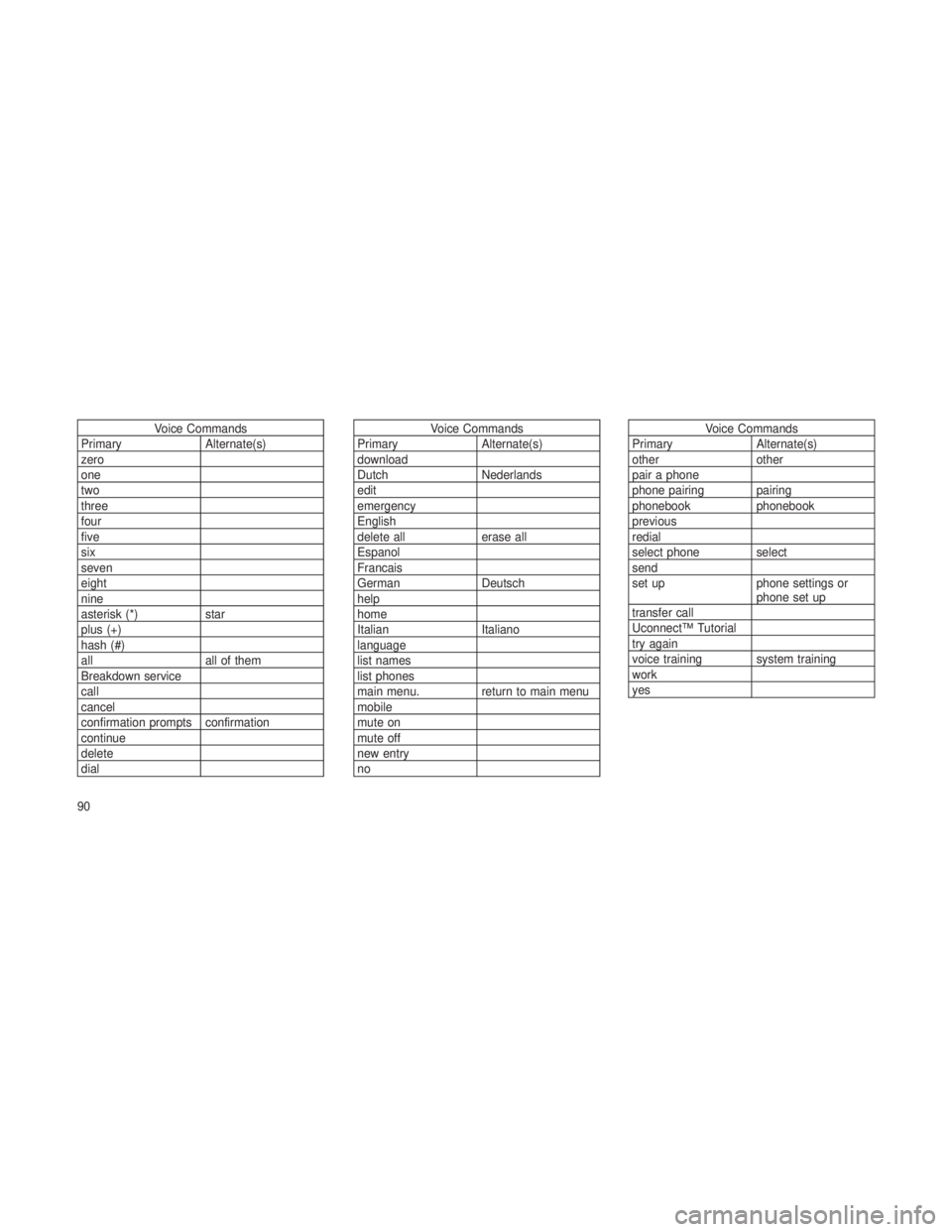

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
asterisk (*) star
plus (+)
hash (#)
all all of them
Breakdown service
call
cancel
confirmation prompts confirmation
continue
delete
dialVoice Commands
Primary Alternate(s)
download
Dutch Nederlands
edit
emergency
English
delete all erase all
Espanol
Francais
German Deutsch
help
home
Italian Italiano
language
list names
list phones
main menu. return to main menu
mobile
mute on
mute off
new entry
noVoice Commands
Primary Alternate(s)
other other
pair a phone
phone pairing pairing
phonebook phonebook
previous
redial
select phone select
send
set up phone settings or
phone set up
transfer call
Uconnect™ Tutorial
try again
voice training system training
work
yes
90
