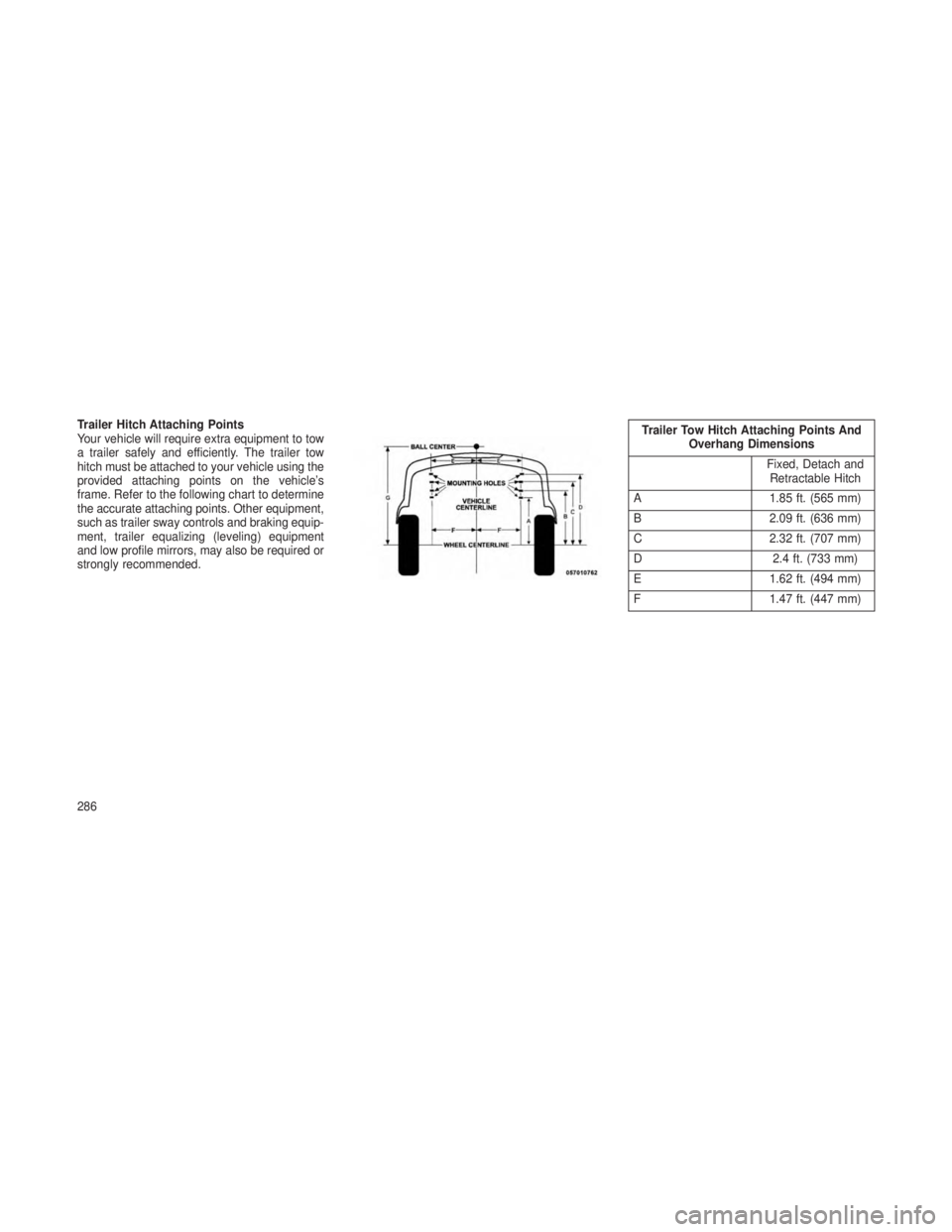

Trailer Hitch Attaching Points
Your vehicle will require extra equipment to tow
a trailer safely and efficiently. The trailer tow
hitch must be attached to your vehicle using the
provided attaching points on the vehicle’s
frame. Refer to the following chart to determine
the accurate attaching points. Other equipment,
such as trailer sway controls and braking equip-
ment, trailer equalizing (leveling) equipment
and low profile mirrors, may also be required or
strongly recommended.Trailer Tow Hitch Attaching Points AndOverhang Dimensions
Fixed, Detach andRetractable Hitch
A 1.85 ft. (565 mm)
B 2.09 ft. (636 mm)
C 2.32 ft. (707 mm)
D 2.4 ft. (733 mm)
E 1.62 ft. (494 mm)
F 1.47 ft. (447 mm)
286
