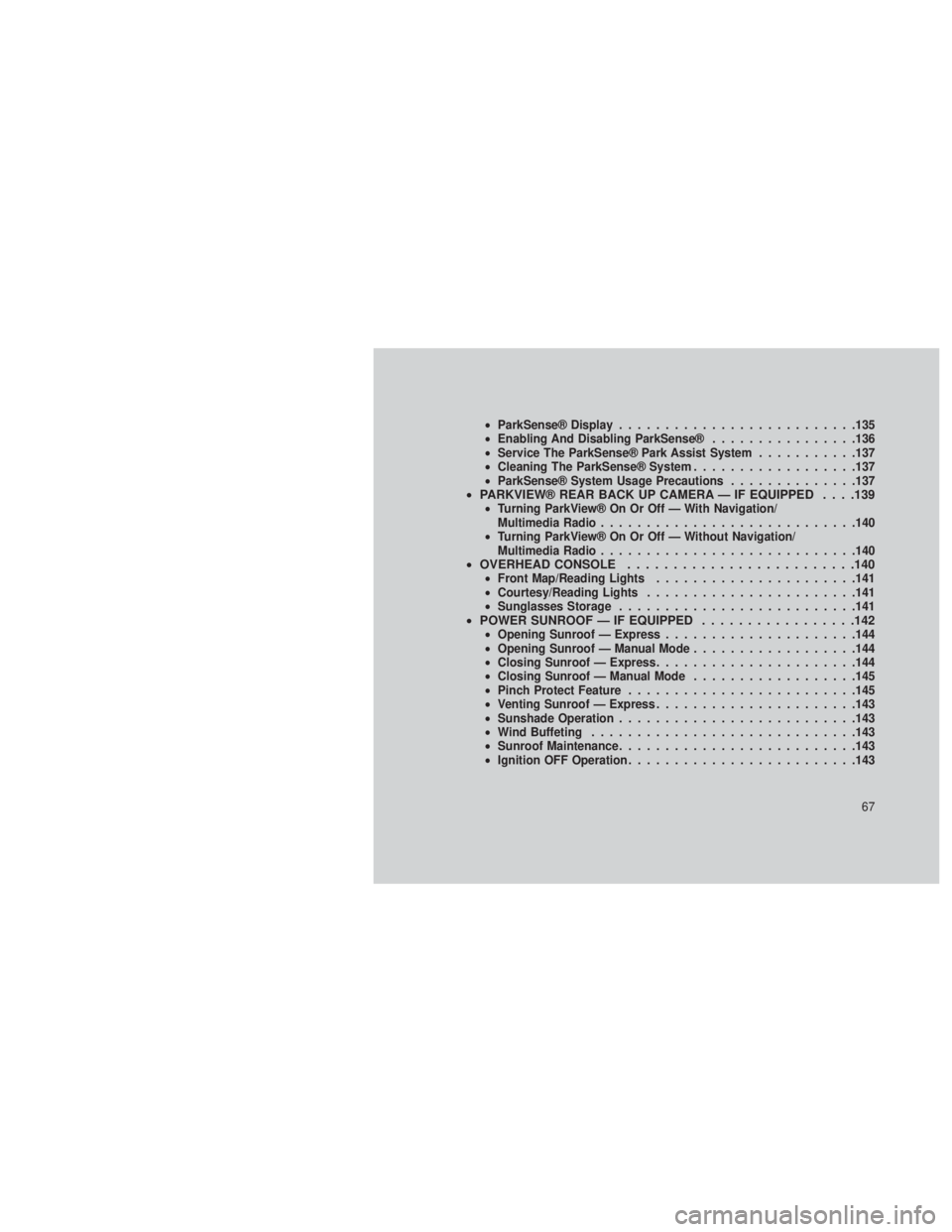

•ParkSense® Display ......................... .135
• Enabling And Disabling ParkSense® ................136
• Service The ParkSense® Park Assist System ...........137
• Cleaning The ParkSense® System ..................137
• ParkSense® System Usage Precautions ..............137
•PARKVIEW® REAR BACK UP CAMERA — IF EQUIPPED ....139•Turning ParkView® On Or Off — With Navigation/
Multimedia Radio ........................... .140
• Turning ParkView® On Or Off — Without Navigation/
Multimedia Radio ........................... .140
•OVERHEAD CONSOLE .........................140•Front Map/Reading Lights ..................... .141
• Courtesy/Reading Lights ...................... .141
• Sunglasses Storage ......................... .141
•POWER SUNROOF — IF EQUIPPED .................142•Opening Sunroof — Express .................... .144
• Opening Sunroof — Manual Mode ..................144
• Closing Sunroof — Express ..................... .144
• Closing Sunroof — Manual Mode ..................145
• Pinch Protect Feature ........................ .145
• Venting Sunroof — Express ..................... .143
• Sunshade Operation ......................... .143
• Wind Buffeting ............................ .143
• Sunroof Maintenance ......................... .143
• Ignition OFF Operation ........................ .143
67

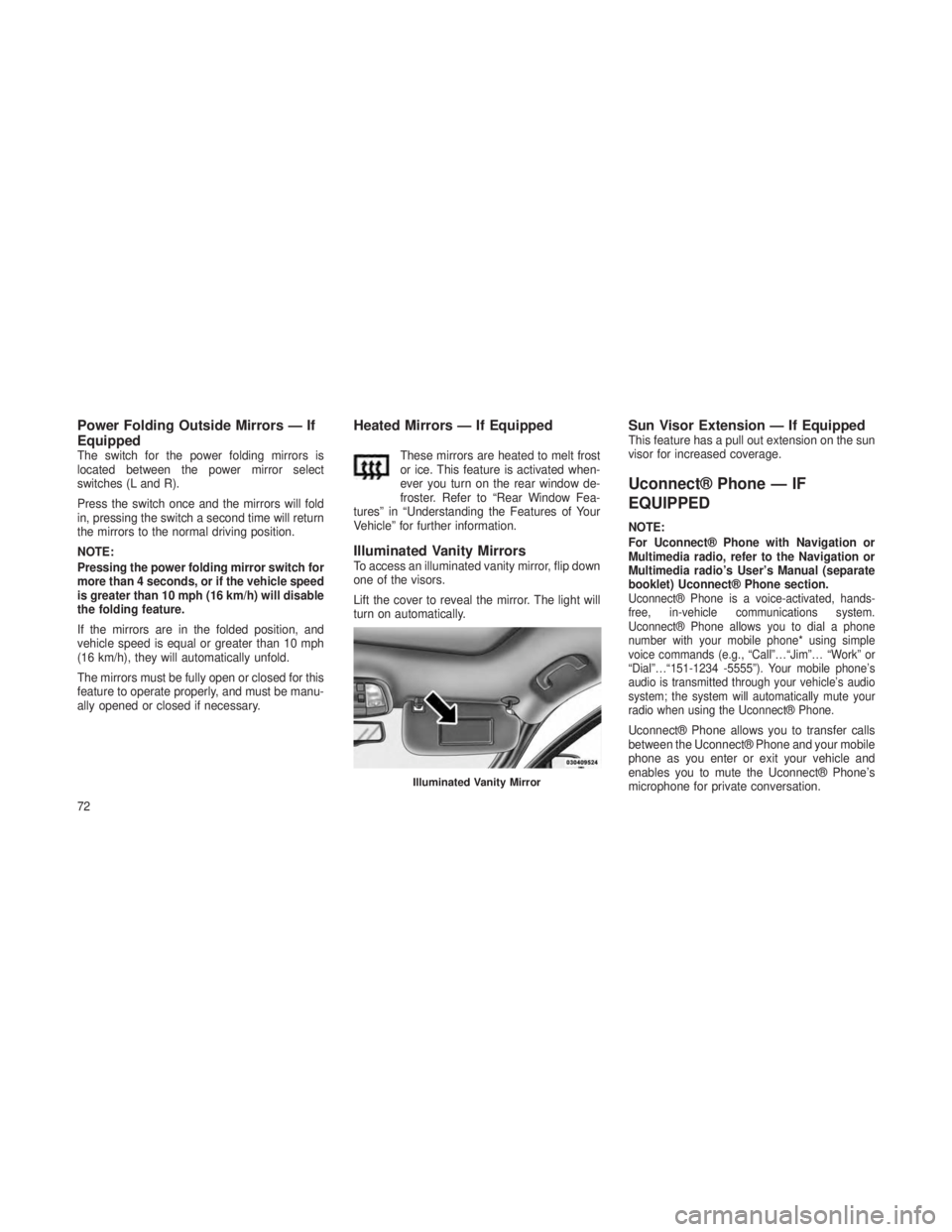

Power Folding Outside Mirrors — If
Equipped
The switch for the power folding mirrors is
located between the power mirror select
switches (L and R).
Press the switch once and the mirrors will fold
in, pressing the switch a second time will return
the mirrors to the normal driving position.
NOTE:
Pressing the power folding mirror switch for
more than 4 seconds, or if the vehicle speed
is greater than 10 mph (16 km/h) will disable
the folding feature.
If the mirrors are in the folded position, and
vehicle speed is equal or greater than 10 mph
(16 km/h), they will automatically unfold.
The mirrors must be fully open or closed for this
feature to operate properly, and must be manu-
ally opened or closed if necessary.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost
or ice. This feature is activated when-
ever you turn on the rear window de-
froster. Refer to “Rear Window Fea-
tures” in “Understanding the Features of Your
Vehicle” for further information.
Illuminated Vanity MirrorsTo access an illuminated vanity mirror, flip down
one of the visors.
Lift the cover to reveal the mirror. The light will
turn on automatically.
Sun Visor Extension — If EquippedThis feature has a pull out extension on the sun
visor for increased coverage.
Uconnect® Phone — IF
EQUIPPED
NOTE:
For Uconnect® Phone with Navigation or
Multimedia radio, refer to the Navigation or
Multimedia radio’s User’s Manual (separate
booklet) Uconnect® Phone section.
Uconnect® Phone is a voice-activated, hands-
free, in-vehicle communications system.
Uconnect® Phone allows you to dial a phone
number with your mobile phone* using simple
voice commands (e.g., “Call”…“Jim”… “Work” or
“Dial”…“151-1234 -5555”). Your mobile phone’s
audio is transmitted through your vehicle’s audio
system; the system will automatically mute your
radio when using the Uconnect® Phone.
Uconnect® Phone allows you to transfer calls
between the Uconnect® Phone and your mobile
phone as you enter or exit your vehicle and
enables you to mute the Uconnect® Phone’s
microphone for private conversation.
Illuminated Vanity Mirror
72

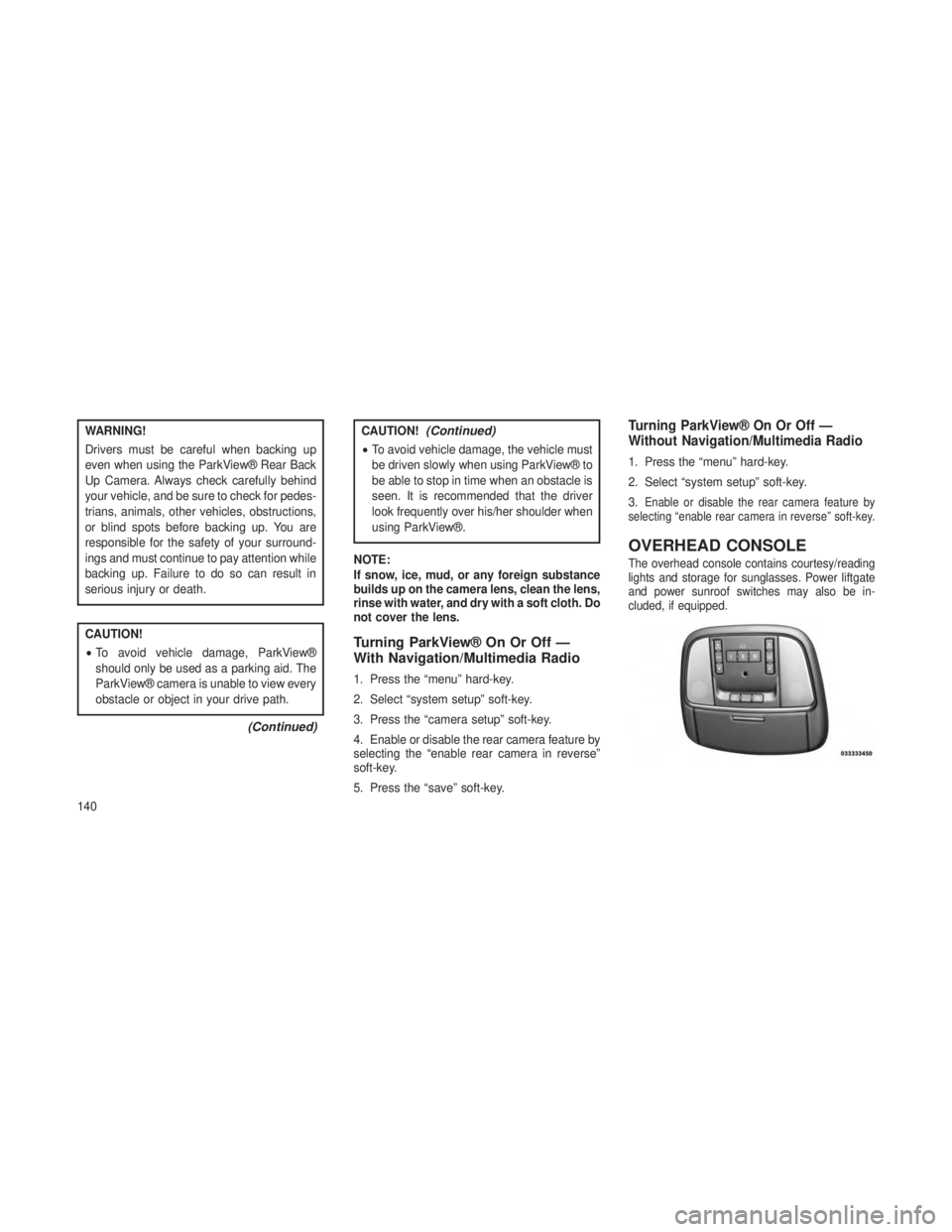

WARNING!
Drivers must be careful when backing up
even when using the ParkView® Rear Back
Up Camera. Always check carefully behind
your vehicle, and be sure to check for pedes-
trians, animals, other vehicles, obstructions,
or blind spots before backing up. You are
responsible for the safety of your surround-
ings and must continue to pay attention while
backing up. Failure to do so can result in
serious injury or death.
CAUTION!
•To avoid vehicle damage, ParkView®
should only be used as a parking aid. The
ParkView® camera is unable to view every
obstacle or object in your drive path.
(Continued)
CAUTION!(Continued)
•To avoid vehicle damage, the vehicle must
be driven slowly when using ParkView® to
be able to stop in time when an obstacle is
seen. It is recommended that the driver
look frequently over his/her shoulder when
using ParkView®.
NOTE:
If snow, ice, mud, or any foreign substance
builds up on the camera lens, clean the lens,
rinse with water, and dry with a soft cloth. Do
not cover the lens.
Turning ParkView® On Or Off —
With Navigation/Multimedia Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Press the “camera setup” soft-key.
4. Enable or disable the rear camera feature by
selecting the “enable rear camera in reverse”
soft-key.
5. Press the “save” soft-key.
Turning ParkView® On Or Off —
Without Navigation/Multimedia Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3.
Enable or disable the rear camera feature by
selecting “enable rear camera in reverse” soft-key.
OVERHEAD CONSOLE
The overhead console contains courtesy/reading
lights and storage for sunglasses. Power liftgate
and power sunroof switches may also be in-
cluded, if equipped.
140

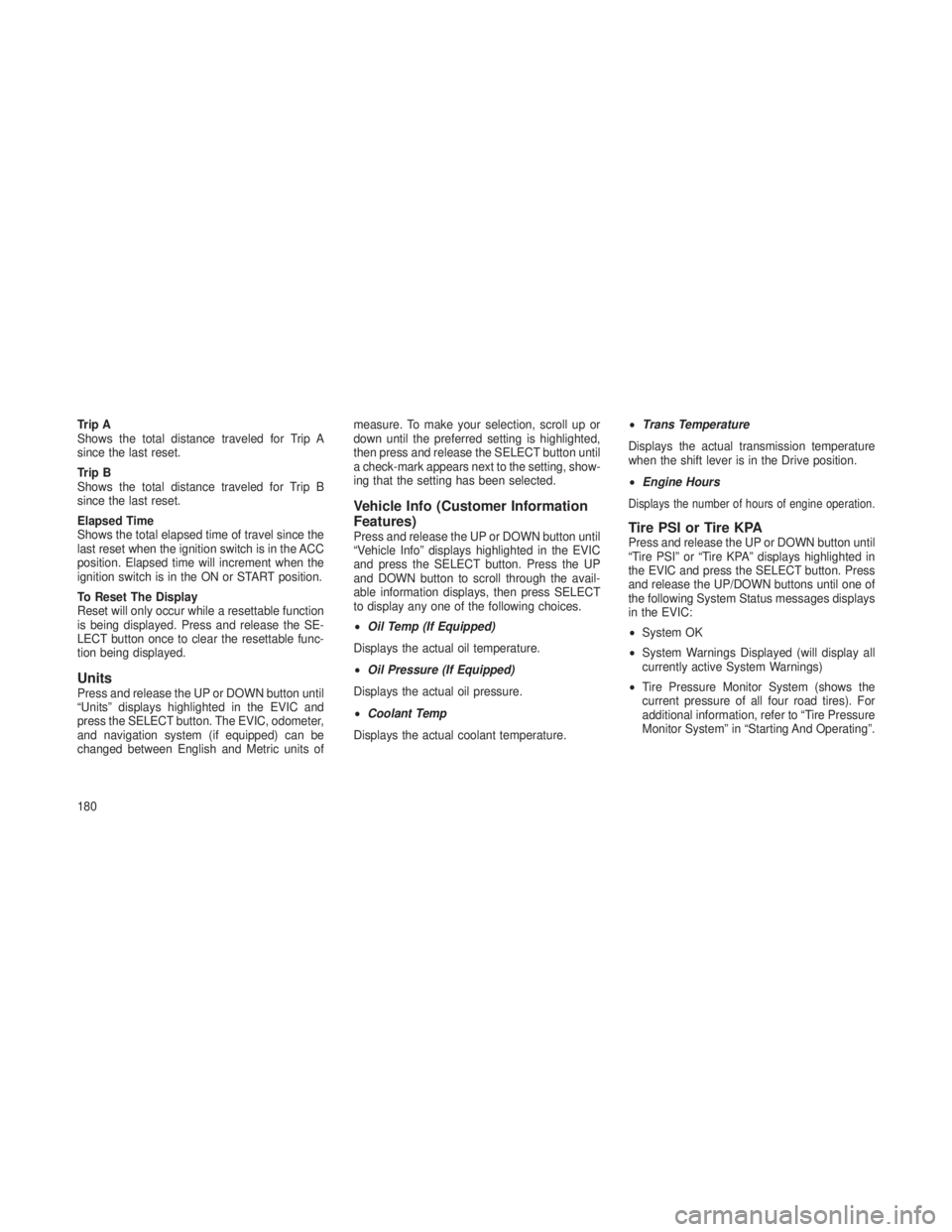

Trip A
Shows the total distance traveled for Trip A
since the last reset.
Trip B
Shows the total distance traveled for Trip B
since the last reset.
Elapsed Time
Shows the total elapsed time of travel since the
last reset when the ignition switch is in the ACC
position. Elapsed time will increment when the
ignition switch is in the ON or START position.
To Reset The Display
Reset will only occur while a resettable function
is being displayed. Press and release the SE-
LECT button once to clear the resettable func-
tion being displayed.
UnitsPress and release the UP or DOWN button until
“Units” displays highlighted in the EVIC and
press the SELECT button. The EVIC, odometer,
and navigation system (if equipped) can be
changed between English and Metric units ofmeasure. To make your selection, scroll up or
down until the preferred setting is highlighted,
then press and release the SELECT button until
a check-mark appears next to the setting, show-
ing that the setting has been selected.
Vehicle Info (Customer Information
Features)
Press and release the UP or DOWN button until
“Vehicle Info” displays highlighted in the EVIC
and press the SELECT button. Press the UP
and DOWN button to scroll through the avail-
able information displays, then press SELECT
to display any one of the following choices.
•
Oil Temp (If Equipped)
Displays the actual oil temperature.
• Oil Pressure (If Equipped)
Displays the actual oil pressure.
• Coolant Temp
Displays the actual coolant temperature. •
Trans Temperature
Displays the actual transmission temperature
when the shift lever is in the Drive position.
• Engine Hours
Displays the number of hours of engine operation.
Tire PSI or Tire KPAPress and release the UP or DOWN button until
“Tire PSI” or “Tire KPA” displays highlighted in
the EVIC and press the SELECT button. Press
and release the UP/DOWN buttons until one of
the following System Status messages displays
in the EVIC:
•System OK
• System Warnings Displayed (will display all
currently active System Warnings)
• Tire Pressure Monitor System (shows the
current pressure of all four road tires). For
additional information, refer to “Tire Pressure
Monitor System” in “Starting And Operating”.
180

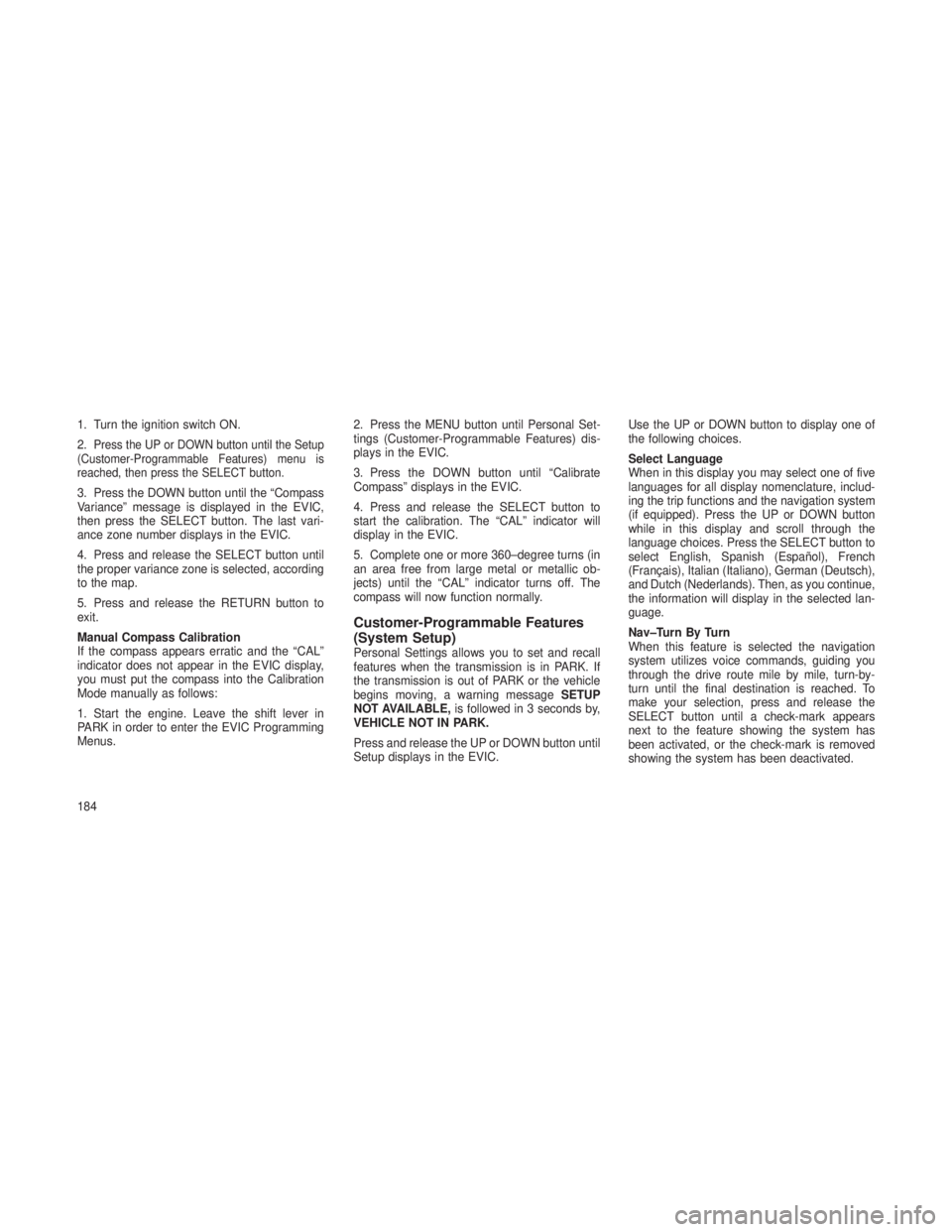

1. Turn the ignition switch ON.
2.
Press the UP or DOWN button until the Setup
(Customer-Programmable Features) menu is
reached, then press the SELECT button.
3. Press the DOWN button until the “Compass
Variance” message is displayed in the EVIC,
then press the SELECT button. The last vari-
ance zone number displays in the EVIC.
4. Press and release the SELECT button until
the proper variance zone is selected, according
to the map.
5. Press and release the RETURN button to
exit.
Manual Compass Calibration
If the compass appears erratic and the “CAL”
indicator does not appear in the EVIC display,
you must put the compass into the Calibration
Mode manually as follows:
1. Start the engine. Leave the shift lever in
PARK in order to enter the EVIC Programming
Menus. 2. Press the MENU button until Personal Set-
tings (Customer-Programmable Features) dis-
plays in the EVIC.
3. Press the DOWN button until “Calibrate
Compass” displays in the EVIC.
4. Press and release the SELECT button to
start the calibration. The “CAL” indicator will
display in the EVIC.
5. Complete one or more 360–degree turns (in
an area free from large metal or metallic ob-
jects) until the “CAL” indicator turns off. The
compass will now function normally.
Customer-Programmable Features
(System Setup)
Personal Settings allows you to set and recall
features when the transmission is in PARK. If
the transmission is out of PARK or the vehicle
begins moving, a warning message
SETUP
NOT AVAILABLE, is followed in 3 seconds by,
VEHICLE NOT IN PARK.
Press and release the UP or DOWN button until
Setup displays in the EVIC. Use the UP or DOWN button to display one of
the following choices.
Select Language
When in this display you may select one of five
languages for all display nomenclature, includ-
ing the trip functions and the navigation system
(if equipped). Press the UP or DOWN button
while in this display and scroll through the
language choices. Press the SELECT button to
select English, Spanish (Español), French
(Français), Italian (Italiano), German (Deutsch),
and Dutch (Nederlands). Then, as you continue,
the information will display in the selected lan-
guage.
Nav–Turn By Turn
When this feature is selected the navigation
system utilizes voice commands, guiding you
through the drive route mile by mile, turn-by-
turn until the final destination is reached. To
make your selection, press and release the
SELECT button until a check-mark appears
next to the feature showing the system has
been activated, or the check-mark is removed
showing the system has been deactivated.
184

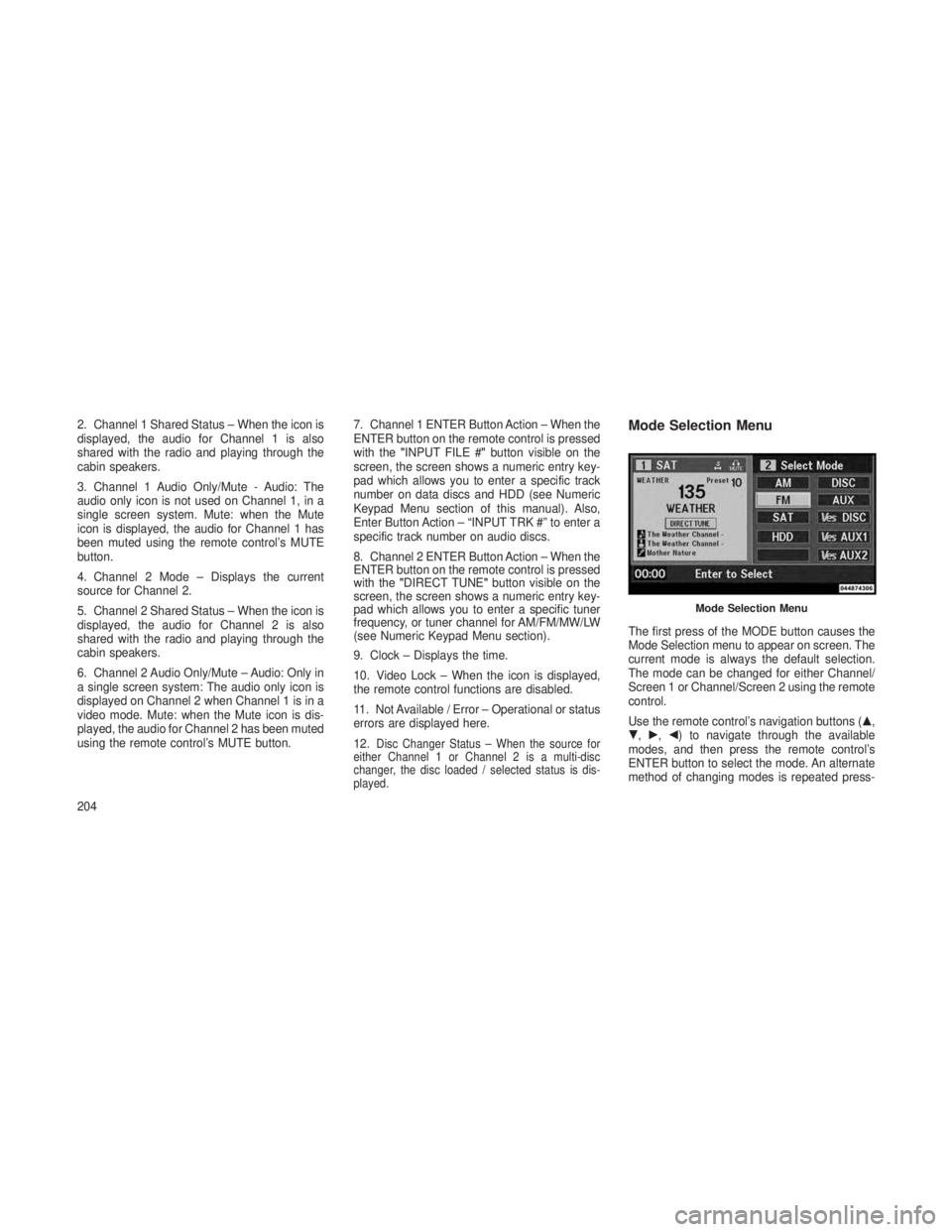

2. Channel 1 Shared Status – When the icon is
displayed, the audio for Channel 1 is also
shared with the radio and playing through the
cabin speakers.
3. Channel 1 Audio Only/Mute - Audio: The
audio only icon is not used on Channel 1, in a
single screen system. Mute: when the Mute
icon is displayed, the audio for Channel 1 has
been muted using the remote control’s MUTE
button.
4. Channel 2 Mode – Displays the current
source for Channel 2.
5. Channel 2 Shared Status – When the icon is
displayed, the audio for Channel 2 is also
shared with the radio and playing through the
cabin speakers.
6. Channel 2 Audio Only/Mute – Audio: Only in
a single screen system: The audio only icon is
displayed on Channel 2 when Channel 1 is in a
video mode. Mute: when the Mute icon is dis-
played, the audio for Channel 2 has been muted
using the remote control’s MUTE button.7. Channel 1 ENTER Button Action – When the
ENTER button on the remote control is pressed
with the
"INPUT FILE #" button visible on the
screen, the screen shows a numeric entry key-
pad which allows you to enter a specific track
number on data discs and HDD (see Numeric
Keypad Menu section of this manual). Also,
Enter Button Action – “INPUT TRK #” to enter a
specific track number on audio discs.
8. Channel 2 ENTER Button Action – When the
ENTER button on the remote control is pressed
with the "DIRECT TUNE" button visible on the
screen, the screen shows a numeric entry key-
pad which allows you to enter a specific tuner
frequency, or tuner channel for AM/FM/MW/LW
(see Numeric Keypad Menu section).
9. Clock – Displays the time.
10. Video Lock – When the icon is displayed,
the remote control functions are disabled.
11. Not Available / Error – Operational or status
errors are displayed here.
12.
Disc Changer Status – When the source for
either Channel 1 or Channel 2 is a multi-disc
changer, the disc loaded / selected status is dis-
played.
Mode Selection Menu
The first press of the MODE button causes the
Mode Selection menu to appear on screen. The
current mode is always the default selection.
The mode can be changed for either Channel/
Screen 1 or Channel/Screen 2 using the remote
control.
Use the remote control’s navigation buttons ( ,
, ,) to navigate through the available
modes, and then press the remote control’s
ENTER button to select the mode. An alternate
method of changing modes is repeated press-
Mode Selection Menu
204

ing of the MODE button until the desired mode
is highlighted then press the ENTER button on
the remote control to select the mode.
In a single screen system, when a video mode
(such as DVD-video, Aux video, etc.) is active
and Channel/Screen 1 is selected using the
remote control selector switch, the first press of
the remote control’s MODE button causes the
Mode Selection menu to appear.

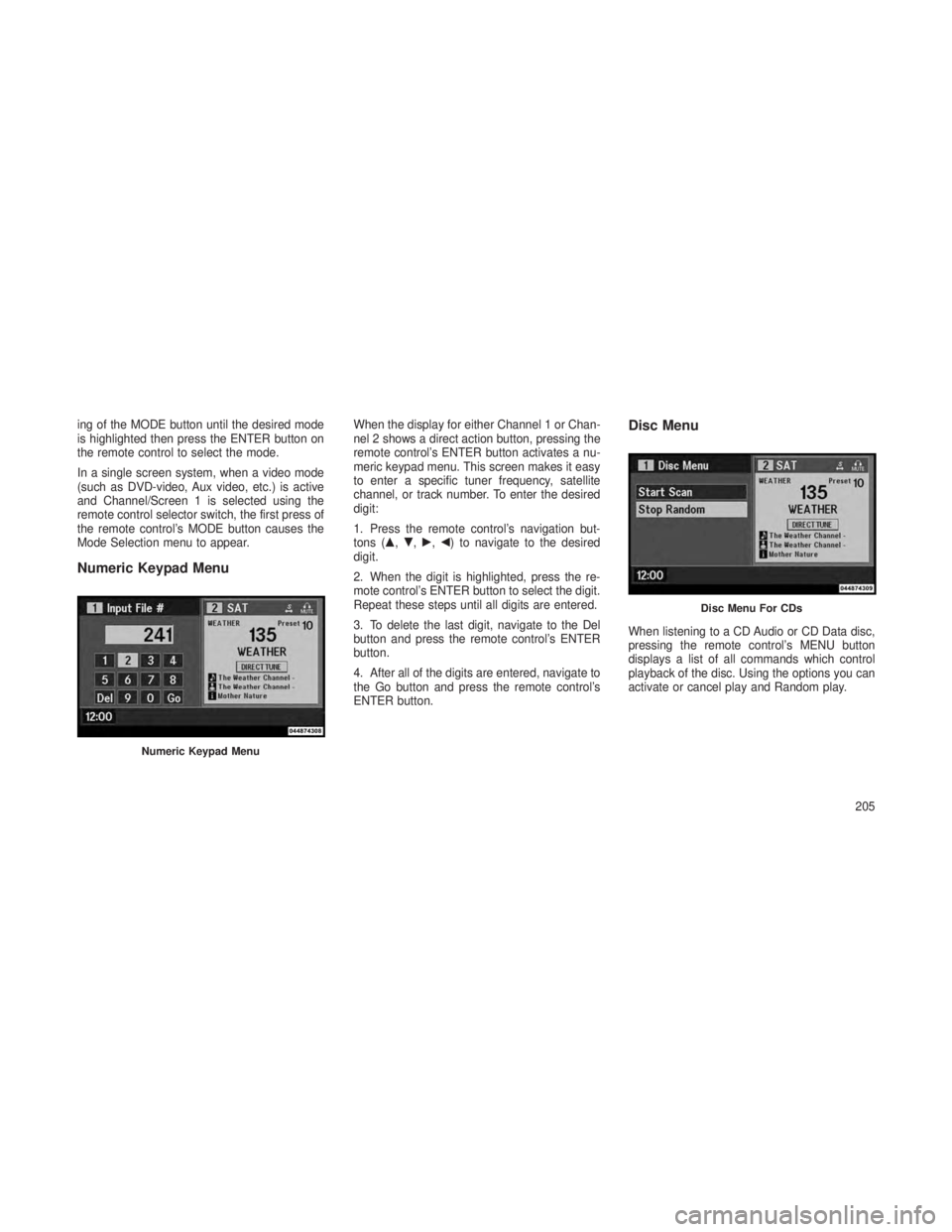

Numeric Keypad Menu
When the display for either Channel 1 or Chan-
nel 2 shows a direct action button, pressing the
remote control’s ENTER button activates a nu-
meric keypad menu. This screen makes it easy
to enter a specific tuner frequency, satellite
channel, or track number. To enter the desired
digit:
1. Press the remote control’s navigation but-
tons (,,,) to navigate to the desired
digit.
2. When the digit is highlighted, press the re-
mote control’s ENTER button to select the digit.
Repeat these steps until all digits are entered.
3. To delete the last digit, navigate to the Del
button and press the remote control’s ENTER
button.
4. After all of the digits are entered, navigate to
the Go button and press the remote control’s
ENTER button.Disc Menu
When listening to a CD Audio or CD Data disc,
pressing the remote control’s MENU button
displays a list of all commands which control
playback of the disc. Using the options you can
activate or cancel play and Random play.
Numeric Keypad Menu
Disc Menu For CDs
205
