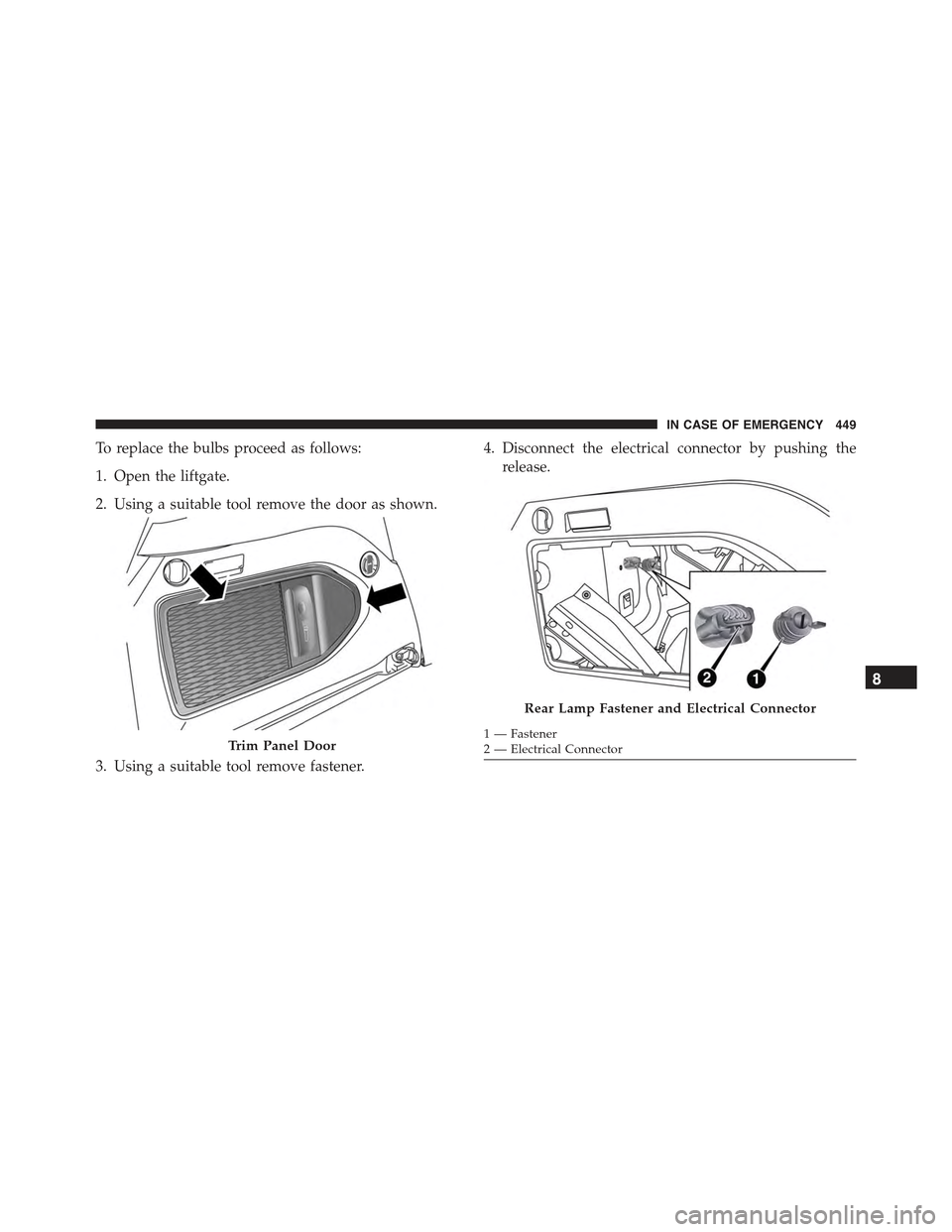

To replace the bulbs proceed as follows:
1. Open the liftgate.
2. Using a suitable tool remove the door as shown.
3. Using a suitable tool remove fastener.
4. Disconnect the electrical connector by pushing the
release.
Trim Panel Door
Rear Lamp Fastener and Electrical Connector
1 — Fastener2 — Electrical Connector
8
IN CASE OF EMERGENCY 449

5. Remove the rear tail lamp, sliding it toward the
outside as shown.
6. Unscrew the screws and remove the rear tail lamp
holder.
Tail Lamp Removal
Rear Lamp Assembly
1—MountingScrews
450 IN CASE OF EMERGENCY

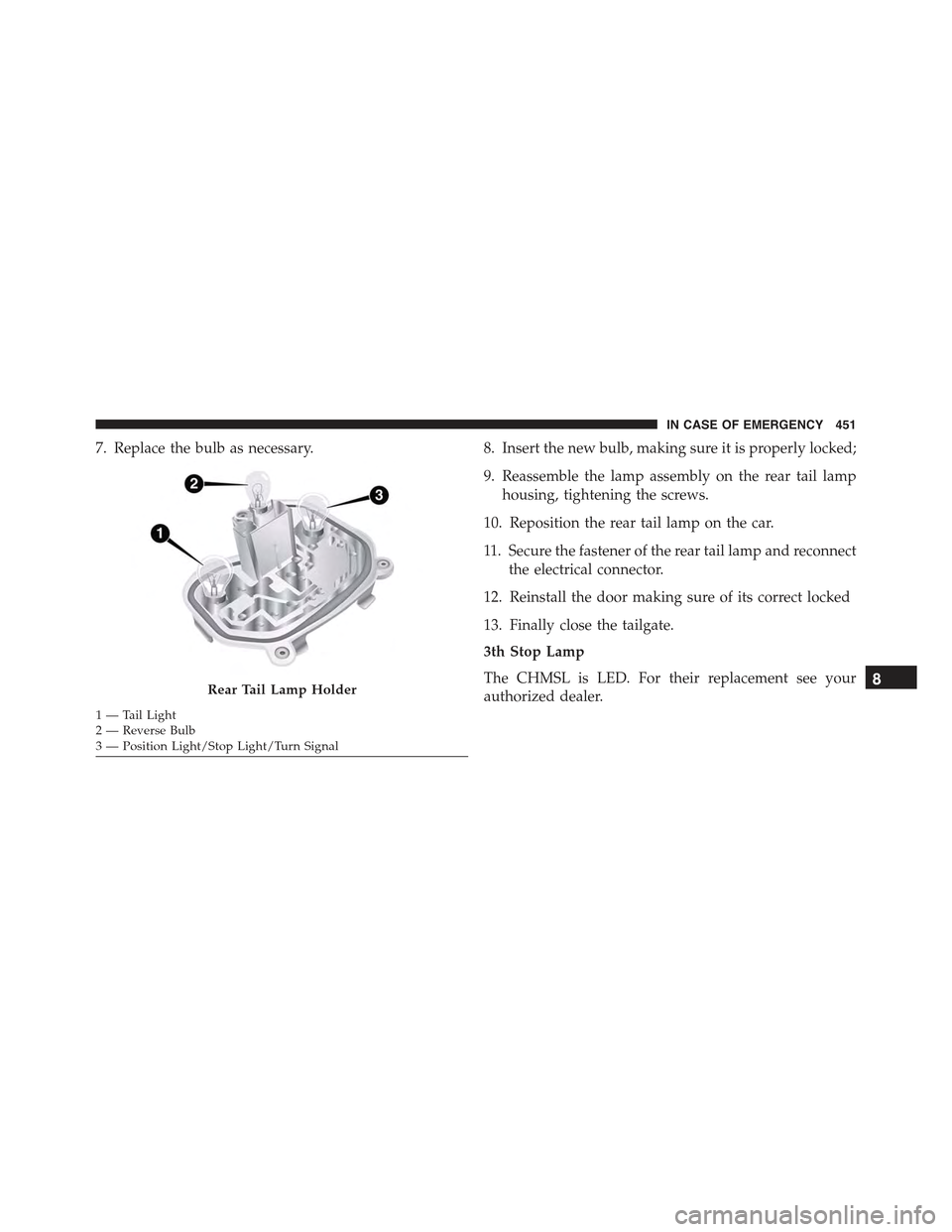

7. Replace the bulb as necessary.8. Insert the new bulb, making sure it is properly locked;
9. Reassemble the lamp assembly on the rear tail lamp
housing, tightening the screws.
10. Reposition the rear tail lamp on the car.
11. Secure the fastener of the rear tail lamp and reconnect
the electrical connector.
12. Reinstall the door making sure of its correct locked
13. Finally close the tailgate.
3th Stop Lamp
The CHMSL is LED. For their replacement see your
authorized dealer.Rear Tail Lamp Holder
1—TailLight2 — Reverse Bulb3—PositionLight/StopLight/TurnSignal
8
IN CASE OF EMERGENCY 451

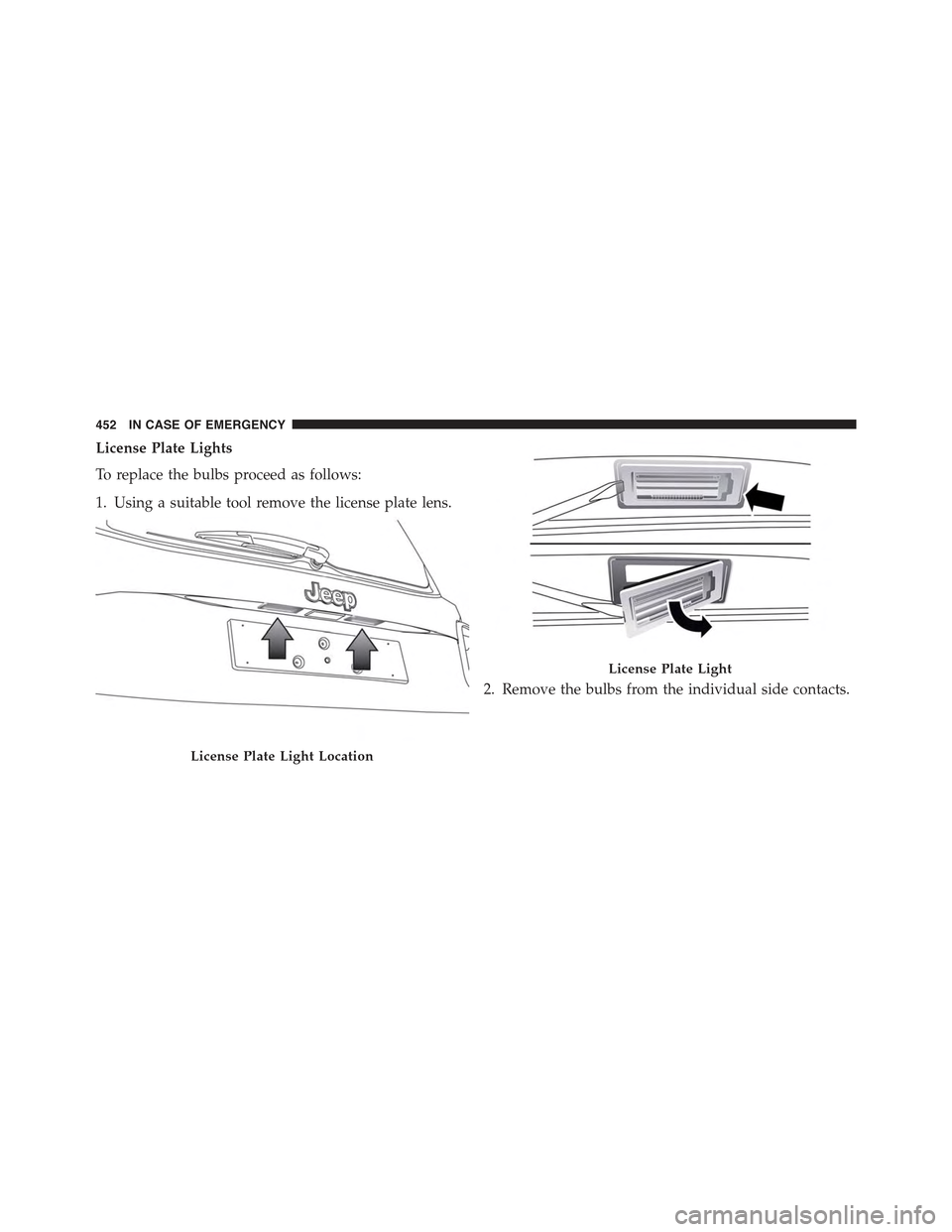

License Plate Lights
To replace the bulbs proceed as follows:
1. Using a suitable tool remove the license plate lens.
2. Remove the bulbs from the individual side contacts.
License Plate Light Location
License Plate Light
452 IN CASE OF EMERGENCY

3. Insert the new bulbs, and ensure that they are properly
locked between the contacts.
4. Reinstall the license plate lens.
NOTE:If removal the license plate lens using a screw-
driver, be sure to cover the tip of the screwdriver with a
cloth so no damage is done to the lenses or the vehicle
paint.

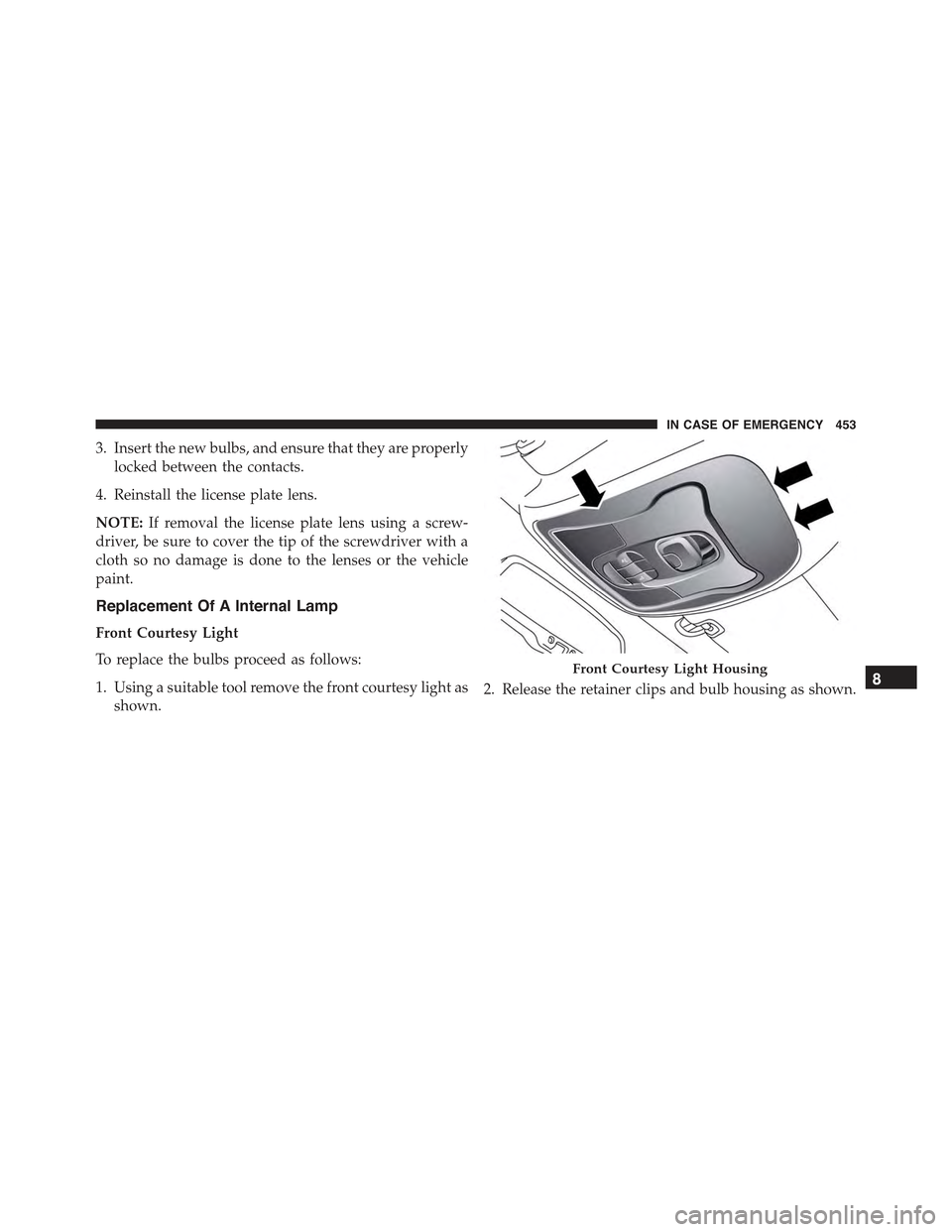

Replacement Of A Internal Lamp
Front Courtesy Light
To replace the bulbs proceed as follows:
1. Using a suitable tool remove the front courtesy light as
shown.
2. Release the retainer clips and bulb housing as shown.
Front Courtesy Light Housing8
IN CASE OF EMERGENCY 453

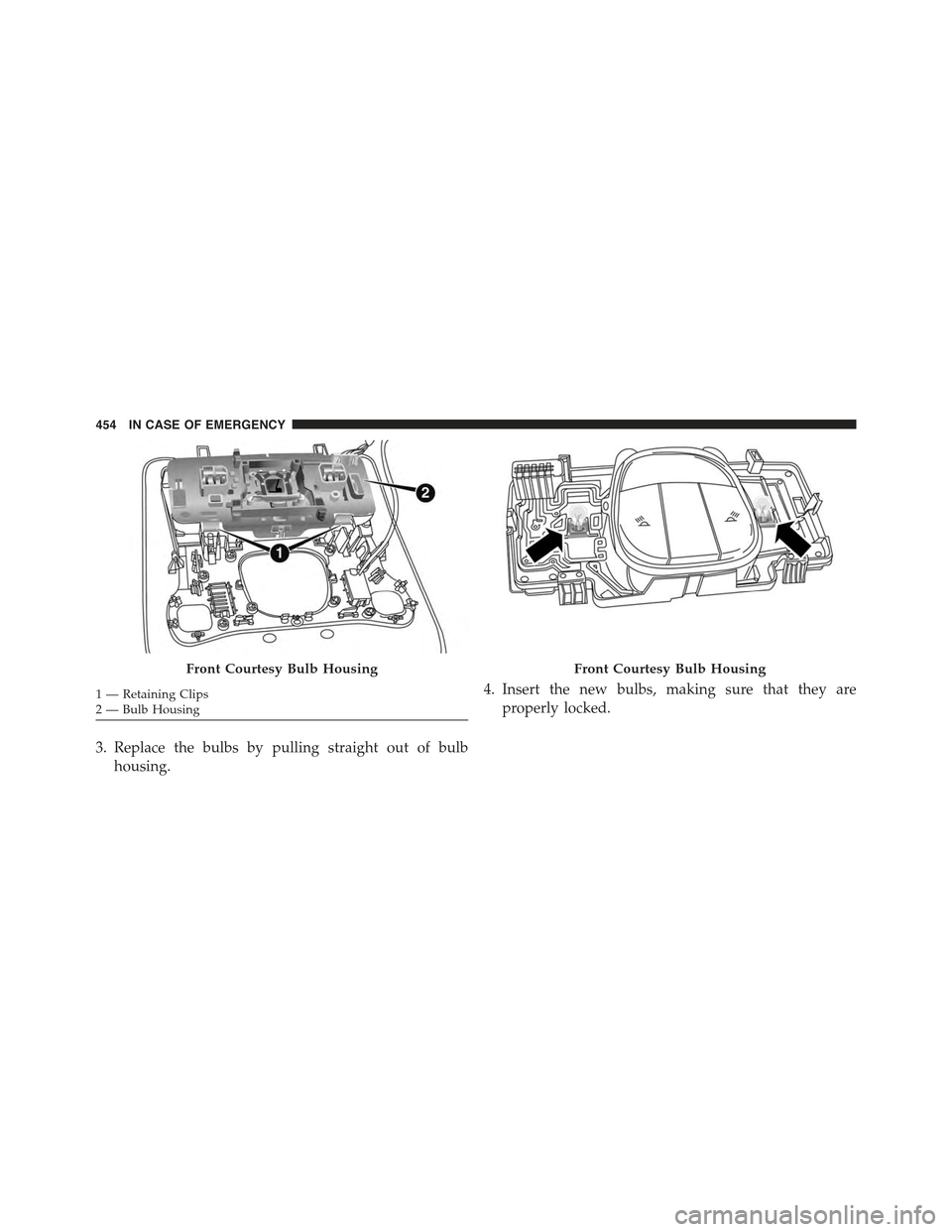

3. Replace the bulbs by pulling straight out of bulb
housing.
4. Insert the new bulbs, making sure that they are
properly locked.
Front Courtesy Bulb Housing
1 — Retaining Clips2—BulbHousing
Front Courtesy Bulb Housing
454 IN CASE OF EMERGENCY

5. Reassemble the bulb housing and courtesy light hous-
ing making sure that they are properly locked.
6. Install the front courtesy light making sure that it is
properly locked.

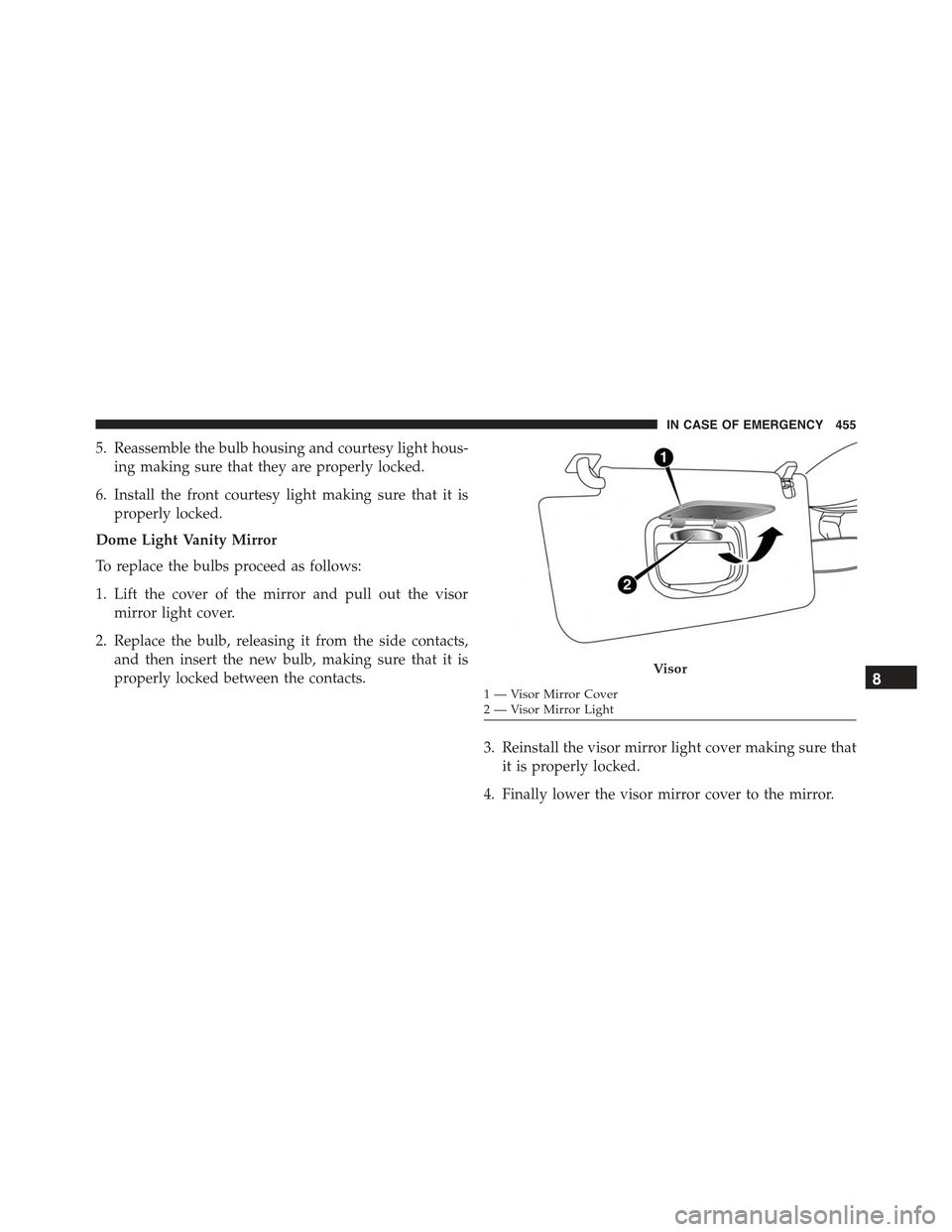

Dome Light Vanity Mirror
To replace the bulbs proceed as follows:
1. Lift the cover of the mirror and pull out the visor
mirror light cover.
2. Replace the bulb, releasing it from the side contacts,
and then insert the new bulb, making sure that it is
properly locked between the contacts.
3. Reinstall the visor mirror light cover making sure that
it is properly locked.
4. Finally lower the visor mirror cover to the mirror.
Visor
1—VisorMirrorCover2—VisorMirrorLight
8
IN CASE OF EMERGENCY 455

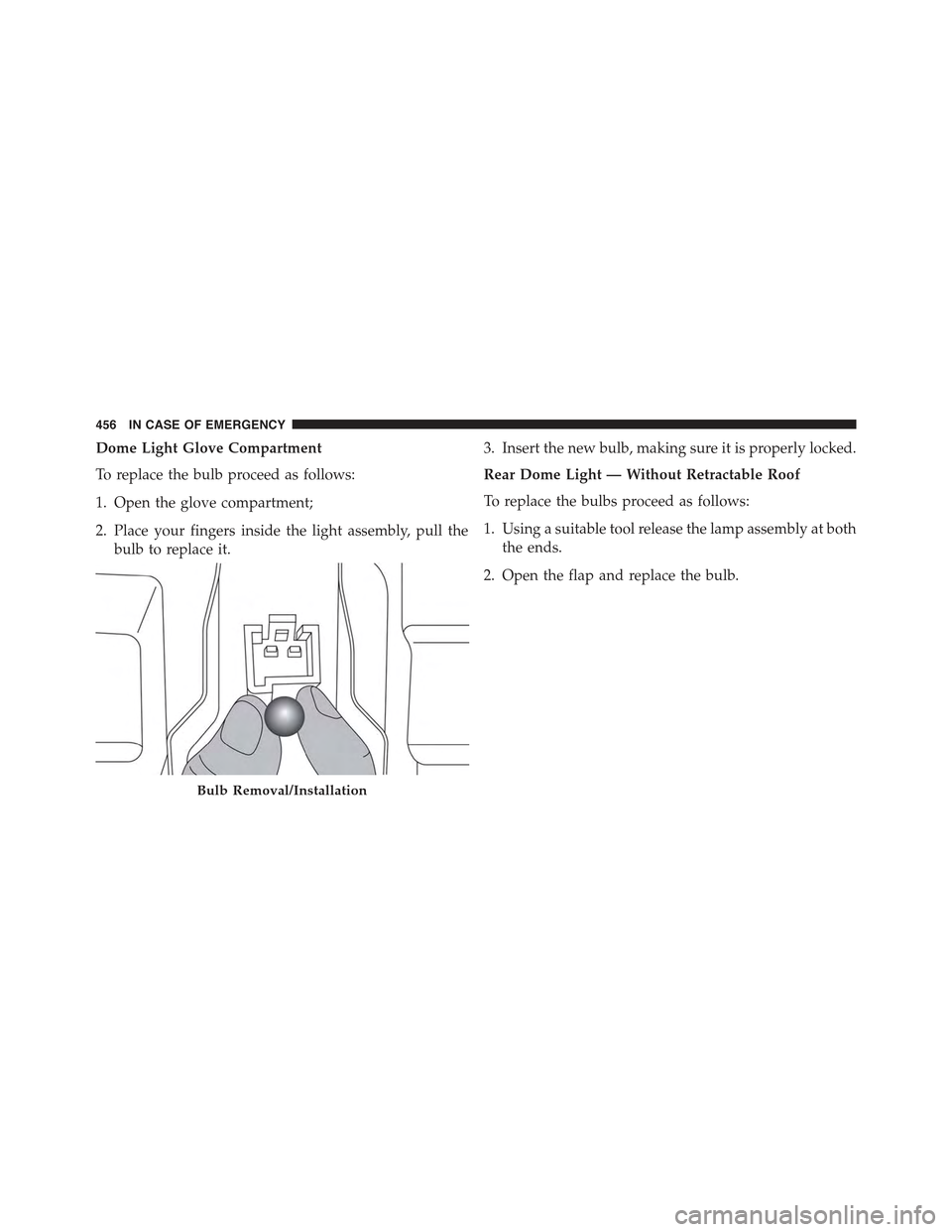

Dome Light Glove Compartment
To replace the bulb proceed as follows:
1. Open the glove compartment;
2. Place your fingers inside the light assembly, pull the
bulb to replace it.
3. Insert the new bulb, making sure it is properly locked.
Rear Dome Light — Without Retractable Roof
To replace the bulbs proceed as follows:
1. Using a suitable tool release the lamp assembly at both
the ends.
2. Open the flap and replace the bulb.
Bulb Removal/Installation
456 IN CASE OF EMERGENCY

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.

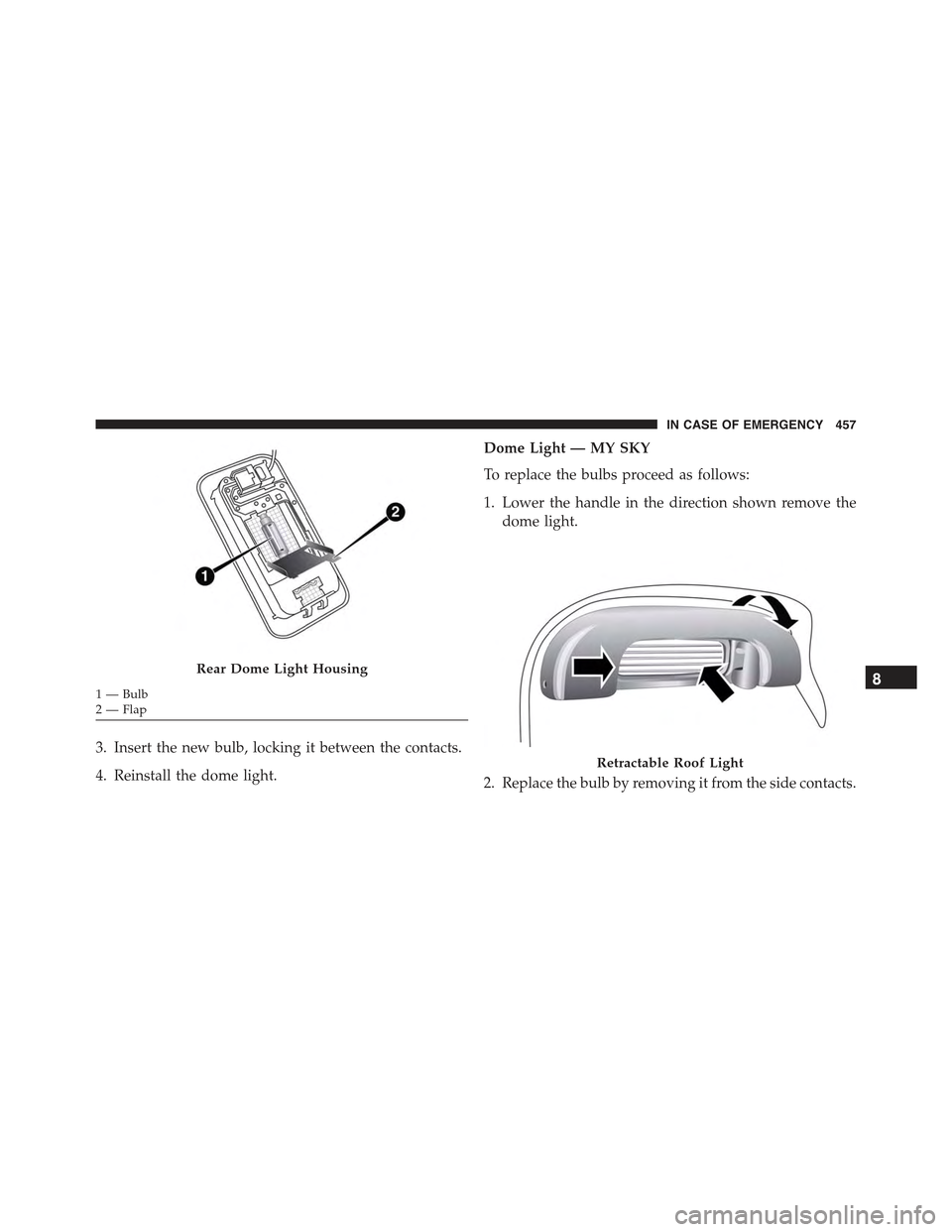

Dome Light — MY SKY
To replace the bulbs proceed as follows:
1. Lower the handle in the direction shown remove the
dome light.
2. Replace the bulb by removing it from the side contacts.
Rear Dome Light Housing
1—Bulb2 — Flap
Retractable Roof Light
8
IN CASE OF EMERGENCY 457

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.

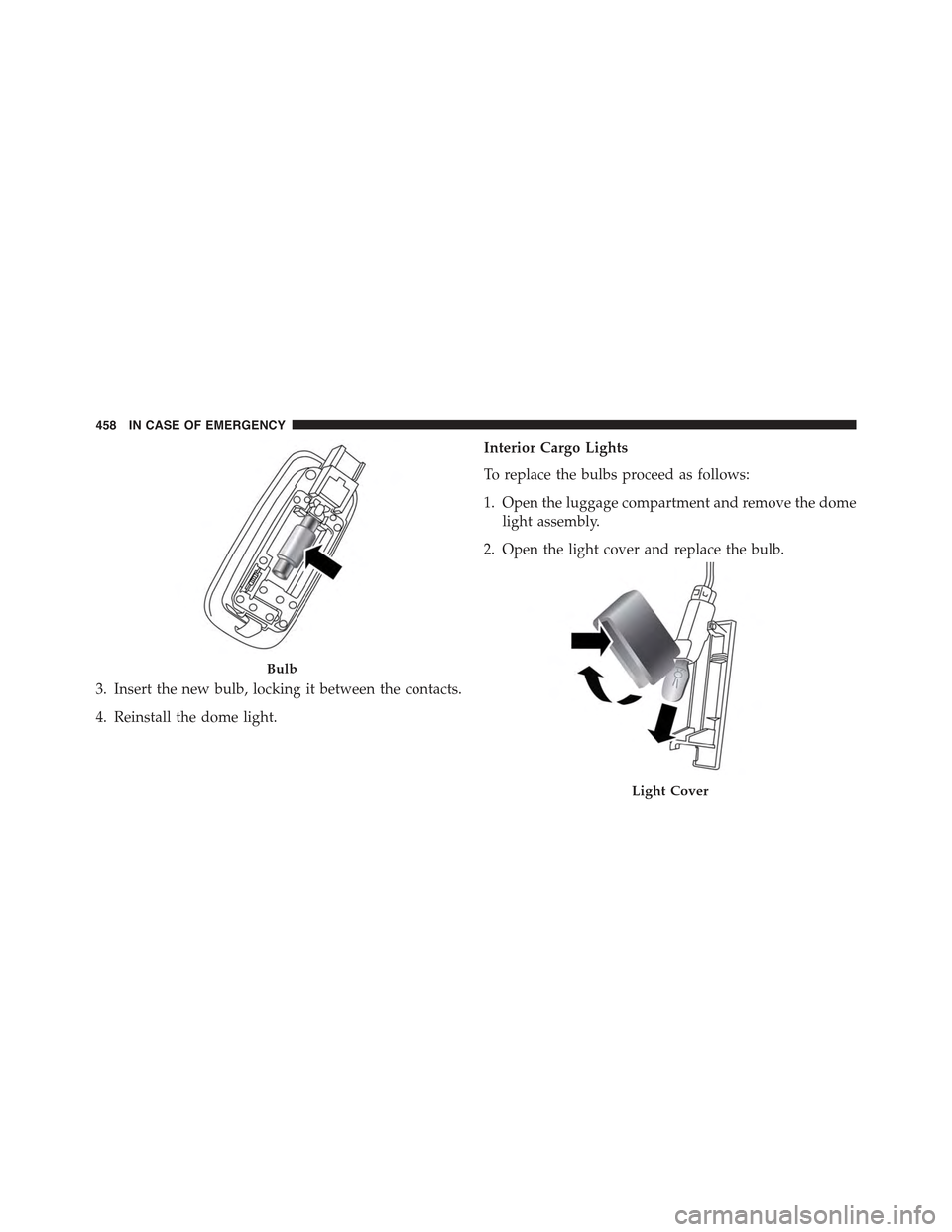

Interior Cargo Lights
To replace the bulbs proceed as follows:
1. Open the luggage compartment and remove the dome
light assembly.
2. Open the light cover and replace the bulb.
Bulb
Light Cover
